Каталог
ЕвропаМодель
TOYOACEДвигатель
1,6 литраКузов
LOW DECK (STANDARD DECK)Фрейм
RY12Опции
правый руль STEEL-MADE DECK 1.5 TONNE

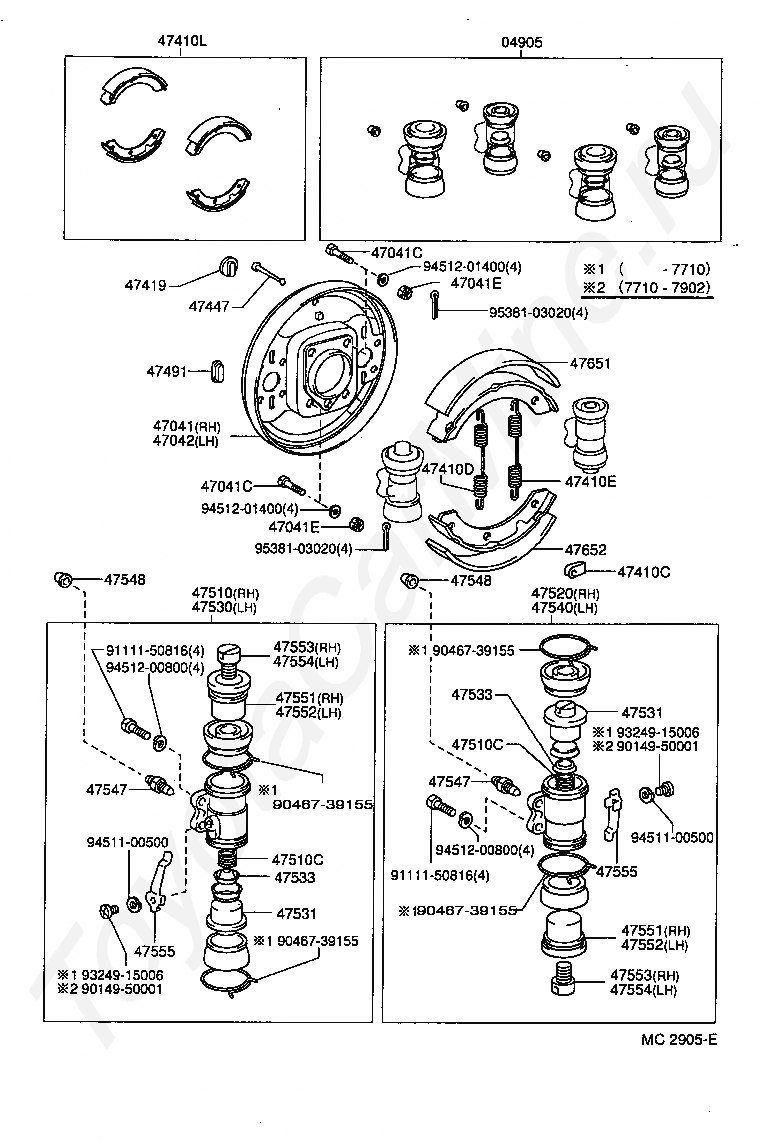

Код
Описание
47041
PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041C
BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
47041E
NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
47042
PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47410C
SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47410D
SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410E
SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410L
SHOE KIT, FRONT BRAKE
47419
PLUG, HOLE(FOR FRONT BRAKE)
47447
PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47491
PLUG, HOLE(FOR FRONT BRAKE)
47510
CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47510C
SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)
47510L
CUP KIT, FRONT WHEEL CYLINDER
47520
CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47530
CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47531
PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)
47533
SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)
47540
CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47547
PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47548
CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47551
NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47552
NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47553
BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47554
BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47555
SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47651
LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
47652
LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
9015450028
Крепеж
9111150816
Крепеж
9451100500
Крепеж
9451200800
Крепеж
9451201400
Крепеж
9538103028
Крепеж

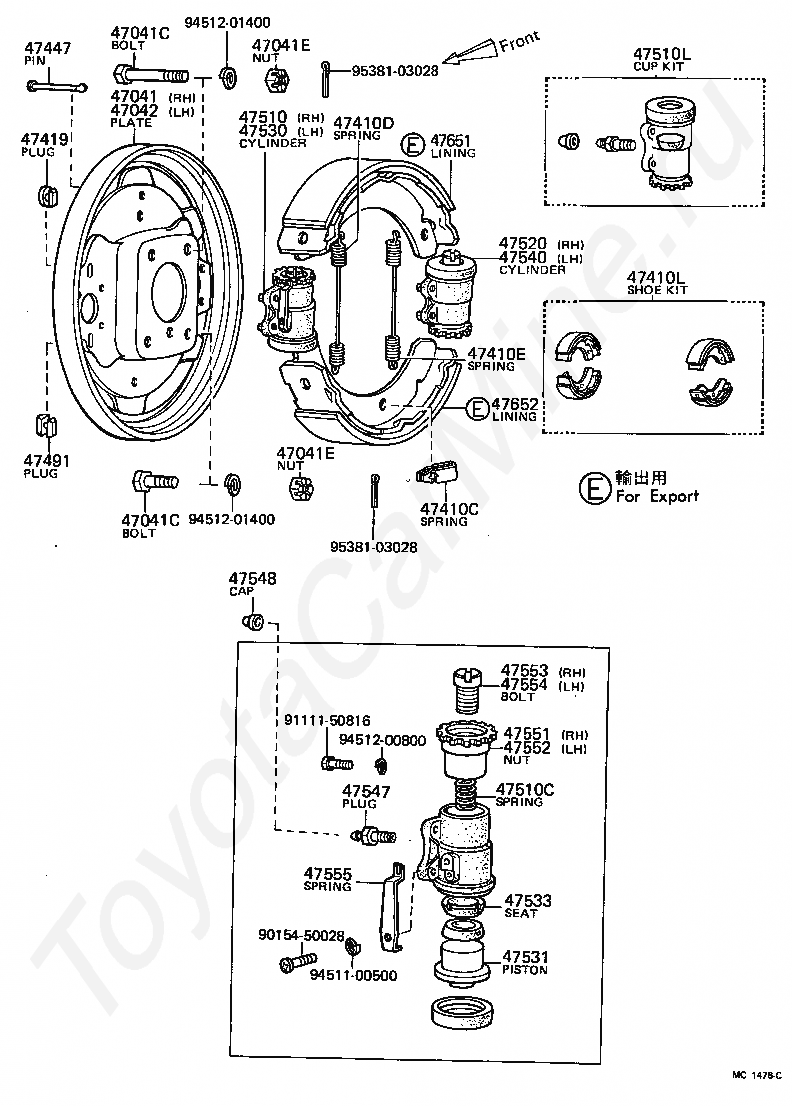

Код
Описание
04905
CUP KIT, FRONT WHEEL CYLINDER
47041
PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041C
BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
47041E
NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
47042
PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47410C
SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47410D
SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410E
SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410L
SHOE KIT, FRONT BRAKE
47419
PLUG, HOLE(FOR FRONT BRAKE)
47447
PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47491
PLUG, HOLE(FOR FRONT BRAKE)
47510
CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47510C
SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)
47520
CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47530
CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47531
PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)
47533
SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)
47540
CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47547
PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47548
CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47551
NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47552
NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47553
BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47554
BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47555
SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47651
LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
47652
LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
9014950001
Крепеж
9046739155
Крепеж
9111150816
Крепеж
9324915006
Крепеж
9451100500
Крепеж
9451200800
Крепеж
9451201400
Крепеж
9538103020
Крепеж
