Каталог
ЕвропаМодель
TOYOACEДвигатель
2,4 литра, дизельКузов
DOUBLE CAB TRUCKФрейм
LY31Трансмиссия
МКПП, 5 скоростей, на рулеОпции
правый руль SINGAPORE TAXI ENGINE NO.=0XXXXXX-5XXXXXX COMPLETED VEHICLE Австралия

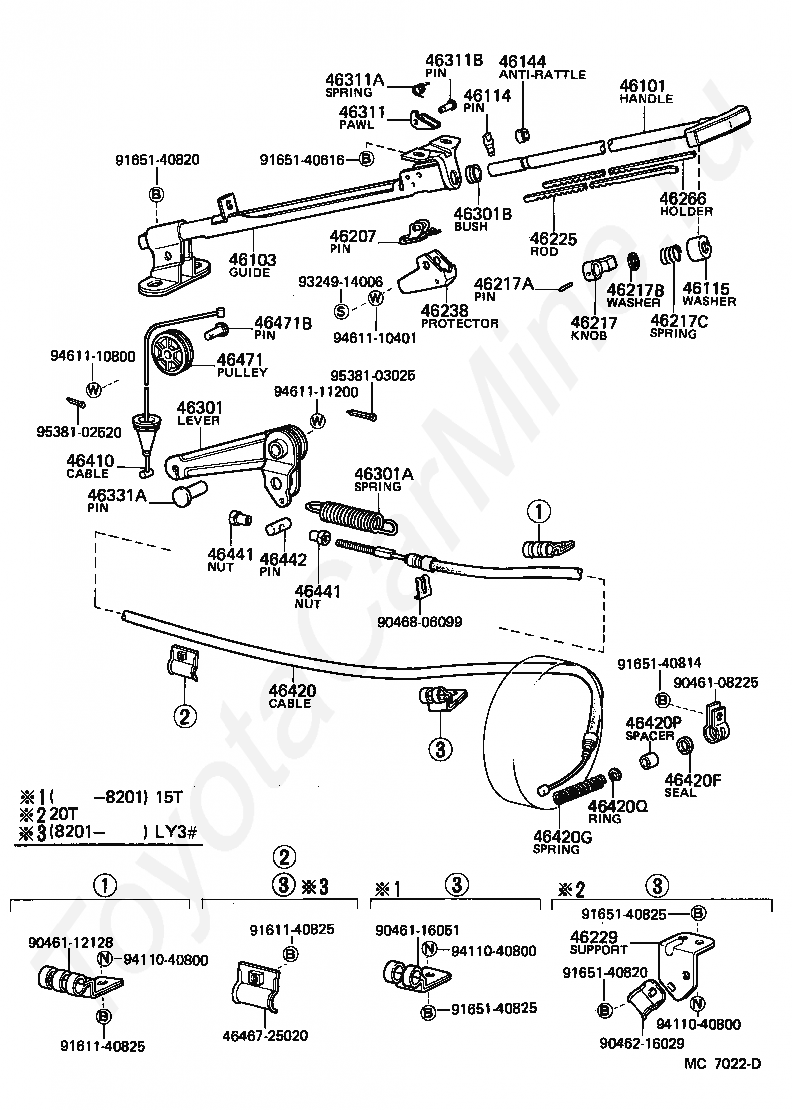

Код
Описание
46101
HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46103
GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46114
PIN, PARKING BRAKE PLUNGER
46144
ANTI-RATTLE, PARKING BRAKE PLUNGER
46229
SUPPORT, PARKING BRAKE CABLE GUIDE
46275
PLATE, PARKING BRAKE RELEASE CAUTION
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301A
SPRING, TENSION(FOR INTERMEDIATE LEVER)
46301B
BUSH(FOR INTERMEDIATE LEVER)
46311
PAWL, PARKING BRAKE
46311A
SPRING(FOR PARKING BRAKE PAWL)
46311B
PIN, PARKING BRAKE PAWL PIVOT
46331A
PIN, W/HOLE(FOR INTERMEDIATE LEVER PULL ROD)
46410
CABLE ASSY, PARKING BRAKE, NO.1
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420F
SEAL, DUST(FOR PARKING BRAKE CABLE)
46420G
SPRING(FOR PARKING CABLE INNER WIRE SET)
46420P
SPACER, PARKING BRAKE
46420Q
RING, E(FOR PARKING BRAKE CABLE)
46441
NUT, WIRE ADJUSTING, NO.1
46442
PIN, WIRE PIVOT
4646725020
Крепеж
46471
PULLEY, WIRE
46471B
PIN, W/HOLE(FOR WIRE PULLEY SET)
9046108225
Крепеж
9046112128
Крепеж
9046116051
Крепеж
9046216029
Крепеж
9046806099
Крепеж
9161160825
Крепеж
9165140616
Крепеж
9165140814
Крепеж
9165140820
Крепеж
9165140825
Крепеж
9411040800
Крепеж
9461110800
Крепеж
9461111200
Крепеж
9461111400
Крепеж
9538102520
Крепеж
9538103025
Крепеж
9538103030
Крепеж
Код
Описание
46101
HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46103
GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46114
PIN, PARKING BRAKE PLUNGER
46115
WASHER, PARKING BRAKE PLUNGER
46144
ANTI-RATTLE, PARKING BRAKE PLUNGER
46207
PIN SUB-ASSY, PLUNGER LOCK
46217
KNOB, PARKING BRAKE RELEASE ROD
46217A
PIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB)
46217B
WASHER, PLATE(FOR PARKING BRAKE RELEASE ROD KNOB)
46217C
SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB)
46225
ROD, PARKING BRAKE PAWL RELEASE
46229
SUPPORT, PARKING BRAKE CABLE GUIDE
46238
PROTECTOR, PLUNGER LOCK PIN
46266
HOLDER, PLUNGER LOCK PIN
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301A
SPRING, TENSION(FOR INTERMEDIATE LEVER)
46301B
BUSH(FOR INTERMEDIATE LEVER)
46311
PAWL, PARKING BRAKE
46311A
SPRING(FOR PARKING BRAKE PAWL)
46311B
PIN, PARKING BRAKE PAWL PIVOT
46331A
PIN, W/HOLE(FOR INTERMEDIATE LEVER PULL ROD)
46410
CABLE ASSY, PARKING BRAKE, NO.1
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420F
SEAL, DUST(FOR PARKING BRAKE CABLE)
46420G
SPRING(FOR PARKING CABLE INNER WIRE SET)
46420P
SPACER, PARKING BRAKE
46420Q
RING, E(FOR PARKING BRAKE CABLE)
46441
NUT, WIRE ADJUSTING, NO.1
46442
PIN, WIRE PIVOT
4646725020
Крепеж
46471
PULLEY, WIRE
46471B
PIN, W/HOLE(FOR WIRE PULLEY SET)
9046108225
Крепеж
9046112128
Крепеж
9046116051
Крепеж
9046216029
Крепеж
9046806099
Крепеж
9161140825
Крепеж
9165140616
Крепеж
9165140814
Крепеж
9165140820
Крепеж
9165140825
Крепеж
9324914006
Крепеж
9411040800
Крепеж
9461110401
Крепеж
9461110800
Крепеж
9461111200
Крепеж
9538102520
Крепеж
9538103025
Крепеж
Код
Описание
46501
DRUM SUB-ASSY, PARKING BRAKE
46501A
BOLT, SERRATION(FOR PARKING BRAKE DRUM)
46506
ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46520
PLATE SUB-ASSY, PARKING BRAKE
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46555
SPRING, BRAKE SHOE HOLD DOWN
46556
PIN, SHOE HOLD DOWN SPRING
46577
COVER, ADJUSTING CAM HOLE
46601
LEVER SUB-ASSY, PARKING BRAKE SHOE
9010110470
Крепеж
9011910338
Крепеж
9161161018
Крепеж
9453101000
Крепеж
9461311200
Крепеж
