Кресла TOYOTA TOWN/MASTERACE V,WG, 1988/08 - 1992/01, 2 литра, турбо-дизель, фургон, D(MODEL MARK), CR21, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

TOWN/MASTERACE V,WG

Двигатель

2 литра, турбо-дизель

Кузов

фургон

Класс

D(MODEL MARK)

Фрейм

CR21

Трансмиссия

механика МКПП, 5 скоростей

Опции

MIDDLE ROOF 8-местный

Код

Описание

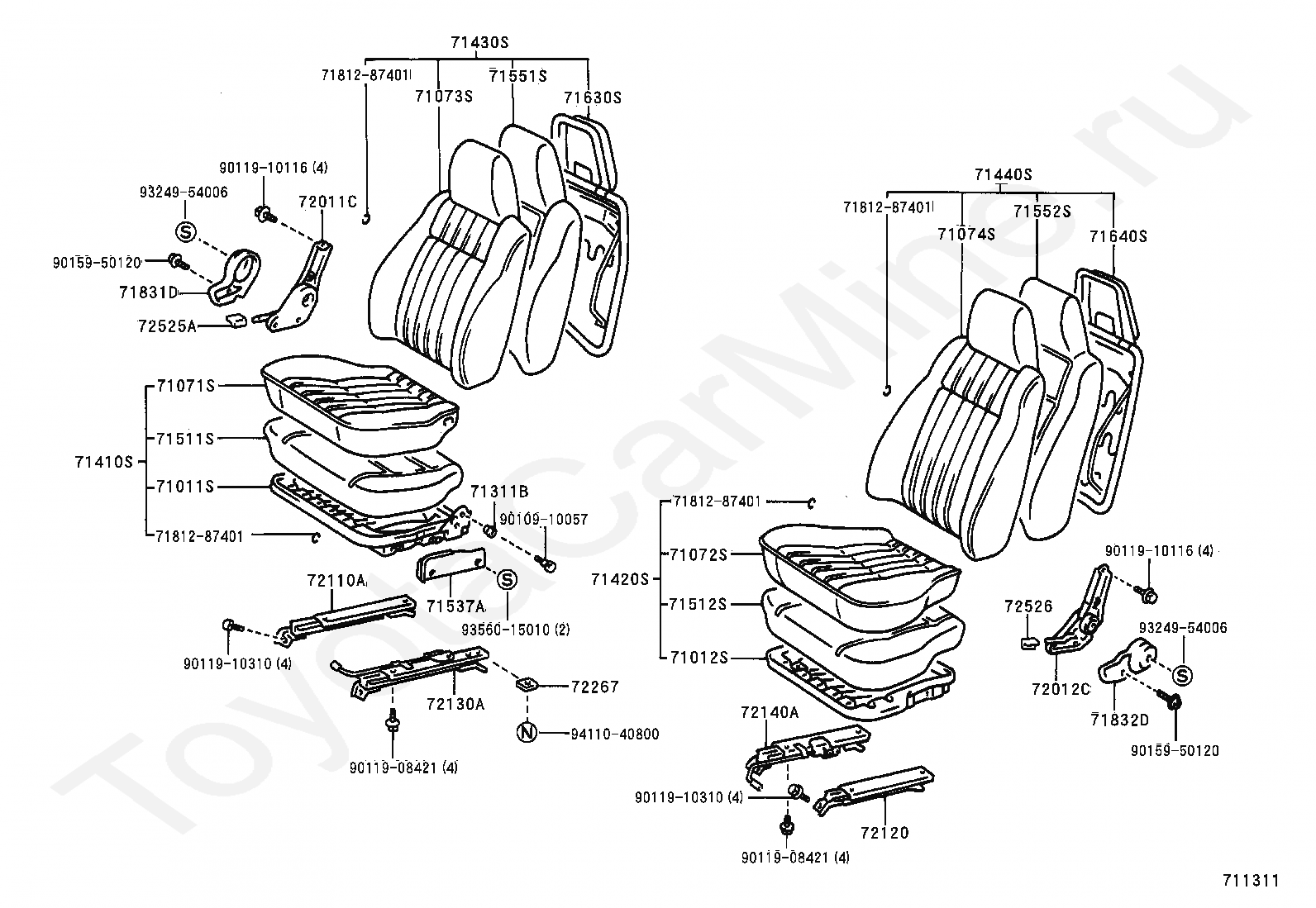

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7181287401

Крепеж

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72267

PLATE, SEAT TRACK STOP

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9010910057

Крепеж

9011908421

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9015950120

Крепеж

9324954006

Крепеж

9356015010

Крепеж

9411040800

Крепеж

Код

Описание

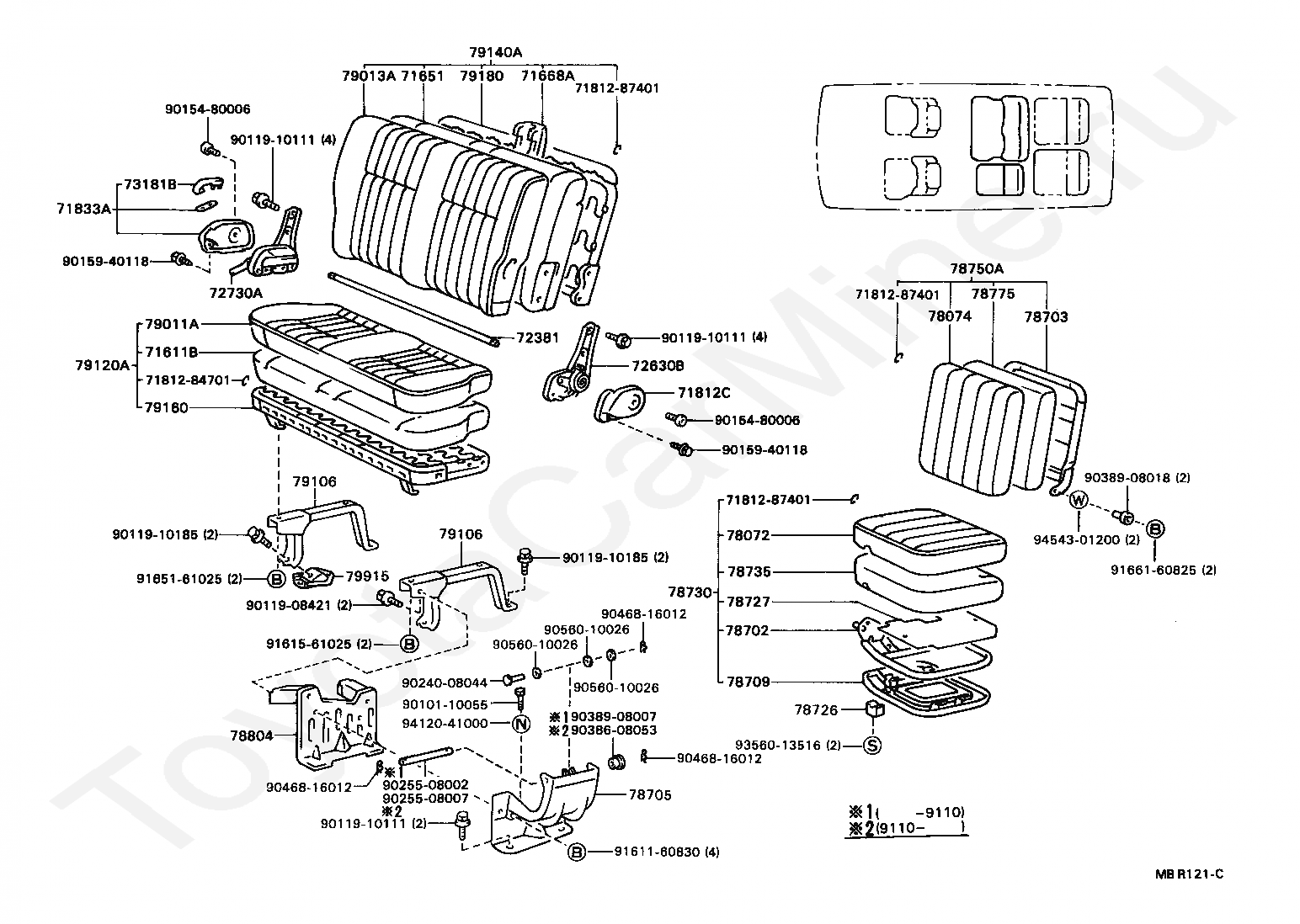

71611B

PAD, REAR NO.1 SEAT CUSHION

71651

PAD, REAR NO.1 SEAT BACK

71668A

PAD, RR SEAT BACK, CENTER B

7181284701

Крепеж

7181287401

Крепеж

71812C

COVER, RECLINING ADJUSTER, LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72630B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

73181B

GUIDE, FRONT SEAT LAP BELT, OUTER

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703

FRAME SUB-ASSY, SUB SEAT BACK

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78709

PANEL SUB-ASSY, SUB SEAT CUSHION

78726

CUSHION, SUB SEAT CUSHION FRAME

78727

BOARD, SUB SEAT CUSHION

78730

CUSHION ASSY, SUB SEAT, LH

78735

PAD, SUB SEAT CUSHION

78750A

BACK ASSY, SUB SEAT, LH

78775

PAD, SUB SEAT BACK

78804

LEG SUB ASSY, SUB SEAT CUSHION

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79106

LEG SUB ASSY, NO.1 SEAT, LH

79120A

CUSHION ASSY, NO.1 SEAT

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79180

SPRING ASSY, NO.1 SEAT BACK

79915

BRACKET, SEAT LEG

9010110055

Крепеж

9011908421

Крепеж

9011910111

Крепеж

9011910185

Крепеж

9015480006

Крепеж

9015940118

Крепеж

9024008044

Крепеж

9025508002

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038908007

Крепеж

9038908018

Крепеж

9046816012

Крепеж

9056010026

Крепеж

9161160830

Крепеж

9161561025

Крепеж

9165161025

Крепеж

9166160825

Крепеж

9356013516

Крепеж

9412041000

Крепеж

9454301200

Крепеж

Код

Описание

71257

PLATE, REAR SEAT BACK ANCHOR

71324A

CUSHION, REAR SEAT

71338A

PLATE, REAR SEAT LEG, NO.2

71339

PLATE, RR SEAT LEG, NO.3

71349B

COVER, REAR SEAT BACK STAY, RH

71369B

COVER, REAR SEAT BACK STAY, LH

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

71727B

TRIM, REAR SEAT CUSHION

7181287401

Крепеж

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72329

COVER, SEAT ADJUSTER BOLT

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72658B

KNOB, REAR SEAT LOCK HANDLE

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72691

STRIKER, REAR NO.3 SEAT LOCK

72727A

KNOB, REAR SEAT RECLINING CONTROL LEVER

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72927

COVER, REAR SEAT CUSHION UNDER, RH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79035

LEG SUB ASSY, NO.3 SEAT OUTER REAR, RH

79036

LEG SUB ASSY, NO.3 SEAT OUTER REAR, LH

79095

LEG SUB ASSY, NO.3 SEAT OUTER FRONT, RH

79096A

LEG SUB ASSY, NO.3 SEAT OUTER FRONT, LH

79305

LEG SUB-ASSY, NO.3 SEAT

79306

LEG SUB ASSY, NO.3 SEAT, LH

79320

CUSHION ASSY, NO.3 SEAT, RH

79330

CUSHION ASSY, NO.3 SEAT, LH

79335A

PAD, NO.3 SEAT CUSHION, RH

79340

BACK ASSY, NO.3 SEAT, RH

79345A

PAD, NO.3 SEAT CUSHION, LH

79350

BACK ASSY, NO.3 SEAT, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79374

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79384

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

9011910111

Крепеж

9011910392

Крепеж

9011910431

Крепеж

9011911011

Крепеж

9015960280

Крепеж

9016450020

Крепеж

9024906102

Крепеж

9024906150

Крепеж

9024908155

Крепеж

9038606065

Крепеж

9038612005

Крепеж

9050626018

Крепеж

9052304003

Крепеж

9052304004

Крепеж

9052306017

Крепеж

9161261020

Крепеж

9165161025

Крепеж

9321046025

Крепеж

9356055016

Крепеж

9616000800

Крепеж
