Кресла TOYOTA TOWN/MASTERACE V,WG, 1981/01 - 1982/10, 1,8 литра, фургон, SUPER EXTRA SPECIFICATION, TR15, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

TOWN/MASTERACE V,WG

Двигатель

1,8 литра

Кузов

фургон

Класс

SUPER EXTRA SPECIFICATION

Фрейм

TR15

Трансмиссия

механика МКПП, 5 скоростей

Опции

SUN ROOF 08S CBU

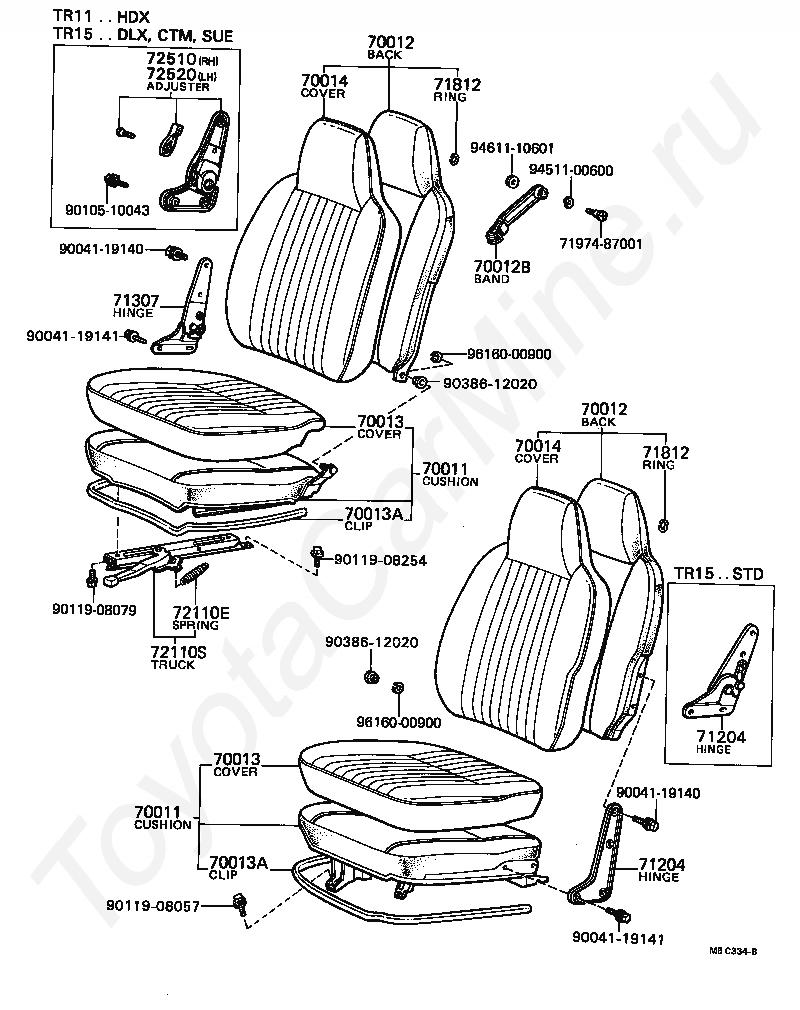

Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70012B

BAND, ENGINE SERVICE HOLE COVER SUPPORT

70013

COVER ASSY, NO.1 SEAT CUSHION

70013A

CLIP, LEATHER (FOR SEAT CUSHION COVER)

70014

COVER ASSY, NO.1 SEAT BACK

71204

HINGE SUB-ASSY, PASSENGER SEAT, LH

71307

HINGE SUB-ASSY, DRIVER SEAT, RH

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

7197487001

Крепеж

72110E

SPRING, TENSION, NO.1 (FOR SEAT TRACK)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

9004119140

Крепеж

9004119141

Крепеж

9010510043

Крепеж

9011908057

Крепеж

9011908079

Крепеж

9011908254

Крепеж

9038612020

Крепеж

9451100600

Крепеж

9461110601

Крепеж

9616000900

Крепеж

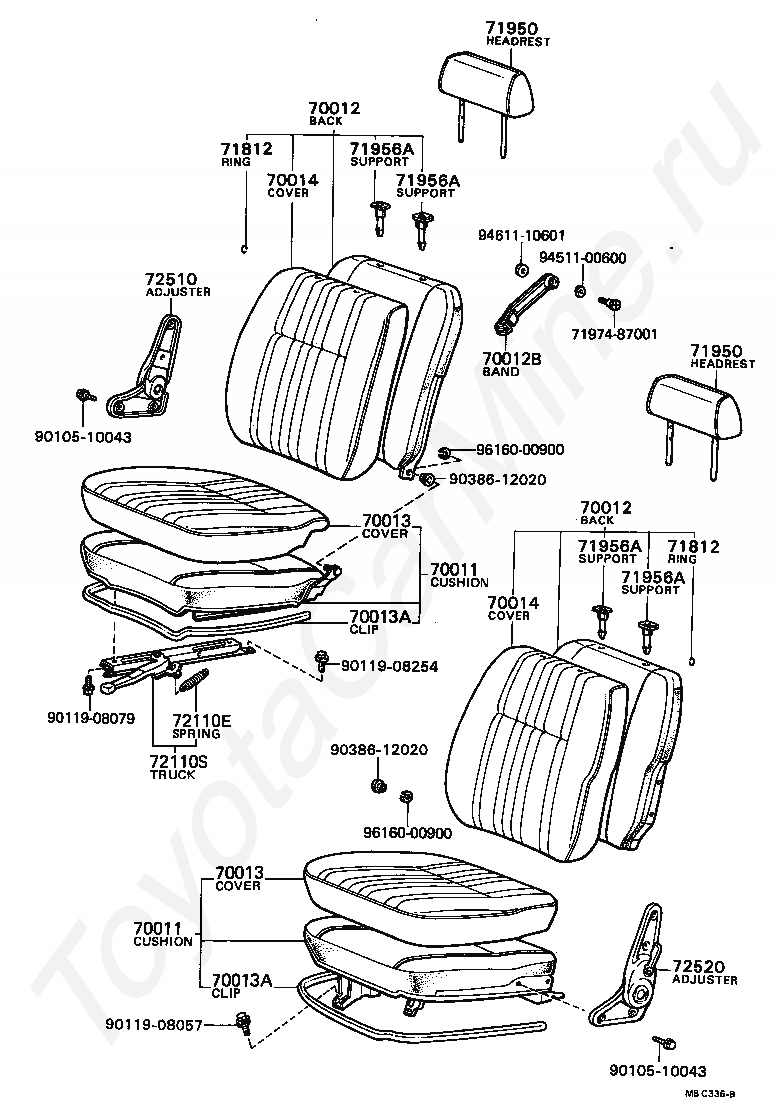

Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70012B

BAND, ENGINE SERVICE HOLE COVER SUPPORT

70013

COVER ASSY, NO.1 SEAT CUSHION

70013A

CLIP, LEATHER (FOR SEAT CUSHION COVER)

70014

COVER ASSY, NO.1 SEAT BACK

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

7197487001

Крепеж

72110E

SPRING, TENSION, NO.1 (FOR SEAT TRACK)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

9010510043

Крепеж

9011908057

Крепеж

9011908079

Крепеж

9011908254

Крепеж

9038612020

Крепеж

9451100600

Крепеж

9461110601

Крепеж

9616000900

Крепеж

Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70012B

BAND, ENGINE SERVICE HOLE COVER SUPPORT

70013

COVER ASSY, NO.1 SEAT CUSHION

70013A

CLIP, LEATHER (FOR SEAT CUSHION COVER)

70014

COVER ASSY, NO.1 SEAT BACK

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

7197487001

Крепеж

72110E

SPRING, TENSION, NO.1 (FOR SEAT TRACK)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

9010510043

Крепеж

9011908057

Крепеж

9011908079

Крепеж

9011908254

Крепеж

9038612020

Крепеж

9451100600

Крепеж

9461110601

Крепеж

9616000900

Крепеж

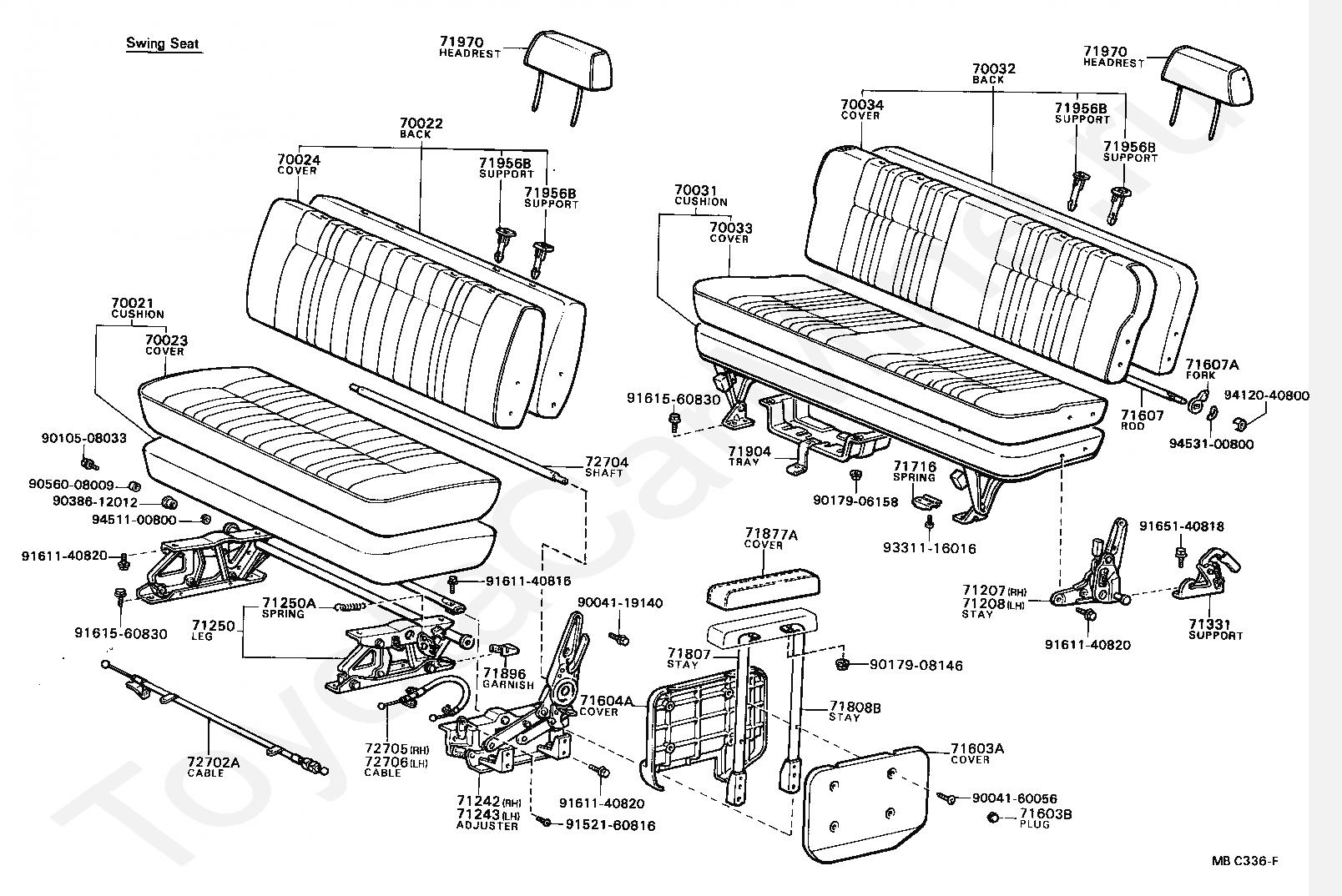

Код

Описание

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

70031

CUSHION ASSY, NO.3 SEAT

70032

BACK ASSY, NO.3 SEAT

70033

COVER ASSY, NO.3 SEAT CUSHION

70034

COVER ASSY, NO.3 SEAT BACK

71207

STAY ASSY, REAR SEAT BACK, RH

71208

STAY ASSY, REAR SEAT BACK, LH

71236

PACKING, REAR SEAT BACK FRAME HINGE, LOWER

71242

HINGE, PASSENGER SEAT BACK, RH

71243

HINGE, PASSENGER SEAT BACK, LH

71250

LEG ASSY, REAR NO.1 SEAT

71250A

SPRING, REAR NO.1 SEAT LEG

71331

SUPPORT, REAR SEAT CUSHION

71607

ROD SUB-ASSY, REAR NO.2 SEAT

71607A

FORK, REAR NO.2 SEAT RECLINING CONNECTING

71716

SPRING, JACK HANDLE SUPPORT

71904

TRAY SUB-ASSY, REAR SEAT HEADREST

71948

PROTECTOR, PASSENGER SEAT BACK

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

71970A

COVER, REAR SEAT HEADREST

9004119140

Крепеж

9010508033

Крепеж

9011908086

Крепеж

9015450032

Крепеж

9017906158

Крепеж

9038612012

Крепеж

9038612015

Крепеж

9038615001

Крепеж

9056008009

Крепеж

9161140820

Крепеж

9161560830

Крепеж

9165140816

Крепеж

9324925012

Крепеж

9331116016

Крепеж

9412040800

Крепеж

9451100800

Крепеж

9453100800

Крепеж

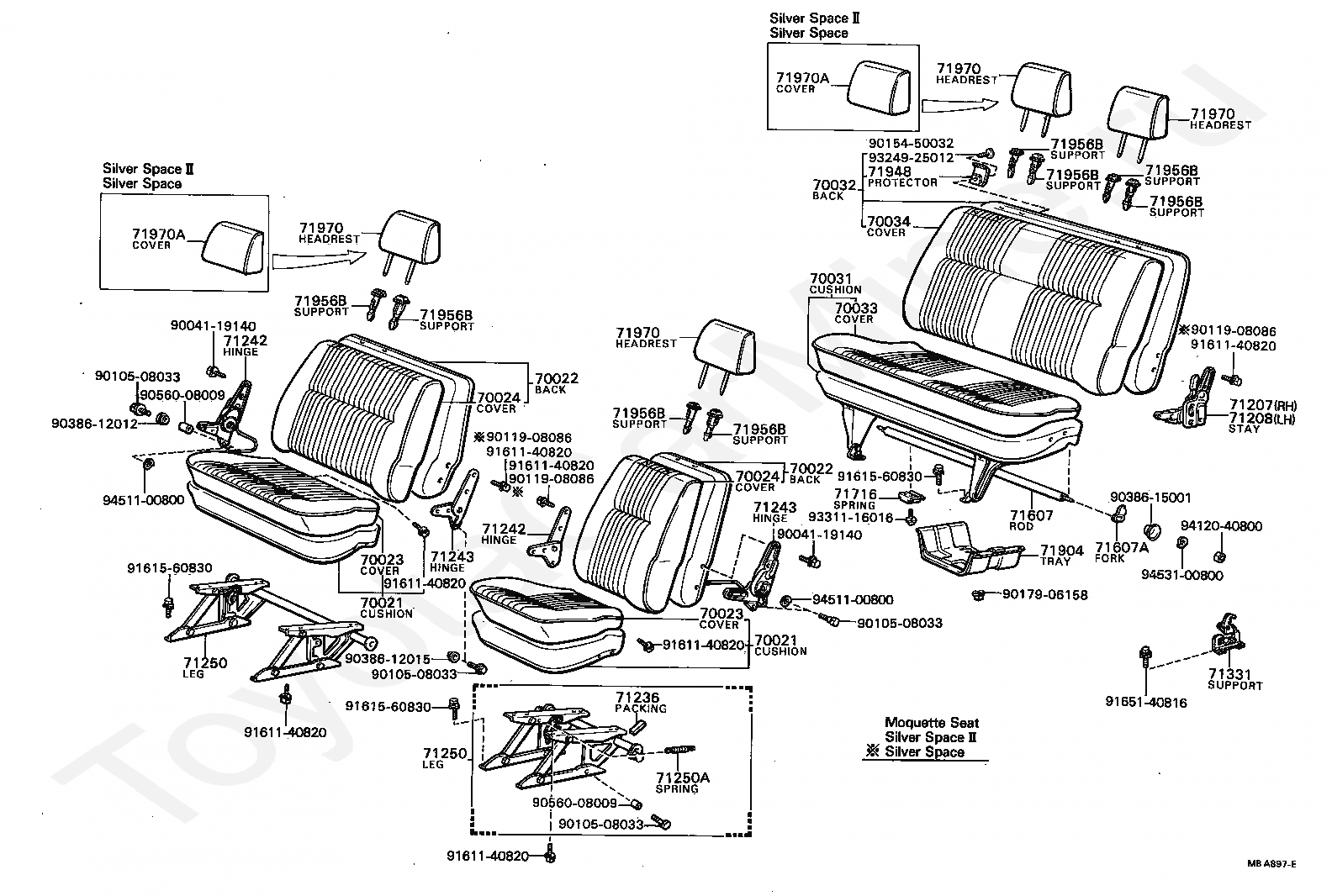

Код

Описание

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

70031

CUSHION ASSY, NO.3 SEAT

70032

BACK ASSY, NO.3 SEAT

70033

COVER ASSY, NO.3 SEAT CUSHION

70034

COVER ASSY, NO.3 SEAT BACK

71207

STAY ASSY, REAR SEAT BACK, RH

71208

STAY ASSY, REAR SEAT BACK, LH

71242

HINGE, PASSENGER SEAT BACK, RH

71243

HINGE, PASSENGER SEAT BACK, LH

71250

LEG ASSY, REAR NO.1 SEAT

71250A

SPRING, REAR NO.1 SEAT LEG

71331

SUPPORT, REAR SEAT CUSHION

71603A

COVER SUB-ASSY, REAR NO.1 SEAT, OUTER, LH

71603B

PLUG, HOLE(FOR REAR SEAT COVER)

71604A

COVER SUB-ASSY, REAR NO.1 SEAT, INNER LH

71607

ROD SUB-ASSY, REAR NO.2 SEAT

71607A

FORK, REAR NO.2 SEAT RECLINING CONNECTING

71716

SPRING, JACK HANDLE SUPPORT

71807

STAY SUB-ASSY, REAR NO.1 SEAT ARMREST, FRONT

71808B

STAY SUB-ASSY, REAR NO.1 SEAT ARMREST, REAR

71877A

COVER SUB-ASSY, REAR NO.1 SEAT ARMREST

71896

GARNISH, REAR NO.1 SEAT LEG REAR

71904

TRAY SUB-ASSY, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72702A

CABLE SUB-ASSY, REVERSIBLE REAR SEAT LOCKING LEVER CONTROL

72704

SHAFT SUB-ASSY, RECLINING CONNECT

72705

CABLE SUB-ASSY, SEAT LOCK CONTROL, RH

72706

CABLE SUB-ASSY, SEAT LOCK CONTROL, LH

9004119140

Крепеж

9004160056

Крепеж

9010508033

Крепеж

9017906158

Крепеж

9017908146

Крепеж

9038612012

Крепеж

9056008009

Крепеж

9152160816

Крепеж

9161140816

Крепеж

9161140820

Крепеж

9161560830

Крепеж

9165140818

Крепеж

9331116016

Крепеж

9412040800

Крепеж

9451100800

Крепеж

9453100800

Крепеж

Код

Описание

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

70031

CUSHION ASSY, NO.3 SEAT

70032

BACK ASSY, NO.3 SEAT

70033

COVER ASSY, NO.3 SEAT CUSHION

70034

COVER ASSY, NO.3 SEAT BACK

71207

STAY ASSY, REAR SEAT BACK, RH

71208

STAY ASSY, REAR SEAT BACK, LH

71242

HINGE, PASSENGER SEAT BACK, RH

71243

HINGE, PASSENGER SEAT BACK, LH

71250

LEG ASSY, REAR NO.1 SEAT

71250A

SPRING, REAR NO.1 SEAT LEG

71331

SUPPORT, REAR SEAT CUSHION

71603A

COVER SUB-ASSY, REAR NO.1 SEAT, OUTER, LH

71603B

PLUG, HOLE(FOR REAR SEAT COVER)

71604A

COVER SUB-ASSY, REAR NO.1 SEAT, INNER LH

71607

ROD SUB-ASSY, REAR NO.2 SEAT

71607A

FORK, REAR NO.2 SEAT RECLINING CONNECTING

71716

SPRING, JACK HANDLE SUPPORT

71807

STAY SUB-ASSY, REAR NO.1 SEAT ARMREST, FRONT

71808B

STAY SUB-ASSY, REAR NO.1 SEAT ARMREST, REAR

71877A

COVER SUB-ASSY, REAR NO.1 SEAT ARMREST

71896

GARNISH, REAR NO.1 SEAT LEG REAR

71904

TRAY SUB-ASSY, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72702A

CABLE SUB-ASSY, REVERSIBLE REAR SEAT LOCKING LEVER CONTROL

72704

SHAFT SUB-ASSY, RECLINING CONNECT

72705

CABLE SUB-ASSY, SEAT LOCK CONTROL, RH

72706

CABLE SUB-ASSY, SEAT LOCK CONTROL, LH

9004119140

Крепеж

9004160056

Крепеж

9010508033

Крепеж

9017906158

Крепеж

9017908146

Крепеж

9038612012

Крепеж

9056008009

Крепеж

9152160816

Крепеж

9161140816

Крепеж

9161140820

Крепеж

9161560830

Крепеж

9165140818

Крепеж

9331116016

Крепеж

9412040800

Крепеж

9451100800

Крепеж

9453100800

Крепеж

Кресла TOYOTA TOWN/MASTERACE V,WG, 1981/01 - 1982/10, 1,8 литра, фургон, SUPER EXTRA SPECIFICATION, TR15, механика, МКПП, 5 скоростей
