Каталог
Ближний ВостокМодель
TERCELДвигатель
1,3 литраКузов
4 двериКласс
DELUX SPECIFICATIONФрейм
AL11Трансмиссия
механика МКПП, 4 ступениОпции
левый руль GENERAL COUNTRIES

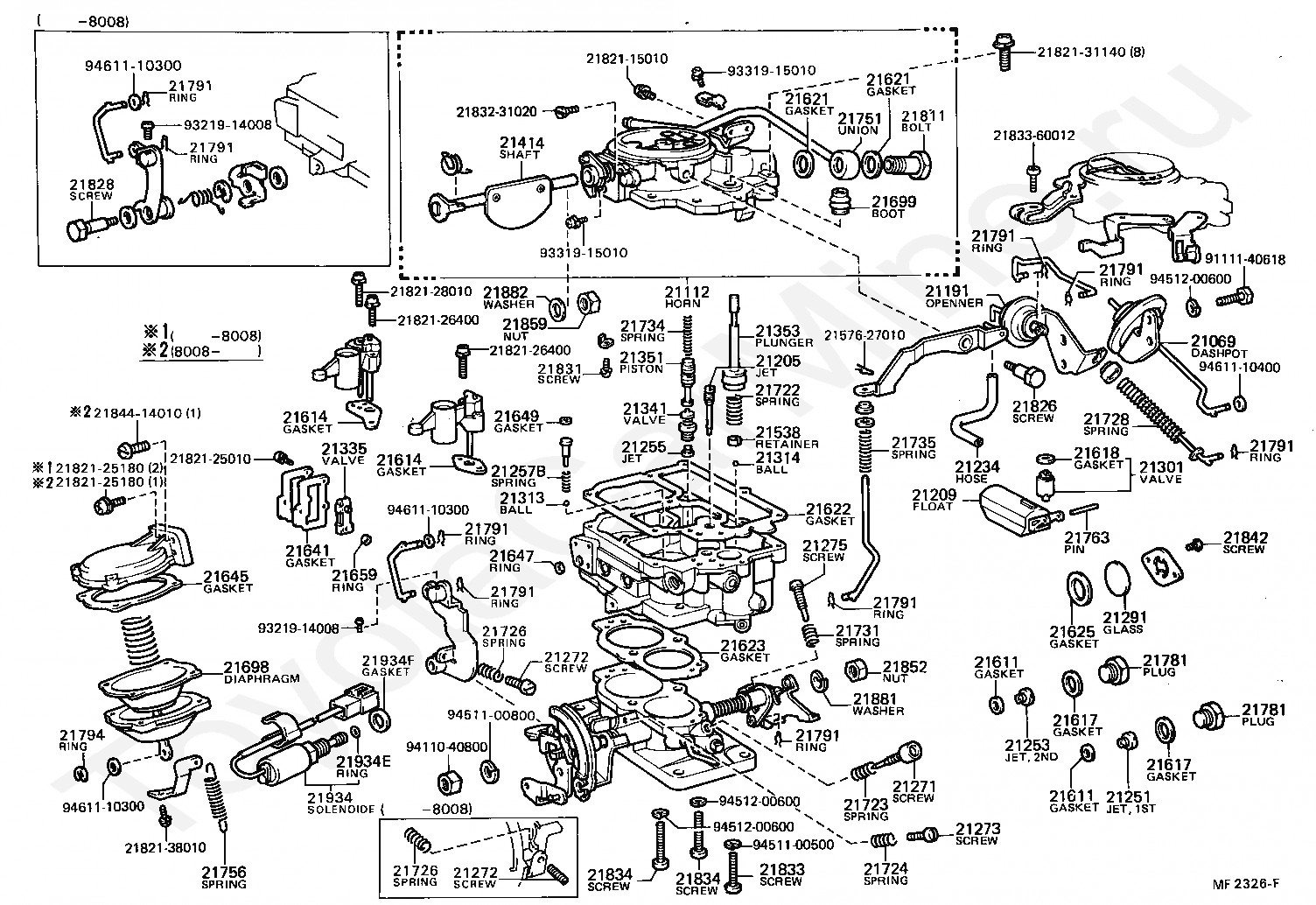

Код
Описание
21069
DASH POT SUB-ASSY
21112
HORN, AIR
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21257B
SPRING(FOR PUMP JET)
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21335
VALVE, THERMOSTATIC
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21414
SHAFT, CHOKE
21538
RETAINER, BALL CHECK
2157627010
Крепеж
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21623
GASKET, BODY FLANGE
21625
GASKET, LEVEL GAGE
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21659
RING, O(FOR THERMOSTATIC VALVE)
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21811
BOLT, UNION NIPPLE
2182115010
Крепеж
2182125010
Крепеж
2182125180
Крепеж
2182126400
Крепеж
2182128010
Крепеж
2182131140
Крепеж
2182138010
Крепеж
21826
SCREW, PUMP ARM SET
21828
SCREW, 1ST IDLE SET
21831
SCREW, POWER PISTON STOP
2183231020
Крепеж
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
2183360012
Крепеж
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
2184414010
Крепеж
21852
NUT, THROTTLE LEVER SET
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9111140618
Крепеж
9321914008
Крепеж
9331915010
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж

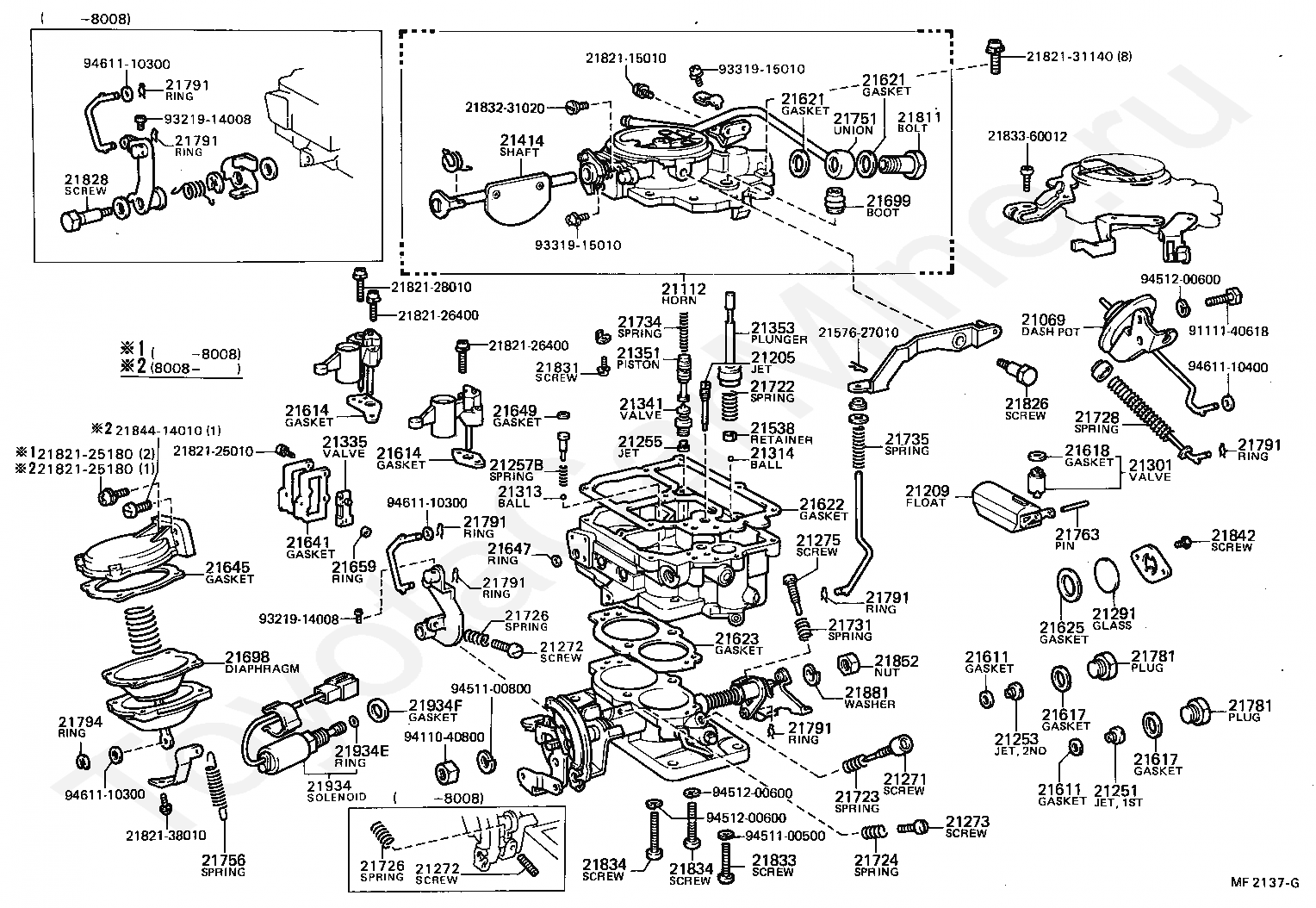

Код
Описание
21069
DASH POT SUB-ASSY
21112
HORN, AIR
21191
OPENER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21234
PIPE OR HOSE
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21257B
SPRING(FOR PUMP JET)
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21335
VALVE, THERMOSTATIC
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21414
SHAFT, CHOKE
21538
RETAINER, BALL CHECK
2157627010
Крепеж
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21623
GASKET, BODY FLANGE
21625
GASKET, LEVEL GAGE
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21659
RING, O(FOR THERMOSTATIC VALVE)
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21811
BOLT, UNION NIPPLE
2182115010
Крепеж
2182125010
Крепеж
2182125180
Крепеж
2182126400
Крепеж
2182128010
Крепеж
2182131140
Крепеж
2182138010
Крепеж
21826
SCREW, PUMP ARM SET
21828
SCREW, 1ST IDLE SET
21831
SCREW, POWER PISTON STOP
2183231020
Крепеж
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
2183360012
Крепеж
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
2184414010
Крепеж
21852
NUT, THROTTLE LEVER SET
21859
NUT, CHOKE SHAFT SET
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21882
WASHER, SPRING
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9111140618
Крепеж
9321914008
Крепеж
9331915010
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
