Передние кресла TOYOTA TANK/ROOMY, 2020/09 - 2025, 1 литр, 12 клапанов DOHC, EFI, X TYPE, M910A, вариатор

Каталог

Япония

Модель

TANK/ROOMY

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

X TYPE

Фрейм

M910A

Трансмиссия

вариатор

Опции

ROOMY 5 дверей W/O TURBO D32H

Код

Описание

15549B4010

Крепеж

21332B1020

Крепеж

23518B1010

Крепеж

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71132B

PLATE, FRONT SEAT CUSHION, NO.2

71139A

COVER, FRONT SEAT LEG, NO.1

71147

SILENCER, SEAT SPRING

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72136

SPACER, SEAT TRACK, LOWER NO.1

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72501

STOPPER ASSY, FRONT SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72592C

RING, SHAFT SNAP

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72848B

CAP, SEAT ARMREST, NO.1

72960A

TABLE ASSY, SEAT TURN

7403

переход к группе запчастей

84139B1010

Крепеж

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9004105424

Крепеж

9004105506

Крепеж

9004168046

Крепеж

9155180622

Крепеж

Код

Описание

15549B4010

Крепеж

21332B1020

Крепеж

23518B1010

Крепеж

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71132B

PLATE, FRONT SEAT CUSHION, NO.2

71139A

COVER, FRONT SEAT LEG, NO.1

71147

SILENCER, SEAT SPRING

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72136

SPACER, SEAT TRACK, LOWER NO.1

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72501

STOPPER ASSY, FRONT SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72592C

RING, SHAFT SNAP

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72848B

CAP, SEAT ARMREST, NO.1

72960A

TABLE ASSY, SEAT TURN

73910A

AIR BAG ASSY, FRONT SEAT, RH

7403

переход к группе запчастей

8202

переход к группе запчастей

84139B1010

Крепеж

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9004105424

Крепеж

9004105506

Крепеж

9004168046

Крепеж

9155180622

Крепеж

9418560600

Крепеж

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71122

BRACKET, FRONT SEAT CUSHION, LH

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71132B

PLATE, FRONT SEAT CUSHION, NO.2

71139B

COVER, FRONT SEAT LEG, NO.2

71147

SILENCER, SEAT SPRING

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181CA

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CC

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931F

SUPPORT, FRONT SEAT HEADREST, LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72502

STOPPER ASSY, FRONT SEAT BACK, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72592C

RING, SHAFT SNAP

72960A

TABLE ASSY, SEAT TURN

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

73920A

AIR BAG ASSY, FRONT SEAT, LH

7403

переход к группе запчастей

8202

переход к группе запчастей

82711H

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

84139B1010

Крепеж

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9004105506

Крепеж

9004164025

Крепеж

9004168046

Крепеж

9155180622

Крепеж

9418560600

Крепеж

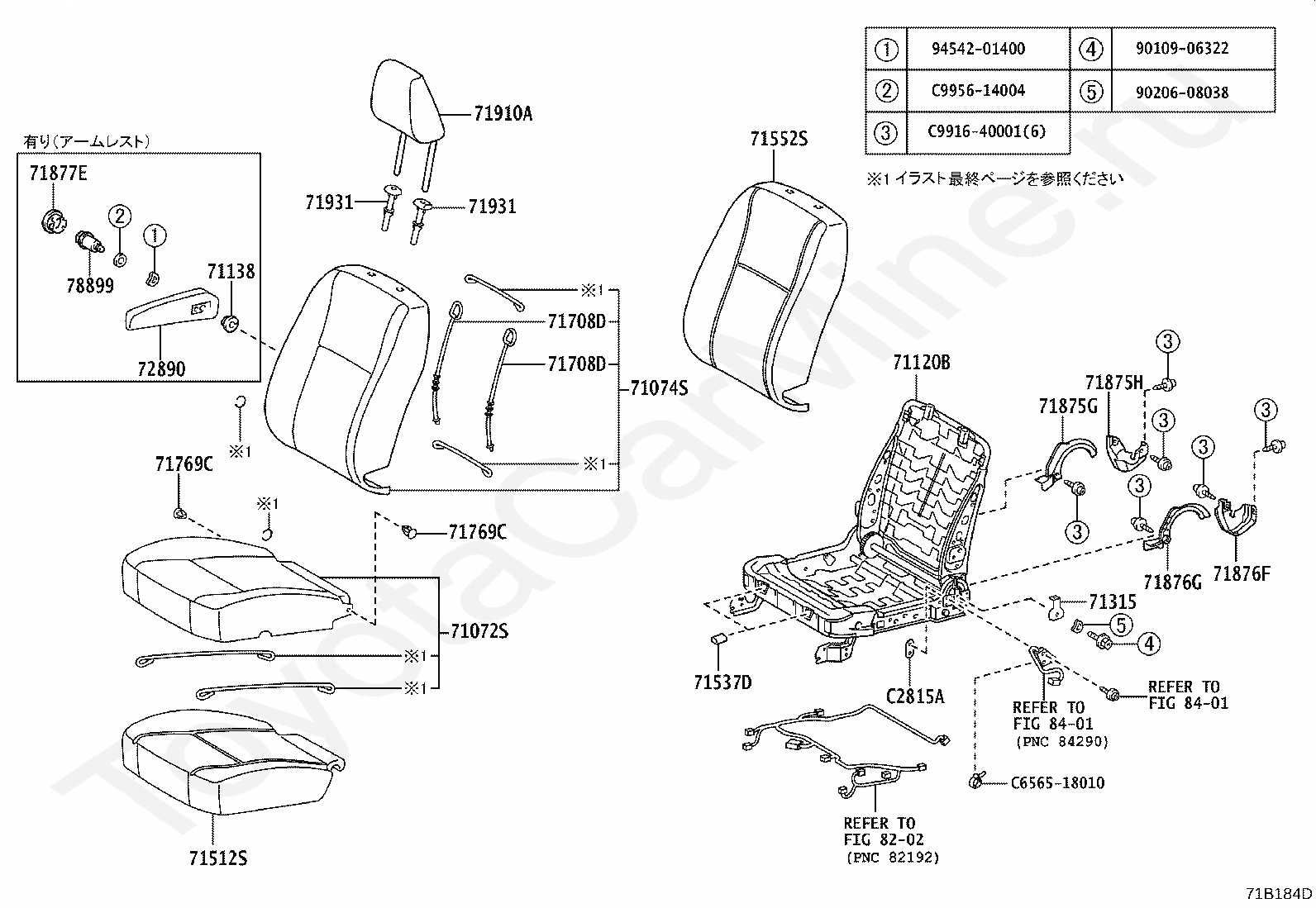

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71138

SPACER, FRONT SEAT SET

71315

PLATE, FRONT SEAT HINGE

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71708D

STRAP SUB-ASSY, SEAT COVER, LH

71769C

CLIP, FRONT SEAT CUSHION COVER

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71875H

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71877E

COVER, SEAT ARMREST HOLE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72890

ARMREST ASSY, SEAT, C LH

78899

BOLT, FRONT SEAT

8202

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9020608038

Крепеж

9454201400

Крепеж

C2815A

RETAINER, FRONT PANEL

C656518010

Крепеж

C991640001

Крепеж

C995614004

Крепеж

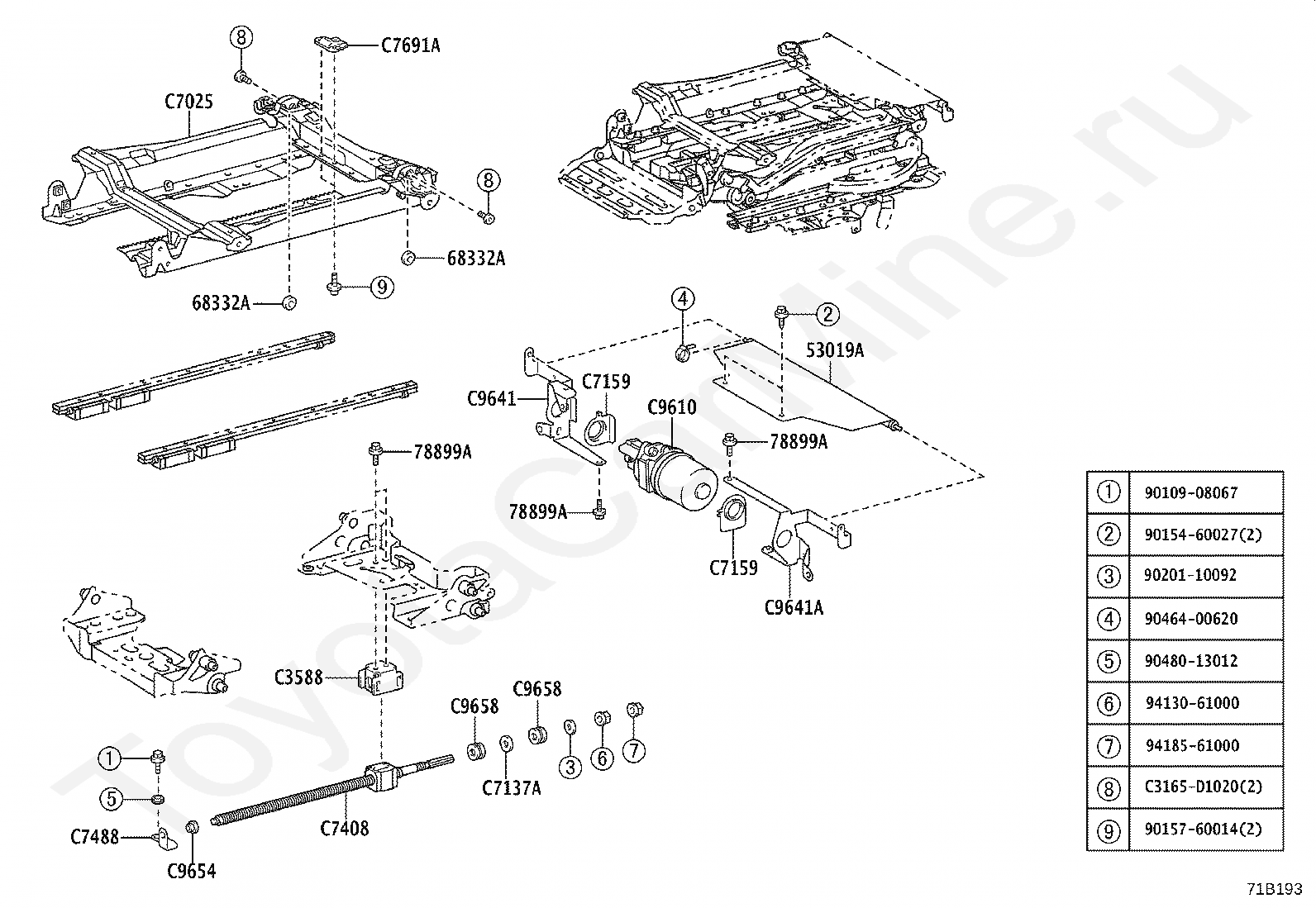

Код

Описание

53019A

SHUTTER SUB-ASSY, RADIATOR

68332A

ROLLER, SLIDE DOOR, LOWER

78899A

BOLT, FRONT SEAT

9010908067

Крепеж

9015460027

Крепеж

9015760014

Крепеж

9020110092

Крепеж

9046400620

Крепеж

9048013012

Крепеж

9413061000

Крепеж

9418561000

Крепеж

C3165D1020

Крепеж

C3588

BRACKET, SIDE RAIL, NO.2 LH

C7025

BRACKET SUB-ASSY, SEAT HOLDER

C7137A

PLATE, FRONT SEAT TURN

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7408

ROD SUB-ASSY, WELCAB SEAT

C7488

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C7691A

CUSHION, SEAT FLAT, NO.2 RH

C9610

MOTOR ASSY, POWER LIFT

C9641

BRACKET, POWER LIFT MOTOR, NO.1

C9641A

BRACKET, POWER LIFT MOTOR, NO.1

C9654

COLLAR, POWER LIFT CYLINDER

C9658

PLATE, POWER LIFT CYLINDER ROD

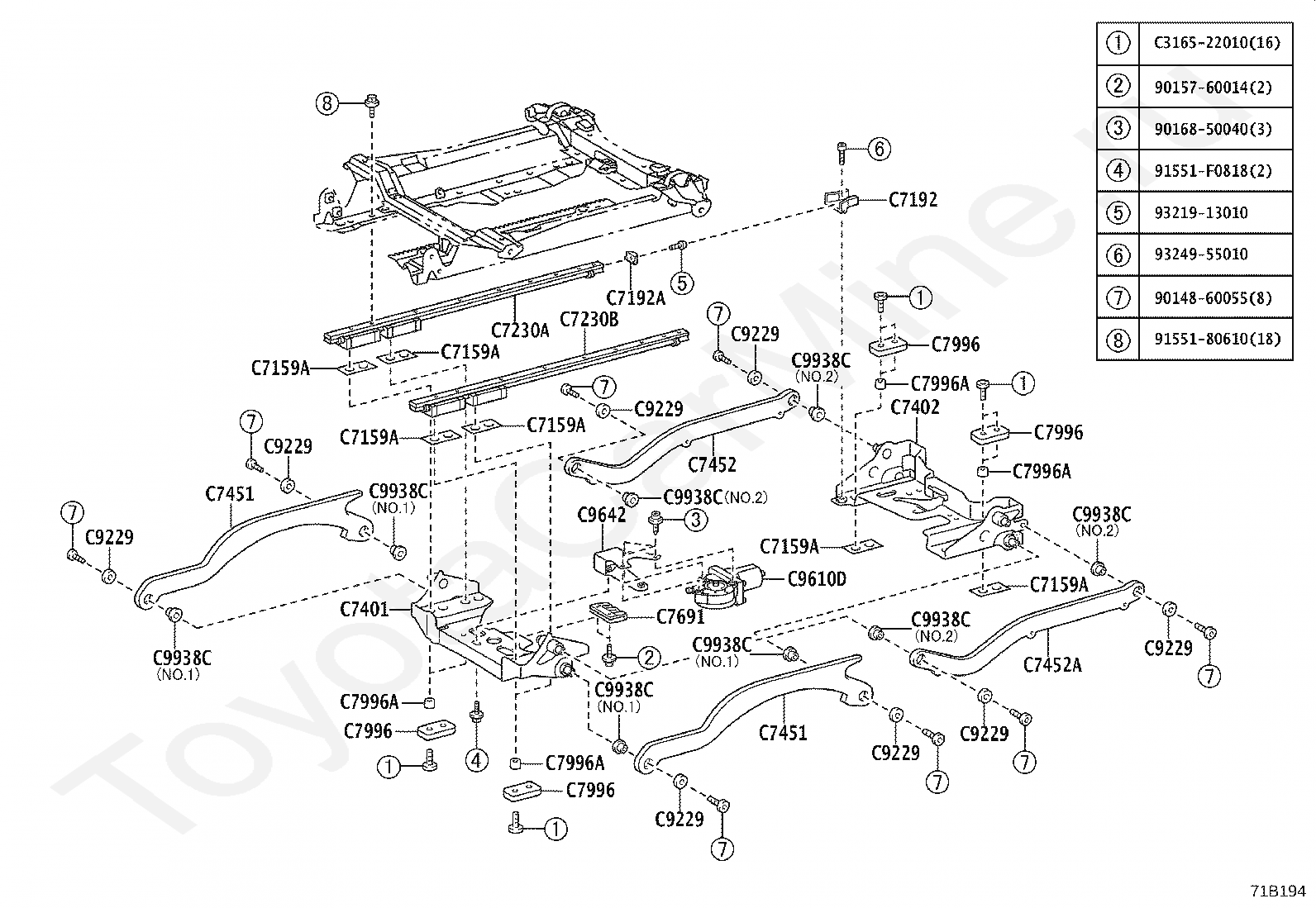

Код

Описание

9014860055

Крепеж

9015760014

Крепеж

9016850040

Крепеж

9155180610

Крепеж

91551F0818

Крепеж

9321913010

Крепеж

9324955010

Крепеж

C316522010

Крепеж

C7159A

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7192

PLATE, SEAT HOLDER STOPPER, NO.1

C7192A

PLATE, SEAT HOLDER STOPPER, NO.2

C7230A

TRACK ASSY, WELCAB SEAT, NO.2

C7230B

TRACK ASSY, WELCAB SEAT, NO.3

C7401

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7451

ARM, WELCAB SEAT LINK, NO.1

C7452

ARM, WELCAB SEAT LINK, NO.2

C7452A

ARM, WELCAB SEAT LINK, NO.2

C7691

CUSHION, SEAT FLAT, NO.1 RH

C7996

SPACER, TURN SEAT, NO.1

C7996A

SPACER, TURN SEAT, NO.2

C9229

SPACER, TAIL GATE LINK

C9610D

MOTOR ASSY, LIFT UP SEAT SLIDE

C9642

BRACKET, POWER LIFT MOTOR, NO.2

C9938C

BUSH

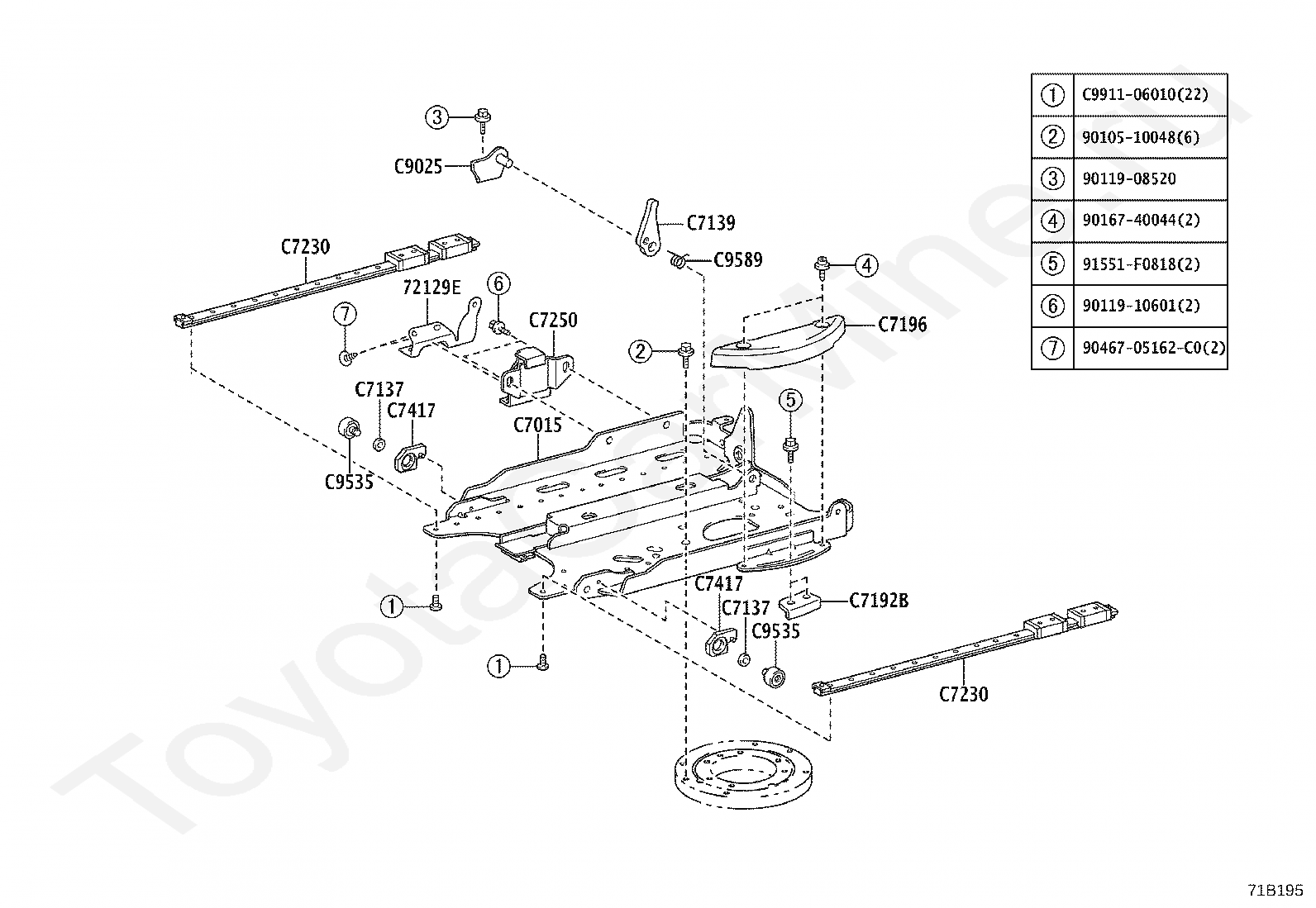

Код

Описание

72129E

CLIP(FOR SEAT TRACK LOWER RAIL PROTECTOR)

9010510048

Крепеж

9011908520

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9046705162C0

Крепеж

91551F0818

Крепеж

C7015

PANEL SUB-ASSY, TURN TABLE

C7137

PLATE, FRONT SEAT TURN

C7139

BRACKET, HOOK

C7192B

PLATE, SEAT HOLDER STOPPER, NO.3

C7196

COVER, TURN TABLE, NO.1

C7230

TRACK ASSY, WELCAB SEAT, NO.1

C7250

BRACKET ASSY, WELCAB SEAT TRACK STOPPER

C7417

PLATE, WELCAB SEAT ARM GUIDE, FRONT

C9025

PIN SUB-ASSY, LIFT ARM LINK

C9535

PULLEY, POWER LIFT

C9589

SPRING, PLATFORM LOCK HANDLE

C991106010

Крепеж

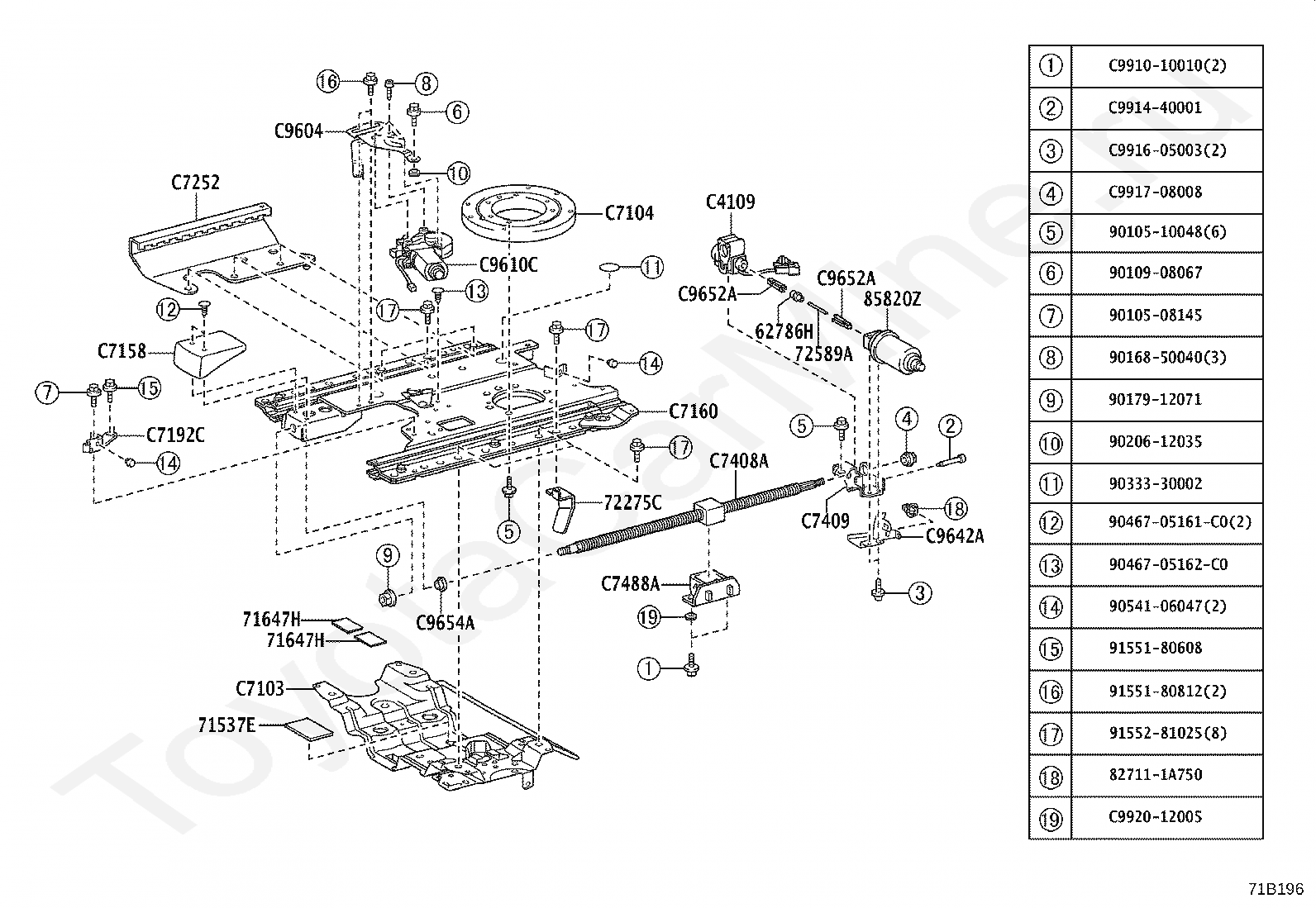

Код

Описание

62786H

CASE, SIDE WINDOW LOCK

71537E

PROTECTOR, FRONT SEAT CUSHION, NO.1

71647H

PROTECTOR, FRONT SEAT CUSHION EDGE

72275C

STOPPER, FRONT SEAT TRACK SLIDE

72589A

CABLE, RECLINING REMOTE CONTROL

827111A750

Крепеж

85820Z

MOTOR ASSY, POWER SEAT

9010508145

Крепеж

9010510048

Крепеж

9010908067

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020612035

Крепеж

9033330002

Крепеж

9046705161C0

Крепеж

9046705162C0

Крепеж

9054106047

Крепеж

9155180608

Крепеж

9155180812

Крепеж

9155281025

Крепеж

C4109

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7103

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1

C7104

PLATE SUB-ASSY, SEAT TURN

C7158

COVER, WELCAB SEAT LEG

C7160

PANEL ASSY, SLIDE TABLE

C7192C

PLATE, SEAT HOLDER STOPPER, NO.4

C7252

BRACKET, WELCAB SEAT TRACK STOPPER, NO.2

C7408A

ROD SUB-ASSY, WELCAB SEAT, NO.1

C7409

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7488A

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C9604

BRACKET SUB-ASSY, POWER LIFT MOTOR

C9610C

MOTOR ASSY, LIFT UP SEAT TURN

C9642A

BRACKET, POWER LIFT MOTOR, NO.2

C9652A

CAP, POWER LIFT CYLINDER

C9654A

COLLAR, POWER LIFT CYLINDER

C991010010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

C992012005

Крепеж

Код

Описание

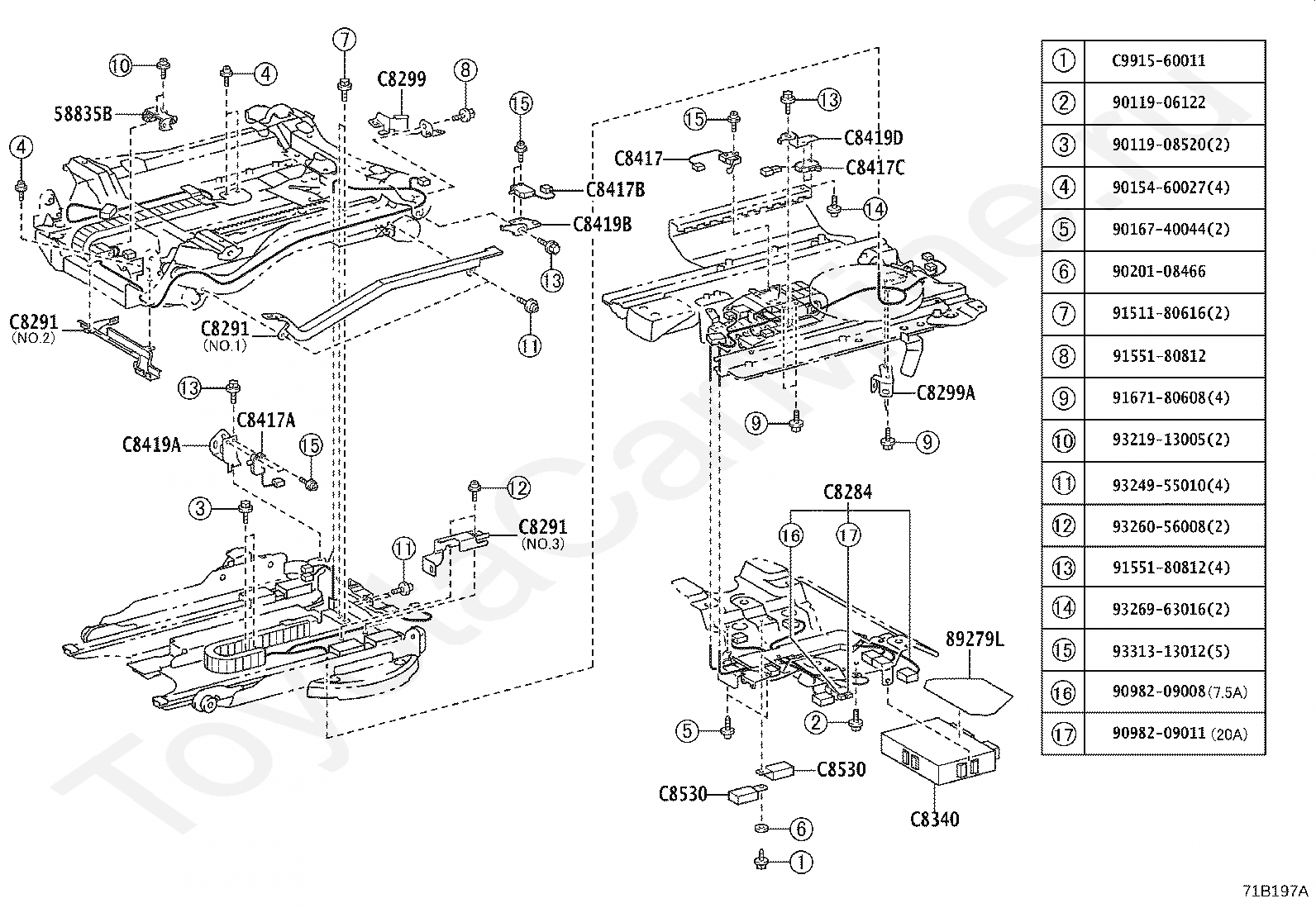

58835B

PROTECTOR, WIRING HARNESS

89279L

COVER

9011906122

Крепеж

9011908520

Крепеж

9015460027

Крепеж

9016740044

Крепеж

9020108466

Крепеж

9098209008

Крепеж

9098209011

Крепеж

9151180616

Крепеж

9155180812

Крепеж

9167180608

Крепеж

9321913005

Крепеж

9324955010

Крепеж

9326056008

Крепеж

9326963016

Крепеж

9331313012

Крепеж

C8284

WIRE, POWER LIFT MAIN

C8291

PROTECTOR, TECS WIRING HARNESS

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

C8299A

BRACKET, WELCAB SEAT HARNESS CONNECTOR

C8340

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417

SWITCH, LIMIT, NO.1

C8417A

SWITCH, LIMIT, NO.2

C8417B

SWITCH, LIMIT, NO.3

C8417C

SWITCH, LIMIT, NO.4

C8419A

BRACKET, LIMIT SWITCH

C8419B

BRACKET, LIMIT SWITCH

C8419D

BRACKET, LIMIT SWITCH, NO.1

C8530

RELAY ASSY, POWER LIFT MOTOR

C991560011

Крепеж

Код

Описание

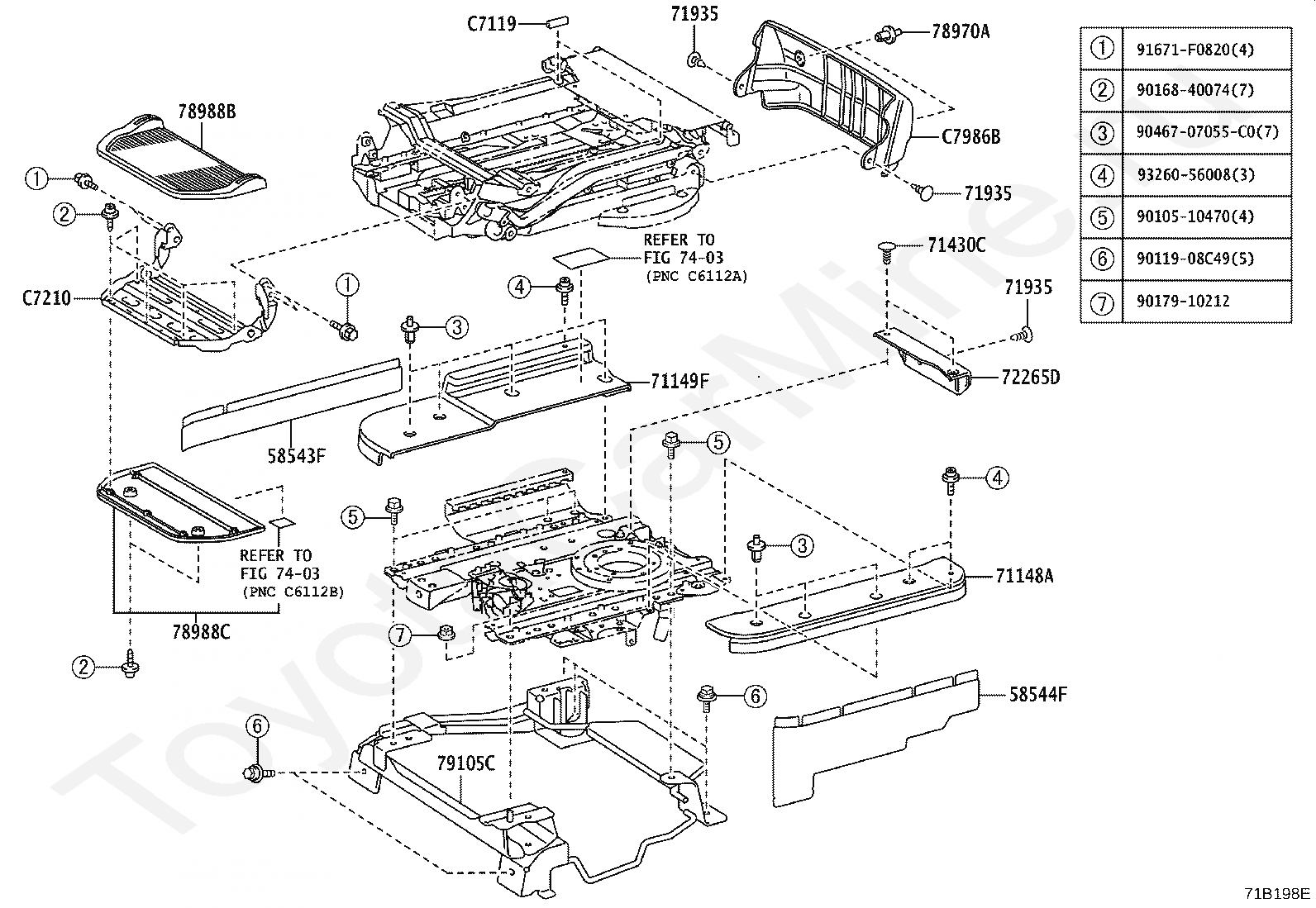

58543F

CARPET, STEP SIDE, RH

58544F

CARPET, STEP SIDE, LH

71148A

COVER, FR SEAT LEG, OUTER

71149F

COVER, FRONT SEAT LEG, INNER

71430C

CLIP

71935

CLIP

72265D

COVER, SEAT TRACK UPPER RAIL

7403

переход к группе запчастей

78970A

CLIP

78988B

COVER, FRONT SEAT FOOTREST, NO.1

78988C

COVER, FRONT SEAT FOOTREST, NO.2

79105C

LEG SUB-ASSY, FRONT SEAT

9010510470

Крепеж

9011908C49

Крепеж

9016840074

Крепеж

9017910212

Крепеж

9046707055C0

Крепеж

91671F0820

Крепеж

9326056008

Крепеж

C7119

PROTECTOR, WELCAB SEAT HOLDER

C7210

FOOTREST ASSY, WELCAB SEAT

C7986B

COVER, FRONT SEAT TURN GUARD

Код

Описание

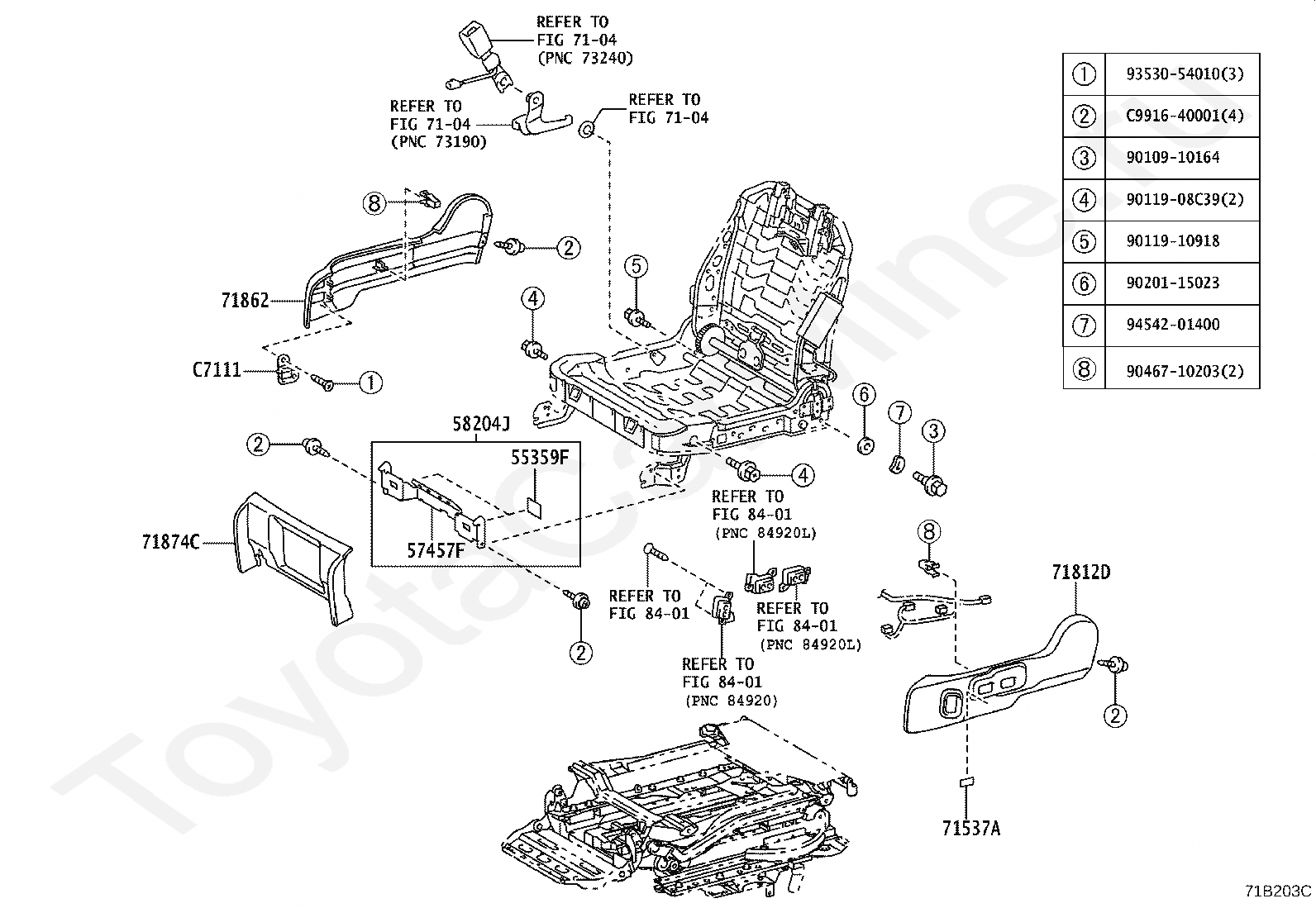

55359F

CUSHION, WELCAB SEAT

57457F

BRACKET, FRONT SEAT

58204J

BRACKET SUB-ASSY, FRONT SEAT

7104

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

8401

переход к группе запчастей

9010910164

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020115023

Крепеж

9046710203

Крепеж

9353054010

Крепеж

9454201400

Крепеж

C7111

BRACKET, SEAT HOLDER, FRONT

C991640001

Крепеж

Код

Описание

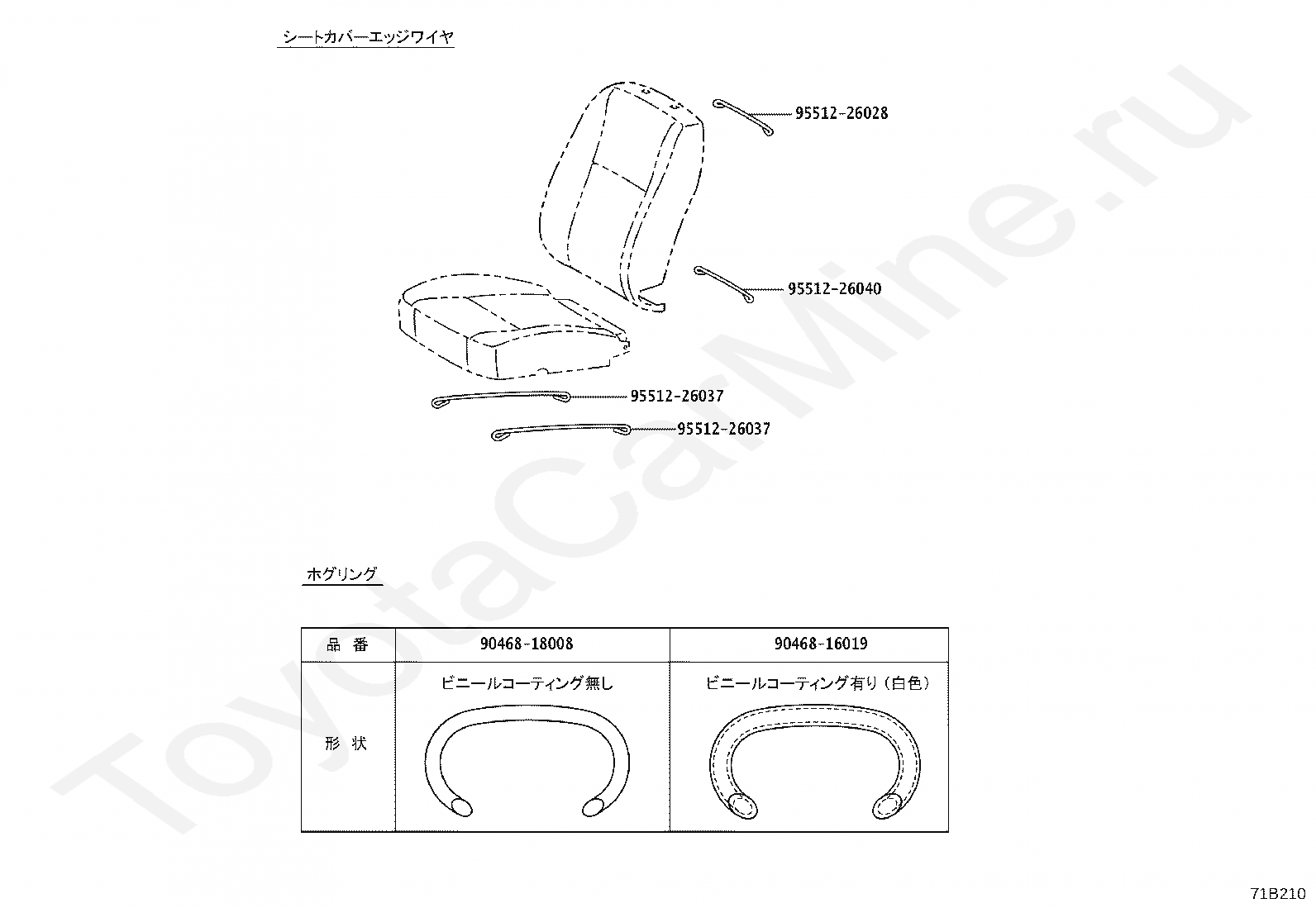

9046816019

Крепеж

9046818008

Крепеж

9551226028

Крепеж

9551226037

Крепеж

9551226040

Крепеж

Передние кресла TOYOTA TANK/ROOMY, 2020/09 - 2025, 1 литр, 12 клапанов DOHC, EFI, X TYPE, M910A, вариатор

Товар добавлен в корзину!

Заполните форму
