Рулевая рейка и наконечники TOYOTA SUPRA, 1990/08 - 1993/05, 3 литра, 24 клапана, DOHC, EFI, турбо, POUNDS, MA70, автомат, АКПП, 4 ступени

Каталог

Европа

Модель

SUPRA

Двигатель

3 литра, 24 клапана, DOHC, EFI, турбо

Кузов

POUNDS

Фрейм

MA70

Трансмиссия

автомат АКПП, 4 ступени

Опции

TWIN CAM,TURBO Канада

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
+
+
+
+
+
+
+
+
+
+
+

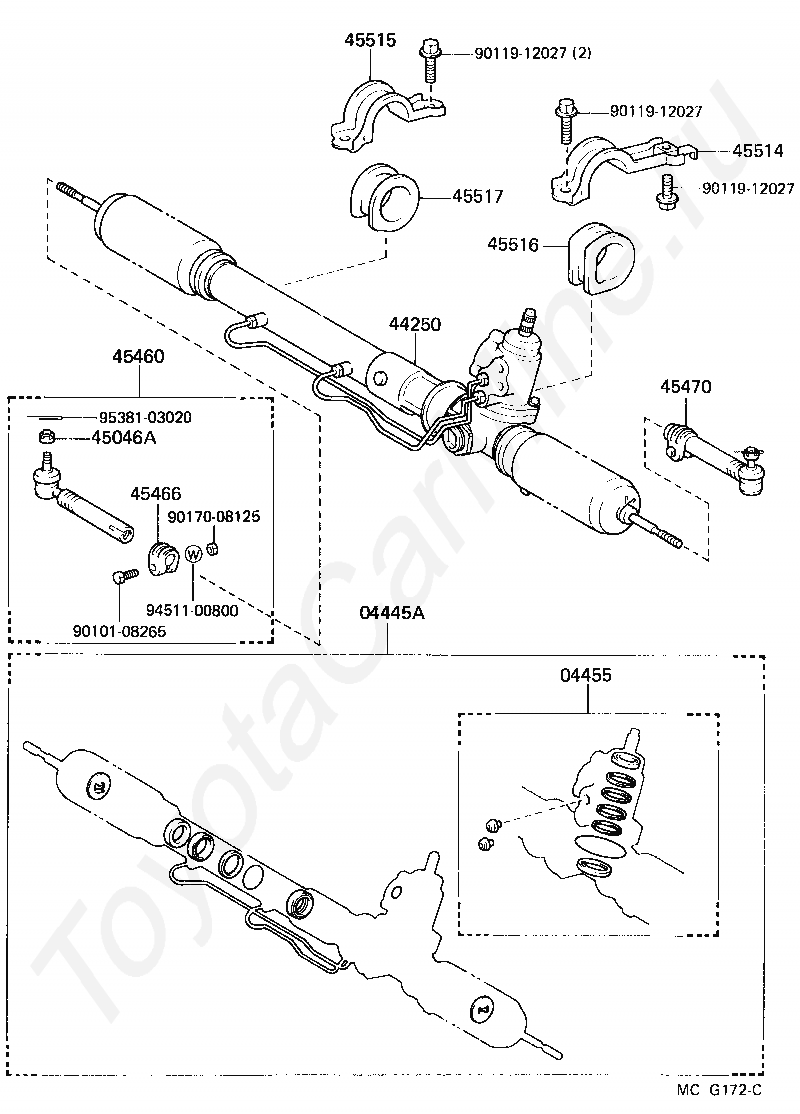

Код

Описание

04445A

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45046A

NUT, CASTLE(FOR TIE ROD END)

45460

ROD ASSY, TIE, RH

45466

CLAMP, TIE ROD END

45470

ROD ASSY, TIE, LH

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

9010108265

Крепеж

9011912027

Крепеж

9017008125

Крепеж

9451100800

Крепеж

9538103020

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

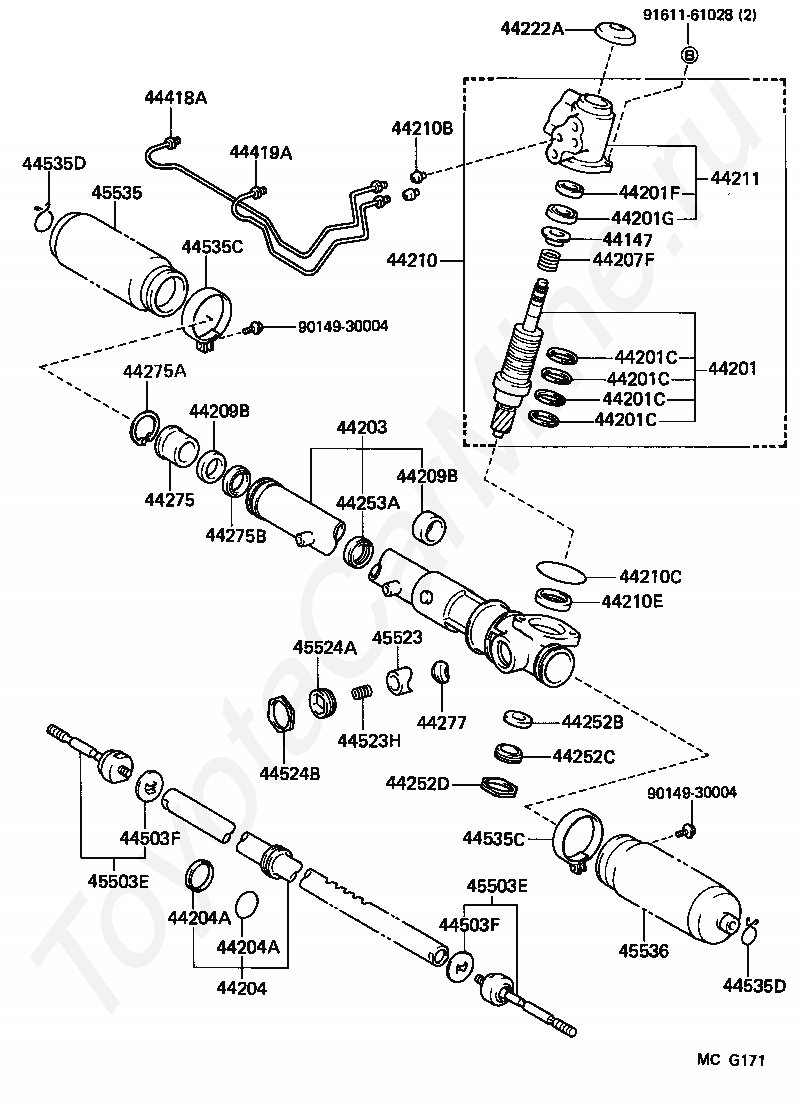

Код

Описание

44147

SEAT, SPOOL VALVE SPRING

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201F

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44201G

BEARING(FOR POWER STEERING CONTROL VALVE)

44203

HOUSING SUB-ASSY, POWER STEERING RACK

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44207F

SPRING, CONICAL(FOR VALVE CAP SUB-ASSY)

44209B

SPACER(FOR POWER STEERING CYLINDER HOUSING)

44210

VALVE ASSY, POWER STEERING CONTROL

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44210E

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44222A

COVER, DUST(FOR POWER STEERING GEAR)

44252B

BEARING(FOR POWER STEERING PINION)

44252C

CAP(FOR POWER STEERING PINION)

44252D

NUT(FOR POWER STEERING PINION CAP)

44253A

SEAL, OIL(FOR POWER STEERING RACK HOUSING)

44275

STOPPER, CYLINDER END

44275A

RING, HOLE SNAP(FOR CYLINDER END STOPPER)

44275B

SEAL, OIL(FOR CYLINDER END STOPPER)

44277

SEAT, RACK GUIDE

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44419A

TUBE, STEERING LEFT TURN PRESSURE

44503F

WASHER, CLAW(FOR POWER STEERING RACK END)

44523H

SPRING(FOR POWER STEERING RACK GUIDE)

44524B

NUT(FOR POWER STEERING RACK GUIDE CAP)

44535C

CLAMP(FOR POWER STEERING RACK BOOT)

44535D

CLIP(FOR POWER STEERING RACK BOOT)

45503E

END SUB-ASSY, STEERING RACK

45523

GUIDE, RACK(FOR STEERING GEAR)

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45536

BOOT, STEERING RACK, NO.2

9014930004

Крепеж

9161161028

Крепеж

+
+
+
+
+
+
+
+
+
+
+

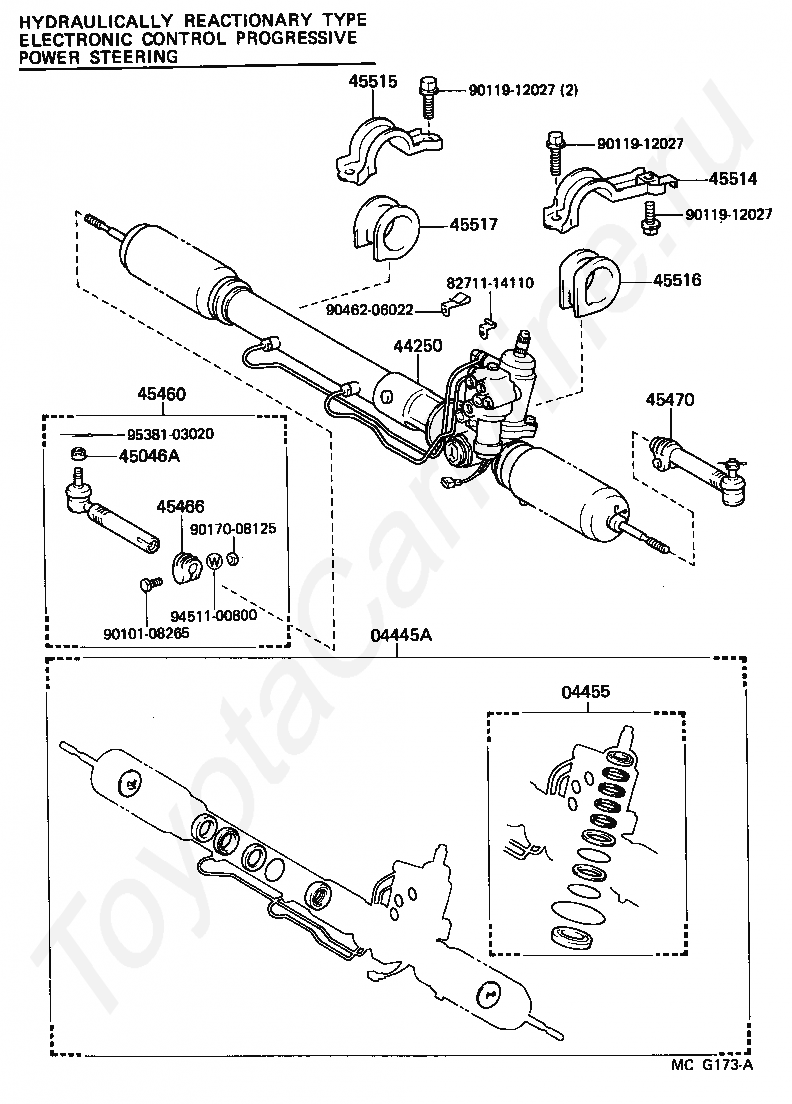

Код

Описание

04445A

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45046A

NUT, CASTLE(FOR TIE ROD END)

45460

ROD ASSY, TIE, RH

45466

CLAMP, TIE ROD END

45470

ROD ASSY, TIE, LH

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

8271114110

Крепеж

9010108265

Крепеж

9011912027

Крепеж

9017008125

Крепеж

9046206022

Крепеж

9451100800

Крепеж

9538103020

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

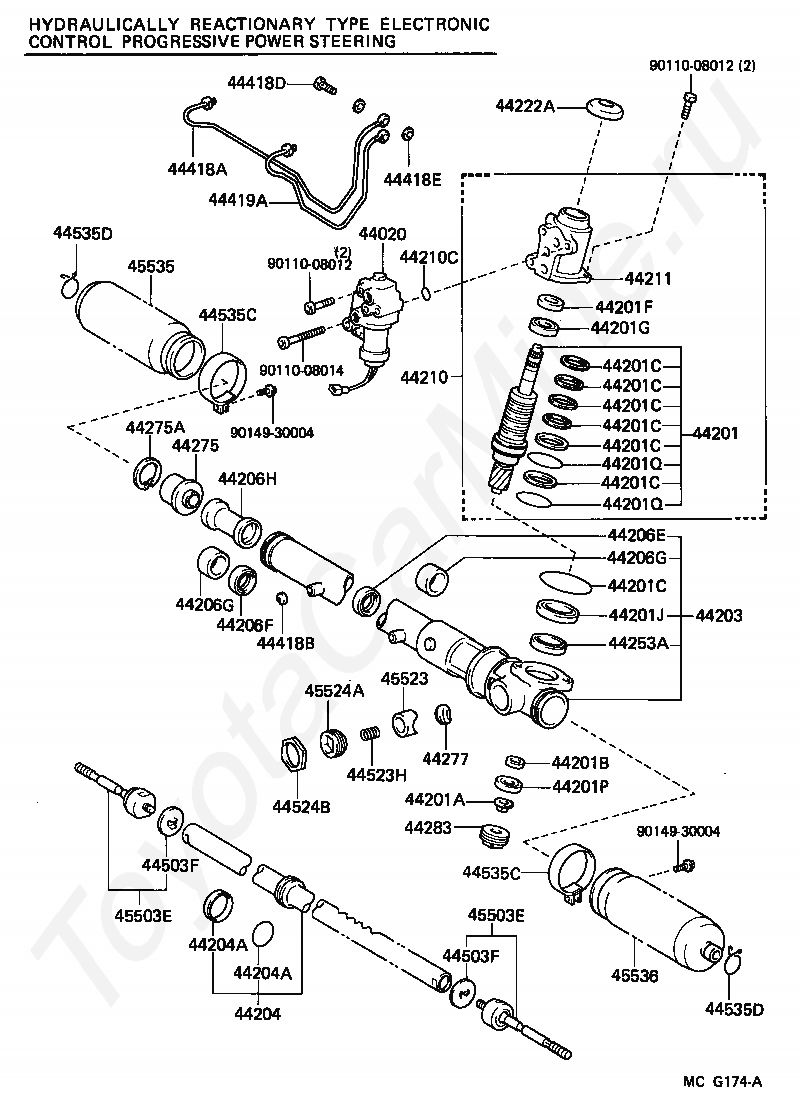

Код

Описание

44020

VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201A

NUT, LOCK(FOR POWER STEERING CONTROL VALVE)

44201B

SPACER(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201F

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44201G

BEARING(FOR POWER STEERING CONTROL VALVE)

44201J

BEARING(FOR POWER STEERING CONTROL VALVE CENTER)

44201P

BEARING(FOR POWER STEERING CONTROL VALVE LOWER)

44201Q

RING, O(FOR POWER STEERING CONTROL VALVE)

44203

HOUSING SUB-ASSY, POWER STEERING RACK

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44206E

SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)

44206F

SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE)

44206G

SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE)

44206H

SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE)

44210

VALVE ASSY, POWER STEERING CONTROL

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44222A

COVER, DUST(FOR POWER STEERING GEAR)

44253A

SEAL, OIL(FOR POWER STEERING RACK HOUSING)

44275

STOPPER, CYLINDER END

44275A

RING, HOLE SNAP(FOR CYLINDER END STOPPER)

44277

SEAT, RACK GUIDE

44283

CAP, RACK HOUSING

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418B

SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)

44418D

BOLT, UNION(FOR STEERING TURN PRESSURE TUBE)

44418E

GASKET(FOR STEERING TURN PRESSURE TUBE)

44419A

TUBE, STEERING LEFT TURN PRESSURE

44503F

WASHER, CLAW(FOR POWER STEERING RACK END)

44523H

SPRING(FOR POWER STEERING RACK GUIDE)

44524B

NUT(FOR POWER STEERING RACK GUIDE CAP)

44535C

CLAMP(FOR POWER STEERING RACK BOOT)

44535D

CLIP(FOR POWER STEERING RACK BOOT)

45503E

END SUB-ASSY, STEERING RACK

45523

GUIDE, RACK(FOR STEERING GEAR)

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45536

BOOT, STEERING RACK, NO.2

9011008012

Крепеж

9011008014

Крепеж

9014930004

Крепеж
