Каталог
ЕвропаМодель
STARLETДвигатель
1,3 литра, 12 клапанов, EFIКласс
STANDARD TYPEФрейм
EP81Трансмиссия
механика МКПП, 5 скоростейОпции
левый руль 5 дверей электронная система впрыска топлива

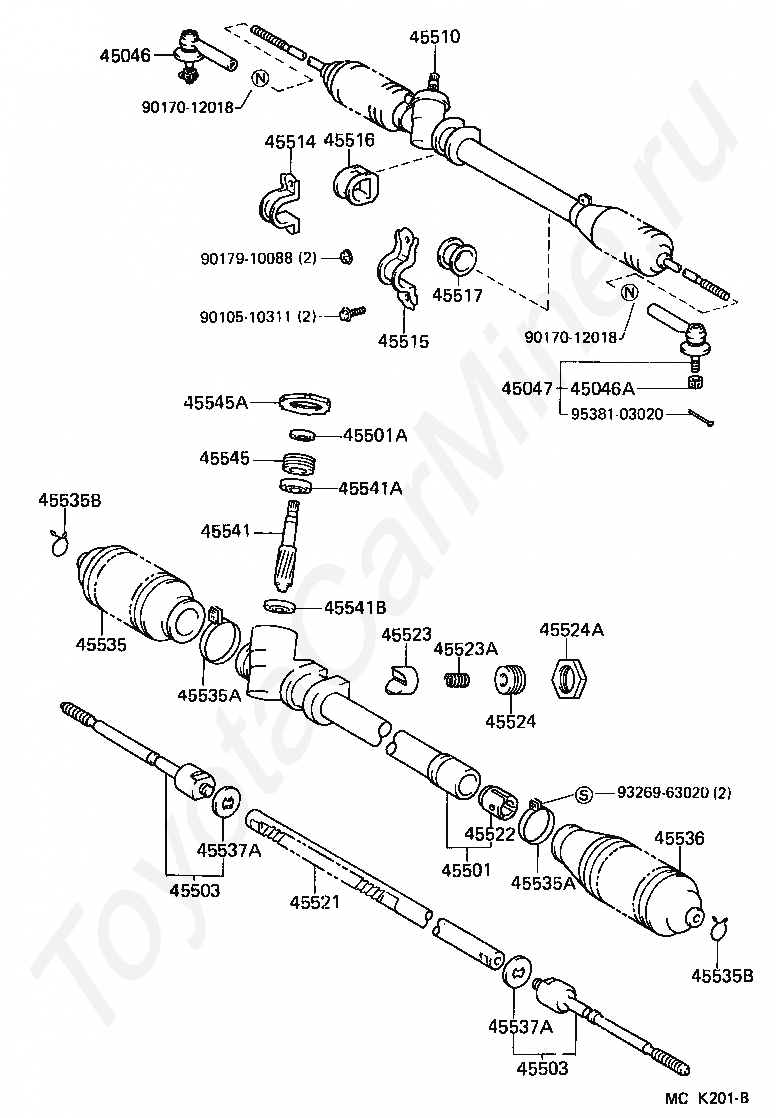

Код
Описание
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45501
HOUSING SUB-ASSY, STEERING RACK
45501A
SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503
END SUB-ASSY, STEERING RACK
45510
GEAR ASSY, STEERING
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
45521
RACK, STEERING
45522
BUSH, STEERING RACK
45523
GUIDE, RACK(FOR STEERING GEAR)
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535A
CLAMP(FOR STEERING RACK BOOT)
45535B
CLIP(FOR STEERING RACK BOOT)
45536
BOOT, STEERING RACK, NO.2
45537A
WASHER, CLAW(FOR STEERING RACK END LOCK)
45541
PINION, STEERING
45541A
BEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541B
BEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545
SCREW, PINION BEARING ADJUSTING
45545A
NUT(FOR PINION BEARING ADJUSTING SCREW)
9010510311
Крепеж
9017012018
Крепеж
9017910088
Крепеж
9326963020
Крепеж
9538103020
Крепеж

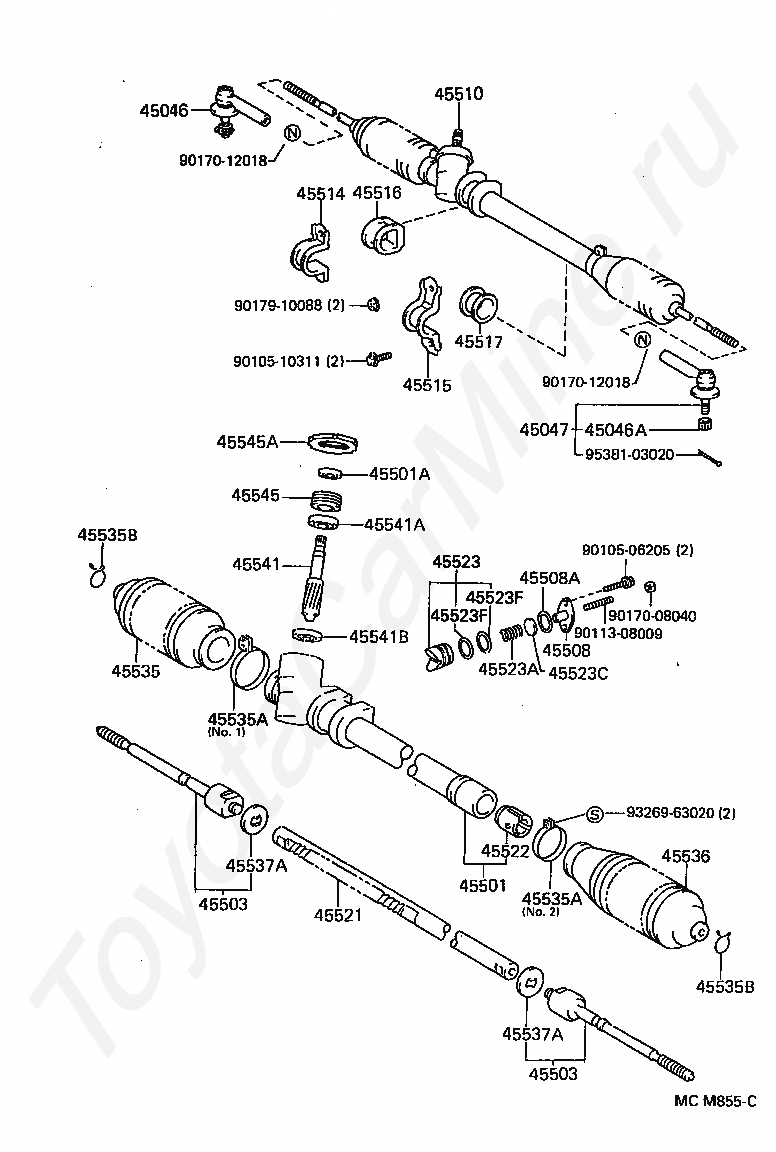

Код
Описание
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45501
HOUSING SUB-ASSY, STEERING RACK
45501A
SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503
END SUB-ASSY, STEERING RACK
45508
COVER SUB-ASSY, STEERING RACK GUIDE SPRING
45508A
RING, O(FOR STEERING RACK GUIDE SPRING COVER)
45510
GEAR ASSY, STEERING
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
45521
RACK, STEERING
45522
BUSH, STEERING RACK
45523
GUIDE, RACK(FOR STEERING GEAR)
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45523C
SPACER(FOR RACK GUIDE)
45523F
RING, O(FOR STEERING GEAR GUIDE)
45535
BOOT, STEERING RACK, NO.1
45535A
CLAMP(FOR STEERING RACK BOOT)
45535B
CLIP(FOR STEERING RACK BOOT)
45536
BOOT, STEERING RACK, NO.2
45537A
WASHER, CLAW(FOR STEERING RACK END LOCK)
45541
PINION, STEERING
45541A
BEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541B
BEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545
SCREW, PINION BEARING ADJUSTING
45545A
NUT(FOR PINION BEARING ADJUSTING SCREW)
9010506205
Крепеж
9010510311
Крепеж
9011308009
Крепеж
9017008040
Крепеж
9017012018
Крепеж
9017910088
Крепеж
9326963020
Крепеж
9538103020
Крепеж
