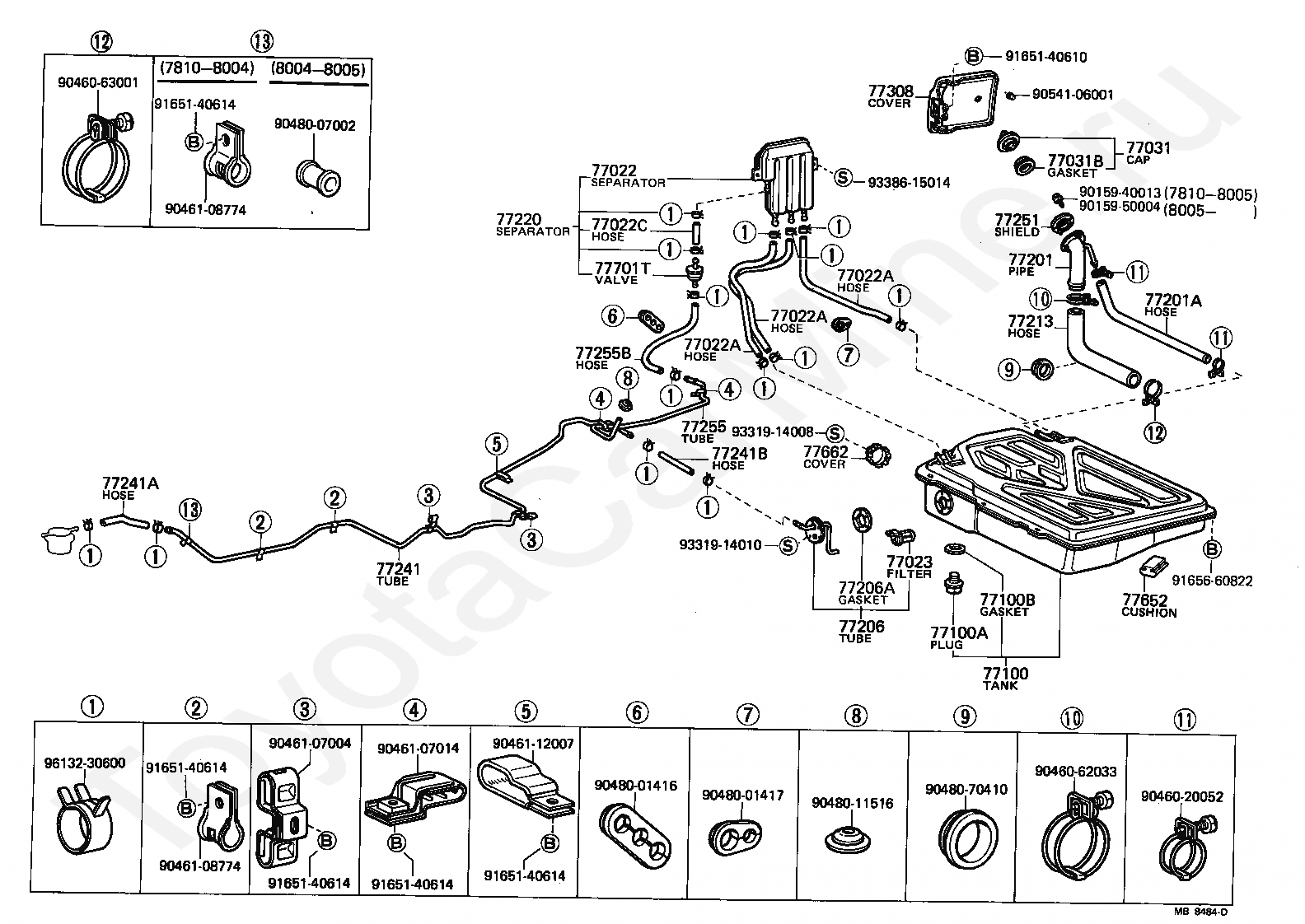

Топливный бак и горловина TOYOTA STARLET, 1978/10 - 1982/08, 1 литр, фургон, STANDARD TYPE, KP60, механика, МКПП, 4 ступени

Каталог

Ближний Восток

Модель

STARLET

Двигатель

1 литр

Кузов

фургон

Класс

STANDARD TYPE

Фрейм

KP60

Трансмиссия

механика МКПП, 4 ступени

Опции

левый руль 4 двери Европа Европа

Код

Описание

77022

SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022C

HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77201A

HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

77206

TUBE SUB-ASSY, FUEL TANK SUCTION

77206A

GASKET (FOR FUEL TANK SUCTION TUBE)

77213

HOSE, FUEL TANK SUB INLET

77220

SEPARATOR ASSY, FUEL EVAPORATIVE & CHECK VALVE

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77251

SHIELD, FUEL TANK, INLET, NO.1

77255

TUBE, FUEL EMISSION, NO.2

77255B

HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)

77308

COVER SUB-ASSY, FUEL INLET BOX

77652

CUSHION, FUEL TANK, NO.1

77662

COVER, FUEL TANK GAGE

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9015940013

Крепеж

9015950004

Крепеж

9046020052

Крепеж

9046062033

Крепеж

9046063001

Крепеж

9046107004

Крепеж

9046107014

Крепеж

9046108774

Крепеж

9046112007

Крепеж

9048001416

Крепеж

9048001417

Крепеж

9048007002

Крепеж

9048011516

Крепеж

9048070410

Крепеж

9054106001

Крепеж

9165140610

Крепеж

9165140614

Крепеж

9165660822

Крепеж

9331914008

Крепеж

9331914010

Крепеж

9338615014

Крепеж

9613230600

Крепеж

Код

Описание

77022

SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022C

HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77201A

HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

77206

TUBE SUB-ASSY, FUEL TANK SUCTION

77206A

GASKET (FOR FUEL TANK SUCTION TUBE)

77213

HOSE, FUEL TANK SUB INLET

77220

SEPARATOR ASSY, FUEL EVAPORATIVE & CHECK VALVE

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77251

SHIELD, FUEL TANK, INLET, NO.1

77255

TUBE, FUEL EMISSION, NO.2

77255B

HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)

77285A

SUPPORT, FUEL RETURN AND MAIN TUBE

77308

COVER SUB-ASSY, FUEL INLET BOX

77652

CUSHION, FUEL TANK, NO.1

77662

COVER, FUEL TANK GAGE

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9015940013

Крепеж

9015950004

Крепеж

9046020052

Крепеж

9046062033

Крепеж

9046063001

Крепеж

9046112111

Крепеж

9046112112

Крепеж

9046112211

Крепеж

9048001062

Крепеж

9048001063

Крепеж

9048001416

Крепеж

9048001417

Крепеж

9048007002

Крепеж

9048011516

Крепеж

9048070410

Крепеж

9054106001

Крепеж

9165140610

Крепеж

9165160614

Крепеж

9165660822

Крепеж

9331914010

Крепеж

9331914068

Крепеж

9338615014

Крепеж

9613230600

Крепеж

Код

Описание

77022

SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022C

HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77201A

HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

77206

TUBE SUB-ASSY, FUEL TANK SUCTION

77206A

GASKET (FOR FUEL TANK SUCTION TUBE)

77213

HOSE, FUEL TANK SUB INLET

77220

SEPARATOR ASSY, FUEL EVAPORATIVE & CHECK VALVE

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77251

SHIELD, FUEL TANK, INLET, NO.1

77255

TUBE, FUEL EMISSION, NO.2

77255B

HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)

77285A

SUPPORT, FUEL RETURN AND MAIN TUBE

77308

COVER SUB-ASSY, FUEL INLET BOX

77652

CUSHION, FUEL TANK, NO.1

77662

COVER, FUEL TANK GAGE

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9015950004

Крепеж

9046020052

Крепеж

9046062033

Крепеж

9046063001

Крепеж

9046112144

Крепеж

9046112211

Крепеж

9046112212

Крепеж

9048001120

Крепеж

9048001135

Крепеж

9048001416

Крепеж

9048001417

Крепеж

9048007002

Крепеж

9048011516

Крепеж

9048070410

Крепеж

9054106001

Крепеж

9165140610

Крепеж

9165160614

Крепеж

9165660822

Крепеж

9331914010

Крепеж

9331914068

Крепеж

9338615014

Крепеж

9613230600

Крепеж

Код

Описание

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77022

SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022C

HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77201

PIPE SUB-ASSY, FUEL TANK INLET

77201A

HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

77206

TUBE SUB-ASSY, FUEL TANK SUCTION

77206A

GASKET (FOR FUEL TANK SUCTION TUBE)

77213

HOSE, FUEL TANK SUB INLET

77220

SEPARATOR ASSY, FUEL EVAPORATIVE & CHECK VALVE

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77251

SHIELD, FUEL TANK, INLET, NO.1

77255

TUBE, FUEL EMISSION, NO.2

77255B

HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)

77285A

SUPPORT, FUEL RETURN AND MAIN TUBE

77308

COVER SUB-ASSY, FUEL INLET BOX

77652

CUSHION, FUEL TANK, NO.1

77662

COVER, FUEL TANK GAGE

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9015954004

Крепеж

9046020052

Крепеж

9046062033

Крепеж

9046112144

Крепеж

9046112211

Крепеж

9046112212

Крепеж

9046400239

Крепеж

9048001120

Крепеж

9048001135

Крепеж

9048001416

Крепеж

9048001417

Крепеж

9048007002

Крепеж

9048011516

Крепеж

9048070410

Крепеж

9054406001

Крепеж

9165140610

Крепеж

9165160614

Крепеж

9165660822

Крепеж

9331914008

Крепеж

9331914010

Крепеж

9338115010

Крепеж

9338615014

Крепеж

9611110630

Крепеж

9613230600

Крепеж

Топливный бак и горловина TOYOTA STARLET, 1978/10 - 1982/08, 1 литр, фургон, STANDARD TYPE, KP60, механика, МКПП, 4 ступени
