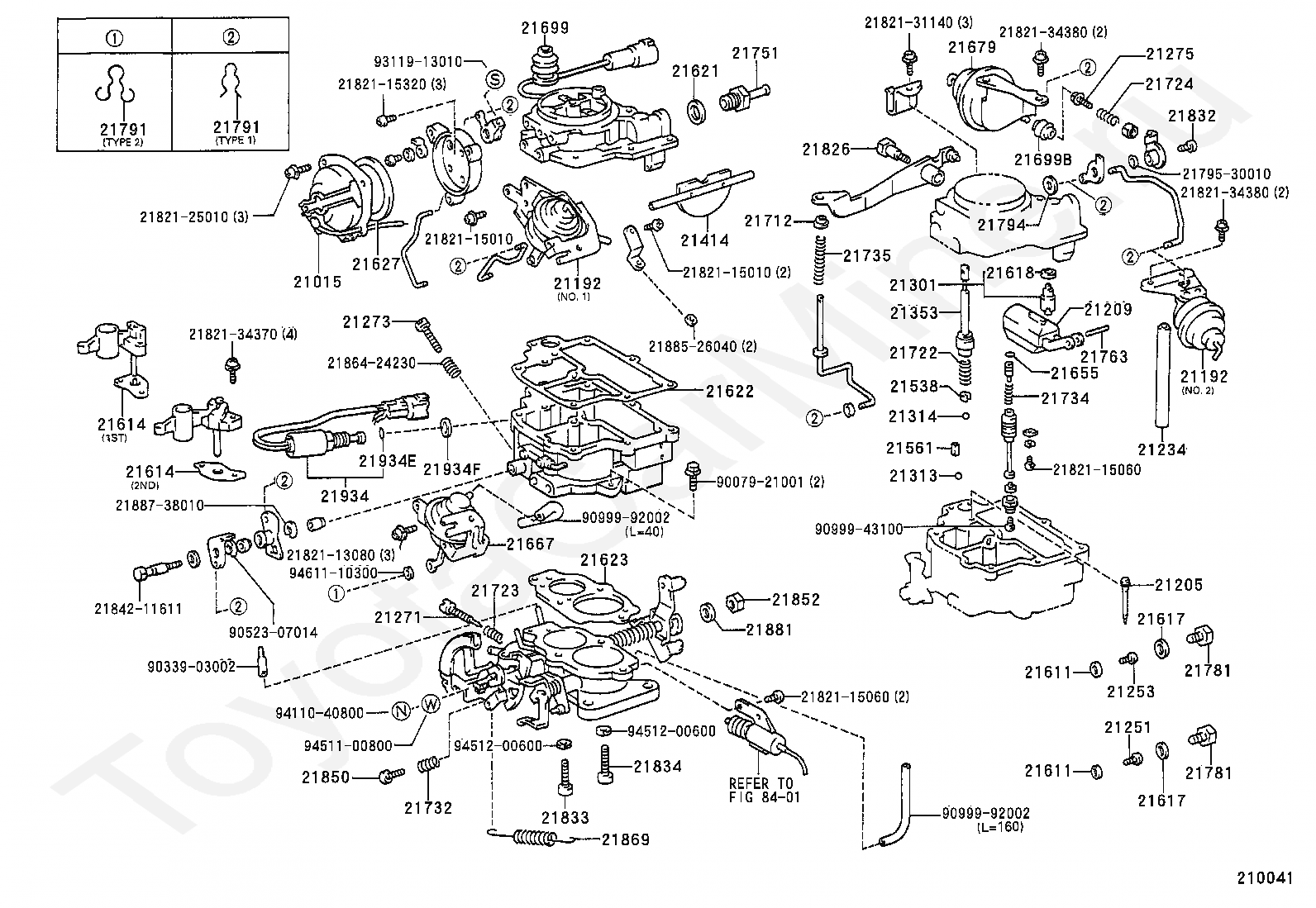

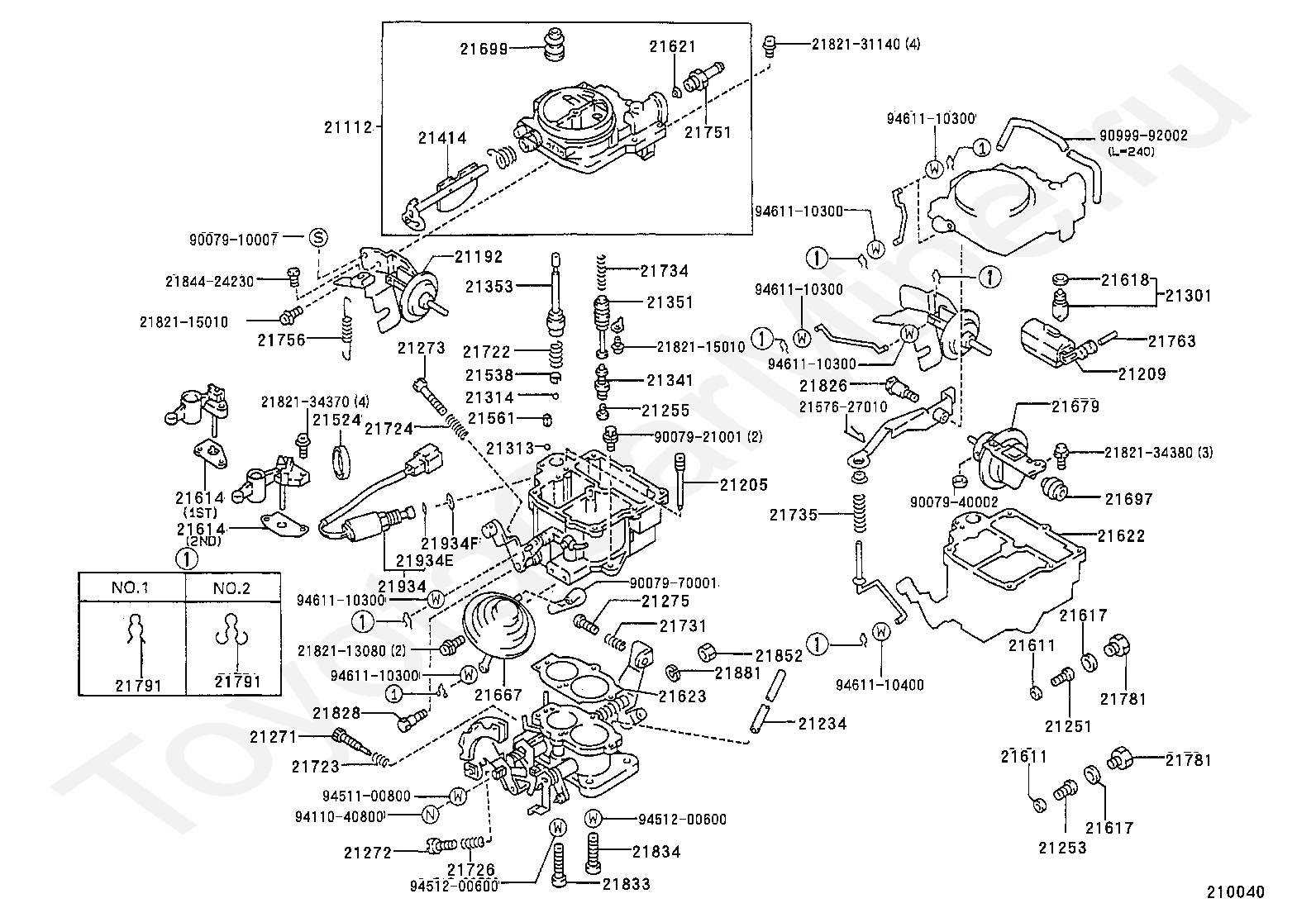

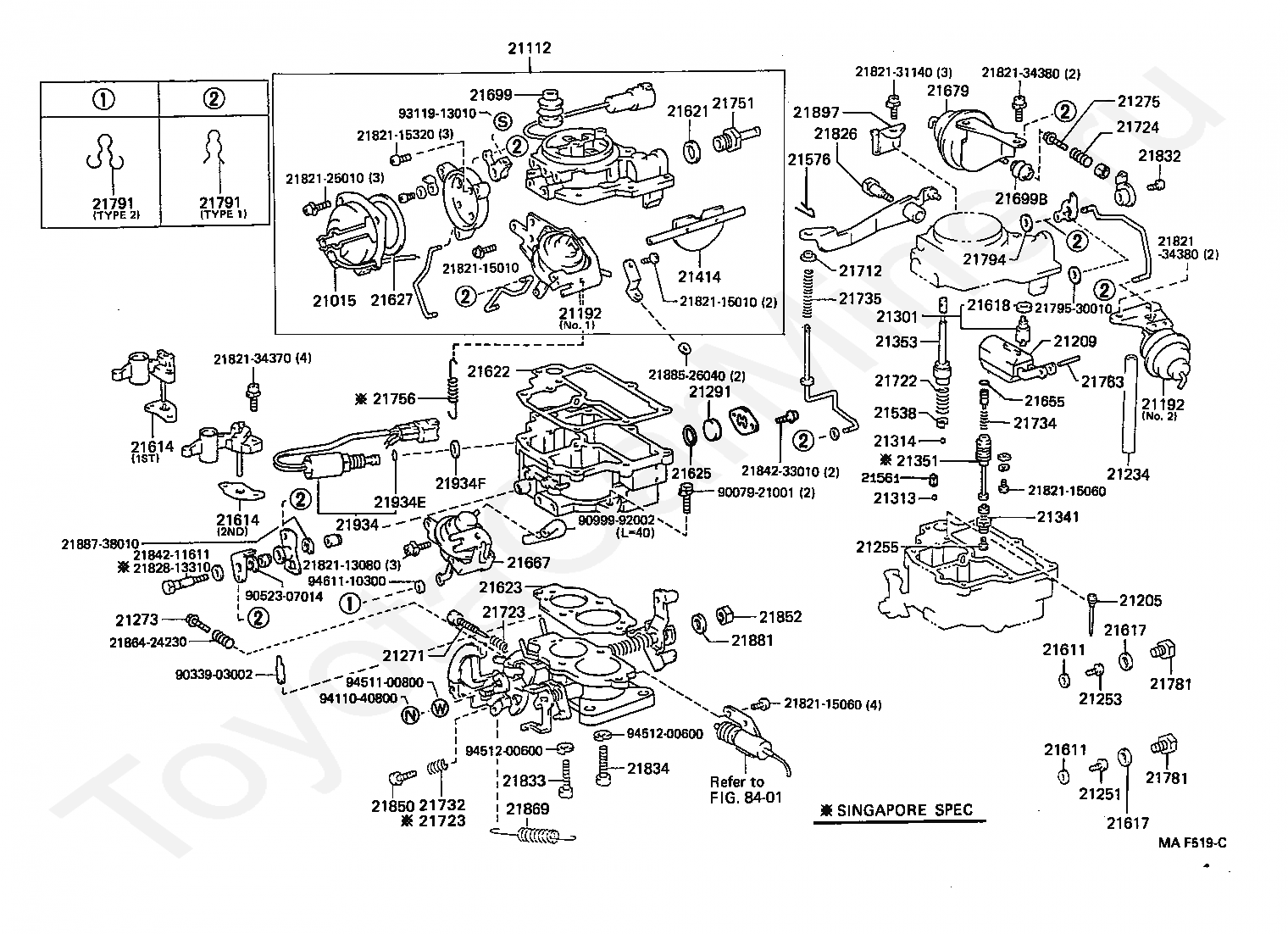

Карбюратор TOYOTA STARLET, 1989/12 - 1998/03, 1,3 литра, 12 клапанов, S TYPE, EP81, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

STARLET

Двигатель

1,3 литра, 12 клапанов

Класс

S TYPE

Фрейм

EP81

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль 5 дверей

Код

Описание

21112

HORN, AIR

21192

BREAKER

21205

JET SUB-ASSY, SLOW

21209

FLOAT SUB-ASSY

21234

PIPE OR HOSE

21251

JET, 1ST MAIN

21253

JET, 2ND MAIN

21255

JET, POWER

21271

SCREW, IDLE ADJUSTING

21272

SCREW, 1ST IDLE ADJUSTING

21273

SCREW, THROTTLE ADJUSTING

21291

GLASS, LEVEL GAGE

21301

VALVE SUB-ASSY, NEEDLE

21313

BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

21314

BALL, STEEL, NO.2(FOR PUMP PLUNGER)

21331

VALVE, 1ST THROTTLE

21341

VALVE, POWER

21351

PISTON, POWER

21353

PLUNGER, PUMP

21414

SHAFT, CHOKE

21524

BRACKET(FOR DASH POT)

21538

RETAINER, BALL CHECK

21561

WEIGHT, PUMP DISCHARGE

2157627010

Крепеж

21611

GASKET, MAIN JET

21614

GASKET, VENTURI

21617

GASKET, MAIN PASSAGE PLUG

21618

GASKET, NEEDLE VALVE SEAT

21621

GASKET, UNION NIPPLE

21622

GASKET, AIR HORN

21623

GASKET, BODY FLANGE

21625

GASKET, LEVEL GAGE

21667

DIAPHRAGM

21699

BOOT(FOR PUMP PLUNGER)

21712

BUSH, SLIDING ROD

21722

SPRING, PUMP DAMPING

21723

SPRING, IDLE ADJUSTING

21724

SPRING, THROTTLE ADJUSTING

21726

SPRING, 1ST IDLE ADJUSTING

21734

SPRING, POWER PISTON

21735

SPRING, PUMP ARM

21751

UNION, NIPPLE

21756

SPRING, BACK(FOR THROTTLE SHAFT)

21763

PIN, FLOAT LEVER

21781

PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

2182113080

Крепеж

2182115010

Крепеж

2182115060

Крепеж

2182131140

Крепеж

2182134370

Крепеж

2182134380

Крепеж

21826

SCREW, PUMP ARM SET

21828

SCREW, 1ST IDLE SET

21833

SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

21834

SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

2184233010

Крепеж

2184424230

Крепеж

21852

NUT, THROTTLE LEVER SET

21881

WASHER, LOCK(FOR THROTTLE SHAFT)

21888

WASHER(FOR POSITIONER VALVE SET)

21897

SUPPORT, FRONT(FOR CHOKE SHAFT)

21934

SOLENOID, THROTTLE VALVE

21934E

RING, O(FOR SOLENOID VALVE)

21934F

GASKET

9007910007

Крепеж

9007921001

Крепеж

9007940002

Крепеж

9007970001

Крепеж

9411040800

Крепеж

9451100800

Крепеж

9451200600

Крепеж

9461110300

Крепеж

9461110400

Крепеж

Код

Описание

21112

HORN, AIR

21192

BREAKER

21205

JET SUB-ASSY, SLOW

21209

FLOAT SUB-ASSY

21234

PIPE OR HOSE

21251

JET, 1ST MAIN

21253

JET, 2ND MAIN

21255

JET, POWER

21271

SCREW, IDLE ADJUSTING

21272

SCREW, 1ST IDLE ADJUSTING

21273

SCREW, THROTTLE ADJUSTING

21275

SCREW, ADJUSTING

21301

VALVE SUB-ASSY, NEEDLE

21313

BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

21314

BALL, STEEL, NO.2(FOR PUMP PLUNGER)

21341

VALVE, POWER

21351

PISTON, POWER

21353

PLUNGER, PUMP

21414

SHAFT, CHOKE

21524

BRACKET(FOR DASH POT)

21538

RETAINER, BALL CHECK

21561

WEIGHT, PUMP DISCHARGE

2157627010

Крепеж

21611

GASKET, MAIN JET

21614

GASKET, VENTURI

21617

GASKET, MAIN PASSAGE PLUG

21618

GASKET, NEEDLE VALVE SEAT

21621

GASKET, UNION NIPPLE

21622

GASKET, AIR HORN

21623

GASKET, BODY FLANGE

21667

DIAPHRAGM

21679

POSITIONER

21697

BOOT(FOR SLIDING ROD)

21699

BOOT(FOR PUMP PLUNGER)

21722

SPRING, PUMP DAMPING

21723

SPRING, IDLE ADJUSTING

21724

SPRING, THROTTLE ADJUSTING

21726

SPRING, 1ST IDLE ADJUSTING

21731

SPRING, DASH POT OR POSITIONER ADJUSTING

21734

SPRING, POWER PISTON

21735

SPRING, PUMP ARM

21751

UNION, NIPPLE

21756

SPRING, BACK(FOR THROTTLE SHAFT)

21763

PIN, FLOAT LEVER

21781

PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

2182113080

Крепеж

2182115010

Крепеж

2182131140

Крепеж

2182134370

Крепеж

2182134380

Крепеж

21826

SCREW, PUMP ARM SET

21828

SCREW, 1ST IDLE SET

21833

SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

21834

SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

2184424230

Крепеж

21852

NUT, THROTTLE LEVER SET

21881

WASHER, LOCK(FOR THROTTLE SHAFT)

21934

SOLENOID, THROTTLE VALVE

21934E

RING, O(FOR SOLENOID VALVE)

21934F

GASKET

9007910007

Крепеж

9007921001

Крепеж

9007940002

Крепеж

9007970001

Крепеж

9099992002

Крепеж

9411040800

Крепеж

9451100800

Крепеж

9451200600

Крепеж

9461110300

Крепеж

9461110400

Крепеж

Код

Описание

21015

HOUSING SUB-ASSY, COIL

21112

HORN, AIR

21192

BREAKER

21205

JET SUB-ASSY, SLOW

21209

FLOAT SUB-ASSY

21234

PIPE OR HOSE

21251

JET, 1ST MAIN

21253

JET, 2ND MAIN

21255

JET, POWER

21271

SCREW, IDLE ADJUSTING

21273

SCREW, THROTTLE ADJUSTING

21275

SCREW, ADJUSTING

21291

GLASS, LEVEL GAGE

21301

VALVE SUB-ASSY, NEEDLE

21313

BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

21314

BALL, STEEL, NO.2(FOR PUMP PLUNGER)

21341

VALVE, POWER

21351

PISTON, POWER

21353

PLUNGER, PUMP

21414

SHAFT, CHOKE

21538

RETAINER, BALL CHECK

21561

WEIGHT, PUMP DISCHARGE

21576

CLIP, PUMP STRAINER

21611

GASKET, MAIN JET

21614

GASKET, VENTURI

21617

GASKET, MAIN PASSAGE PLUG

21618

GASKET, NEEDLE VALVE SEAT

21621

GASKET, UNION NIPPLE

21622

GASKET, AIR HORN

21623

GASKET, BODY FLANGE

21625

GASKET, LEVEL GAGE

21627

GASKET, COIL HOUSING

21655

RING, O(FOR LIFTER ROD)

21667

DIAPHRAGM

21679

POSITIONER

21699

BOOT(FOR PUMP PLUNGER)

21699B

BOOT(FOR COMPENSATOR)

21712

BUSH, SLIDING ROD

21722

SPRING, PUMP DAMPING

21723

SPRING, IDLE ADJUSTING

21724

SPRING, THROTTLE ADJUSTING

21732

SPRING, THROTTLE ADJUSTING

21734

SPRING, POWER PISTON

21735

SPRING, PUMP ARM

21751

UNION, NIPPLE

21756

SPRING, BACK(FOR THROTTLE SHAFT)

21763

PIN, FLOAT LEVER

21781

PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21794

RING, RETAINER, NO.1(FOR THROTTLE SHAFT)

2179530010

Крепеж

2182113080

Крепеж

2182115010

Крепеж

2182115060

Крепеж

2182115320

Крепеж

2182125010

Крепеж

2182131140

Крепеж

2182134370

Крепеж

2182134380

Крепеж

21826

SCREW, PUMP ARM SET

2182813310

Крепеж

21832

SCREW(FOR CHOKE LEVER ADAPTER SET)

21833

SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

21834

SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

2184211611

Крепеж

2184233010

Крепеж

21850

SCREW, THROTTLE SWITCH ADJUSTING

21852

NUT, THROTTLE LEVER SET

2186424230

Крепеж

21869

SPRING(FOR MAIN JET)

21881

WASHER, LOCK(FOR THROTTLE SHAFT)

2188526040

Крепеж

2188738010

Крепеж

21897

SUPPORT, FRONT(FOR CHOKE SHAFT)

21934

SOLENOID, THROTTLE VALVE

21934E

RING, O(FOR SOLENOID VALVE)

21934F

GASKET

8401

переход к группе запчастей

9007921001

Крепеж

9033903002

Крепеж

9052307014

Крепеж

9099992002

Крепеж

9311913010

Крепеж

9411040800

Крепеж

9451100800

Крепеж

9451200600

Крепеж

9461110300

Крепеж

Код

Описание

21015

HOUSING SUB-ASSY, COIL

21192

BREAKER

21205

JET SUB-ASSY, SLOW

21209

FLOAT SUB-ASSY

21234

PIPE OR HOSE

21251

JET, 1ST MAIN

21253

JET, 2ND MAIN

21271

SCREW, IDLE ADJUSTING

21273

SCREW, THROTTLE ADJUSTING

21275

SCREW, ADJUSTING

21301

VALVE SUB-ASSY, NEEDLE

21313

BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

21314

BALL, STEEL, NO.2(FOR PUMP PLUNGER)

21353

PLUNGER, PUMP

21414

SHAFT, CHOKE

21538

RETAINER, BALL CHECK

21561

WEIGHT, PUMP DISCHARGE

21611

GASKET, MAIN JET

21614

GASKET, VENTURI

21617

GASKET, MAIN PASSAGE PLUG

21618

GASKET, NEEDLE VALVE SEAT

21621

GASKET, UNION NIPPLE

21622

GASKET, AIR HORN

21623

GASKET, BODY FLANGE

21627

GASKET, COIL HOUSING

21655

RING, O(FOR LIFTER ROD)

21667

DIAPHRAGM

21679

POSITIONER

21699

BOOT(FOR PUMP PLUNGER)

21699B

BOOT(FOR COMPENSATOR)

21712

BUSH, SLIDING ROD

21722

SPRING, PUMP DAMPING

21723

SPRING, IDLE ADJUSTING

21724

SPRING, THROTTLE ADJUSTING

21732

SPRING, THROTTLE ADJUSTING

21734

SPRING, POWER PISTON

21735

SPRING, PUMP ARM

21751

UNION, NIPPLE

21763

PIN, FLOAT LEVER

21781

PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21794

RING, RETAINER, NO.1(FOR THROTTLE SHAFT)

2179530010

Крепеж

2182113080

Крепеж

2182115010

Крепеж

2182115060

Крепеж

2182115320

Крепеж

2182125010

Крепеж

2182131140

Крепеж

2182134370

Крепеж

2182134380

Крепеж

21826

SCREW, PUMP ARM SET

21832

SCREW(FOR CHOKE LEVER ADAPTER SET)

21833

SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

21834

SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

2184211611

Крепеж

21850

SCREW, THROTTLE SWITCH ADJUSTING

21852

NUT, THROTTLE LEVER SET

2186424230

Крепеж

21869

SPRING(FOR MAIN JET)

21881

WASHER, LOCK(FOR THROTTLE SHAFT)

2188526040

Крепеж

2188738010

Крепеж

21934

SOLENOID, THROTTLE VALVE

21934E

RING, O(FOR SOLENOID VALVE)

21934F

GASKET

8401

переход к группе запчастей

9007921001

Крепеж

9033903002

Крепеж

9052307014

Крепеж

9099943100

Крепеж

9099992002

Крепеж

9311913010

Крепеж

9411040800

Крепеж

9451100800

Крепеж

9451200600

Крепеж

9461110300

Крепеж

Карбюратор TOYOTA STARLET, 1989/12 - 1998/03, 1,3 литра, 12 клапанов, S TYPE, EP81, механика, МКПП, 5 скоростей
