Каталог
ЯпонияМодель
SPRINTERДвигатель
2 литра, дизельКузов
седанКласс
SE-VINTAGE TYPEФрейм
CE114Трансмиссия
механика МКПП, 5 скоростейОпции

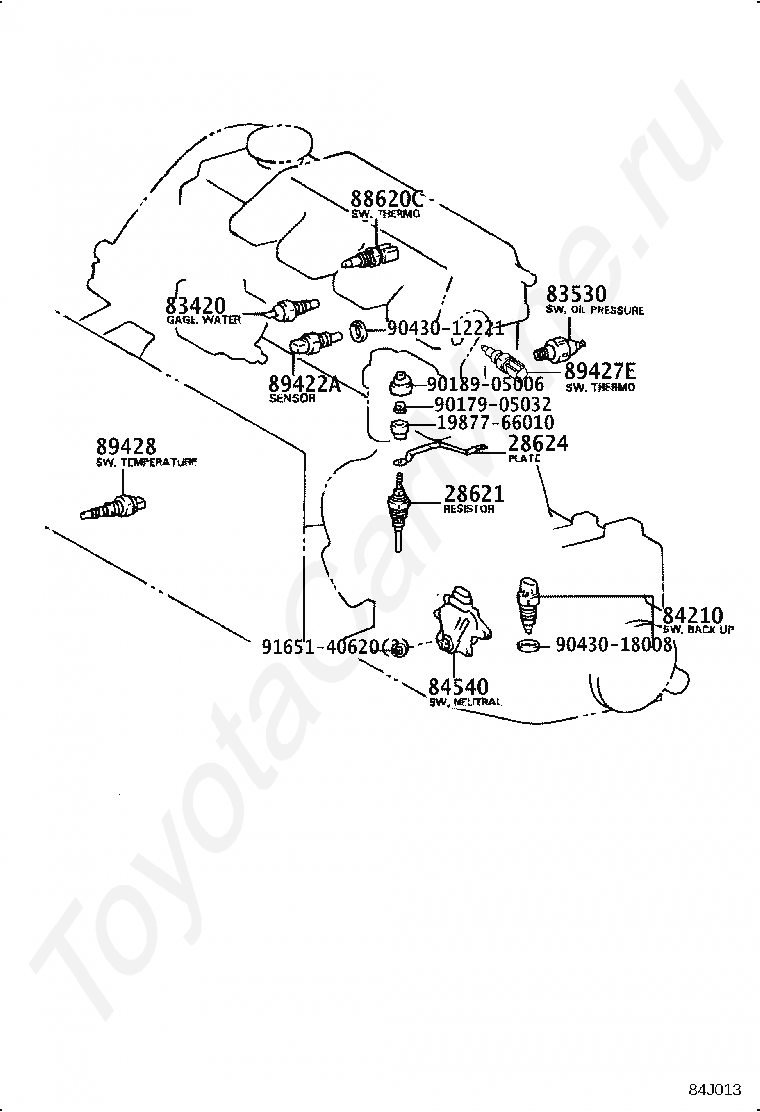

Код
Описание
1987766010
Крепеж
28621
RESISTOR, GLOW PLUG
28624
PLATE, CURRENT SENSOR
83420
GAGE ASSY, WATER TEMPERATURE SENDER
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
88620C
THERMO SWITCH ASSY
89422A
SENSOR, WATER TEMPERATURE
89427E
SWITCH, TEMPERATURE (FOR HEATER IDLE UP)
89428
SWITCH, TEMPERATURE DETECT, NO.2
9017905032
Крепеж
9018905006
Крепеж
9043012221
Крепеж
9043018008
Крепеж
9165140620
Крепеж
Код
Описание
1901
переход к группе запчастей
2302
переход к группе запчастей
28300
RELAY ASSY, STARTER
28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610A
RELAY ASSY, GLOW PLUG(SUB)
8202
переход к группе запчастей
82600F
FUSE, FUSE BLOCK
82616
PULLER, FUSE
82623
COVER, FUSIBLE LINK, LOWER
82661
COVER, RELAY BLOCK, NO.1
82670A
BLOCK ASSY, JUNCTION, NO.1
82671A
BLOCK, JUNCTION
82672C
COVER, JUNCTION BLOCK
82674
COVER, JUNCTION BLOCK LOWER
82741
BLOCK, ENGINE ROOM RELAY
83390
SWITCH ASSY, VACUUM WARNING
85440A
SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
85915
RELAY, MAIN
85916P
RELAY, HEADLAMP
85927
RELAY, COOLING FAN
85927B
RELAY, COOLING FAN, NO.3
85927C
RELAY, COOLING FAN, NO.4
85931B
RELAY, FUEL HEATER
85934
RELAY, MAGNET-CLUTCH
85999A
BRACKET, RELAY, NO.2
86530
RELAY ASSY, HORN
89421B
SENSOR, VACUUM
89426A
BRACKET, VACUUM SENSOR
89620
IGNITER ASSY
9011906183
Крепеж
9011906539
Крепеж
91511G0620
Крепеж

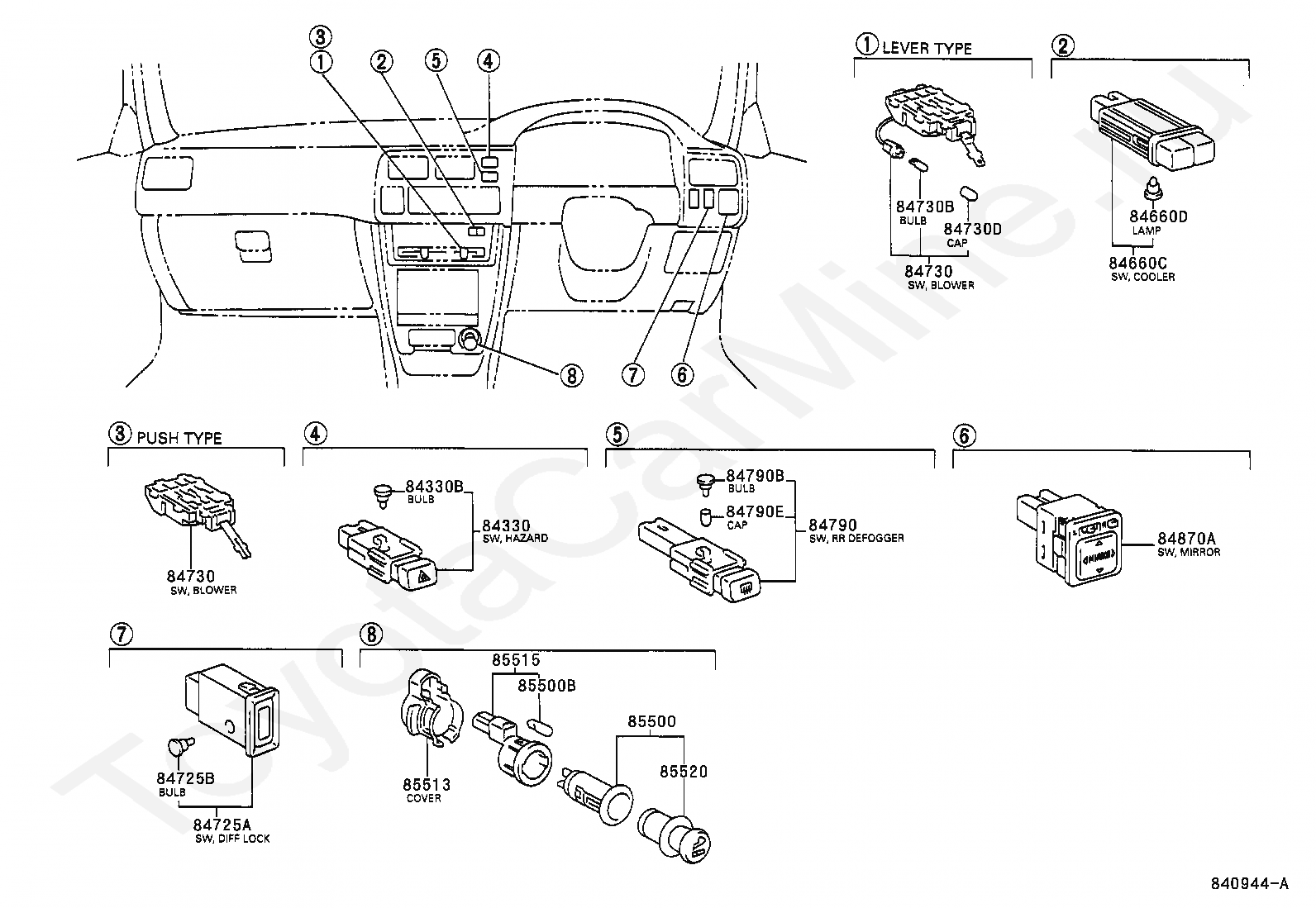

Код
Описание
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84660C
SWITCH, COOLER
84660D
BULB(FOR COOLER SWITCH)
84725A
SWITCH, DIFFERENTIAL LOCK
84725B
BLUB, DIFFERENTIAL LOCK SWITCH
84730
SWITCH ASSY, HEATER BLOWER
84730B
BULB, HEATER BLOWER SWITCH
84730D
CAP, HEATER BLOWER SWITCH BULB
84790
SWITCH ASSY, REAR WINDOW DEFOGGER
84790B
BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84790E
CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84870A
SWITCH ASSY, OUTER MIRROR
85500
LIGHTER ASSY, CIGARETTE
85500B
BULB, CIGARETTE LIGHTER
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

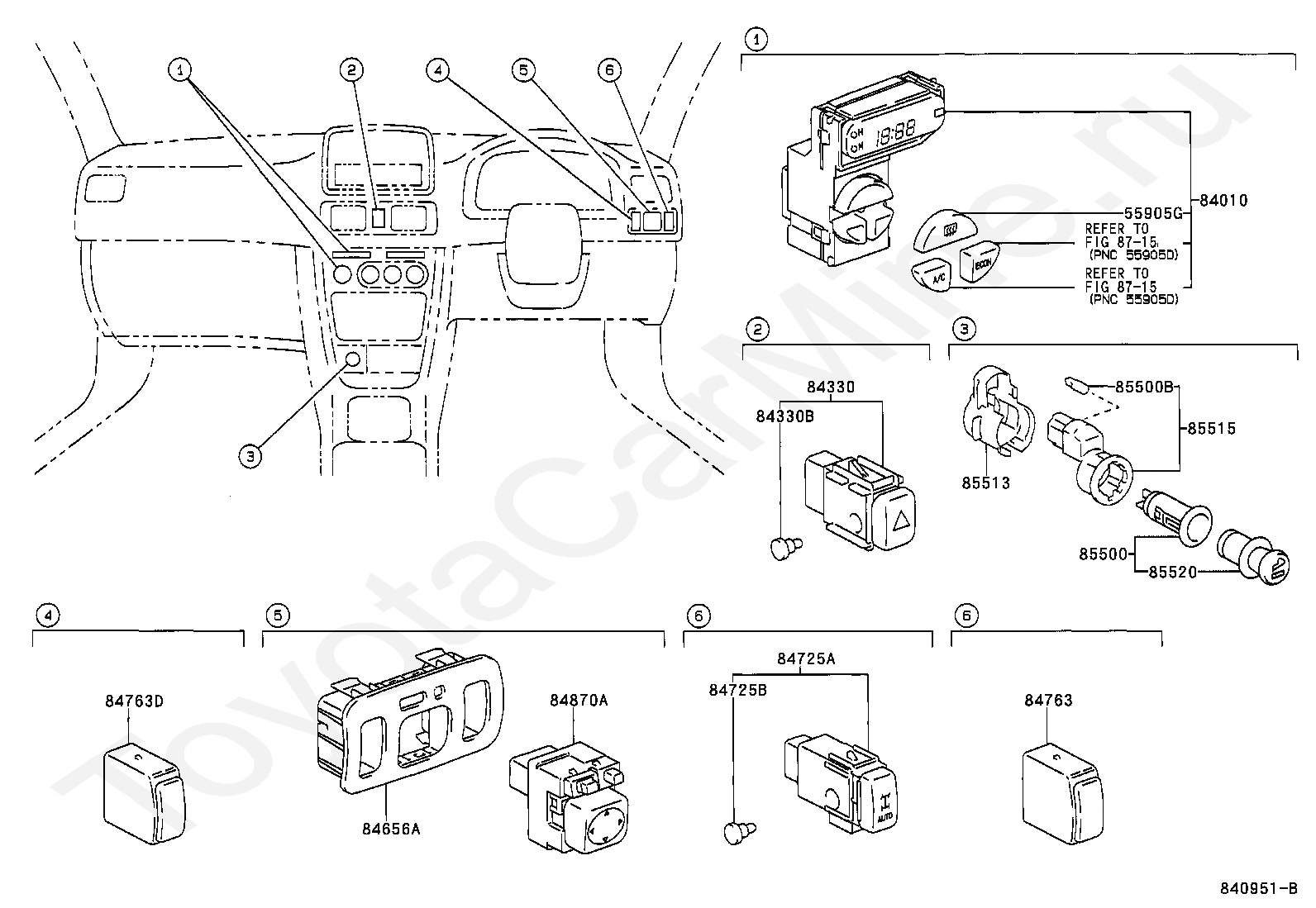

Код
Описание
55905G
KNOB SUB-ASSY, CONTROL
84010
SWITCH ASSY, CENTER CLUSTER INTEGRATION
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84656A
BEZEL, SWITCH
84725A
SWITCH, DIFFERENTIAL LOCK
84725B
BLUB, DIFFERENTIAL LOCK SWITCH
84763
PLATE, SWITCH
84763D
PLATE, SWITCH
84870A
SWITCH ASSY, OUTER MIRROR
85500
LIGHTER ASSY, CIGARETTE
85500B
BULB, CIGARETTE LIGHTER
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
8715
переход к группе запчастей

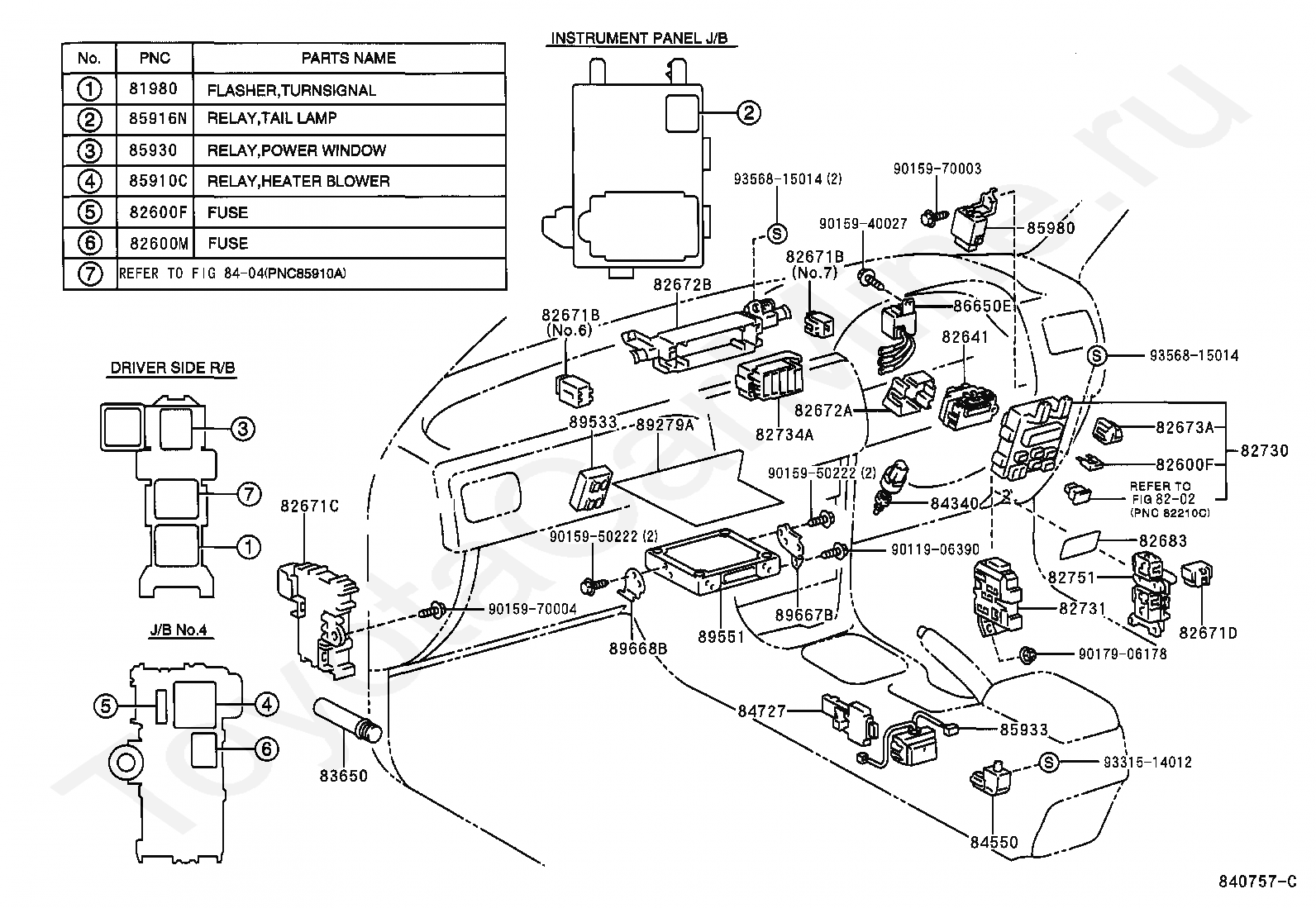

Код
Описание
81980
FLASHER ASSY, TURN SIGNAL
8202
переход к группе запчастей
82600F
FUSE, FUSE BLOCK
82600M
FUSE, MEDIUM CURRENT
82641
RELAY, INTEGRATION NO.1
82671B
BLOCK, JUNCTION
82671C
BLOCK, JUNCTION
82671D
BLOCK, JUNCTION
82672A
COVER, JUNCTION BLOCK
82672B
COVER, JUNCTION BLOCK
82673A
BRACKET, JUNCTION BLOCK
82683
PLATE, FUSE BLOCK CAUTION
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82731
BLOCK, DRIVER SIDE JUNCTION
82734A
BLOCK, CENTER JUNCTION
82751
BLOCK, DRIVER SIDE RELAY
83650
FUSEE
8404
переход к группе запчастей
84340
SWITCH ASSY, STOP LAMP
84550
SWITCH ASSY, PARKING BRAKE
84727
SWITCH, SHIFT LOCK CONTROL
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85916N
RELAY, TAIL LAMP
85930
RELAY ASSY, POWER WINDOW
85933
COMPUTER, SHIFT LOCK CONTROL
85980
RELAY ASSY, DOOR CONTROL
86650E
BUZZER ASSY
89279A
COVER, COMPUTER
89533
COMPUTER, 4 WHEEL DRIVE CONTROL
89551
COMPUTER, EMISSION CONTROL
89667B
BRACKET, ENGINE CONTROL COMPUTER, NO.1
89668B
BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906390
Крепеж
9015940027
Крепеж
9015950222
Крепеж
9015970003
Крепеж
9015970004
Крепеж
9017906178
Крепеж
9331514012
Крепеж
9356815014
Крепеж

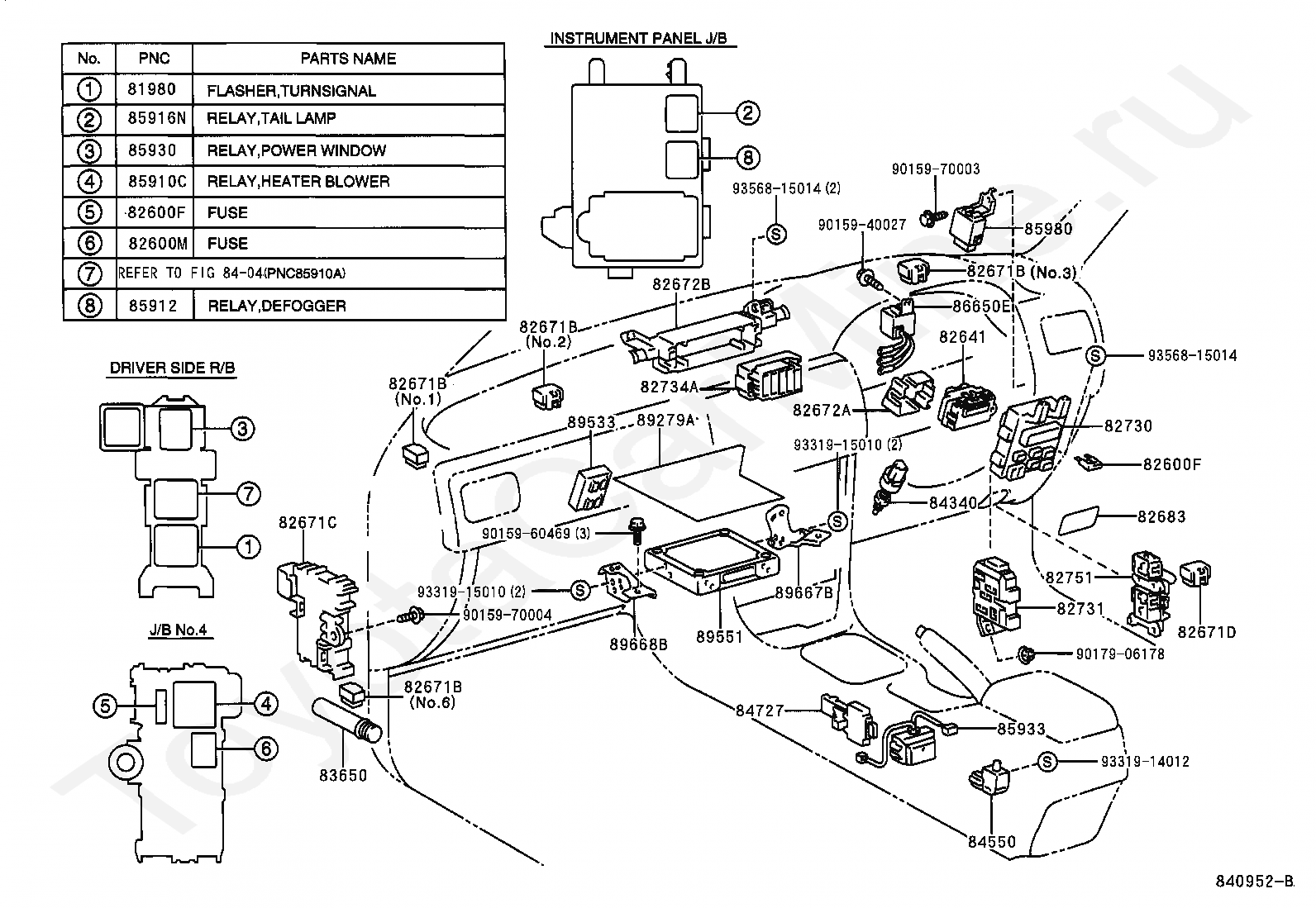

Код
Описание
81980
FLASHER ASSY, TURN SIGNAL
82600F
FUSE, FUSE BLOCK
82600M
FUSE, MEDIUM CURRENT
82641
RELAY, INTEGRATION NO.1
82671B
BLOCK, JUNCTION
82671C
BLOCK, JUNCTION
82671D
BLOCK, JUNCTION
82672A
COVER, JUNCTION BLOCK
82672B
COVER, JUNCTION BLOCK
82683
PLATE, FUSE BLOCK CAUTION
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82731
BLOCK, DRIVER SIDE JUNCTION
82734A
BLOCK, CENTER JUNCTION
82751
BLOCK, DRIVER SIDE RELAY
83650
FUSEE
8404
переход к группе запчастей
84340
SWITCH ASSY, STOP LAMP
84550
SWITCH ASSY, PARKING BRAKE
84727
SWITCH, SHIFT LOCK CONTROL
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85912
RELAY, DEFOGGER
85916N
RELAY, TAIL LAMP
85930
RELAY ASSY, POWER WINDOW
85933
COMPUTER, SHIFT LOCK CONTROL
85980
RELAY ASSY, DOOR CONTROL
86650E
BUZZER ASSY
89279A
COVER, COMPUTER
89533
COMPUTER, 4 WHEEL DRIVE CONTROL
89551
COMPUTER, EMISSION CONTROL
89667B
BRACKET, ENGINE CONTROL COMPUTER, NO.1
89668B
BRACKET, ENGINE CONTROL COMPUTER, NO.2
9015940027
Крепеж
9015960469
Крепеж
9015970003
Крепеж
9015970004
Крепеж
9017906178
Крепеж
9331914012
Крепеж
9331915010
Крепеж
9356815014
Крепеж
Код
Описание
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84310
SWITCH ASSY, TURN SIGNAL
84312
PLATE, HORN CONTACT
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
9331914012
Крепеж
9331915012
Крепеж
Код
Описание
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84306
CABLE SUB-ASSY, SPIRAL
84310
SWITCH ASSY, TURN SIGNAL
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
9331914012
Крепеж
9331915012
Крепеж

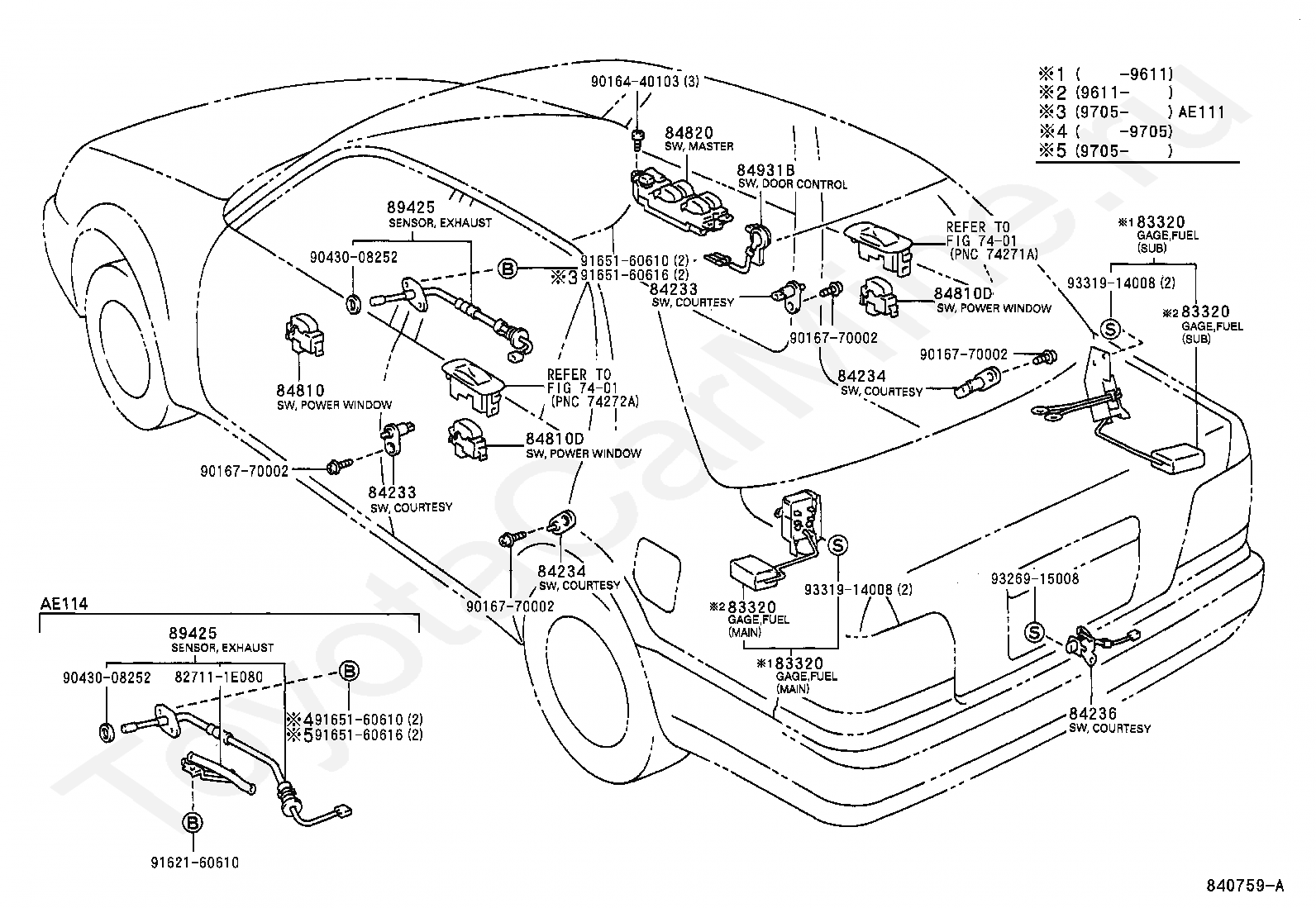

Код
Описание
7401
переход к группе запчастей
827111E080
Крепеж
83320
GAGE ASSY, FUEL SENDER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84236
SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84931B
SWITCH, DOOR CONTROL
89425
SENSOR, EXHAUST GAS TEMPERATURE
9016440103
Крепеж
9016770002
Крепеж
9043008252
Крепеж
9162160610
Крепеж
9165160610
Крепеж
9165160616
Крепеж
9326915008
Крепеж
9331914008
Крепеж
