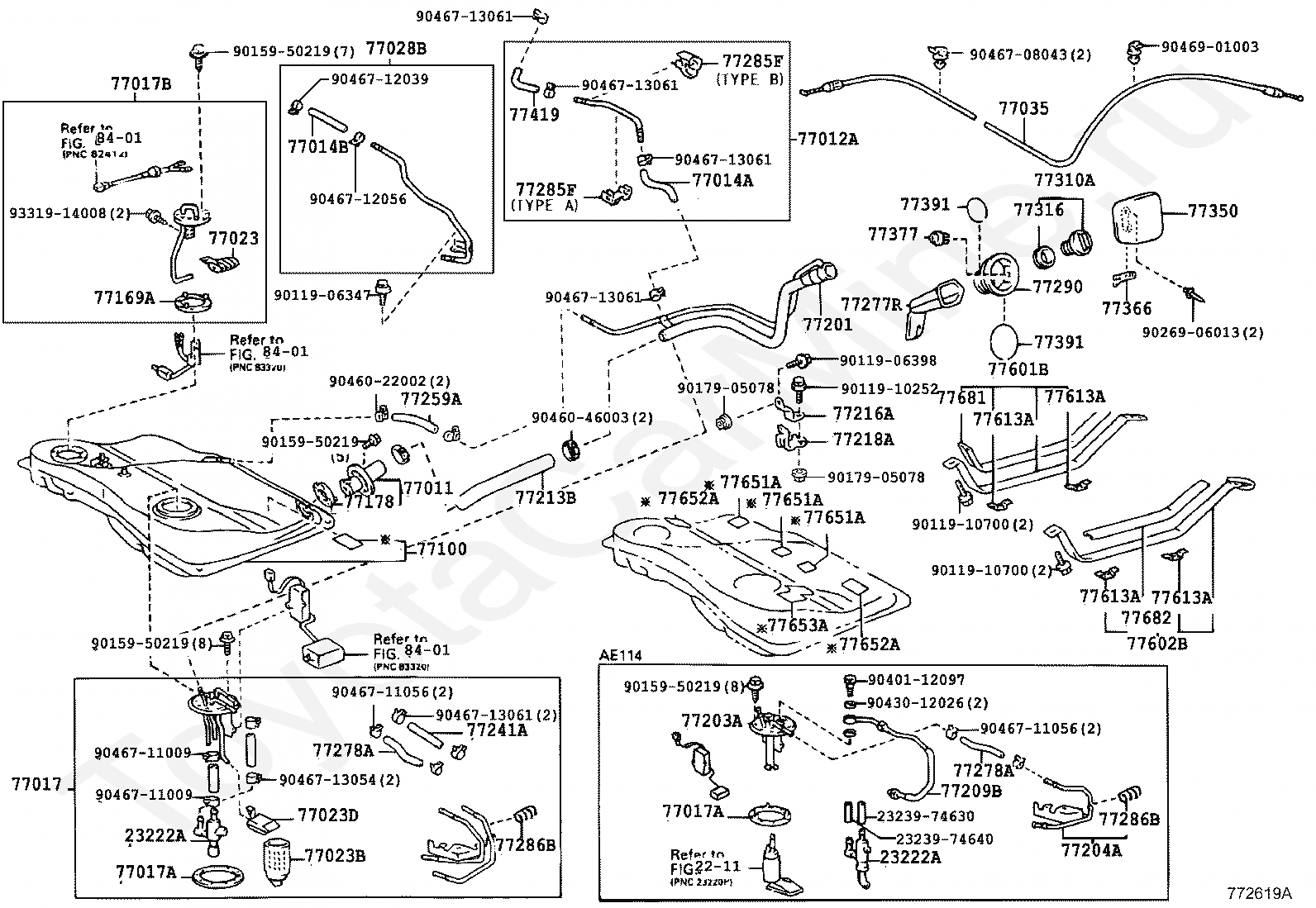

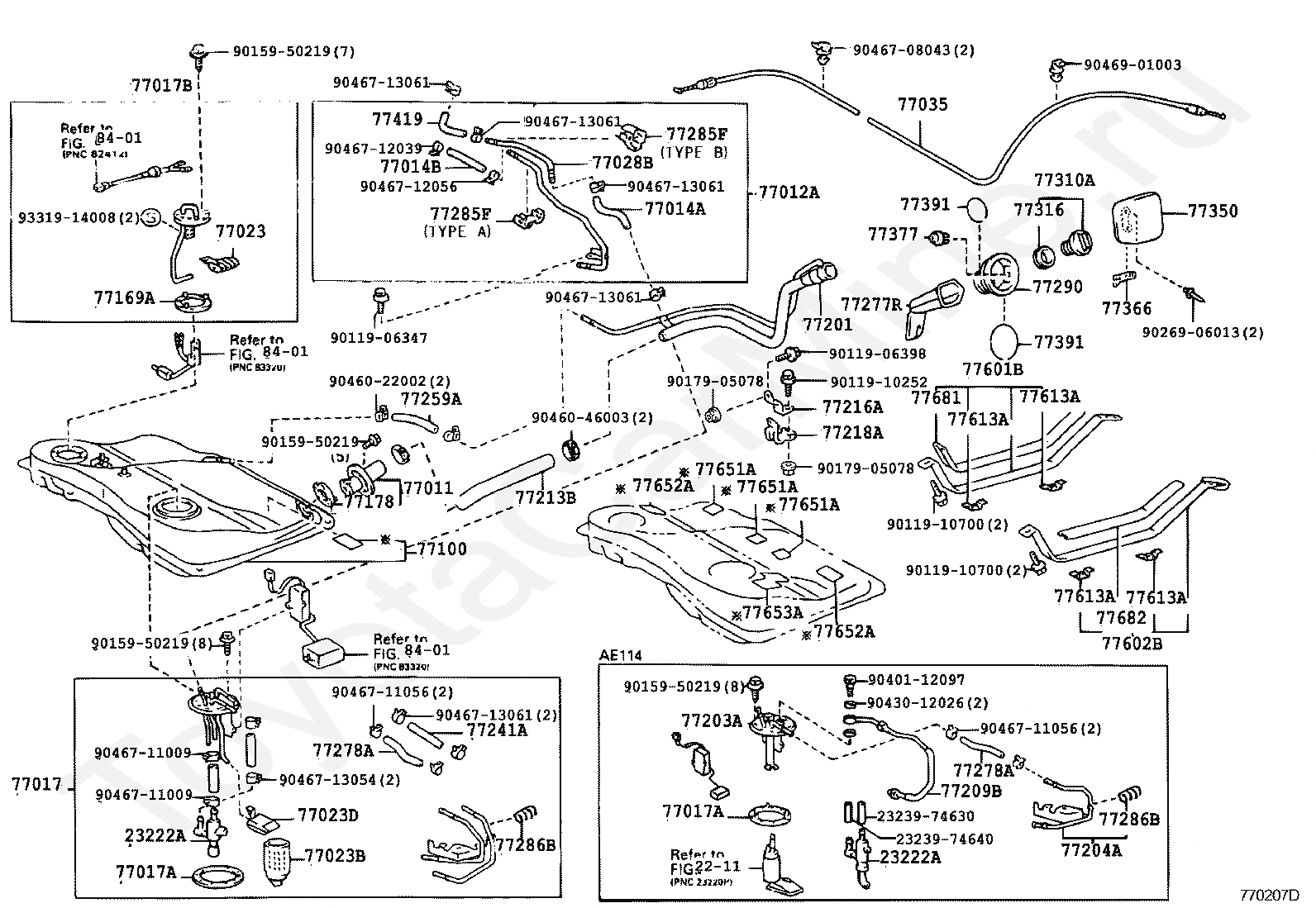

Топливный бак и горловина TOYOTA SPRINTER, 1995/05 - 1998/04, 2 литра, дизель, седан, SE-VINTAGE TYPE, CE114, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

SPRINTER

Двигатель

2 литра, дизель

Кузов

седан

Класс

SE-VINTAGE TYPE

Фрейм

CE114

Трансмиссия

механика МКПП, 5 скоростей

Опции

Код

Описание

2211

переход к группе запчастей

23222A

TUBE, FUEL RETURN JET

2323974630

Крепеж

2323974640

Крепеж

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77012A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

77014A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

77014B

HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)

77017

TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

77017A

GASKET, FUEL TANK VENT

77017B

TUBE SUB-ASSY, FUEL TANK VENT

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77023B

FILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2

77023D

FILTER SUB-ASSY, FUEL SUCTION TUBE

77028B

TUBE SUB-ASSY, FUEL EVAPORATION, NO.3

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77169A

GASKET, FUEL SUCTION TUBE SET

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77201

PIPE SUB-ASSY, FUEL TANK INLET

77203A

TUBE SUB-ASSY, FUEL SUCTION

77204A

TUBE, FUEL TANK RETURN

77209B

TUBE SUB-ASSY, FUEL PUMP

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77218A

SUPPORT, FUEL TANK FILLER PIPE, NO.3

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77259A

HOSE, FUEL(FOR BREATHER TUBE)

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278A

HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

77285F

CLAMP, FUEL TUBE, NO.1

77286B

CLAMP, FUEL TUBE W/GROMMET, NO.2

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77419

HOSE, FUEL, NO.3

77601B

BAND SUB-ASSY, FUEL TANK, NO.1 RH

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77613A

BRACKET, FUEL TANK BAND, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681

SEAT, FUEL TANK BAND, RH

77682

SEAT, FUEL TANK BAND, LH

8401

переход к группе запчастей

9011906347

Крепеж

9011906398

Крепеж

9011910252

Крепеж

9011910700

Крепеж

9015950219

Крепеж

9017905078

Крепеж

9026906013

Крепеж

9040112097

Крепеж

9043012026

Крепеж

9046022002

Крепеж

9046046003

Крепеж

9046708043

Крепеж

9046711009

Крепеж

9046711056

Крепеж

9046712039

Крепеж

9046712056

Крепеж

9046713054

Крепеж

9046713061

Крепеж

9046901003

Крепеж

9331914008

Крепеж

Код

Описание

2211

переход к группе запчастей

23222A

TUBE, FUEL RETURN JET

2323974630

Крепеж

2323974640

Крепеж

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77012A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

77014A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

77014B

HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)

77017

TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

77017A

GASKET, FUEL TANK VENT

77017B

TUBE SUB-ASSY, FUEL TANK VENT

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77023B

FILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2

77023D

FILTER SUB-ASSY, FUEL SUCTION TUBE

77028B

TUBE SUB-ASSY, FUEL EVAPORATION, NO.3

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77169A

GASKET, FUEL SUCTION TUBE SET

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77201

PIPE SUB-ASSY, FUEL TANK INLET

77203A

TUBE SUB-ASSY, FUEL SUCTION

77204A

TUBE, FUEL TANK RETURN

77209B

TUBE SUB-ASSY, FUEL PUMP

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77218A

SUPPORT, FUEL TANK FILLER PIPE, NO.3

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77259A

HOSE, FUEL(FOR BREATHER TUBE)

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278A

HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

77285F

CLAMP, FUEL TUBE, NO.1

77286B

CLAMP, FUEL TUBE W/GROMMET, NO.2

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77419

HOSE, FUEL, NO.3

77601B

BAND SUB-ASSY, FUEL TANK, NO.1 RH

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77613A

BRACKET, FUEL TANK BAND, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681

SEAT, FUEL TANK BAND, RH

77682

SEAT, FUEL TANK BAND, LH

8401

переход к группе запчастей

9011906347

Крепеж

9011906398

Крепеж

9011910252

Крепеж

9011910700

Крепеж

9015950219

Крепеж

9017905078

Крепеж

9026906013

Крепеж

9040112097

Крепеж

9043012026

Крепеж

9046022002

Крепеж

9046046003

Крепеж

9046708043

Крепеж

9046711009

Крепеж

9046711056

Крепеж

9046712039

Крепеж

9046712056

Крепеж

9046713054

Крепеж

9046713061

Крепеж

9046901003

Крепеж

9331914008

Крепеж

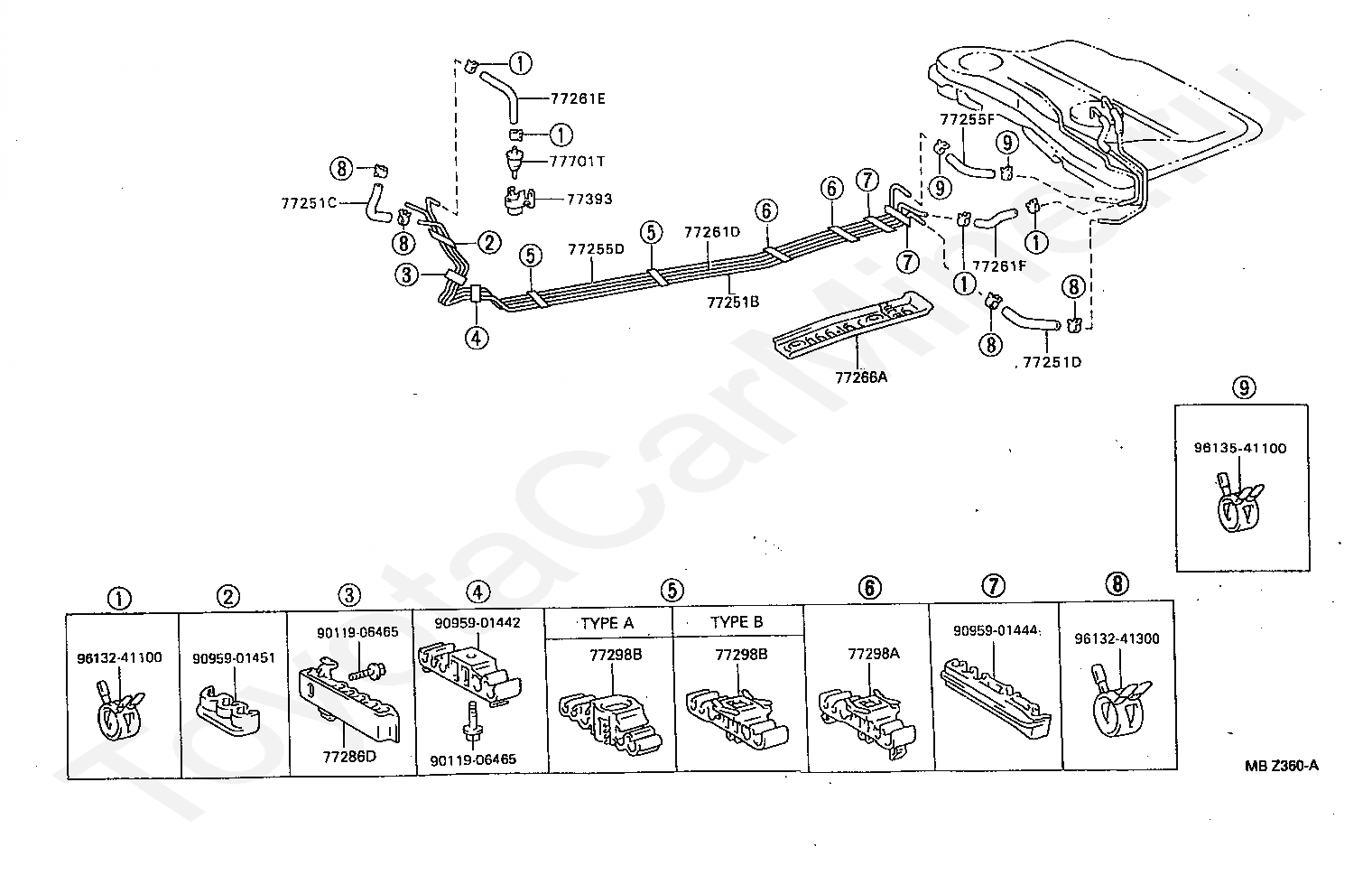

Код

Описание

77251B

TUBE, FUEL MAIN

77251C

HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

77251D

HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

77255D

TUBE, FUEL RETURN

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77261D

TUBE, FUEL TANK TO CANISTER

77261E

HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

77261F

HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

77266A

PROTECTOR, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77298A

CLAMP, FUEL TUBE, NO.4

77298B

CLAMP, FUEL TUBE, NO.4

77393

PROTECTOR, CHECK VALVE

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9011906465

Крепеж

9095901442

Крепеж

9095901444

Крепеж

9095901451

Крепеж

9613241100

Крепеж

9613241300

Крепеж

9613541100

Крепеж
