Каталог
ЯпонияМодель
SPRINTERДвигатель
1,5 литраКузов
седанКласс
SE TYPEФрейм
AE70Трансмиссия
автомат АКПП, 3 ступениОпции
4 двери

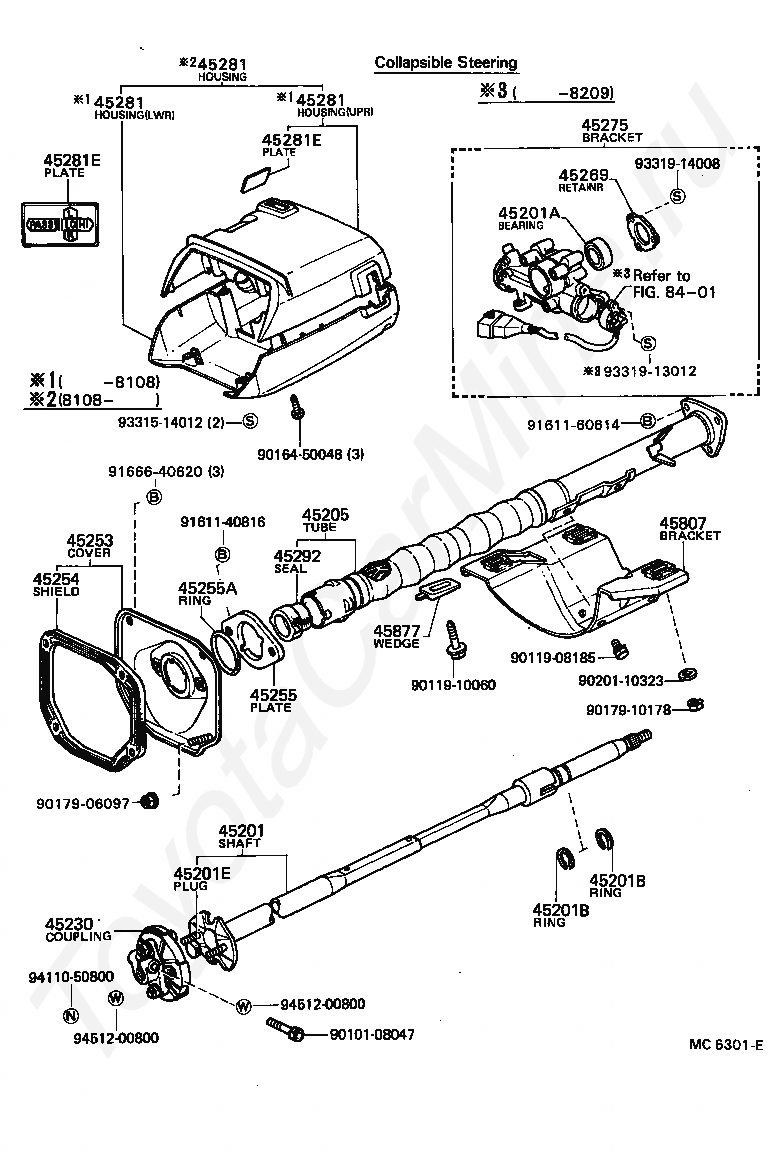

Код
Описание
45201
SHAFT SUB-ASSY, STEERING MAIN
45201A
BEARING(FOR STEERING MAIN SHAFT)
45201B
RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201E
PLUG, PLATE(FOR STEERING MAIN SHAFT)
45205
TUBE SUB-ASSY, STEERING COLUMN
45230
COUPLING ASSY, FLEXIBLE
45253
COVER, STEERING COLUMN HOLE
45254
SHIELD, STEERING COLUMN HOLE
45255
PLATE, STEERING COLUMN HOLE COVER
45255A
GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
45269
RETAINER, MAIN SHAFT BEARING
45275
BRACKET, STEERING COLUMN, UPPER
45281
HOUSING, STEERING COLUMN
45281E
PLATE, SAFETY CAUTION
45292
SEAL, MAIN SHAFT LOWER DUST
45807
BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45877
WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)
8401
переход к группе запчастей
9010108047
Крепеж
9011908185
Крепеж
9011910060
Крепеж
9016450048
Крепеж
9017906097
Крепеж
9017910178
Крепеж
9020110323
Крепеж
9161140816
Крепеж
9161160614
Крепеж
9166640620
Крепеж
9331514012
Крепеж
9331913012
Крепеж
9331914008
Крепеж
9411050800
Крепеж
9451200800
Крепеж

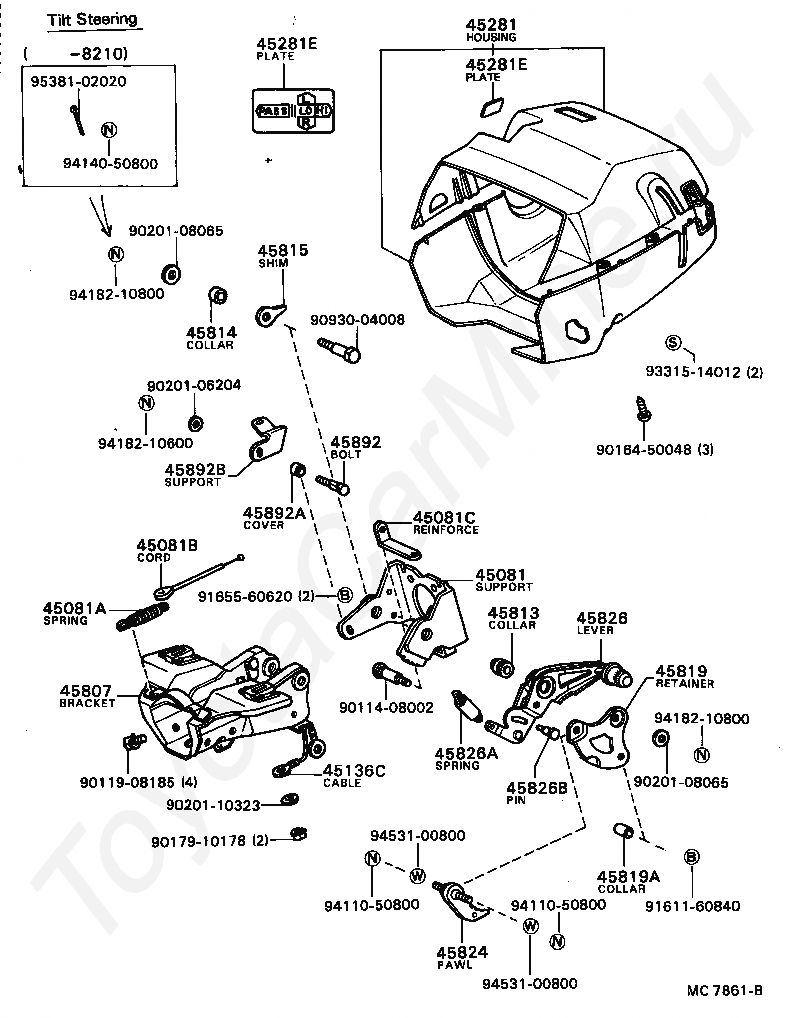

Код
Описание
45081
SUPPORT SUB-ASSY, TILT STEERING
45081A
SPRING, TENSION(FOR TILT STEERING)
45081B
CORD(FOR TILT STEERING)
45081C
REINFORCE, TILT STEERING SUPPORT
45136C
CABLE, BOND(FOR HORN EARTH)
45281
HOUSING, STEERING COLUMN
45281E
PLATE, SAFETY CAUTION
45807
BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45813
COLLAR, TILT STEERING SUPPORT, NO.1
45814
COLLAR, TILT STEERING SUPPORT, NO.2
45815
SHIM, TILT STEERING SUPPORT
45819
RETAINER, TILT LEVER
45819A
COLLAR(FOR TILT LEVER RETAINER)
45824
PAWL, TILT STEERING
45826
LEVER, STEERING TILT
45826A
SPRING, TENSION(FOR STEERING TILT LEVER)
45826B
PIN(FOR STEERING TILT LEVER)
45892
BOLT, TILT STEERING SUPPORT STOPPER
45892A
COVER, TILT STEERING SUPPORT STOPPER
45892B
SUPPORT, TILT STEERING COLUMN COVER
9011408002
Крепеж
9011908185
Крепеж
9016450048
Крепеж
9017910178
Крепеж
9020106204
Крепеж
9020108065
Крепеж
9020110323
Крепеж
9093004008
Крепеж
9161160840
Крепеж
9165560620
Крепеж
9331514012
Крепеж
9411050800
Крепеж
9414050800
Крепеж
9418210600
Крепеж
9418210800
Крепеж
9453100800
Крепеж
9538102020
Крепеж

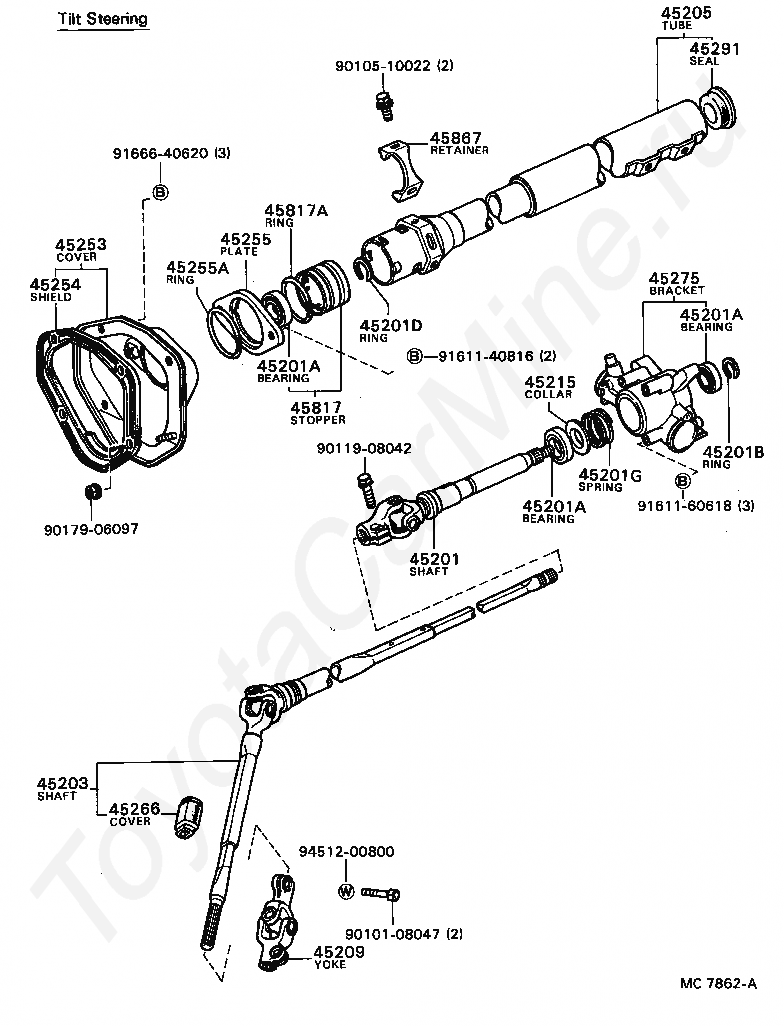

Код
Описание
45201
SHAFT SUB-ASSY, STEERING MAIN
45201A
BEARING(FOR STEERING MAIN SHAFT)
45201B
RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201D
RING(FOR STEERING MAIN SHAFT)
45201G
SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45203
SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45205
TUBE SUB-ASSY, STEERING COLUMN
45209
YOKE SUB-ASSY, STEERING SLIDING
45215
COLLAR, MAIN SHAFT BEARING THRUST
45253
COVER, STEERING COLUMN HOLE
45254
SHIELD, STEERING COLUMN HOLE
45255
PLATE, STEERING COLUMN HOLE COVER
45255A
GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
45266
COVER, STEERING INTERMEDIATE SHAFT DUST
45275
BRACKET, STEERING COLUMN, UPPER
45291
SEAL, MAIN SHAFT UPPER DUST
45817
STOPPER, STEERING SHAFT THRUST
45817A
RING, O(FOR STEERING SHAFT THRUST STOPPER)
45867
RETAINER, STEERING MAIN SHAFT STOPPER
9010108047
Крепеж
9010510022
Крепеж
9011908042
Крепеж
9017906097
Крепеж
9161140816
Крепеж
9161160618
Крепеж
9166640620
Крепеж
9451200800
Крепеж

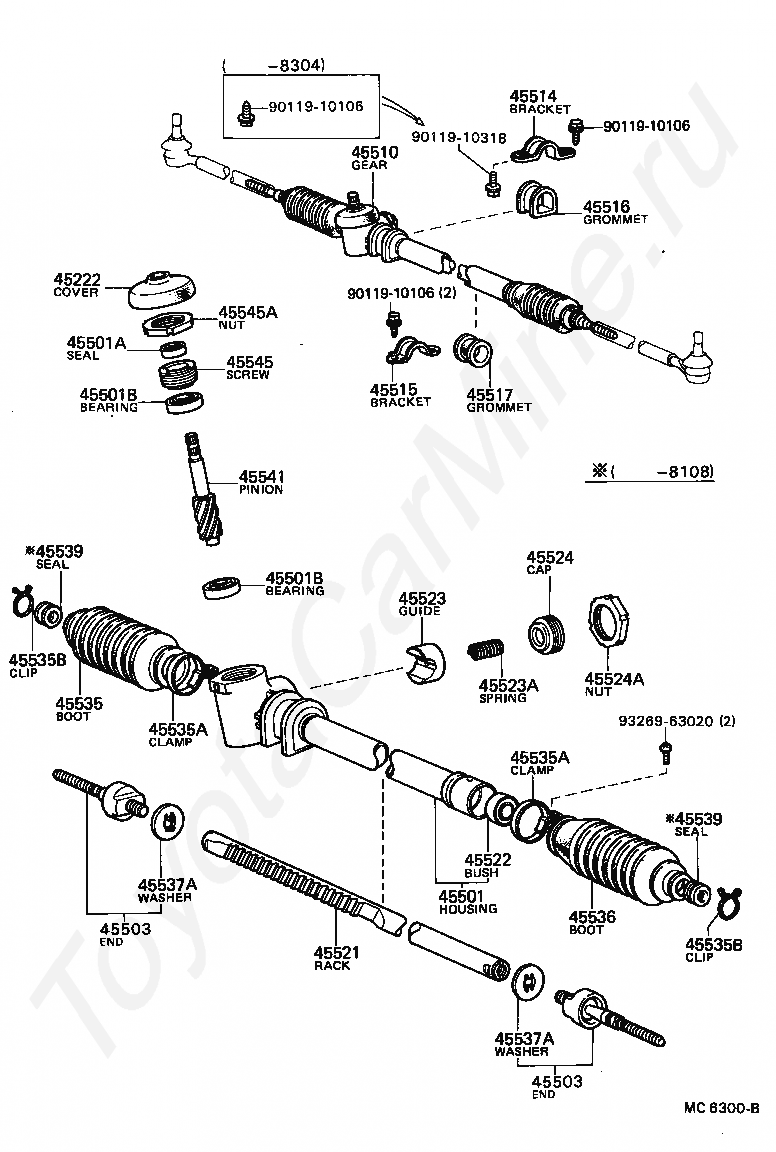

Код
Описание
45222
COVER, STEERING GEAR DUST
45501
HOUSING SUB-ASSY, STEERING RACK
45501A
SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45501B
BEARING, RADIAL BALL(FOR STEERING RACK HOUSING)
45503
END SUB-ASSY, STEERING RACK
45510
GEAR ASSY, STEERING
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
45521
RACK, STEERING
45522
BUSH, STEERING RACK
45523
GUIDE, RACK(FOR STEERING GEAR)
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535A
CLAMP(FOR STEERING RACK BOOT)
45535B
CLIP(FOR STEERING RACK BOOT)
45536
BOOT, STEERING RACK, NO.2
45537A
WASHER, CLAW(FOR STEERING RACK END LOCK)
45539
GUIDE, REAR STEERING CONTROL CABLE, NO.1
45541
PINION, STEERING
45545
SCREW, PINION BEARING ADJUSTING
45545A
NUT(FOR PINION BEARING ADJUSTING SCREW)
9011910106
Крепеж
9011910318
Крепеж
9326963020
Крепеж

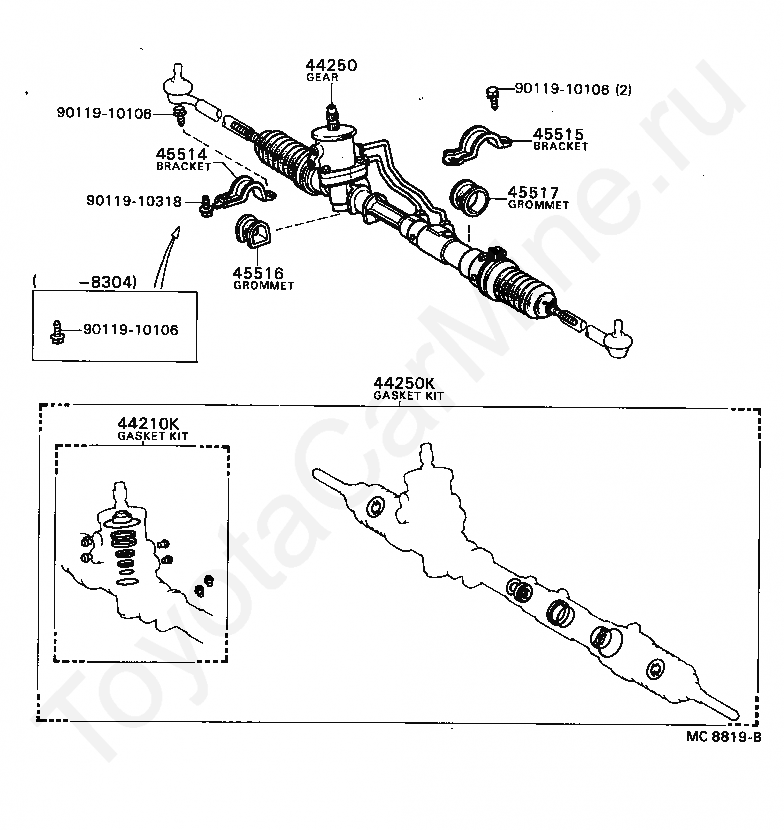

Код
Описание
44210K
GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250K
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
9011910106
Крепеж
9011910318
Крепеж
Код
Описание
44141
PLUG, ADJUSTER
44141A
RING, O(FOR ADJUSTER PLUG)
44141B
SEAL, OIL(FOR ADJUSTER PLUG)
44141C
BEARING(FOR ADJUSTER PLUG)
44142
NUT, LOCK
44201
VALVE SUB-ASSY, POWER STEERING CONTROL
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44201D
BEARING, THRUST NEEDLE ROLLER(FOR CONTROL VALVE)
44201E
WASHER, PLATE(FOR POWER STEERING CONTROL VALVE)
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44205
STOPPER SUB-ASSY, CYLINDER END
44205A
RING, O(FOR CYLINDER END STOPPER)
44205B
SEAL, OIL(FOR CYLINDER END STOPPER)
44210
VALVE ASSY, POWER STEERING CONTROL
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44211A
RING, O(FOR CONTROL VALVE HOUSING)
44211B
RING(FOR CONTROL VALVE HOUSING)
44222A
COVER, DUST(FOR POWER STEERING GEAR)
44253
HOUSING, POWER STEERING RACK
44253A
SEAL, OIL(FOR POWER STEERING RACK HOUSING)
44256
NUT, CYLINDER END STOPPER
44267
GUIDE, RACK END
44277
SEAT, RACK GUIDE
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418B
SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
44503E
END SUB-ASSY, STEERING RACK(FOR POWER STEERING)
44503F
WASHER, CLAW(FOR POWER STEERING RACK END)
44523G
GUIDE, RACK(FOR POWER STEERING)
44523H
SPRING(FOR POWER STEERING RACK GUIDE)
44524A
CAP, RACK GUIDE SPRING(FOR POWER STEERING)
44524B
NUT(FOR POWER STEERING RACK GUIDE CAP)
44535B
BOOT, STEERING RACK NO.1(FOR POWER STEERING)
44535C
CLAMP(FOR POWER STEERING RACK BOOT)
44535D
CLIP(FOR POWER STEERING RACK BOOT)
44536B
BOOT, STEERING RACK NO.2(FOR POWER STEERING)
9014930004
Крепеж
9151160825
Крепеж

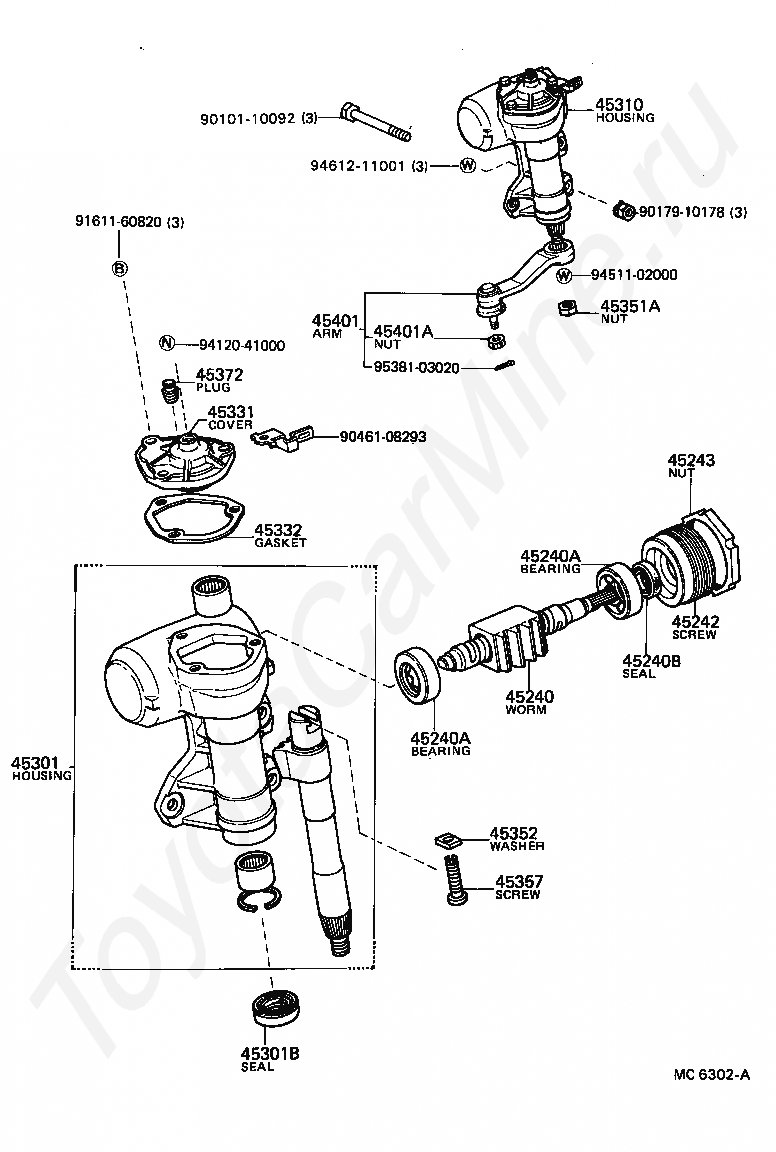

Код
Описание
45240
WORM ASSY, STEERING
45240A
BEARING(FOR STEERING WORM)
45240B
SEAL, OIL(FOR STEERING WORM)
45242
SCREW, WORM BEARING ADJUSTING
45243
NUT, WORM BEARING ADJUSTING SCREW LOCK
45301
HOUSING SUB-ASSY, STEERING GEAR
45301B
SEAL, OIL(FOR SECTOR SHAFT)
45310
HOUSING ASSY, STEERING GEAR
45331
COVER, SECTOR SHAFT END
45332
GASKET, SECTOR SHAFT END COVER
45351A
NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352
WASHER, SECTOR SHAFT THRUST
45357
SCREW, SECTOR SHAFT ADJUSTING
45372
PLUG, STEERING GEAR HOUSING OIL
45401
ARM SUB-ASSY, PITMAN
45401A
NUT, CASTLE(FOR PITMAN ARM)
9010110092
Крепеж
9017910178
Крепеж
9046108293
Крепеж
9161160820
Крепеж
9412041000
Крепеж
9451102000
Крепеж
9461211001
Крепеж
9538103020
Крепеж
