REAR SEAT & SEAT TRACK TOYOTA SIENNA HYBRID, 2021/12 - 2025, 2500CC 16-VALVE DOHC, AXLH40, вариатор

Каталог

Ближний Восток

Модель

SIENNA HYBRID

Двигатель

2500CC 16-VALVE DOHC

Фрейм

AXLH40

Трансмиссия

вариатор

Опции

левый руль X TYPE 845W

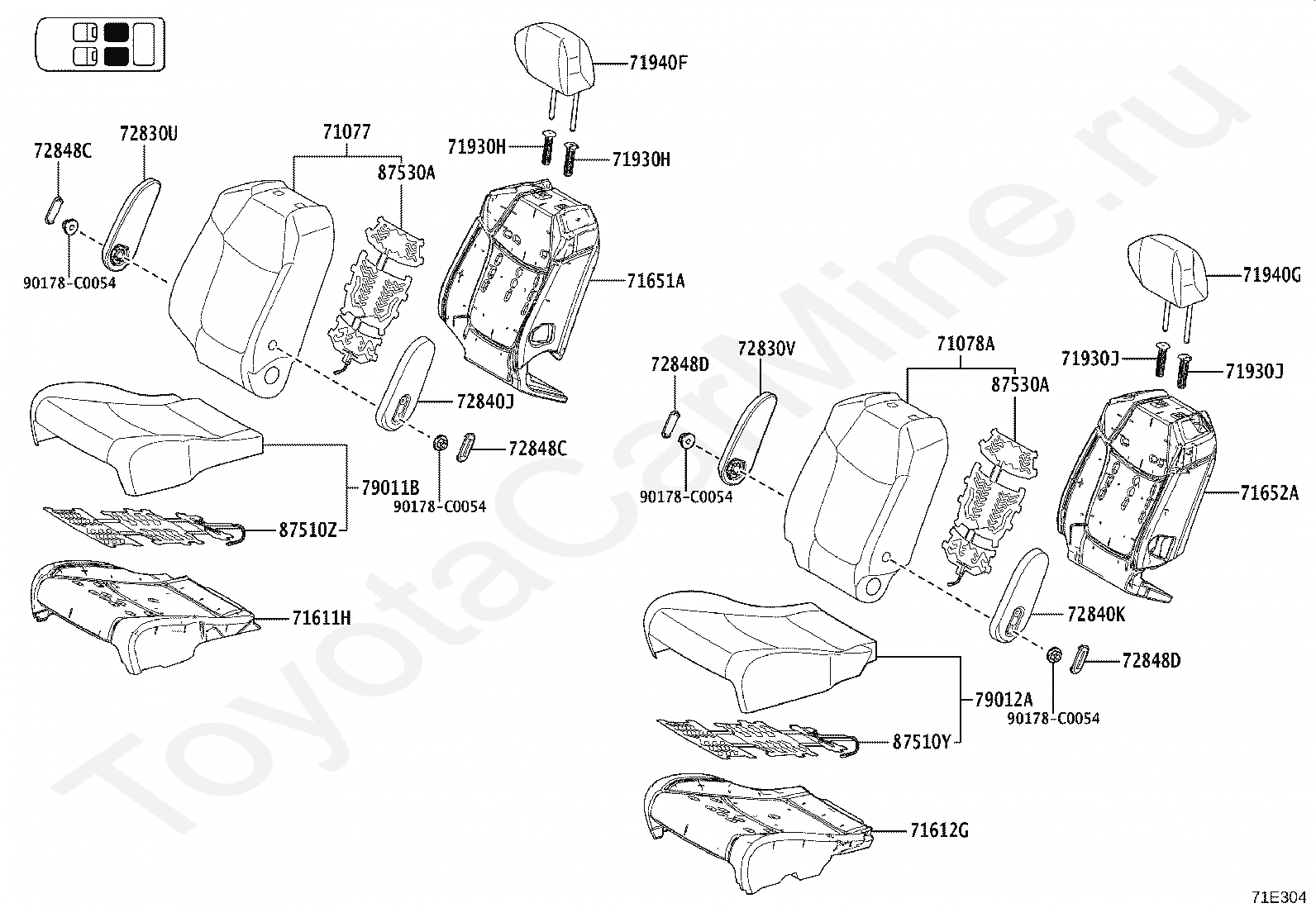

Код

Описание

71077

COVER SUB-ASSY, REAR NO.1 SEAT BACK, RH

71078A

COVER SUB-ASSY, REAR NO.1 SEAT BACK, LH

71611H

PAD, REAR NO.1 SEAT CUSHION, RH

71612G

PAD, REAR NO.1 SEAT CUSHION, LH

71651A

PAD, REAR NO.1 SEAT BACK, RH

71652A

PAD, REAR NO.1 SEAT BACK, LH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71940F

HEADREST ASSY, NO.1 SEAT, RH

71940G

HEADREST ASSY, NO.1 SEAT, LH

72830U

ARMREST ASSY, REAR SEAT, RH

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72840J

ARMREST ASSY, REAR SEAT, LH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72848C

CAP, NO.1 SEAT ARMREST, NO.1 RH

72848D

CAP, NO.1 SEAT ARMREST, NO.1 LH

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

87510Y

HEATER ASSY, REAR NO.1 SEAT CUSHION, LH

87510Z

HEATER ASSY, REAR NO.1 SEAT CUSHION, RH

87530A

HEATER ASSY, REAR NO.1 SEAT BACK, RH

90178C0054

Крепеж

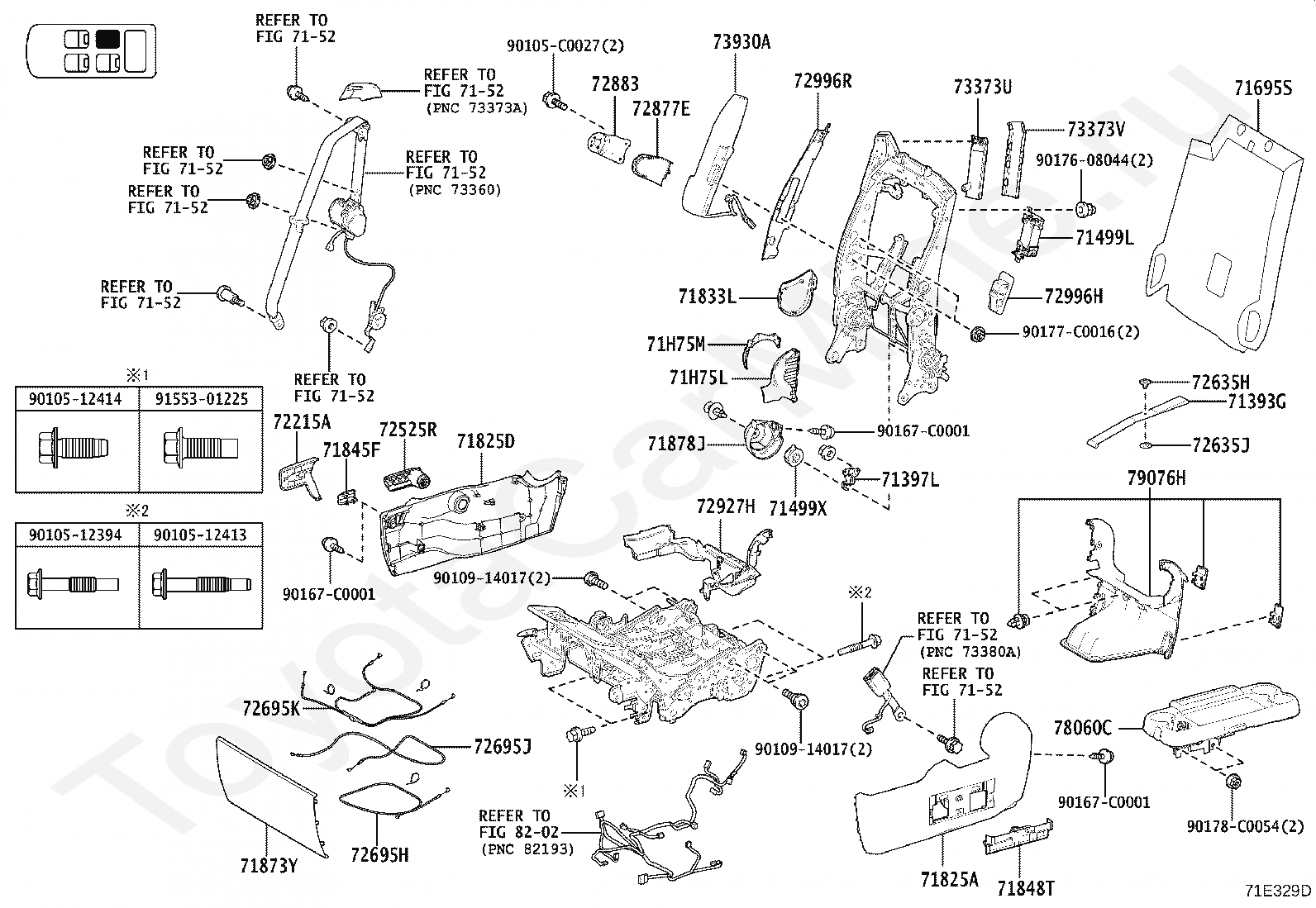

Код

Описание

71393G

BAND, NO.1 SEAT CUSHION(FOR RH SEAT)

71397L

HOLDER, REAR SEAT BACK, RH

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

71499X

DAMPER, NO.1 SEAT BACK SPRING, RH NO.2

7152

переход к группе запчастей

71695S

PROTECTOR, REAR SEAT, NO.1

71825A

MOULDING, NO.1 SEAT CUSHION, RH INNER

71825D

MOULDING, REAR NO.1 SEAT CUSHION, RH

71833L

COVER, REAR SEAT RECLINING, RH

71845F

CAP, REAR SEAT COVER

71848T

CAP, NO.1 SEAT ADJUSTER COVER, RH

71873Y

SHIELD, REAR SEAT CUSHION, LOWER

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H75M

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT)

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525R

HANDLE, RECLINING ADJUSTER RELEASE, RH

72635H

HOOK, REAR NO.1 SEAT BACK LOCK, NO.1(FOR RH SEAT)

72635J

HOOK, REAR NO.1 SEAT BACK LOCK, NO.2(FOR RH SEAT)

72695H

CABLE, REAR NO.1 SEAT LOCK CONTROL, RH

72695J

CABLE, REAR NO.1 SEAT LOCK CONTROL, RH(FOR SLIDE)

72695K

CABLE, REAR NO.1 SEAT LOCK CONTROL, RH(FOR RECLINING)

72877E

COVER, NO.1 SEAT ARMREST, RH

72883

BRACKET, REAR SEAT CENTER ARMREST, RH

72927H

COVER, REAR NO.1 SEAT CUSHION UNDER, RH NO.1

72996H

COVER, REAR SEAT BACK

72996R

COVER, REAR NO.1 SEAT BACK, RH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

73373V

COVER, NO.1 SEAT SHOULDER BELT, RH NO.2

73930A

AIR BAG ASSY, REAR SEAT, RH

78060C

TABLE ASSY, NO.1 SEAT SIDE

79076H

COVER SUB-ASSY, NO.1 SEAT LEG, RH

8202

переход к группе запчастей

9010512394

Крепеж

9010512413

Крепеж

9010512414

Крепеж

90105C0027

Крепеж

9010914017

Крепеж

90167C0001

Крепеж

9017608044

Крепеж

90177C0016

Крепеж

90178C0054

Крепеж

9155301225

Крепеж

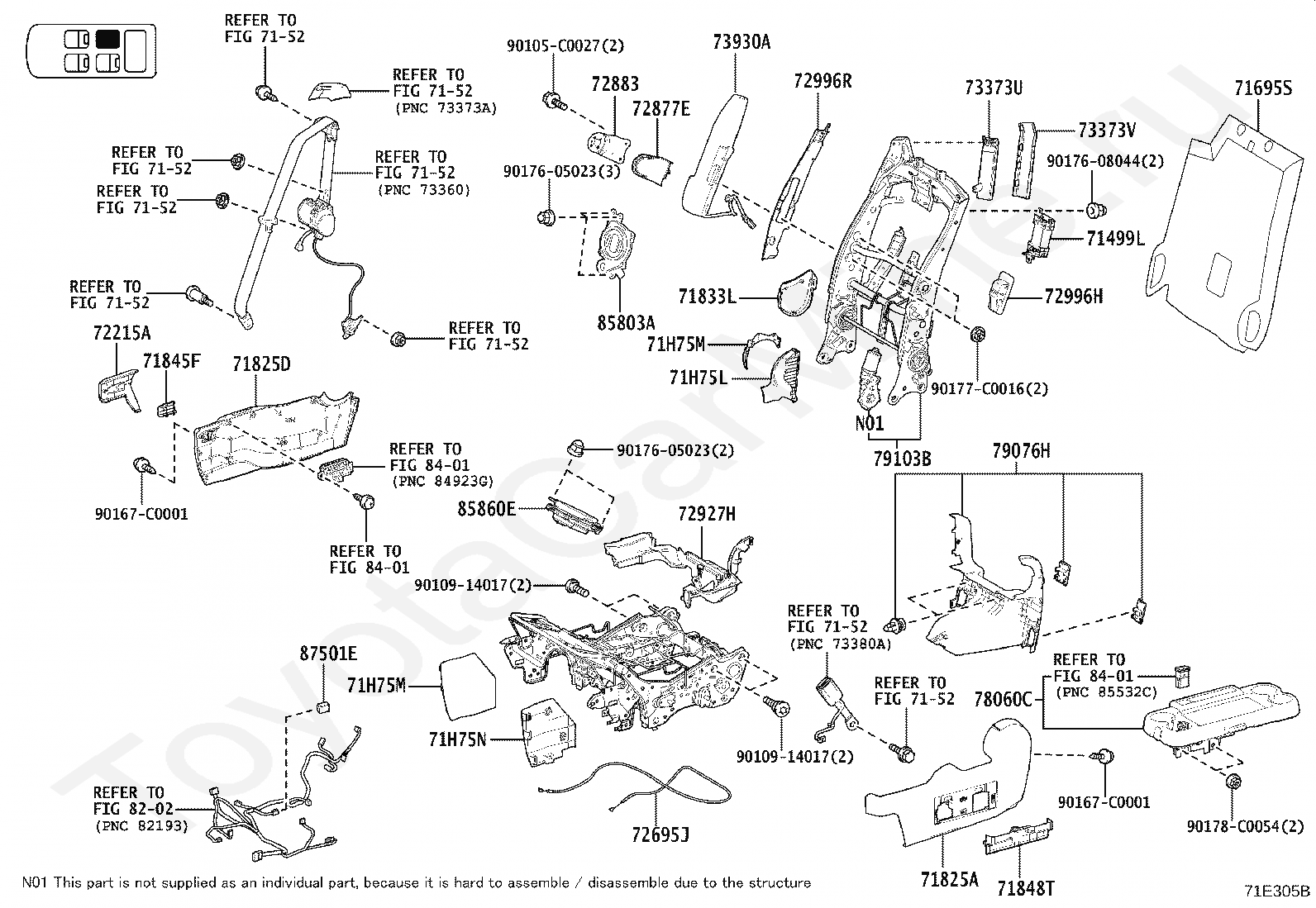

Код

Описание

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

7152

переход к группе запчастей

71695S

PROTECTOR, REAR SEAT, NO.1

71825A

MOULDING, NO.1 SEAT CUSHION, RH INNER

71825D

MOULDING, REAR NO.1 SEAT CUSHION, RH

71833L

COVER, REAR SEAT RECLINING, RH

71845F

CAP, REAR SEAT COVER

71848T

CAP, NO.1 SEAT ADJUSTER COVER, RH

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H75M

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT)

71H75N

COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR RH SEAT)

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72695J

CABLE, REAR NO.1 SEAT LOCK CONTROL, RH(FOR SLIDE)

72877E

COVER, NO.1 SEAT ARMREST, RH

72883

BRACKET, REAR SEAT CENTER ARMREST, RH

72927H

COVER, REAR NO.1 SEAT CUSHION UNDER, RH NO.1

72996H

COVER, REAR SEAT BACK

72996R

COVER, REAR NO.1 SEAT BACK, RH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

73373V

COVER, NO.1 SEAT SHOULDER BELT, RH NO.2

73930A

AIR BAG ASSY, REAR SEAT, RH

78060C

TABLE ASSY, NO.1 SEAT SIDE

79076H

COVER SUB-ASSY, NO.1 SEAT LEG, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

85803A

BLOWER SUB-ASSY, SEAT BACK CLIMATE, RH

85860E

BLOWER ASSY, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR RH SEAT)

87501E

CONTROL SUB-ASSY, SEAT HEATER, RH

90105C0027

Крепеж

9010914017

Крепеж

90167C0001

Крепеж

9017605023

Крепеж

9017608044

Крепеж

90177C0016

Крепеж

90178C0054

Крепеж

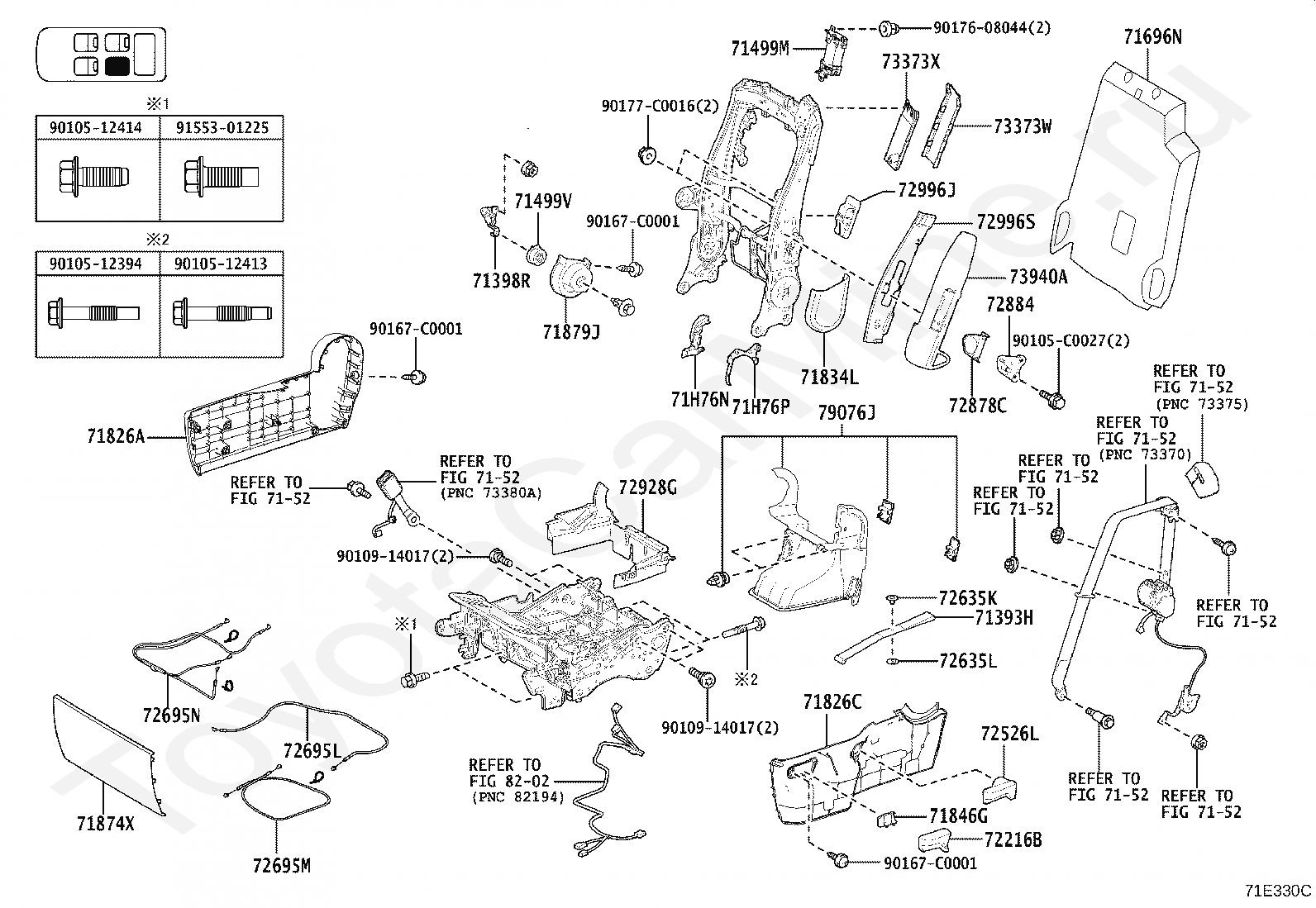

Код

Описание

71393H

BAND, NO.1 SEAT CUSHION(FOR LH SEAT)

71398R

HOLDER, REAR SEAT BACK, LH

71499M

DAMPER, NO.1 SEAT BACK SPRING, LH

71499V

DAMPER, NO.1 SEAT BACK SPRING, LH NO.2

7152

переход к группе запчастей

71696N

PROTECTOR, REAR SEAT, NO.2

71826A

MOULDING, NO.1 SEAT CUSHION, LH INNER

71826C

MOULDING, REAR SEAT CUSHION, LH

71834L

COVER, REAR SEAT RECLINING, LH

71846G

CAP, REAR SEAT COVER, LH

71874X

SHIELD, REAR SEAT CUSHION, LOWER LH

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

71H76P

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT)

72216B

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, LH

72526L

HANDLE, RECLINING ADJUSTER RELEASE, LH

72635K

HOOK, REAR NO.1 SEAT BACK LOCK, NO.1(FOR LH SEAT)

72635L

HOOK, REAR NO.1 SEAT BACK LOCK, NO.2(FOR LH SEAT)

72695L

CABLE, REAR NO.1 SEAT LOCK CONTROL, LH(FOR SLIDE)

72695M

CABLE, REAR NO.1 SEAT LOCK CONTROL, LH

72695N

CABLE, REAR NO.1 SEAT LOCK CONTROL, LH(FOR RECLINING)

72878C

COVER, NO.1 SEAT ARMREST, LH

72884

BRACKET, REAR SEAT CENTER ARMREST, LH

72928G

COVER, REAR NO.1 SEAT CUSHION UNDER, LH NO.1

72996J

COVER, REAR SEAT BACK, NO.2

72996S

COVER, REAR NO.1 SEAT BACK, LH

73373W

COVER, NO.1 SEAT SHOULDER BELT, LH NO.2

73373X

COVER, NO.1 SEAT SHOULDER BELT, LH NO.1

73940A

AIR BAG ASSY, REAR SEAT, LH

79076J

COVER SUB-ASSY, NO.1 SEAT LEG, LH

8202

переход к группе запчастей

9010512394

Крепеж

9010512413

Крепеж

9010512414

Крепеж

90105C0027

Крепеж

9010914017

Крепеж

90167C0001

Крепеж

9017608044

Крепеж

90177C0016

Крепеж

9155301225

Крепеж

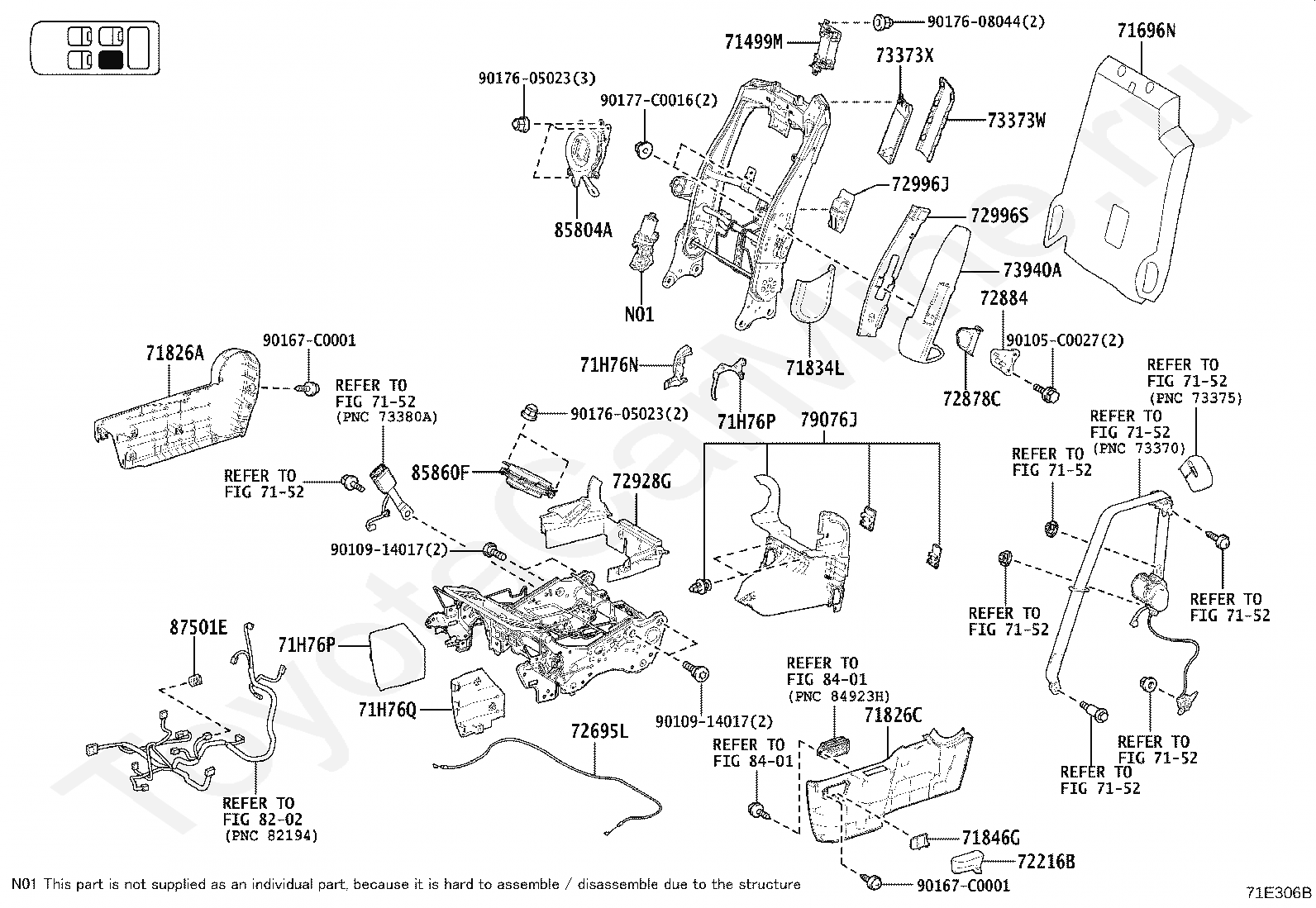

Код

Описание

71499M

DAMPER, NO.1 SEAT BACK SPRING, LH

7152

переход к группе запчастей

71696N

PROTECTOR, REAR SEAT, NO.2

71826A

MOULDING, NO.1 SEAT CUSHION, LH INNER

71826C

MOULDING, REAR SEAT CUSHION, LH

71834L

COVER, REAR SEAT RECLINING, LH

71846G

CAP, REAR SEAT COVER, LH

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

71H76P

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT)

71H76Q

COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR LH SEAT)

72216B

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, LH

72695L

CABLE, REAR NO.1 SEAT LOCK CONTROL, LH(FOR SLIDE)

72878C

COVER, NO.1 SEAT ARMREST, LH

72884

BRACKET, REAR SEAT CENTER ARMREST, LH

72928G

COVER, REAR NO.1 SEAT CUSHION UNDER, LH NO.1

72996J

COVER, REAR SEAT BACK, NO.2

72996S

COVER, REAR NO.1 SEAT BACK, LH

73373W

COVER, NO.1 SEAT SHOULDER BELT, LH NO.2

73373X

COVER, NO.1 SEAT SHOULDER BELT, LH NO.1

73940A

AIR BAG ASSY, REAR SEAT, LH

79076J

COVER SUB-ASSY, NO.1 SEAT LEG, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

85804A

BLOWER SUB-ASSY, SEAT BACK CLIMATE, LH

85860F

BLOWER ASSY, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR LH SEAT)

87501E

CONTROL SUB-ASSY, SEAT HEATER, RH

90105C0027

Крепеж

9010914017

Крепеж

90167C0001

Крепеж

9017605023

Крепеж

9017608044

Крепеж

90177C0016

Крепеж

Код

Описание

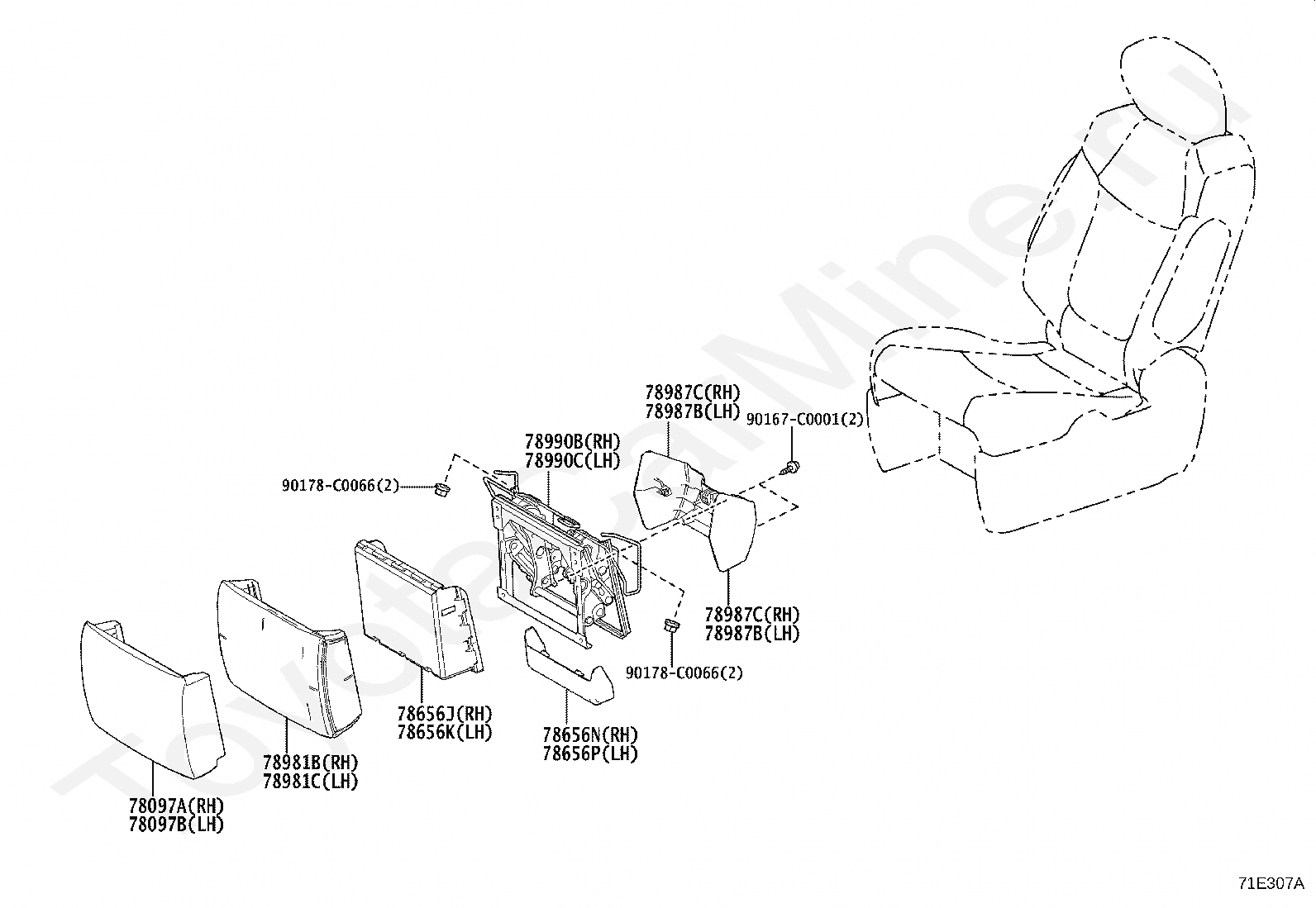

78097A

COVER SUB-ASSY, NO.1 SEAT FOOTREST(FOR RH SEAT)

78097B

COVER SUB-ASSY, NO.1 SEAT FOOTREST(FOR LH SEAT)

78656J

COVER, REAR SEAT LEGREST, RH

78656K

COVER, REAR SEAT LEGREST, LH

78656N

COVER, REAR SEAT LEGREST, RH NO.2

78656P

COVER, REAR SEAT LEGREST, LH NO.2

78981B

PANEL, NO.1 SEAT FOOTREST(FOR RH SEAT)

78981C

PANEL, NO.1 SEAT FOOTREST(FOR LH SEAT)

78987B

COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH

78987C

COVER, REAR NO.1 SEAT FOOTREST, NO.1 RH

78990B

ADJUSTER ASSY, NO.1 SEAT FOOTREST(FOR RH SEAT)

78990C

ADJUSTER ASSY, NO.1 SEAT FOOTREST(FOR LH SEAT)

90167C0001

Крепеж

90178C0066

Крепеж

Код

Описание

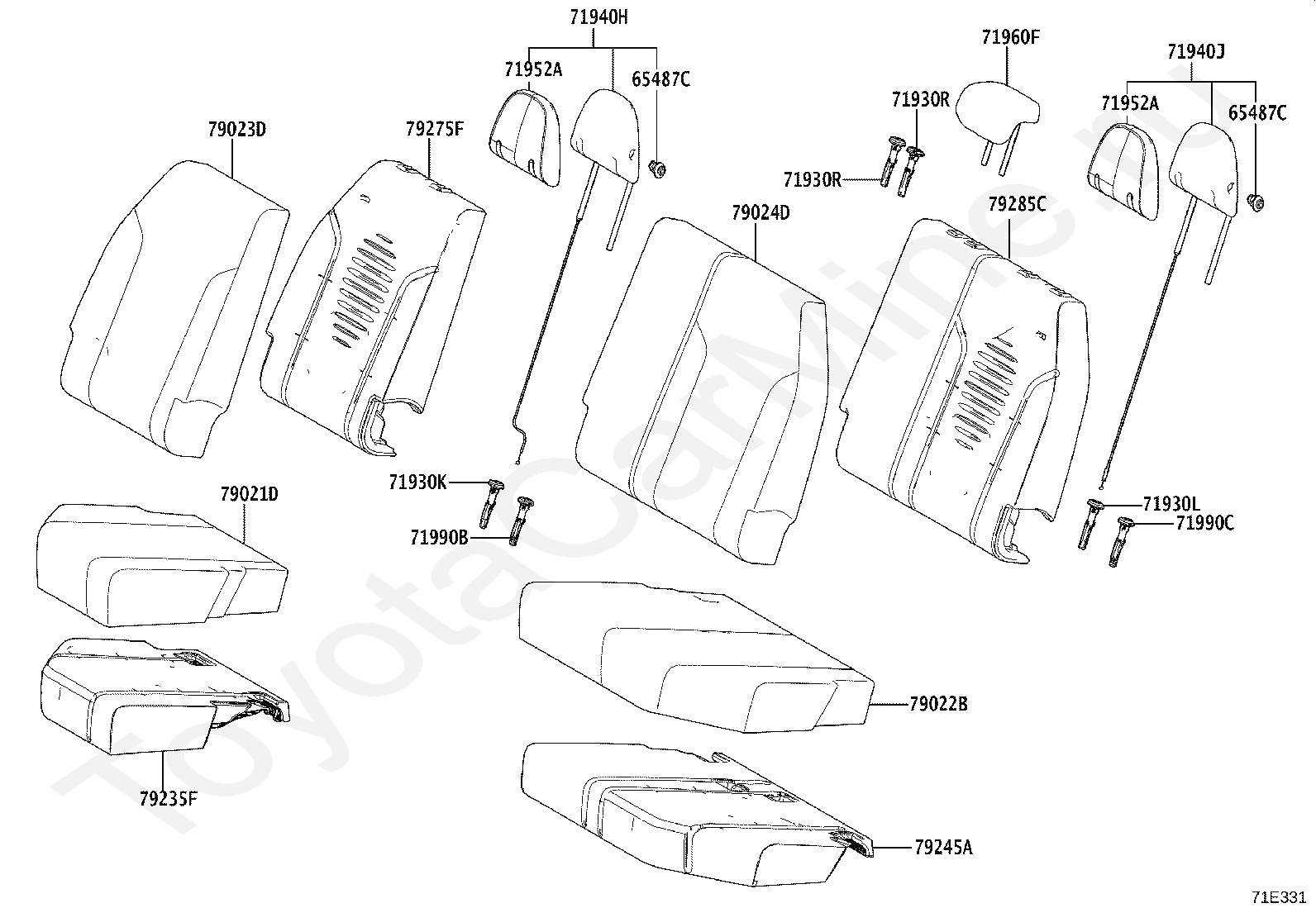

65487C

CLIP, HEADREST

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71940J

HEADREST ASSY, NO.2 SEAT, LH

71952A

COVER, REAR SEAT HEADREST UNDER(FOR RH SEAT)

71960F

HEADREST ASSY, REAR NO.2 SEAT, CENTER

71990B

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, RH

71990C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, LH

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79235F

PAD, NO.2 SEAT CUSHION, RH

79245A

PAD, NO.2 SEAT CUSHION, LH

79275F

PAD, NO.2 SEAT BACK, RH

79285C

PAD, NO.2 SEAT BACK, LH

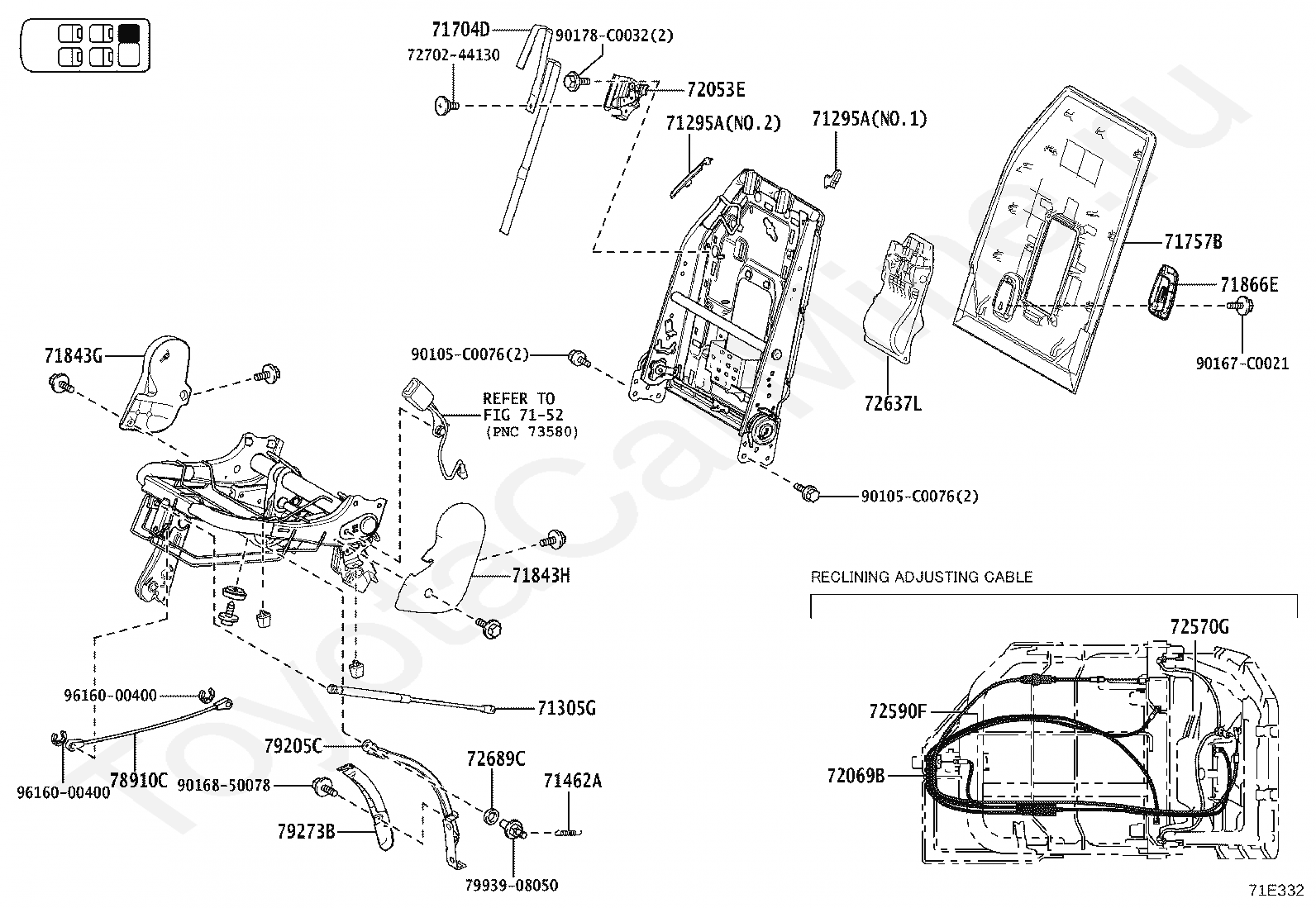

Код

Описание

71295A

PLATE, REAR SEAT BACK, UPPER RH

71305G

STAY SUB-ASSY, REAR NO.2 SEAT(FOR RH SEAT)

71462A

SPRING, REAR SEAT CUSHION, NO.2(FOR RH SEAT)

7152

переход к группе запчастей

71704D

BAND SUB-ASSY, REAR SIDE SEAT, RH

71757B

COVER, REAR NO.2 SEAT BACK BOARD, RH

71843G

COVER, NO.2 SEAT RECLINING, NO.2 RH OUTER

71843H

COVER, NO.2 SEAT RECLINING, NO.2 RH INNER

71866E

BEZEL, REAR NO.2 SEAT COVER, NO.2(FOR RH SEAT)

72053E

LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

72069B

CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL(FOR RH SEAT)

72570G

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72590F

CABLE ASSY, RECLINING REMOTE CONTROL, RH

72637L

HANDLE, REAR SEAT LOCK

72689C

ROLLER, REAR SEAT CUSHION, LOWER

7270244130

Крепеж

78910C

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR RH SEAT)

79205C

LEG SUB-ASSY, NO.2 SEAT, RH

79273B

COVER, NO.2 SEAT HINGE, NO.3

7993908050

Крепеж

90105C0076

Крепеж

90167C0021

Крепеж

9016850078

Крепеж

90178C0032

Крепеж

9616000400

Крепеж

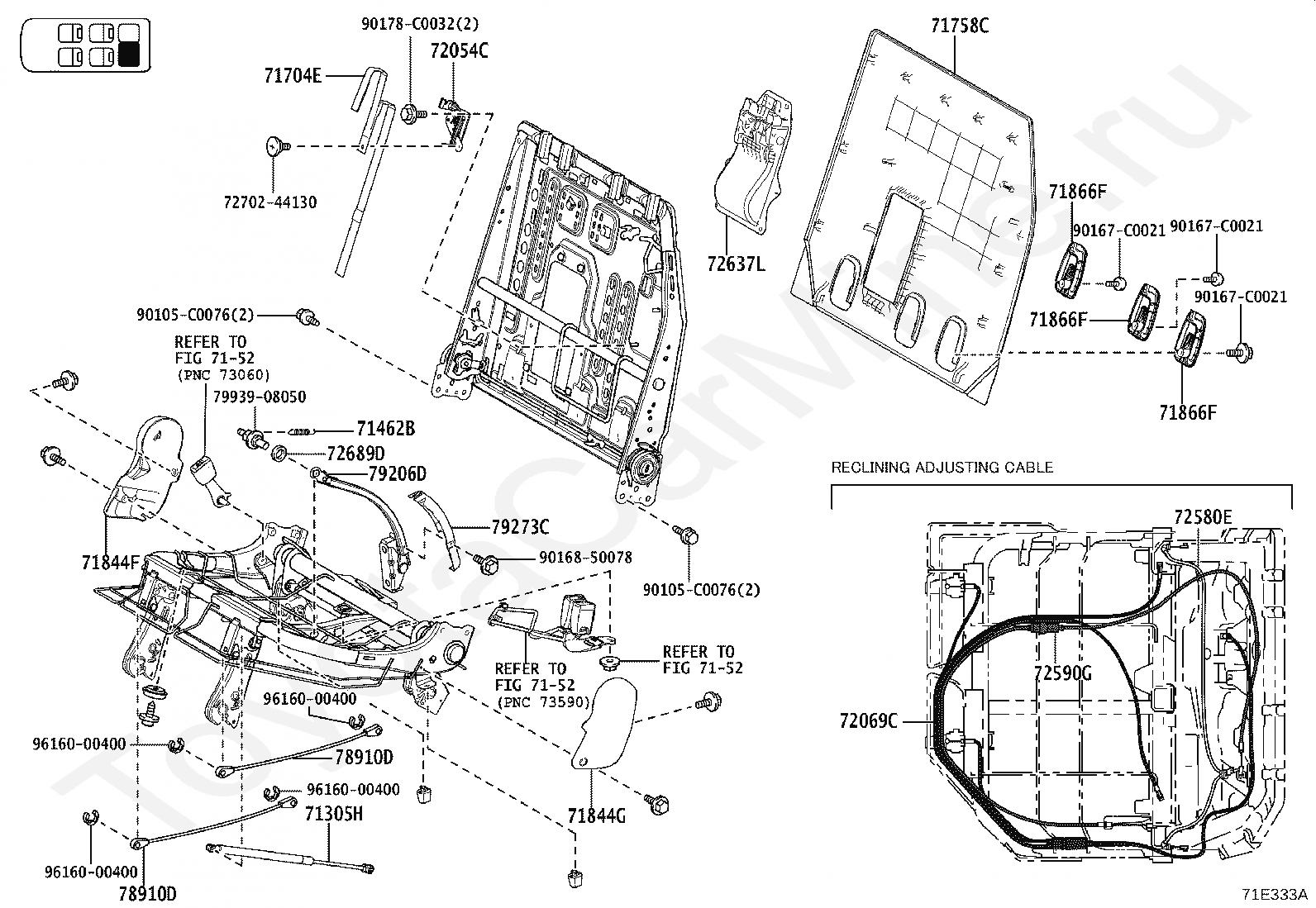

Код

Описание

71305H

STAY SUB-ASSY, REAR NO.2 SEAT(FOR LH SEAT)

71462B

SPRING, REAR SEAT CUSHION, NO.2(FOR LH SEAT)

7152

переход к группе запчастей

71704E

BAND SUB-ASSY, REAR SIDE SEAT, LH

71758C

COVER, REAR NO.2 SEAT BACK BOARD, LH

71844F

COVER, NO.2 SEAT RECLINING, NO.2 LH INNER

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71866F

BEZEL, REAR NO.2 SEAT COVER, NO.2(FOR LH SEAT)

72054C

LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH

72069C

CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL(FOR LH SEAT)

72580E

CABLE ASSY, RECLINING ADJUSTING, LH

72590G

CABLE ASSY, RECLINING REMOTE CONTROL, LH

72637L

HANDLE, REAR SEAT LOCK

72689D

ROLLER, REAR SEAT CUSHION, LOWER(FOR LH SEAT)

7270244130

Крепеж

78910D

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR LH SEAT)

79206D

LEG SUB-ASSY, NO.2 SEAT, LH

79273C

COVER, NO.2 SEAT HINGE, NO.4

7993908050

Крепеж

90105C0076

Крепеж

90167C0021

Крепеж

9016850078

Крепеж

90178C0032

Крепеж

9616000400

Крепеж

Код

Описание

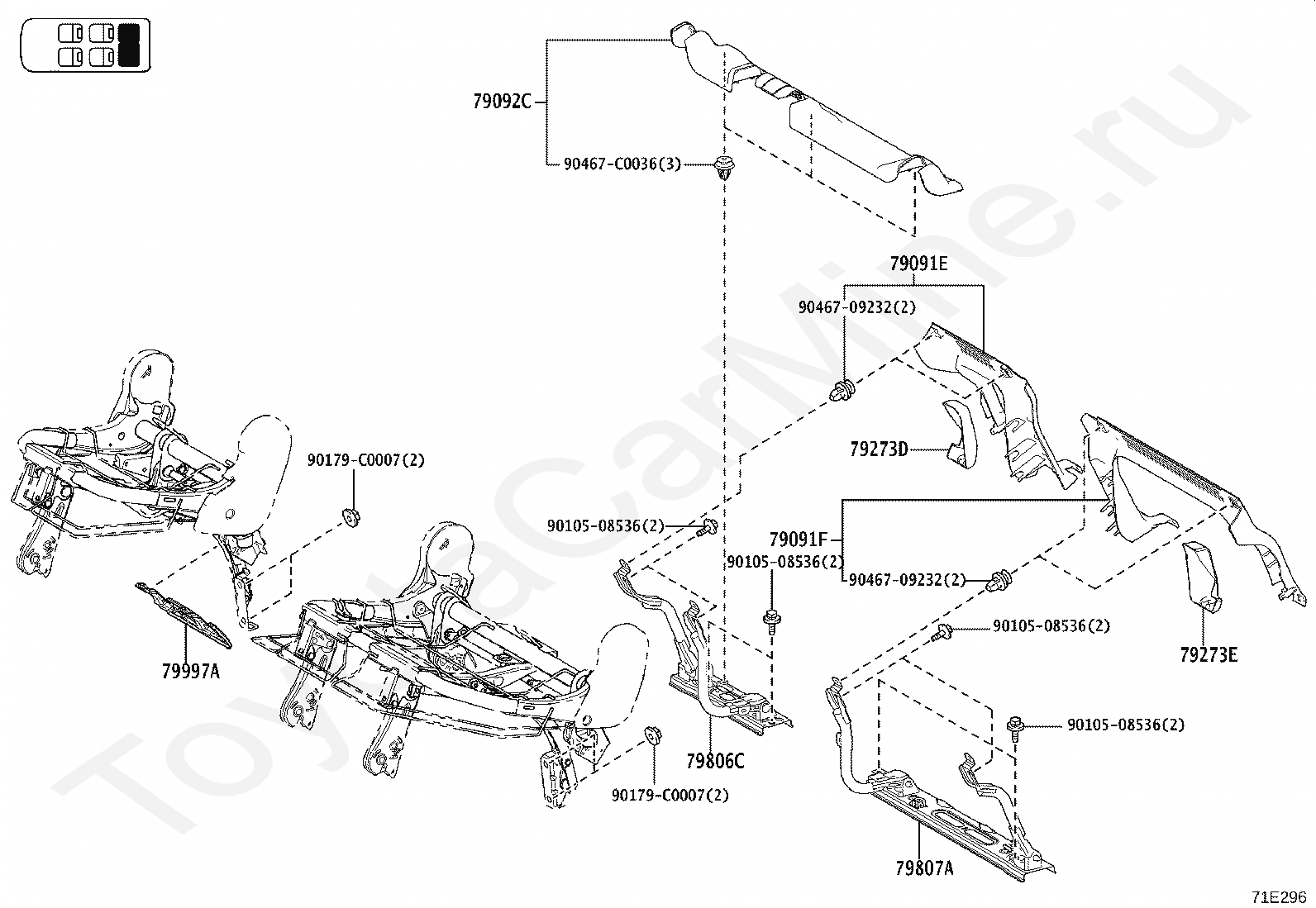

79091E

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, RH

79091F

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, LH

79092C

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.2

79273D

COVER, NO.2 SEAT HINGE, REAR RH

79273E

COVER, NO.2 SEAT HINGE, REAR LH

79806C

LEG SUB-ASSY, FOLD SEAT, REAR RH

79807A

LEG SUB-ASSY, FOLD SEAT, REAR LH

79997A

PROTECTOR, SEAT LEG BOX, NO.1

9010508536

Крепеж

90179C0007

Крепеж

9046709232

Крепеж

90467C0036

Крепеж

Код

Описание

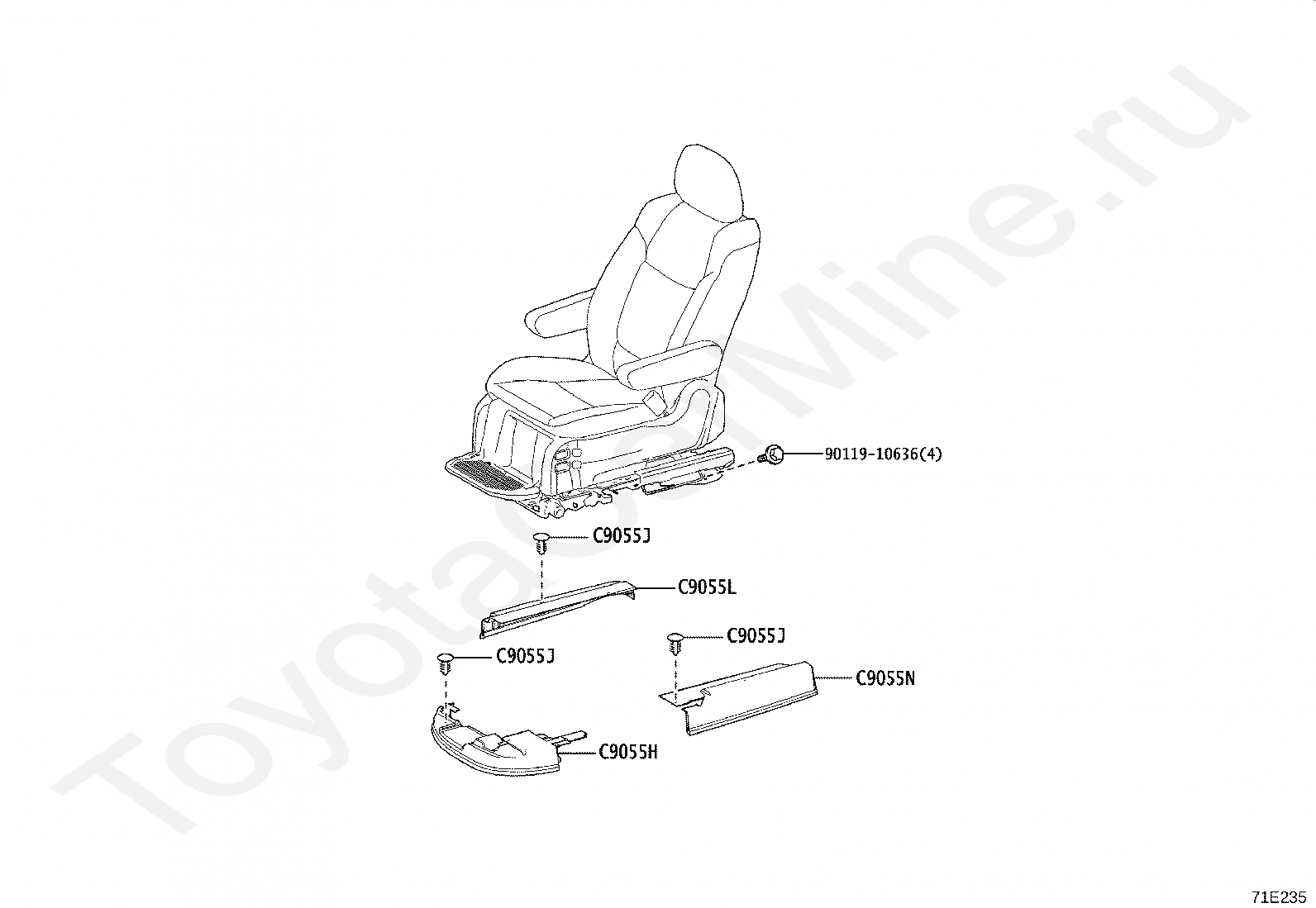

9011910636

Крепеж

C9055H

COVER SUB-ASSY, POWER LIFT, NO.1

C9055J

CLIP, POWER LIFT COVER, NO.1

C9055L

COVER SUB-ASSY, POWER LIFT, NO.2

C9055N

COVER SUB-ASSY, POWER LIFT, NO.3

REAR SEAT & SEAT TRACK TOYOTA SIENNA HYBRID, 2021/12 - 2025, 2500CC 16-VALVE DOHC, AXLH40, вариатор

Товар добавлен в корзину!

Заполните форму
