Каталог
ЯпонияМодель
SAIДвигатель
2,4 литра, 16 клапанов DOHC, EFIКласс
GRAMSФрейм
AZK10Трансмиссия
автомат бесступенчатая АКППОпции
573W

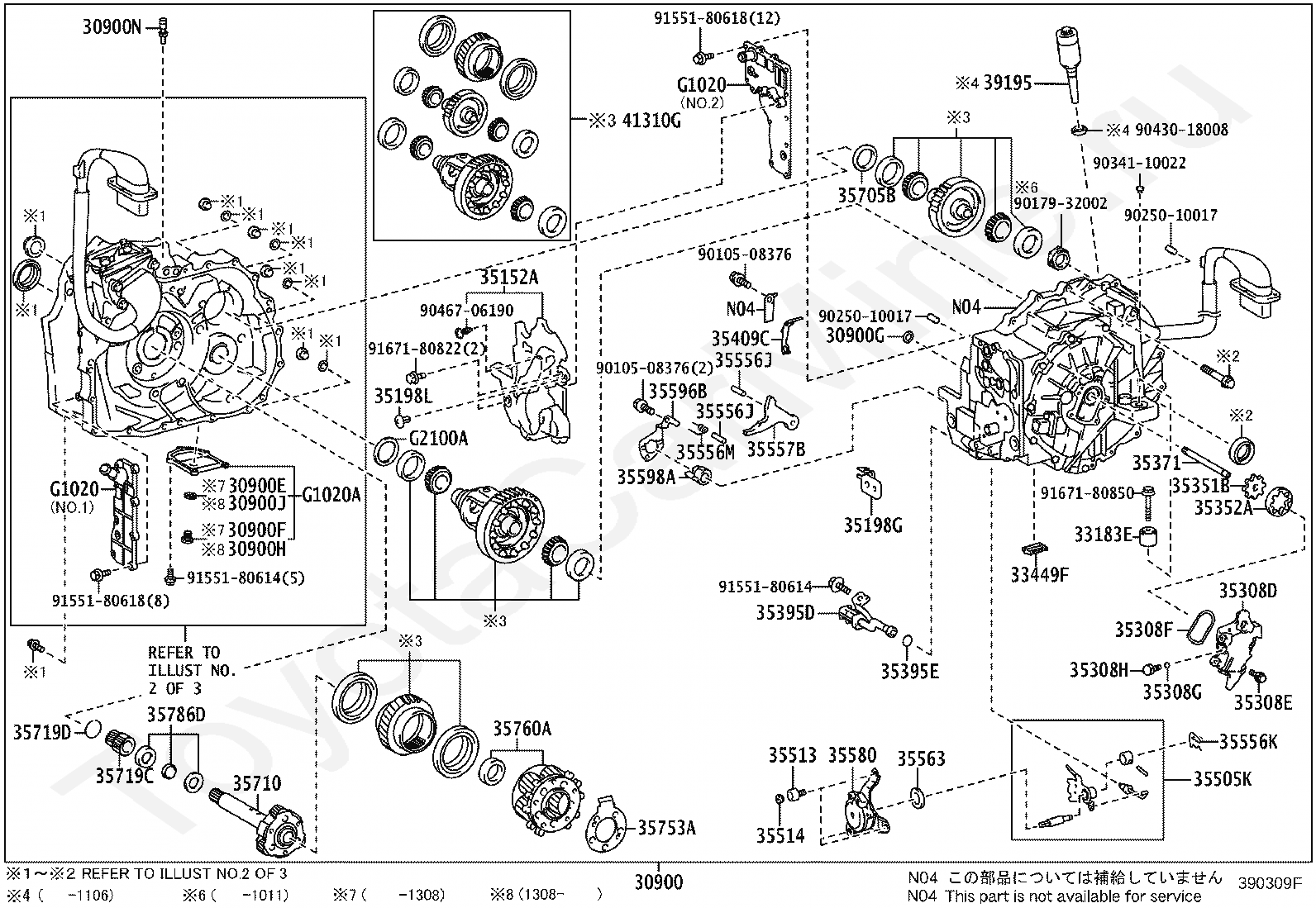

Код
Описание
30900
TRANSAXLE ASSY, HYBRID VEHICLE
30900E
GASKET(FOR TRANSAXLE HOUSING & CASE)
30900F
PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900G
GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900H
PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900J
GASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)
30900N
PLUG, BREATHER(FOR TRANSAXLE)
33183E
DAMPER, DYNAMIC
33449F
MAGNET, TRANSMISSION NO.1
35152A
COVER, AUTOMATIC TRANSMISSION CASE, NO.2
35198G
BRACKET, WIRE HARNESS CLAMP NO.1
35198L
CLIP, WIRE HARNESS BRACKET CLAMP
35308D
COVER SUB-ASSY, TRANSMISSION OIL PUMP
35308E
BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER)
35308F
RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308G
RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308H
PLUG (FOR TRANSMISSION OIL PUMP COVER)
35351B
ROTOR, TRANSAXLE OIL PUMP DRIVE
35352A
ROTOR, TRANSMISSION OIL PUMP DRIVEN
35371
SHAFT, OIL PUMP DRIVE
35395D
STRAINER, TRANSMISSION OIL
35395E
RING, O(FOR TRANSAXLE OIL STRAINER)
35409C
SPRING SUB-ASSY, MANUAL DETENT
35505K
LEVER SUB-ASSY, PARKING LOCK, NO.1
35513
BOLT, SHIFT CONTROL ACTUATOR
35514
CAP, SHIFT CONTROL ACTUATOR BOLT
35556J
SHAFT, PARKING LOCK PAWL
35556K
SPRING, RETAINER
35556M
SPRING, TORSION
35557B
PAWL, PARKING LOCK
35563
SEAL, SHIFT CONTROL ACTUATOR
35580
ACTUATOR ASSY, SHIFT CONTROL
35596B
PLATE, PAWL STOPPER
35598A
SLEEVE, PARKING LOCK
35705B
SHIM(FOR COUNTER DRIVEN GEAR)
35710
SHAFT ASSY, INPUT
35719C
GEAR, PLANETARY SUN
35719D
RING, SNAP(FOR PLANETARY SUN GEAR)
35753A
RECEIVER, PLANETARY OIL
35760A
GEAR ASSY, REAR PLANETARY NO.1
35786D
RACE, THRUST BEARING, NO.1(FOR INPUT SHAFT)
39195
DAMPER, HV TRANSAXLE MASS
41310G
GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN
9010508376
Крепеж
9017932002
Крепеж
9025010017
Крепеж
9034110022
Крепеж
9043018008
Крепеж
9046706190
Крепеж
9155180614
Крепеж
9155180618
Крепеж
9167180822
Крепеж
9167180850
Крепеж
G1020
COVER ASSY, MOTOR WATER JACKET, NO.1
G1020A
COVER ASSY, MOTOR WATER JACKET, NO.2
G2100A
SHIM(FOR DIFFERENTIAL CASE RH)

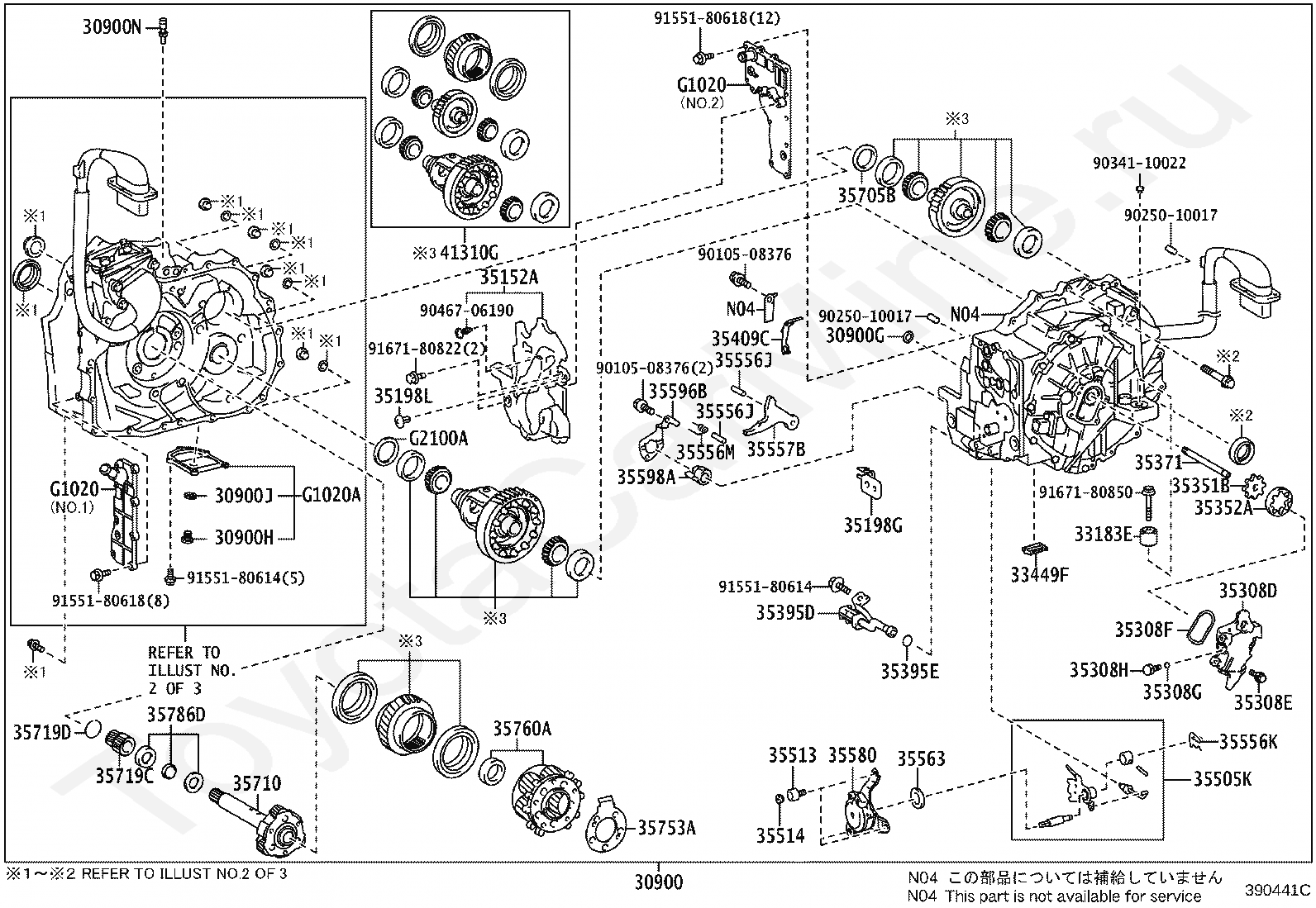

Код
Описание
30900
TRANSAXLE ASSY, HYBRID VEHICLE
30900G
GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900H
PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900J
GASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)
30900N
PLUG, BREATHER(FOR TRANSAXLE)
33183E
DAMPER, DYNAMIC
33449F
MAGNET, TRANSMISSION NO.1
35152A
COVER, AUTOMATIC TRANSMISSION CASE, NO.2
35198G
BRACKET, WIRE HARNESS CLAMP NO.1
35198L
CLIP, WIRE HARNESS BRACKET CLAMP
35308D
COVER SUB-ASSY, TRANSMISSION OIL PUMP
35308E
BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER)
35308F
RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308G
RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308H
PLUG (FOR TRANSMISSION OIL PUMP COVER)
35351B
ROTOR, TRANSAXLE OIL PUMP DRIVE
35352A
ROTOR, TRANSMISSION OIL PUMP DRIVEN
35371
SHAFT, OIL PUMP DRIVE
35395D
STRAINER, TRANSMISSION OIL
35395E
RING, O(FOR TRANSAXLE OIL STRAINER)
35409C
SPRING SUB-ASSY, MANUAL DETENT
35505K
LEVER SUB-ASSY, PARKING LOCK, NO.1
35513
BOLT, SHIFT CONTROL ACTUATOR
35514
CAP, SHIFT CONTROL ACTUATOR BOLT
35556J
SHAFT, PARKING LOCK PAWL
35556K
SPRING, RETAINER
35556M
SPRING, TORSION
35557B
PAWL, PARKING LOCK
35563
SEAL, SHIFT CONTROL ACTUATOR
35580
ACTUATOR ASSY, SHIFT CONTROL
35596B
PLATE, PAWL STOPPER
35598A
SLEEVE, PARKING LOCK
35705B
SHIM(FOR COUNTER DRIVEN GEAR)
35710
SHAFT ASSY, INPUT
35719C
GEAR, PLANETARY SUN
35719D
RING, SNAP(FOR PLANETARY SUN GEAR)
35753A
RECEIVER, PLANETARY OIL
35760A
GEAR ASSY, REAR PLANETARY NO.1
35786D
RACE, THRUST BEARING, NO.1(FOR INPUT SHAFT)
41310G
GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN
9010508376
Крепеж
9025010017
Крепеж
9034110022
Крепеж
9046706190
Крепеж
9155180614
Крепеж
9155180618
Крепеж
9167180822
Крепеж
9167180850
Крепеж
G1020
COVER ASSY, MOTOR WATER JACKET, NO.1
G1020A
COVER ASSY, MOTOR WATER JACKET, NO.2
G2100A
SHIM(FOR DIFFERENTIAL CASE RH)
Код
Описание

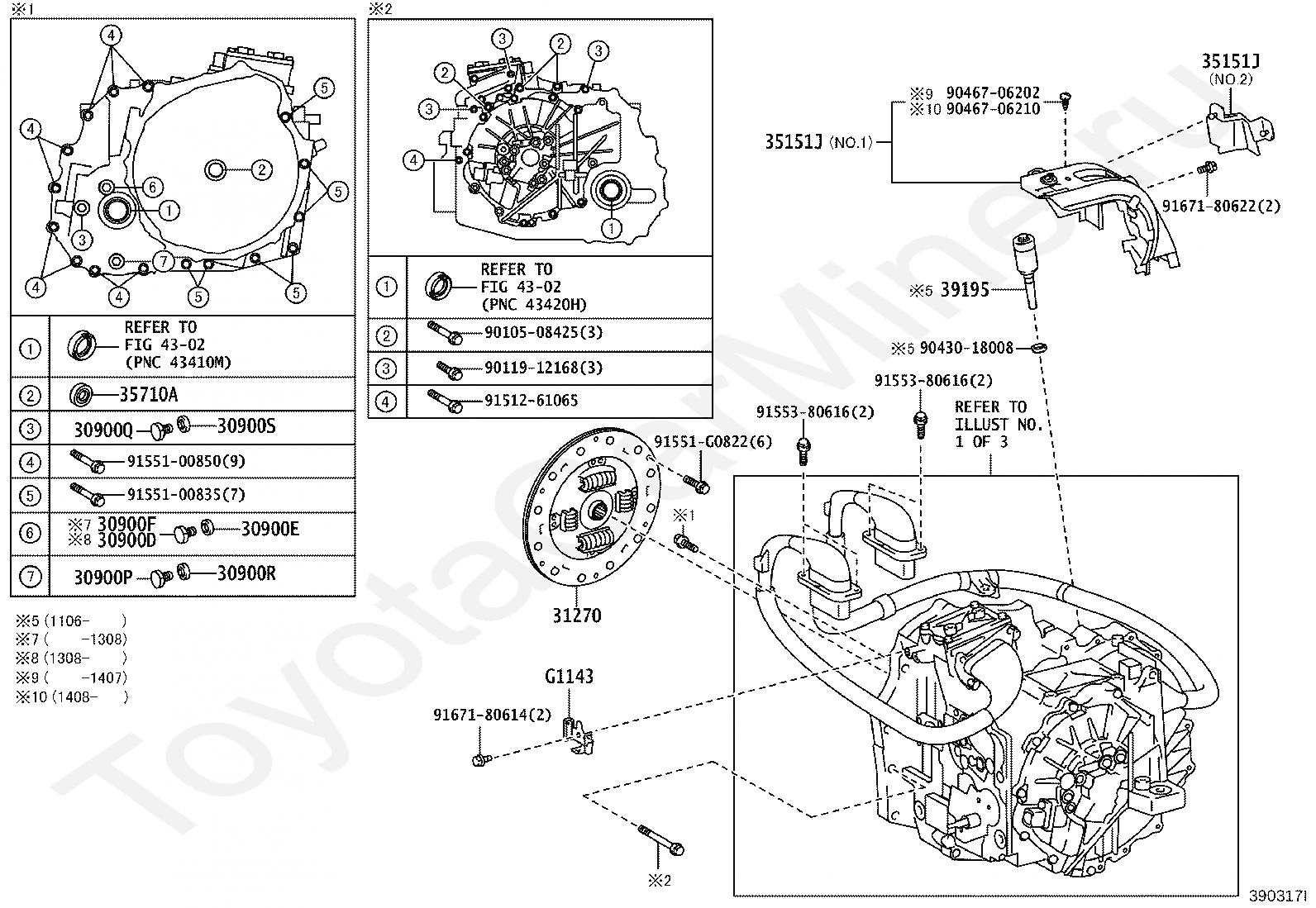

30900D
PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900E
GASKET(FOR TRANSAXLE HOUSING & CASE)
30900F
PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900P
PLUG, DRAIN(HEV)
30900Q
PLUG, FILLER(HEV)
30900R
GASKET, DRAIN PLUG(HEV)
30900S
GASKET, FILLER PLUG(HEV)
31270
DAMPER ASSY, TRANSMISSION INPUT
35151J
COVER, AUTOMATIC TRANSMISSION CASE
35710A
SEAL, TYPE T OIL(FOR INPUT SHAFT)
39195
DAMPER, HV TRANSAXLE MASS
4302
переход к группе запчастей
9010508425
Крепеж
9011912168
Крепеж
9043018008
Крепеж
9046706202
Крепеж
9046706210
Крепеж
9151261065
Крепеж
9155100835
Крепеж
9155100850
Крепеж
91551G0822
Крепеж
9155380616
Крепеж
9167180614
Крепеж
9167180622
Крепеж
G1143
BRACKET, MOTOR CABLE

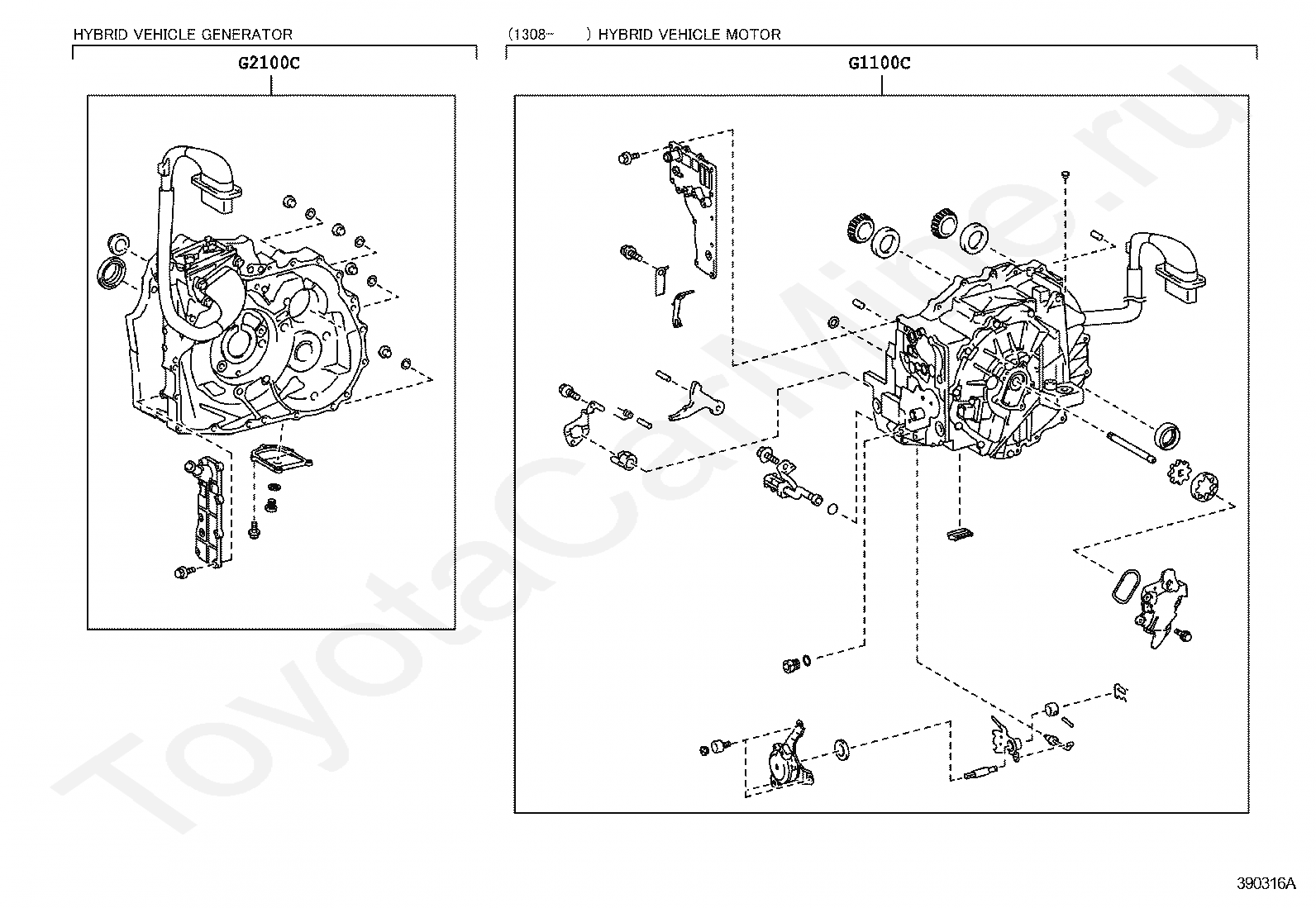

Код
Описание
G1100C
MOTOR ASSY, HYBRID VEHICLE
G2100C
GENERATOR ASSY, HYBRID VEHICLE
