FLOOR PAN & LOWER BACK PANEL TOYOTA SAI, 2013/08 - 2025, 2,4 литра, 16 клапанов DOHC, EFI, S TYPE, AZK10, автомат, бесступенчатая АКПП

Каталог

Япония

Модель

SAI

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

S TYPE

Фрейм

AZK10

Трансмиссия

автомат бесступенчатая АКПП

Опции

573W

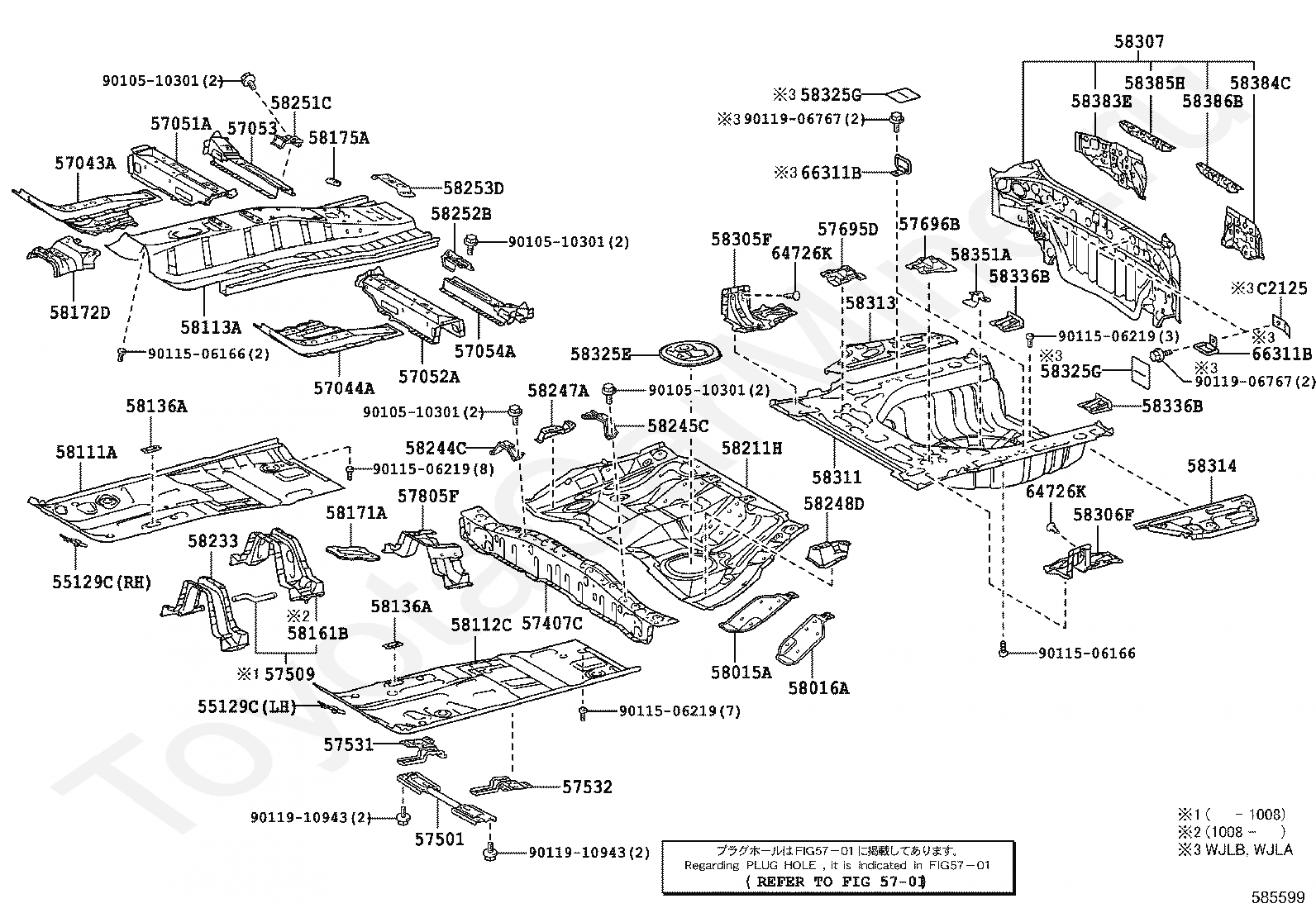

Код

Описание

55129C

COVER, DASH PANEL HOLE

5701

переход к группе запчастей

57043A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57407C

MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

57501

BRACKET SUB-ASSY, FRONT SEAT, CENTER

57509

REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

57531

BRACKET, FRONT FLOOR CENTER BRACE, RH

57532

BRACKET, FRONT FLOOR CENTER BRACE, LH

57695D

BRACKET, REAR FLOOR MOUNTING, NO.2 RH

57696B

BRACKET, REAR FLOOR MOUNTING, NO.2 LH

57805F

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

58015A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

58016A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58136A

COVER, FRONT FLOOR SERVICE HOLE

58161B

REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

58171A

REINFORCE, PARKING BRAKE BASE

58172D

BRACKET, COMPUTER MOUNTING, NO.4

58175A

REINFORCEMENT, PARKING BRAKE BASE, NO.1

58211H

PAN, CENTER FLOOR

58233

BRACKET, EXHAUST PIPE MOUNTING

58244C

BRACKET, REAR SEAT CUSHION MOUNTING, RH

58245C

BRACKET, REAR SEAT CUSHION MOUNTING, LH

58247A

REINFORCEMENT, REAR SEAT CUSHION HINGE, RH

58248D

BRACKET, REAR SEAT HINGE, OUTER LH

58251C

BRACE, FLOOR PANEL, FRONT RH

58252B

BRACE, FLOOR PANEL, FRONT LH

58253D

BRACKET, PARKING BRAKE CABLE

58305F

PANEL SUB-ASSY, REAR FLOOR SIDE, RH

58306F

PANEL SUB-ASSY, REAR FLOOR SIDE, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58325G

COVER, REAR FLOOR SERVICE HOLE

58336B

REINFORCEMENT, REAR FLOOR PAN

58351A

BRACKET, SPARE WHEEL CARRIER

58383E

REINFORCEMENT, BODY LOWER BACK, NO.2 RH

58384C

REINFORCEMENT, BODY LOWER BACK, NO.2 LH

58385H

BRACKET, REAR BUMPER COVER, NO.1

58386B

BRACKET, REAR BUMPER COVER, NO.2

64726K

CLIP, LUGGAGE TRIM, REAR

66311B

HOOK, ROPE

9010510301

Крепеж

9011506166

Крепеж

9011506219

Крепеж

9011906767

Крепеж

9011910943

Крепеж

C2125

PLATE, REAR HOOK BRACKET

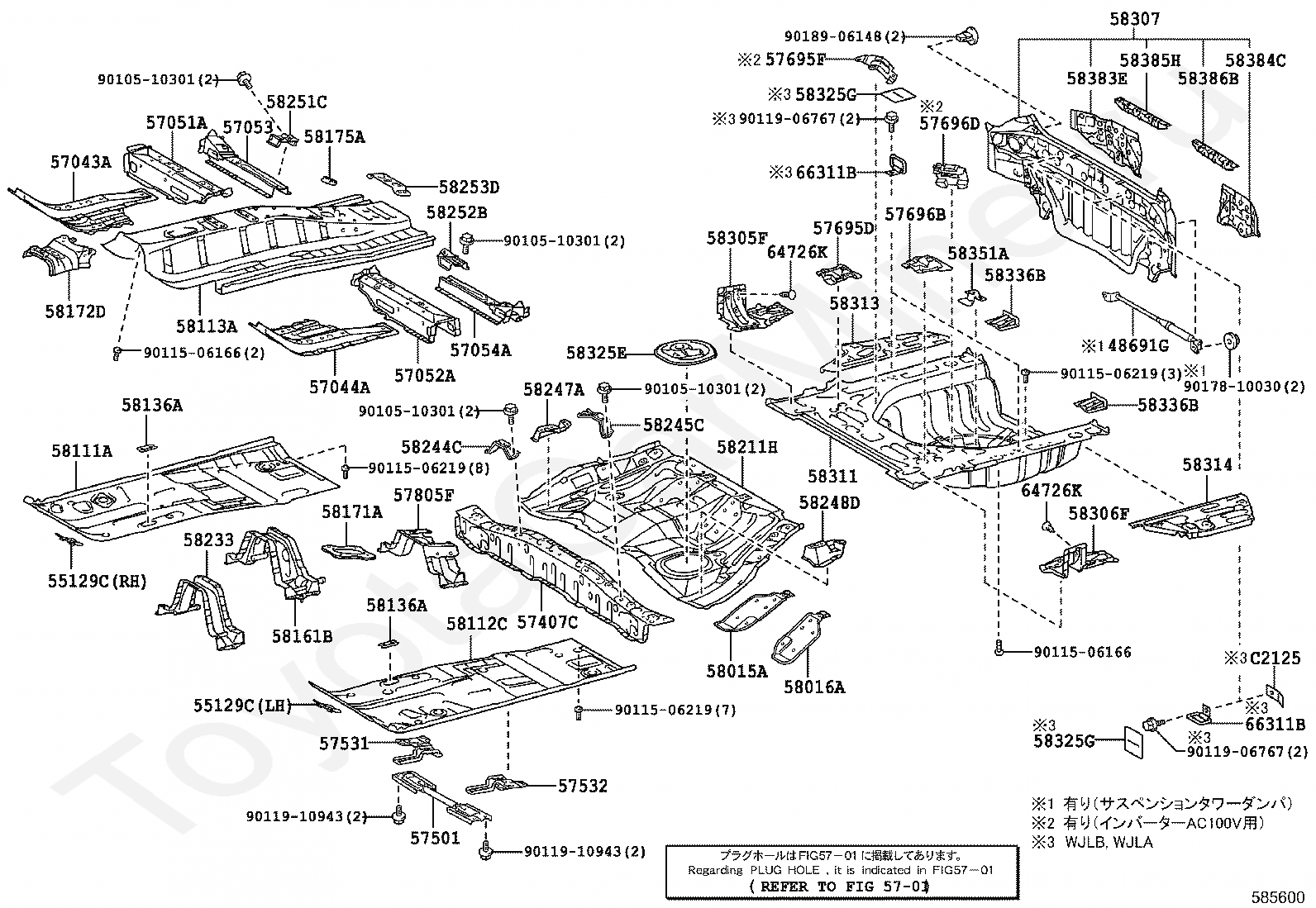

Код

Описание

48691G

DAMPER, SUSPENSION TOWER

55129C

COVER, DASH PANEL HOLE

5701

переход к группе запчастей

57043A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57407C

MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

57501

BRACKET SUB-ASSY, FRONT SEAT, CENTER

57531

BRACKET, FRONT FLOOR CENTER BRACE, RH

57532

BRACKET, FRONT FLOOR CENTER BRACE, LH

57695D

BRACKET, REAR FLOOR MOUNTING, NO.2 RH

57695F

EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH

57696B

BRACKET, REAR FLOOR MOUNTING, NO.2 LH

57696D

EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

57805F

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

58015A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

58016A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58136A

COVER, FRONT FLOOR SERVICE HOLE

58161B

REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

58171A

REINFORCE, PARKING BRAKE BASE

58172D

BRACKET, COMPUTER MOUNTING, NO.4

58175A

REINFORCEMENT, PARKING BRAKE BASE, NO.1

58211H

PAN, CENTER FLOOR

58233

BRACKET, EXHAUST PIPE MOUNTING

58244C

BRACKET, REAR SEAT CUSHION MOUNTING, RH

58245C

BRACKET, REAR SEAT CUSHION MOUNTING, LH

58247A

REINFORCEMENT, REAR SEAT CUSHION HINGE, RH

58248D

BRACKET, REAR SEAT HINGE, OUTER LH

58251C

BRACE, FLOOR PANEL, FRONT RH

58252B

BRACE, FLOOR PANEL, FRONT LH

58253D

BRACKET, PARKING BRAKE CABLE

58305F

PANEL SUB-ASSY, REAR FLOOR SIDE, RH

58306F

PANEL SUB-ASSY, REAR FLOOR SIDE, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58325G

COVER, REAR FLOOR SERVICE HOLE

58336B

REINFORCEMENT, REAR FLOOR PAN

58351A

BRACKET, SPARE WHEEL CARRIER

58383E

REINFORCEMENT, BODY LOWER BACK, NO.2 RH

58384C

REINFORCEMENT, BODY LOWER BACK, NO.2 LH

58385H

BRACKET, REAR BUMPER COVER, NO.1

58386B

BRACKET, REAR BUMPER COVER, NO.2

64726K

CLIP, LUGGAGE TRIM, REAR

66311B

HOOK, ROPE

9010510301

Крепеж

9011506166

Крепеж

9011506219

Крепеж

9011906767

Крепеж

9011910943

Крепеж

9017810030

Крепеж

9018906148

Крепеж

C2125

PLATE, REAR HOOK BRACKET

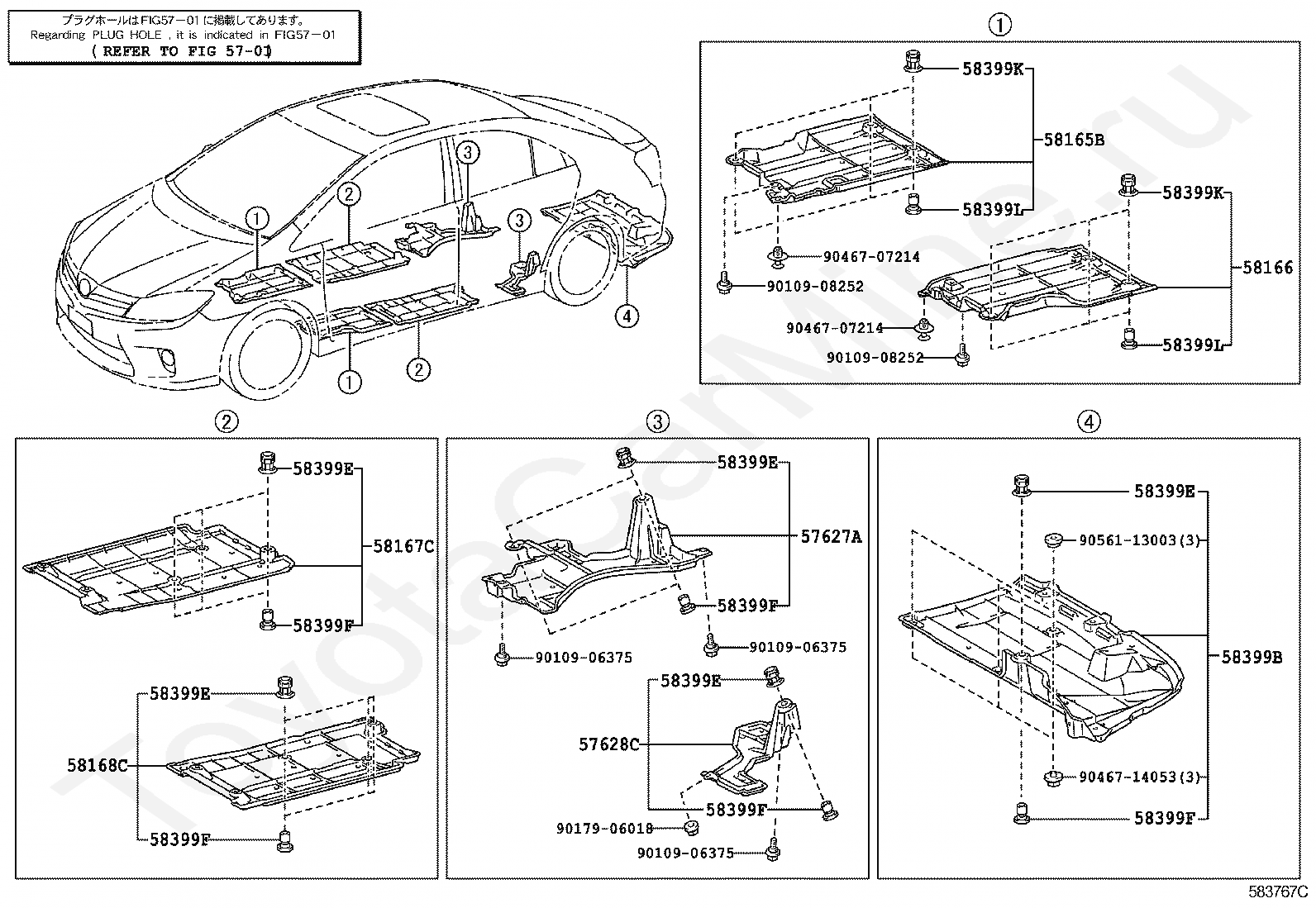

Код

Описание

5701

переход к группе запчастей

57627A

COVER, REAR FLOOR SIDE MEMBER, RH

57628C

COVER, REAR FLOOR SIDE MEMBER, LH

58165B

COVER, FRONT FLOOR, RH

58166

COVER, FRONT FLOOR, LH

58167C

COVER, FRONT FLOOR, CENTER RH

58168C

COVER, FRONT FLOOR, CENTER LH

58399B

COVER, FLOOR UNDER, NO.2

58399E

CLIP, NO.1(FOR FLOOR UNDER COVER)

58399F

CLIP, NO.2(FOR FLOOR UNDER COVER)

58399K

CLIP, NO.1(FOR FLOOR UNDER COVER)

58399L

CLIP, NO.2(FOR FLOOR UNDER COVER)

9010906375

Крепеж

9010908252

Крепеж

9017906018

Крепеж

9046707214

Крепеж

9046714053

Крепеж

9056113003

Крепеж
