Каталог
ЯпонияМодель
REGIUS/TOURING HIACEДвигатель
3 литра, турбо-дизельКузов
фургонКласс
REGIUS=WIND TOURER,SPORTS WAGON=STANDARD TYPEФрейм
KCH40Трансмиссия
автоматОпции
4 двери WAGON 8-SEATER
Код
Описание
16027
PIPE SUB-ASSY, TURBO WATER, NO.1
16278
PIPE, WATER BY-PASS, NO.2
16278G
RING, O(FOR WATER BY-PASS NO.2 PIPE)
16285
HOSE, TURBO WATER, NO.2
16285A
CLIP(FOR TURBO WATER HOSE NO.2)
16285B
UNION(FOR TURBO WATER HOSE NO.2)
16286
HOSE, TURBO WATER, NO.3
16286A
CLIP(FOR TURBO WATER HOSE NO.3)
16321
INLET, WATER
16331
OUTLET, WATER
16331A
THERMOSTAT
16341
GASKET, WATER OUTLET
16346
GASKET, THERMOSTAT
16347A
GASKET(FOR TURBO WATER PIPE)
16361
FAN
16361B
FAN, NO.2
16363
MOTOR, COOLING FAN
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472A
PROTECTOR, HOSE
16474
CAP(FOR RADIATOR RESERVE TANK DRAIN)
16474A
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP)
16533
SUPPORT, RADIATOR, UPPER
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16581
CLAMP, HOSE(FOR WATER HOSE)
16584
INSULATOR, RADIATOR MOUNTING
16711
SHROUD, FAN
16711A
SHROUD, FAN, NO.2
16712
SHROUD, FAN, NO.2
1903
переход к группе запчастей
827112B640
Крепеж
9009904117
Крепеж
9009904119
Крепеж
9010506220
Крепеж
9011606145
Крепеж
9011906450
Крепеж
9011908063
Крепеж
9017906080
Крепеж
9017906293
Крепеж
9017906298
Крепеж
9017908240
Крепеж
9151160610
Крепеж
9151160614
Крепеж
9151160820
Крепеж
9163560616
Крепеж
9164380635
Крепеж

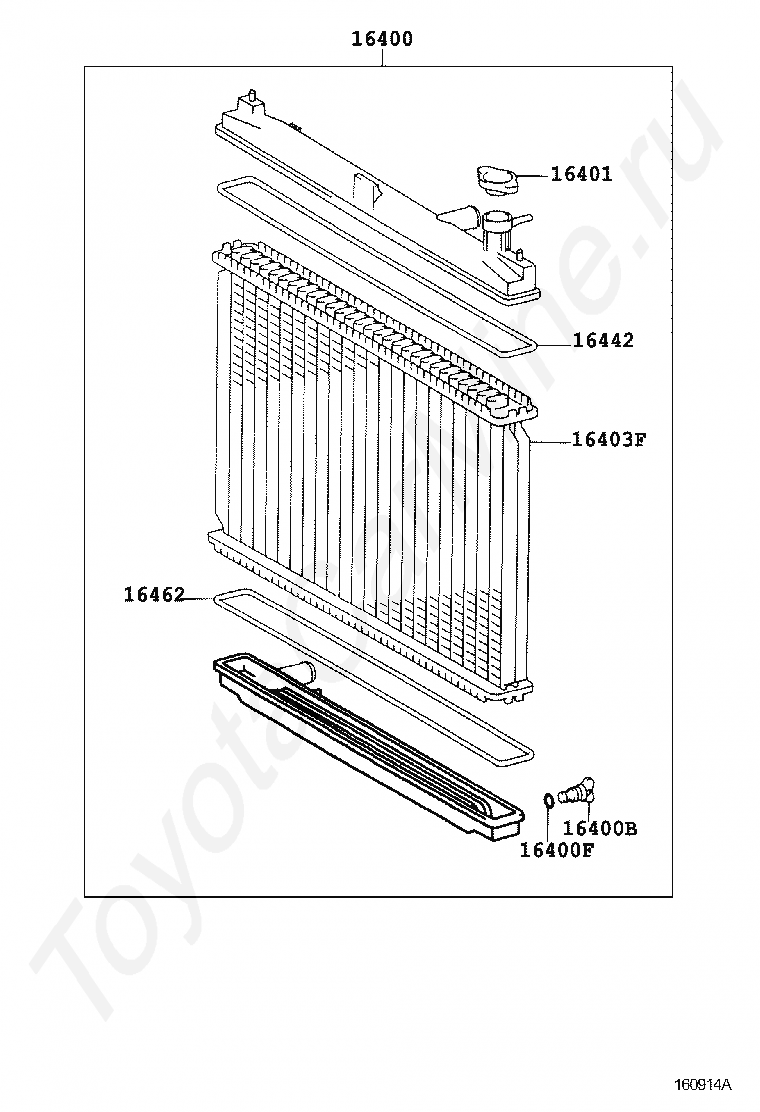

Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16442
RING, O(FOR RADIATOR UPPER TANK)
16462
RING, O(FOR RADIATOR LOWER TANK)
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16491C
WASHER, SPRING(FOR ATM OIL COOLER)
16491D
NUT(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
Код
Описание
16321
INLET, WATER
16331
OUTLET, WATER
16331A
THERMOSTAT
16341
GASKET, WATER OUTLET
16346
GASKET, THERMOSTAT
16361
FAN
16361B
FAN, NO.2
16363
MOTOR, COOLING FAN
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472A
PROTECTOR, HOSE
16474
CAP(FOR RADIATOR RESERVE TANK DRAIN)
16474A
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP)
16482
TANK SUB-ASSY, RADIATOR RESERVE
16533
SUPPORT, RADIATOR, UPPER
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16581
CLAMP, HOSE(FOR WATER HOSE)
16584
INSULATOR, RADIATOR MOUNTING
16711
SHROUD, FAN
16711A
SHROUD, FAN, NO.2
16712
SHROUD, FAN, NO.2
1903
переход к группе запчастей
827112B640
Крепеж
9009904117
Крепеж
9009904119
Крепеж
9010506220
Крепеж
9011606145
Крепеж
9011906450
Крепеж
9011908063
Крепеж
9017906293
Крепеж
9017906298
Крепеж
9017908240
Крепеж
9151160820
Крепеж
9163560616
Крепеж
9164380635
Крепеж

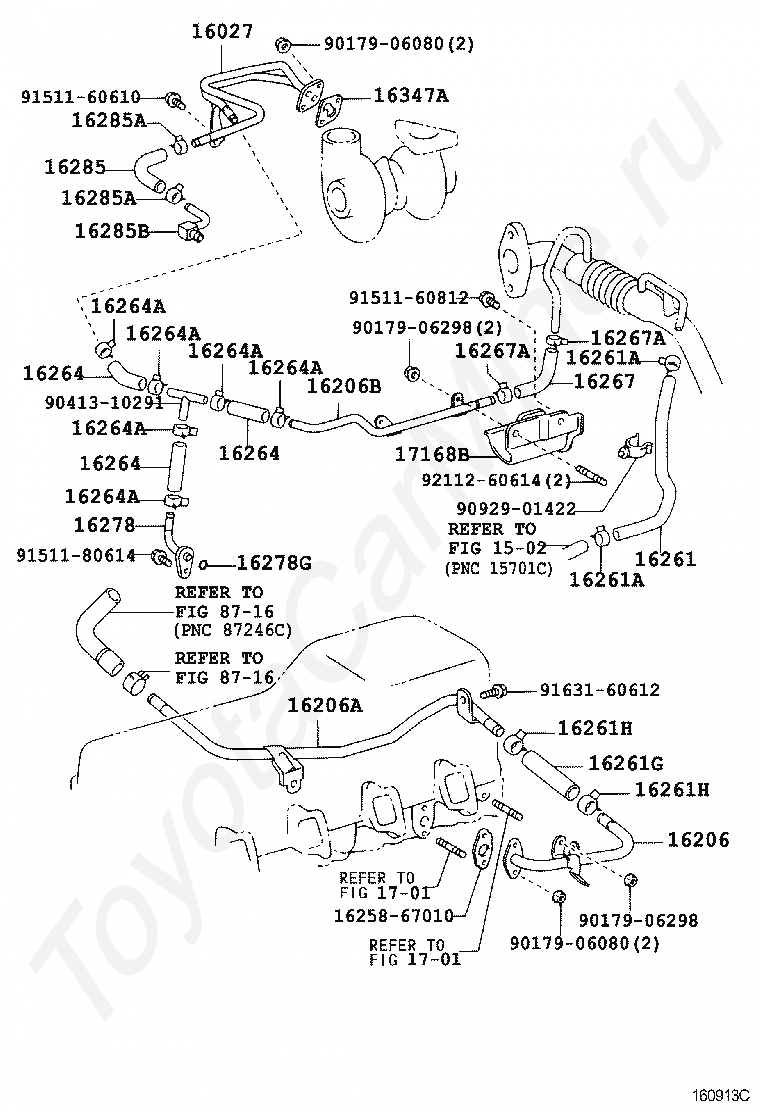

Код
Описание
1502
переход к группе запчастей
16027
PIPE SUB-ASSY, TURBO WATER, NO.1
16206
PIPE SUB-ASSY, WATER BY-PASS
16206A
PIPE SUB-ASSY, WATER BY-PASS, NO.2
16206B
PIPE SUB-ASSY, WATER BY-PASS, NO.3
1625867010
Крепеж
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16278
PIPE, WATER BY-PASS, NO.2
16278G
RING, O(FOR WATER BY-PASS NO.2 PIPE)
16285
HOSE, TURBO WATER, NO.2
16285A
CLIP(FOR TURBO WATER HOSE NO.2)
16285B
UNION(FOR TURBO WATER HOSE NO.2)
16347A
GASKET(FOR TURBO WATER PIPE)
1701
переход к группе запчастей
17168B
INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
8716
переход к группе запчастей
9017906080
Крепеж
9017906298
Крепеж
9041310291
Крепеж
9092901422
Крепеж
9151160610
Крепеж
9151160812
Крепеж
9151180614
Крепеж
9163160612
Крепеж
9211260614
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16403F
CORE SUB-ASSY, RADIATOR
16442
RING, O(FOR RADIATOR UPPER TANK)
16462
RING, O(FOR RADIATOR LOWER TANK)
