Каталог
ЯпонияМодель
RAV4/VANGUARDДвигатель
3,5 литра, 24 клапана, DOHC, EFIКласс
350S TYPEФрейм
GSA33Трансмиссия
автомат АКПП, 5 скоростейОпции
VANGUARD 7-местный 338W
Код
Описание

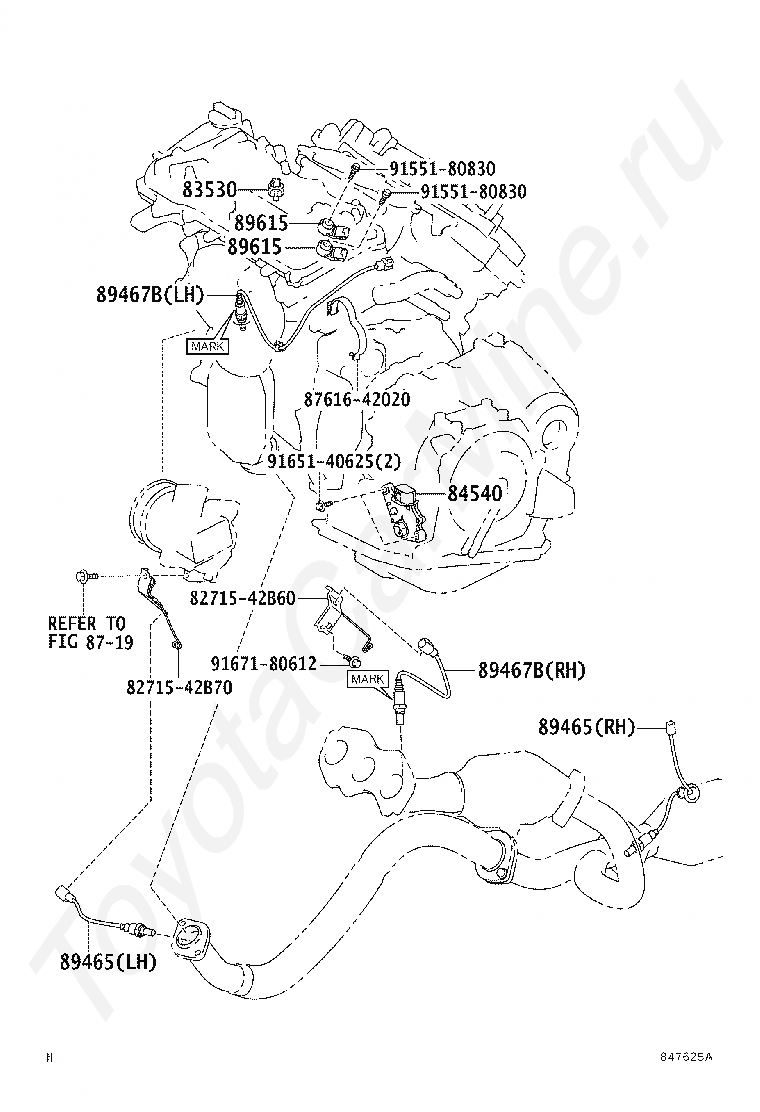

8271542B60
Крепеж
8271542B70
Крепеж
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84540
SWITCH ASSY, NEUTRAL START
8719
переход к группе запчастей
8761642020
Крепеж
89465
SENSOR, OXYGEN
89467B
SENSOR, AIR FUEL RATIO
89615
SENSOR, KNOCK CONTROL
9155180830
Крепеж
9165140625
Крепеж
9167180612
Крепеж
Код
Описание

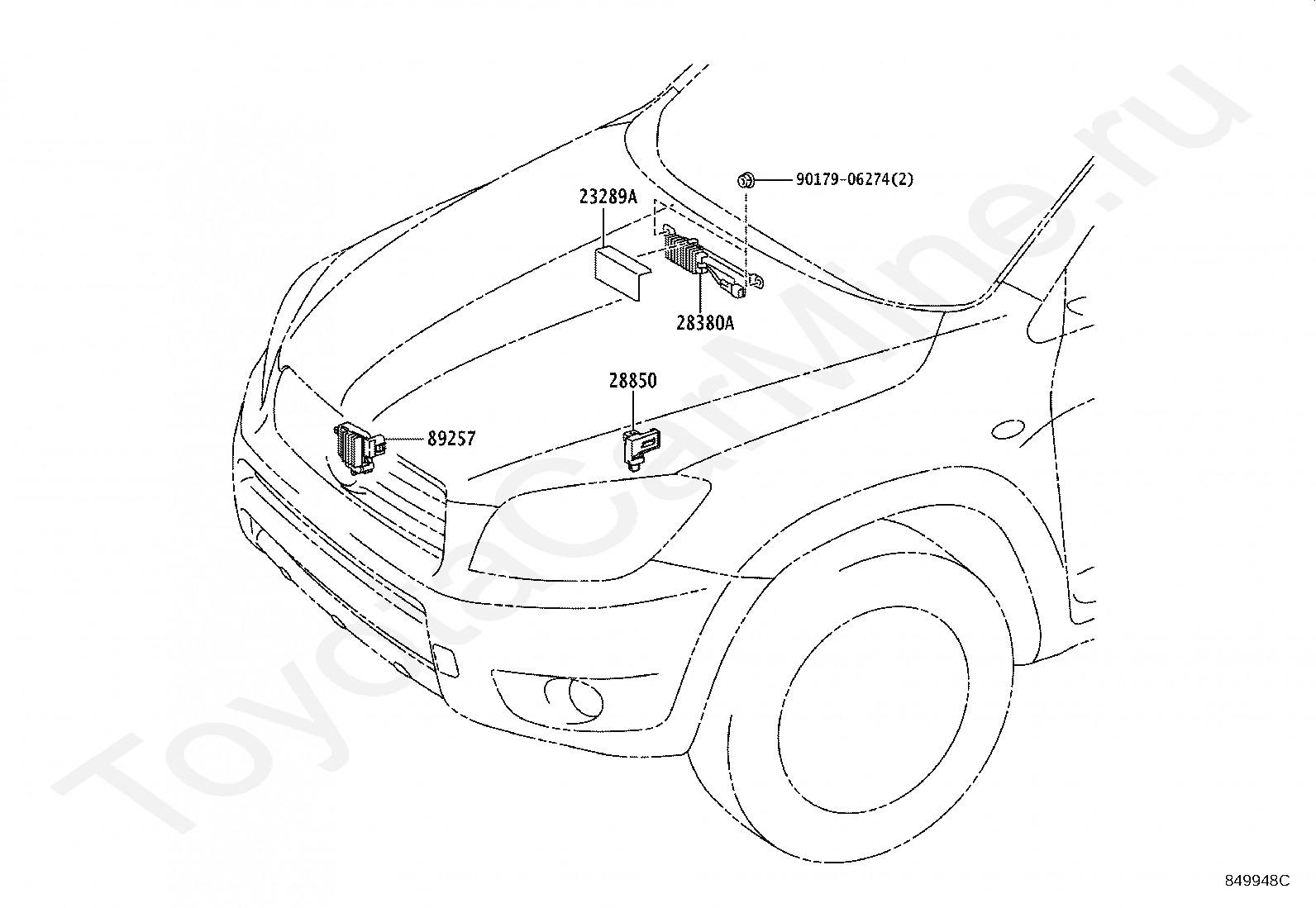

23289A
COVER, FUEL PUMP RESISTOR
28380A
RESISTER, FUEL PUMP
28850
SENSOR ASSY, BATTERY CURRENT
89257
COMPUTER, COOLING FAN
9017906274
Крепеж
Код
Описание

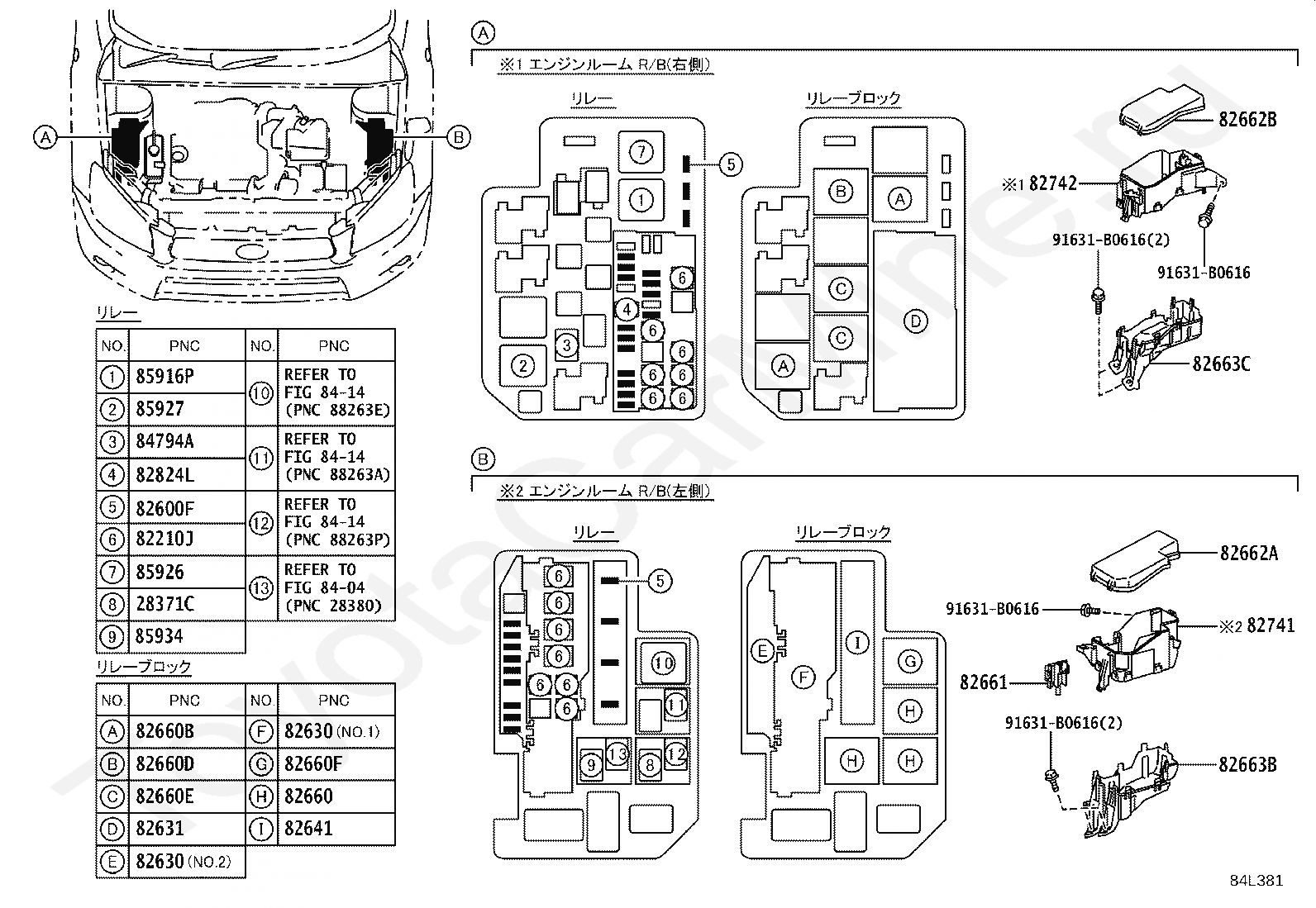

28371C
RELAY, IGNITION, NO.2
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82630
HOLDER ASSY, FUSE
82631
HOLDER, FUSE
82641
RELAY, INTEGRATION NO.1
82660
BLOCK ASSY, RELAY, ENGINE ROOM
82660B
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82660E
BLOCK ASSY, RELAY
82660F
BLOCK ASSY, RELAY
82661
COVER, RELAY BLOCK, NO.1
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82663C
COVER, RELAY BLOCK LOWER, NO.4
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
82824L
PIN, SHORT
8404
переход к группе запчастей
8414
переход к группе запчастей
84794A
RELAY, FR WIPER DEICER
85916P
RELAY, HEADLAMP
85926
RELAY, HEADLAMP DIMMER
85927
RELAY, COOLING FAN
85934
RELAY, MAGNET-CLUTCH
91631B0616
Крепеж
Код
Описание

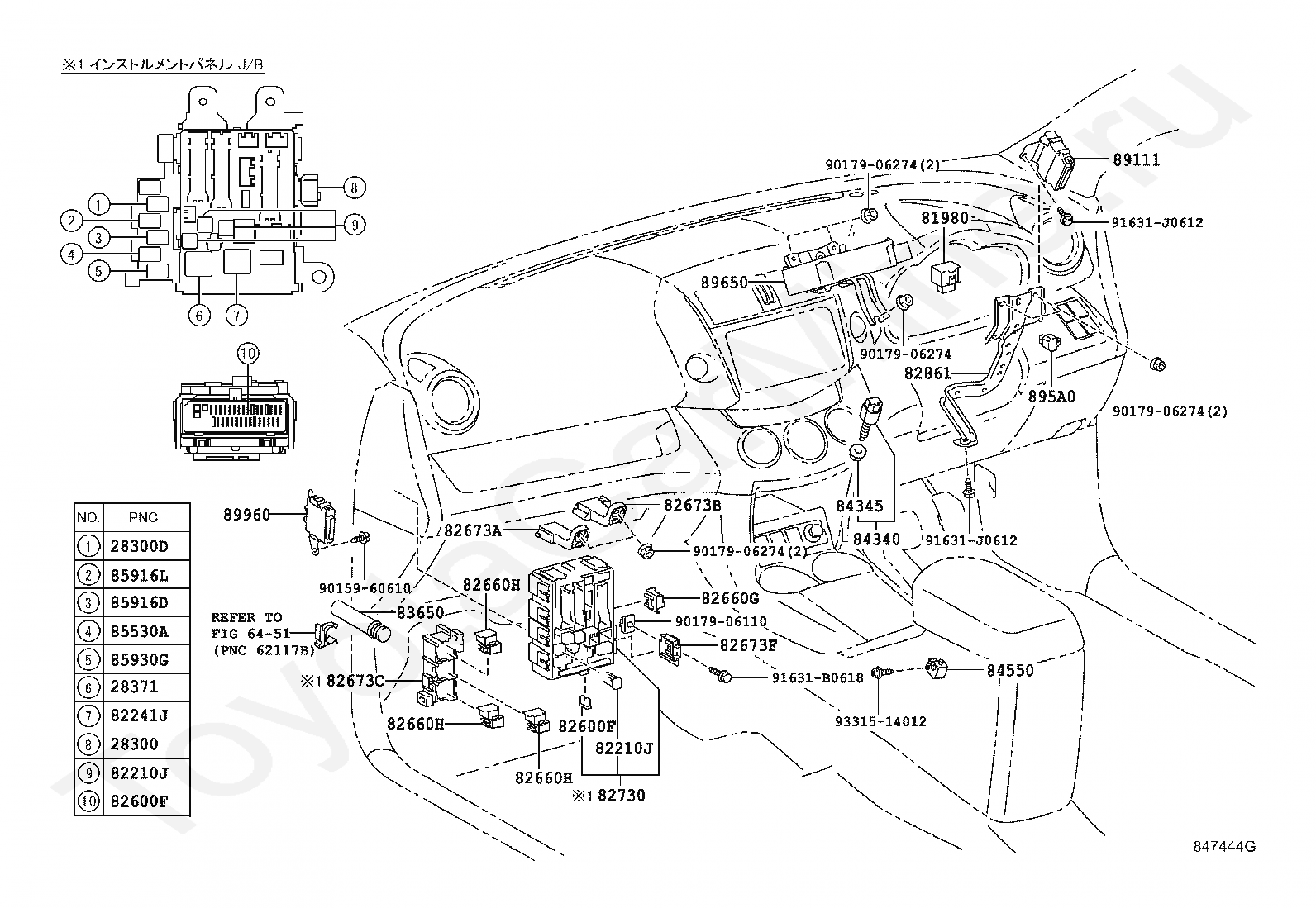

28300
RELAY ASSY, STARTER
28300D
RELAY, STARTER CUT
28371
RELAY, IGNITION, NO.1
6451
переход к группе запчастей
81980
FLASHER ASSY, TURN SIGNAL
82210J
FUSIBLE LINK
82241J
PIN, SHORT
82600F
FUSE, FUSE BLOCK
82660G
BLOCK ASSY, RELAY
82660H
BLOCK ASSY, RELAY
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82673C
BRACKET, JUNCTION BLOCK
82673F
BRACKET, JUNCTION BLOCK
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82861
BRACKET, COMPUTER INTEGRATION, NO.1
83650
FUSEE
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84550
SWITCH ASSY, PARKING BRAKE
85530A
RELAY, POWER OUTLET SOCKET
85916D
RELAY, FOG LAMP
85916L
RELAY, REAR FOG LAMP
85930G
RELAY, ACC
89111
COMPUTER, NETWORK GATEWAY
895A0
RELAY ASSY, STOP LAMP CONTROL
89650
COMPUTER ASSY, POWER STEERING
89960
COMPUTER ASSY, HEADLAMP LEVELING
9015960610
Крепеж
9017906110
Крепеж
9017906274
Крепеж
91631B0618
Крепеж
91631J0612
Крепеж
9331514012
Крепеж
Код
Описание

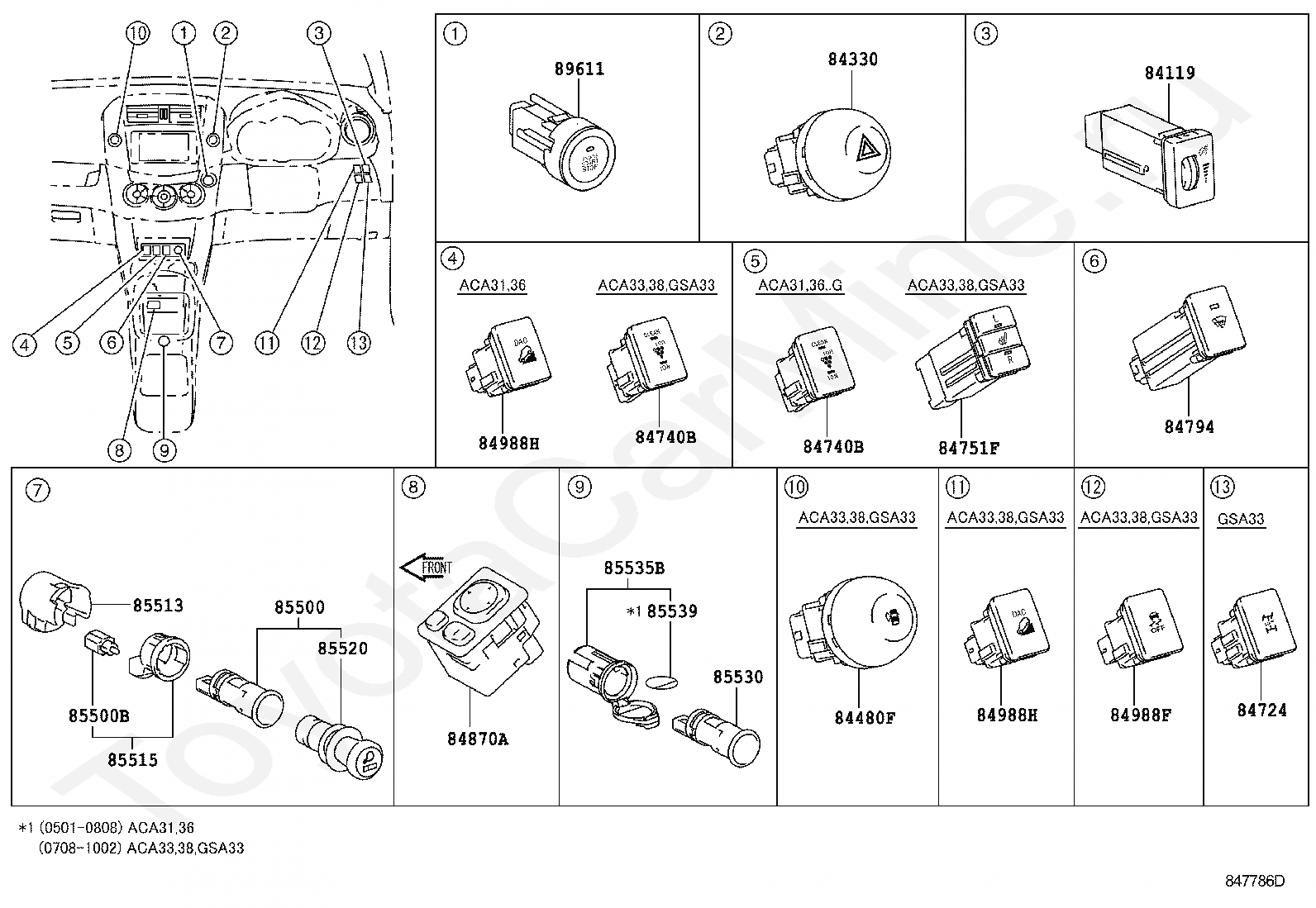

84119
RHEOSTAT, LIGHT CONTROL
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84480F
SWITCH ASSY, MAIN
84724
SWITCH, 4 WHEEL DRIVE CONTROL
84740B
SWITCH ASSY, AIR PURIFIER
84751F
SWITCH, SEAT HEATER
84794
SWITCH, FR WIPER DEICER
84870A
SWITCH ASSY, OUTER MIRROR
84988F
SWITCH, TRACTION CONTROL
84988H
SWITCH, DOWNHILL ASSIST CONTROL
85500
LIGHTER ASSY, CIGARETTE
85500B
BULB, CIGARETTE LIGHTER
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85530
SOCKET ASSY, POWER OUTLET, NO.1
85535B
COVER, POWER OUTLET SOCKET, NO.1
85539
LABEL, POWER OUTLET NOTICE
89611
SWITCH, PUSH START
Код
Описание

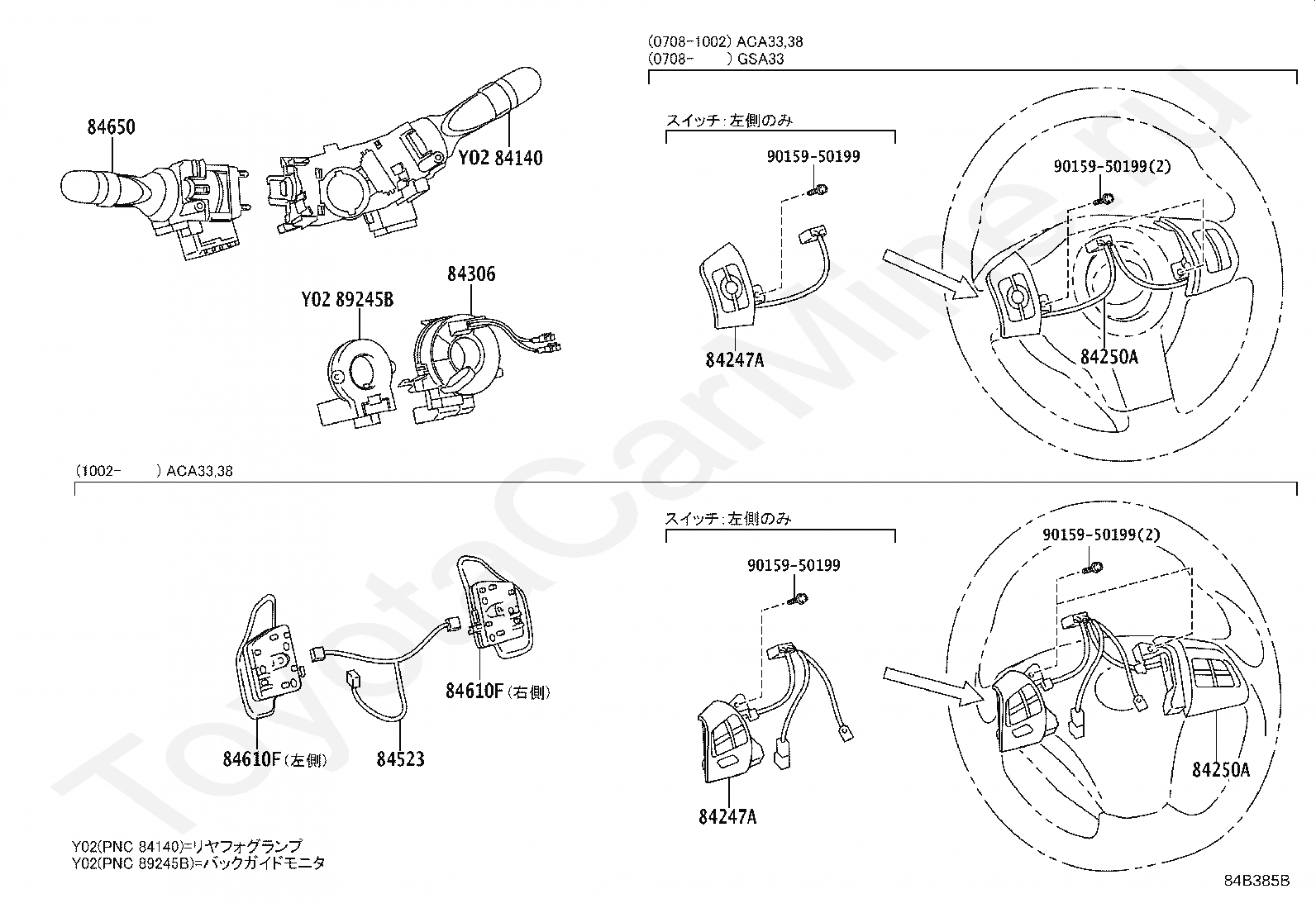

84140
SWITCH ASSY, HEADLAMP DIMMER
84247A
SWITCH, STEERING PAD, LH
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84523
WIRE, SWITCH NO.1
84610F
SWITCH ASSY, TRANSMISSION SHIFT
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
9015950199
Крепеж
Код
Описание
7151
переход к группе запчастей

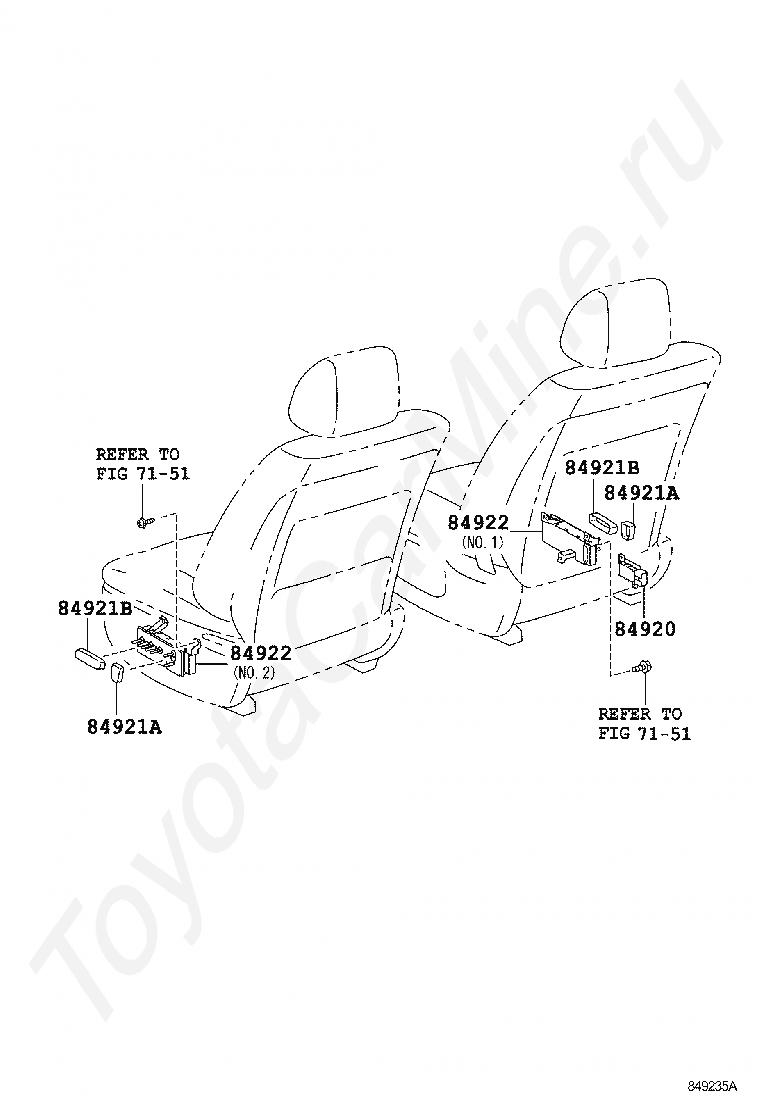

84920
SWITCH ASSY, POWER SEAT
84921A
KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921B
KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84922
SWITCH, FRONT POWER SEAT
Код
Описание

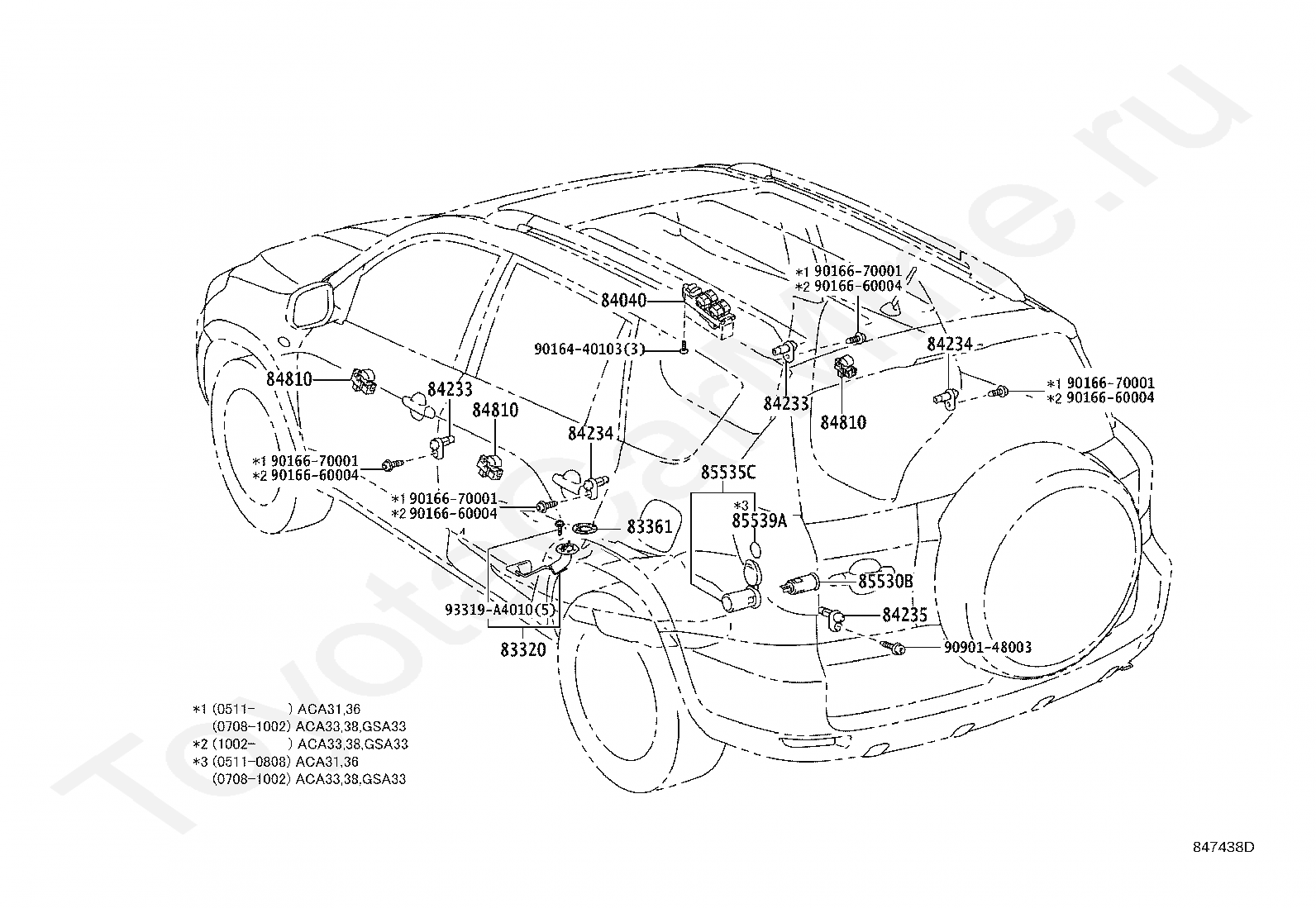

83320
GAGE ASSY, FUEL SENDER
83361
GASKET, FUEL SENDER GAGE
84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84235
SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
85530B
SOCKET ASSY, POWER OUTLET, REAR NO.1
85535C
COVER, POWER OUTLET SOCKET, REAR
85539A
LABEL, POWER OUTLET NOTICE, REAR
9016440103
Крепеж
9016660004
Крепеж
9016670001
Крепеж
9090148003
Крепеж
93319A4010
Крепеж
