Каталог
ЕвропаМодель
RAV4Двигатель
2 литра, 16 клапанов, DOHC, EFIКузов
HARD TOP SERIESФрейм
SXA11Трансмиссия
автоматОпции
правый руль Австралия 5 дверей

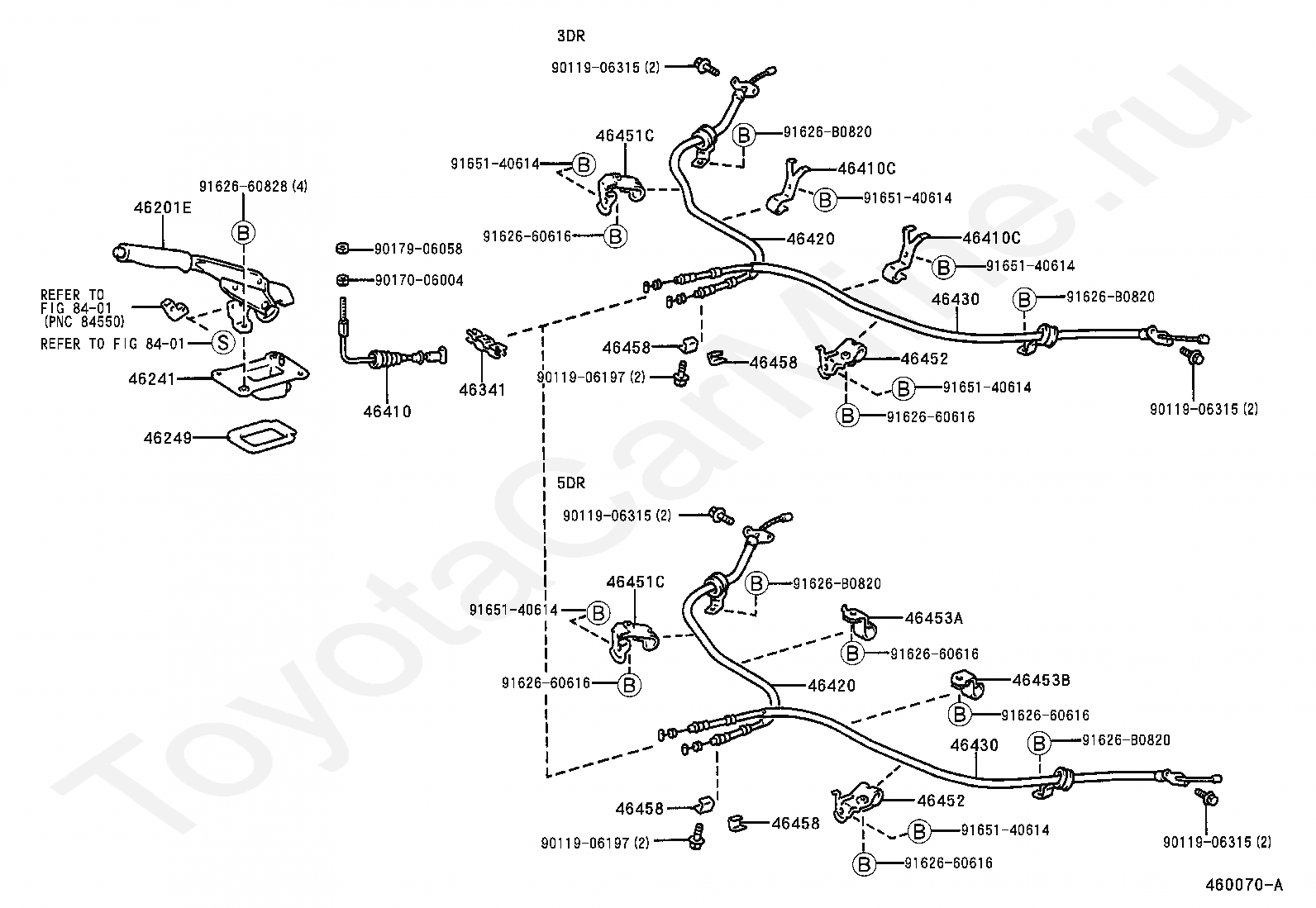

Код
Описание
46201E
LEVER SUB-ASSY, PARKING BRAKE
46241
BOOT, PARKING BRAKE LEVER
46249
SHIELD, PARKING BRAKE HOLE
46341
EQUALIZER, PARKING BRAKE
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410C
CLAMP(FOR PARKING BRAKE FRONT CABLE)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46430
CABLE ASSY, PARKING BRAKE, NO.3
46451C
BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46452
BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46453A
BRACKET, CABLE SUPPORT, NO.3
46453B
BRACKET, CABLE SUPPORT, NO.3
46458
RETAINER, CABLE
8401
переход к группе запчастей
9011906197
Крепеж
9011906315
Крепеж
9017006004
Крепеж
9017906058
Крепеж
9162660616
Крепеж
9162660828
Крепеж
91626B0820
Крепеж
9165140614
Крепеж

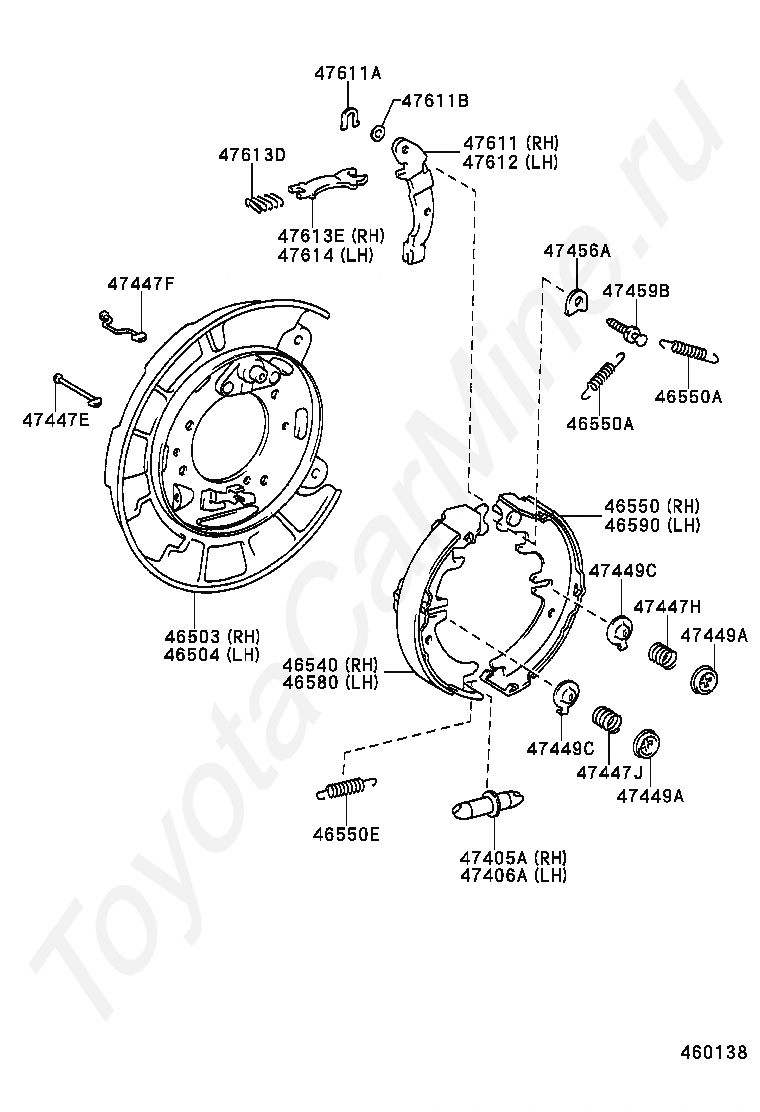

Код
Описание
46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447E
PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447F
PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47447H
SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
47447J
SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449C
CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47611
LEVER, PARKING BRAKE SHOE, RH
47611A
WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER)
47611B
SHIM(FOR PARKING BRAKE SHOE LEVER)
47612
LEVER, PARKING BRAKE SHOE, LH
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47613E
STRUT, PARKING BRAKE SHOE, RH
47614
STRUT, PARKING BRAKE SHOE, LH
