Каталог
ЕвропаМодель
RAV4Двигатель
2 литра, 16 клапанов, DOHC, EFIКузов
HARD TOP SERIESФрейм
SXA10Трансмиссия
механикаОпции
2 двери

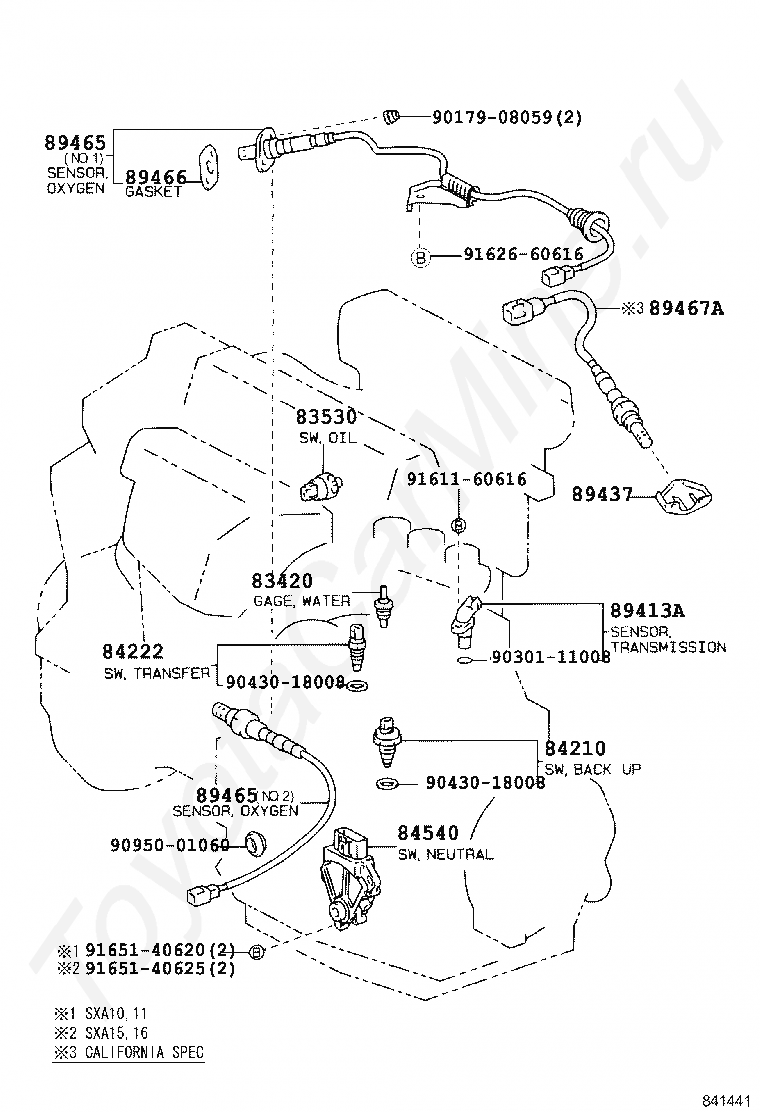

Код
Описание
83420
GAGE ASSY, WATER TEMPERATURE SENDER
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84222
SWITCH, TRANSFER INDICATOR, NO.1
84540
SWITCH ASSY, NEUTRAL START
89413A
SENSOR, TRANSMISSION REVOLUTION
89437
COVER, SENSOR
89465
SENSOR, OXYGEN
89466
GASKET, OXYGEN SENSOR
89467A
SENSOR, WIDE RANGE AIR FUEL RATIO
9017908059
Крепеж
9030111008
Крепеж
9043018008
Крепеж
9095001060
Крепеж
9161160616
Крепеж
9162660616
Крепеж
9165140620
Крепеж
9165140625
Крепеж

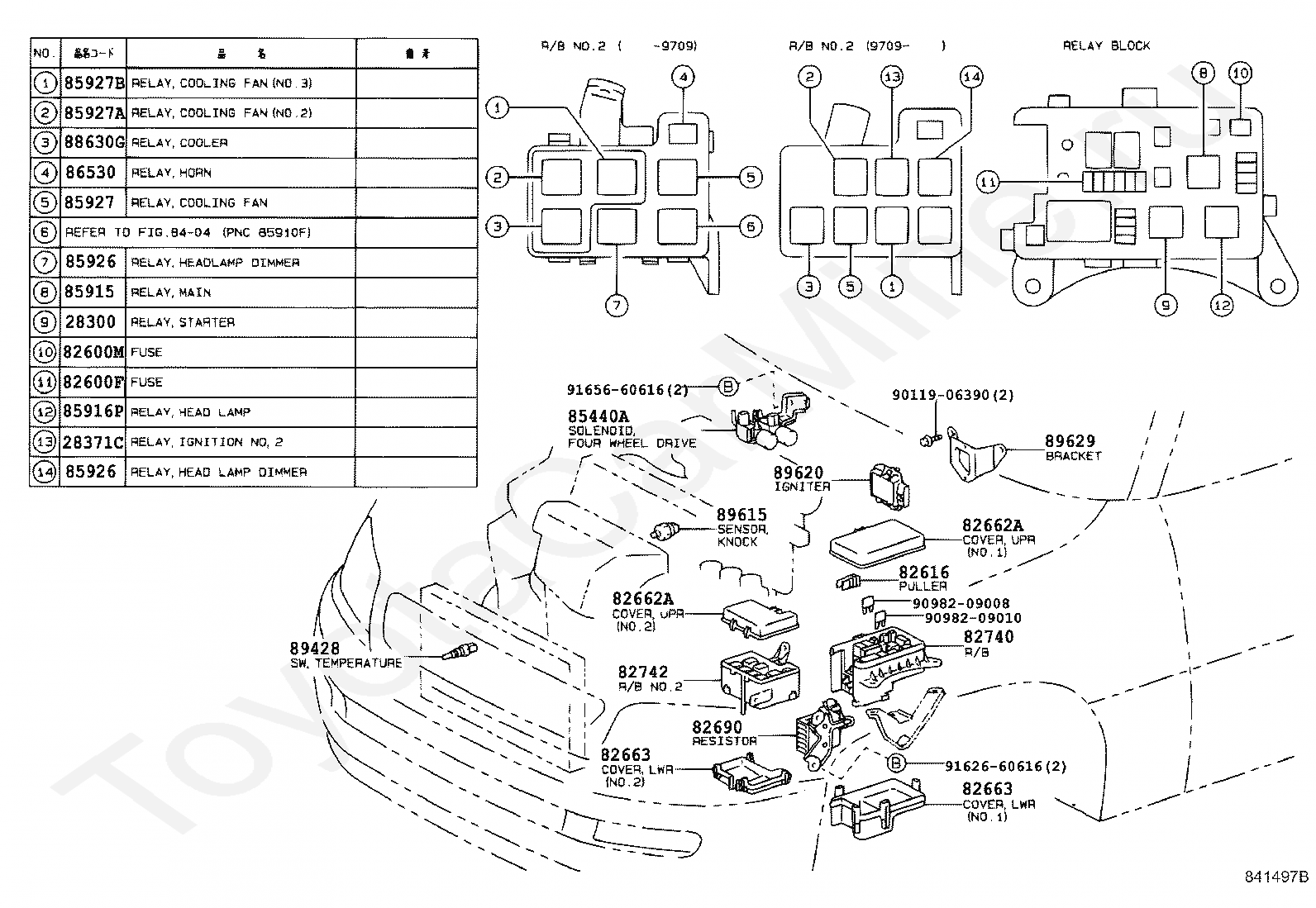

Код
Описание
28300
RELAY ASSY, STARTER
28371C
RELAY, IGNITION, NO.2
82600F
FUSE, FUSE BLOCK
82600M
FUSE, MEDIUM CURRENT
82616
PULLER, FUSE
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82663
COVER, RELAY BLOCK, LOWER
82690
RESISTOR ASSY, DIM DIP LAMP
82740
BLOCK ASSY, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
85440A
SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
85915
RELAY, MAIN
85916P
RELAY, HEADLAMP
85926
RELAY, HEADLAMP DIMMER
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
85927B
RELAY, COOLING FAN, NO.3
86530
RELAY ASSY, HORN
88630G
RELAY ASSY, COOLER
89428
SWITCH, TEMPERATURE DETECT, NO.2
89615
SENSOR, KNOCK CONTROL
89620
IGNITER ASSY
89629
BRACKET, IGNITER ASSY
9011906390
Крепеж
9098209008
Крепеж
9098209010
Крепеж
9162660616
Крепеж
9165660616
Крепеж

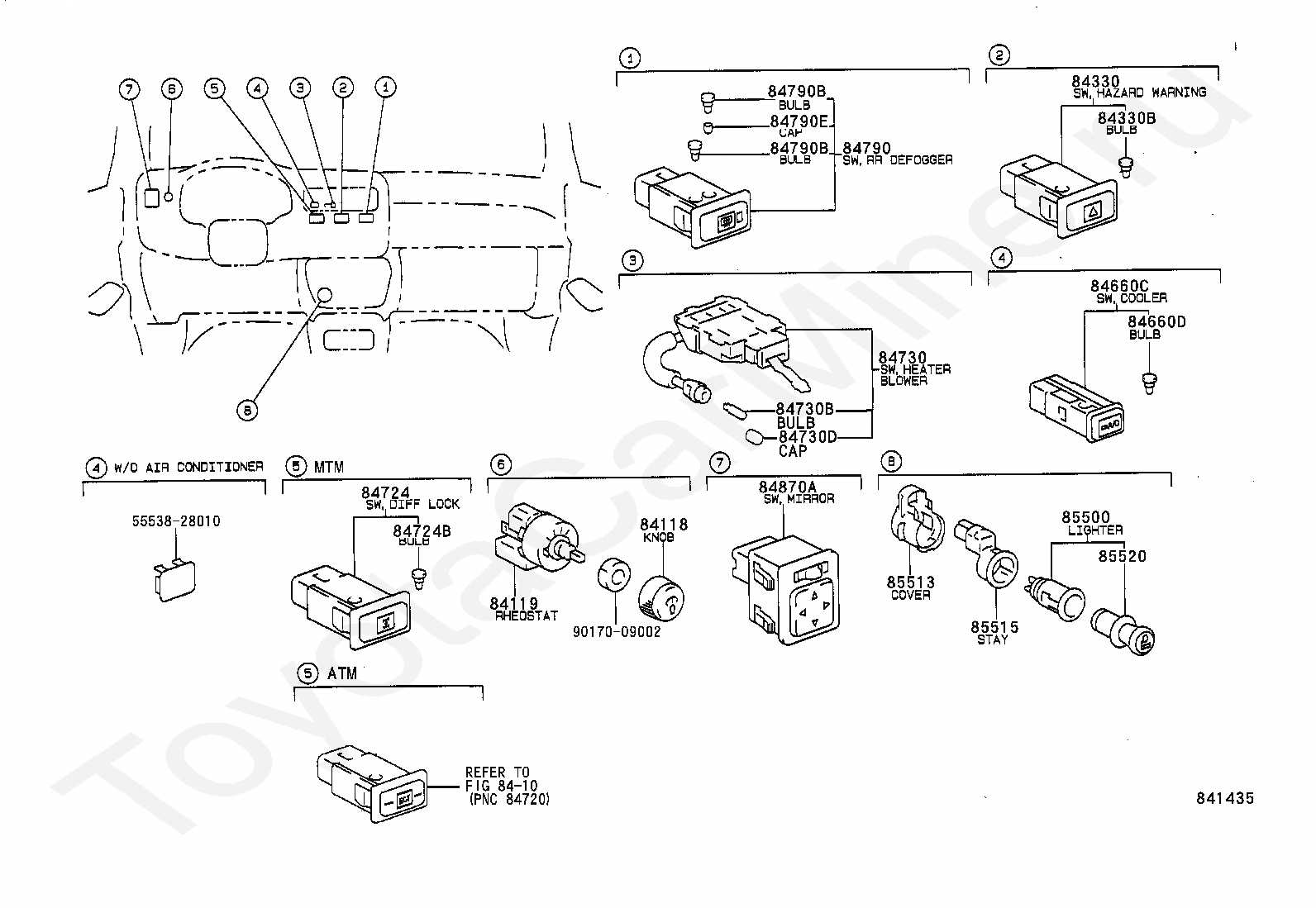

Код
Описание
5553828010
Крепеж
8410
переход к группе запчастей
84118
KNOB, LIGHT CONTROL RHEOSTAT
84119
RHEOSTAT, LIGHT CONTROL
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84660C
SWITCH, COOLER
84660D
BULB(FOR COOLER SWITCH)
84724
SWITCH, 4 WHEEL DRIVE CONTROL
84724B
BULB, 4 WHEEL DRIVE CONTROL SWITCH
84730
SWITCH ASSY, HEATER BLOWER
84730B
BULB, HEATER BLOWER SWITCH
84730D
CAP, HEATER BLOWER SWITCH BULB
84790
SWITCH ASSY, REAR WINDOW DEFOGGER
84790B
BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84790E
CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84870A
SWITCH ASSY, OUTER MIRROR
85500
LIGHTER ASSY, CIGARETTE
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
9017009002
Крепеж

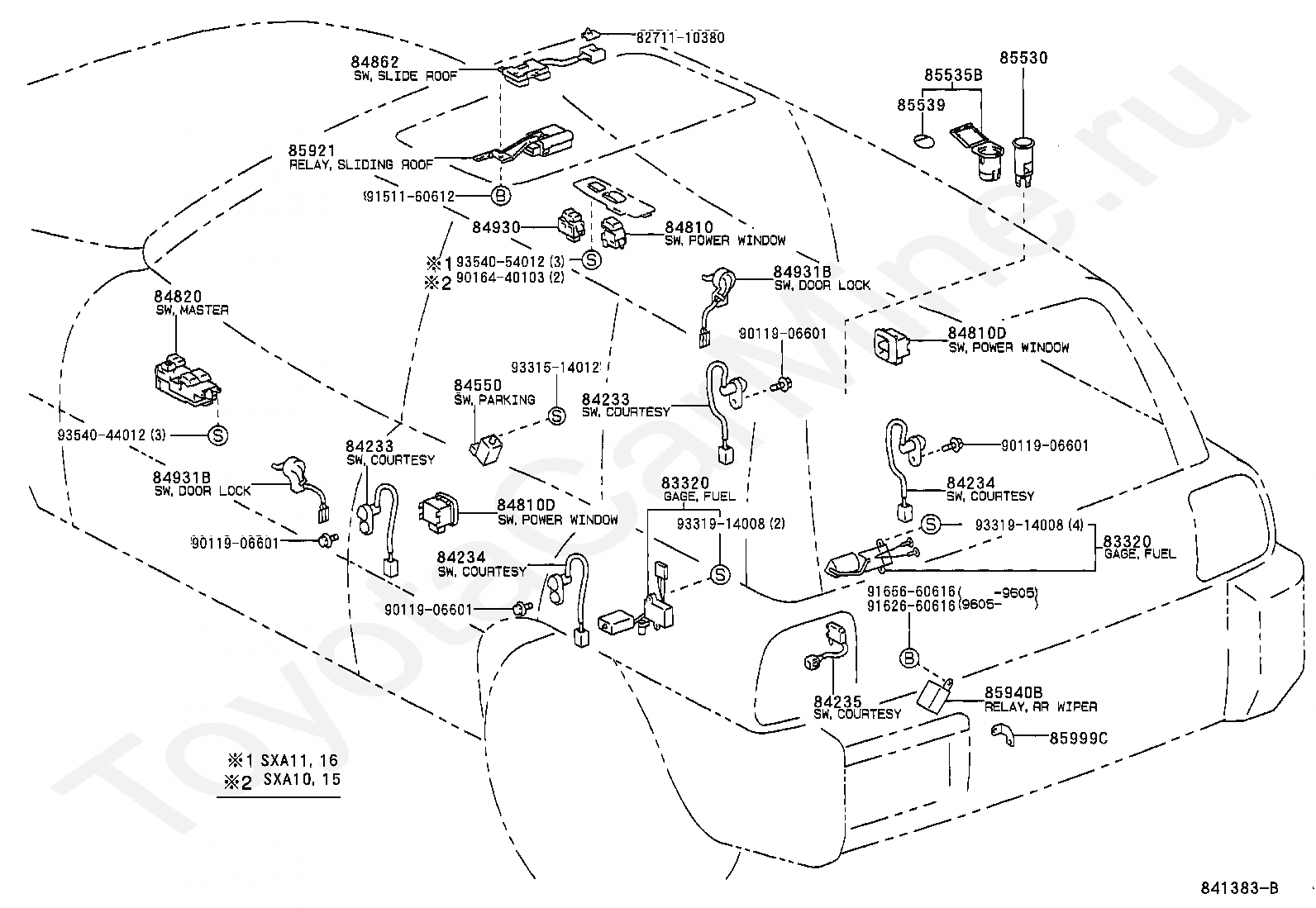

Код
Описание
8271110380
Крепеж
83320
GAGE ASSY, FUEL SENDER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84235
SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84550
SWITCH ASSY, PARKING BRAKE
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84862
SWITCH, SLIDE ROOF MOTOR
84930
SWITCH ASSY, DOOR CONTROL
84931B
SWITCH, DOOR CONTROL
85530
SOCKET ASSY, POWER OUTLET, NO.1
85535B
COVER, POWER OUTLET SOCKET, NO.1
85539
LABEL, POWER OUTLET NOTICE
85921
RELAY, SLIDING ROOF CONTROL
85940B
RELAY ASSY, REAR WIPER
85999C
BRACKET, RELAY, NO.3
9011906601
Крепеж
9016440103
Крепеж
9151160612
Крепеж
9162660616
Крепеж
9165660616
Крепеж
9331514012
Крепеж
9331914008
Крепеж
9354044012
Крепеж
9354054012
Крепеж

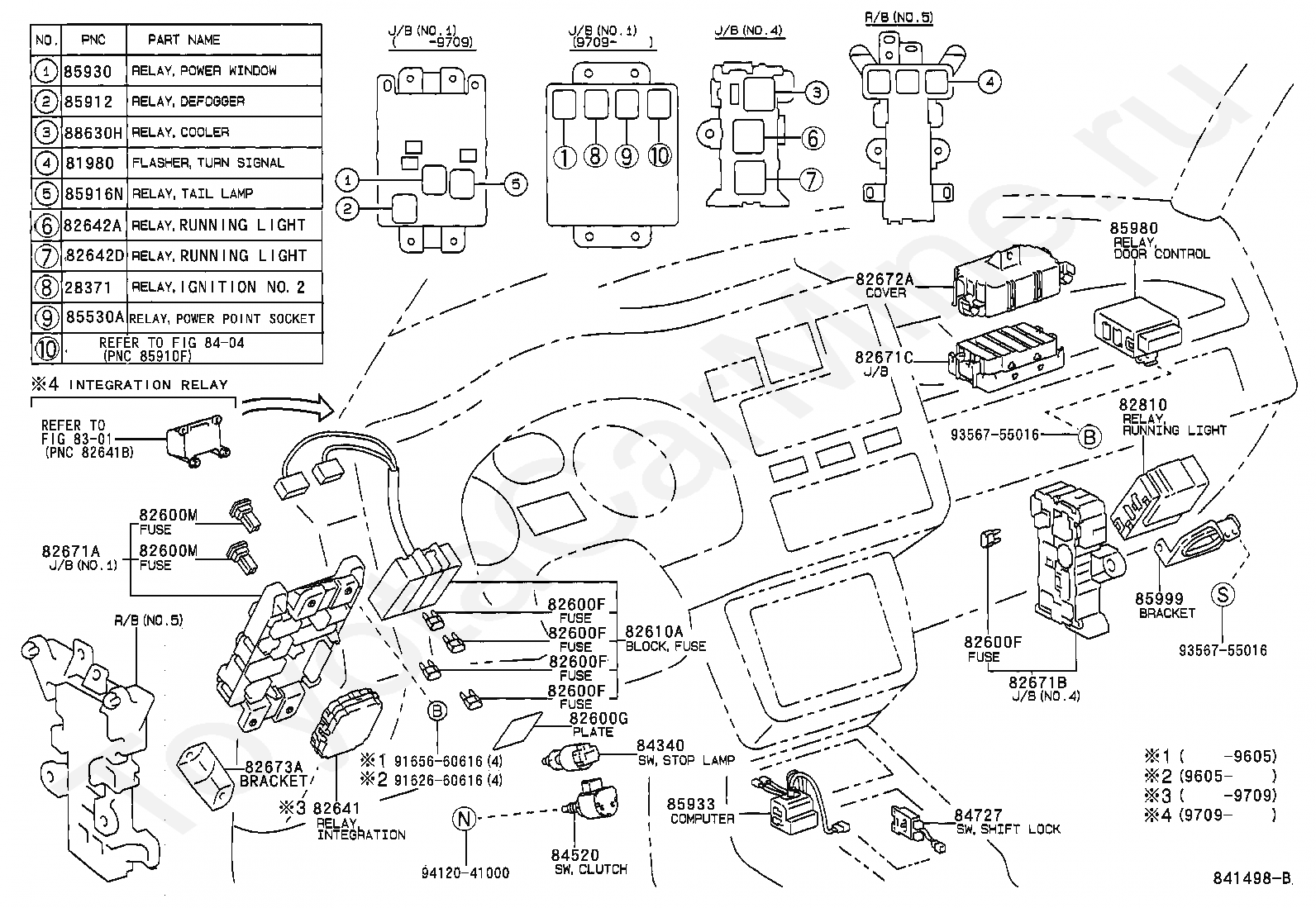

Код
Описание
28371
RELAY, IGNITION, NO.1
81980
FLASHER ASSY, TURN SIGNAL
82600F
FUSE, FUSE BLOCK
82600G
PLATE, CAUTION(FOR FUSE)
82600M
FUSE, MEDIUM CURRENT
82610A
BLOCK ASSY, FUSE
82641
RELAY, INTEGRATION NO.1
82642A
RELAY, RUNNING LIGHT
82642D
RELAY, RUNNING LIGHT NO.2
82671A
BLOCK, JUNCTION
82671B
BLOCK, JUNCTION
82671C
BLOCK, JUNCTION
82672A
COVER, JUNCTION BLOCK
82673A
BRACKET, JUNCTION BLOCK
82810
RELAY ASSY, RUNNING LIGHT
8301
переход к группе запчастей
8404
переход к группе запчастей
84340
SWITCH ASSY, STOP LAMP
84520
SWITCH ASSY, CLUTCH START
84727
SWITCH, SHIFT LOCK CONTROL
85530A
RELAY, POWER OUTLET SOCKET
85912
RELAY, DEFOGGER
85916N
RELAY, TAIL LAMP
85930
RELAY ASSY, POWER WINDOW
85933
COMPUTER, SHIFT LOCK CONTROL
85980
RELAY ASSY, DOOR CONTROL
85999
BRACKET, COMBINATION RELAY
88630H
RELAY ASSY, COOLER
9162660616
Крепеж
9165660616
Крепеж
9356755016
Крепеж
9412041000
Крепеж

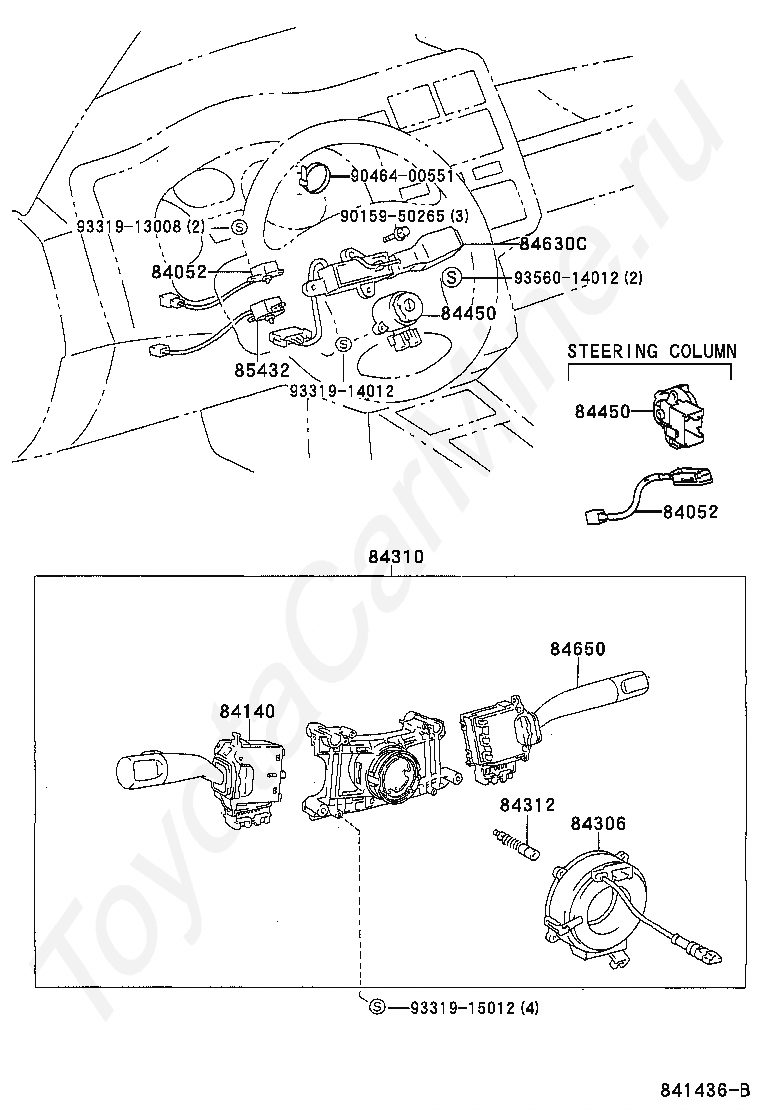

Код
Описание
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84306
CABLE SUB-ASSY, SPIRAL
84310
SWITCH ASSY, TURN SIGNAL
84312
PLATE, HORN CONTACT
84450
SWITCH ASSY, IGNITION OR STARTER
84630C
SWITCH ASSY, SPEED CONTROL MAIN
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
9015950265
Крепеж
9046400551
Крепеж
9331913008
Крепеж
9331914012
Крепеж
9331915012
Крепеж
9356014012
Крепеж
