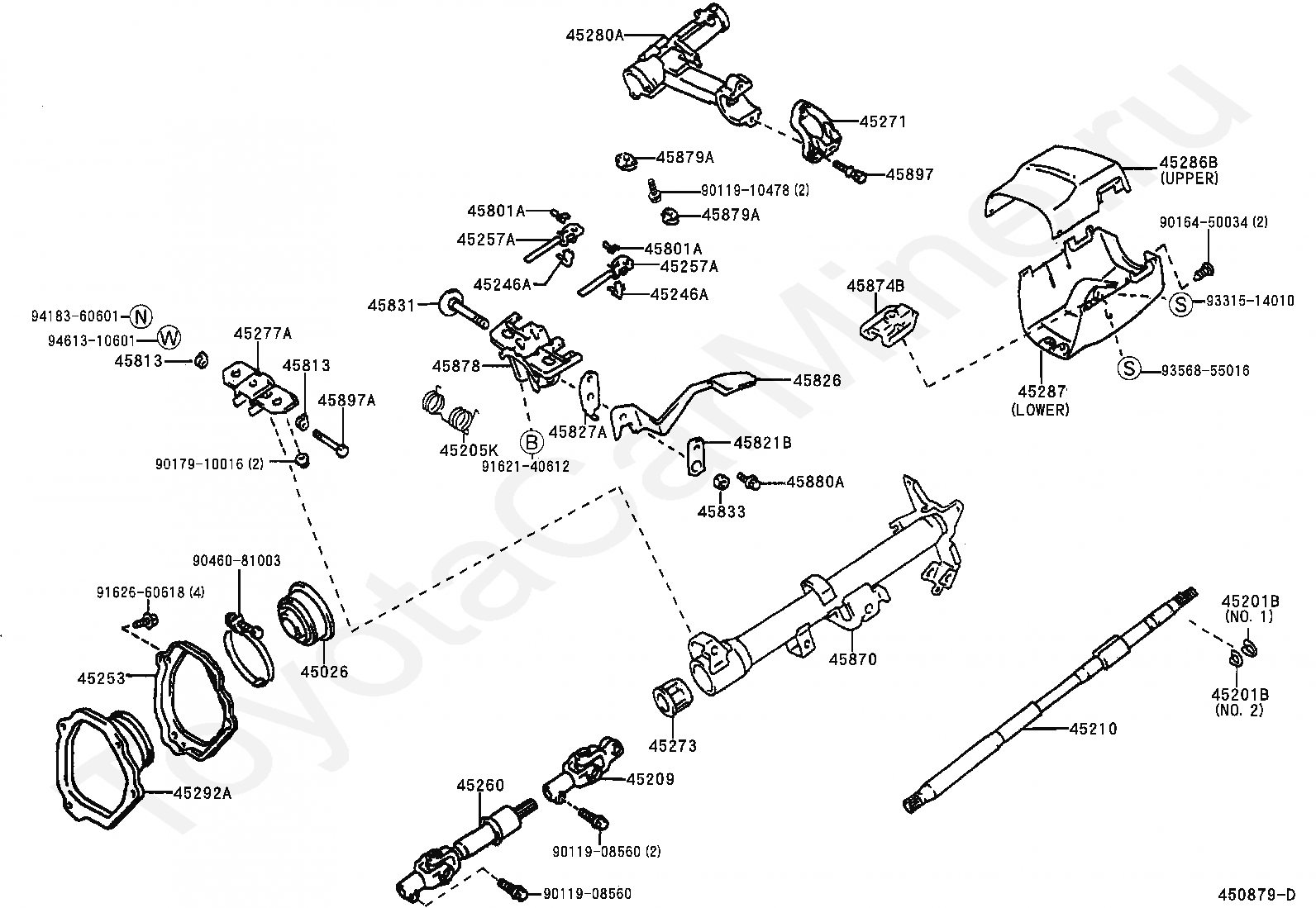

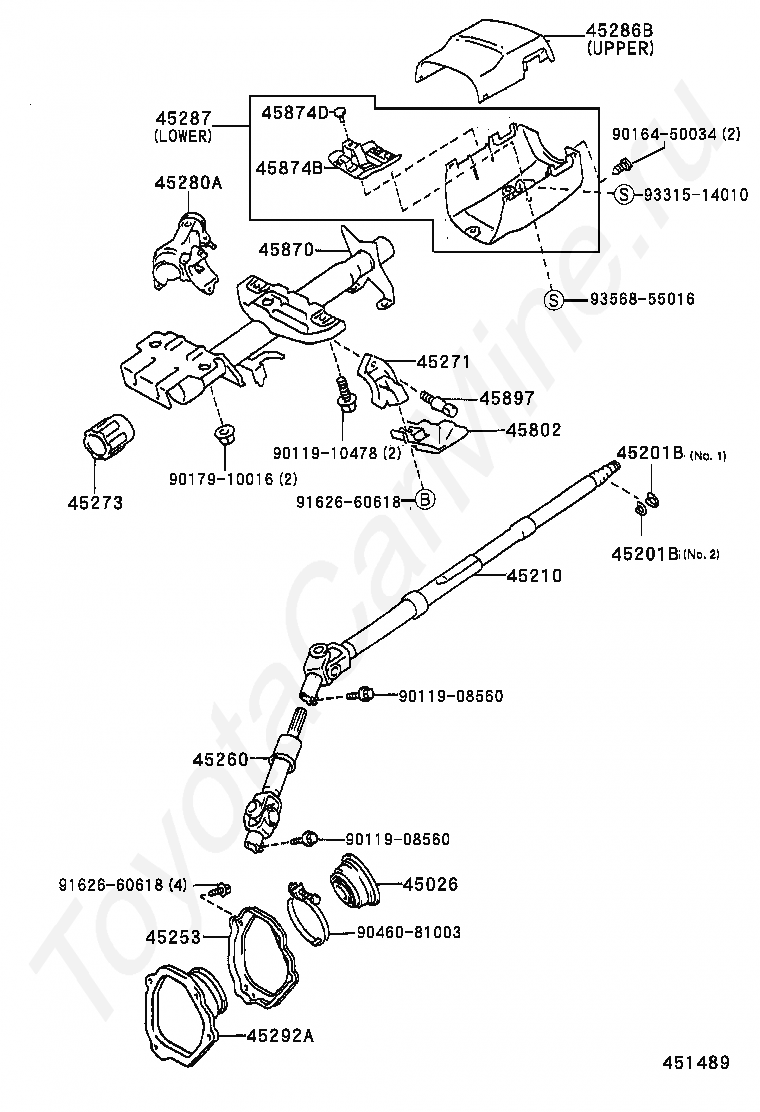

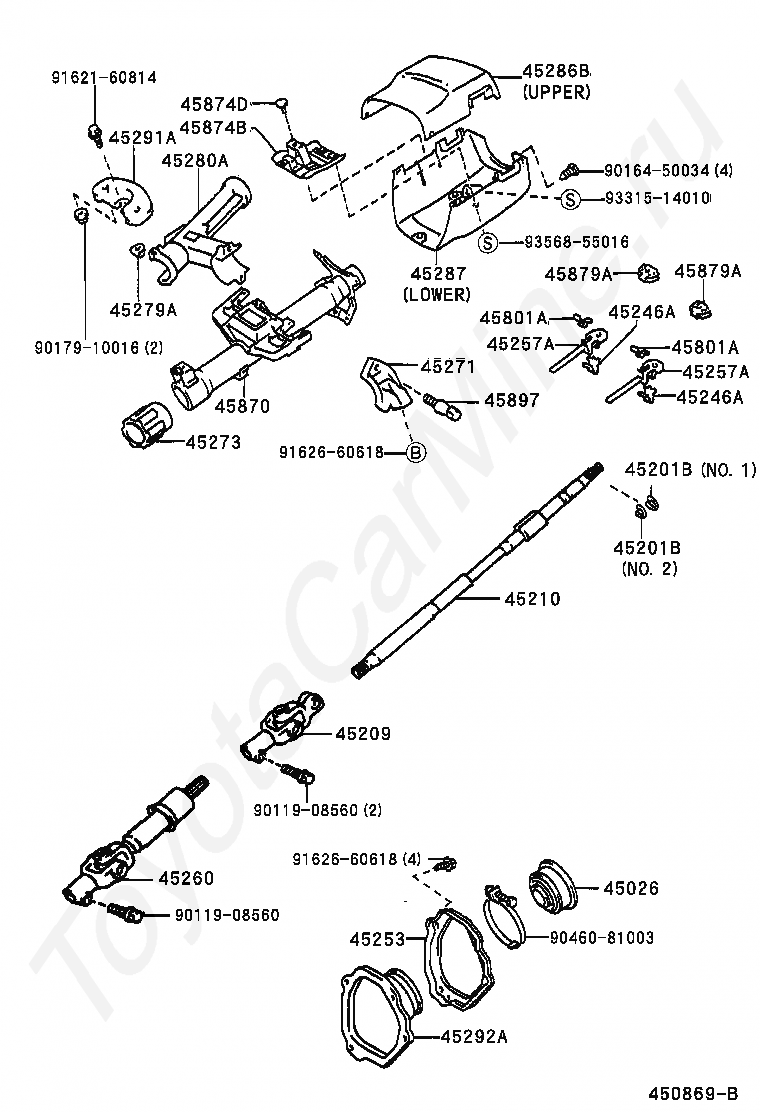

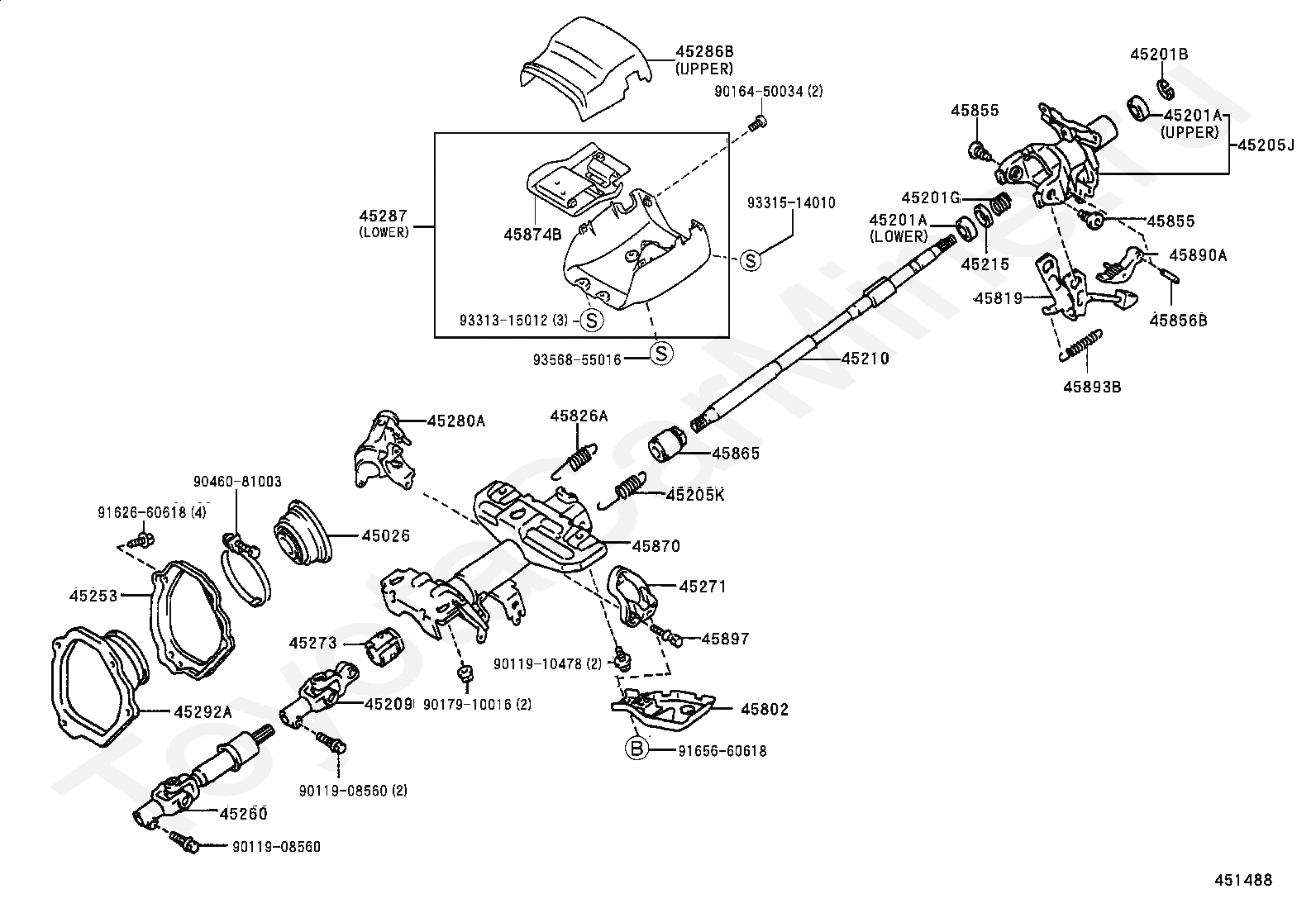

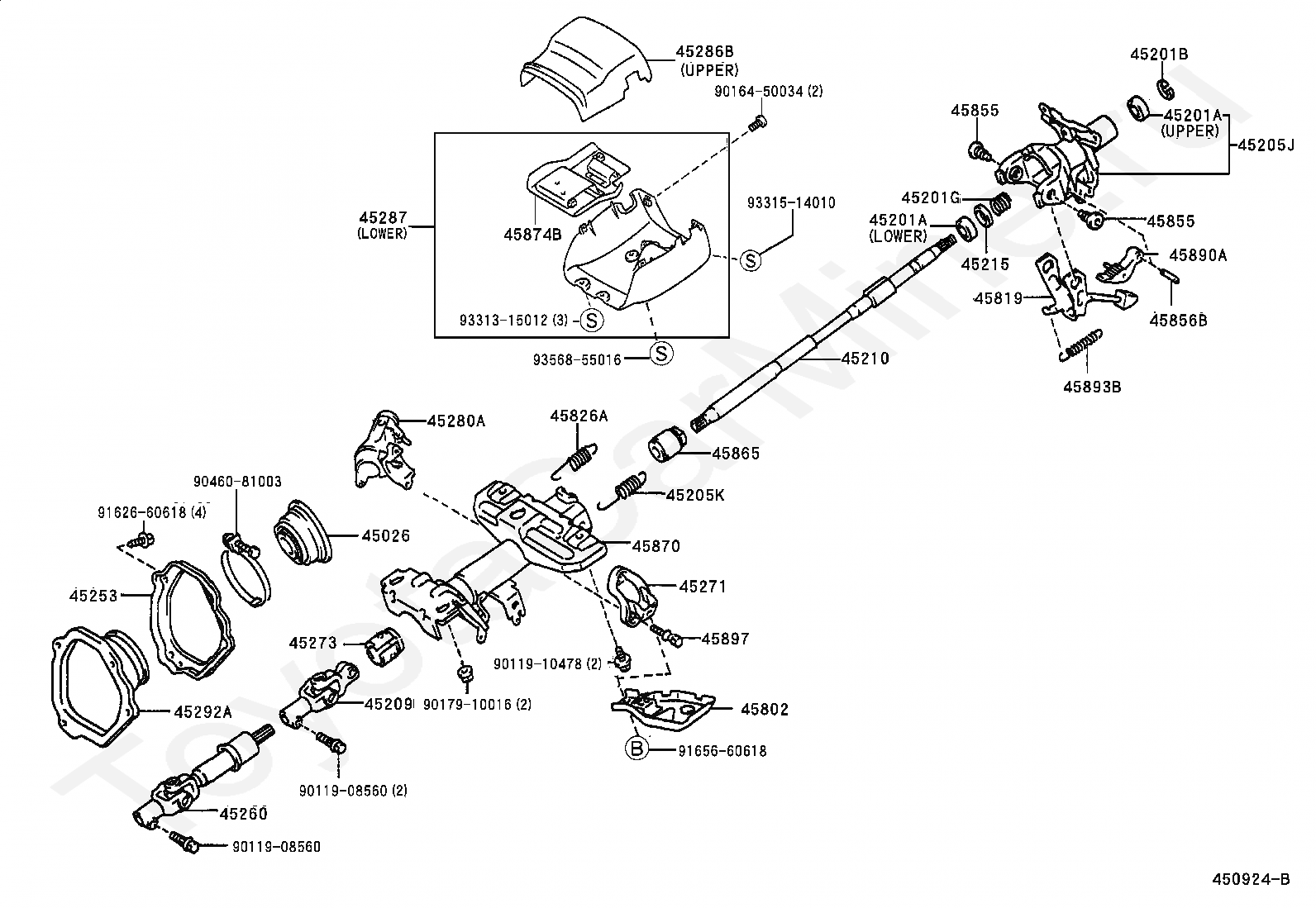

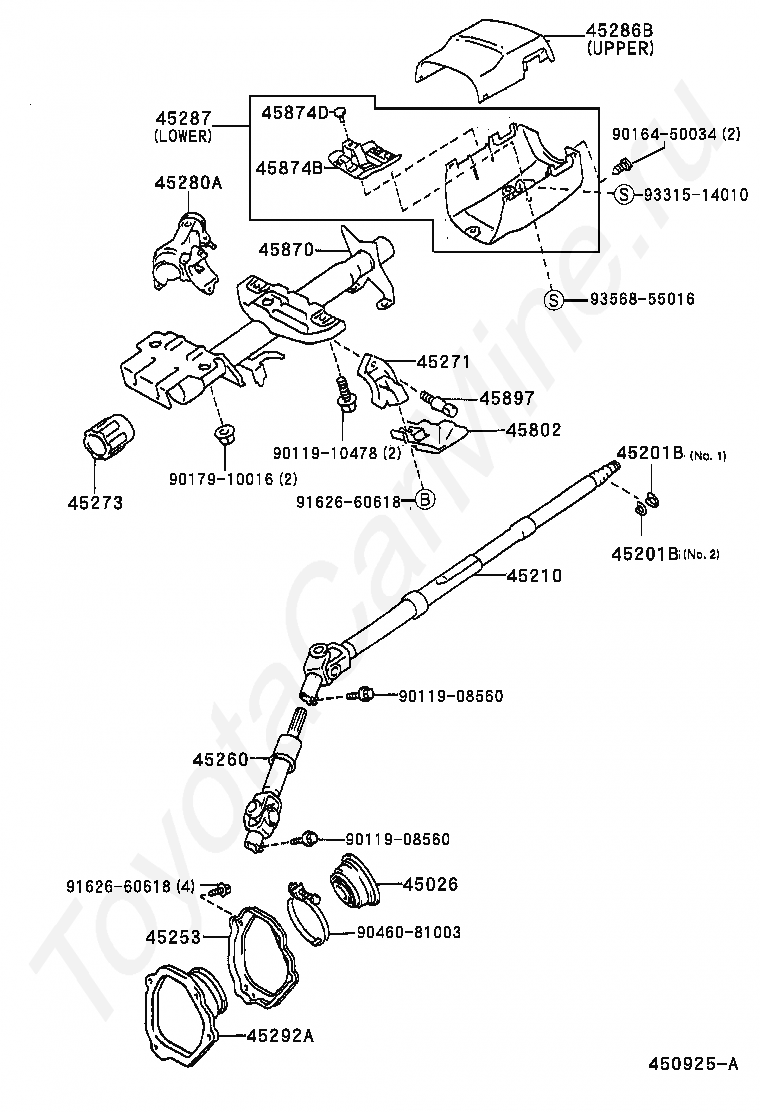

Рулевая колонка TOYOTA RAV4, 1995/11 - 2000/08, 2 литра, 16 клапанов, DOHC, EFI, HARD TOP SERIES, SXA10, механика

Каталог

Европа

Модель

RAV4

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

HARD TOP SERIES

Фрейм

SXA10

Трансмиссия

механика

Опции

2 двери

Код

Описание

45026

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45210

SHAFT ASSY, STEERING MAIN

45253

COVER, STEERING COLUMN HOLE

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271

CLAMP, STEERING COLUMN, UPPER

45273

BUSH, STEERING MAIN SHAFT

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45286B

COVER, STEERING COLUMN, UPR

45287

COVER, STEERING COLUMN, LWR

45292A

COVER, MAIN SHAFT LOWER DUST

45802

PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

45870

TUBE ASSY, STEERING COLUMN

45874B

PROTECTOR, STEERING COLUMN, NO.1

45874D

CUSHION(FOR STEERING COLUMN PROTECTOR)

45897

BOLT, STEERING LOCK SET

9011908560

Крепеж

9011910478

Крепеж

9016450034

Крепеж

9017910016

Крепеж

9046081003

Крепеж

9162660618

Крепеж

9331514010

Крепеж

9356855016

Крепеж

Код

Описание

45026

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201G

SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

45205J

TUBE SUB-ASSY, STEERING COLUMN, UPPER

45205K

SPRING(FOR STEERING COLUMN TUBE)

45209

YOKE SUB-ASSY, STEERING SLIDING

45210

SHAFT ASSY, STEERING MAIN

45215

COLLAR, MAIN SHAFT BEARING THRUST

45253

COVER, STEERING COLUMN HOLE

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271

CLAMP, STEERING COLUMN, UPPER

45273

BUSH, STEERING MAIN SHAFT

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45286B

COVER, STEERING COLUMN, UPR

45287

COVER, STEERING COLUMN, LWR

45292A

COVER, MAIN SHAFT LOWER DUST

45802

PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

45819

RETAINER, TILT LEVER

45826A

SPRING, TENSION(FOR STEERING TILT LEVER)

45855

BOLT, TILT STEERING, NO.1

45856B

SHAFT, T1LT STEERING, NO.2

45865

COLLAR, STEERING MAIN SHAFT

45870

TUBE ASSY, STEERING COLUMN

45874B

PROTECTOR, STEERING COLUMN, NO.1

45890A

PAWL ASSY, TILT STEERING

45893B

SPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

45897

BOLT, STEERING LOCK SET

9011908560

Крепеж

9011910478

Крепеж

9016450034

Крепеж

9017910016

Крепеж

9046081003

Крепеж

9162660618

Крепеж

9165660618

Крепеж

9331315012

Крепеж

9331514010

Крепеж

9356855016

Крепеж

Код

Описание

45026

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45209

YOKE SUB-ASSY, STEERING SLIDING

45210

SHAFT ASSY, STEERING MAIN

45246A

GUIDE, STEERING ENERGY ABSORBING PLATE

45253

COVER, STEERING COLUMN HOLE

45257A

PLATE, STEERING COLUMN ENERGY ABSORBING

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271

CLAMP, STEERING COLUMN, UPPER

45273

BUSH, STEERING MAIN SHAFT

45279A

ATTACHMENT, STEERING COLUMN TUBE, LWR

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45286B

COVER, STEERING COLUMN, UPR

45287

COVER, STEERING COLUMN, LWR

45291A

SUPPORT, STEERING COLUMN TUBE

45292A

COVER, MAIN SHAFT LOWER DUST

45801A

PIN SUB-ASSY, STEERING ENERGY ABSORBING

45870

TUBE ASSY, STEERING COLUMN

45874B

PROTECTOR, STEERING COLUMN, NO.1

45874D

CUSHION(FOR STEERING COLUMN PROTECTOR)

45879A

CAPSULE, BREAK AWAY

45897

BOLT, STEERING LOCK SET

9011908560

Крепеж

9016450034

Крепеж

9017910016

Крепеж

9046081003

Крепеж

9162160814

Крепеж

9162660618

Крепеж

9331514010

Крепеж

9356855016

Крепеж

Код

Описание

45026

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45210

SHAFT ASSY, STEERING MAIN

45253

COVER, STEERING COLUMN HOLE

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271

CLAMP, STEERING COLUMN, UPPER

45273

BUSH, STEERING MAIN SHAFT

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45286B

COVER, STEERING COLUMN, UPR

45287

COVER, STEERING COLUMN, LWR

45292A

COVER, MAIN SHAFT LOWER DUST

45802

PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

45870

TUBE ASSY, STEERING COLUMN

45874B

PROTECTOR, STEERING COLUMN, NO.1

45874D

CUSHION(FOR STEERING COLUMN PROTECTOR)

45897

BOLT, STEERING LOCK SET

9011908560

Крепеж

9011910478

Крепеж

9016450034

Крепеж

9017910016

Крепеж

9046081003

Крепеж

9162660618

Крепеж

9331514010

Крепеж

9356855016

Крепеж

Код

Описание

45026

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45205K

SPRING(FOR STEERING COLUMN TUBE)

45209

YOKE SUB-ASSY, STEERING SLIDING

45210

SHAFT ASSY, STEERING MAIN

45246A

GUIDE, STEERING ENERGY ABSORBING PLATE

45253

COVER, STEERING COLUMN HOLE

45257A

PLATE, STEERING COLUMN ENERGY ABSORBING

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271

CLAMP, STEERING COLUMN, UPPER

45273

BUSH, STEERING MAIN SHAFT

45277A

SUPPORT, TILT STEERING

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45286B

COVER, STEERING COLUMN, UPR

45287

COVER, STEERING COLUMN, LWR

45292A

COVER, MAIN SHAFT LOWER DUST

45801A

PIN SUB-ASSY, STEERING ENERGY ABSORBING

45813

COLLAR, TILT STEERING SUPPORT, NO.1

45821B

REINFORCE, TILT STEERING SUPPORT, NO.1

45826

LEVER, STEERING TILT

45827A

LEVER, STEERING TILT SUB

45831

BOLT, TILT LEVER LOCK, NO.1

45833

NUT, TILT STEERING ADJUSTING, NO.1

45870

TUBE ASSY, STEERING COLUMN

45874B

PROTECTOR, STEERING COLUMN, NO.1

45878

BRACKET, STEERING COLUMN UPPER SUPPORT

45879A

CAPSULE, BREAK AWAY

45880A

BOLT(FOR STEERING TILT LEVER)

45897

BOLT, STEERING LOCK SET

45897A

BOLT, TILT STEERING PAWL SET

9011908560

Крепеж

9011910478

Крепеж

9016450034

Крепеж

9017910016

Крепеж

9046081003

Крепеж

9162140612

Крепеж

9162660618

Крепеж

9331514010

Крепеж

9356855016

Крепеж

9418360601

Крепеж

9461310601

Крепеж

Код

Описание

45026

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201G

SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

45205J

TUBE SUB-ASSY, STEERING COLUMN, UPPER

45205K

SPRING(FOR STEERING COLUMN TUBE)

45209

YOKE SUB-ASSY, STEERING SLIDING

45210

SHAFT ASSY, STEERING MAIN

45215

COLLAR, MAIN SHAFT BEARING THRUST

45253

COVER, STEERING COLUMN HOLE

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271

CLAMP, STEERING COLUMN, UPPER

45273

BUSH, STEERING MAIN SHAFT

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45286B

COVER, STEERING COLUMN, UPR

45287

COVER, STEERING COLUMN, LWR

45292A

COVER, MAIN SHAFT LOWER DUST

45802

PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

45819

RETAINER, TILT LEVER

45826A

SPRING, TENSION(FOR STEERING TILT LEVER)

45855

BOLT, TILT STEERING, NO.1

45856B

SHAFT, T1LT STEERING, NO.2

45865

COLLAR, STEERING MAIN SHAFT

45870

TUBE ASSY, STEERING COLUMN

45874B

PROTECTOR, STEERING COLUMN, NO.1

45890A

PAWL ASSY, TILT STEERING

45893B

SPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

45897

BOLT, STEERING LOCK SET

9011908560

Крепеж

9011910478

Крепеж

9016450034

Крепеж

9017910016

Крепеж

9046081003

Крепеж

9162660618

Крепеж

9165660618

Крепеж

9331315012

Крепеж

9331514010

Крепеж

9356855016

Крепеж

Рулевая колонка TOYOTA RAV4, 1995/11 - 2000/08, 2 литра, 16 клапанов, DOHC, EFI, HARD TOP SERIES, SXA10, механика
