Кресла TOYOTA RAV4, 2000/08 - 2005/11, 2 литра, 16 клапанов DOHC, EFI, ACA21, автомат

Каталог

Европа

Модель

RAV4

Двигатель

2 литра, 16 клапанов DOHC, EFI

Фрейм

ACA21

Трансмиссия

автомат

Опции

правый руль GENERAL COUNTRIES

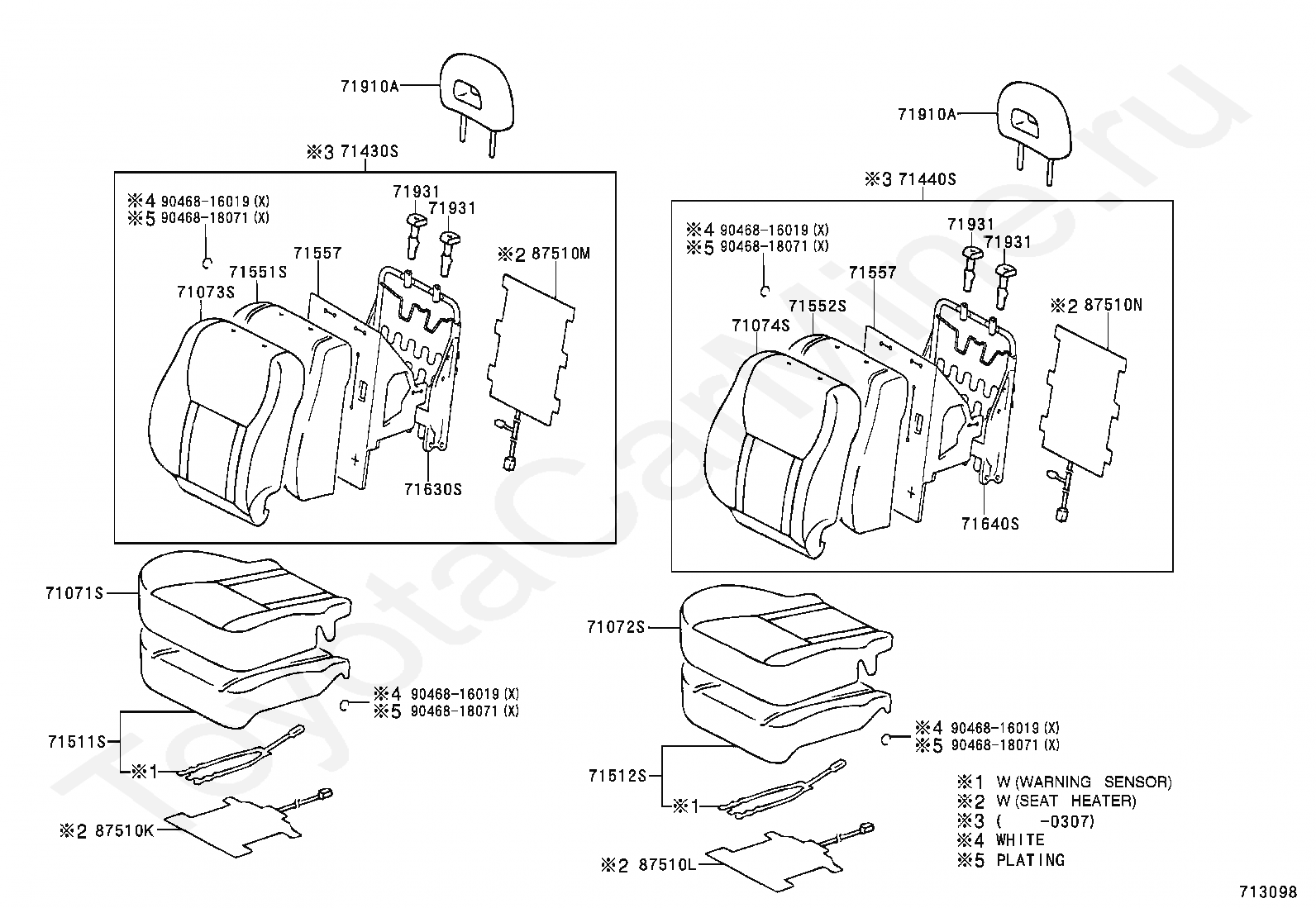

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71557

CLOTH, FRONT SEAT BACK UNDER

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9046816019

Крепеж

9046818071

Крепеж

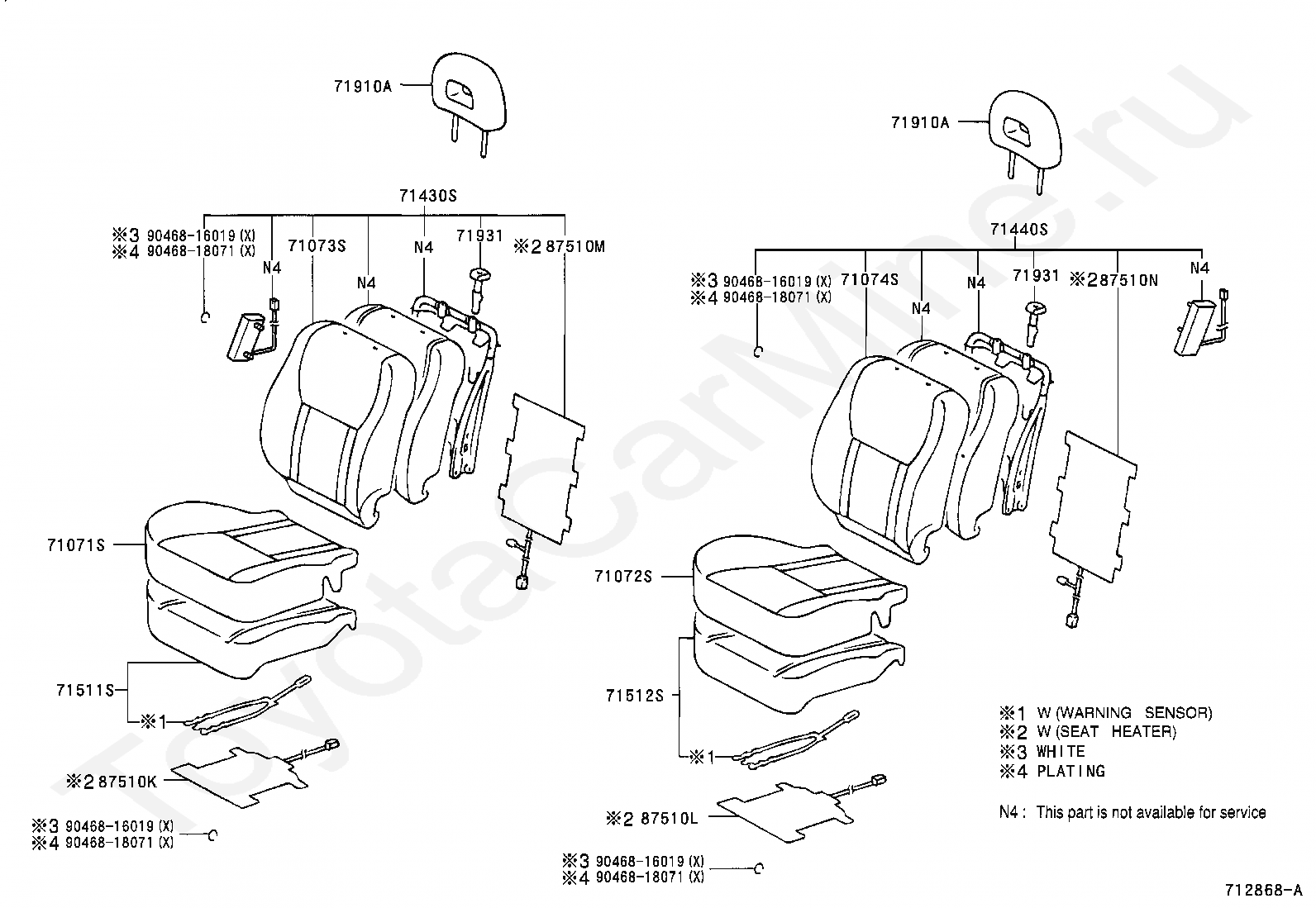

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9046816019

Крепеж

9046818071

Крепеж

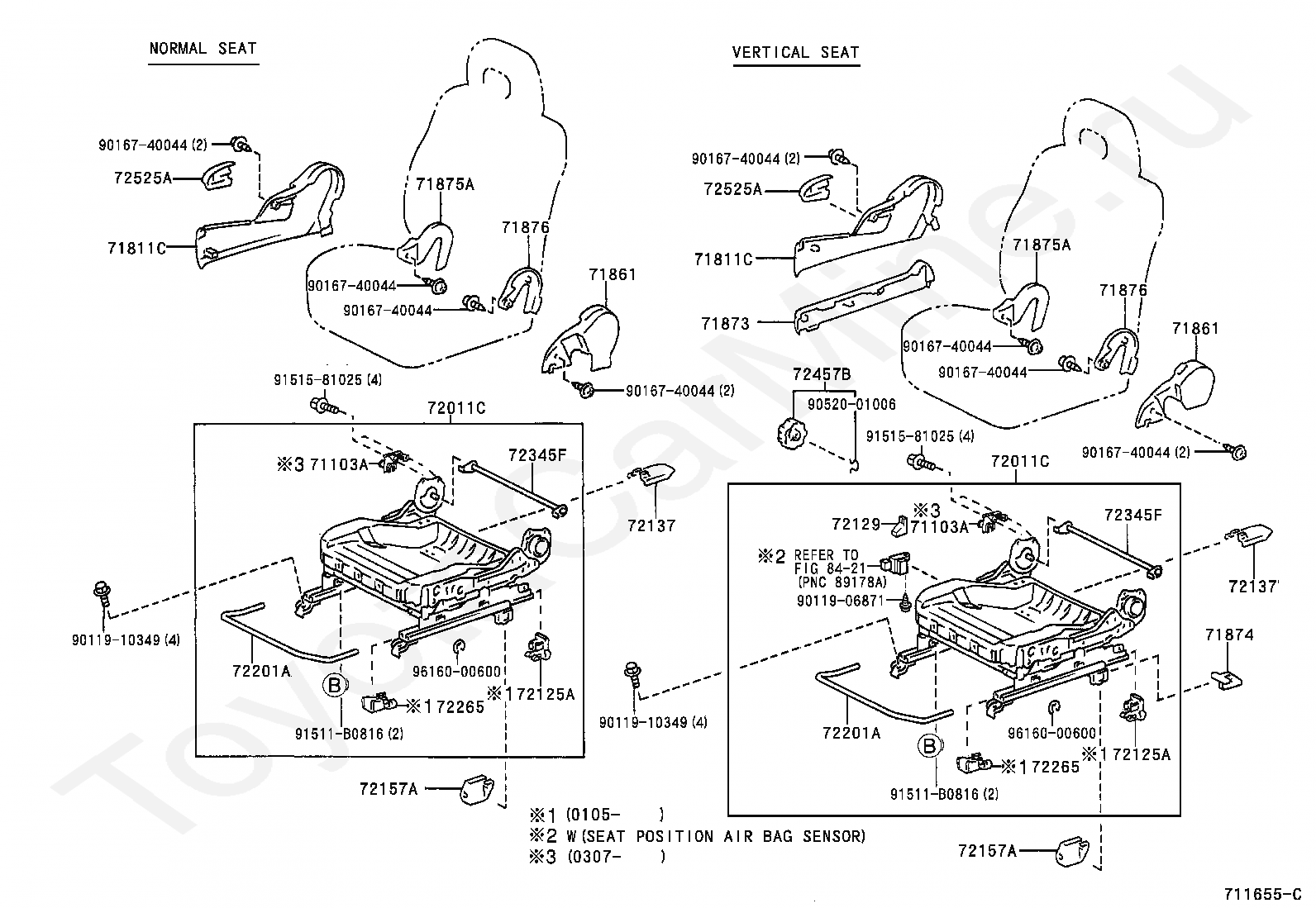

Код

Описание

71103A

HINGE SUB-ASSY, FRONT SEAT CUSHION, RH

71811C

COVER, RECLINING ADJUSTER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72125A

COVER, SEAT TRACK, UPPER REAR

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72345F

PIPE, RECLINING CONNECTING, RH

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

8421

переход к группе запчастей

9011906871

Крепеж

9011910349

Крепеж

9016740044

Крепеж

9052001006

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9616000600

Крепеж

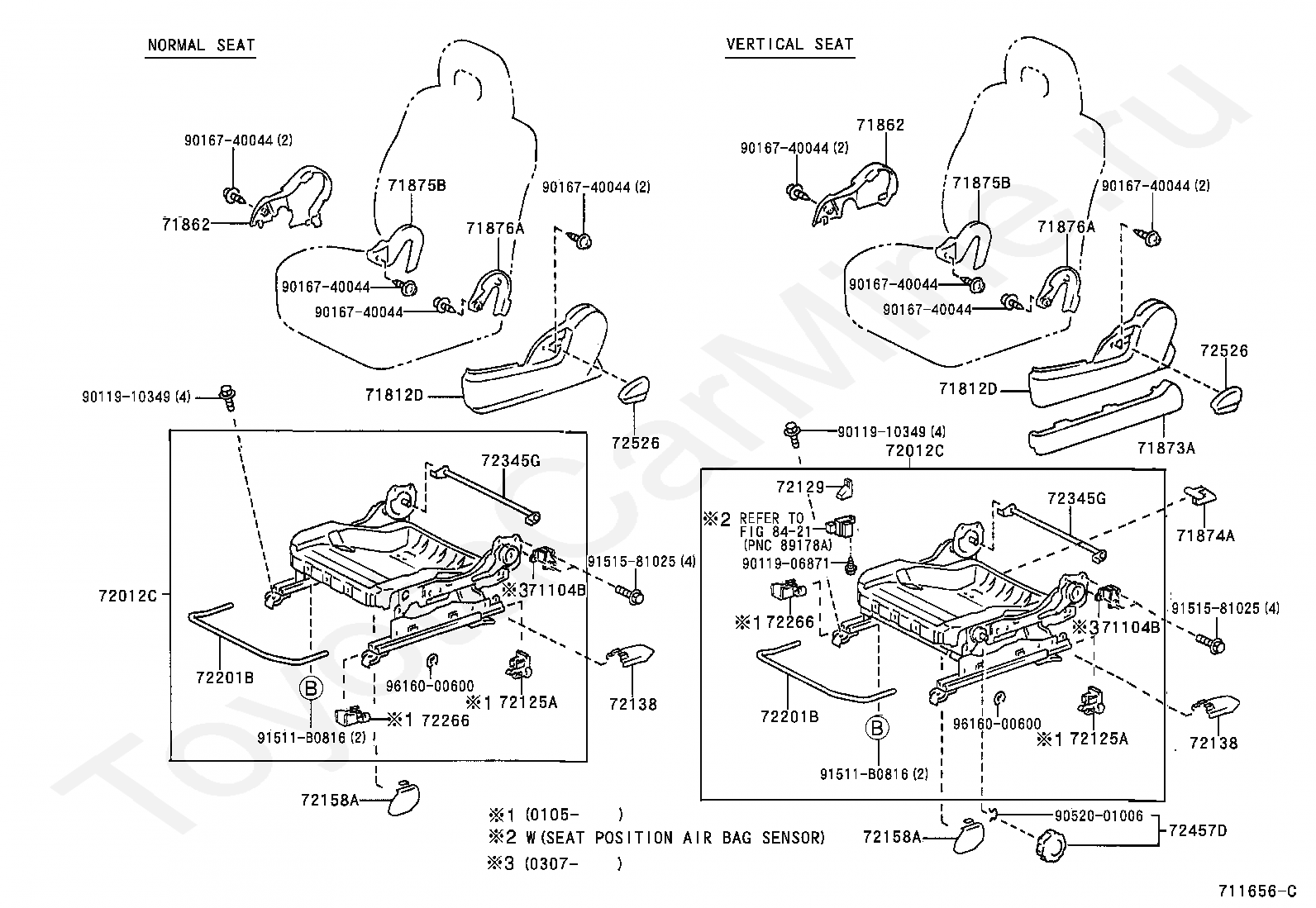

Код

Описание

71104B

HINGE SUB-ASSY, FR SEAT CUSHION, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125A

COVER, SEAT TRACK, UPPER REAR

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72138

COVER, SEAT TRACK, OUTER LH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72345G

PIPE, RECLINING CONNECTING, LH

72457D

KNOB, VERTICAL SEAT ADJUSTER, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

8421

переход к группе запчастей

9011906871

Крепеж

9011910349

Крепеж

9016740044

Крепеж

9052001006

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9616000600

Крепеж

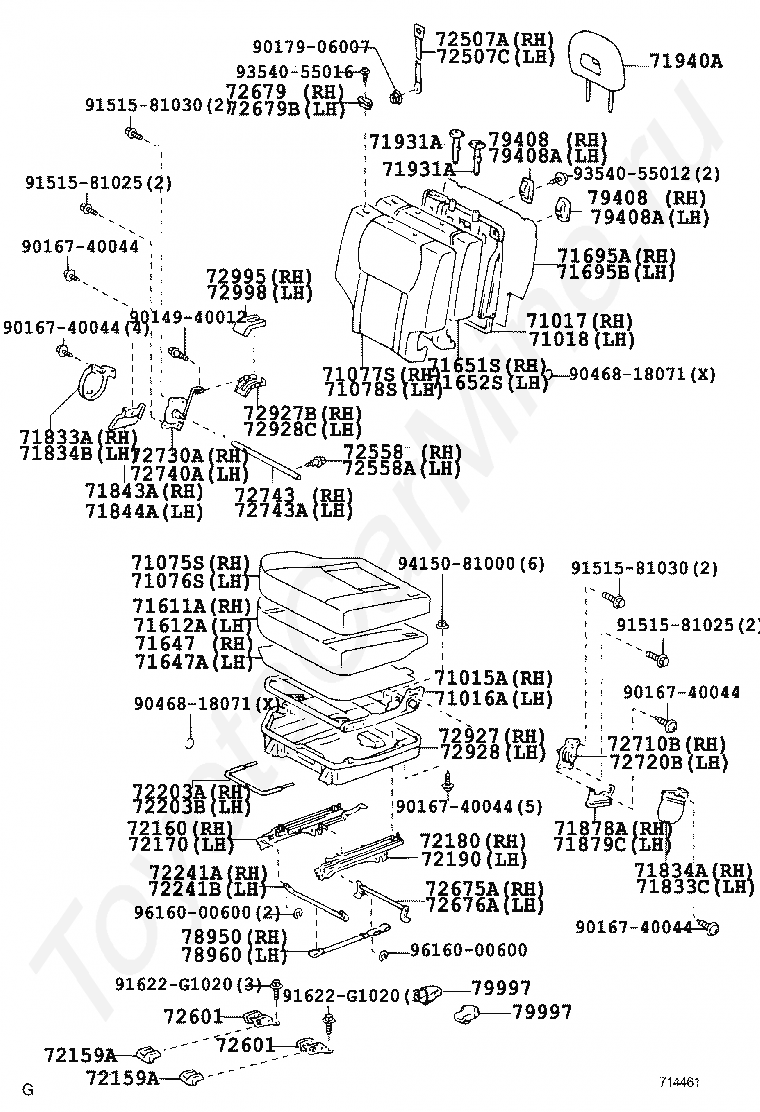

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71647A

PAD, REAR SEAT CUSHION COVER, REAR LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72159A

COVER, REAR SEAT TRACK BRACKET

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72180

TRACK ASSY, REAR SEAT, INNER RH

72190

TRACK ASSY, REAR SEAT INNER, LH

72203A

HANDLE SUB-ASSY, REAR SEAT TRACK, RH

72203B

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72241A

LEVER, SEAT TRACK LOCK

72241B

LEVER, SEAT TRACK LOCK

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72558

STOPPER, RECLINING

72558A

STOPPER, RECLINING

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72675A

ROD, REAR SEAT BACK LOCK CONTROL, RH

72676A

ROD, REAR SEAT BACK LOCK CONTROL, LH

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72679B

BEZEL, REAR SEAT BACK LOCK CONTROL

72710B

ADJUSTER ASSY, REAR SEAT BACK, INNER RH

72720B

ADJUSTER ASSY, REAR SEAT BACK, INNER LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72743

ROD, RR SEAT RECLINING

72743A

ROD, REAR SEAT RECLINING

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79408

HOOK SUB-ASSY, NO.4 SEAT

79408A

HOOK SUB-ASSY, NO.4 SEAT

79997

PROTECTOR, SEAT LEG BOX, NO.1

9014940012

Крепеж

9016740044

Крепеж

9017906007

Крепеж

9046818071

Крепеж

9151581025

Крепеж

9151581030

Крепеж

91622G1020

Крепеж

9354055012

Крепеж

9354055016

Крепеж

9415081000

Крепеж

9616000600

Крепеж

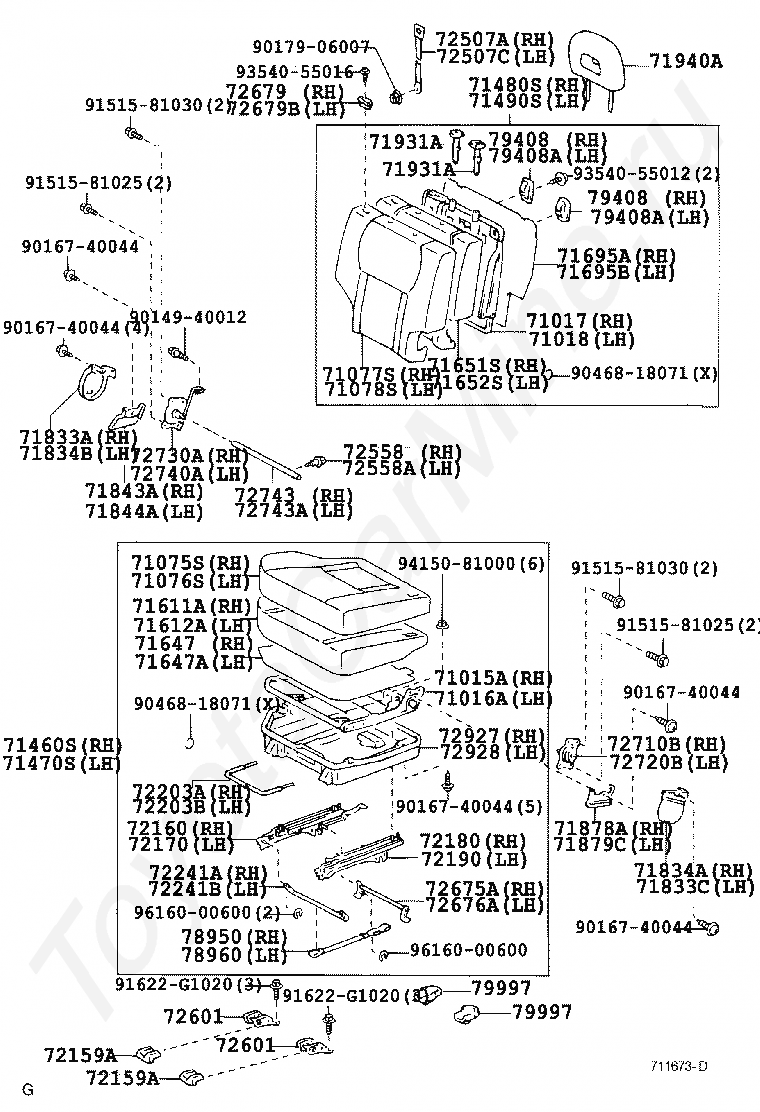

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71647A

PAD, REAR SEAT CUSHION COVER, REAR LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72159A

COVER, REAR SEAT TRACK BRACKET

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72180

TRACK ASSY, REAR SEAT, INNER RH

72190

TRACK ASSY, REAR SEAT INNER, LH

72203A

HANDLE SUB-ASSY, REAR SEAT TRACK, RH

72203B

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72241A

LEVER, SEAT TRACK LOCK

72241B

LEVER, SEAT TRACK LOCK

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72558

STOPPER, RECLINING

72558A

STOPPER, RECLINING

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72675A

ROD, REAR SEAT BACK LOCK CONTROL, RH

72676A

ROD, REAR SEAT BACK LOCK CONTROL, LH

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72679B

BEZEL, REAR SEAT BACK LOCK CONTROL

72710B

ADJUSTER ASSY, REAR SEAT BACK, INNER RH

72720B

ADJUSTER ASSY, REAR SEAT BACK, INNER LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72743

ROD, RR SEAT RECLINING

72743A

ROD, REAR SEAT RECLINING

72927

COVER, REAR SEAT CUSHION UNDER, RH

72927B

COVER, REAR SEAT CUSHION UNDER

72928

COVER, REAR SEAT CUSHION UNDER, LH

72928C

COVER, REAR SEAT CUSHION UNDER, LH

72995

COVER, REAR SEAT CUSHION, RH

72998

COVER, REAR SEAT CUSHION, LH

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79408

HOOK SUB-ASSY, NO.4 SEAT

79408A

HOOK SUB-ASSY, NO.4 SEAT

79997

PROTECTOR, SEAT LEG BOX, NO.1

9014940012

Крепеж

9016740044

Крепеж

9017906007

Крепеж

9046818071

Крепеж

9151581025

Крепеж

9151581030

Крепеж

91622G1020

Крепеж

9354055012

Крепеж

9354055016

Крепеж

9415081000

Крепеж

9616000600

Крепеж

Кресла TOYOTA RAV4, 2000/08 - 2005/11, 2 литра, 16 клапанов DOHC, EFI, ACA21, автомат
