Каталог
АмерикаМодель
RAV4 (JPP)Двигатель
2,5 литра, 16 клапанов DOHC, EFIКласс
LIMITED TYPEФрейм
ASA33Трансмиссия
автомат АКПП, 4 ступениОпции
JAPAN PRODUCT Канада 426W

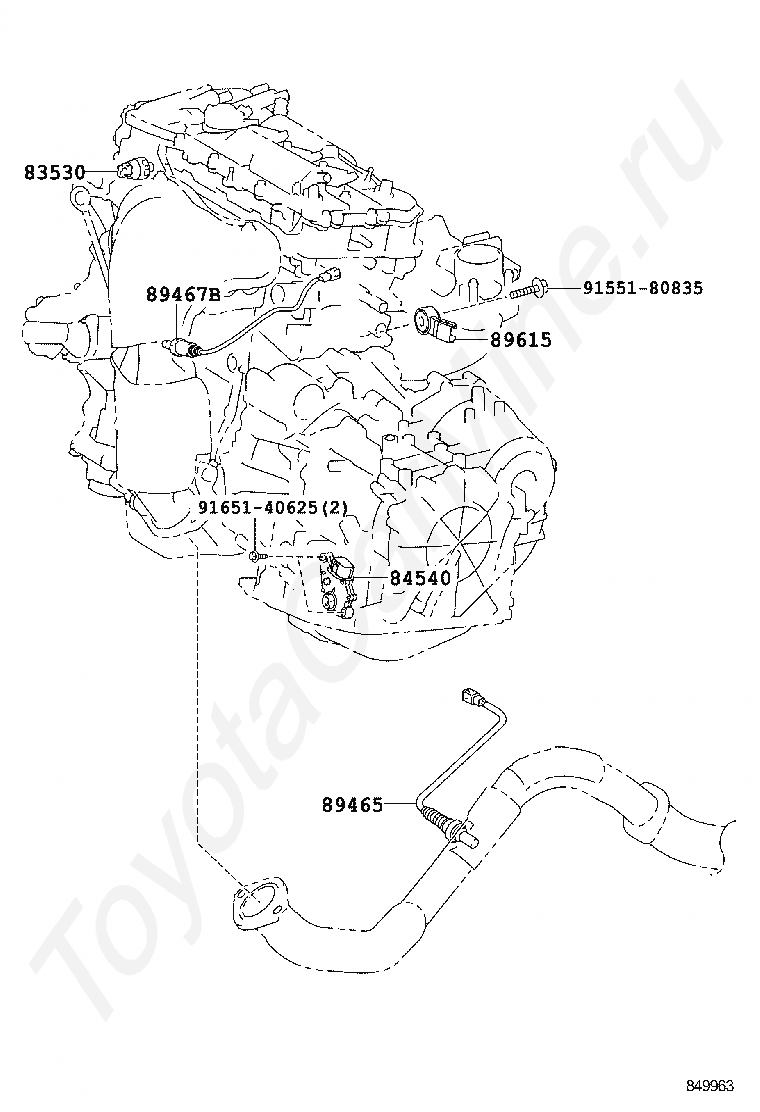

Код
Описание
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84540
SWITCH ASSY, NEUTRAL START
89465
SENSOR, OXYGEN
89467B
SENSOR, AIR FUEL RATIO
89615
SENSOR, KNOCK CONTROL
9155180835
Крепеж
9165140625
Крепеж

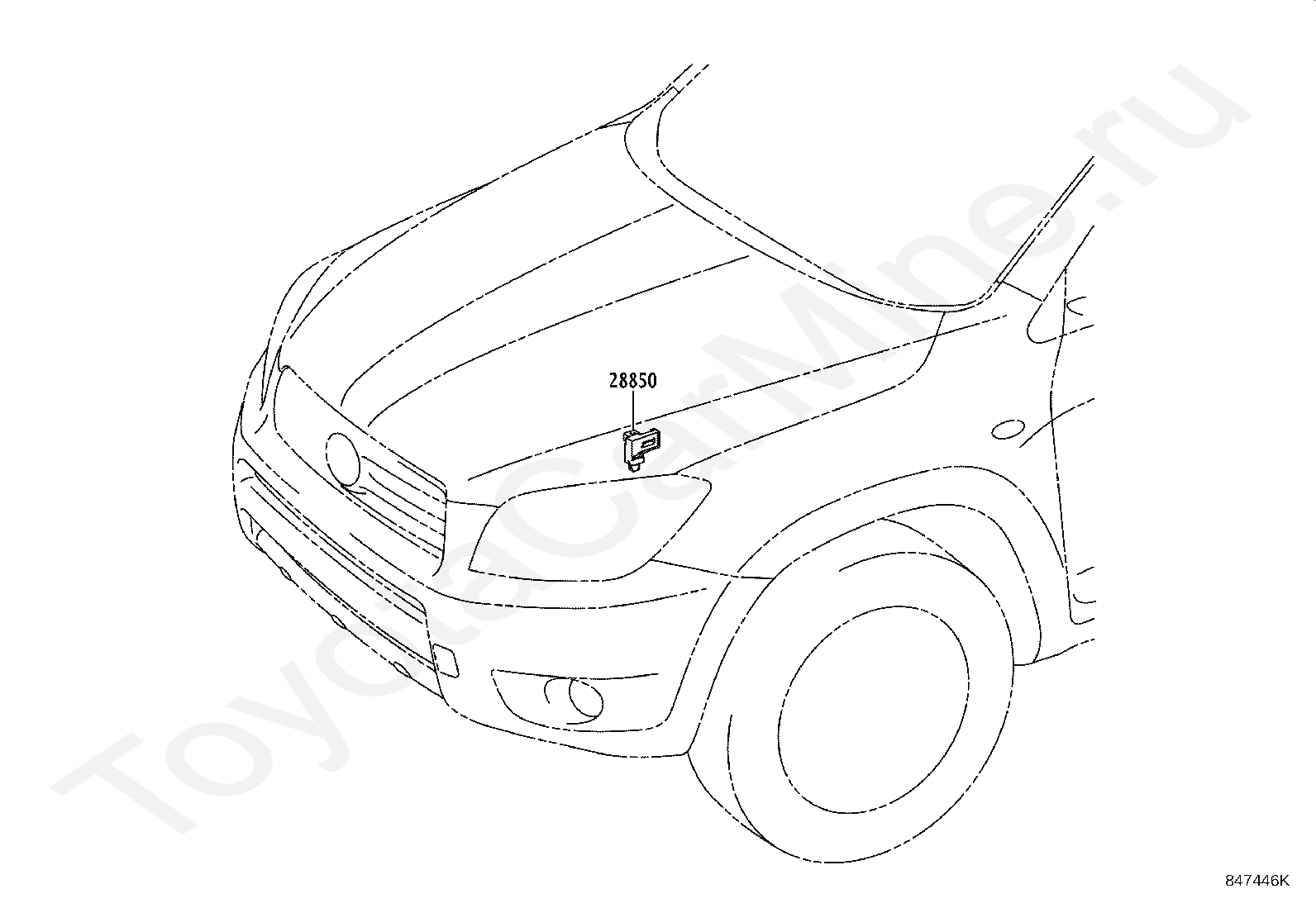

Код
Описание
28850
SENSOR ASSY, BATTERY CURRENT

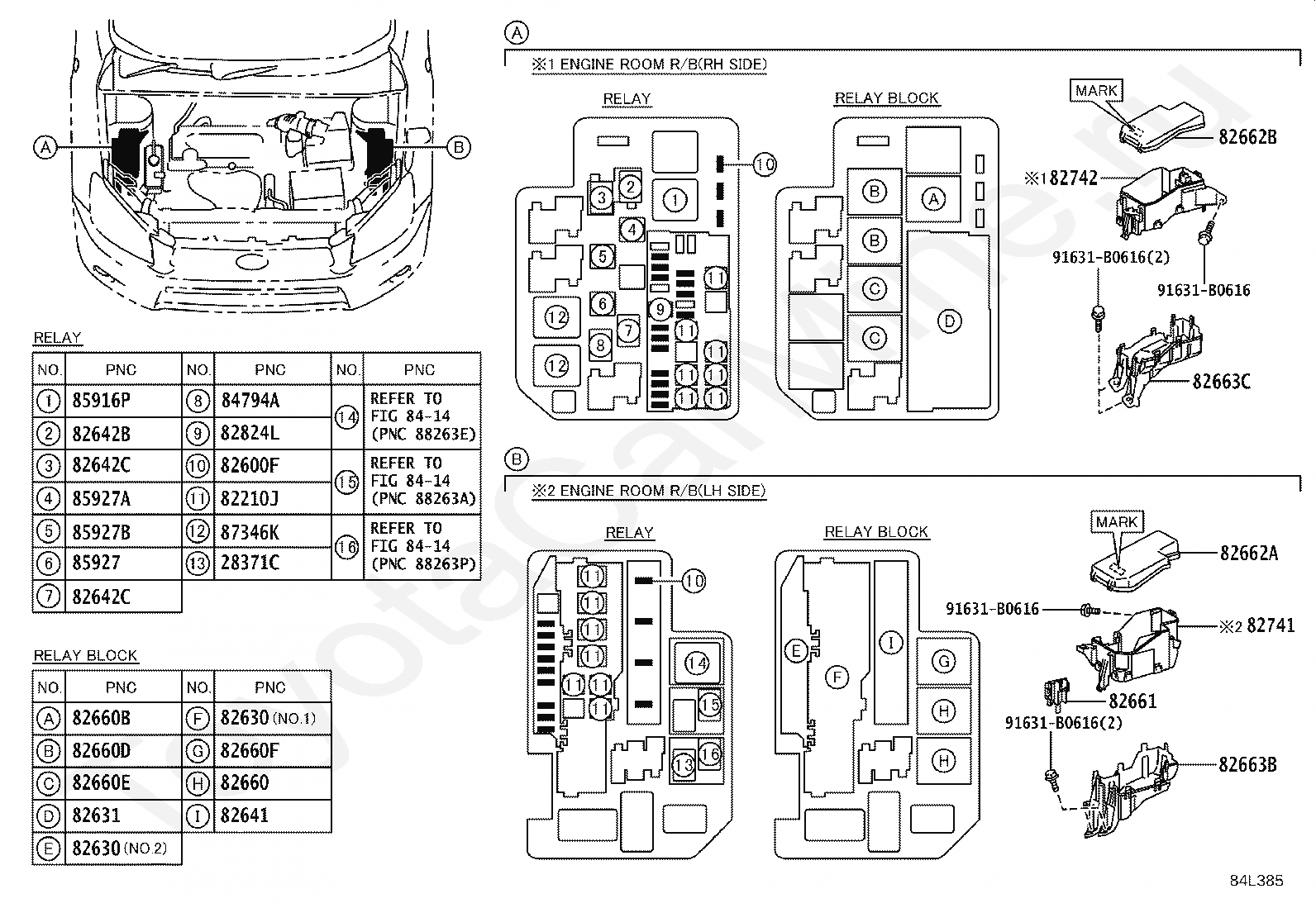

Код
Описание
28371C
RELAY, IGNITION, NO.2
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82630
HOLDER ASSY, FUSE
82631
HOLDER, FUSE
82641
RELAY, INTEGRATION NO.1
82642B
RELAY, DAY TIME RUNNING LIGHT, NO.1
82642C
RELAY, DAY TIME RUNNING LIGHT, NO.2
82660
BLOCK ASSY, RELAY, ENGINE ROOM
82660B
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82660E
BLOCK ASSY, RELAY
82660F
BLOCK ASSY, RELAY
82661
COVER, RELAY BLOCK, NO.1
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82663C
COVER, RELAY BLOCK LOWER, NO.4
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
82824L
PIN, SHORT
8414
переход к группе запчастей
84794A
RELAY, FR WIPER DEICER
85916P
RELAY, HEADLAMP
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
85927B
RELAY, COOLING FAN, NO.3
87346K
RELAY, PTC HEATER
91631B0616
Крепеж

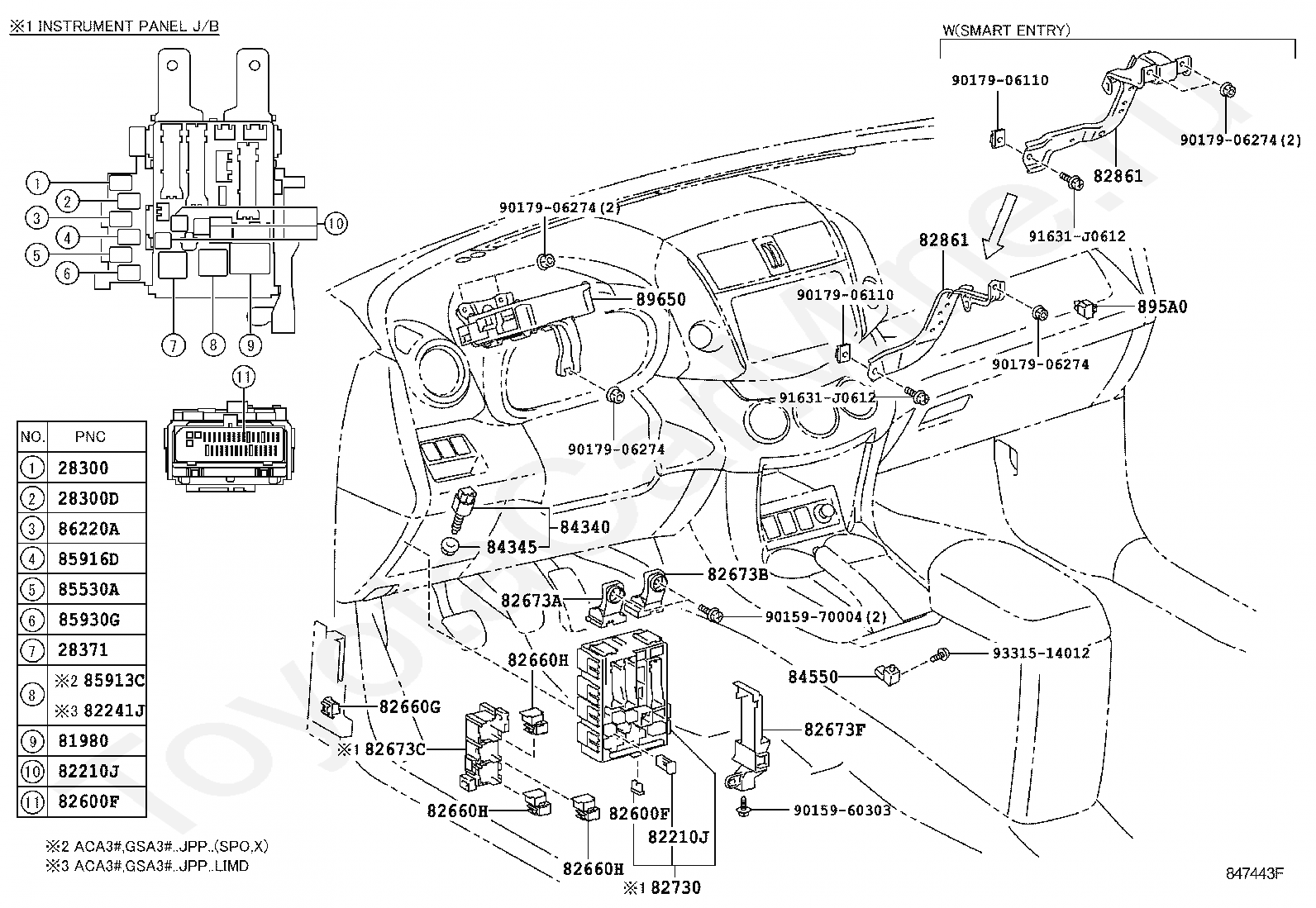

Код
Описание
28300
RELAY ASSY, STARTER
28300D
RELAY, STARTER CUT
28371
RELAY, IGNITION, NO.1
81980
FLASHER ASSY, TURN SIGNAL
82210J
FUSIBLE LINK
82241J
PIN, SHORT
82600F
FUSE, FUSE BLOCK
82660G
BLOCK ASSY, RELAY
82660H
BLOCK ASSY, RELAY
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82673C
BRACKET, JUNCTION BLOCK
82673F
BRACKET, JUNCTION BLOCK
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82861
BRACKET, COMPUTER INTEGRATION, NO.1
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84550
SWITCH ASSY, PARKING BRAKE
85530A
RELAY, POWER OUTLET SOCKET
85913C
RELAY, HEATER, NO.1
85916D
RELAY, FOG LAMP
85930G
RELAY, ACC
86220A
RELAY, INVERTER
895A0
RELAY ASSY, STOP LAMP CONTROL
89650
COMPUTER ASSY, POWER STEERING
9015960303
Крепеж
9015970004
Крепеж
9017906110
Крепеж
9017906274
Крепеж
91631J0612
Крепеж
9331514012
Крепеж

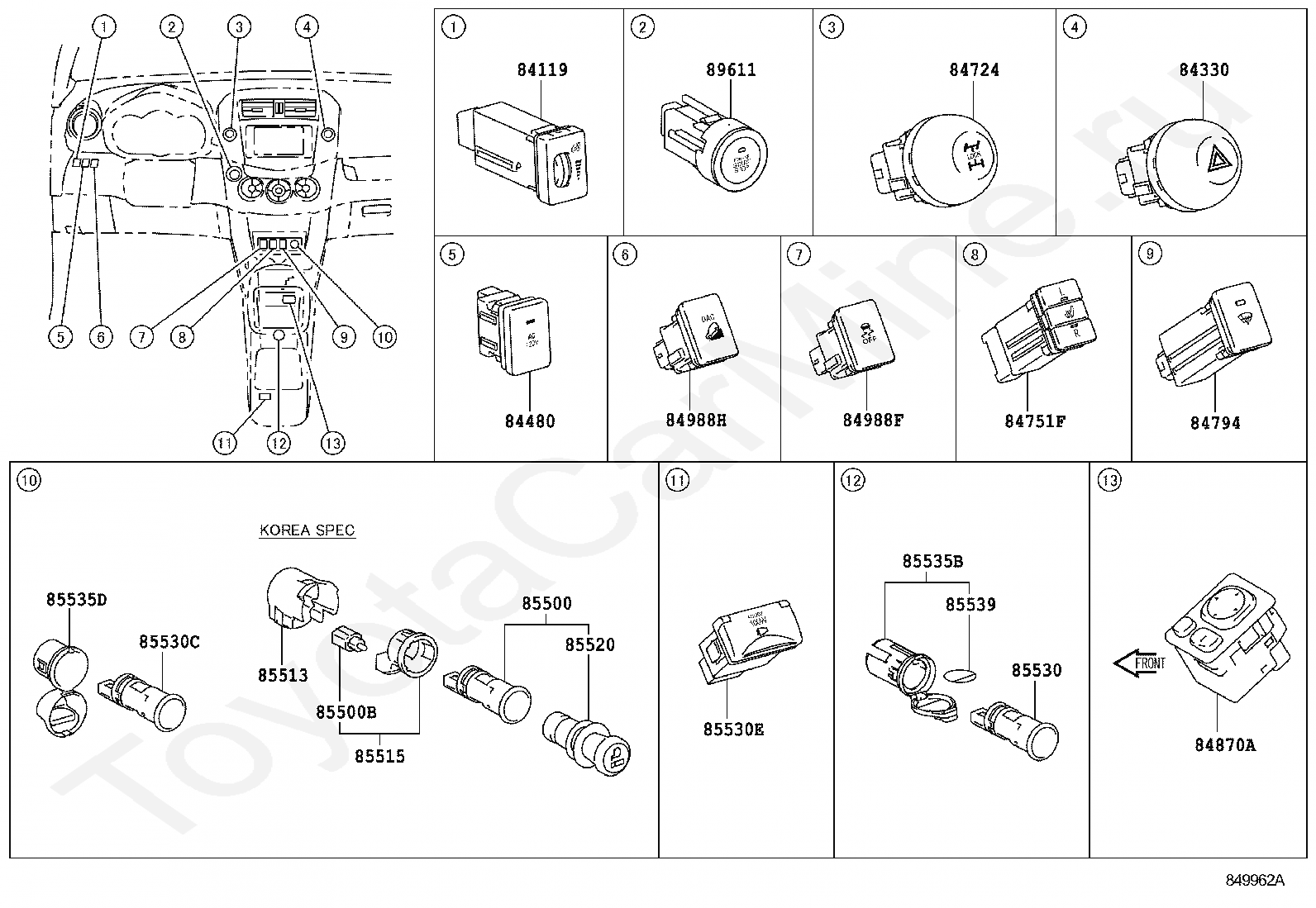

Код
Описание
84119
RHEOSTAT, LIGHT CONTROL
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84480
SWITCH ASSY, MAIN
84724
SWITCH, 4 WHEEL DRIVE CONTROL
84751F
SWITCH, SEAT HEATER
84794
SWITCH, FR WIPER DEICER
84870A
SWITCH ASSY, OUTER MIRROR
84988F
SWITCH, TRACTION CONTROL
84988H
SWITCH, DOWNHILL ASSIST CONTROL
85500
LIGHTER ASSY, CIGARETTE
85500B
BULB, CIGARETTE LIGHTER
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85530
SOCKET ASSY, POWER OUTLET, NO.1
85530C
SOCKET ASSY, POWER OUTLET, CENTER
85530E
SOCKET ASSY, POWER OUTLET, NO.3
85535B
COVER, POWER OUTLET SOCKET, NO.1
85535D
COVER, POWER OUTLET SOCKET, CENTER
85539
LABEL, POWER OUTLET NOTICE
89611
SWITCH, PUSH START

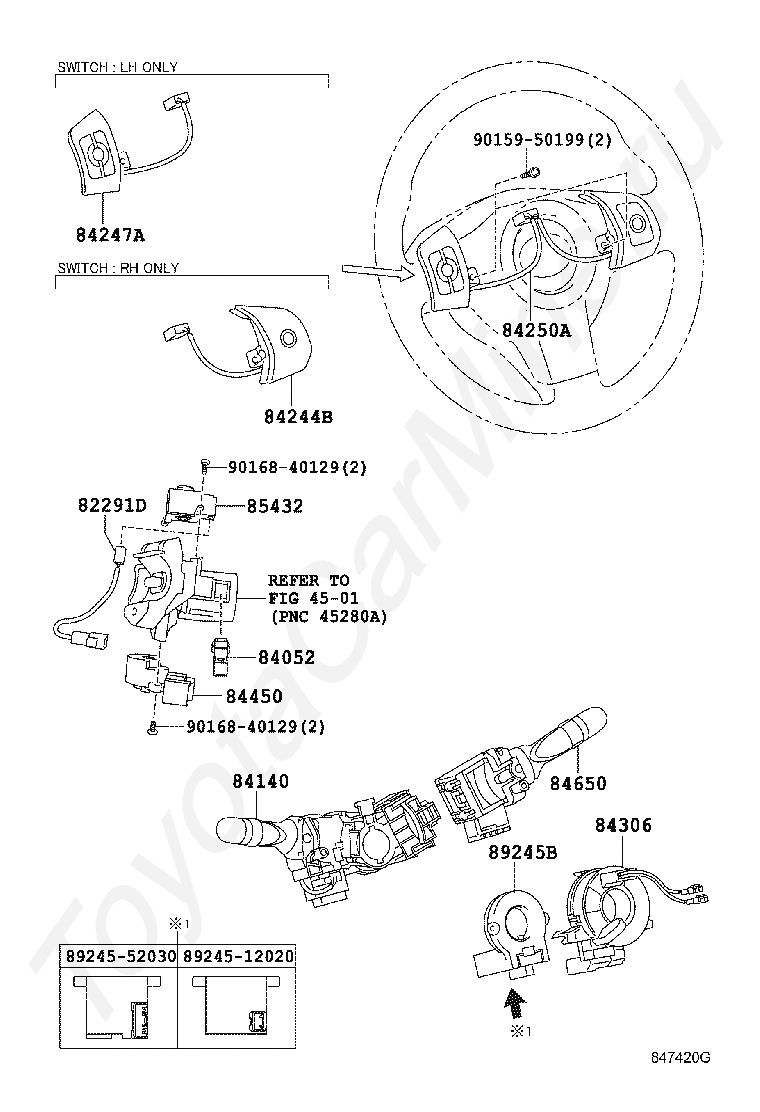

Код
Описание
4501
переход к группе запчастей
82291D
WIRE, TO SOLENOID
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84244B
SWITCH, STEERING PAD, RH
84247A
SWITCH, STEERING PAD, LH
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
89245B
SENSOR, STEERING
9015950199
Крепеж
9016840129
Крепеж

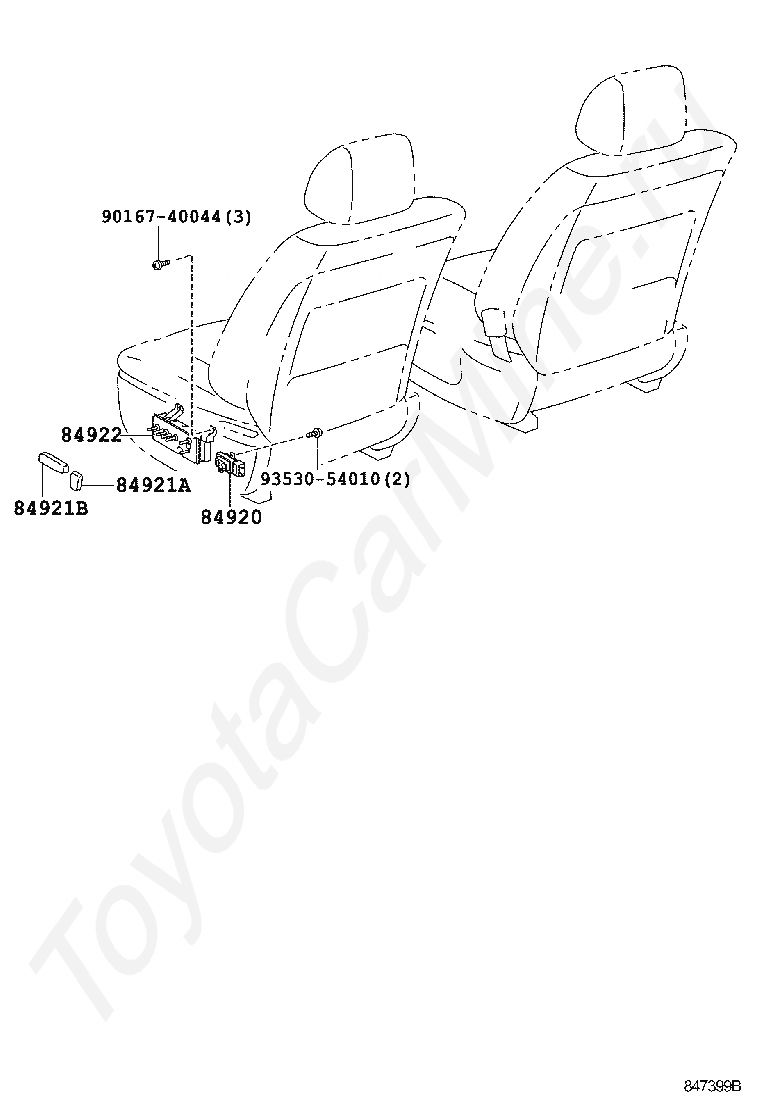

Код
Описание
84920
SWITCH ASSY, POWER SEAT
84921A
KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921B
KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84922
SWITCH, FRONT POWER SEAT
9016740044
Крепеж
9353054010
Крепеж

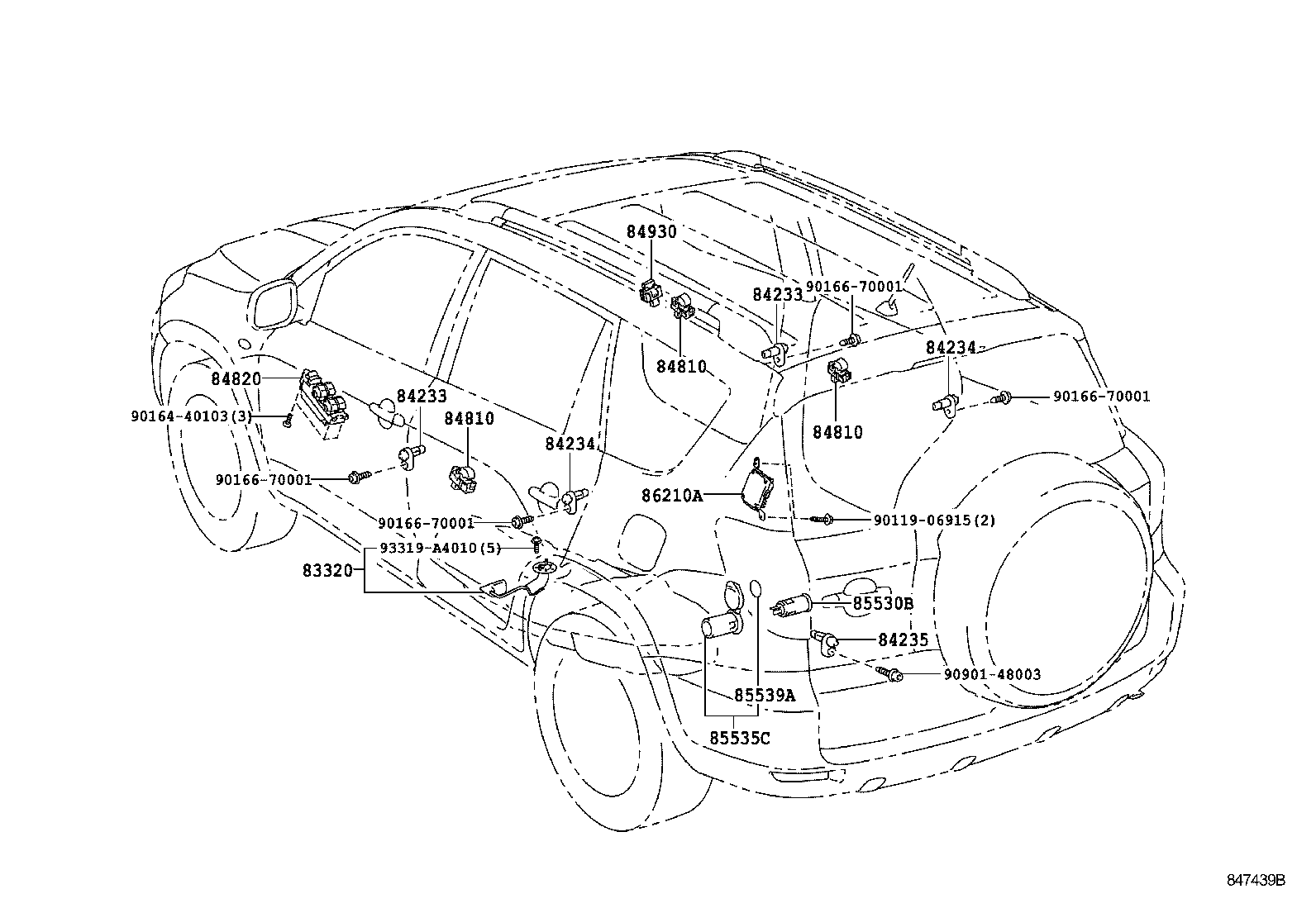

Код
Описание
83320
GAGE ASSY, FUEL SENDER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84235
SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84930
SWITCH ASSY, DOOR CONTROL
85530B
SOCKET ASSY, POWER OUTLET, REAR NO.1
85535C
COVER, POWER OUTLET SOCKET, REAR
85539A
LABEL, POWER OUTLET NOTICE, REAR
86210A
INVERTER ASSY, VOLTAGE
9011906915
Крепеж
9016440103
Крепеж
9016670001
Крепеж
9090148003
Крепеж
93319A4010
Крепеж
