Каталог
АмерикаМодель
RAV4 (JPP)Двигатель
2,5 литра, 16 клапанов DOHC, EFIКласс
LIMITED TYPEФрейм
ASA33Трансмиссия
автомат АКПП, 4 ступениОпции
JAPAN PRODUCT Канада 426W

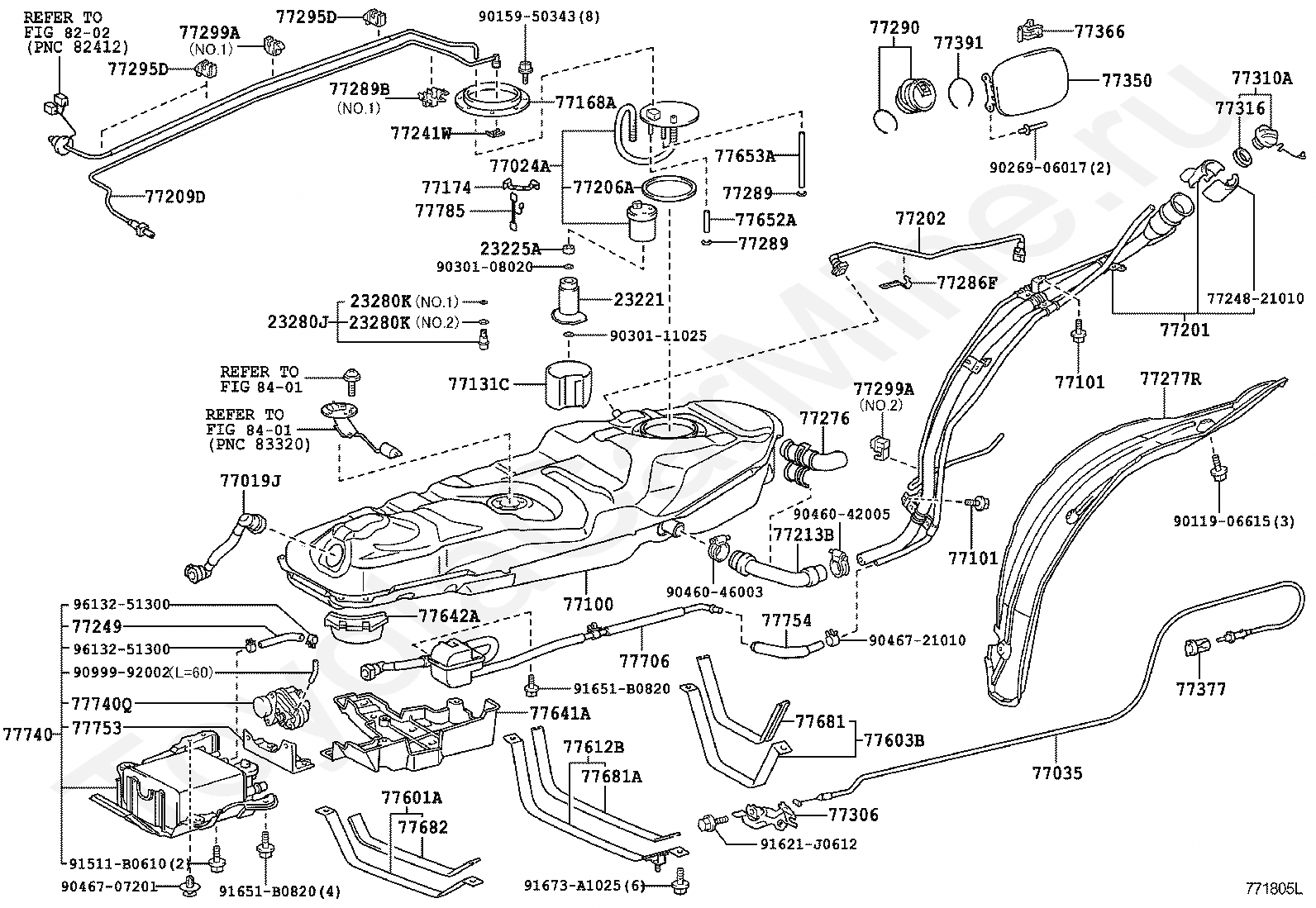

Код
Описание
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77019J
TUBE SUB-ASSY, FUEL TANK TO CANISTER
77024A
PLATE SUB-ASSY, FUEL SUCTION
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77101
PLUG(FOR FUEL SUB-TANK)
77131C
SUB-TANK, FUEL, NO.1
77168A
PLATE, FUEL TANK VENT TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202
TUBE SUB-ASSY, BREATHER
77206A
GASKET (FOR FUEL TANK SUCTION TUBE)
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77241W
CLIP, TUBE JOINT
7724821010
Крепеж
77249
HOSE, FUEL EMISSION
77276
PROTECTOR, FUEL HOSE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77286F
CLAMP, FUEL TUBE, NO.2
77289
HOLDER, FUEL TANK PIPE SETTING
77289B
CLAMP, FUEL TUBE, NO.3
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77295D
GROMMET, FUEL TUBE
77299A
CLAMP, FUEL TUBE, NO.5
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603B
BAND SUB-ASSY, FUEL TANK, NO.2 RH
77612B
BAND, FUEL TANK, NO.2
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77652A
CUSHION, FUEL TANK, NO.2
77653A
CUSHION, FUEL TANK, NO.3
77681
SEAT, FUEL TANK BAND, RH
77681A
SEAT, FUEL TANK BAND
77682
SEAT, FUEL TANK BAND, LH
77706
FILTER SUB-ASSY, CHARCOAL CANISTER
77740
CANISTER ASSY, CHARCOAL
77740Q
LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77753
BRACKET, CHARCOAL CANISTER, NO.3
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77785
HARNESS, FUEL PUMP
8202
переход к группе запчастей
8401
переход к группе запчастей
9011906615
Крепеж
9015950343
Крепеж
9026906017
Крепеж
9030108020
Крепеж
9030111025
Крепеж
9046042005
Крепеж
9046046003
Крепеж
9046707201
Крепеж
9046721010
Крепеж
9099992002
Крепеж
91511B0610
Крепеж
91621J0612
Крепеж
91651B0820
Крепеж
91673A1025
Крепеж
9613251300
Крепеж

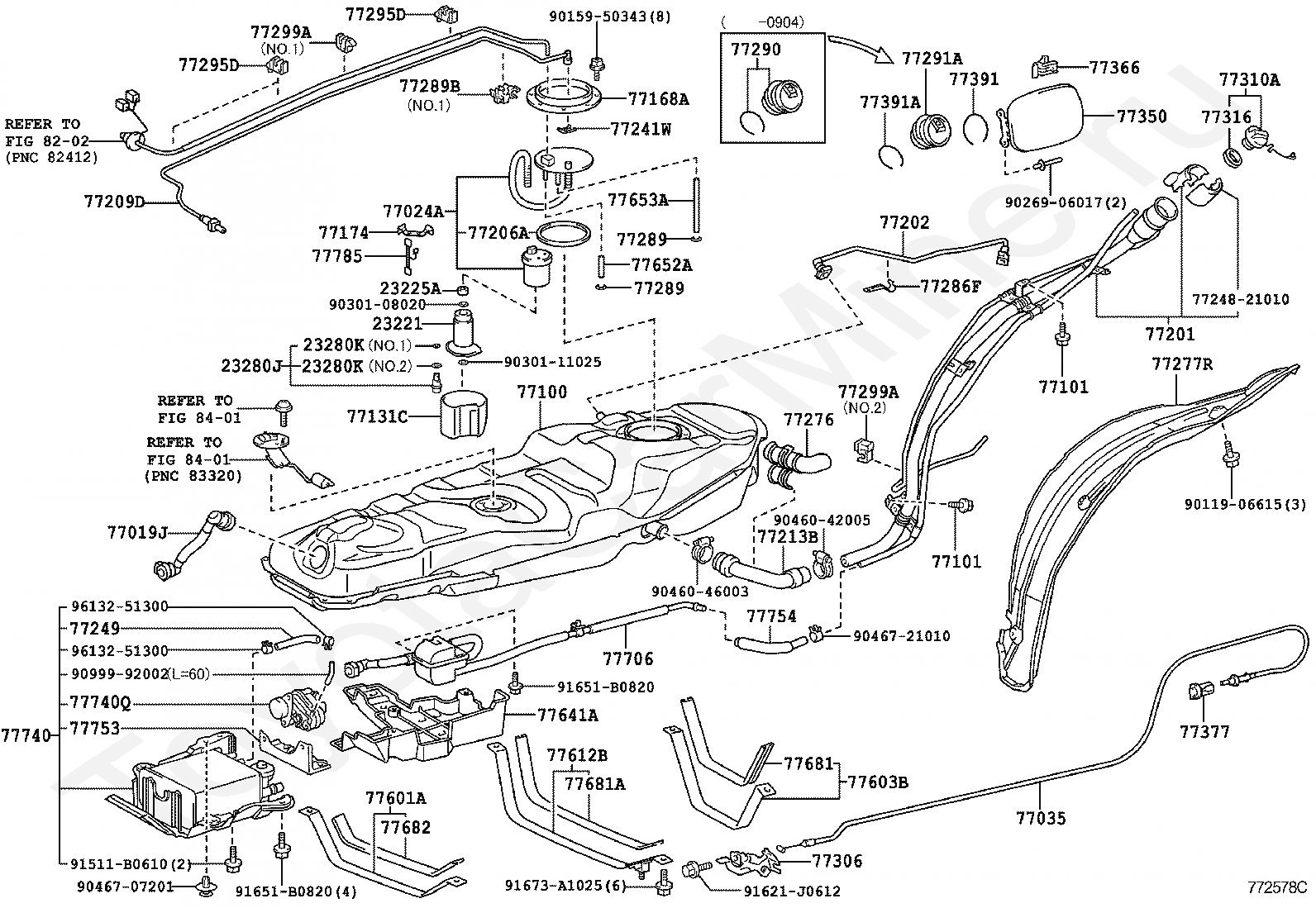

Код
Описание
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77019J
TUBE SUB-ASSY, FUEL TANK TO CANISTER
77024A
PLATE SUB-ASSY, FUEL SUCTION
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77101
PLUG(FOR FUEL SUB-TANK)
77131C
SUB-TANK, FUEL, NO.1
77168A
PLATE, FUEL TANK VENT TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202
TUBE SUB-ASSY, BREATHER
77206A
GASKET (FOR FUEL TANK SUCTION TUBE)
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77241W
CLIP, TUBE JOINT
7724821010
Крепеж
77249
HOSE, FUEL EMISSION
77276
PROTECTOR, FUEL HOSE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77286F
CLAMP, FUEL TUBE, NO.2
77289
HOLDER, FUEL TANK PIPE SETTING
77289B
CLAMP, FUEL TUBE, NO.3
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77291A
SHIELD, FUEL TANK FILLER PIPE
77295D
GROMMET, FUEL TUBE
77299A
CLAMP, FUEL TUBE, NO.5
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603B
BAND SUB-ASSY, FUEL TANK, NO.2 RH
77612B
BAND, FUEL TANK, NO.2
77641A
PROTECTOR, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77653A
CUSHION, FUEL TANK, NO.3
77681
SEAT, FUEL TANK BAND, RH
77681A
SEAT, FUEL TANK BAND
77682
SEAT, FUEL TANK BAND, LH
77706
FILTER SUB-ASSY, CHARCOAL CANISTER
77740
CANISTER ASSY, CHARCOAL
77740Q
LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77753
BRACKET, CHARCOAL CANISTER, NO.3
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77785
HARNESS, FUEL PUMP
8202
переход к группе запчастей
8401
переход к группе запчастей
9011906615
Крепеж
9015950343
Крепеж
9026906017
Крепеж
9030108020
Крепеж
9030111025
Крепеж
9046042005
Крепеж
9046046003
Крепеж
9046707201
Крепеж
9046721010
Крепеж
9099992002
Крепеж
91511B0610
Крепеж
91621J0612
Крепеж
91651B0820
Крепеж
91673A1025
Крепеж
9613251300
Крепеж

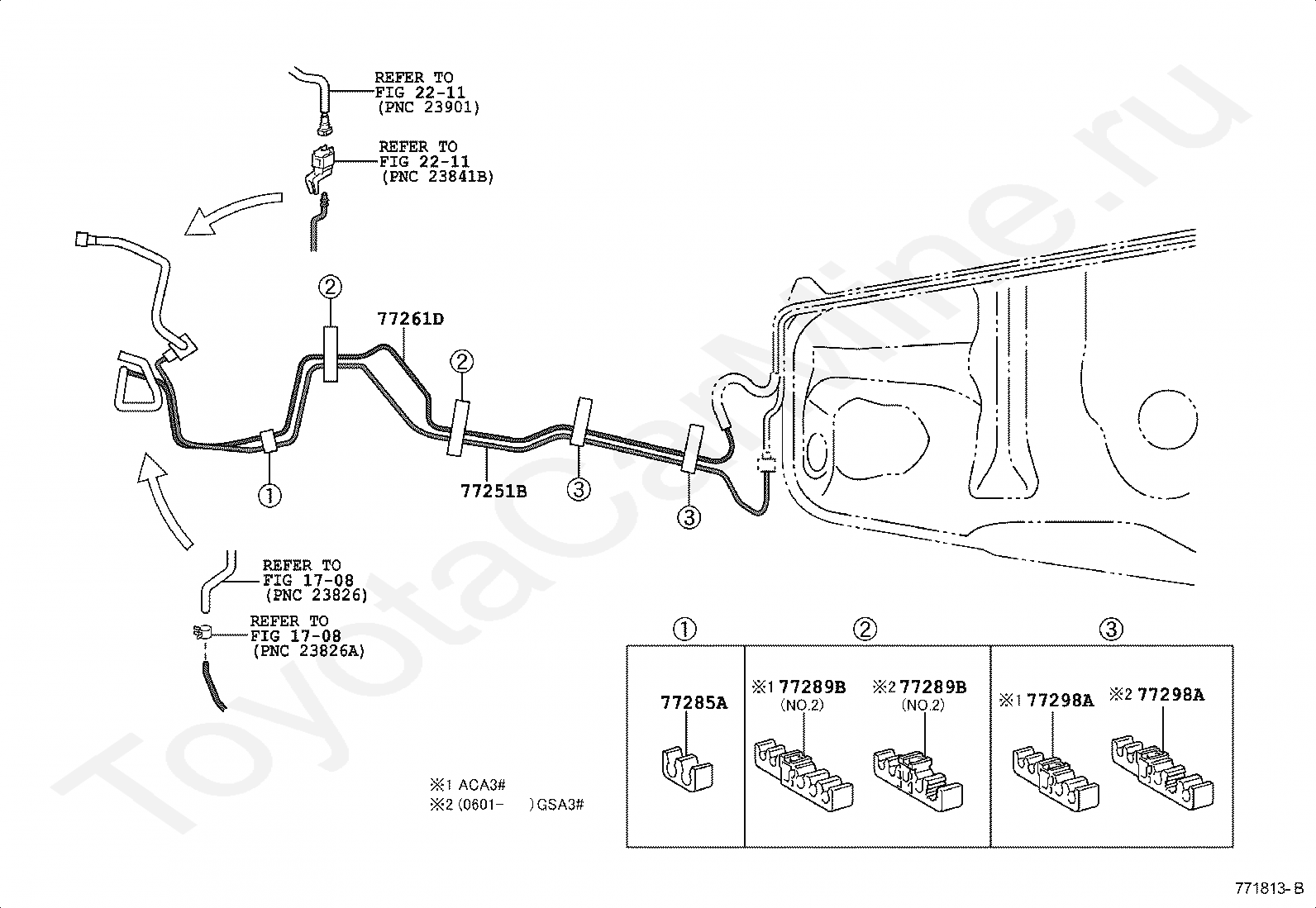

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77285A
SUPPORT, FUEL RETURN AND MAIN TUBE
77289B
CLAMP, FUEL TUBE, NO.3
77298A
CLAMP, FUEL TUBE, NO.4
