Каталог
Ближний ВостокМодель
RAV4Двигатель
2 литра, 16 клапанов, DOHC, EFIКузов
HARD TOP SERIESФрейм
SXA10Трансмиссия
механикаОпции
правый руль Австралия 3 двери

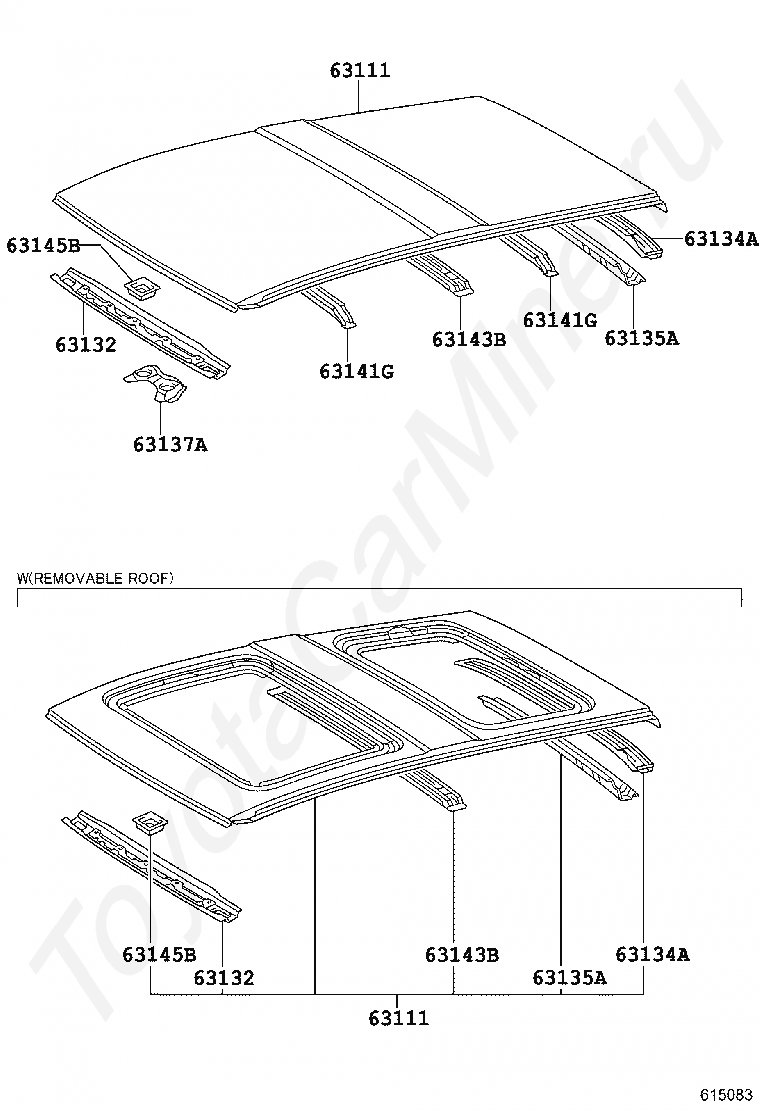

Код
Описание
63111
PANEL, ROOF
63132
PANEL, WINDSHIELD HEADER, INNER
63134A
FRAME, BACK DOOR OPENING, UPPER
63135A
FRAME, BACK DOOR OPENING, LOWER
63137A
BRACKET, DOME LAMP, NO.1
63141G
REINFORCEMENT, ROOF PANEL, NO.1
63143B
REINFORCEMENT, ROOF PANEL, NO.3
63145B
REINFORCEMENT, WINDSHIELD HEADER PANEL

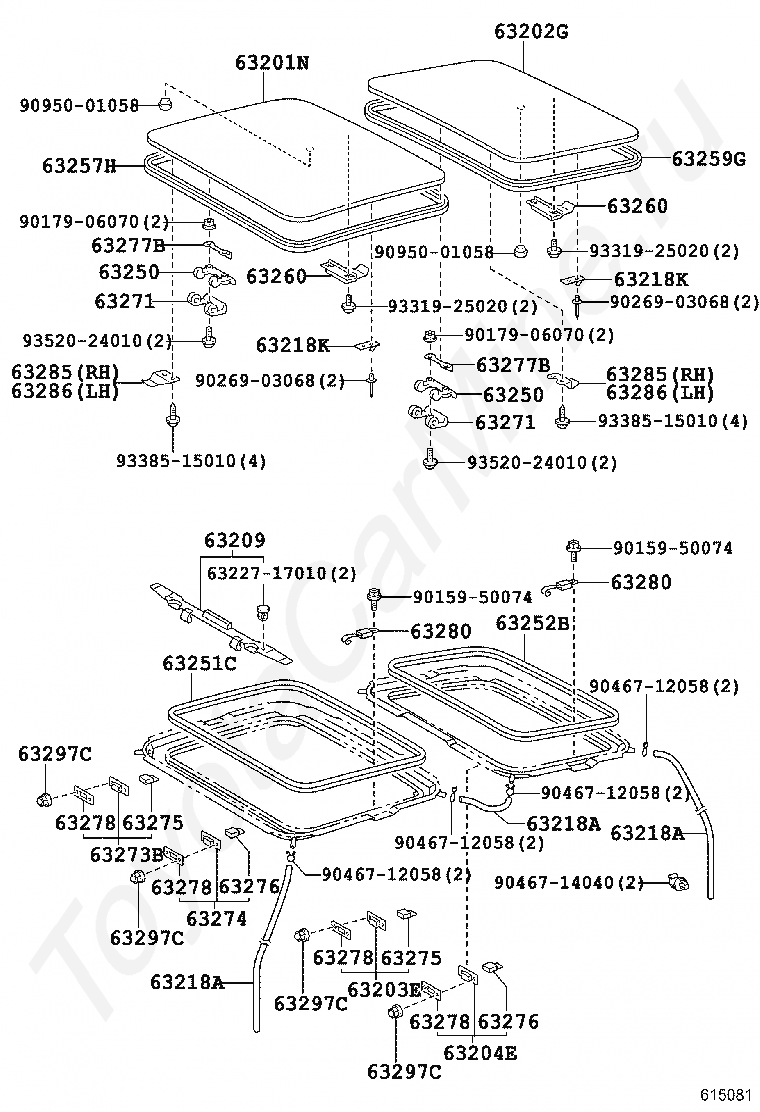

Код
Описание
63201N
PANEL SUB-ASSY, REMOVABLE ROOF
63202G
PANEL SUB-ASSY, SLIDE ROOF, REAR
63203E
LOCK SUB-ASSY, REMOVABLE ROOF, RH
63204E
LOCK SUB-ASSY, REMOVABLE ROOF, LH
63209
PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63218A
HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63218K
HOOK, REMOVABLE ROOF AUXILIARY
6322717010
Крепеж
63250
BASE ASSY, REMOVABLE ROOF LOCK
63251C
WEATHERSTRIP, REMOVABLE ROOF
63252B
WEATHERSTRIP, REMOVABLE ROOF, REAR
63257H
SEAL, REMOVABLE ROOF
63259G
SEAL, REMOVABLE ROOF, NO.2
63260
HANDLE ASSY, REMOVABLE ROOF LOCK
63271
GARNISH, REMOVABLE ROOF LOCK
63273B
RETAINER, ROOF WINDOW HINGE
63274
CASE, REMOVABLE ROOF HINGE, LH
63275
HOLDER, REMOVABLE ROOF HINGE, RH
63276
HOLDER, REMOVABLE ROOF HINGE, LH
63277B
SPACER, REMOVABLE ROOF LOCK BASE
63278
SEAL, REMOVABLE ROOF HINGE CASE
63280
CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH
63285
HINGE, REMOVABLE ROOF, RH
63286
HINGE, REMOVABLE ROOF, LH
63297C
BOLT, REMOVABLE ROOF HINGE CASE
9015950074
Крепеж
9017906070
Крепеж
9026903068
Крепеж
9046712058
Крепеж
9046714040
Крепеж
9095001058
Крепеж
9331925020
Крепеж
9338515010
Крепеж
9352024010
Крепеж

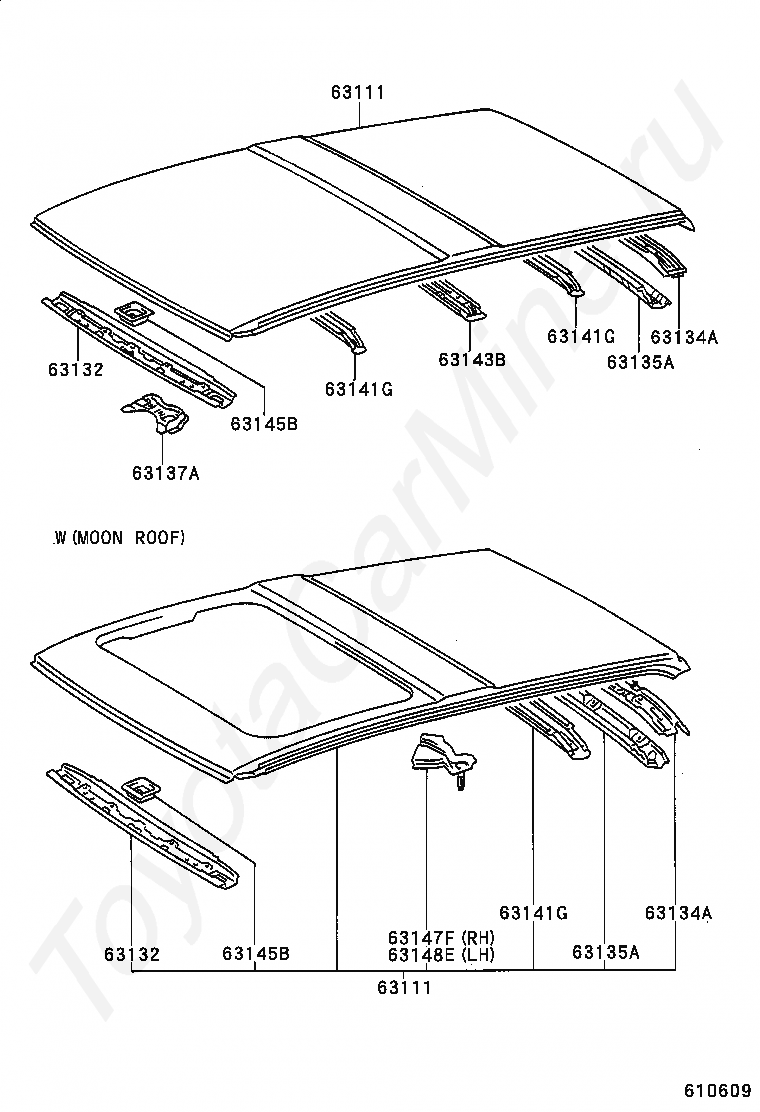

Код
Описание
63111
PANEL, ROOF
63132
PANEL, WINDSHIELD HEADER, INNER
63134A
FRAME, BACK DOOR OPENING, UPPER
63135A
FRAME, BACK DOOR OPENING, LOWER
63137A
BRACKET, DOME LAMP, NO.1
63141G
REINFORCEMENT, ROOF PANEL, NO.1
63143B
REINFORCEMENT, ROOF PANEL, NO.3
63145B
REINFORCEMENT, WINDSHIELD HEADER PANEL
63147F
BRACKET, ROOF PANEL REINFORCEMENT, RH
63148E
BRACKET, ROOF PANEL REINFORCEMENT, LH

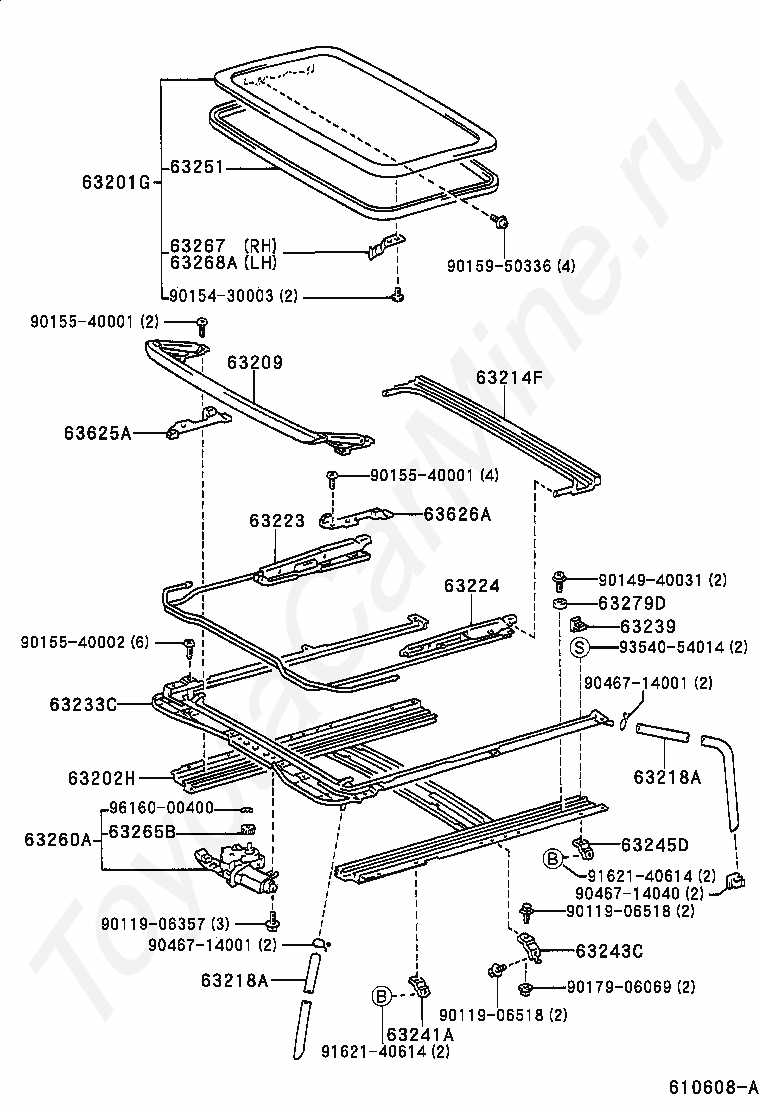

Код
Описание
63201G
GLASS SUB-ASSY, SLIDING ROOF
63202H
RAIL SUB-ASSY, SLIDE ROOF
63209
PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63214F
CHANNEL, ROOF DRIP, REAR
63218A
HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63223
CABLE, SLIDING ROOF DRIVE, RH
63224
CABLE, SLIDING ROOF DRIVE, LH
63233C
PANEL, SLIDING ROOF HOUSING
63239
STOPPER, SLIDING ROOF PANEL
63241A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63243C
BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH
63245D
BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH
63251
WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF
63260A
GEAR SUB-ASSY, SLIDING ROOF DRIVE
63265B
GEAR, SLIDING ROOF DRIVE
63267
PROTECTOR, SLIDING ROOF WEATHERSTRIP
63268A
PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH
63279D
STOPPER, SLIDING ROOF GUIDE RAIL
63625A
BLOCK, SLIDING ROOF GUIDE, RH
63626A
BLOCK, SLIDING ROOF GUIDE, LH
9011906357
Крепеж
9011906518
Крепеж
9014940031
Крепеж
9015430003
Крепеж
9015540001
Крепеж
9015540002
Крепеж
9015950336
Крепеж
9017906069
Крепеж
9046714001
Крепеж
9046714040
Крепеж
9162140614
Крепеж
9354054014
Крепеж
9616000400
Крепеж
