Каталог
ЯпонияМодель
RAV4Двигатель
2,5 литра, 16 клапанов, DOHCКузов
фургонКласс
HYBRID X TYPEФрейм
AXAH52Трансмиссия
вариаторОпции
831W
Код
Описание

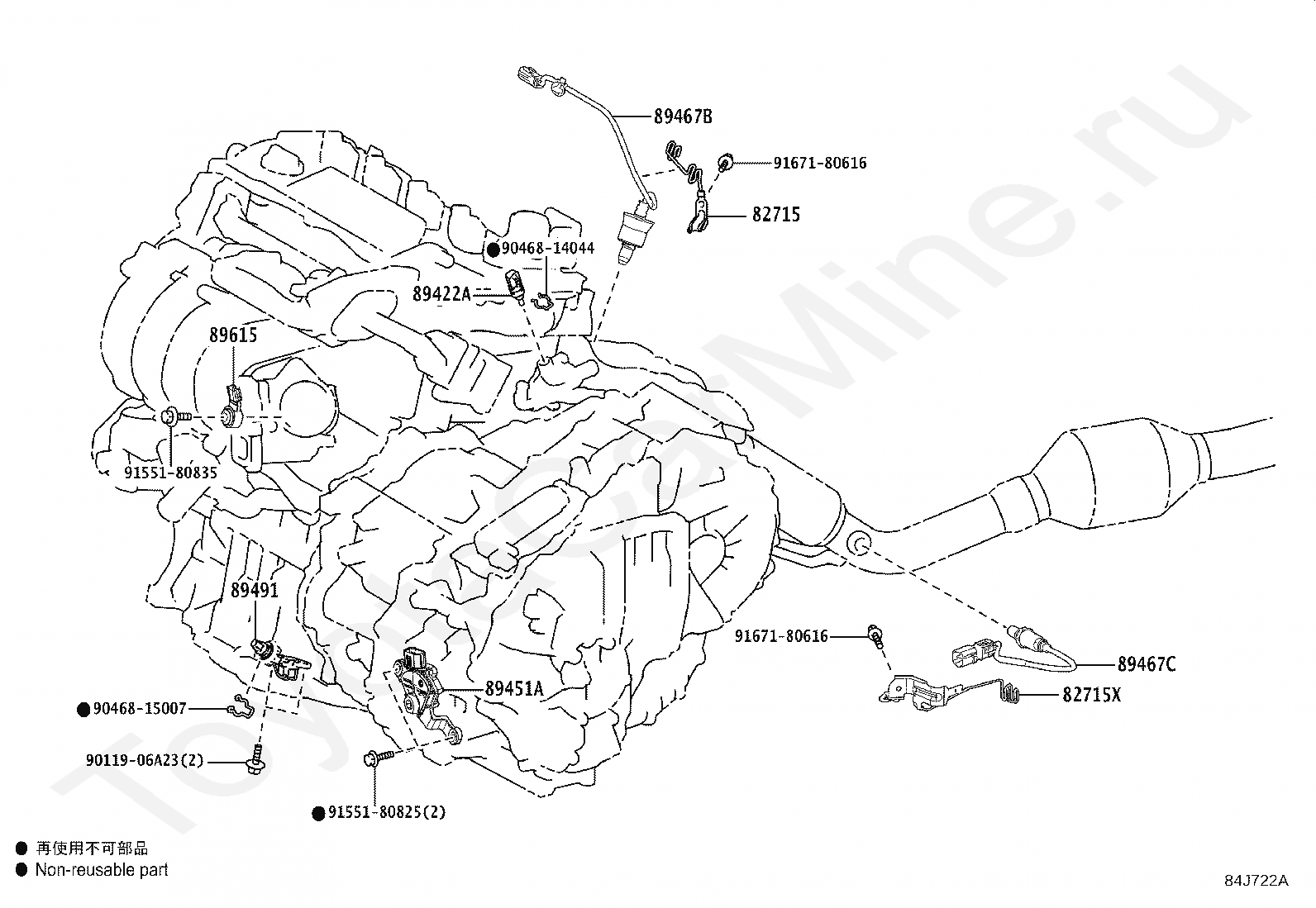

82715
BRACKET,WIRING HARNESS CLAMP
82715X
BRACKET, WIRING HARNESS CLAMP, NO.2
89422A
SENSOR, WATER TEMPERATURE
89451A
SENSOR, SHIFT LEVER POSITION
89467B
SENSOR, AIR FUEL RATIO
89467C
SENSOR, AIR FUEL RATIO, NO.2
89491
SENSOR, ENGINE OIL LEVEL
89615
SENSOR, KNOCK CONTROL
9011906A23
Крепеж
9046814044
Крепеж
9046815007
Крепеж
9155180825
Крепеж
9155180835
Крепеж
9167180616
Крепеж
Код
Описание
9011906A18
Крепеж
9017806018
Крепеж
Код
Описание

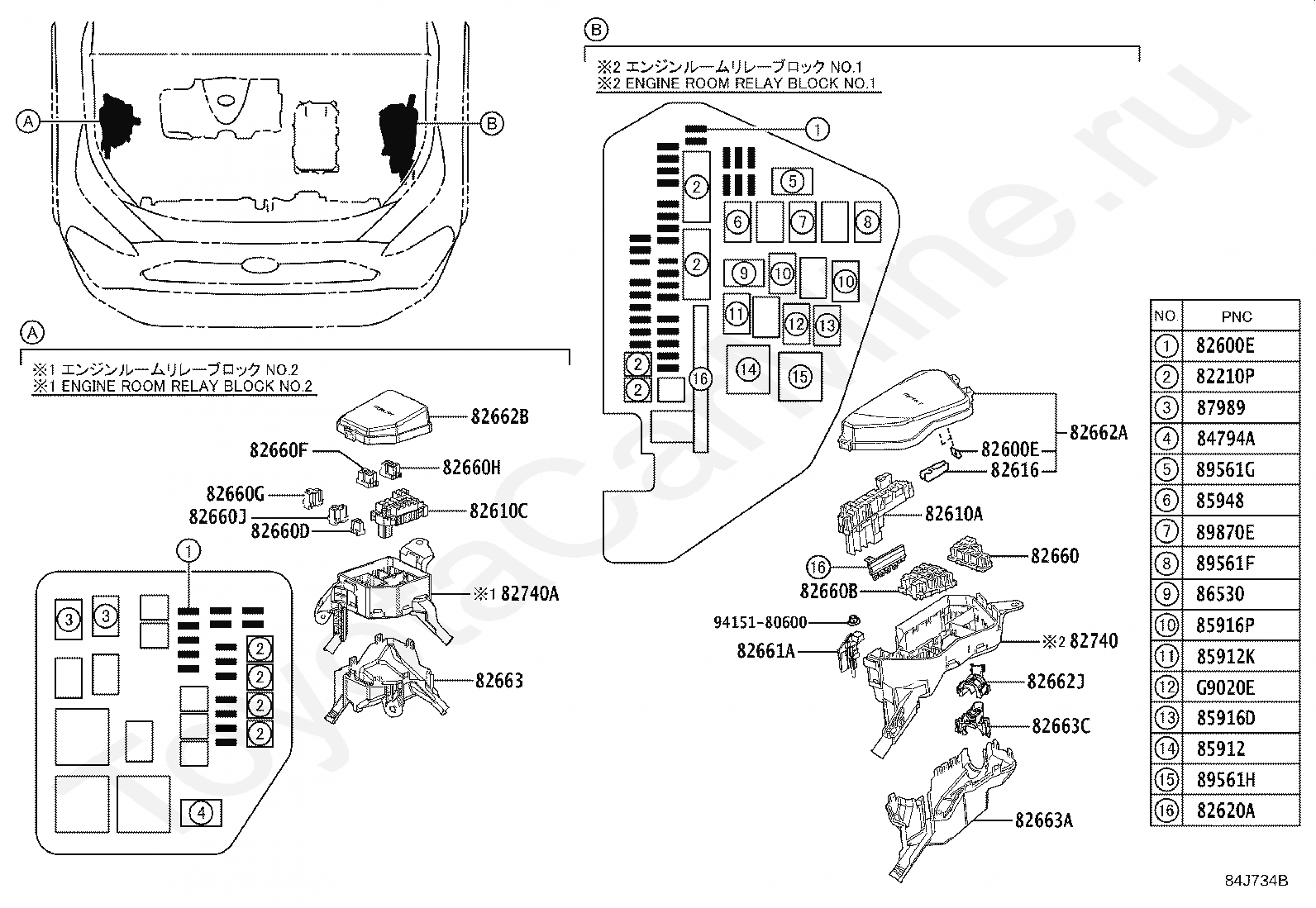

82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82610A
BLOCK ASSY, FUSE
82610C
BLOCK ASSY, FUSE
82616
PULLER, FUSE
82620A
BLOCK ASSY, FUSIBLE LINK
82660
BLOCK ASSY, RELAY, ENGINE ROOM
82660B
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82660F
BLOCK ASSY, RELAY
82660G
BLOCK ASSY, RELAY
82660H
BLOCK ASSY, RELAY
82660J
BLOCK ASSY, RELAY
82661A
COVER, RELAY BLOCK, NO.2
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82662J
COVER, RELAY BLOCK, UPPER, NO.5
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82663C
COVER, RELAY BLOCK LOWER, NO.4
82740
BLOCK ASSY, ENGINE ROOM RELAY
82740A
BLOCK ASSY, ENGINE ROOM RELAY, NO.2
84794A
RELAY, FR WIPER DEICER
85912
RELAY, DEFOGGER
85912K
RELAY, VVT
85916D
RELAY, FOG LAMP
85916P
RELAY, HEADLAMP
85948
RELAY, WINDSHIELD WIPER
86530
RELAY ASSY, HORN
87989
RELAY, MIRROR CONTROL
89561F
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
89561G
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
89561H
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
89870E
RELAY, ELECTRONIC DRIVER UNIT
9415180600
Крепеж
G9020E
RELAY, HYBRID WATER PUMP
Код
Описание
6451
переход к группе запчастей
8202
переход к группе запчастей
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82672A
COVER, JUNCTION BLOCK
82673C
BRACKET, JUNCTION BLOCK
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82877
BOX, COMPUTER INTEGRATION, RH
83650
FUSEE
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
85910V
RELAY, SEAT HEATER
85913F
RELAY, STEERING HEATER
85940
RELAY ASSY, WINDSHIELD WIPER
8598A
BATTERY, DOOR CONTROL
89111
COMPUTER, NETWORK GATEWAY
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89730A
RELAY(FOR SECURITY WARNING)
9011906951
Крепеж
9011906A21
Крепеж
9017906274
Крепеж
9018306032
Крепеж
9167380616
Крепеж
Код
Описание
83950M
LAMP ASSY, TELLTALE
84153
SWITCH, AUTO HIGH BEAM
84255
SWITCH, STEERING HEATER
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84485C
SWITCH, POWER OUTLET
84721B
SWITCH, PANORAMIC VIEW MONITOR
84751
SWITCH, SEAT HEATER
84751F
SWITCH, SEAT HEATER
84752
SWITCH, REFRESHING SEAT
84794
SWITCH, FR WIPER DEICER
84841A
SWITCH, FUEL LID OPENER
84966
SWITCH, POWER BACK DOOR CONTROL
84988L
SWITCH, VSC OFF
89611
SWITCH, PUSH START
Код
Описание
84010D
CONTROL & PANEL ASSY, INTEGRATION
85530
SOCKET ASSY, POWER OUTLET, NO.1
85530D
SOCKET ASSY, POWER OUTLET, NO.2
85530E
SOCKET ASSY, POWER OUTLET, NO.3
85532
SOCKET, USB CHARGER
85532B
SOCKET, USB CHARGER
85535B
COVER, POWER OUTLET SOCKET, NO.1
85535E
COVER, POWER OUTLET SOCKET, NO.2
85535H
COVER, POWER OUTLET SOCKET, NO.3
9356855014
Крепеж
Код
Описание
84091
SWITCH SET, SATELLITE
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84319
HOUSING, STEERING WHEEL SWITCH
84329
SWITCH, TURN SIGNAL
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
9015950199
Крепеж
Код
Описание
7151
переход к группе запчастей
84921C
KNOB, POWER SEAT SWITCH, RH
84921J
KNOB, POWER SEAT SWITCH, RH
84922B
SWITCH, FRONT POWER SEAT, RH
89710
COMPUTER ASSY, POSITION CONTROL
9356054012
Крепеж
Код
Описание
84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84870A
SWITCH ASSY, OUTER MIRROR
84927
SWITCH, SEAT MEMORY
84966A
SWITCH, POWER BACK DOOR CONTROL, NO.1
85530B
SOCKET ASSY, POWER OUTLET, REAR NO.1
85530G
SOCKET ASSY, POWER OUTLET, NO.4
85531
SOCKET, POWER OUTLET
85535C
COVER, POWER OUTLET SOCKET, REAR
9016440103
Крепеж
9016660005
Крепеж
9016670001
Крепеж
Код
Описание

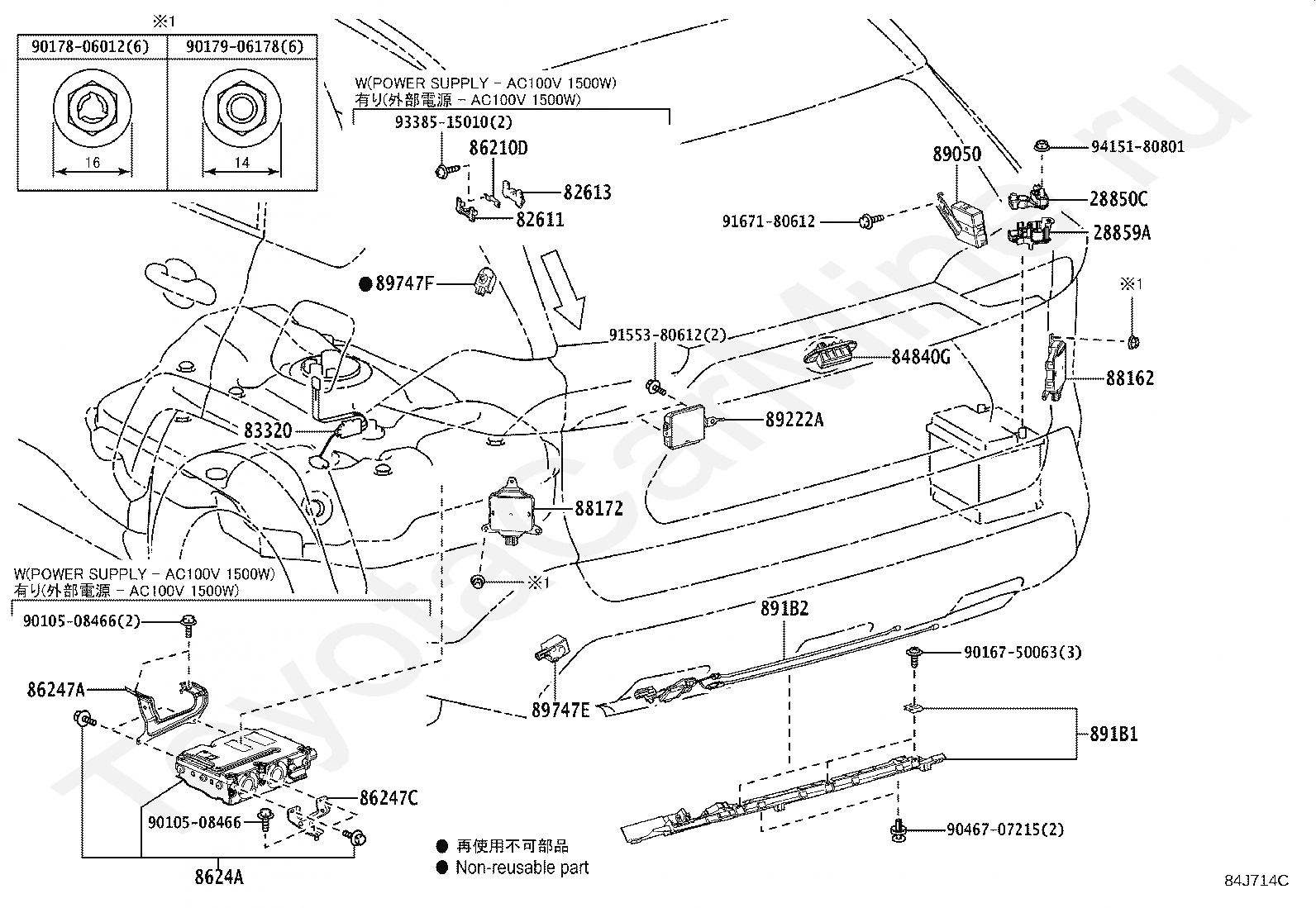

28850C
SENSOR ASSY, BATTERY STATE
28859A
HOLDER, BATTERY CURRENT SENSOR
82611
COVER, FUSE BLOCK
82613
COVER, FUSE BLOCK
83320
GAGE ASSY, FUEL SENDER
84840G
SWITCH ASSY, BACK DOOR OPENER
86210D
FUSE, HIGH VOLTAGE
86247A
BRACKET, VOLTAGE INVERTER
86247C
BRACKET, VOLTAGE INVERTER, NO.2
8624A
INVERTER, VOLTAGE
88162
SENSOR, BLIND SPOT MONITOR, RH
88172
SENSOR, BLIND SPOT MONITOR, LH
89050
COMPUTER ASSY, PARKING BRAKE
891B1
BRACKET, KICK DOOR CONTROL
891B2
SENSOR, KICK DOOR CONTROL
89222A
COMPUTER, MULTIPLEX NETWORK DOOR
89747E
BUZZER, POWER BACK DOOR WARNING
89747F
BUZZER, BLIND SPOT MONITOR
9010508466
Крепеж
9016750063
Крепеж
9017806012
Крепеж
9017906178
Крепеж
9046707215
Крепеж
9155380612
Крепеж
9167180612
Крепеж
9338515010
Крепеж
9415180801
Крепеж
Код
Описание

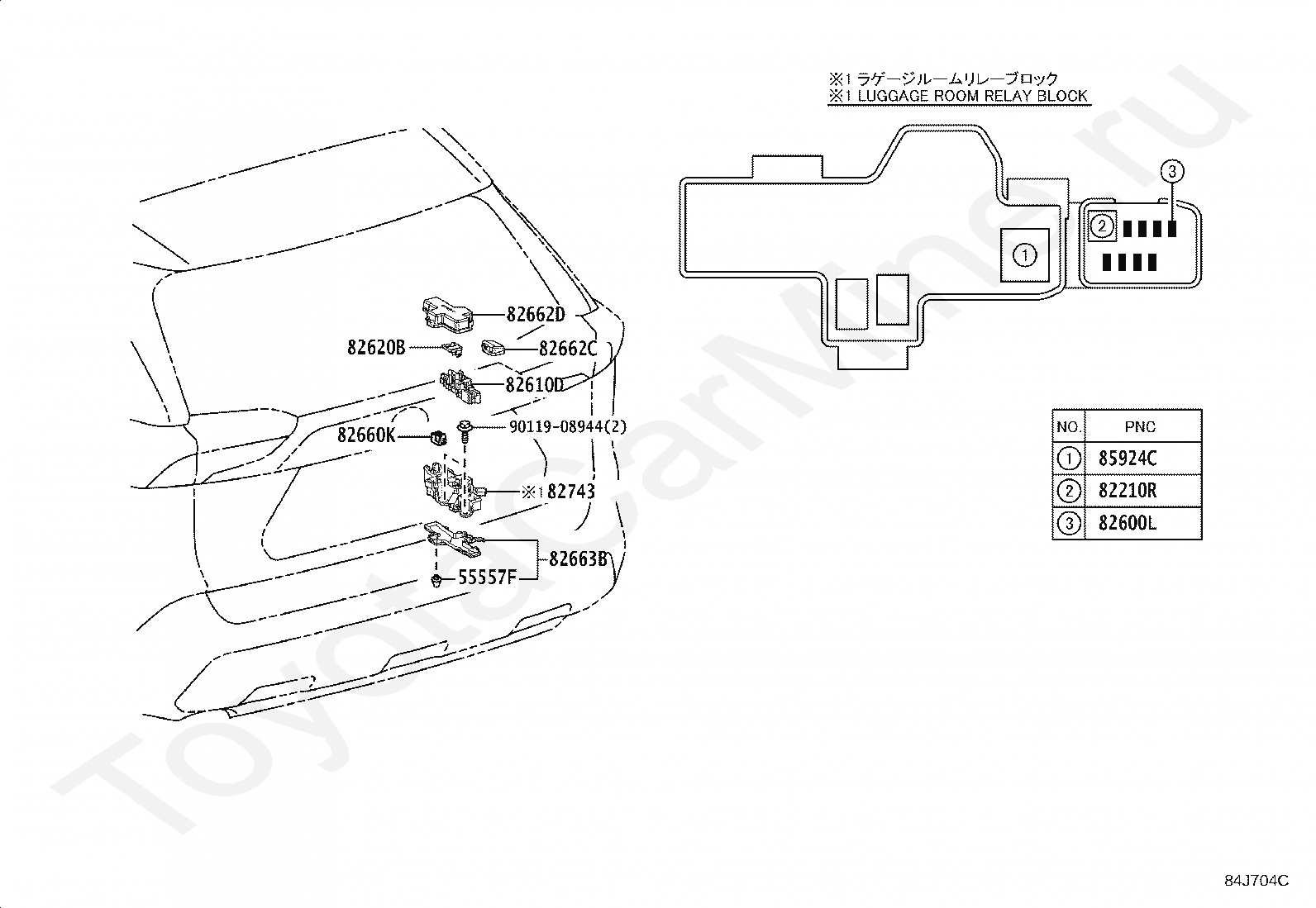

55557F
CUSHION, RELAY BLOCK
82210R
LUGGAGE ROOM FUSIBLE LINK
82600L
LUGGAGE ROOM FUSE
82610D
BLOCK ASSY, FUSE
82620B
BLOCK ASSY, FUSIBLE LINK
82660K
BLOCK ASSY, RELAY
82662C
COVER, RELAY BLOCK, UPPER, NO.3
82662D
COVER, RELAY BLOCK, UPPER, NO.4
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82743
BLOCK, ENGINE ROOM RELAY, NO.3
85924C
RELAY, IGCT
9011908944
Крепеж
