Каталог
Ближний ВостокМодель
RAV4 PHVДвигатель
2500CC 16-VALVE DOHCФрейм
AXAP52Трансмиссия
вариаторОпции
левый руль X TYPE 799WКод
Описание

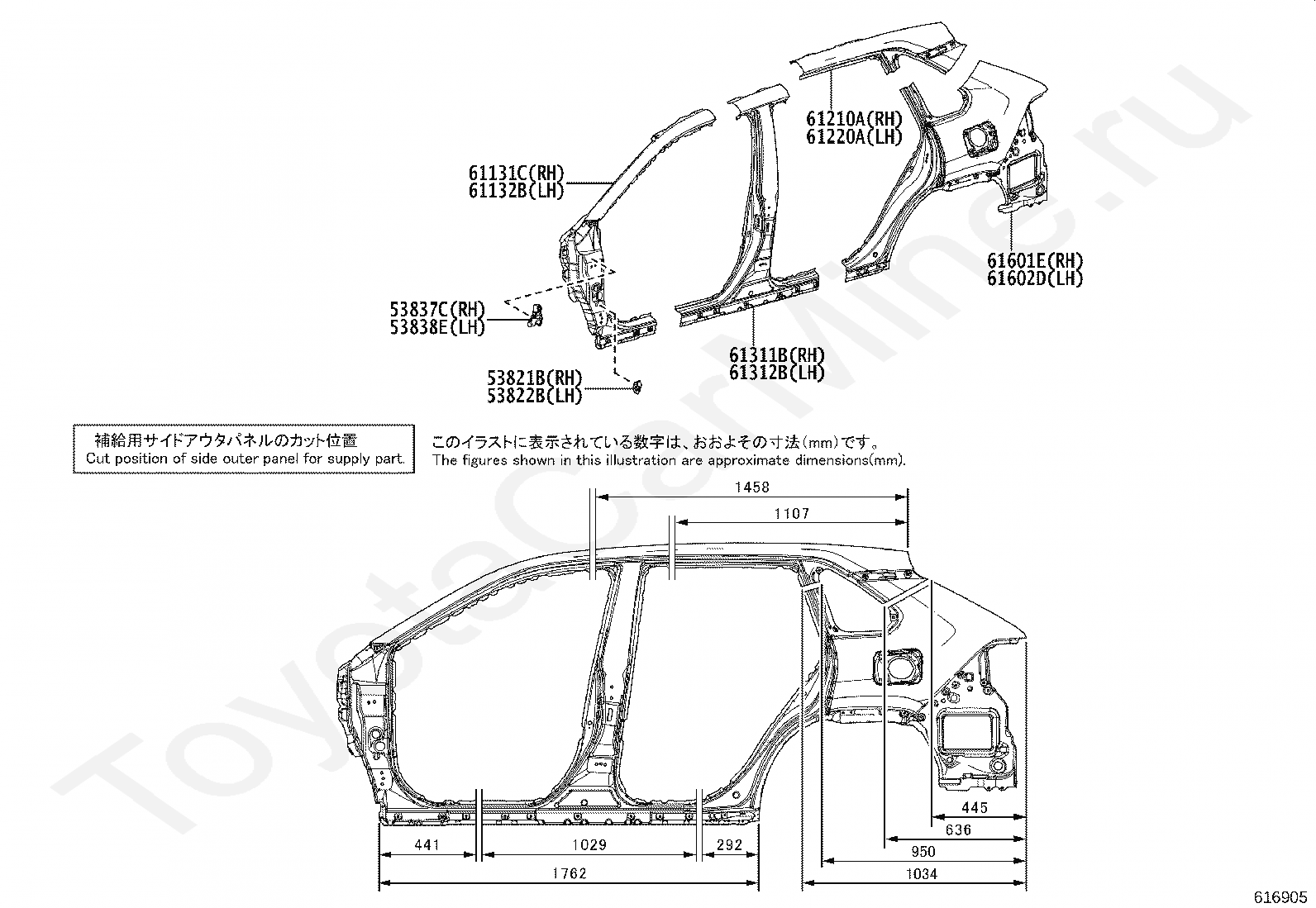

53821B
BRACKET, FRONT FENDER, REAR RH
53822B
BRACKET, FRONT FENDER, REAR LH
53837C
BRACKET, FRONT SIDE PANEL, NO.2 RH
53838E
BRACKET, FRONT SIDE PANEL, NO.2 LH
61131C
PILLAR, FRONT BODY, OUTER RH
61132B
PILLAR, FRONT BODY, OUTER LH
61210A
RAIL ASSY, ROOF SIDE, RH
61220A
RAIL ASSY, ROOF SIDE, LH
61311B
PILLAR, CENTER BODY, OUTER RH
61312B
PILLAR, CENTER BODY, OUTER LH
61601E
PANEL SUB-ASSY, QUARTER, OUTER RH
61602D
PANEL SUB-ASSY, QUARTER, OUTER LH
Код
Описание
5752
переход к группе запчастей
5851
переход к группе запчастей

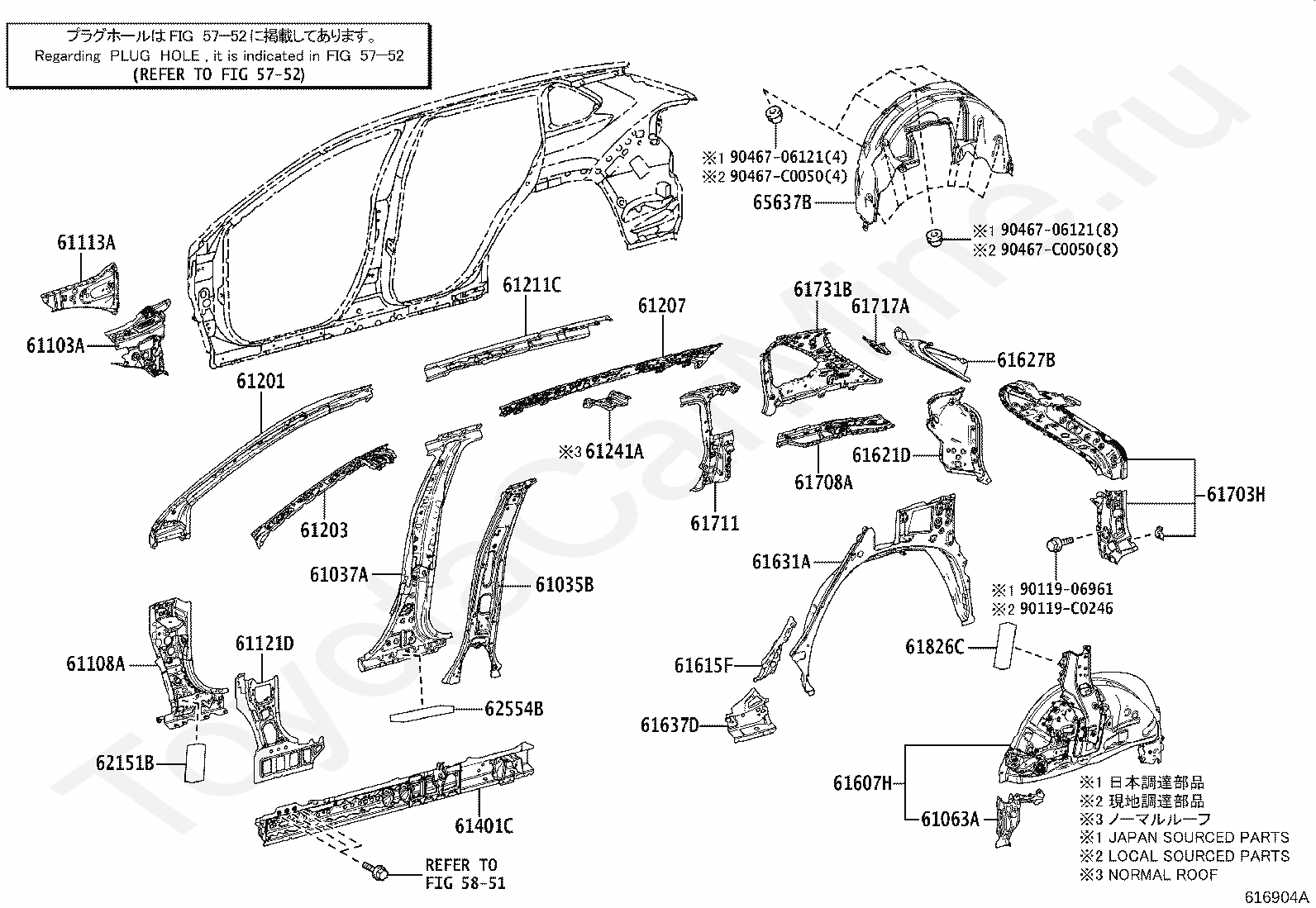

61035B
PILLAR SUB-ASSY, NO.4 INNER, RH
61037A
REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61063A
EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH
61103A
REINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108A
REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61113A
PANEL, SIDE, OUTER NO.2 RH
61121D
PANEL, COWL SIDE, RH
61201
RAIL SUB-ASSY, ROOF SIDE, RH
61203
RAIL SUB-ASSY, ROOF SIDE, INNER RH
61207
RAIL SUB-ASSY, ROOF SIDE, INNER CENTER RH
61211C
RAIL, ROOF SIDE, RH
61241A
GUSSET, ROOF SIDE RAIL, REAR RH
61401C
PANEL SUB-ASSY, ROCKER, OUTER RH
61607H
PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61615F
REINFORCEMENT, QUARTER PANEL, OUTER RH
61621D
TROUGH, BACK DOOR OPENING, RH
61627B
EXTENSION, QUARTER PANEL, UPPER REAR RH
61631A
PANEL, QUARTER WHEEL HOUSE, OUTER RH
61637D
REINFORCEMENT, QUARTER, INNER RH
61703H
REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61708A
REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH
61711
PANEL, ROOF SIDE, OUTER RH
61717A
REINFORCEMENT, QUARTER PANEL EXTENSION, RH
61731B
PANEL, ROOF SIDE, INNER RH
61826C
PAD, NOISE SHUTTER, NO.3
62151B
PAD, COWL SIDE SILENCER
62554B
PAD, PILLAR, NO.4
65637B
LINER, REAR WHEEL HOUSE, RH
9011906961
Крепеж
90119C0246
Крепеж
9046706121
Крепеж
90467C0050
Крепеж
Код
Описание
5752
переход к группе запчастей
5851
переход к группе запчастей

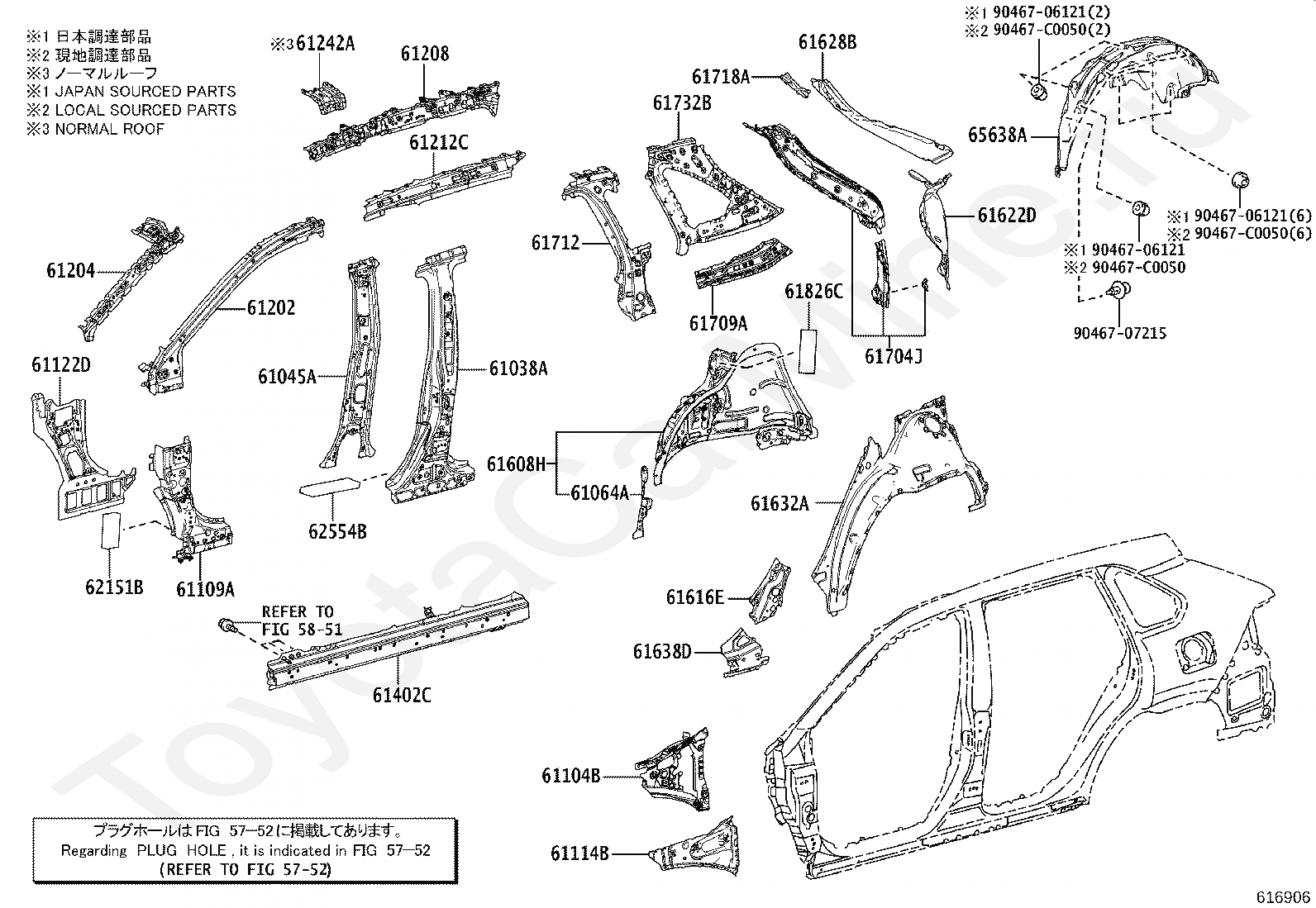

61038A
REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61045A
PILLAR SUB-ASSY, NO.4 INNER, LH
61064A
EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH
61104B
REINFORCEMENT SUB-ASSY, COWL SIDE, LH
61109A
REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61114B
PANEL, SIDE, OUTER NO.2 LH
61122D
PANEL, COWL SIDE, LH
61202
RAIL SUB-ASSY, ROOF SIDE, LH
61204
RAIL SUB-ASSY, ROOF SIDE, INNER LH
61208
RAIL SUB-ASSY, ROOF SIDE, INNER CENTER LH
61212C
RAIL, ROOF SIDE, LH
61242A
GUSSET, ROOF SIDE RAIL, REAR LH
61402C
PANEL SUB-ASSY, ROCKER, OUTER LH
61608H
PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH
61616E
REINFORCEMENT, QUARTER PANEL, OUTER LH
61622D
TROUGH, BACK DOOR OPENING, LH
61628B
EXTENSION, QUARTER PANEL, UPPER REAR LH
61632A
PANEL, QUARTER WHEEL HOUSE, OUTER LH
61638D
REINFORCEMENT, QUARTER, INNER LH
61704J
REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH
61709A
REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH
61712
PANEL, ROOF SIDE, OUTER LH
61718A
REINFORCEMENT, QUARTER PANEL EXTENSION, LH
61732B
PANEL, ROOF SIDE, INNER LH
61826C
PAD, NOISE SHUTTER, NO.3
62151B
PAD, COWL SIDE SILENCER
62554B
PAD, PILLAR, NO.4
65638A
LINER, REAR WHEEL HOUSE, LH
9046706121
Крепеж
9046707215
Крепеж
90467C0050
Крепеж
