АмерикаМодель
RAV4 (NAP)Двигатель
2,5 литра, 16 клапанов, DOHCКузов
фургонФрейм
AXAA52Трансмиссия
автомат АКПП, 8 скоростейОпции
5 дверей METERS США 832W
Код
Описание

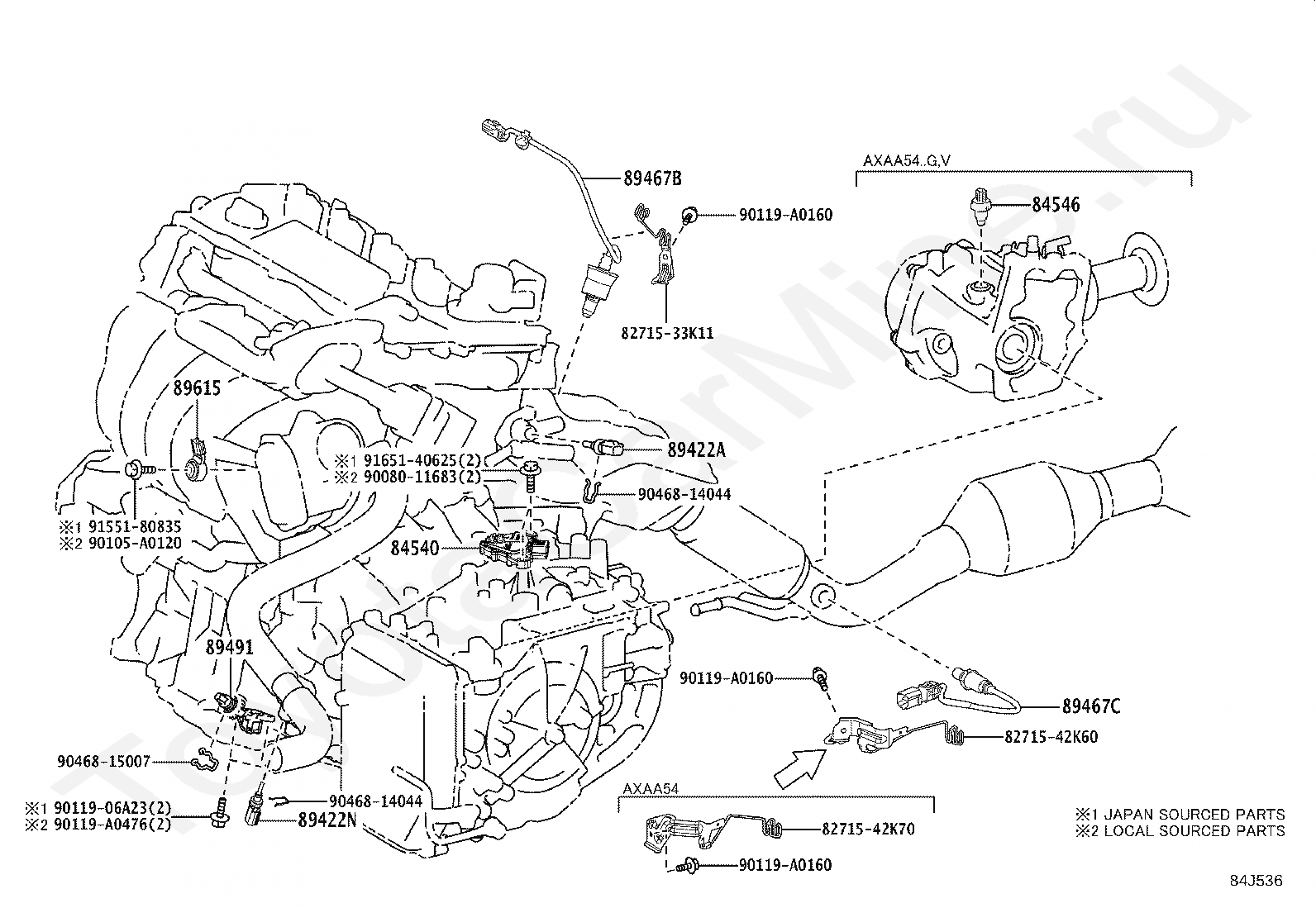

8271533K11
Крепеж
8271542K60
Крепеж
8271542K70
Крепеж
84540
SWITCH ASSY, NEUTRAL START
84546
SWITCH, 4 WHEEL DRIVE POSITION, NO.1
89422A
SENSOR, WATER TEMPERATURE
89422N
SENSOR, WATER TEMPERATURE, NO.2
89467B
SENSOR, AIR FUEL RATIO
89467C
SENSOR, AIR FUEL RATIO, NO.2
89491
SENSOR, ENGINE OIL LEVEL
89615
SENSOR, KNOCK CONTROL
9008011683
Крепеж
90105A0120
Крепеж
9011906A23
Крепеж
90119A0160
Крепеж
90119A0476
Крепеж
9046814044
Крепеж
9046815007
Крепеж
9155180835
Крепеж
9165140625
Крепеж
Код
Описание

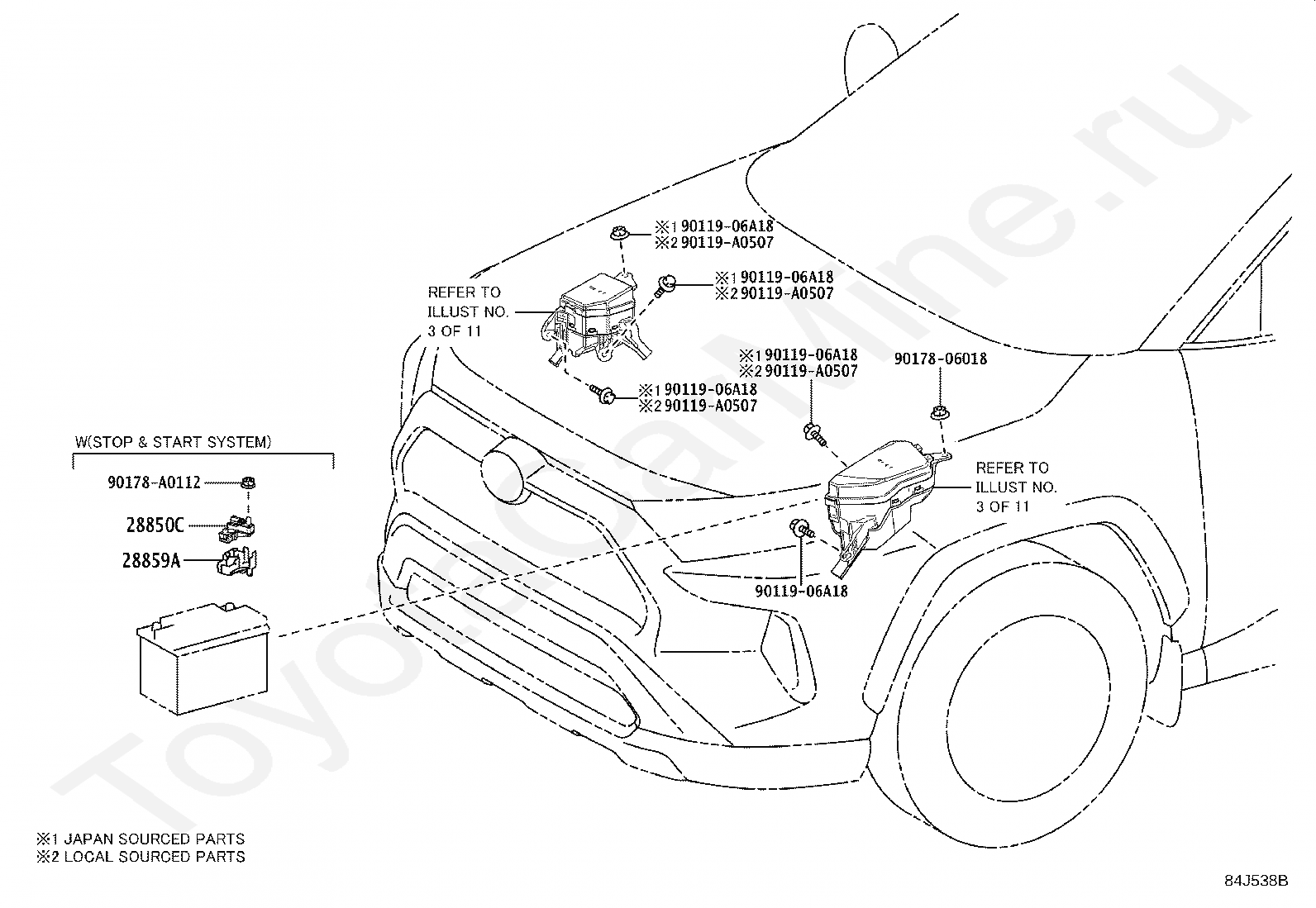

28850C
SENSOR ASSY, BATTERY STATE
28859A
HOLDER, BATTERY CURRENT SENSOR
9011906A18
Крепеж
90119A0507
Крепеж
9017806018
Крепеж
90178A0112
Крепеж
Код
Описание

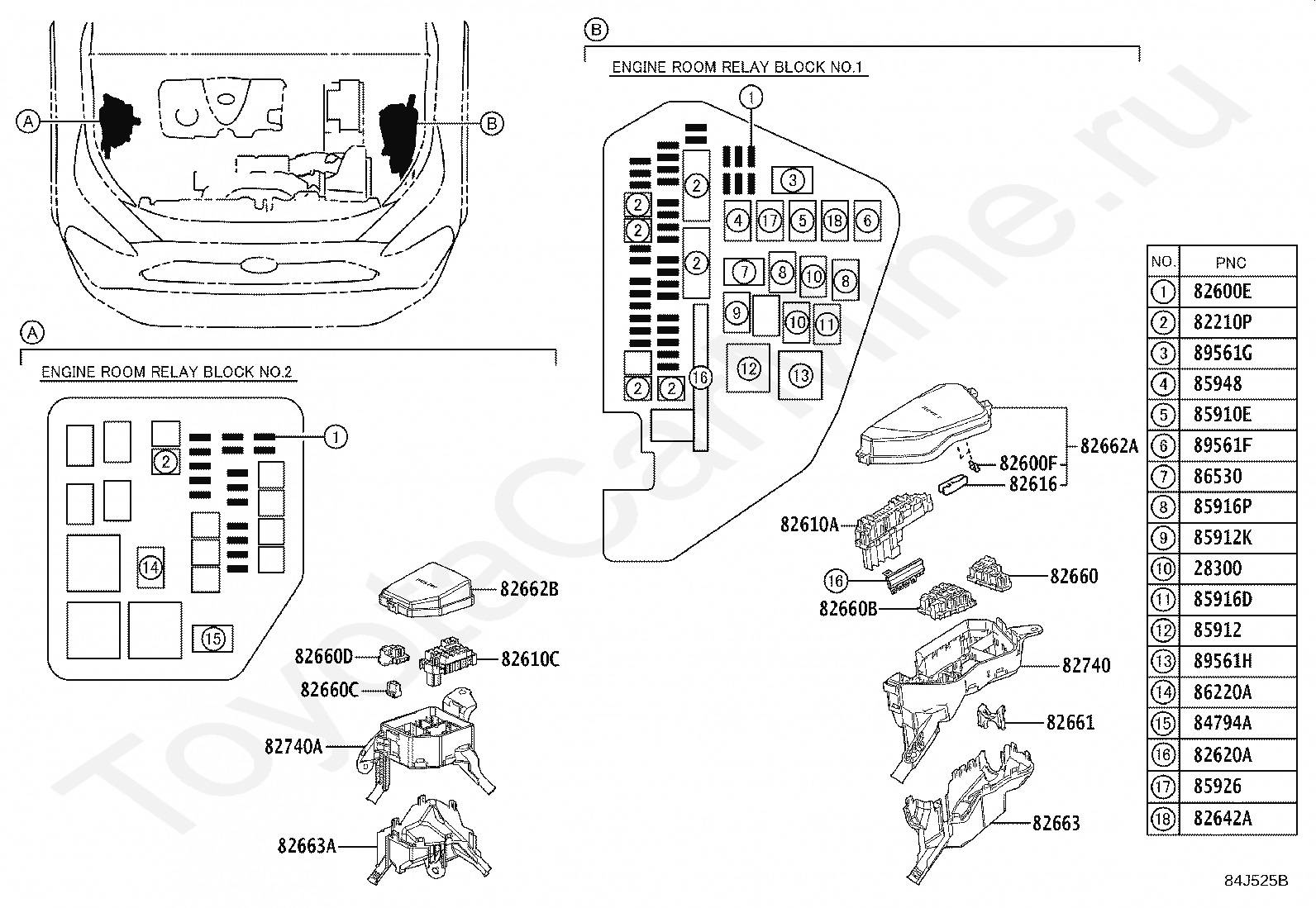

28300
RELAY ASSY, STARTER
82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82600F
FUSE, FUSE BLOCK
82610A
BLOCK ASSY, FUSE
82610C
BLOCK ASSY, FUSE
82616
PULLER, FUSE
82620A
BLOCK ASSY, FUSIBLE LINK
82642A
RELAY, RUNNING LIGHT
82660
BLOCK ASSY, RELAY, ENGINE ROOM
82660B
BLOCK ASSY, RELAY
82660C
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82661
COVER, RELAY BLOCK, NO.1
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82740
BLOCK ASSY, ENGINE ROOM RELAY
82740A
BLOCK ASSY, ENGINE ROOM RELAY, NO.2
84794A
RELAY, FR WIPER DEICER
85910E
RELAY, INJECTOR
85912
RELAY, DEFOGGER
85912K
RELAY, VVT
85916D
RELAY, FOG LAMP
85916P
RELAY, HEADLAMP
85926
RELAY, HEADLAMP DIMMER
85948
RELAY, WINDSHIELD WIPER
86220A
RELAY, INVERTER
86530
RELAY ASSY, HORN
89561F
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
89561G
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
89561H
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
Код
Описание

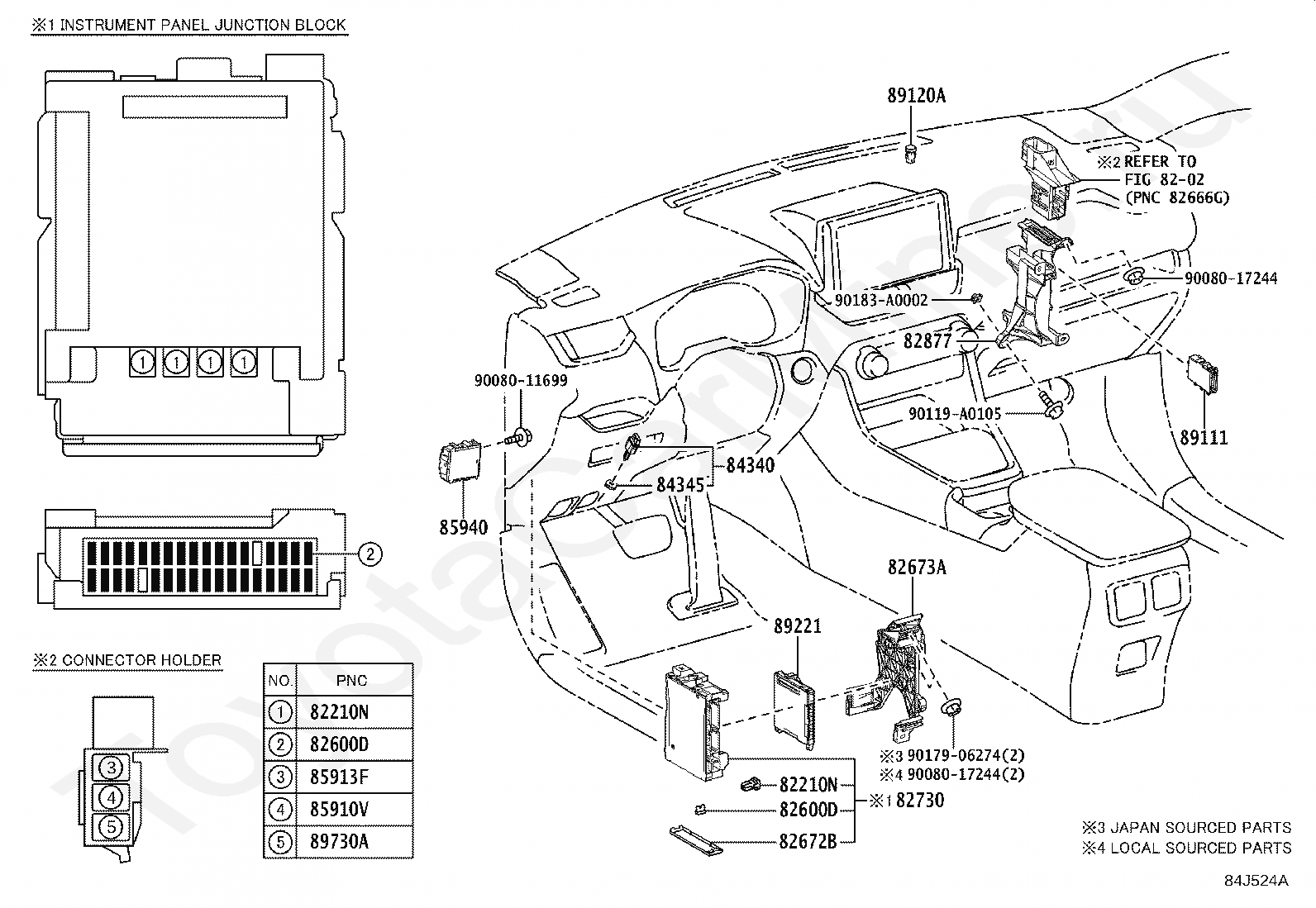

8202
переход к группе запчастей
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82672B
COVER, JUNCTION BLOCK
82673A
BRACKET, JUNCTION BLOCK
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82877
BOX, COMPUTER INTEGRATION, RH
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
85910V
RELAY, SEAT HEATER
85913F
RELAY, STEERING HEATER
85940
RELAY ASSY, WINDSHIELD WIPER
89111
COMPUTER, NETWORK GATEWAY
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89730A
RELAY(FOR SECURITY WARNING)
9008011699
Крепеж
9008017244
Крепеж
90119A0105
Крепеж
9017906274
Крепеж
90183A0002
Крепеж
Код
Описание

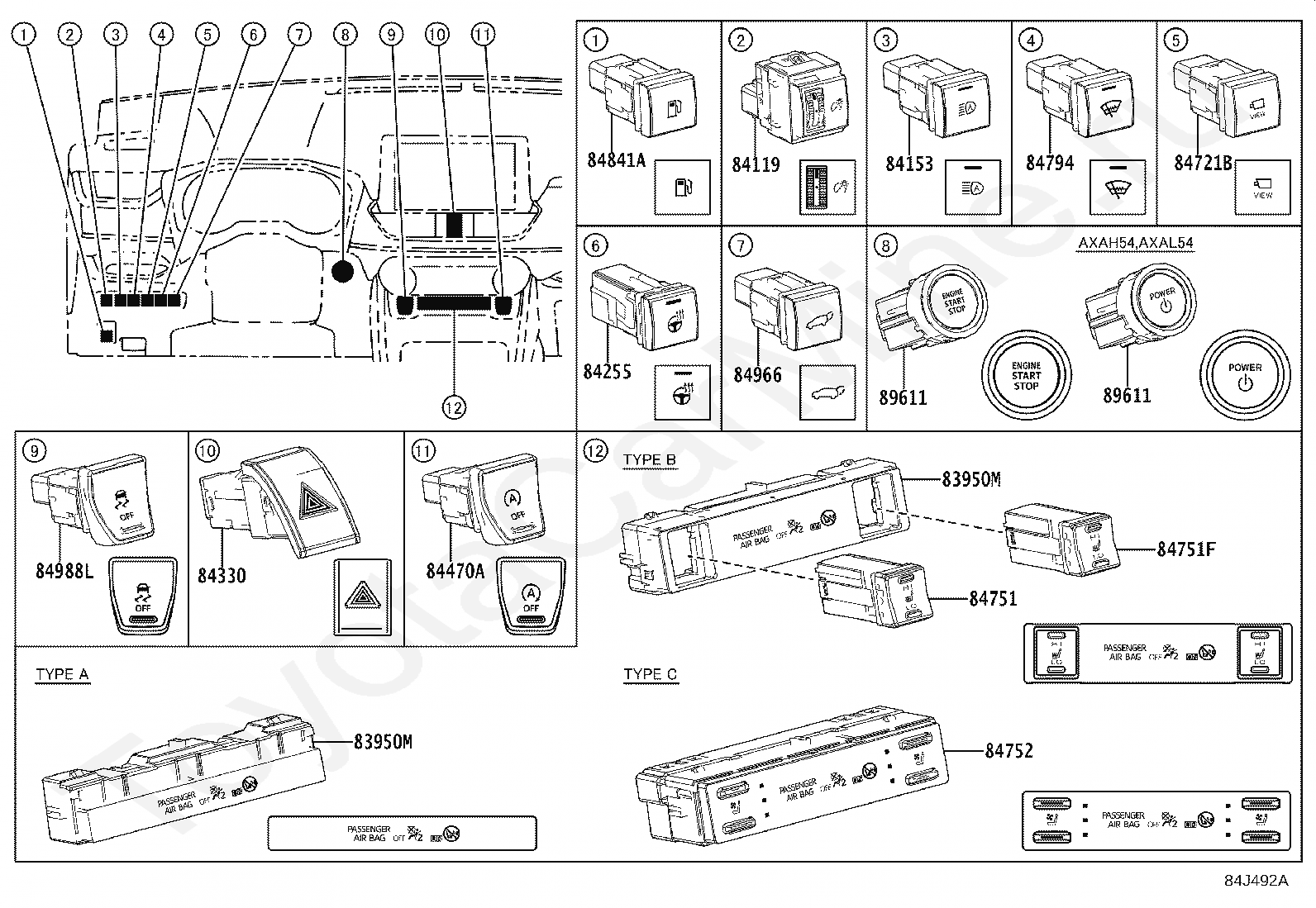

83950M
LAMP ASSY, TELLTALE
84119
RHEOSTAT, LIGHT CONTROL
84153
SWITCH, AUTO HIGH BEAM
84255
SWITCH, STEERING HEATER
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84470A
SWITCH ASSY, ECORUN CANCEL
84721B
SWITCH, PANORAMIC VIEW MONITOR
84751
SWITCH, SEAT HEATER
84751F
SWITCH, SEAT HEATER
84752
SWITCH, REFRESHING SEAT
84794
SWITCH, FR WIPER DEICER
84841A
SWITCH, FUEL LID OPENER
84966
SWITCH, POWER BACK DOOR CONTROL
84988L
SWITCH, VSC OFF
89611
SWITCH, PUSH START
Код
Описание
84010D
CONTROL & PANEL ASSY, INTEGRATION
85530
SOCKET ASSY, POWER OUTLET, NO.1
85530D
SOCKET ASSY, POWER OUTLET, NO.2
85530E
SOCKET ASSY, POWER OUTLET, NO.3
85532
SOCKET, USB CHARGER
85532B
SOCKET, USB CHARGER
85535B
COVER, POWER OUTLET SOCKET, NO.1
85535E
COVER, POWER OUTLET SOCKET, NO.2
85535H
COVER, POWER OUTLET SOCKET, NO.3
9008015073
Крепеж
Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84319
HOUSING, STEERING WHEEL SWITCH
84329
SWITCH, TURN SIGNAL
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
89245B
SENSOR, STEERING
9008015079
Крепеж
Код
Описание

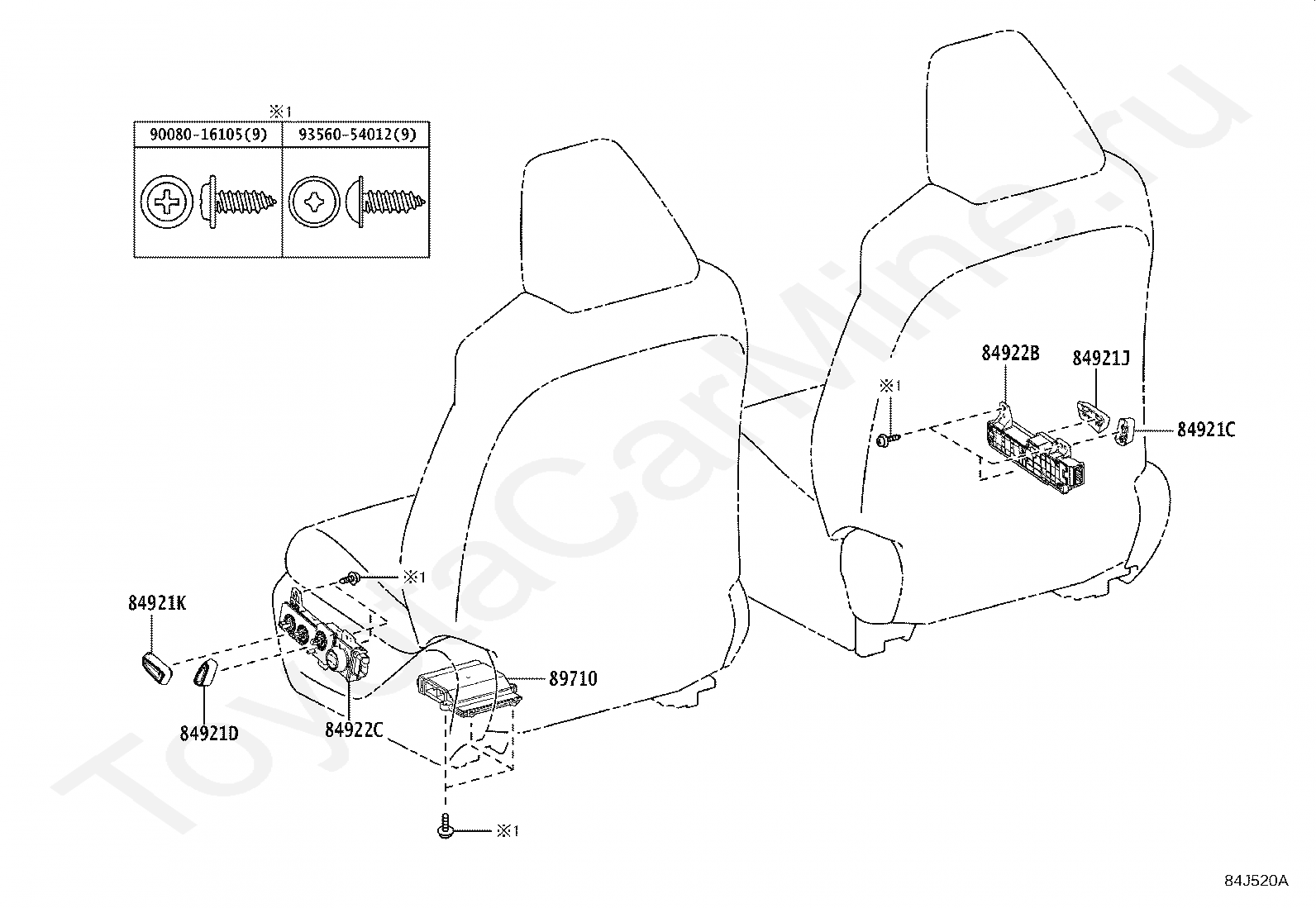

84921C
KNOB, POWER SEAT SWITCH, RH
84921D
KNOB, POWER SEAT SWITCH, LH
84921J
KNOB, POWER SEAT SWITCH, RH
84921K
KNOB, POWER SEAT SWITCH, LH
84922B
SWITCH, FRONT POWER SEAT, RH
84922C
SWITCH, FRONT POWER SEAT, LH
89710
COMPUTER ASSY, POSITION CONTROL
9008016105
Крепеж
9356054012
Крепеж
Код
Описание
84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84751G
SWITCH, SEAT HEATER
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84870A
SWITCH ASSY, OUTER MIRROR
84927
SWITCH, SEAT MEMORY
84930
SWITCH ASSY, DOOR CONTROL
84966A
SWITCH, POWER BACK DOOR CONTROL, NO.1
85530B
SOCKET ASSY, POWER OUTLET, REAR NO.1
85530G
SOCKET ASSY, POWER OUTLET, NO.4
85535C
COVER, POWER OUTLET SOCKET, REAR
9008016098
Крепеж
9016660004
Крепеж
90166A0007
Крепеж
90166A0008
Крепеж
Код
Описание

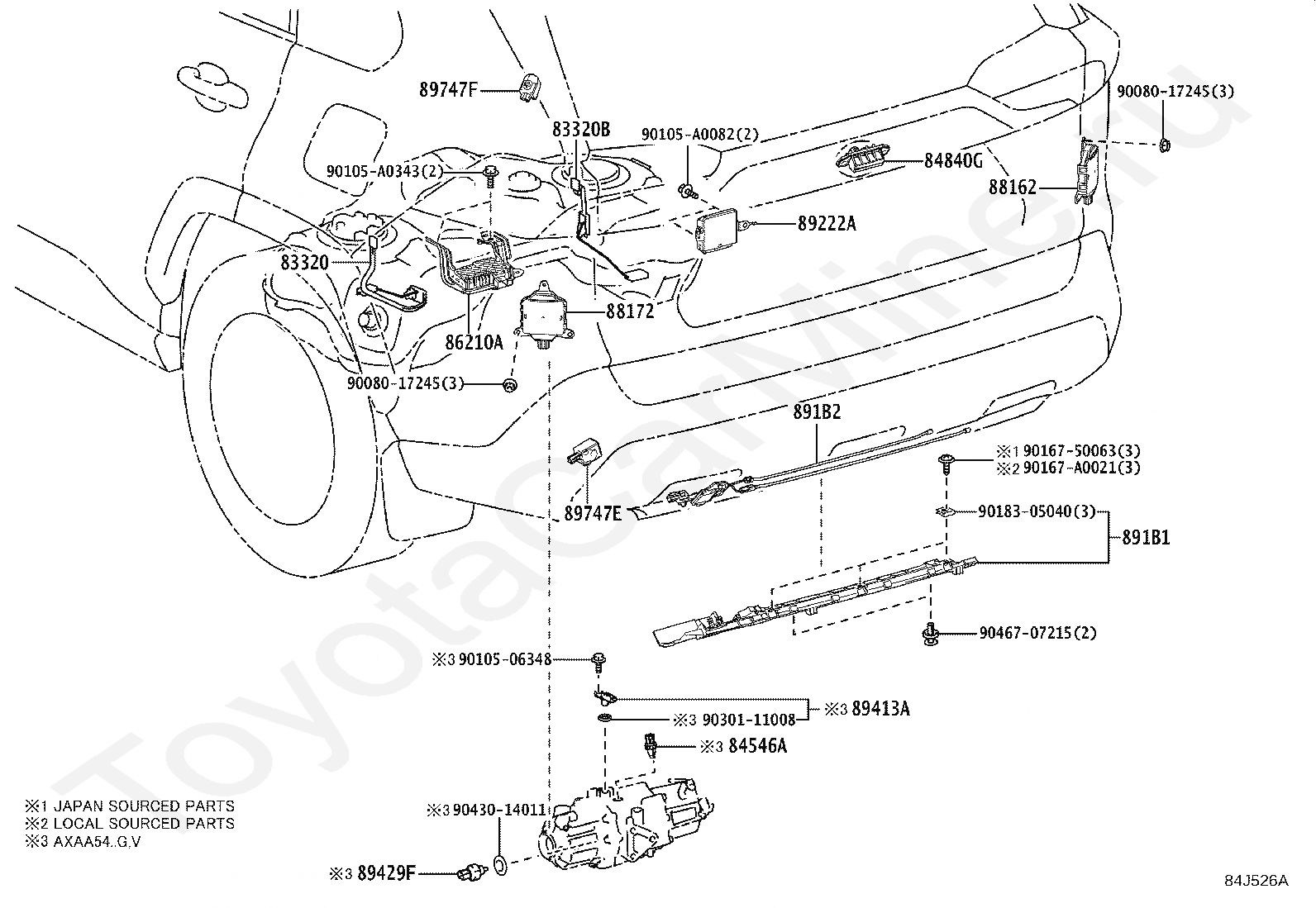

83320
GAGE ASSY, FUEL SENDER
83320B
GAGE ASSY, FUEL SENDER, NO.2
84546A
SWITCH, 4 WHEEL DRIVE POSITION, NO.2
84840G
SWITCH ASSY, BACK DOOR OPENER
86210A
INVERTER ASSY, VOLTAGE
88162
SENSOR, BLIND SPOT MONITOR, RH
88172
SENSOR, BLIND SPOT MONITOR, LH
891B1
BRACKET, KICK DOOR CONTROL
891B2
SENSOR, KICK DOOR CONTROL
89222A
COMPUTER, MULTIPLEX NETWORK DOOR
89413A
SENSOR, TRANSMISSION REVOLUTION
89429F
SENSOR, TEMPERATURE
89747E
BUZZER, POWER BACK DOOR WARNING
89747F
BUZZER, BLIND SPOT MONITOR
9008017245
Крепеж
9010506348
Крепеж
90105A0082
Крепеж
90105A0343
Крепеж
9016750063
Крепеж
90167A0021
Крепеж
9018305040
Крепеж
9030111008
Крепеж
9043014011
Крепеж
9046707215
Крепеж
Код
Описание

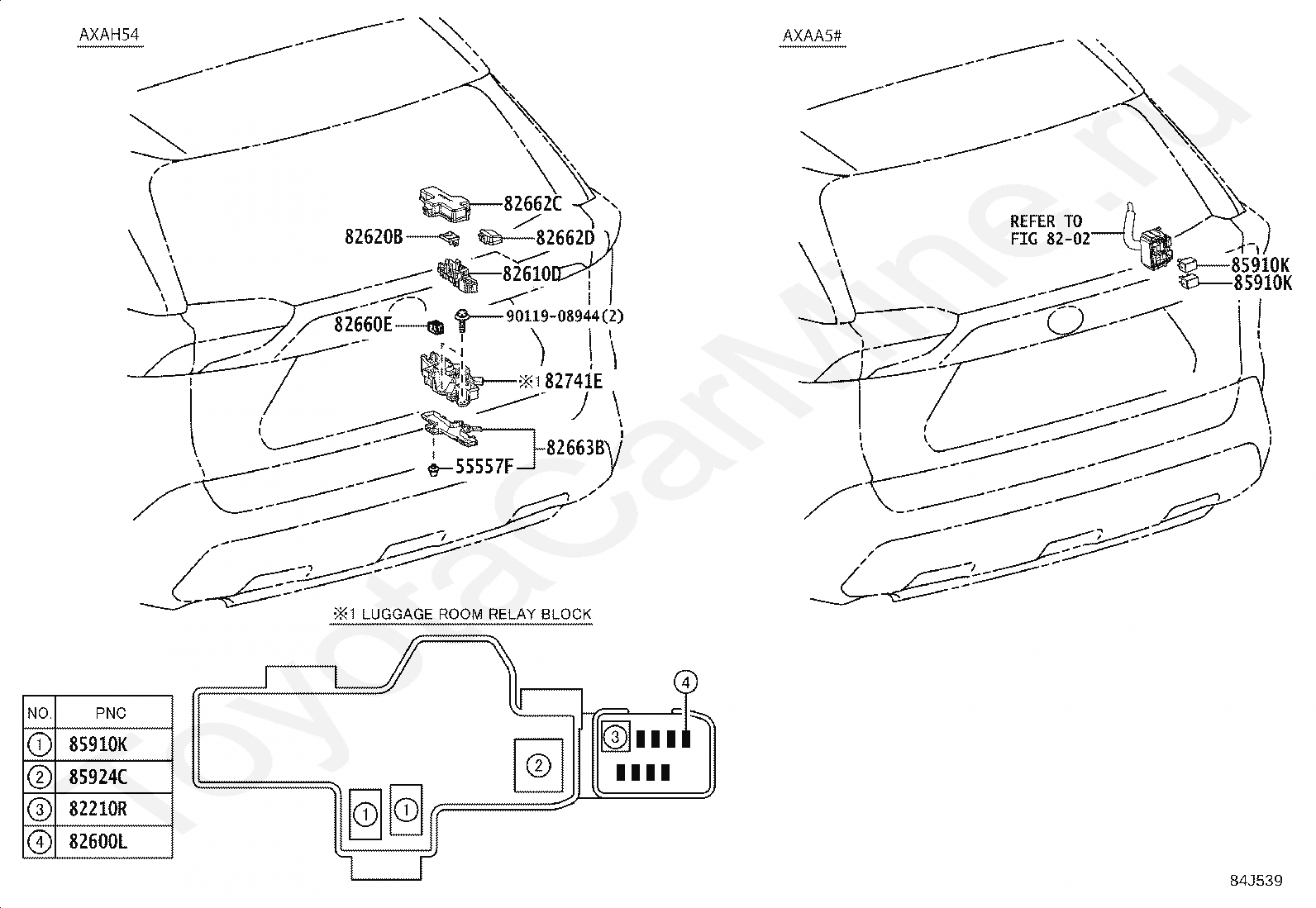

55557F
CUSHION, RELAY BLOCK
8202
переход к группе запчастей
82210R
LUGGAGE ROOM FUSIBLE LINK
82600L
LUGGAGE ROOM FUSE
82610D
BLOCK ASSY, FUSE
82620B
BLOCK ASSY, FUSIBLE LINK
82660E
BLOCK ASSY, RELAY
82662C
COVER, RELAY BLOCK, UPPER, NO.3
82662D
COVER, RELAY BLOCK, UPPER, NO.4
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82741E
BLOCK, LUGGAGE ROOM RELAY, NO.1
85910K
RELAY, REAR SEAT HEATER
85924C
RELAY, IGCT
9011908944
Крепеж
