Фары TOYOTA RAV4 (NAP), 2020/09 - 2025, 2,5 литра, 16 клапанов, DOHC, фургон, AXAA52, автомат, АКПП, 8 скоростей

Каталог

Америка

Модель

RAV4 (NAP)

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

фургон

Фрейм

AXAA52

Трансмиссия

автомат АКПП, 8 скоростей

Опции

5 дверей METERS США 832W

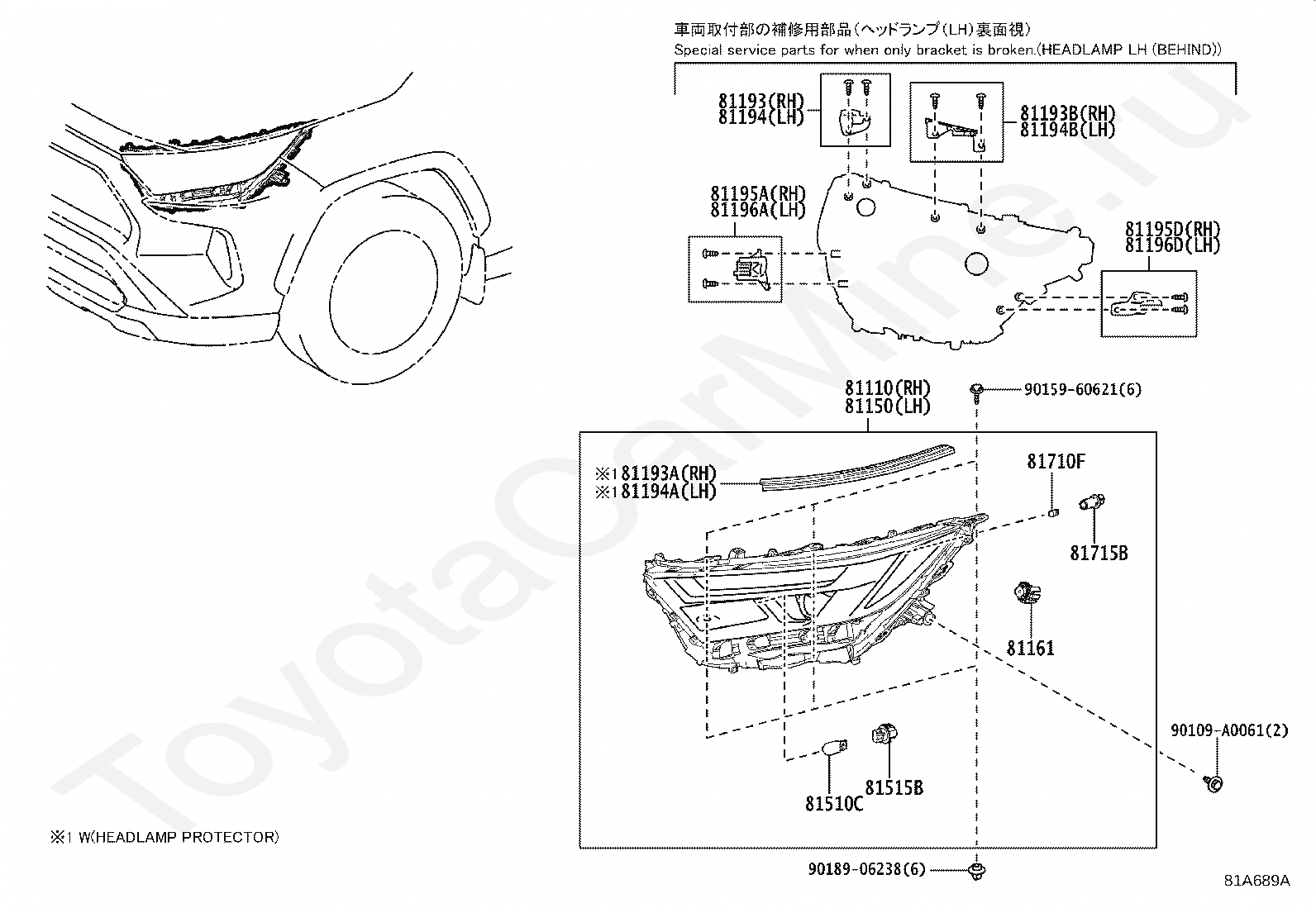

Код

Описание

81110

HEADLAMP ASSY, RH

81150

HEADLAMP ASSY, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193A

PROTECTOR, HEADLAMP, RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194A

PROTECTOR, HEADLAMP, LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81195D

RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81196D

RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

90109A0061

Крепеж

9015960621

Крепеж

9018906238

Крепеж

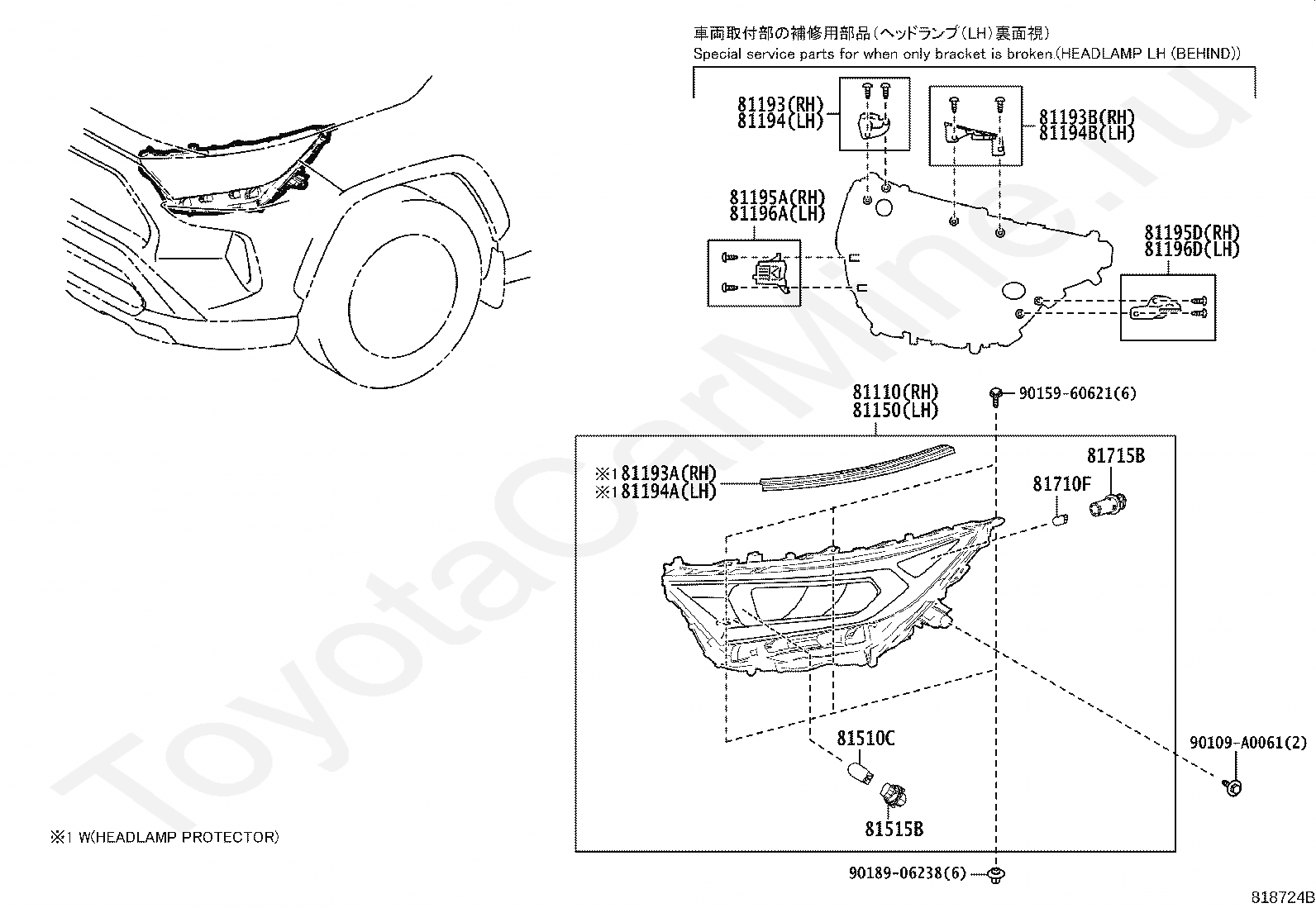

Код

Описание

81110

HEADLAMP ASSY, RH

81150

HEADLAMP ASSY, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81195D

RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81196D

RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

90109A0061

Крепеж

9015960621

Крепеж

9018906238

Крепеж

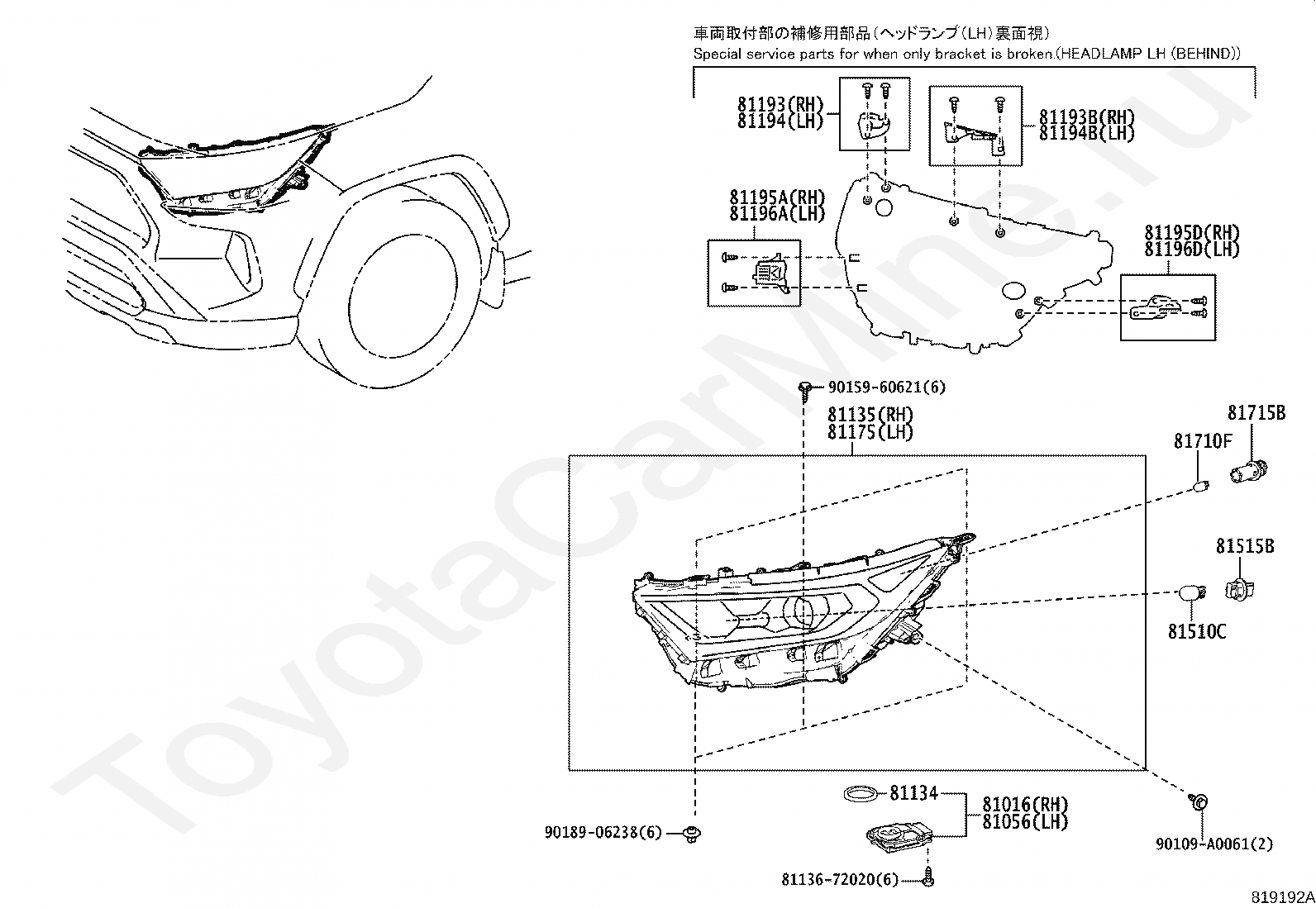

Код

Описание

81016

COMPUTER SUB-ASSY, HEADLAMP, RH NO.1

81056

COMPUTER SUB-ASSY, HEADLAMP, LH NO.1

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

8113672020

Крепеж

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81195D

RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81196D

RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

90109A0061

Крепеж

9015960621

Крепеж

9018906238

Крепеж

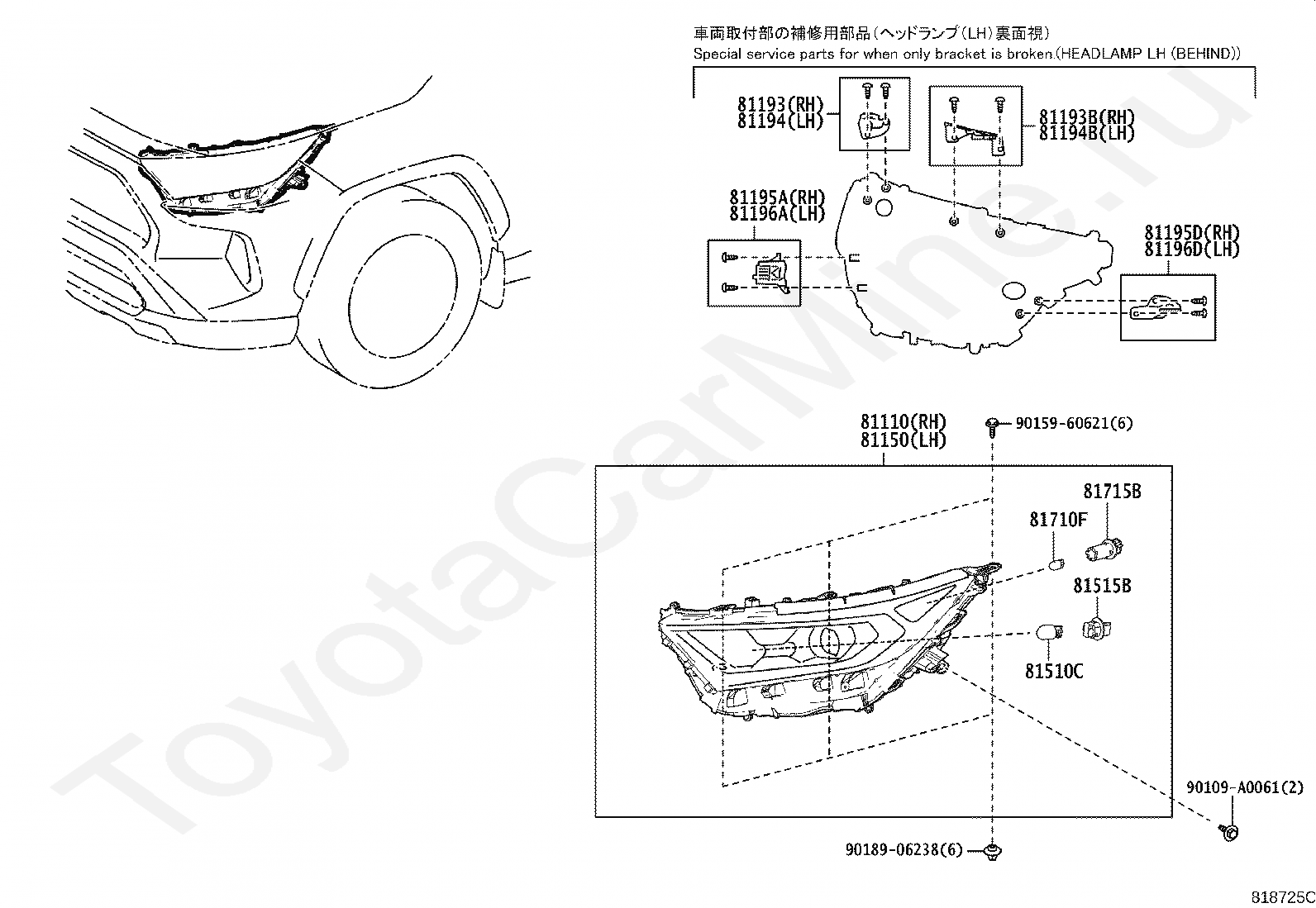

Код

Описание

81110

HEADLAMP ASSY, RH

81150

HEADLAMP ASSY, LH

81161

LED, CLEARANCE LAMP

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193A

PROTECTOR, HEADLAMP, RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194A

PROTECTOR, HEADLAMP, LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81195D

RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81196D

RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

90109A0061

Крепеж

9015960621

Крепеж

9018906238

Крепеж

Фары TOYOTA RAV4 (NAP), 2020/09 - 2025, 2,5 литра, 16 клапанов, DOHC, фургон, AXAA52, автомат, АКПП, 8 скоростей
