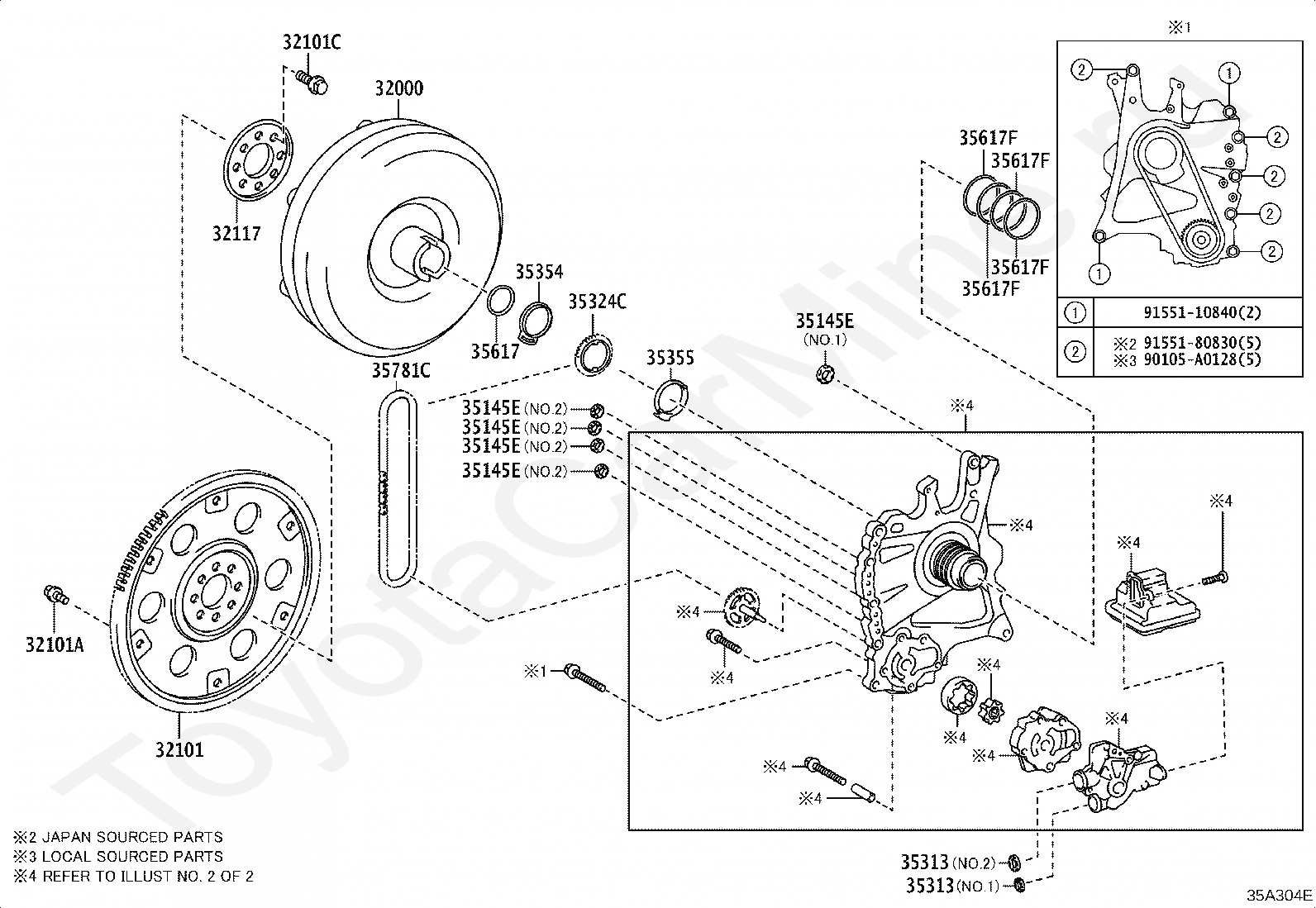

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA RAV4 (NAP), 2020/09 - 2025, 2,5 литра, 16 клапанов, DOHC, фургон, AXAA52, автомат, АКПП, 8 скоростей

Каталог

Америка

Модель

RAV4 (NAP)

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

фургон

Фрейм

AXAA52

Трансмиссия

автомат АКПП, 8 скоростей

Опции

5 дверей METERS США 832W

Код

Описание

32000

CONVERTER ASSY, TORQUE

32101

GEAR SUB-ASSY, DRIVE PLATE & RING

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101C

BOLT, HEXAGON(FOR DRIVE PLATE SETTING)

32117

SPACER, DRIVE PLATE, REAR

35145E

GASKET, TRANSAXLE CASE

35313

GASKET, FRONT OIL PUMP COVER

35324C

SPROCKET, TRANSMISSION OIL PUMP DRIVE

35354

WASHER, OIL PUMP SPROCKET THRUST, FRONT

35355

WASHER, OIL PUMP SPROCKET THRUST, REAR

35617

RING, CLUTCH DRUM OIL SEAL

35617F

RING, CLUTCH DRUM OIL SEAL

35781C

CHAIN, TRANSMISSION DRIVE

90105A0128

Крепеж

9155110840

Крепеж

9155180830

Крепеж

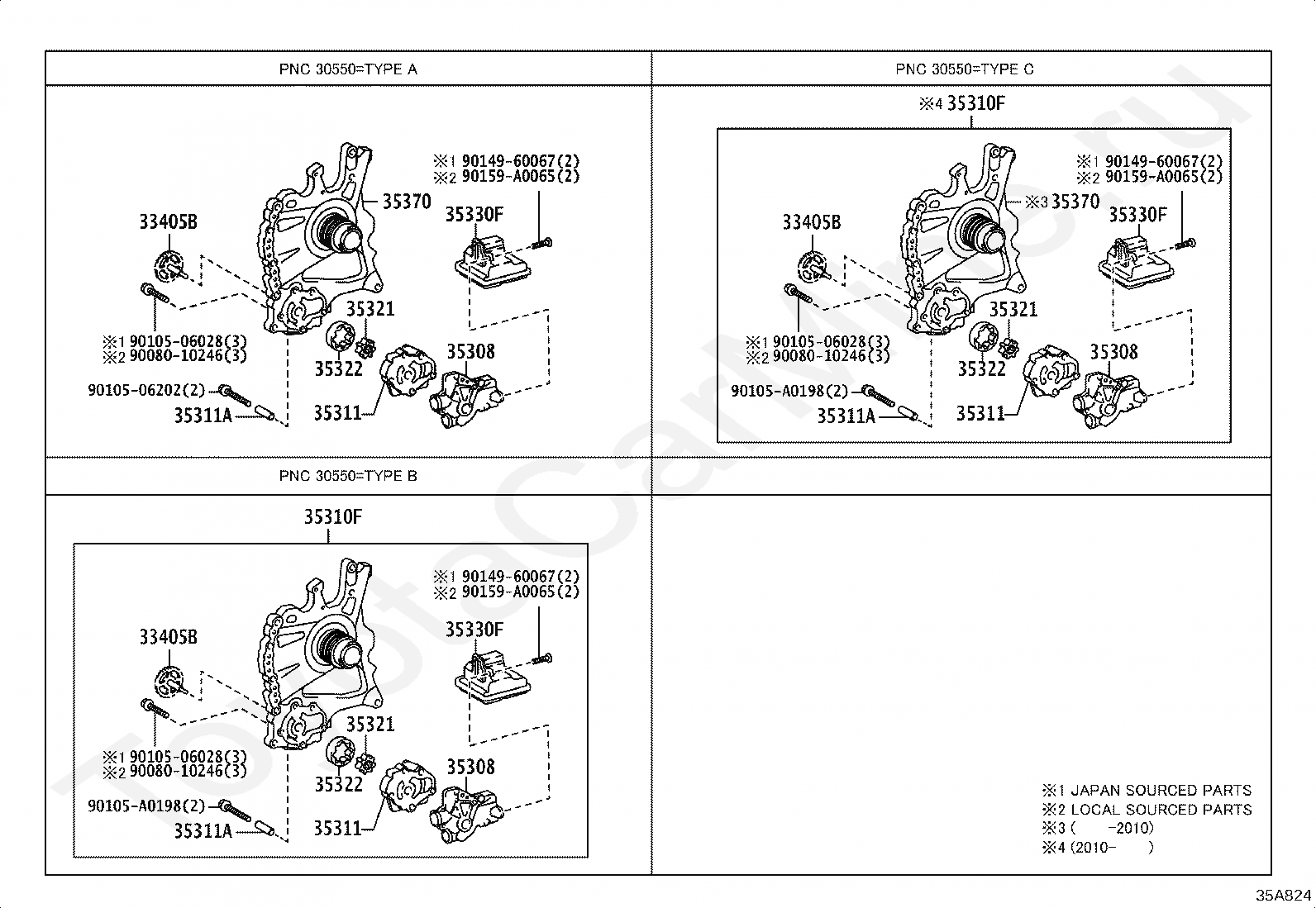

Код

Описание

33405B

SHAFT SUB-ASSY, OIL PUMP DRIVE

35308

COVER SUB-ASSY, FRONT OIL PUMP

35310F

PUMP ASSY, FRONT OIL

35311

BODY, FRONT OIL PUMP

35311A

PIN, RING

35321

GEAR, FRONT OIL PUMP DRIVE

35322

GEAR, FRONT OIL PUMP DRIVEN

35330F

STRAINER ASSY, OIL

35370

SHAFT ASSY, STATOR

9008010246

Крепеж

9010506028

Крепеж

9010506202

Крепеж

90105A0198

Крепеж

9014960067

Крепеж

90159A0065

Крепеж

Код

Описание

32000

CONVERTER ASSY, TORQUE

32101

GEAR SUB-ASSY, DRIVE PLATE & RING

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101C

BOLT, HEXAGON(FOR DRIVE PLATE SETTING)

32117

SPACER, DRIVE PLATE, REAR

33405B

SHAFT SUB-ASSY, OIL PUMP DRIVE

35145E

GASKET, TRANSAXLE CASE

3530B

COVER SUB-ASSY, FRONT OIL PUMP & SOLENOID

35310F

PUMP ASSY, FRONT OIL

35311

BODY, FRONT OIL PUMP

35311A

PIN, RING

35313

GASKET, FRONT OIL PUMP COVER

35321

GEAR, FRONT OIL PUMP DRIVE

35322

GEAR, FRONT OIL PUMP DRIVEN

35324C

SPROCKET, TRANSMISSION OIL PUMP DRIVE

35330F

STRAINER ASSY, OIL

35354

WASHER, OIL PUMP SPROCKET THRUST, FRONT

35355

WASHER, OIL PUMP SPROCKET THRUST, REAR

35370

SHAFT ASSY, STATOR

35617

RING, CLUTCH DRUM OIL SEAL

35617F

RING, CLUTCH DRUM OIL SEAL

35781C

CHAIN, TRANSMISSION DRIVE

82125T

WIRE, TRANSMISSION

9008010238

Крепеж

9008010246

Крепеж

9010506028

Крепеж

9010506202

Крепеж

90105A0128

Крепеж

90105A0198

Крепеж

9014960067

Крепеж

90159A0065

Крепеж

9151180614

Крепеж

9155110840

Крепеж

9155180830

Крепеж

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA RAV4 (NAP), 2020/09 - 2025, 2,5 литра, 16 клапанов, DOHC, фургон, AXAA52, автомат, АКПП, 8 скоростей
