Каталог
Ближний ВостокМодель
RAV4 (CHINA)Двигатель
2500CC 16-VALVE DOHCФрейм
MXAA54Трансмиссия
вариатор HIGH EFFICIENCY TWIN CAMОпции
METERS 723W

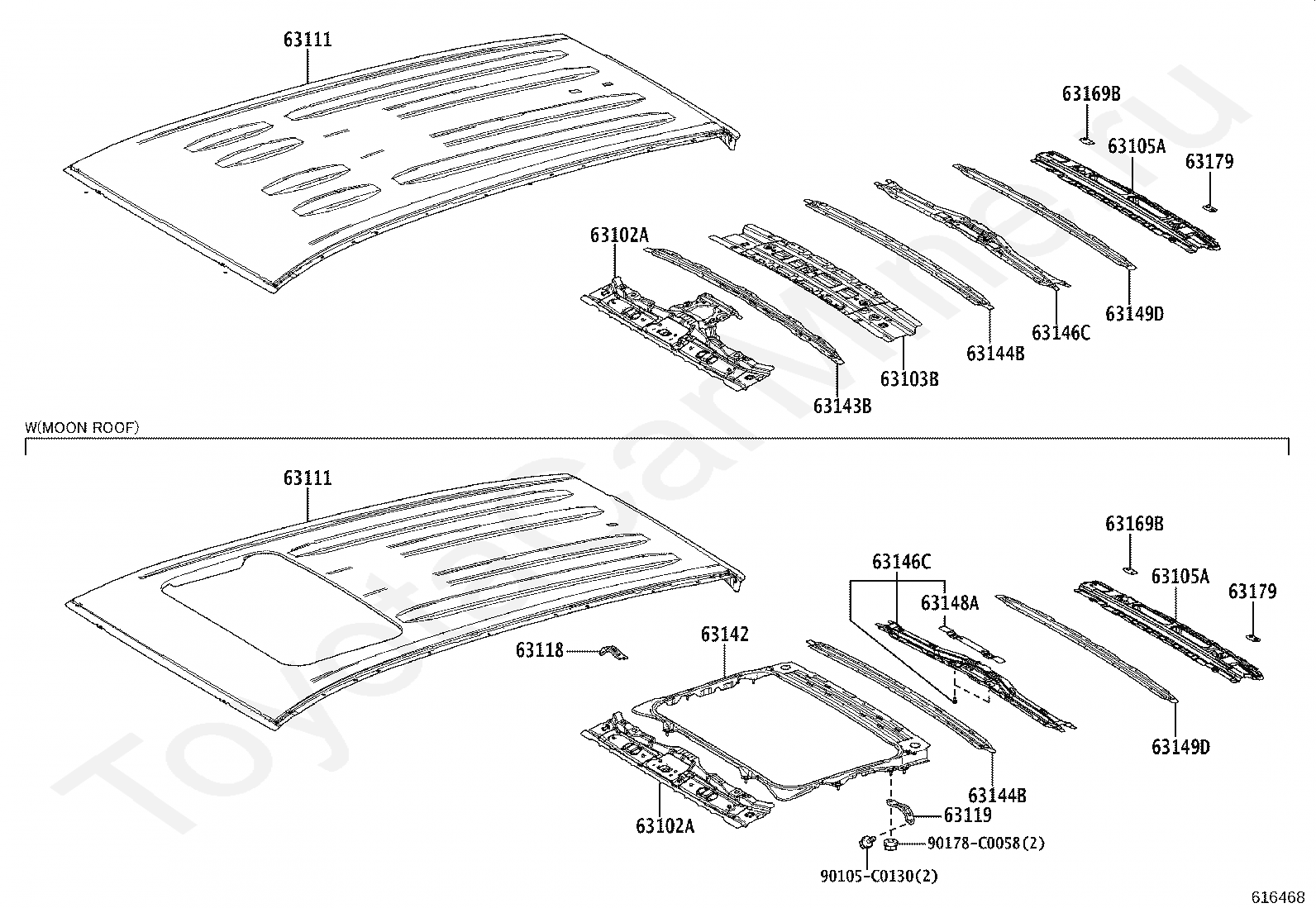

Код
Описание
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63103B
REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63105A
FRAME SUB-ASSY, BACK DOOR OPENING
63111
PANEL, ROOF
63118
SUPPORT, ROOF PANEL, RH
63119
SUPPORT, ROOF PANEL, LH
63142
REINFORCEMENT, ROOF PANEL, NO.2
63143B
REINFORCEMENT, ROOF PANEL, NO.3
63144B
REINFORCEMENT, ROOF PANEL, NO.4
63146C
REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63148A
REINFORCEMENT, ROOF PANEL, NO.7
63149D
REINFORCEMENT, ROOF PANEL, NO.8
63169B
PLATE, ROOF PANEL REINFORCEMENT, RH
63179
PLATE, ROOF PANEL REINFORCEMENT, LH
90105C0130
Крепеж
90178C0058
Крепеж

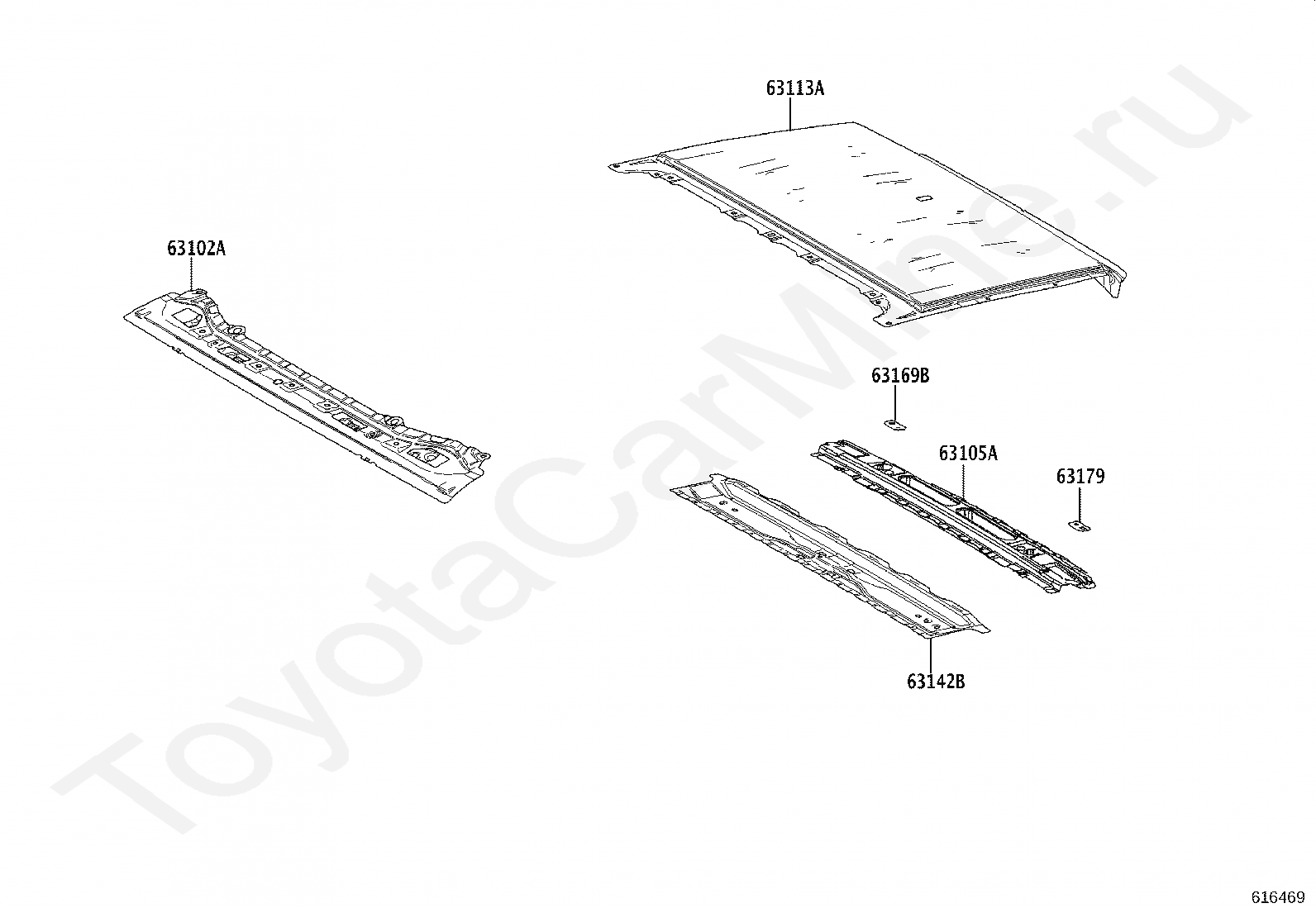

Код
Описание
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63105A
FRAME SUB-ASSY, BACK DOOR OPENING
63113A
PANEL, ROOF, NO.3
63142B
REINFORCEMENT, ROOF PANEL, REAR
63169B
PLATE, ROOF PANEL REINFORCEMENT, RH
63179
PLATE, ROOF PANEL REINFORCEMENT, LH

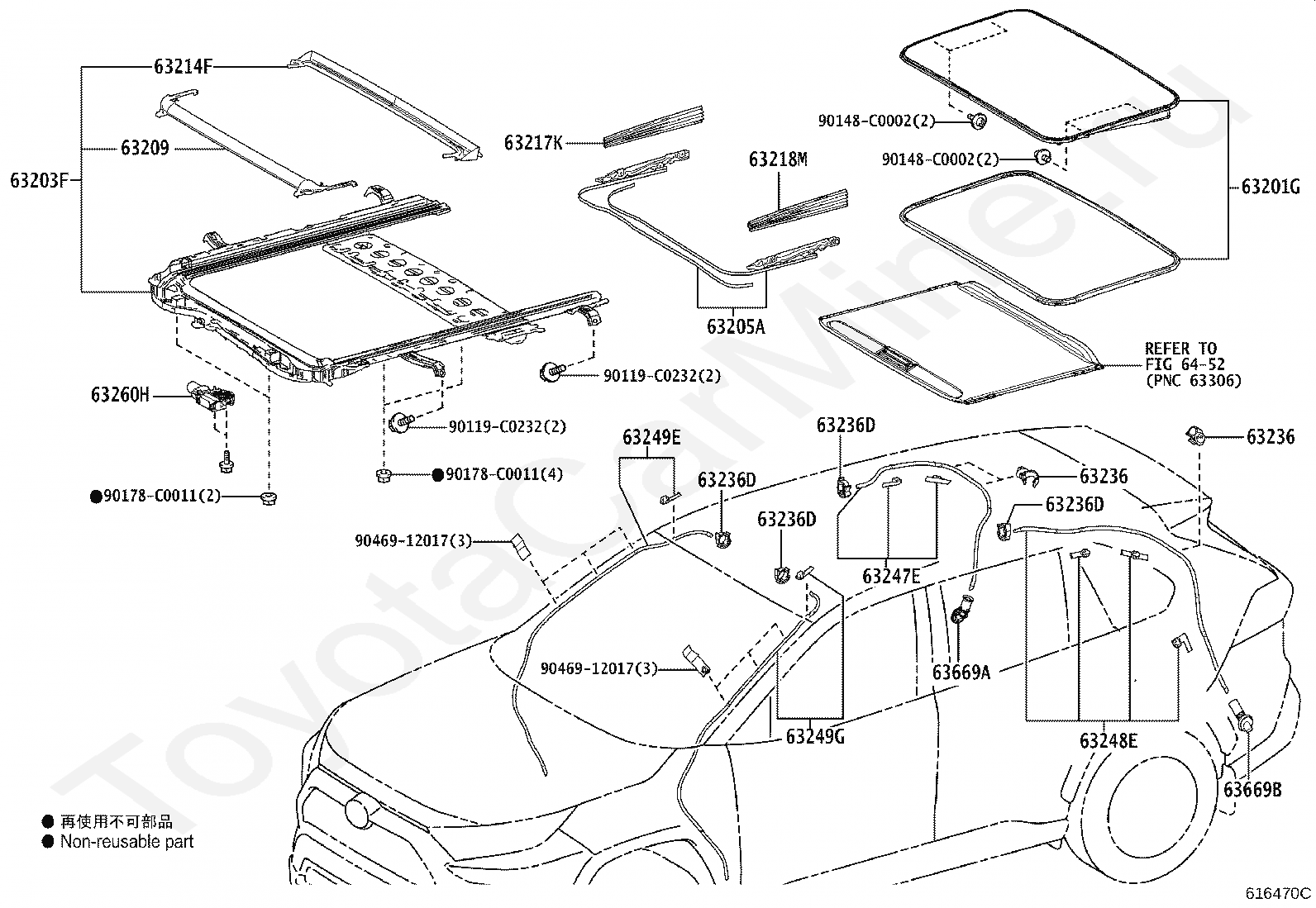

Код
Описание
63201G
GLASS SUB-ASSY, SLIDING ROOF
63203F
HOUSING SUB-ASSY, SLIDING ROOF
63205A
CABLE SUB-ASSY, SLIDING ROOF DRIVE
63209
PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63214F
CHANNEL, ROOF DRIP, REAR
63217K
GARNISH, SLIDING ROOF SIDE, RH
63218M
GARNISH, SLIDING ROOF SIDE, LH
63236
CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63236D
CLAMP, SLIDING ROOF DRAIN HOSE
63247E
HOSE, SLIDING ROOF DRAIN, REAR RH
63248E
HOSE, SLIDING ROOF DRAIN, REAR LH
63249E
HOSE, SLIDING ROOF DRAIN
63249G
HOSE, SLIDING ROOF DRAIN
63260H
GEAR ASSY, SLIDING ROOF DRIVE
63669A
GROMMET, SLIDING ROOF DRAIN
63669B
GROMMET, SLIDING ROOF DRAIN
6452
переход к группе запчастей
90119C0232
Крепеж
90148C0002
Крепеж
90178C0011
Крепеж
9046912017
Крепеж

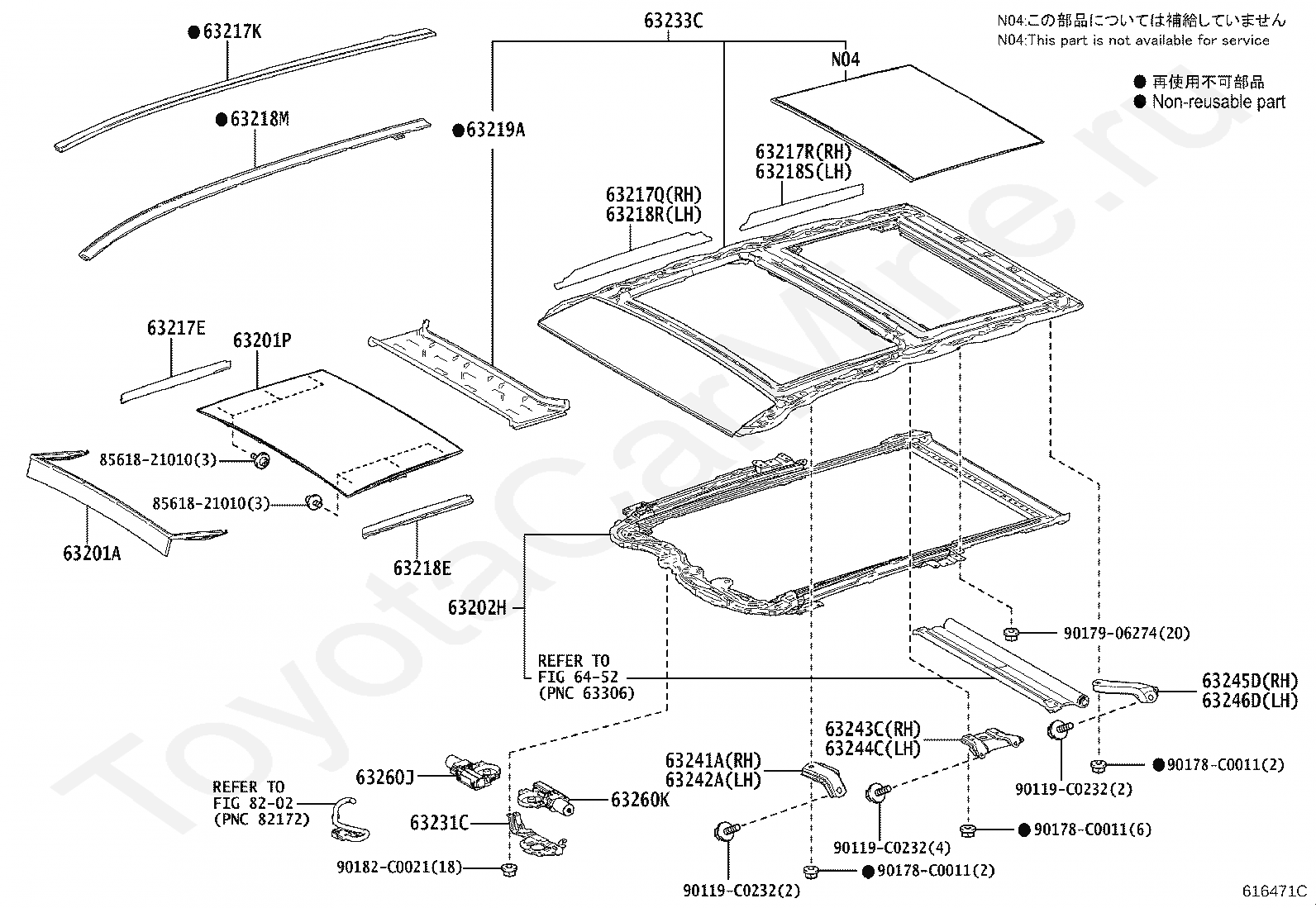

Код
Описание
63201A
PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63201P
GLASS SUB-ASSY, SLIDING ROOF
63202H
RAIL SUB-ASSY, SLIDE ROOF
63217E
GARNISH, SLIDING ROOF, FRONT RH
63217K
GARNISH, SLIDING ROOF SIDE, RH
63217Q
GARNISH, SLIDING ROOF SIDE, RH
63217R
GARNISH, SLIDING ROOF SIDE, RH
63218E
GARNISH, SLIDING ROOF, FRONT LH
63218M
GARNISH, SLIDING ROOF SIDE, LH
63218R
GARNISH, SLIDING ROOF SIDE, LH
63218S
GARNISH, SLIDING ROOF SIDE, LH
63219A
GARNISH, SLIDING ROOF, REAR
63231C
BRACKET, ROOM LAMP
63233C
PANEL, SLIDING ROOF HOUSING
63241A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63242A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63243C
BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH
63244C
BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH
63245D
BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH
63246D
BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH
63260J
GEAR ASSY, SLIDING ROOF DRIVE
63260K
GEAR ASSY, SLIDING ROOF DRIVE
6452
переход к группе запчастей
8202
переход к группе запчастей
8561821010
Крепеж
90119C0232
Крепеж
90178C0011
Крепеж
9017906274
Крепеж
90182C0021
Крепеж

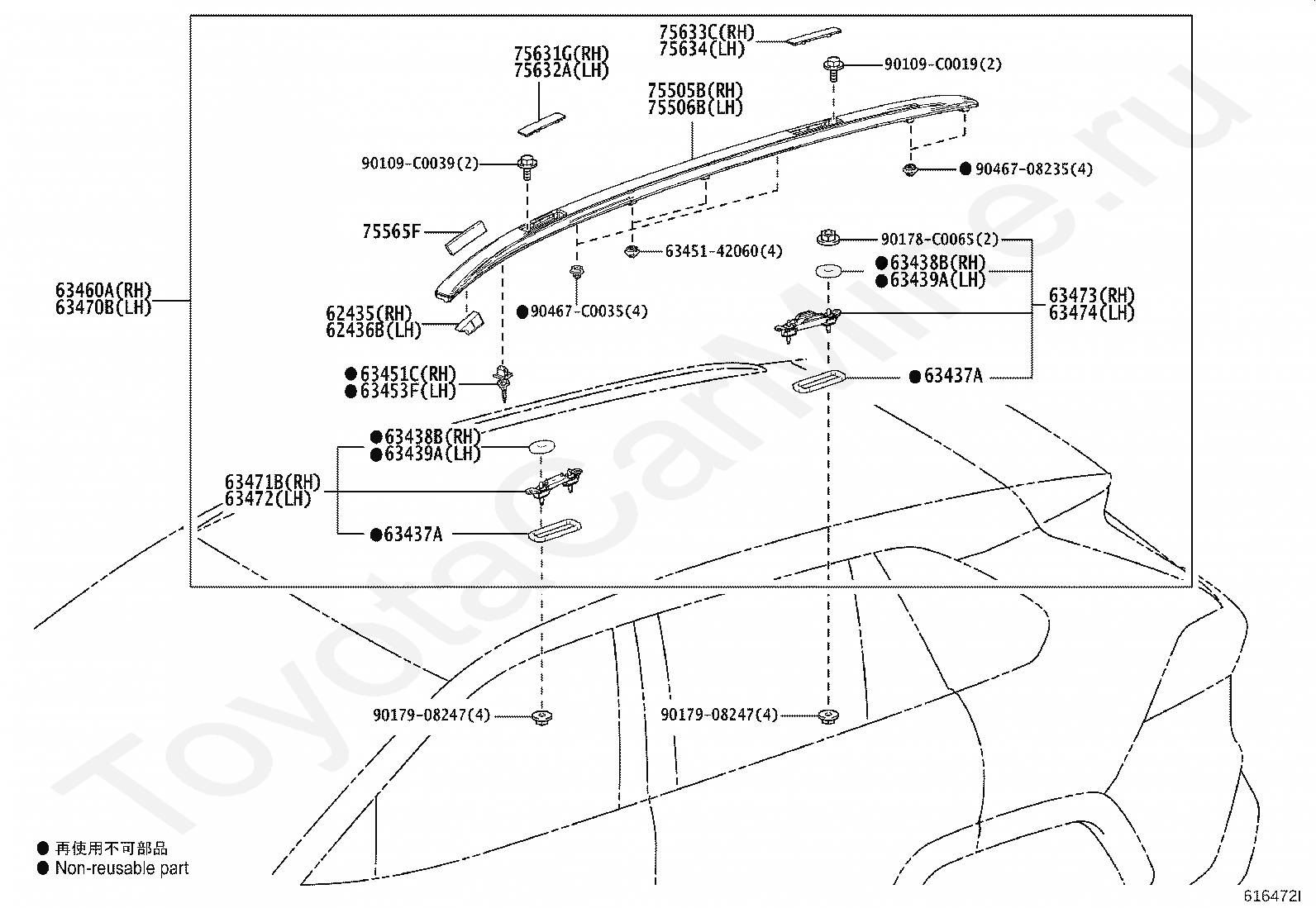

Код
Описание
62435
PAD, ROOF SIDE RAIL GARNISH, RH
62436B
PAD, ROOF SIDE RAIL GARNISH, LH
63437A
SEAL, ROOF CARRIER, NO.2
63438B
SEAL, ROOF CARRIER, NO.3 RH
63439A
SEAL, ROOF CARRIER, NO.3 LH
6345142060
Крепеж
63451C
RETAINER, ROOF RACK, FRONT RH
63453F
RETAINER, ROOF RACK, FRONT LH
63460A
RACK ASSY, ROOF, RH
63470B
RACK ASSY, ROOF, LH
63471B
LEG, ROOF RACK, FRONT RH
63472
LEG, ROOF RACK, FRONT LH
63473
LEG, ROOF RACK, REAR RH
63474
LEG, ROOF RACK, REAR LH
75505B
GARNISH SUB-ASSY, ROOF SIDE, FRONT RH
75506B
GARNISH SUB-ASSY, ROOF SIDE, FRONT LH
75565F
PROTECTOR, ROOF SIDE GARNISH, NO.1
75631G
LID, ROOF SIDE GARNISH, NO.1 RH
75632A
LID, ROOF SIDE GARNISH, NO.1 LH
75633C
LID, ROOF SIDE GARNISH, NO.2 RH
75634
LID, ROOF SIDE GARNISH, NO.2 LH
90109C0019
Крепеж
90109C0039
Крепеж
90178C0065
Крепеж
9017908247
Крепеж
9046708235
Крепеж
90467C0035
Крепеж
