> Запчасти RAV4 > Поиск по каталогу
Запчасти Аксессуары Масло Расходники Каталог Шины, Диски

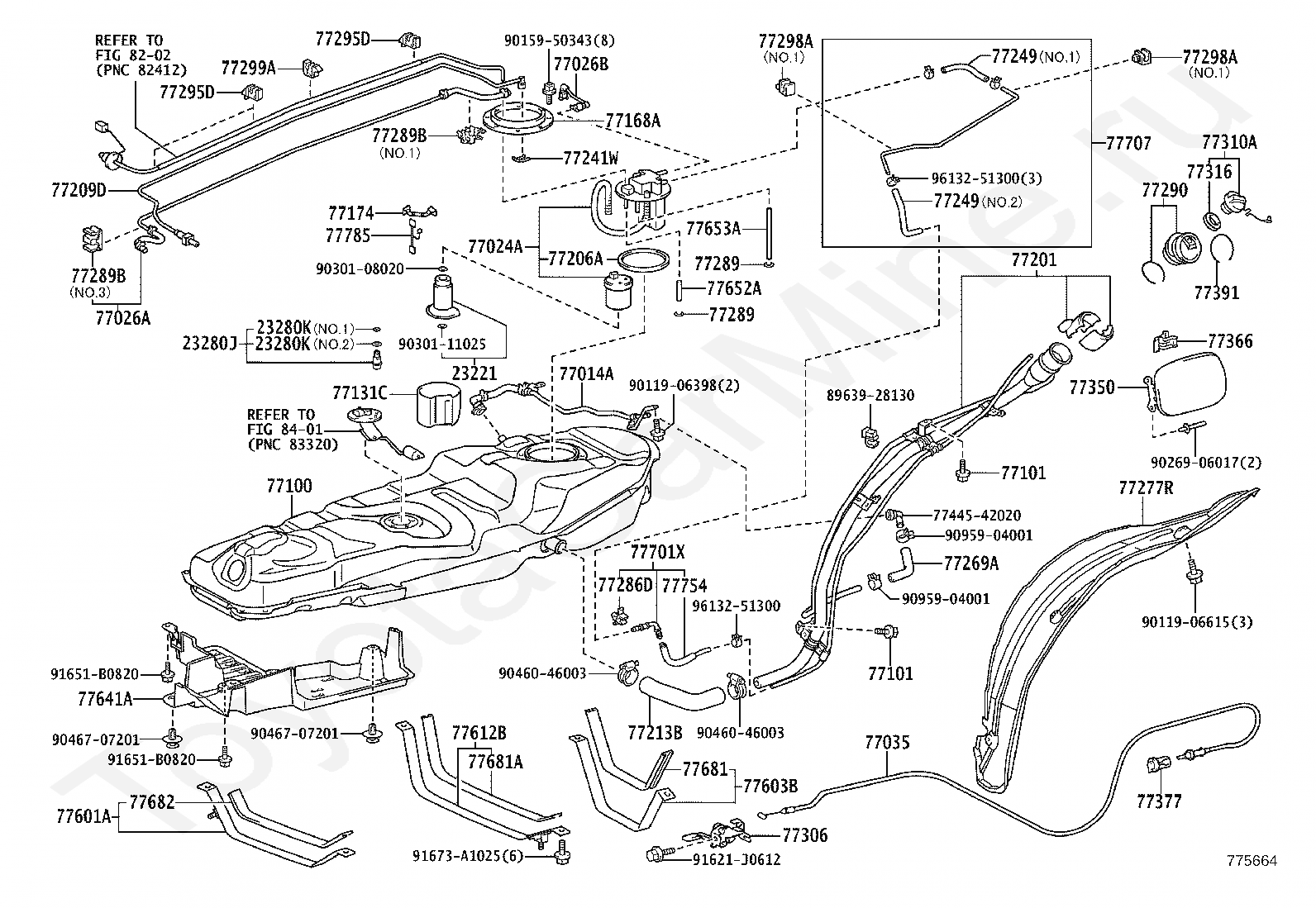

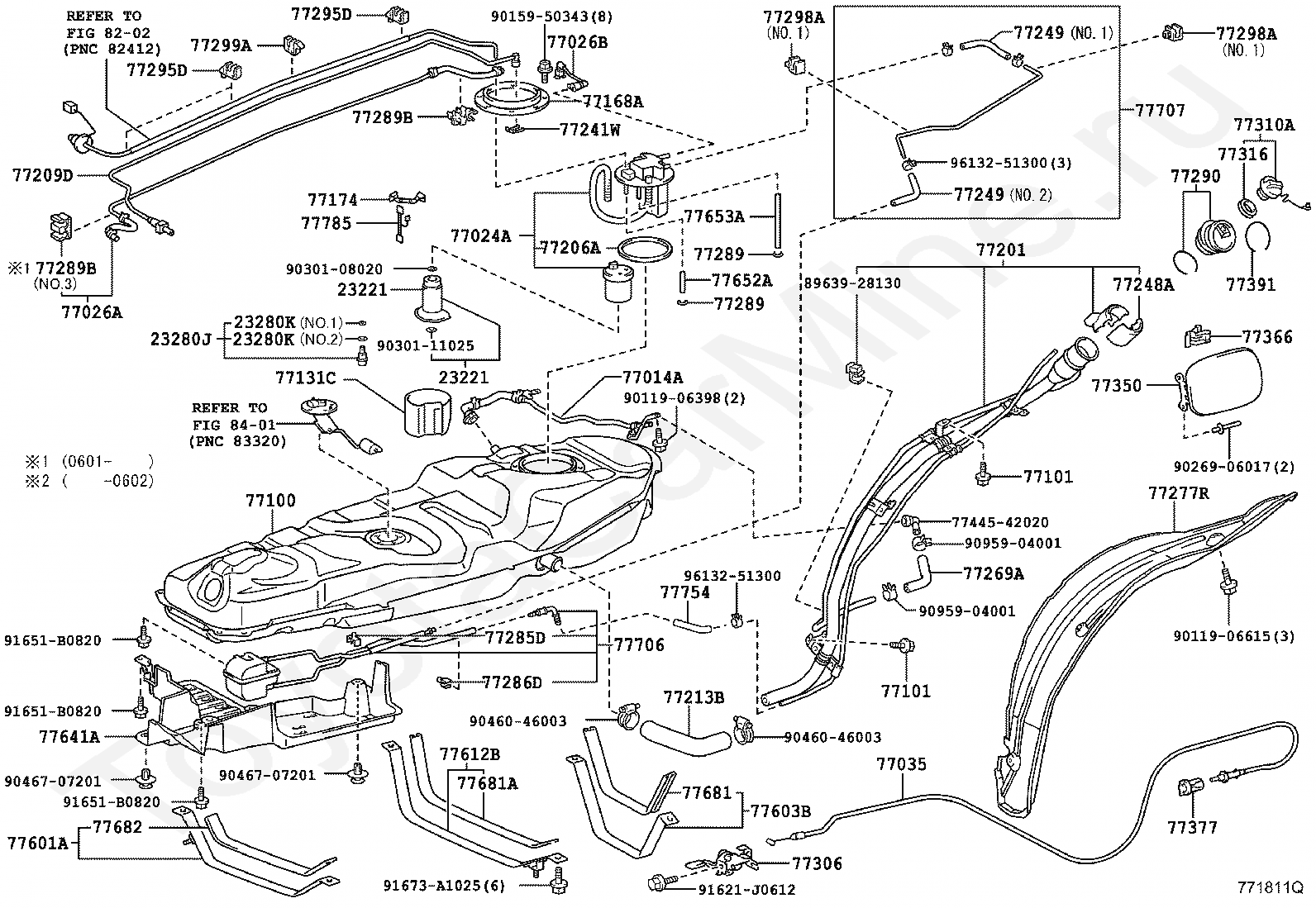

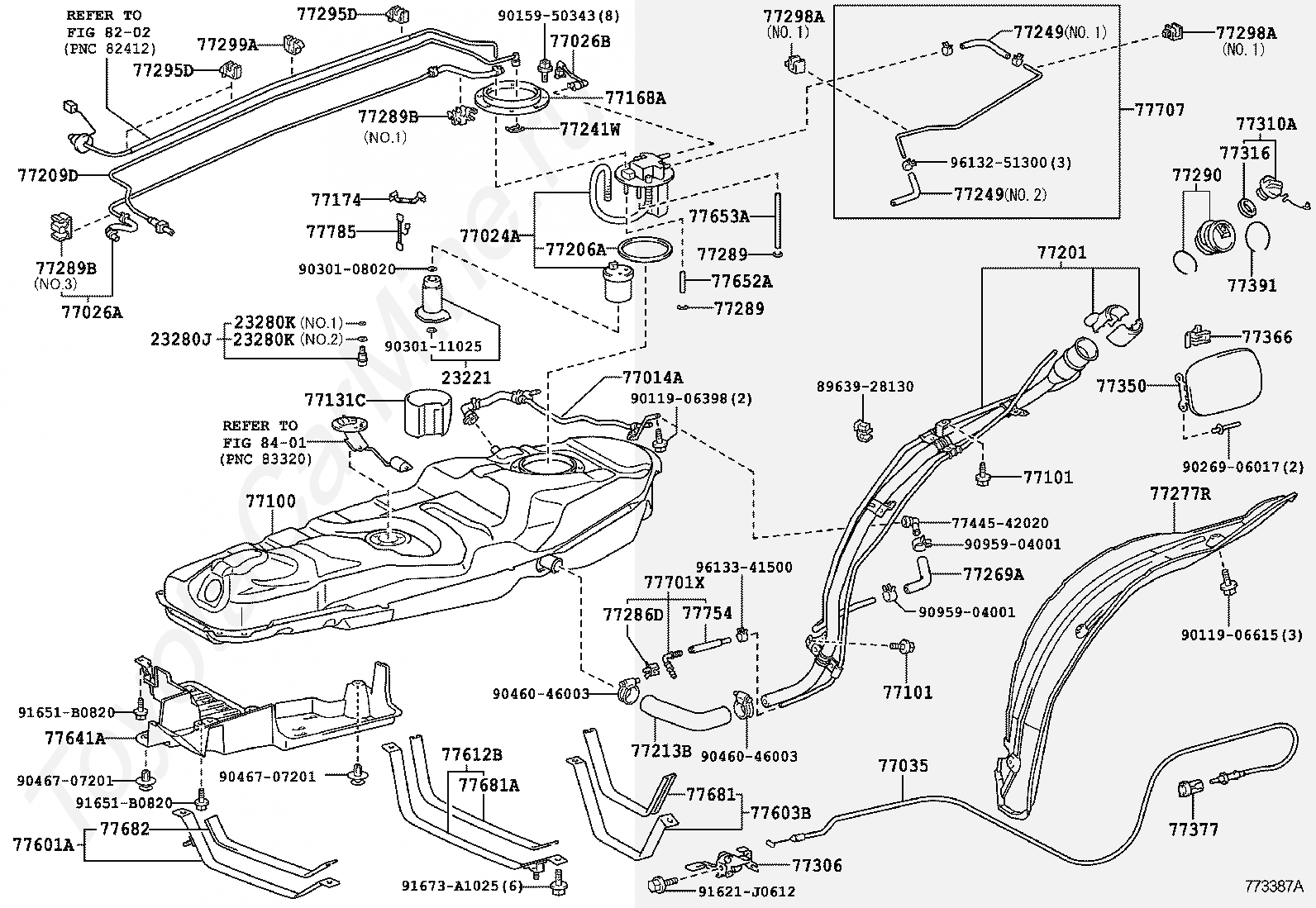

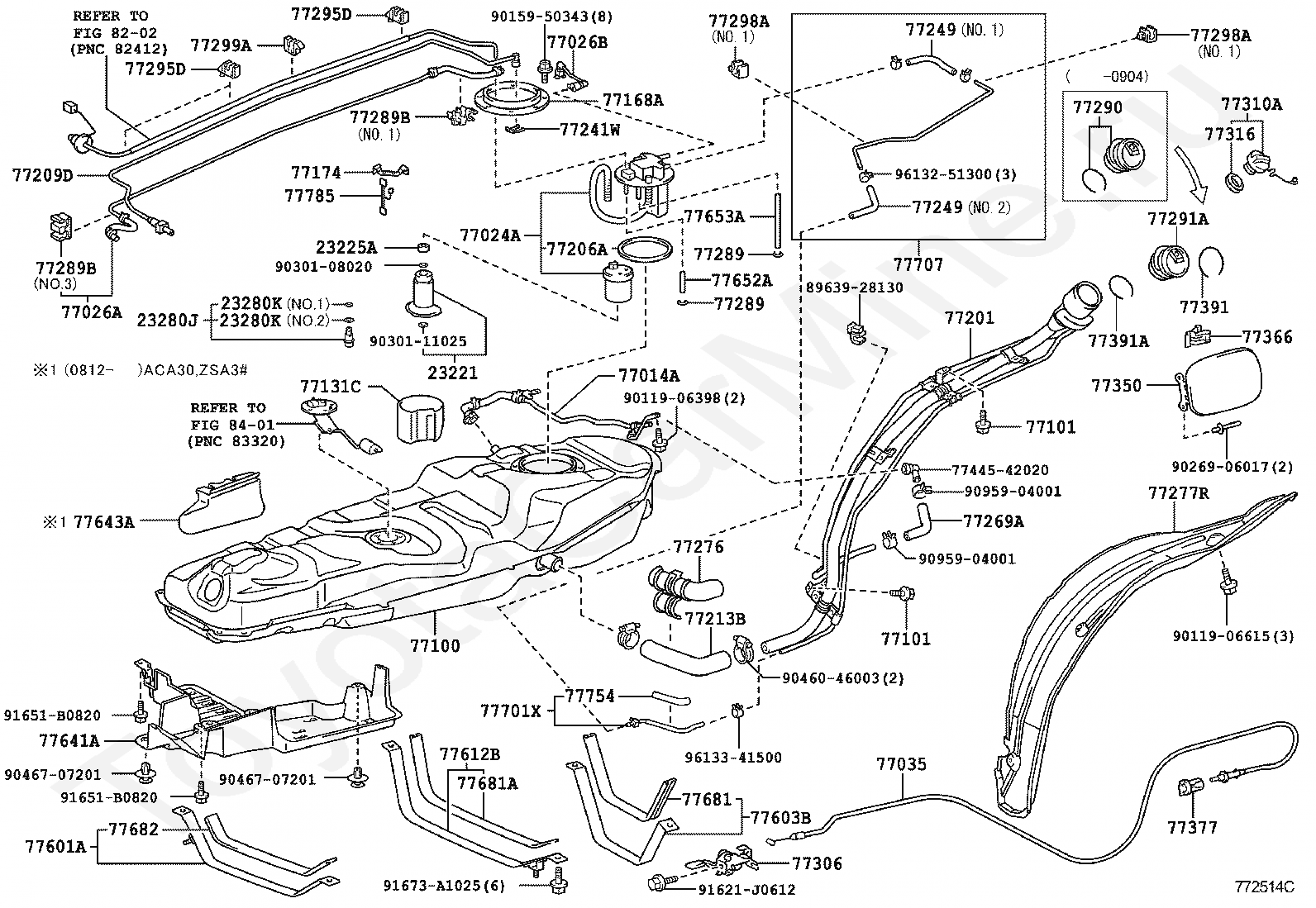

Топливный бак и горловина TOYOTA RAV4, 2008/12 - 2012/12, 2 литра, 16 клапанов DOHC, EFI, X TYPE, ACA30, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

RAV4

Двигатель

2 литра, 16 клапанов DOHC, EFI

Класс

X TYPE

Фрейм

ACA30

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль HIGH EFFICIENCY TWIN CAM Европа A TYPE 426W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

23221

PUMP, FUEL

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

77014A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

77024A

PLATE SUB-ASSY, FUEL SUCTION

77026A

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77026B

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77101

PLUG(FOR FUEL SUB-TANK)

77131C

SUB-TANK, FUEL, NO.1

77168A

PLATE, FUEL TANK VENT TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77201

PIPE SUB-ASSY, FUEL TANK INLET

77206A

GASKET (FOR FUEL TANK SUCTION TUBE)

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213B

HOSE, FUEL TANK TO FILLER PIPE

77241W

CLIP, TUBE JOINT

77248A

HOLDER, FUEL TANK FILLER PIPE COVER

77249

HOSE, FUEL EMISSION

77269A

HOSE, FUEL TANK BREATHER

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77285D

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77289

HOLDER, FUEL TANK PIPE SETTING

77289B

CLAMP, FUEL TUBE, NO.3

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77295D

GROMMET, FUEL TUBE

77298A

CLAMP, FUEL TUBE, NO.4

77299A

CLAMP, FUEL TUBE, NO.5

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

7744542020

Крепеж

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77603B

BAND SUB-ASSY, FUEL TANK, NO.2 RH

77612B

BAND, FUEL TANK, NO.2

77641A

PROTECTOR, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681

SEAT, FUEL TANK BAND, RH

77681A

SEAT, FUEL TANK BAND

77682

SEAT, FUEL TANK BAND, LH

77706

FILTER SUB-ASSY, CHARCOAL CANISTER

77707

TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

77754

HOSE, CHARCOAL CANISTER OUTLET, NO.1

77785

HARNESS, FUEL PUMP

8202

переход к группе запчастей

8401

переход к группе запчастей

8963928130

Крепеж

9011906398

Крепеж

9011906615

Крепеж

9015950343

Крепеж

9026906017

Крепеж

9030108020

Крепеж

9030111025

Крепеж

9046046003

Крепеж

9046707201

Крепеж

9095904001

Крепеж

91621J0612

Крепеж

91651B0820

Крепеж

91673A1025

Крепеж

9613251300

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

23221

PUMP, FUEL

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

77014A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

77024A

PLATE SUB-ASSY, FUEL SUCTION

77026A

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77026B

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77101

PLUG(FOR FUEL SUB-TANK)

77131C

SUB-TANK, FUEL, NO.1

77168A

PLATE, FUEL TANK VENT TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77201

PIPE SUB-ASSY, FUEL TANK INLET

77206A

GASKET (FOR FUEL TANK SUCTION TUBE)

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213B

HOSE, FUEL TANK TO FILLER PIPE

77241W

CLIP, TUBE JOINT

77249

HOSE, FUEL EMISSION

77269A

HOSE, FUEL TANK BREATHER

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77286D

CLAMP, FUEL TUBE, NO.2

77289

HOLDER, FUEL TANK PIPE SETTING

77289B

CLAMP, FUEL TUBE, NO.3

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77295D

GROMMET, FUEL TUBE

77298A

CLAMP, FUEL TUBE, NO.4

77299A

CLAMP, FUEL TUBE, NO.5

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

7744542020

Крепеж

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77603B

BAND SUB-ASSY, FUEL TANK, NO.2 RH

77612B

BAND, FUEL TANK, NO.2

77641A

PROTECTOR, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681

SEAT, FUEL TANK BAND, RH

77681A

SEAT, FUEL TANK BAND

77682

SEAT, FUEL TANK BAND, LH

77701X

HOSE SUB-ASSY, CANISTER OUTLET, NO.1

77707

TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

77754

HOSE, CHARCOAL CANISTER OUTLET, NO.1

77785

HARNESS, FUEL PUMP

8202

переход к группе запчастей

8401

переход к группе запчастей

8963928130

Крепеж

9011906398

Крепеж

9011906615

Крепеж

9015950343

Крепеж

9026906017

Крепеж

9030108020

Крепеж

9030111025

Крепеж

9046046003

Крепеж

9046707201

Крепеж

9095904001

Крепеж

91621J0612

Крепеж

91651B0820

Крепеж

91673A1025

Крепеж

9613251300

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

23221

PUMP, FUEL

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

77014A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

77024A

PLATE SUB-ASSY, FUEL SUCTION

77026A

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77026B

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77101

PLUG(FOR FUEL SUB-TANK)

77131C

SUB-TANK, FUEL, NO.1

77168A

PLATE, FUEL TANK VENT TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77201

PIPE SUB-ASSY, FUEL TANK INLET

77206A

GASKET (FOR FUEL TANK SUCTION TUBE)

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213B

HOSE, FUEL TANK TO FILLER PIPE

77241W

CLIP, TUBE JOINT

77249

HOSE, FUEL EMISSION

77269A

HOSE, FUEL TANK BREATHER

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77286D

CLAMP, FUEL TUBE, NO.2

77289

HOLDER, FUEL TANK PIPE SETTING

77289B

CLAMP, FUEL TUBE, NO.3

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77295D

GROMMET, FUEL TUBE

77298A

CLAMP, FUEL TUBE, NO.4

77299A

CLAMP, FUEL TUBE, NO.5

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

7744542020

Крепеж

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77603B

BAND SUB-ASSY, FUEL TANK, NO.2 RH

77612B

BAND, FUEL TANK, NO.2

77641A

PROTECTOR, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681

SEAT, FUEL TANK BAND, RH

77681A

SEAT, FUEL TANK BAND

77682

SEAT, FUEL TANK BAND, LH

77701X

HOSE SUB-ASSY, CANISTER OUTLET, NO.1

77707

TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

77754

HOSE, CHARCOAL CANISTER OUTLET, NO.1

77785

HARNESS, FUEL PUMP

8202

переход к группе запчастей

8401

переход к группе запчастей

8963928130

Крепеж

9011906398

Крепеж

9011906615

Крепеж

9015950343

Крепеж

9026906017

Крепеж

9030108020

Крепеж

9030111025

Крепеж

9046046003

Крепеж

9046707201

Крепеж

9095904001

Крепеж

91621J0612

Крепеж

91651B0820

Крепеж

91673A1025

Крепеж

9613251300

Крепеж

9613341500

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

23221

PUMP, FUEL

23225A

SPACER, FUEL PUMP

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

77014A

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

77024A

PLATE SUB-ASSY, FUEL SUCTION

77026A

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77026B

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77100

TANK ASSY, FUEL

77101

PLUG(FOR FUEL SUB-TANK)

77131C

SUB-TANK, FUEL, NO.1

77168A

PLATE, FUEL TANK VENT TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77201

PIPE SUB-ASSY, FUEL TANK INLET

77206A

GASKET (FOR FUEL TANK SUCTION TUBE)

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213B

HOSE, FUEL TANK TO FILLER PIPE

77241W

CLIP, TUBE JOINT

77249

HOSE, FUEL EMISSION

77269A

HOSE, FUEL TANK BREATHER

77276

PROTECTOR, FUEL HOSE

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77289

HOLDER, FUEL TANK PIPE SETTING

77289B

CLAMP, FUEL TUBE, NO.3

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77291A

SHIELD, FUEL TANK FILLER PIPE

77295D

GROMMET, FUEL TUBE

77298A

CLAMP, FUEL TUBE, NO.4

77299A

CLAMP, FUEL TUBE, NO.5

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77391A

RING, FUEL INLET BOX

7744542020

Крепеж

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77603B

BAND SUB-ASSY, FUEL TANK, NO.2 RH

77612B

BAND, FUEL TANK, NO.2

77641A

PROTECTOR, FUEL TANK, NO.1

77643A

PROTECTOR, FUEL TANK, NO.3

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681

SEAT, FUEL TANK BAND, RH

77681A

SEAT, FUEL TANK BAND

77682

SEAT, FUEL TANK BAND, LH

77701X

HOSE SUB-ASSY, CANISTER OUTLET, NO.1

77707

TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

77754

HOSE, CHARCOAL CANISTER OUTLET, NO.1

77785

HARNESS, FUEL PUMP

8202

переход к группе запчастей

8401

переход к группе запчастей

8963928130

Крепеж

9011906398

Крепеж

9011906615

Крепеж

9015950343

Крепеж

9026906017

Крепеж

9030108020

Крепеж

9030111025

Крепеж

9046046003

Крепеж

9046707201

Крепеж

9095904001

Крепеж

91621J0612

Крепеж

91651B0820

Крепеж

91673A1025

Крепеж

9613251300

Крепеж

9613341500

Крепеж

+
+
+
+
+

Код

Описание

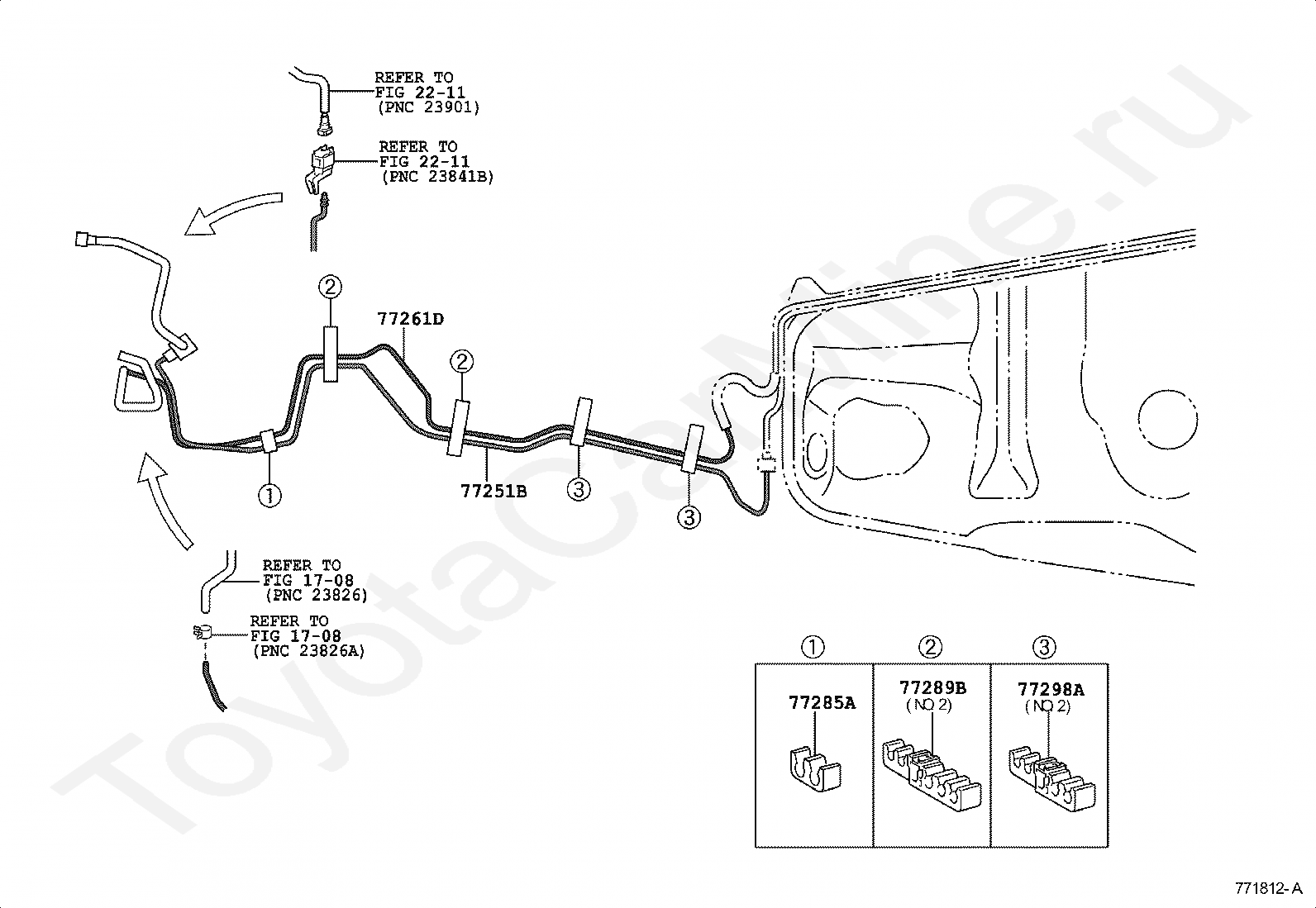

1708

переход к группе запчастей

2211

переход к группе запчастей

77251B

TUBE, FUEL MAIN

77261D

TUBE, FUEL TANK TO CANISTER

77285A

SUPPORT, FUEL RETURN AND MAIN TUBE

77289B

CLAMP, FUEL TUBE, NO.3

77298A

CLAMP, FUEL TUBE, NO.4
