Каталог
ЕвропаМодель
RAV4Двигатель
2,2 литра, турбо-дизельКласс
X TYPEФрейм
ALA49Трансмиссия
автомат АКПП, 6 скоростейОпции
правый руль система впрыска дизельного топлива (низкое загрязнение) 540W

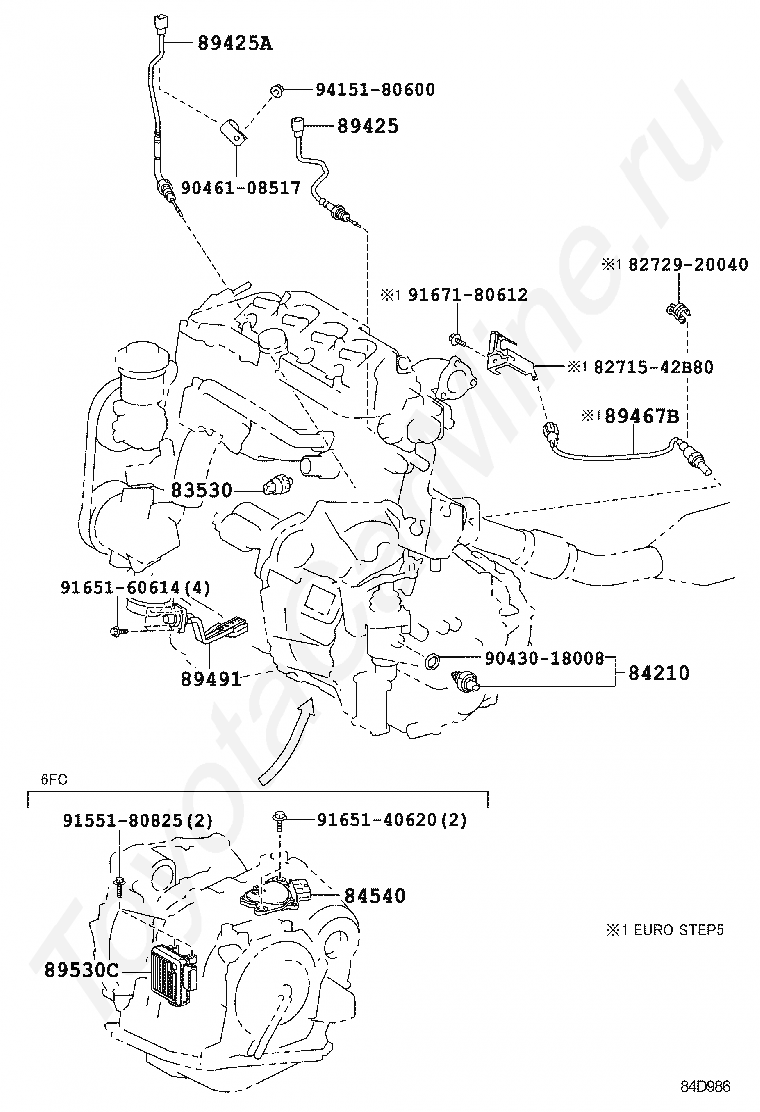

Код
Описание
8271542B80
Крепеж
8272920040
Крепеж
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89425
SENSOR, EXHAUST GAS TEMPERATURE
89425A
SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89467B
SENSOR, AIR FUEL RATIO
89491
SENSOR, ENGINE OIL LEVEL
89530C
COMPUTER ASSY, TRANSMISSION CONTROL
9043018008
Крепеж
9046108517
Крепеж
9155180825
Крепеж
9165140620
Крепеж
9165160614
Крепеж
9167180612
Крепеж
9415180600
Крепеж
Код
Описание
28551
CONTROLLER, GLOW PLUG
28559
BRACKET, GLOW PLUG CONTROLLER, NO.1
28559A
BRACKET, GLOW PLUG CONTROLLER, NO.2
28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28850
SENSOR ASSY, BATTERY CURRENT
85942
RELAY, HEADLAMP CLEANER CONTROL
89480A
SENSOR ASSY, DIFFERENTIAL PRESSURE
9015950386
Крепеж
9017906274
Крепеж
91631B0616
Крепеж
91671A0616
Крепеж
9167380616
Крепеж
9415180801
Крепеж
Код
Описание
28551
CONTROLLER, GLOW PLUG
28559
BRACKET, GLOW PLUG CONTROLLER, NO.1
28559A
BRACKET, GLOW PLUG CONTROLLER, NO.2
28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28850
SENSOR ASSY, BATTERY CURRENT
28859A
HOLDER, BATTERY CURRENT SENSOR
85942
RELAY, HEADLAMP CLEANER CONTROL
89480A
SENSOR ASSY, DIFFERENTIAL PRESSURE
9015950386
Крепеж
9017906274
Крепеж
91631B0616
Крепеж
91671A0616
Крепеж
9167380616
Крепеж
9415180801
Крепеж
Код
Описание
28300
RELAY ASSY, STARTER
28371C
RELAY, IGNITION, NO.2
82210P
ENGINE ROOM FUSIBLE LINK
82241J
PIN, SHORT
82600E
ENGINE ROOM FUSE
82616
PULLER, FUSE
82630
HOLDER ASSY, FUSE
82631
HOLDER, FUSE
82642A
RELAY, RUNNING LIGHT
82660B
BLOCK ASSY, RELAY
82660C
BLOCK ASSY, RELAY
82660E
BLOCK ASSY, RELAY
82661
COVER, RELAY BLOCK, NO.1
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
8404
переход к группе запчастей
8405
переход к группе запчастей
8414
переход к группе запчастей
84794A
RELAY, FR WIPER DEICER
85910
RELAY ASSY, CIRCUIT OPENING
85912
RELAY, DEFOGGER
85913C
RELAY, HEATER, NO.1
85916D
RELAY, FOG LAMP
85916P
RELAY, HEADLAMP
85925D
RELAY, PTC HEATER
85925F
RELAY, PTC HEATER NO.2
85926
RELAY, HEADLAMP DIMMER
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
85927B
RELAY, COOLING FAN, NO.3
86530
RELAY ASSY, HORN
9011906651
Крепеж
9338516010
Крепеж
9415180600
Крепеж
Код
Описание
69065A
CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82660D
BLOCK ASSY, RELAY
82672A
COVER, JUNCTION BLOCK
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82877
BOX, COMPUTER INTEGRATION, RH
84270Q
RELAY, LAMP CUT
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84520
SWITCH ASSY, CLUTCH START
84550
SWITCH ASSY, PARKING BRAKE
85916L
RELAY, REAR FOG LAMP
85940
RELAY ASSY, WINDSHIELD WIPER
85970A
RELAY ASSY, DOUBLE LOCK DOOR CONTROL
88280A
SWITCH ASSY, CLUTCH
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89960
COMPUTER ASSY, HEADLAMP LEVELING
9015960610
Крепеж
9015970004
Крепеж
9017010017
Крепеж
9017906110
Крепеж
9017906274
Крепеж
91631B0618
Крепеж
9167380616
Крепеж
9331514012
Крепеж
Код
Описание
83950M
LAMP ASSY, TELLTALE
84152
SWITCH, HEADLAMP LEVELING
84470A
SWITCH ASSY, ECORUN CANCEL
84725A
SWITCH, DIFFERENTIAL LOCK
84746
SWITCH, TIRE PRESSURE WARNING
84751
SWITCH, SEAT HEATER
84751F
SWITCH, SEAT HEATER
84870A
SWITCH ASSY, OUTER MIRROR
84931C
SWITCH, BACK DOOR CONTROL
84965
SWITCH, POWER BACK DOOR MAIN
84970
SWITCH ASSY, COMBINATION
84988F
SWITCH, TRACTION CONTROL
84988H
SWITCH, DOWNHILL ASSIST CONTROL
85530
SOCKET ASSY, POWER OUTLET, NO.1
85530D
SOCKET ASSY, POWER OUTLET, NO.2
85535B
COVER, POWER OUTLET SOCKET, NO.1
85535E
COVER, POWER OUTLET SOCKET, NO.2
8601
переход к группе запчастей
8609
переход к группе запчастей
89611
SWITCH, PUSH START
Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84307
CABLE SUB-ASSY, SPIRAL W/SENSOR
84450
SWITCH ASSY, IGNITION OR STARTER
84523
WIRE, SWITCH NO.1
84610F
SWITCH ASSY, TRANSMISSION SHIFT
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
89245B
SENSOR, STEERING
89650
COMPUTER ASSY, POWER STEERING
9015950199
Крепеж
9016840113
Крепеж
9016840129
Крепеж
Код
Описание
84070
COMPUTER & SWITCH ASSY, POSITION CONTROL
84920
SWITCH ASSY, POWER SEAT
84921A
KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921B
KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84922
SWITCH, FRONT POWER SEAT
9356014010
Крепеж
Код
Описание
83320
GAGE ASSY, FUEL SENDER
83361
GASKET, FUEL SENDER GAGE
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84840G
SWITCH ASSY, BACK DOOR OPENER
84930
SWITCH ASSY, DOOR CONTROL
88162
SENSOR, BLIND SPOT MONITOR, RH
88163
COVER, BLIND SPOT MONITOR, RH
88172
SENSOR, BLIND SPOT MONITOR, LH
88173
COVER, BLIND SPOT MONITOR, LH
89222A
COMPUTER, MULTIPLEX NETWORK DOOR
89747E
BUZZER, POWER BACK DOOR WARNING
89747F
BUZZER, BLIND SPOT MONITOR
9016440103
Крепеж
9016670001
Крепеж
9017806012
Крепеж
9017906178
Крепеж
9155380612
Крепеж
93319A4010
Крепеж
