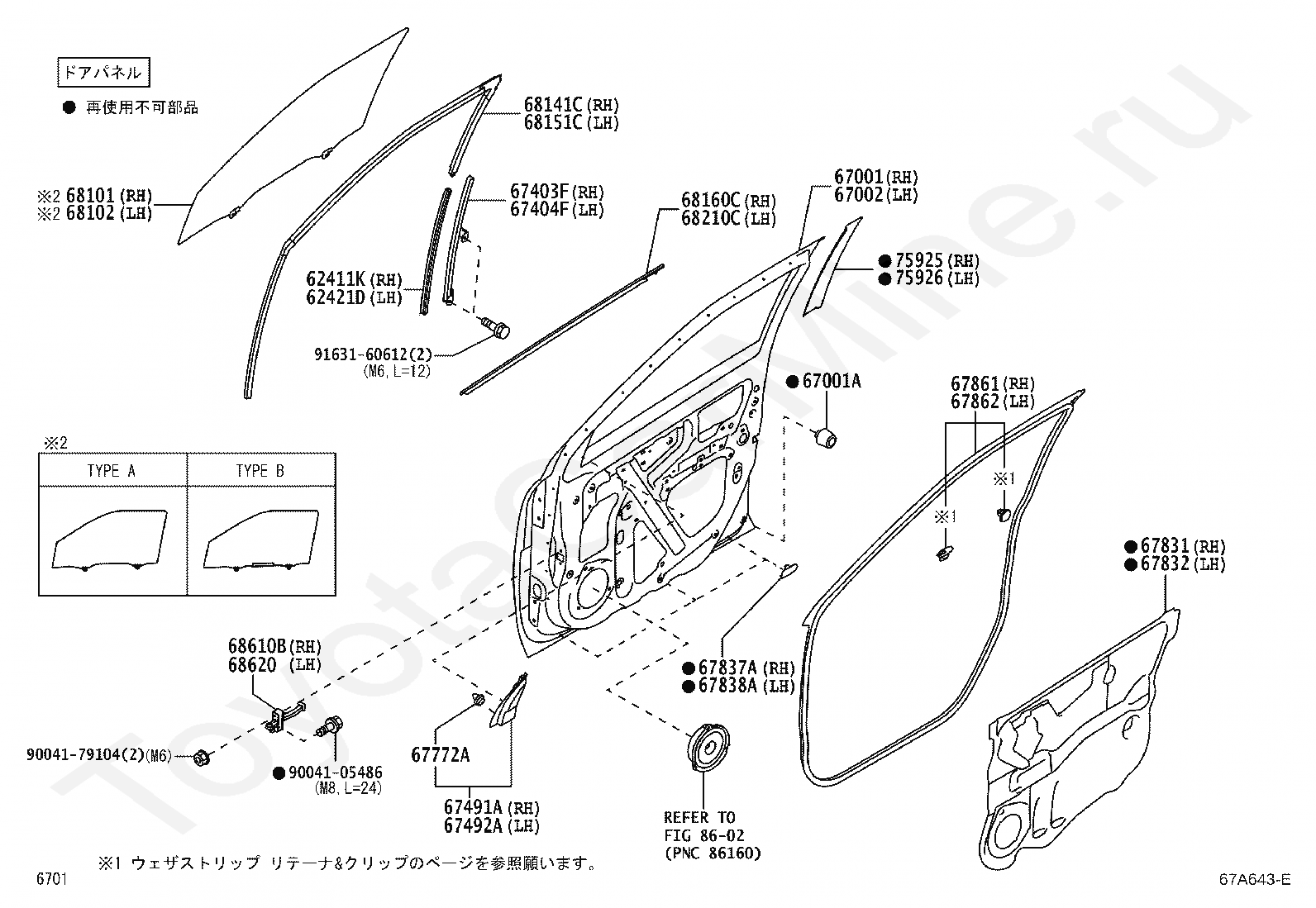

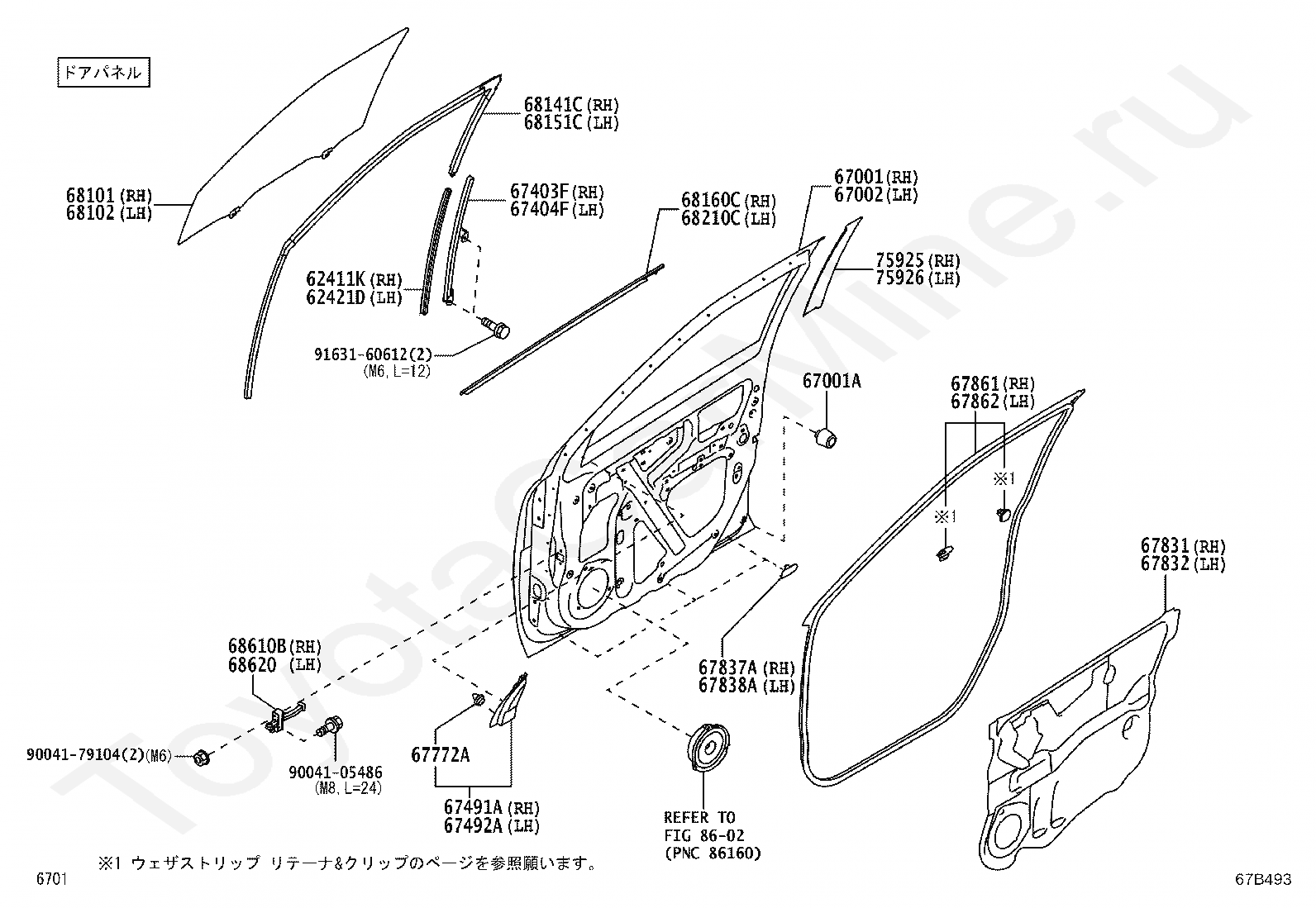

Передние двери TOYOTA RAIZE, 2021/11 - 2025, 1 литр, 12 клапанов DOHC, EFI, двойной наддув, X TYPE, A210A, вариатор

Каталог

Япония

Модель

RAIZE

Двигатель

1 литр, 12 клапанов DOHC, EFI, двойной наддув

Класс

X TYPE

Фрейм

A210A

Трансмиссия

вариатор

Опции

5 дверей 5-местный D40H

Код

Описание

62411K

RUN, FRONT DOOR WINDOW, RH

62421D

RUN, FRONT DOOR WINDOW, LH

67001

PANEL SUB-ASSY, FRONT DOOR, RH

67001A

CUSHION, FRONT DOOR PANEL

67002

PANEL SUB-ASSY, FRONT DOOR, LH

67403F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

67404F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67772A

CAP, FRONT DOOR TRIM RETAINER

67831

COVER, FRONT DOOR SERVICE HOLE, RH

67832

COVER, FRONT DOOR SERVICE HOLE, LH

67837A

SEAL, FRONT DOOR VENT, RH

67838A

SEAL, FRONT DOOR VENT, LH

67861

WEATHERSTRIP, FRONT DOOR, RH

67862

WEATHERSTRIP, FRONT DOOR, LH

68101

GLASS SUB-ASSY, FRONT DOOR, RH

68102

GLASS SUB-ASSY, FRONT DOOR, LH

68141C

RUN, FRONT DOOR GLASS, RH

68151C

RUN, FRONT DOOR GLASS, LH

68160C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

68210C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

68610B

CHECK ASSY, FRONT DOOR, RH

68620

CHECK ASSY, FRONT DOOR, LH

75925

TAPE, BLACK OUT, NO.3 RH

75926

TAPE, BLACK OUT, NO.3 LH

8602

переход к группе запчастей

9004105486

Крепеж

9004179104

Крепеж

9163160612

Крепеж

Код

Описание

62411K

RUN, FRONT DOOR WINDOW, RH

62421D

RUN, FRONT DOOR WINDOW, LH

67001

PANEL SUB-ASSY, FRONT DOOR, RH

67001A

CUSHION, FRONT DOOR PANEL

67002

PANEL SUB-ASSY, FRONT DOOR, LH

67403F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

67404F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67772A

CAP, FRONT DOOR TRIM RETAINER

67831

COVER, FRONT DOOR SERVICE HOLE, RH

67832

COVER, FRONT DOOR SERVICE HOLE, LH

67837A

SEAL, FRONT DOOR VENT, RH

67838A

SEAL, FRONT DOOR VENT, LH

67861

WEATHERSTRIP, FRONT DOOR, RH

67862

WEATHERSTRIP, FRONT DOOR, LH

68101

GLASS SUB-ASSY, FRONT DOOR, RH

68102

GLASS SUB-ASSY, FRONT DOOR, LH

68141C

RUN, FRONT DOOR GLASS, RH

68151C

RUN, FRONT DOOR GLASS, LH

68160C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

68210C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

68610B

CHECK ASSY, FRONT DOOR, RH

68620

CHECK ASSY, FRONT DOOR, LH

75925

TAPE, BLACK OUT, NO.3 RH

75926

TAPE, BLACK OUT, NO.3 LH

8602

переход к группе запчастей

9004105486

Крепеж

9004179104

Крепеж

9163160612

Крепеж

Код

Описание

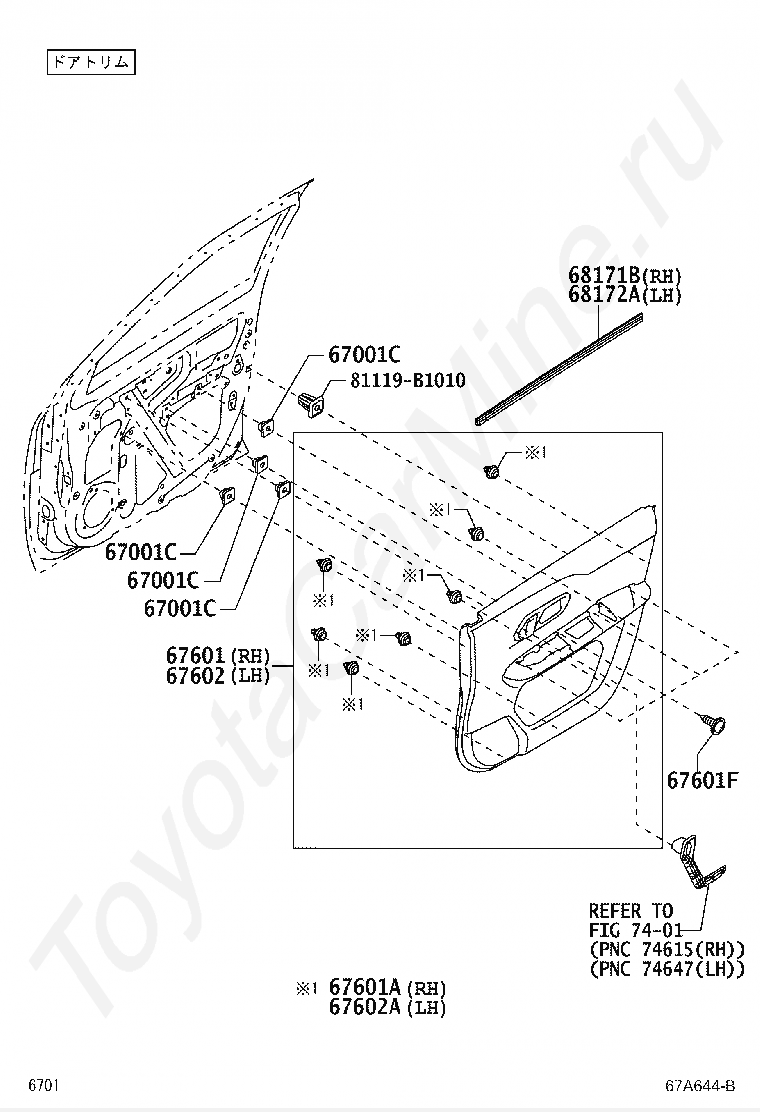

67001C

GROMMET(FOR FRONT DOOR PANEL)

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601A

RETAINER(FOR FRONT DOOR TRIM BOARD)

67601F

SCREW(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67602A

RETAINER, DOOR TRIM, LH

68171B

WEATHERSTRIP, FRONT DOOR GLASS, INNER RH

68172A

WEATHERSTRIP, FRONT DOOR GLASS, INNER LH

7401

переход к группе запчастей

81119B1010

Крепеж

Код

Описание

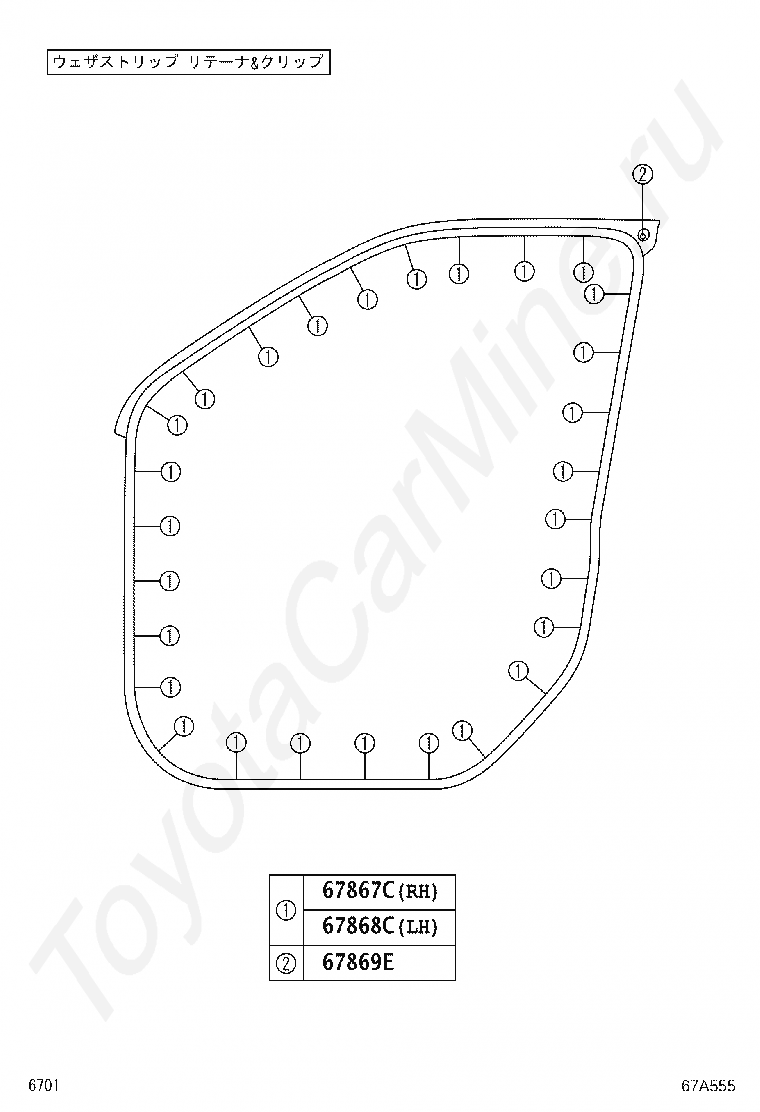

67867C

RETAINER, FRONT DOOR WEATHERSTRIP, RH

67868C

RETAINER, FRONT DOOR WEATHERSTRIP, LH

67869E

CLIP, FRONT DOOR WEATHERSTRIP

Код

Описание

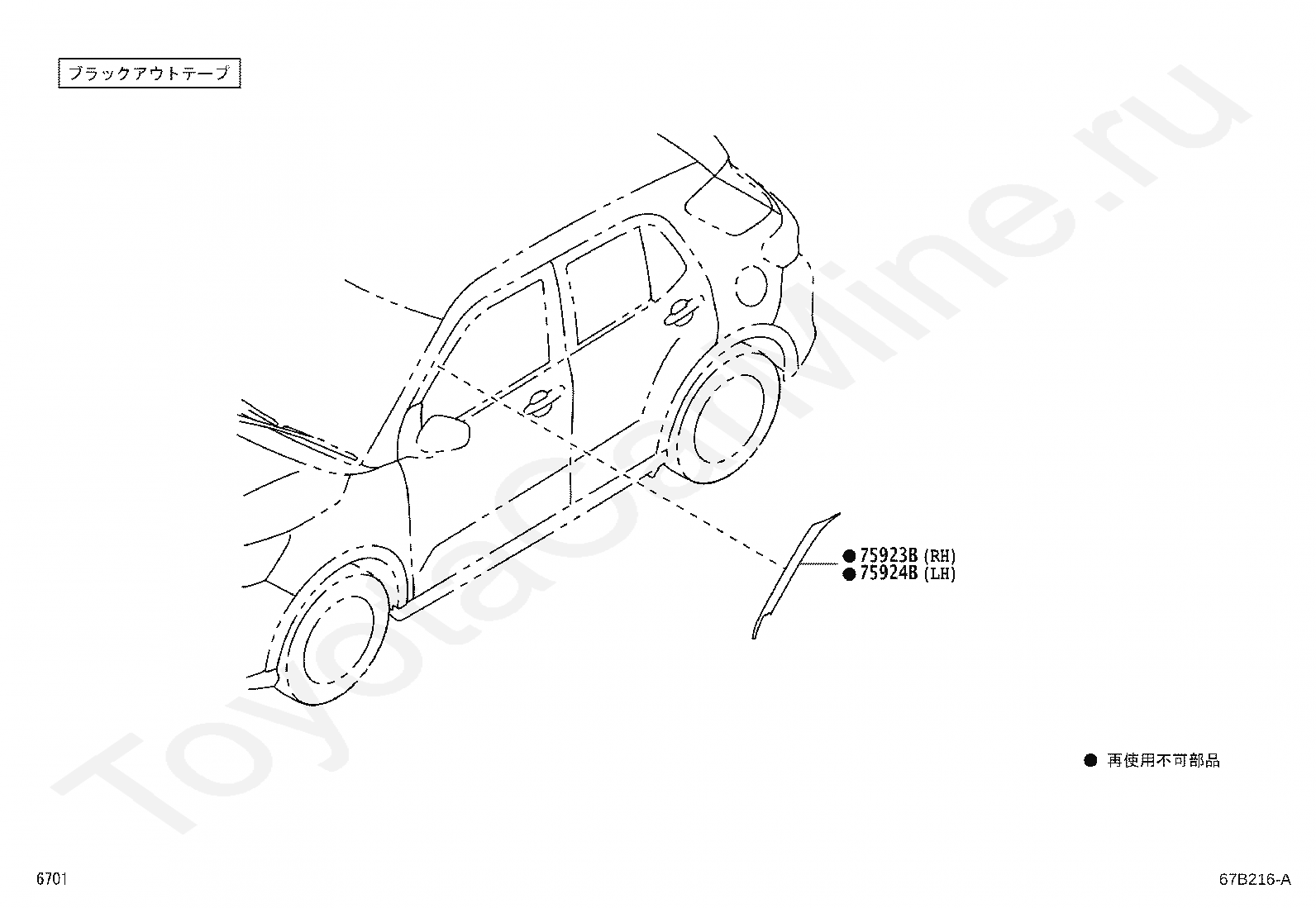

75923B

TAPE, BLACK OUT, NO.2 RH

75924B

TAPE, BLACK OUT, NO.2 LH

Код

Описание

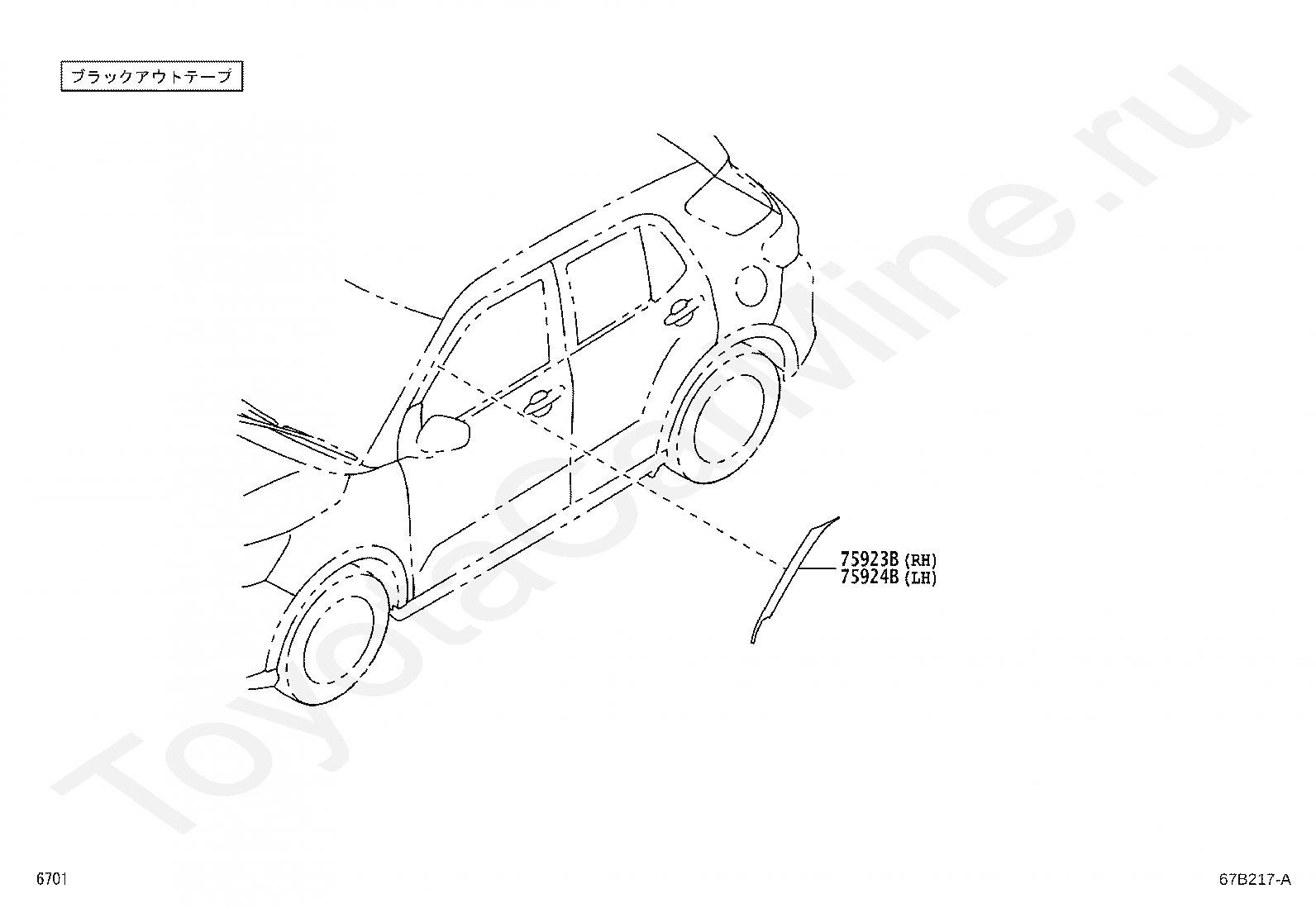

75923B

TAPE, BLACK OUT, NO.2 RH

75924B

TAPE, BLACK OUT, NO.2 LH

Передние двери TOYOTA RAIZE, 2021/11 - 2025, 1 литр, 12 клапанов DOHC, EFI, двойной наддув, X TYPE, A210A, вариатор
