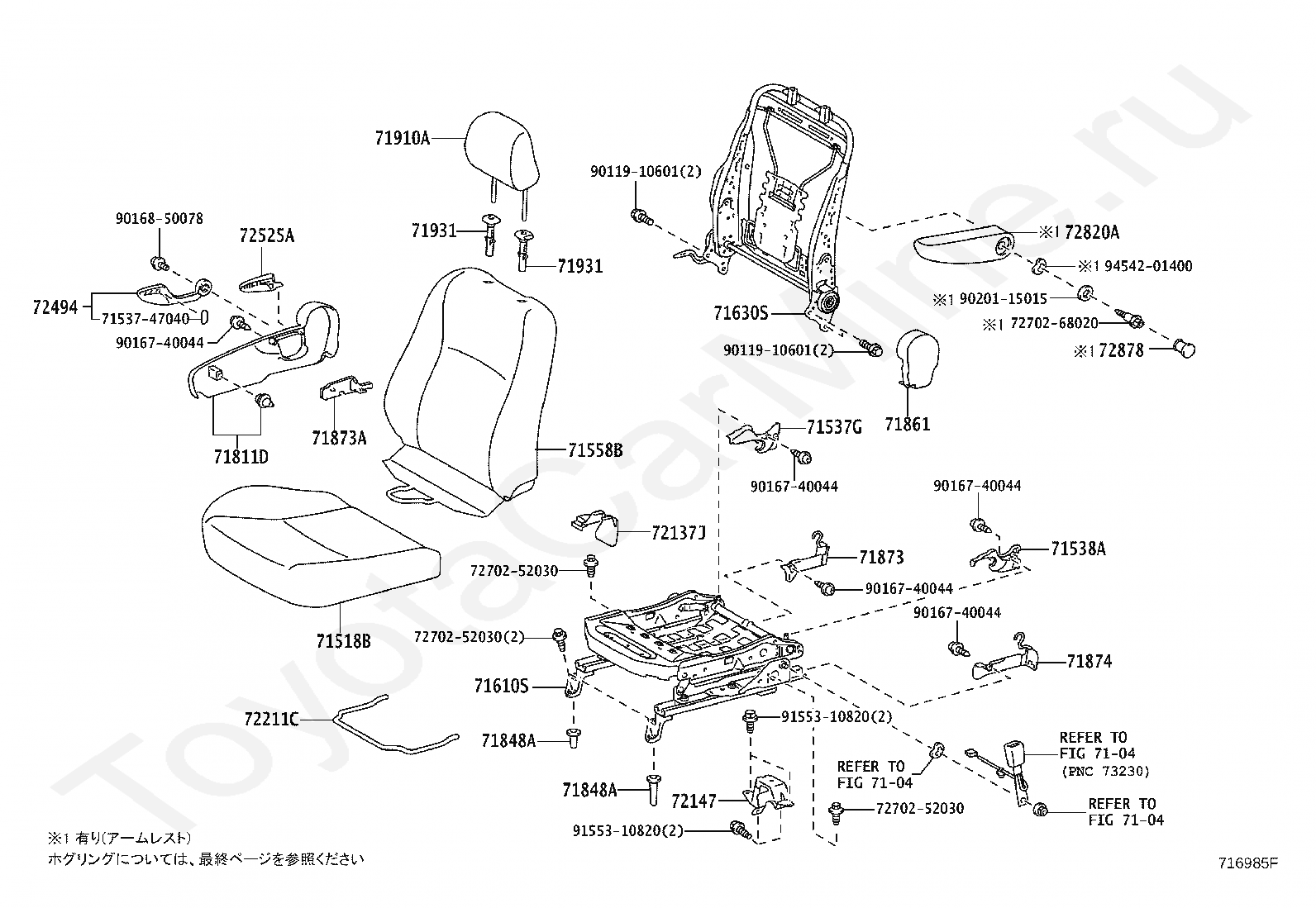

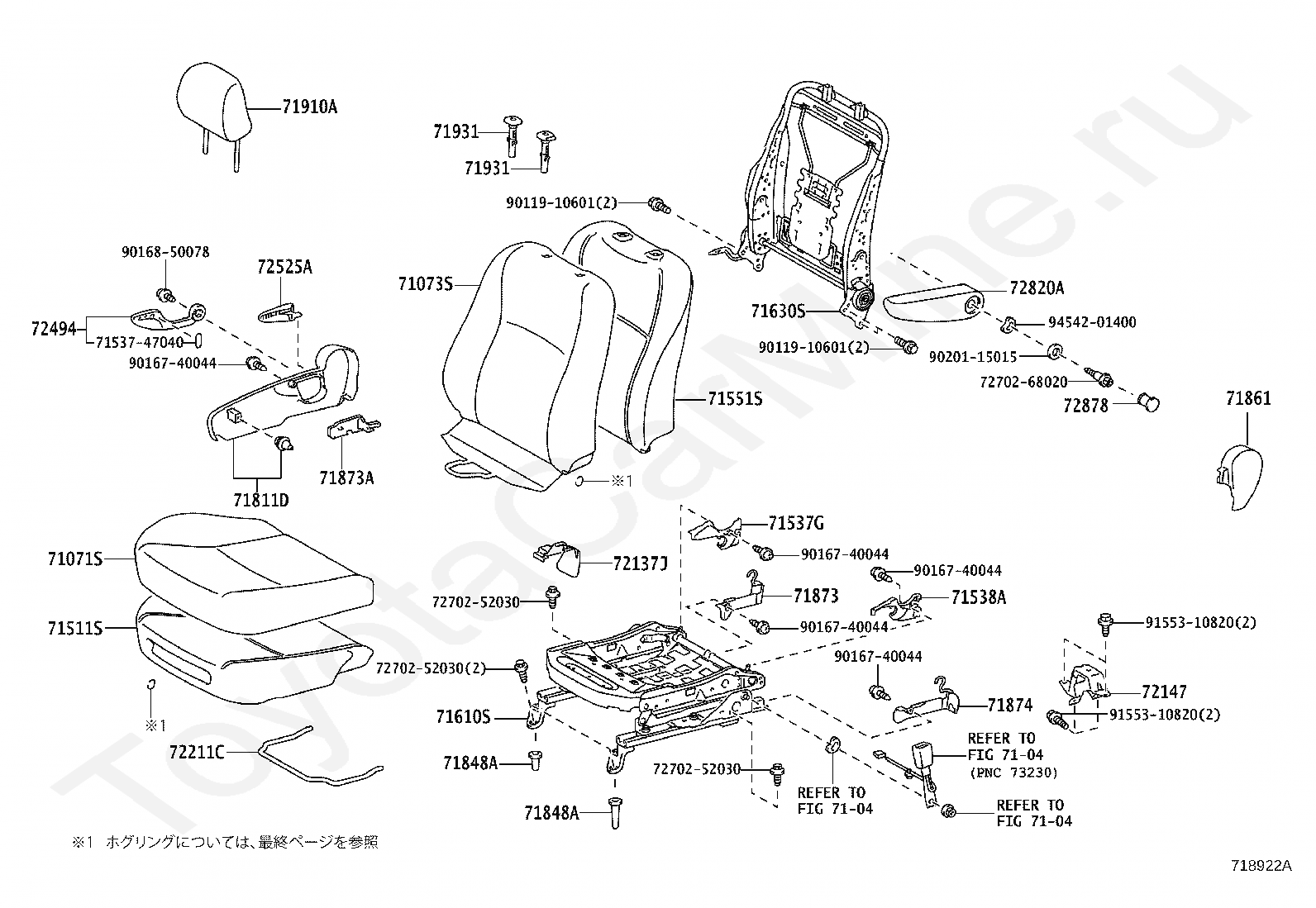

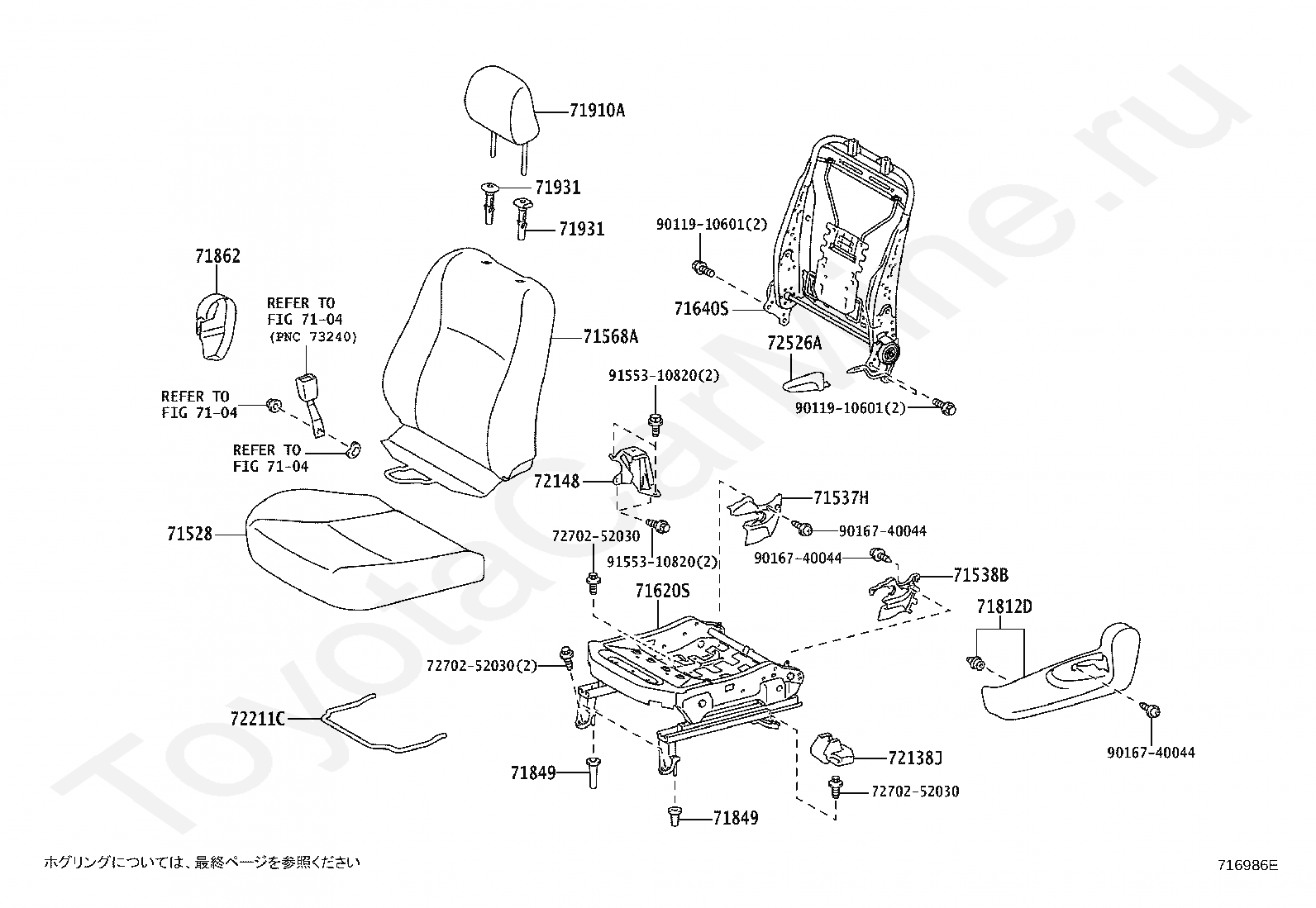

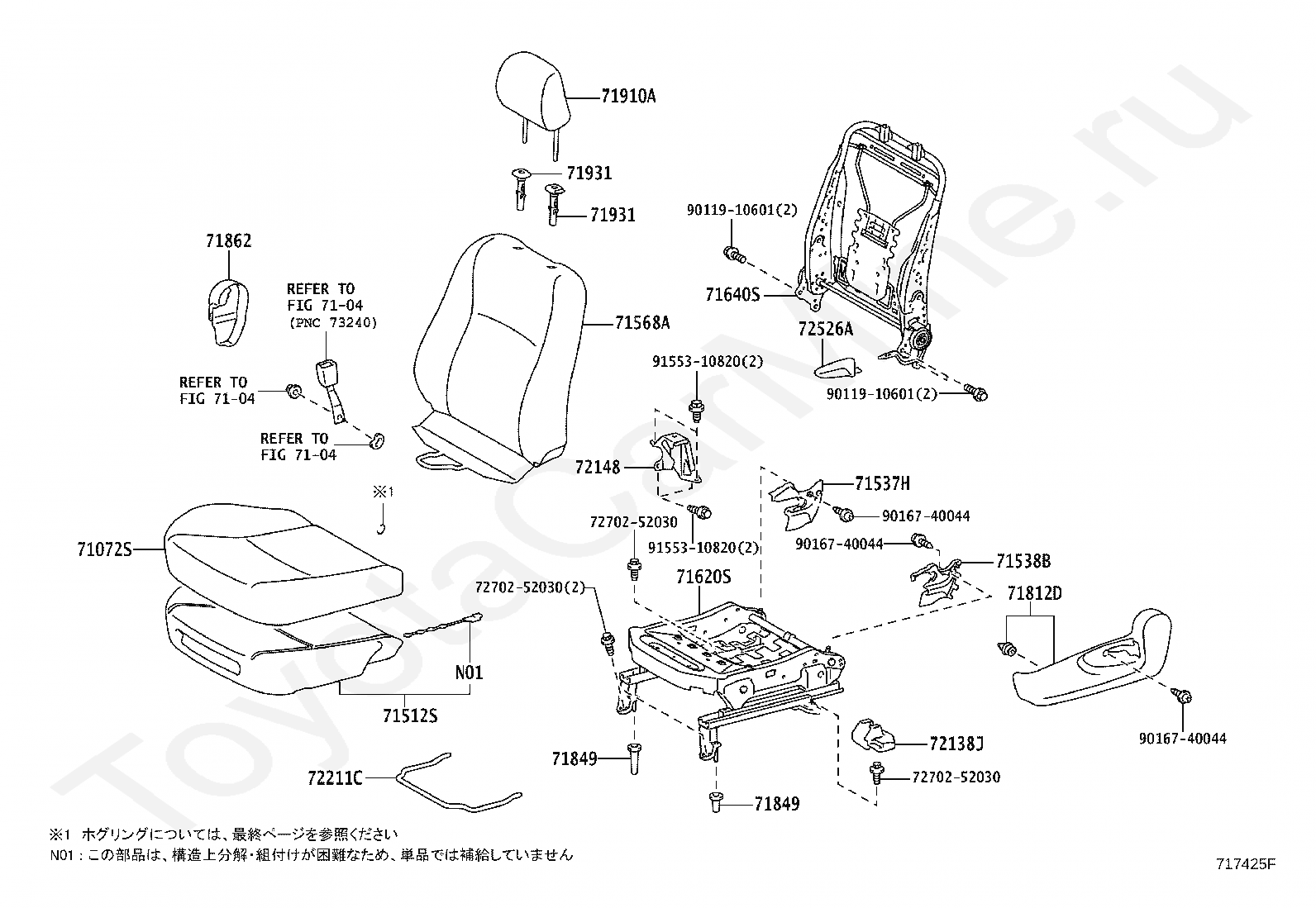

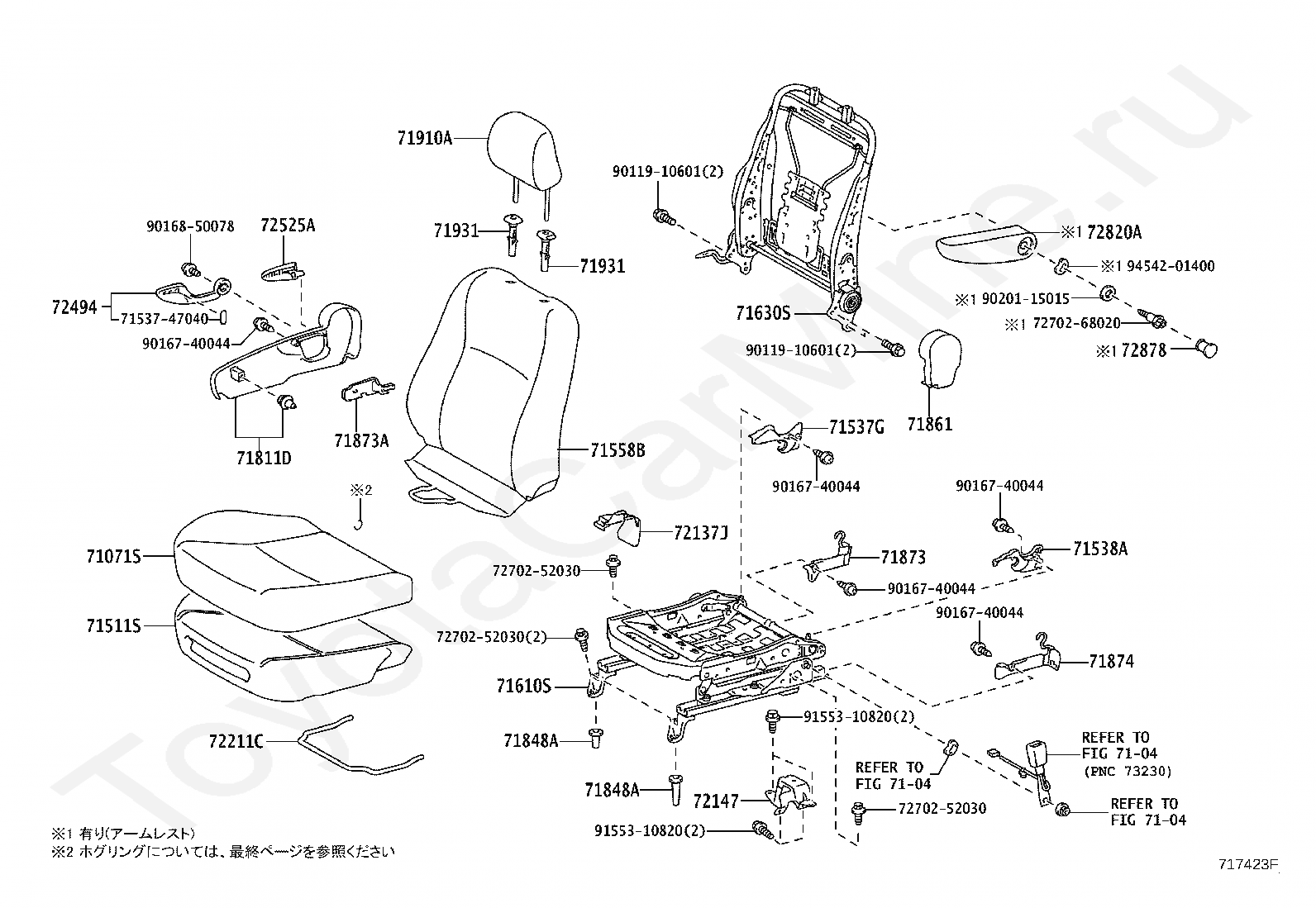

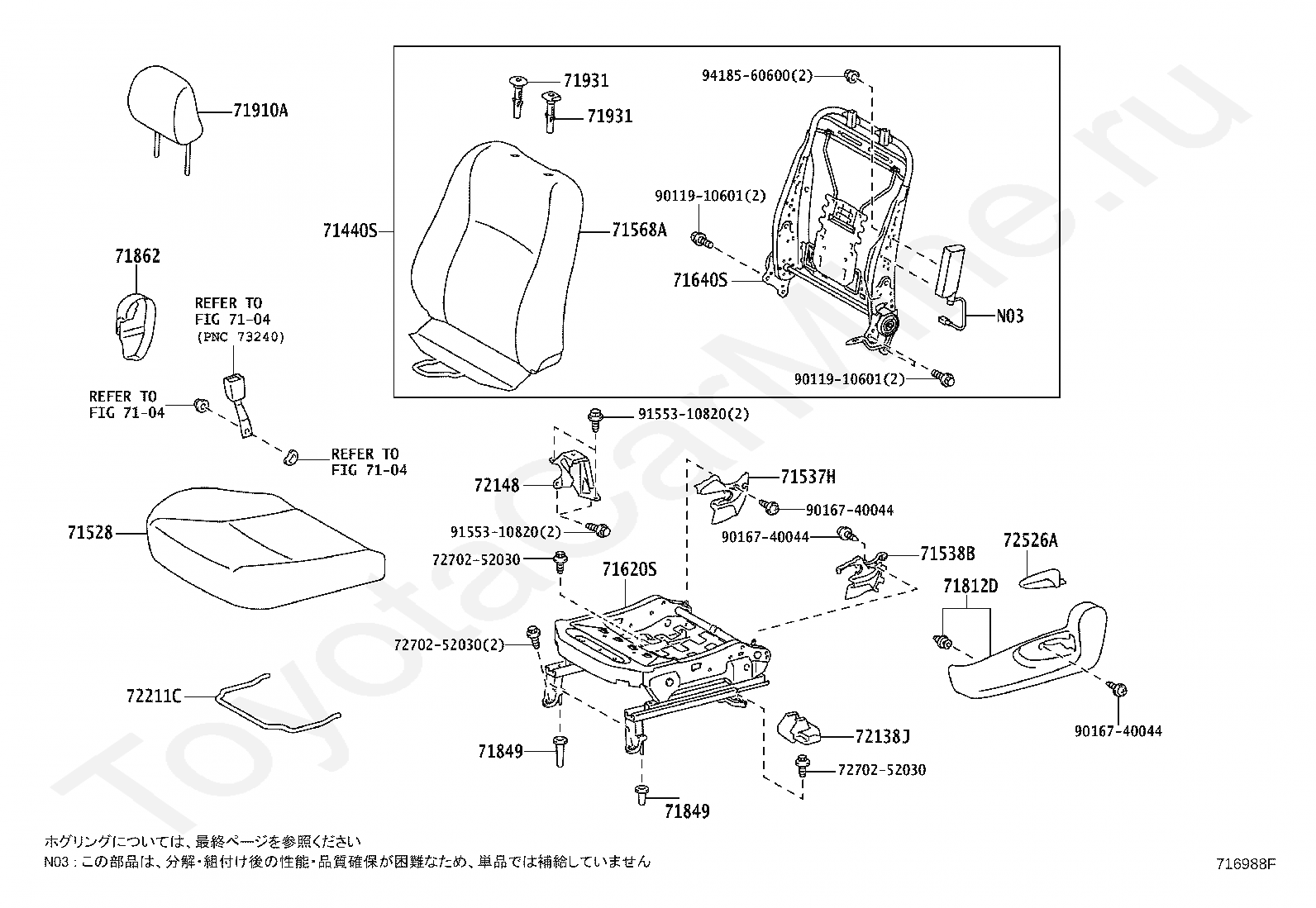

Передние кресла TOYOTA RACTIS, 2014/05 - 2016/07, 1,5 литра, 16 клапанов DOHC, EFI, GRAMS, NCP120, вариатор

Каталог

Япония

Модель

RACTIS

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Класс

GRAMS

Фрейм

NCP120

Трансмиссия

вариатор

Опции

HIGH EFFICIENCY TWIN CAM 598W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

7153747040

Крепеж

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270268020

Крепеж

72820A

ARMREST ASSY, SEAT, LH

72878

COVER, SEAT ARMREST, LH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9155310820

Крепеж

9454201400

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7153747040

Крепеж

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270268020

Крепеж

72820A

ARMREST ASSY, SEAT, LH

72878

COVER, SEAT ARMREST, LH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9155310820

Крепеж

9454201400

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7153747040

Крепеж

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270268020

Крепеж

72820A

ARMREST ASSY, SEAT, LH

72878

COVER, SEAT ARMREST, LH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9155310820

Крепеж

9454201400

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

7153747040

Крепеж

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270268020

Крепеж

72820A

ARMREST ASSY, SEAT, LH

72878

COVER, SEAT ARMREST, LH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9155310820

Крепеж

9418560600

Крепеж

9454201400

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7153747040

Крепеж

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270268020

Крепеж

72820A

ARMREST ASSY, SEAT, LH

72878

COVER, SEAT ARMREST, LH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9155310820

Крепеж

9418560600

Крепеж

9454201400

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7153747040

Крепеж

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270268020

Крепеж

72820A

ARMREST ASSY, SEAT, LH

72878

COVER, SEAT ARMREST, LH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9155310820

Крепеж

9418560600

Крепеж

9454201400

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7153747040

Крепеж

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270268020

Крепеж

72820A

ARMREST ASSY, SEAT, LH

72878

COVER, SEAT ARMREST, LH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9155310820

Крепеж

9454201400

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7153747040

Крепеж

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270268020

Крепеж

72820A

ARMREST ASSY, SEAT, LH

72878

COVER, SEAT ARMREST, LH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9155310820

Крепеж

9417060600

Крепеж

9454201400

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

9417060600

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

55359F

CUSHION, WELCAB SEAT

57457F

BRACKET, FRONT SEAT

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71138

SPACER, FRONT SEAT SET

71315

PLATE, FRONT SEAT HINGE

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71708D

STRAP SUB-ASSY, SEAT COVER, LH

71769C

CLIP, FRONT SEAT CUSHION COVER

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71877E

COVER, SEAT ARMREST HOLE, LH

71910C

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

72890

ARMREST ASSY, SEAT, C LH

7455

переход к группе запчастей

78899D1010

Крепеж

8202

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9010910164

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020115023

Крепеж

9020608038

Крепеж

9046710203

Крепеж

9353054010

Крепеж

9454201400

Крепеж

C2815D1020

Крепеж

C656518010

Крепеж

C7111

BRACKET, SEAT HOLDER, FRONT

C991640001

Крепеж

C995614004

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

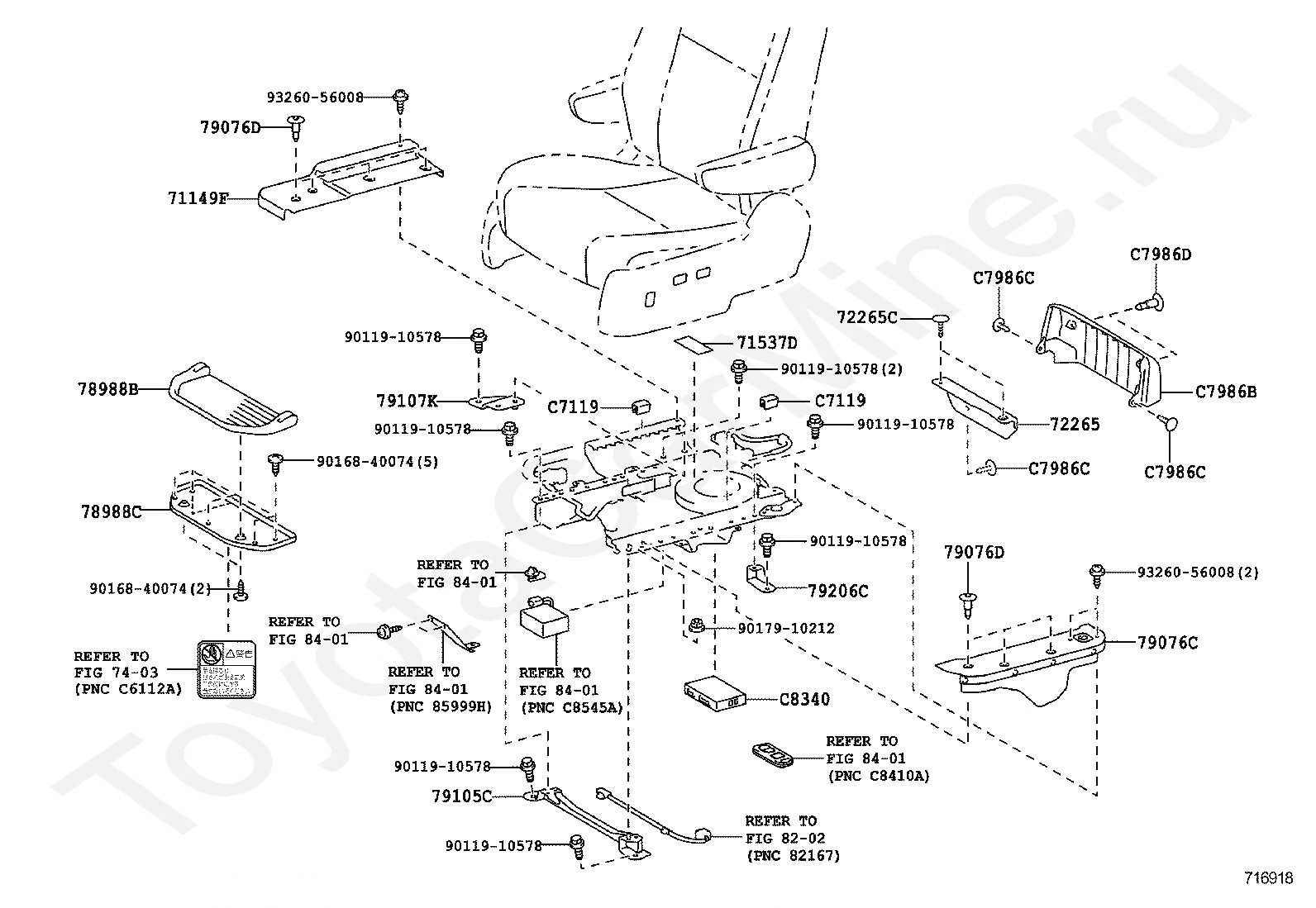

71149F

COVER, FRONT SEAT LEG, INNER

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265C

CLIP, SEAT TRACK UPPER RAIL COVER

7403

переход к группе запчастей

78988B

COVER, FRONT SEAT FOOTREST, NO.1

78988C

COVER, FRONT SEAT FOOTREST, NO.2

79076C

COVER SUB-ASSY, FRONT SEAT LEG

79076D

CLIP, SEAT LEG COVER

79105C

LEG SUB-ASSY, FRONT SEAT

79107K

LEG SUB-ASSY, FRONT SEAT, RH

79206C

LEG SUB-ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

9011910578

Крепеж

9016840074

Крепеж

9017910212

Крепеж

9326056008

Крепеж

C7119

PROTECTOR, WELCAB SEAT HOLDER

C7986B

COVER, FRONT SEAT TURN GUARD

C7986C

CLIP, FRONT SEAT TURN GUARD COVER, NO.1

C7986D

CLIP, FRONT SEAT TURN GUARD COVER, NO.2

C8340

COMPUTER ASSY, WELCAB DEVICE CONTROL

+
+
+
+
+
+
+

Код

Описание

53019A

SHUTTER SUB-ASSY, RADIATOR

68332A

ROLLER, SLIDE DOOR, LOWER

9015760014

Крепеж

9046400620

Крепеж

9151180616

Крепеж

9155180610

Крепеж

9155180812

Крепеж

91671F0820

Крепеж

C3165D1020

Крепеж

C7025D1150

Крепеж

C7210

FOOTREST ASSY, WELCAB SEAT

C7691A

CUSHION, SEAT FLAT, NO.2 RH

C8284

WIRE, POWER LIFT MAIN

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

3354620020

Крепеж

33546D1020

Крепеж

82818D1060

Крепеж

85820Z

MOTOR ASSY, POWER SEAT

9014860055

Крепеж

9015760014

Крепеж

9016850040

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9321913005

Крепеж

9321913010

Крепеж

9324955010

Крепеж

9331313012

Крепеж

C316522010

Крепеж

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7192

PLATE, SEAT HOLDER STOPPER, NO.1

C7192A

PLATE, SEAT HOLDER STOPPER, NO.2

C7230

TRACK ASSY, WELCAB SEAT, NO.1

C7230A

TRACK ASSY, WELCAB SEAT, NO.2

C7401

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7451D1141

Крепеж

C7452

ARM, WELCAB SEAT LINK, NO.2

C7453

ARM, WELCAB SEAT LINK, NO.3

C7691

CUSHION, SEAT FLAT, NO.1 RH

C7996

SPACER, TURN SEAT, NO.1

C7996A

SPACER, TURN SEAT, NO.2

C8291

PROTECTOR, TECS WIRING HARNESS

C8417B

SWITCH, LIMIT, NO.3

C8419B

BRACKET, LIMIT SWITCH

C9229D1050

Крепеж

C9642

BRACKET, POWER LIFT MOTOR, NO.2

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

62786D1010

Крепеж

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

72275C

STOPPER, FRONT SEAT TRACK SLIDE

72589A

CABLE, RECLINING REMOTE CONTROL

827111A750

Крепеж

82825D1010

Крепеж

88630D1020

Крепеж

9010508145

Крепеж

9010510048

Крепеж

9010908067

Крепеж

9011906122

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020108466

Крепеж

9020612035

Крепеж

9033330002

Крепеж

9054106047

Крепеж

9155180608

Крепеж

9155180812

Крепеж

9155281025

Крепеж

9167180608

Крепеж

9326963016

Крепеж

9331313012

Крепеж

C4109

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7103

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1

C7104

PLATE SUB-ASSY, SEAT TURN

C7158

COVER, WELCAB SEAT LEG

C7158A

CLIP, WELCAB SEAT LEG COVER

C7160

PANEL ASSY, SLIDE TABLE

C7160A

CLIP, SLIDE TABLE PANEL

C7192B

PLATE, SEAT HOLDER STOPPER, NO.3

C7252

BRACKET, WELCAB SEAT TRACK STOPPER, NO.2

C7409

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7481

ROD, WELCAB SEAT, NO.1

C7487

PLATE, WELCAB SEAT ROD SUPPORT, NO.1

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

C8340

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417

SWITCH, LIMIT, NO.1

C8417C

SWITCH, LIMIT, NO.4

C8419D

BRACKET, LIMIT SWITCH, NO.1

C9604

BRACKET SUB-ASSY, POWER LIFT MOTOR

C9610C

MOTOR ASSY, LIFT UP SEAT TURN

C9610D

MOTOR ASSY, LIFT UP SEAT SLIDE

C9642D1051

Крепеж

C9652A

CAP, POWER LIFT CYLINDER

C9654

COLLAR, POWER LIFT CYLINDER

C991010010

Крепеж

C991440001

Крепеж

C991560011

Крепеж

C991605003

Крепеж

C991708008

Крепеж

C992012005

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129E

CLIP(FOR SEAT TRACK LOWER RAIL PROTECTOR)

9010510048

Крепеж

9010908067

Крепеж

9011908520

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9020110092

Крепеж

9048013012

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9324955010

Крепеж

9326056008

Крепеж

9331313012

Крепеж

9413061000

Крепеж

9418561000

Крепеж

C3588D1020

Крепеж

C7015

PANEL SUB-ASSY, TURN TABLE

C7137D1180

Крепеж

C7137D1190

Крепеж

C7139

BRACKET, HOOK

C7159A

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7192C

PLATE, SEAT HOLDER STOPPER, NO.4

C7196

COVER, TURN TABLE, NO.1

C7230B

TRACK ASSY, WELCAB SEAT, NO.3

C7250D1040

Крепеж

C7417D1170

Крепеж

C7481A

ROD, WELCAB SEAT, NO.2

C7488

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C8291

PROTECTOR, TECS WIRING HARNESS

C8417A

SWITCH, LIMIT, NO.2

C8419A

BRACKET, LIMIT SWITCH

C9025D1040

Крепеж

C9535

PULLEY, POWER LIFT

C9589D1010

Крепеж

C9610

MOTOR ASSY, POWER LIFT

C9641

BRACKET, POWER LIFT MOTOR, NO.1

C9641A

BRACKET, POWER LIFT MOTOR, NO.1

C9654A

COLLAR, POWER LIFT CYLINDER

C9658

PLATE, POWER LIFT CYLINDER ROD

C991106010

Крепеж

C9938

BUSH

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Оформить заказ Продолжить покупку

Товар добавлен в корзину!

Оформить заказ Продолжить покупку

Заполните форму

Наш менеджер перезвонит в ближайшее время

Введите ваше имя

Введите ваш телефон
