Каталог
ЯпонияМодель
PUBLICAДвигатель
1 литрКузов
седанКласс
HIGH DELUX SPECIFICATIONФрейм
KP30Трансмиссия
механика МКПП, 4 ступениОпции

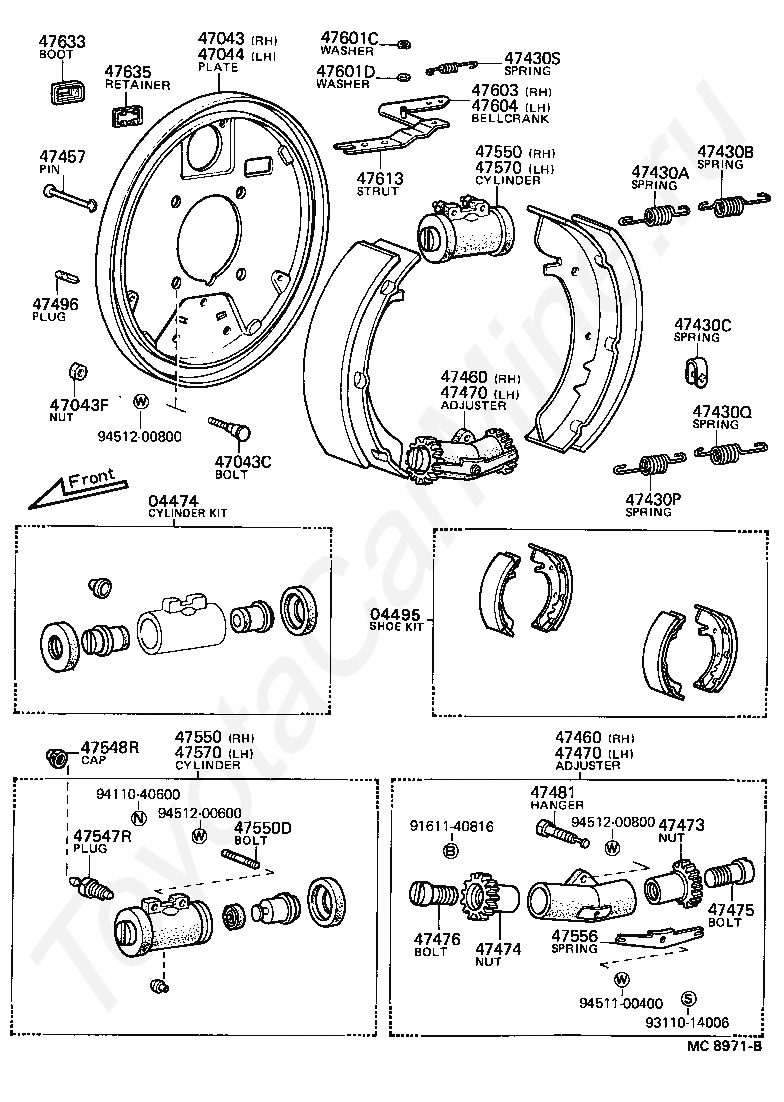

Код
Описание
04474
CYLINDER KIT, REAR WHEEL
04495
SHOE KIT, REAR BRAKE
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430A
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430B
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430P
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430Q
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430S
SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)
47457
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460
ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470
ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47473
NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47474
NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47475
BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
47476
BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47481
HANGER, SHOE RETRACTING SPRING (FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550D
BOLT, STUD(FOR REAR WHEEL BRAKE CYLINDER)
47556
SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601C
WASHER, C(FOR REAR BRAKE)
47601D
WASHER, WAVE(FOR REAR BRAKE)
47603
BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE)
47604
BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE)
47613
STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
47633
BOOT, PARKING BRAKE BELLCRANK
47635
RETAINER, BELLCRANK BOOT(FOR REAR BRAKE)
9161140816
Крепеж
9311014006
Крепеж
9411040600
Крепеж
9451100400
Крепеж
9451200600
Крепеж
9451200800
Крепеж

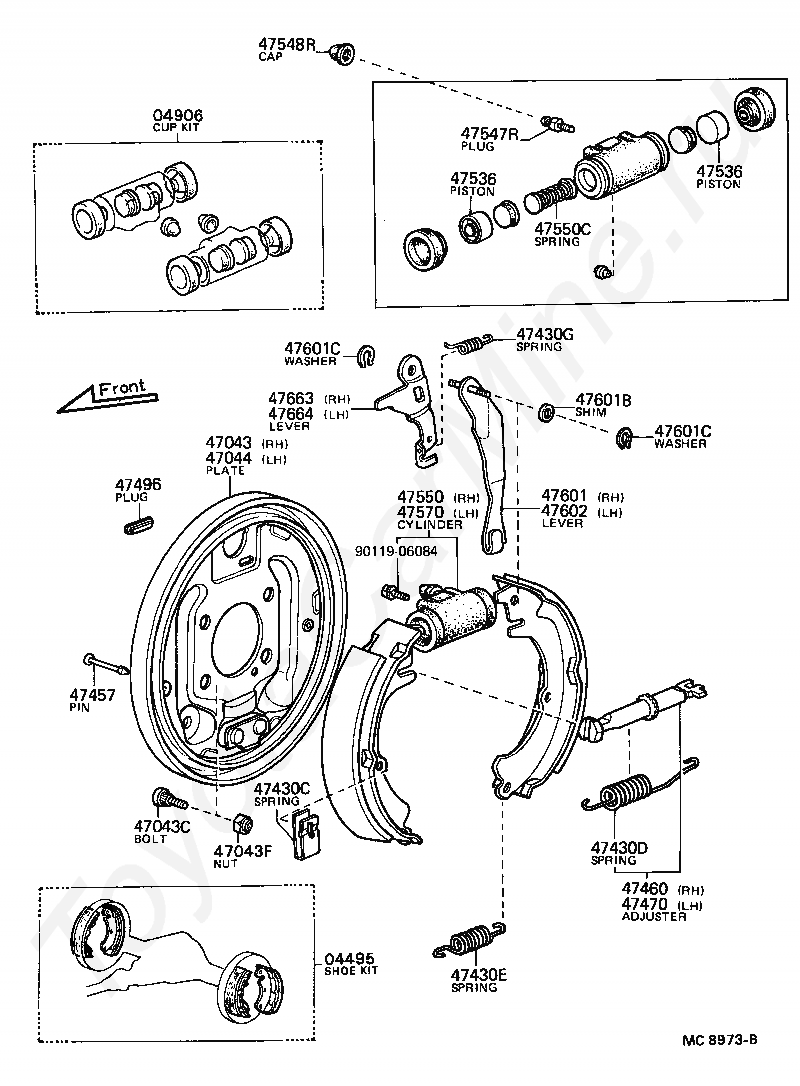

Код
Описание
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430G
SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47457
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460
ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470
ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47536
PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601
LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601B
SHIM, REAR PARKING BRAKE SHOE LEVER
47601C
WASHER, C(FOR REAR BRAKE)
47602
LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47663
LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47664
LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
9011906084
Крепеж
