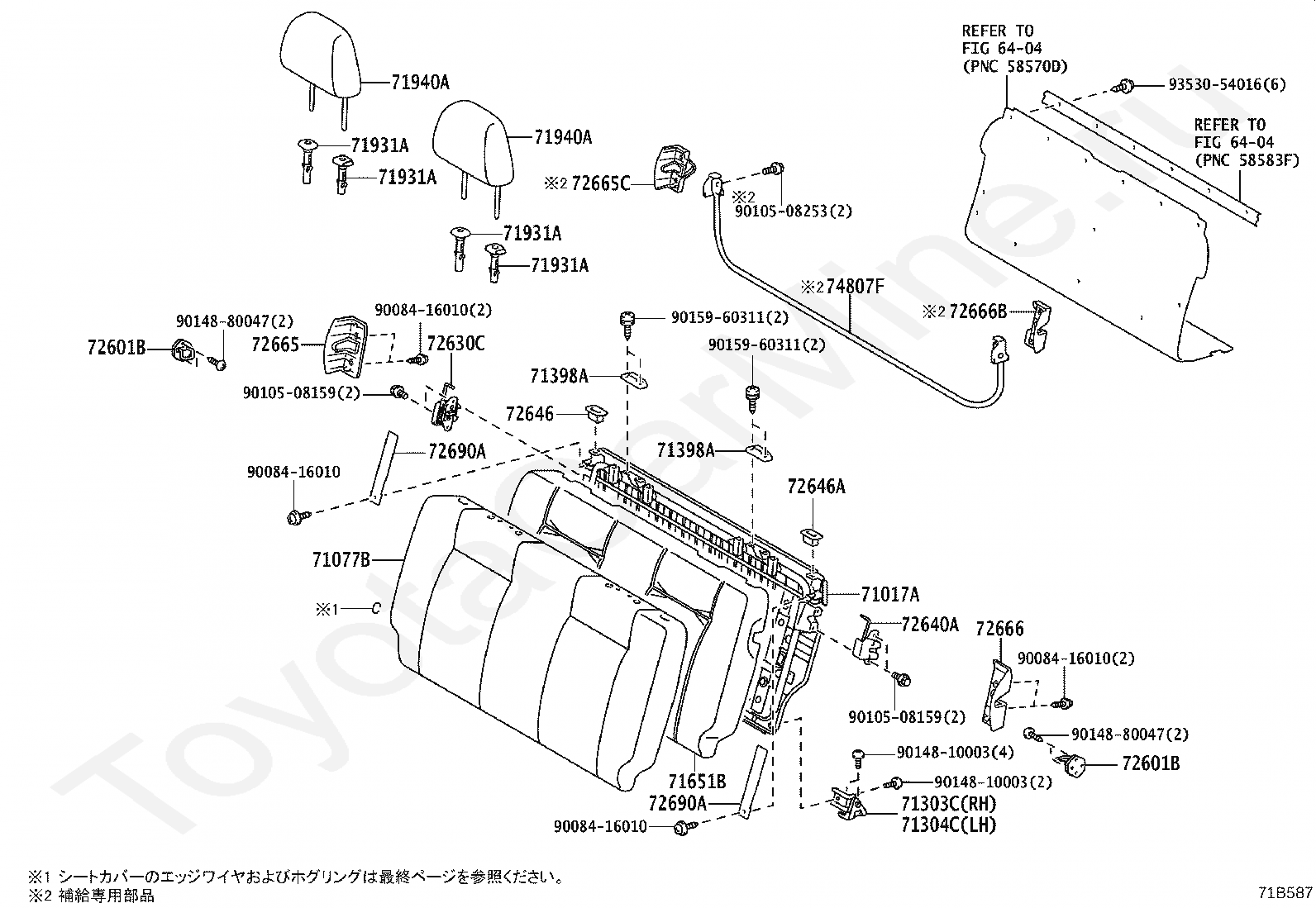

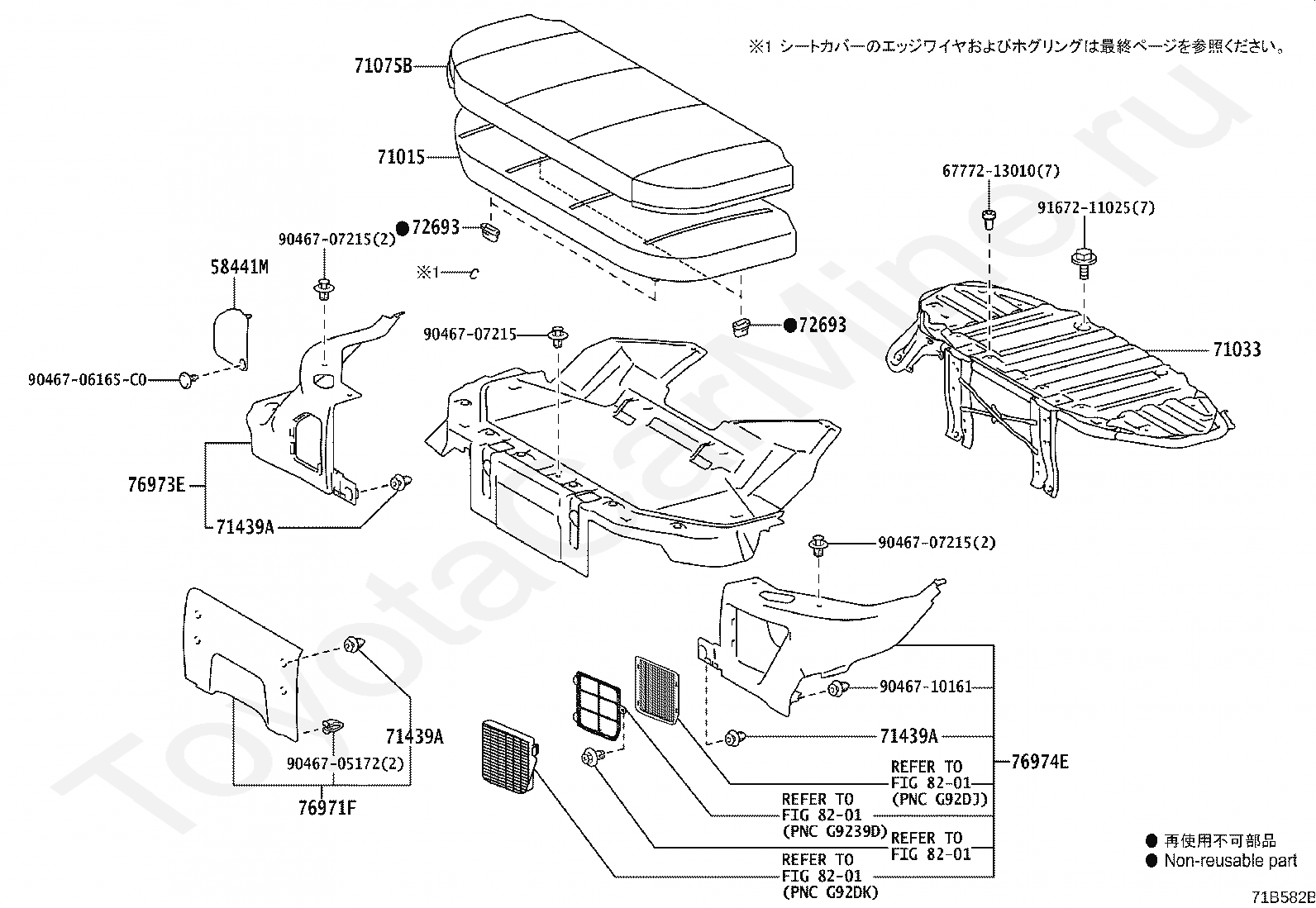

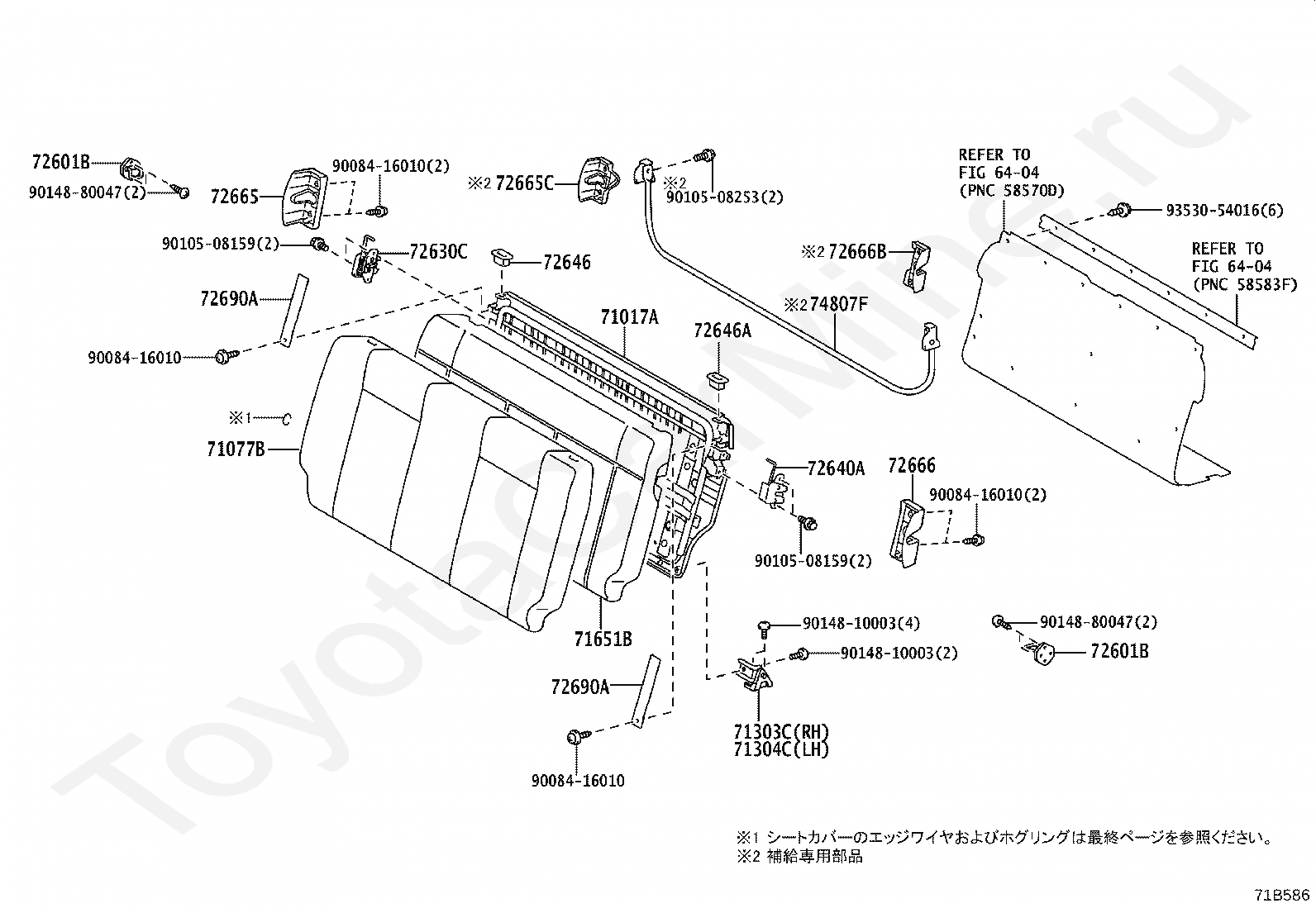

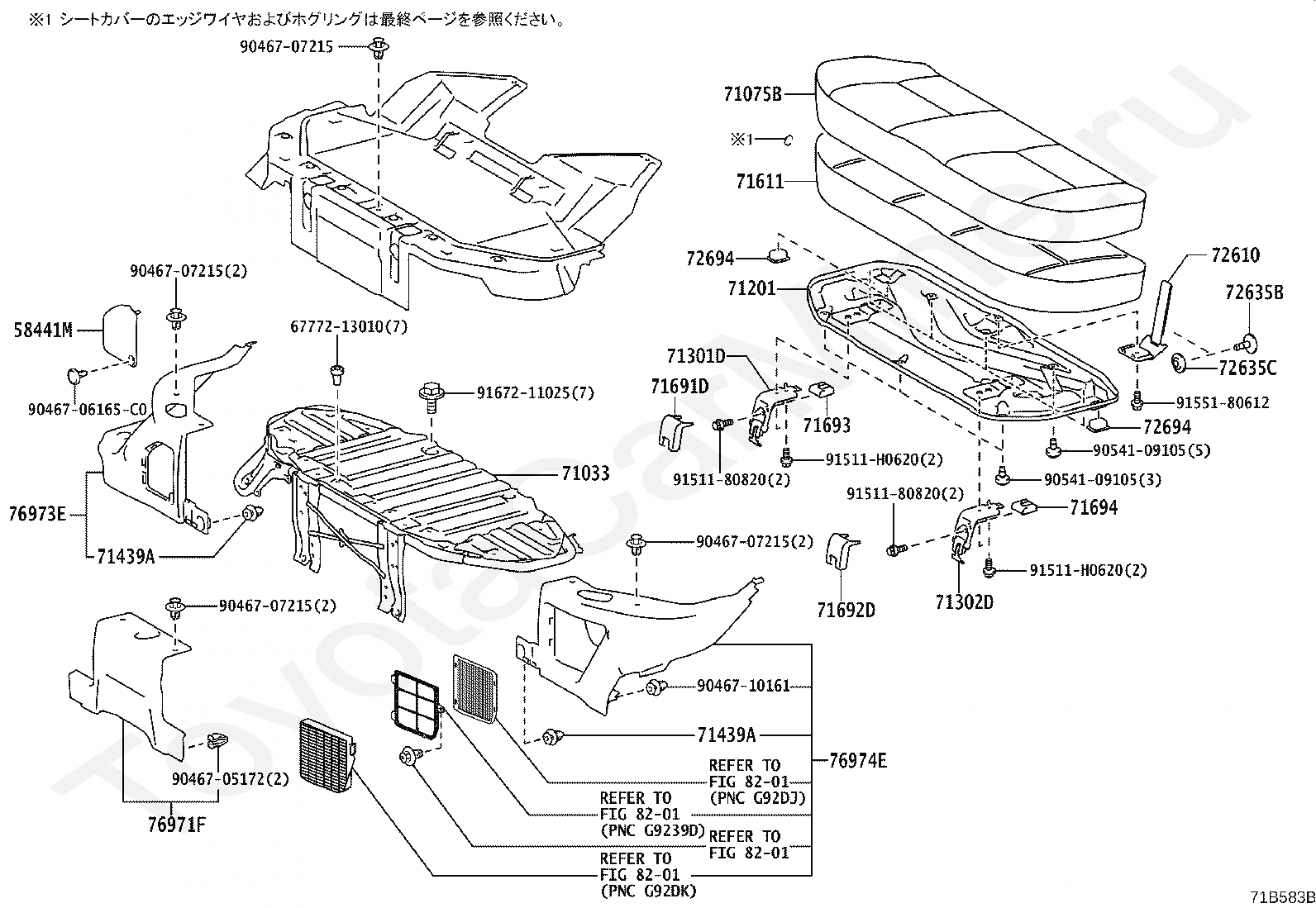

Задние кресла TOYOTA PROBOX/SUCCEED, 2018/12 - 2025, 1,5 литра, 16 клапанов DOHC, EFI, VAN, GL SPECIFICATION, NHP160, вариатор

Каталог

Япония

Модель

PROBOX/SUCCEED

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

VAN

Класс

GL SPECIFICATION

Фрейм

NHP160

Трансмиссия

вариатор

Опции

PROBOX HIGH EFFICIENCY TWIN CAM 612W

Код

Описание

6404

переход к группе запчастей

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72665

COVER, REAR SEAT BACK LOCK, RH

72665C

COVER, REAR SEAT LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72666B

COVER, REAR SEAT LOCK, LH

72690A

STRAP ASSY, REAR SEAT LOCK RELEASE

74807F

BAR SUB-ASSY, RR SEPARATOR

9008416010

Крепеж

9010508159

Крепеж

9010508253

Крепеж

9014810003

Крепеж

9014880047

Крепеж

9353054016

Крепеж

Код

Описание

6404

переход к группе запчастей

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71398A

HOLDER, REAR SEAT BACK

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72665

COVER, REAR SEAT BACK LOCK, RH

72665C

COVER, REAR SEAT LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72666B

COVER, REAR SEAT LOCK, LH

72690A

STRAP ASSY, REAR SEAT LOCK RELEASE

74807F

BAR SUB-ASSY, RR SEPARATOR

9008416010

Крепеж

9010508159

Крепеж

9010508253

Крепеж

9014810003

Крепеж

9014880047

Крепеж

9015960311

Крепеж

9353054016

Крепеж

Код

Описание

58441M

COVER, BATTERY SERVICE HOLE

6777213010

Крепеж

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71439A

CLIP

72693

HOOK, REAR SEAT CUSHION LOCK

76971F

COVER, REAR UNDER

76973E

COVER, REAR UNDER SIDE, RH

76974E

COVER, REAR UNDER SIDE, LH

8201

переход к группе запчастей

9046705172

Крепеж

9046706165C0

Крепеж

9046707215

Крепеж

9046710161

Крепеж

9167211025

Крепеж

Код

Описание

58441M

COVER, BATTERY SERVICE HOLE

6777213010

Крепеж

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71201

PANEL SUB-ASSY, REAR SEAT CUSHION

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71439A

CLIP

71611

PAD, REAR SEAT CUSHION

71691D

COVER, REAR SEAT CUSHION HINGE, UPPER RH

71692D

COVER, REAR SEAT CUSHION HINGE, UPPER LH

71693

COVER, REAR SEAT CUSHION HINGE, LOWER RH

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

72610

LOCK ASSY, REAR SEAT CUSHION

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72694

COVER, REAR SEAT CUSHION LOCK

76971F

COVER, REAR UNDER

76973E

COVER, REAR UNDER SIDE, RH

76974E

COVER, REAR UNDER SIDE, LH

8201

переход к группе запчастей

9046705172

Крепеж

9046706165C0

Крепеж

9046707215

Крепеж

9046710161

Крепеж

9054109105

Крепеж

9151180820

Крепеж

91511H0620

Крепеж

9155180612

Крепеж

9167211025

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA PROBOX/SUCCEED, 2018/12 - 2025, 1,5 литра, 16 клапанов DOHC, EFI, VAN, GL SPECIFICATION, NHP160, вариатор
