Каталог
ЯпонияМодель
PRIUS PHVДвигатель
1,8 литра, 16 клапанов, DOHC, EFIКласс
PREMIUM TYPEФрейм
ZVW52Трансмиссия
вариаторОпции
COMPLETED VEHICLE 767W
Код
Описание

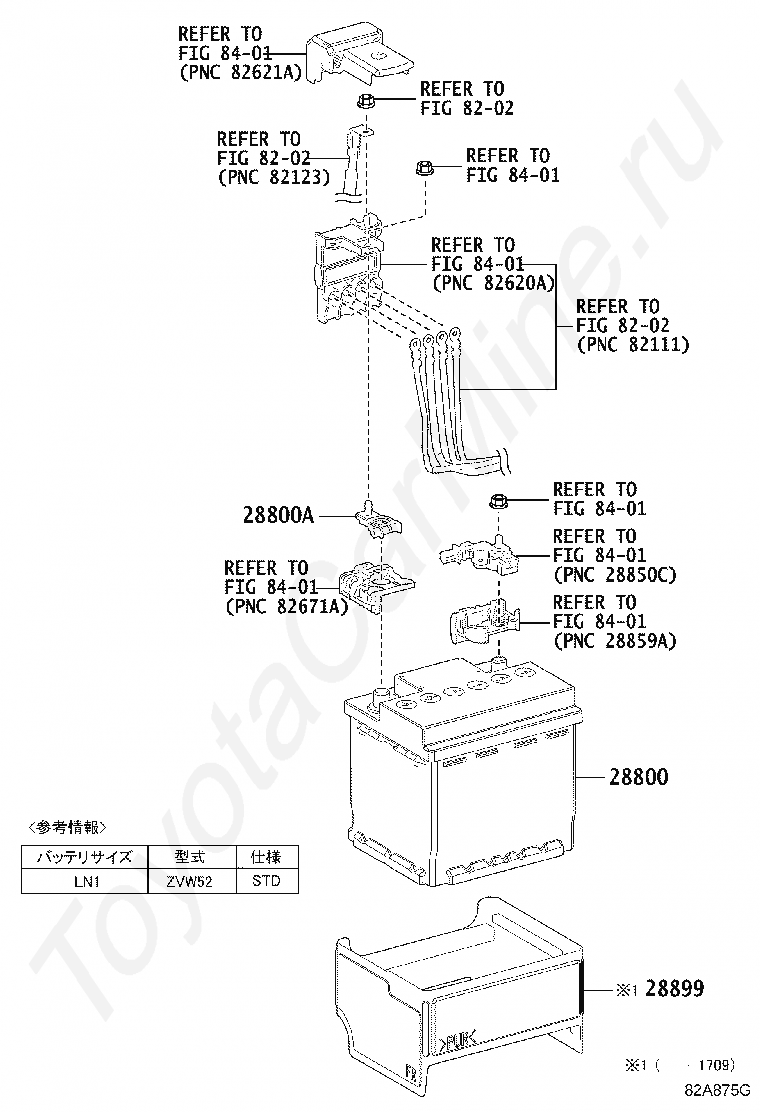

28800
BATTERY
28800A
TERMINAL, BATTERY POSITIVE
28899
INSULATOR, BATTERY
8202
переход к группе запчастей
8401
переход к группе запчастей
Код
Описание

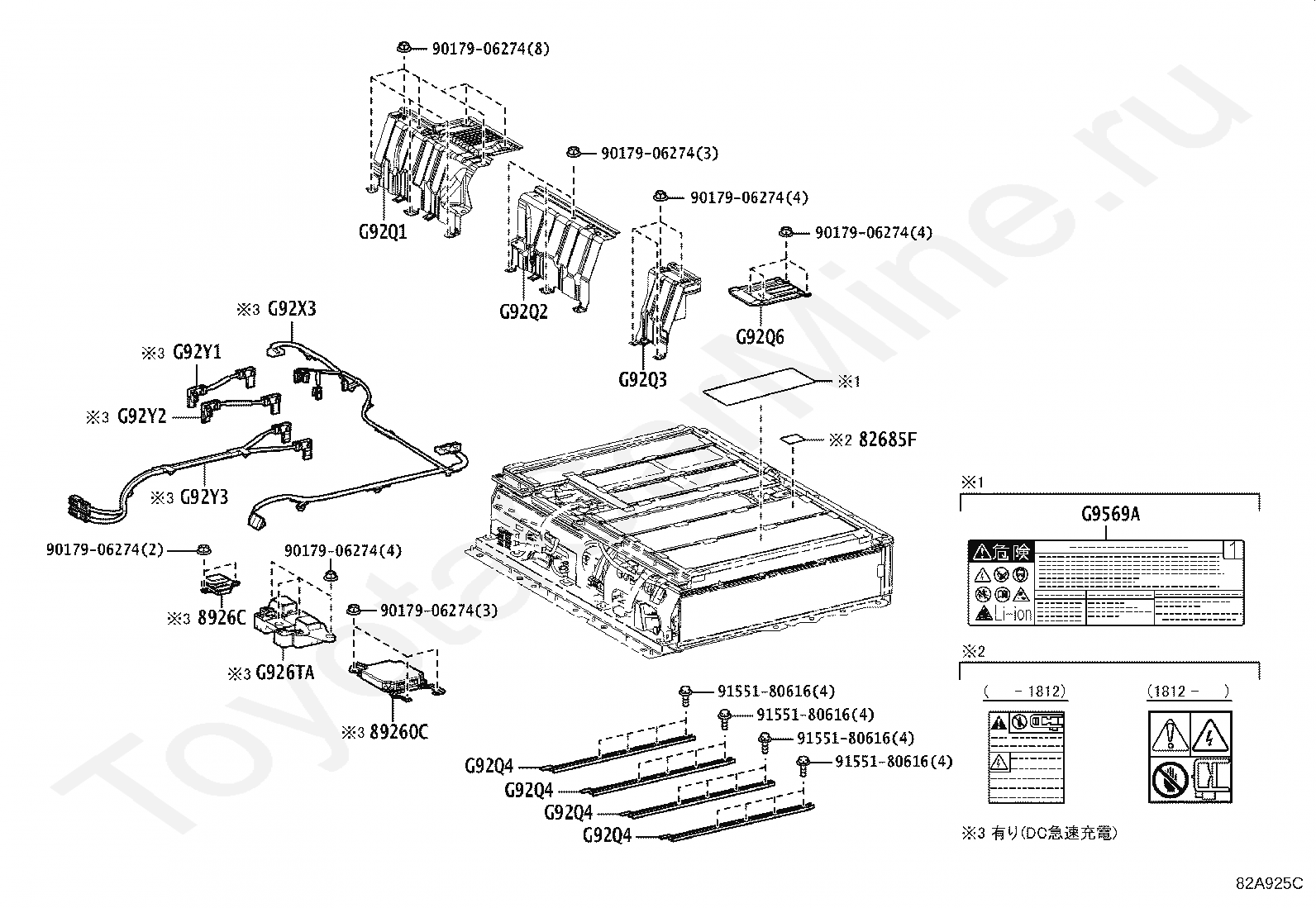

82685F
MAIN BATTERY CAUTION PLATE, NO.1
89260C
COMPUTER ASSY, DC FAST CHARGE CONTROL
8926C
SENSOR, DC VOLTAGE
9017906274
Крепеж
9155180616
Крепеж
G926TA
BLOCK, EV CHARGE JUNCTION
G92Q1
PANEL, HV BATTERY SHIELD, NO.1
G92Q2
PANEL, HV BATTERY SHIELD, NO.2
G92Q3
PANEL, HV BATTERY SHIELD, NO.3
G92Q4
REINFORCEMENT, HV BATTERY SHIELD, NO.1
G92Q6
PANEL, HV BATTERY SHIELD, NO.4
G92X3
WIRE, HV BATTERY PACK, NO.3
G92Y1
CABLE, HV BATTERY PACK, NO.1
G92Y2
CABLE, HV BATTERY PACK, NO.2
G92Y3
CABLE, HV BATTERY PACK, NO.3
G9569A
LABEL, LITHIUM ION BATTERY CAUTION
Код
Описание

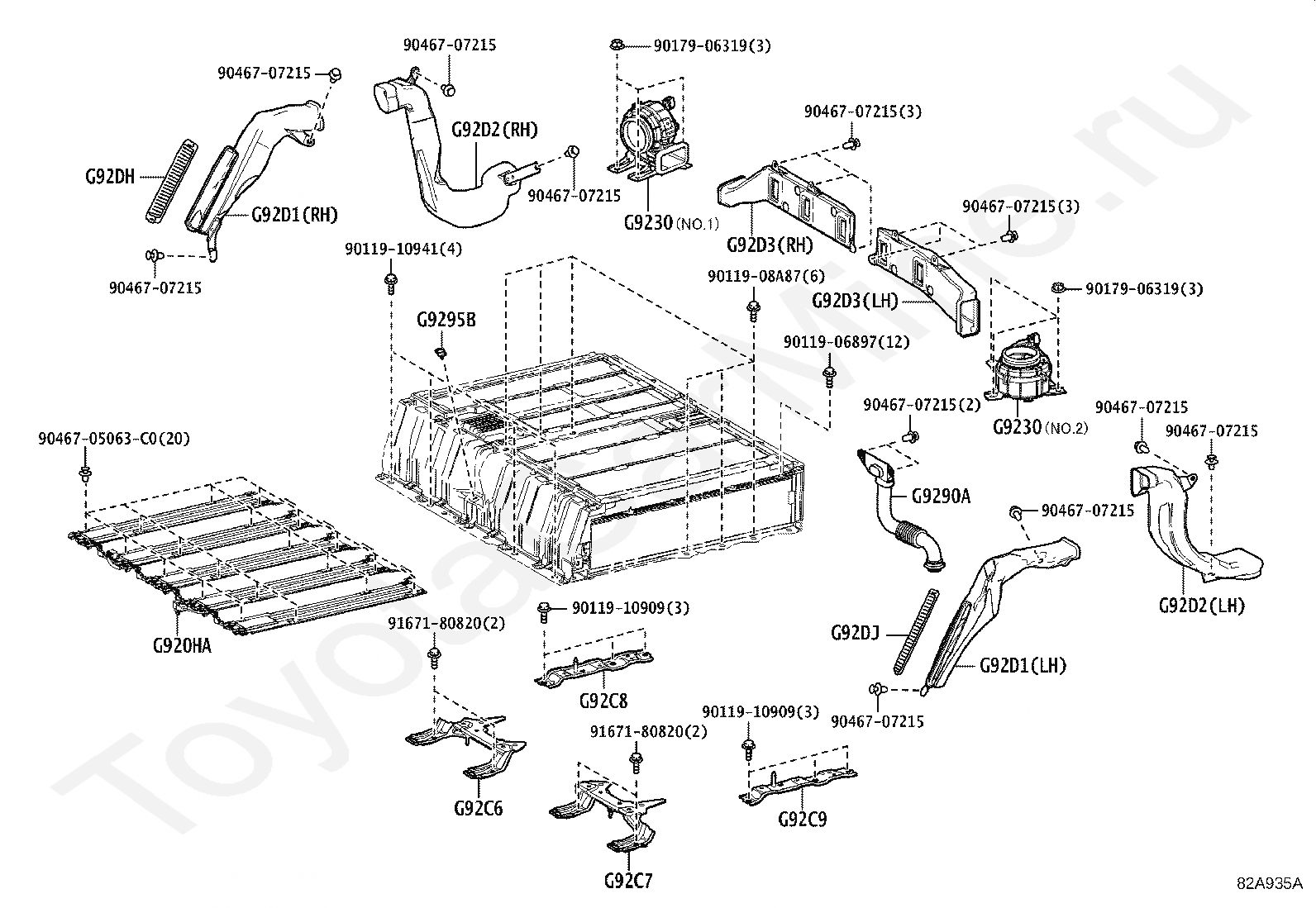

9011906897
Крепеж
9011908A87
Крепеж
9011910909
Крепеж
9011910941
Крепеж
9017906319
Крепеж
9046705063C0
Крепеж
9046707215
Крепеж
9167180820
Крепеж
G920HA
HEATER SUB-ASSY, HV BATTERY
G9230
BLOWER ASSY, BATTERY COOLING
G9290A
HOSE ASSY, HYBRID BATTERY
G9295B
STRIKER, BATTERY COVER LOCK
G92C6
BRACKET, HV BATTERY MOUNT, NO.1
G92C7
BRACKET, HV BATTERY MOUNT, NO.2
G92C8
BRACKET, HV BATTERY MOUNT, NO.3
G92C9
BRACKET, HV BATTERY MOUNT, NO.4
G92D1
DUCT, HYBRID BATTERY INTAKE, NO.1
G92D2
DUCT, HYBRID BATTERY INTAKE, NO.2
G92D3
DUCT, HYBRID BATTERY INTAKE, NO.3
G92DH
FILTER, HV BATTERY INTAKE, NO.1
G92DJ
FILTER, HV BATTERY INTAKE, NO.2
Код
Описание

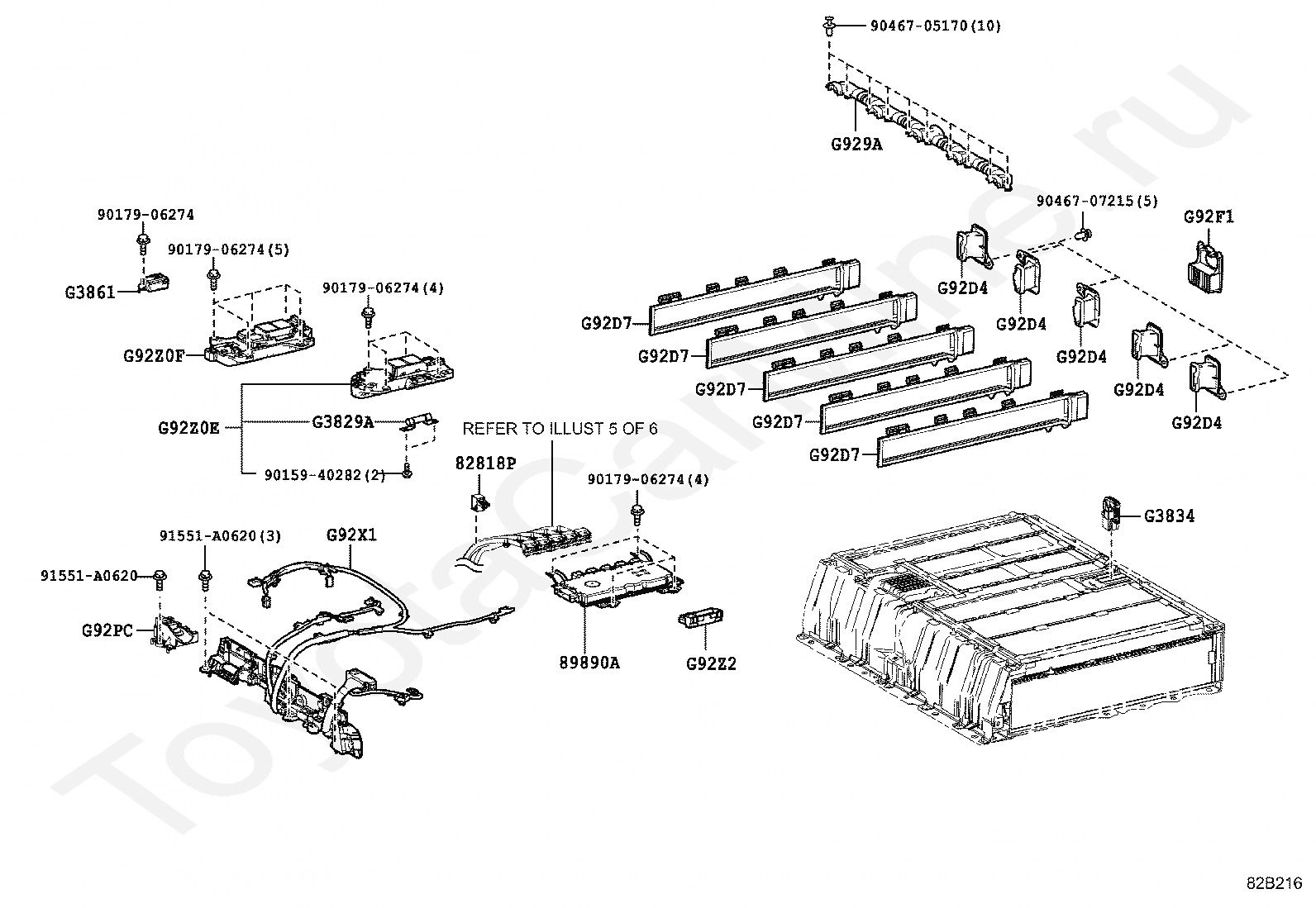

82818P
PROTECTOR, WIRING HARNESS
89890A
COMPUTER ASSY, BATTERY
9015940282
Крепеж
9017906274
Крепеж
9046705170
Крепеж
9046707215
Крепеж
91551A0620
Крепеж
G3829A
FUSE, ELECTRIC VEHICLE
G3834
GRIP, SERVICE PLUG
G3861
RELAY, HV BATTERY HEATER
G929A
HOSE, HV BATTERY, NO.1
G92D4
DUCT, HYBRID BATTERY INTAKE, NO.4
G92D7
DUCT, HYBRID BATTERY INTAKE, NO.7
G92F1
DUCT, HYBRID BATTERY EXHAUST, NO.1
G92PC
PROTECTOR, HV BATTERY, NO.1
G92X1
WIRE, HYBRID BATTERY PACK, NO.1
G92Z0E
BLOCK ASSY, HV BATTERY JUNCTION, NO.2
G92Z0F
BLOCK ASSY, HV BATTERY JUNCTION, NO.1
G92Z2
BLOCK, HYBRID BATTERY TERMINAL
Код
Описание

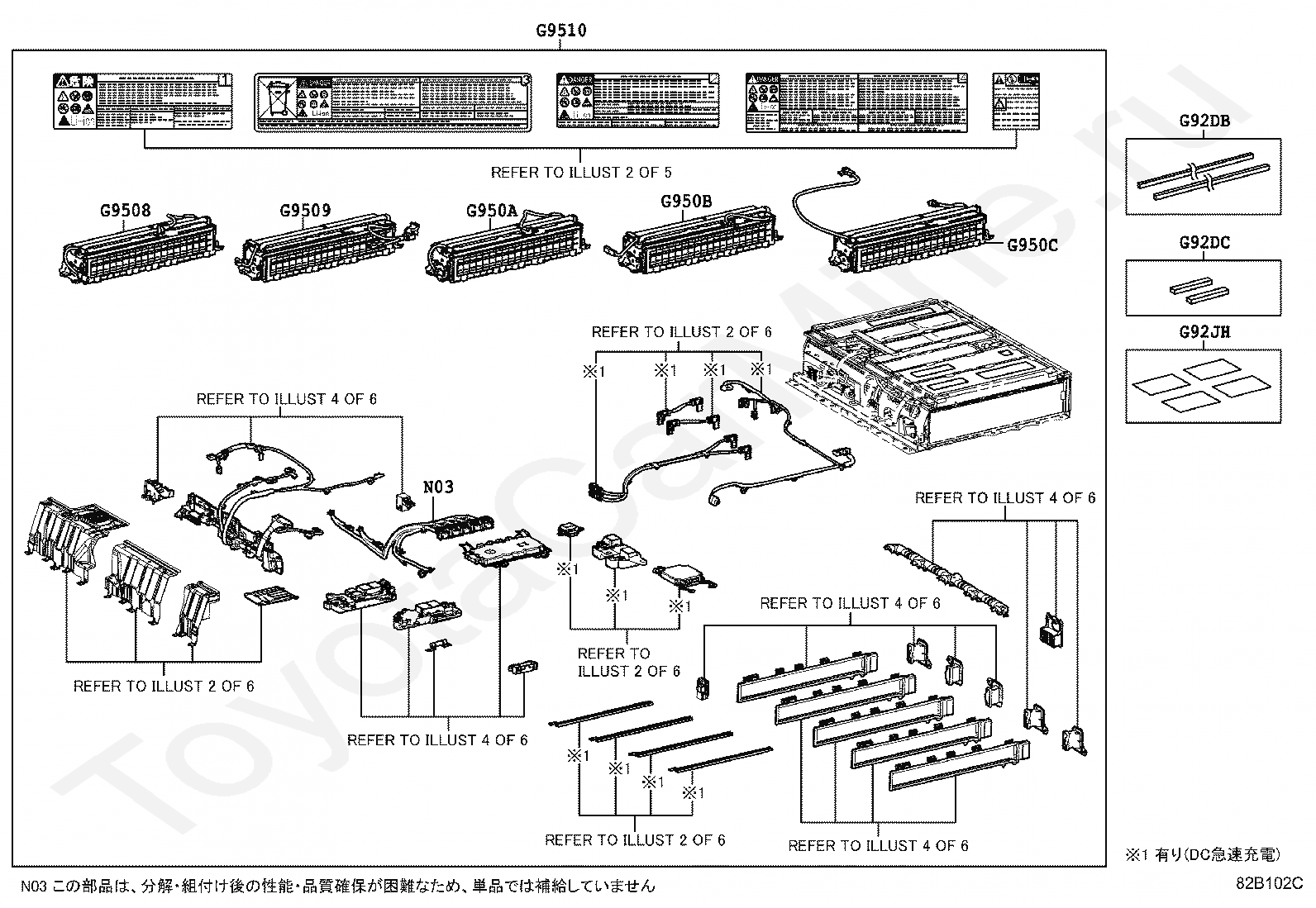

G92DB
SEAL, HYBRID BATTERY, NO.1
G92DC
SEAL, HV BATTERY, NO.2
G92JH
SHEET, HYBRID BATTERY COVER
G9508
STACK SUB-ASSY, HV SUPPLY, NO.1
G9509
STACK SUB-ASSY, HV SUPPLY, NO.2
G950A
STACK SUB-ASSY, HV SUPPLY, NO.3
G950B
STACK SUB-ASSY, HV SUPPLY, NO.4
G950C
STACK SUB-ASSY, HV SUPPLY, NO.5
G9510
BATTERY ASSY, HV SUPPLY
Код
Описание

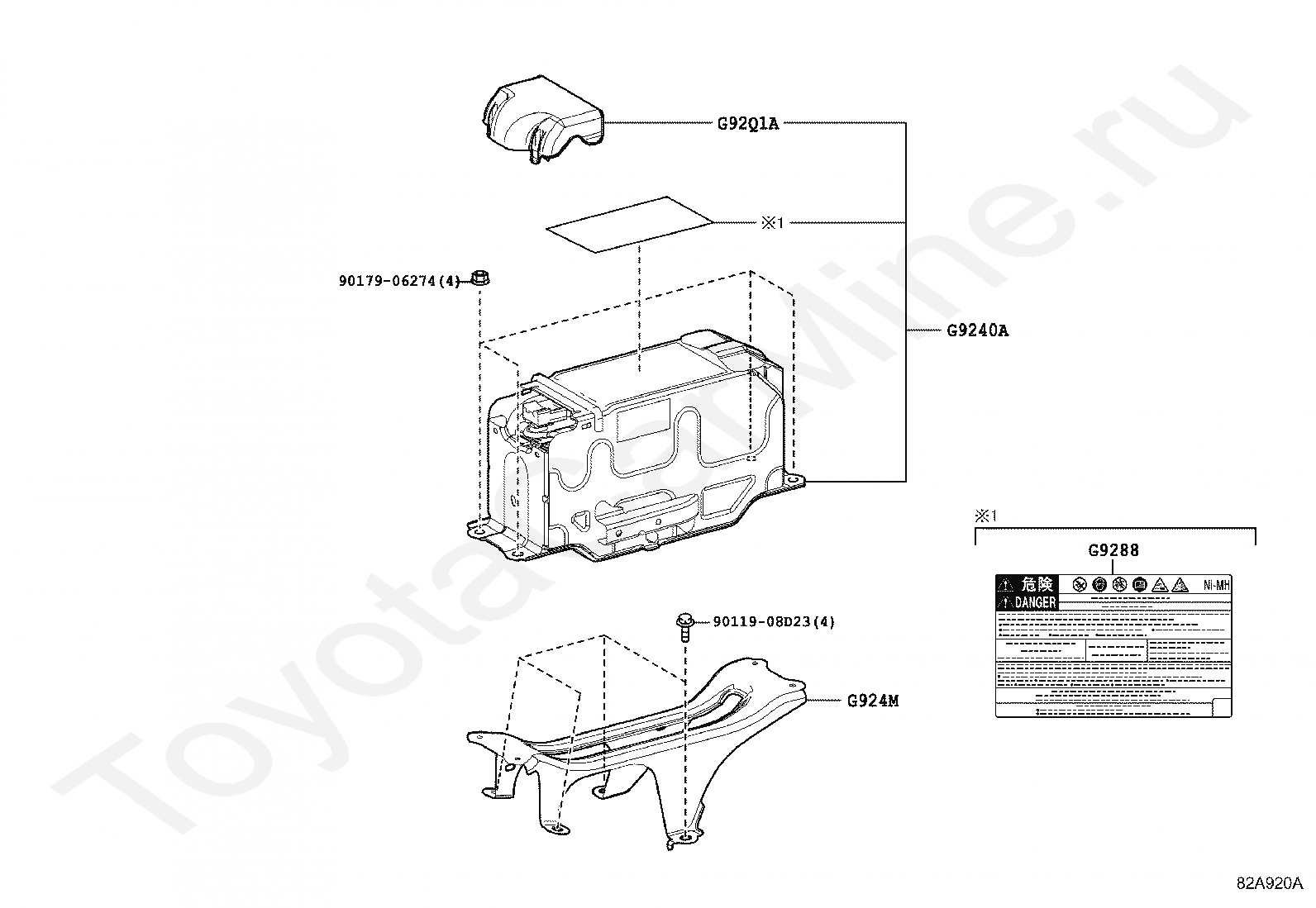

9011908D23
Крепеж
9017906274
Крепеж
G9240A
SOLAR BATTERY
G924M
BRACKET, SOLAR BATTERY MOUNT, NO.1
G9288
LABEL, BATTERY CHARGING NOTICE
G92Q1A
PANEL, SOLAR BATTERY SHIELD, NO.1
