Каталог
ЯпонияМодель
PRIUS A(ALPHA)Двигатель
1,8 литра, 16 клапанов, DOHC, EFIКласс
S TYPEФрейм
ZVW40Трансмиссия
вариаторОпции
7-местный COMPLETED VEHICLE 628W

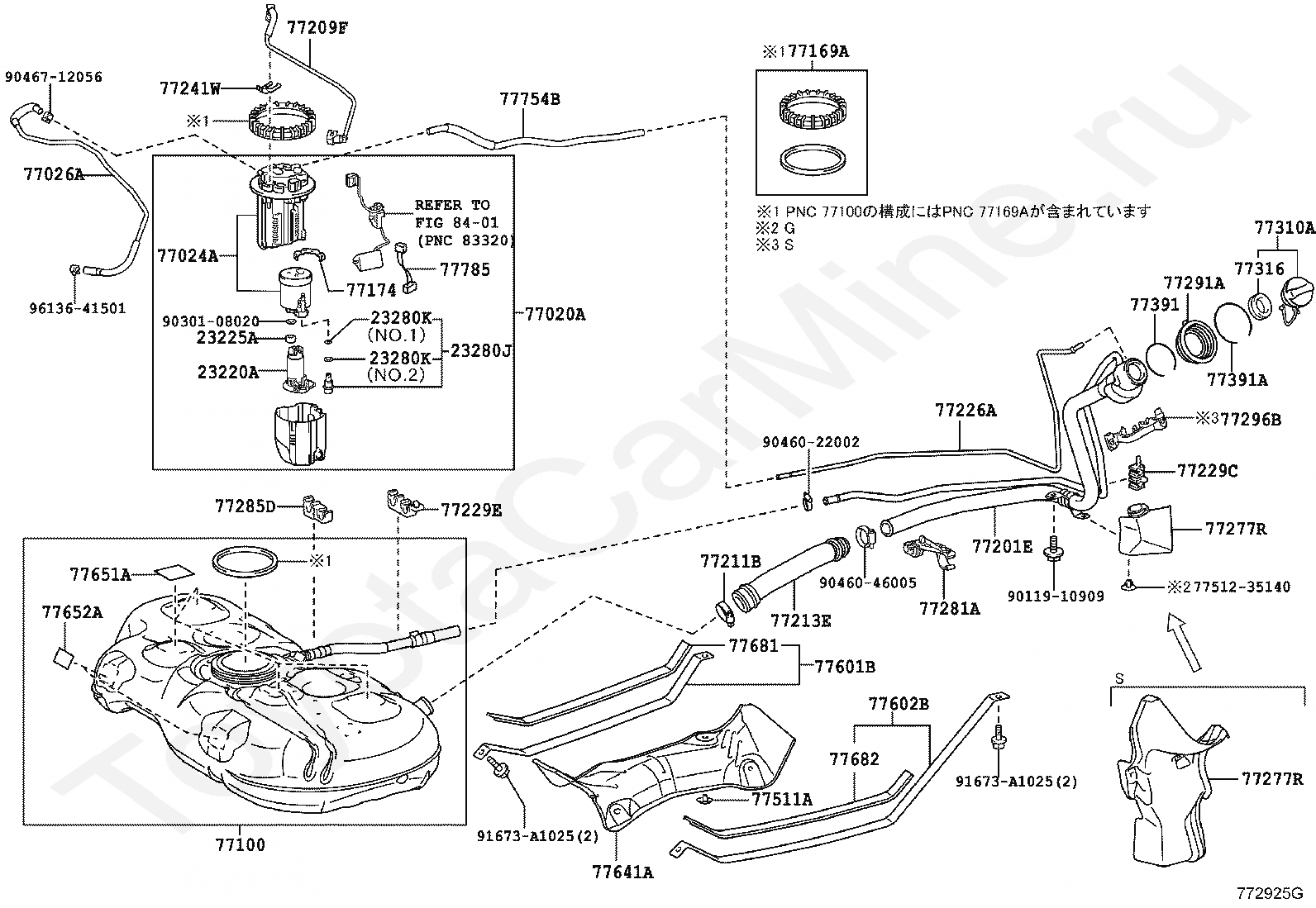

Код
Описание
23220A
PUMP ASSY, FUEL W/FILTER
23225A
SPACER, FUEL PUMP
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100
TANK ASSY, FUEL
77169A
GASKET, FUEL SUCTION TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77211B
CLAMP (FOR FUEL FILLER PIPE)
77213E
HOSE, FUEL TANK TO FILLER PIPE
77226A
TUBE, FUEL TANK BREATHER, NO.6
77229C
CLAMP, BREATHER TUBE
77229E
CLAMP, BREATHER TUBE
77241W
CLIP, TUBE JOINT
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77281A
CLAMP, FUEL FILLER PIPE
77285D
CLAMP, FUEL TUBE, NO.1
77291A
SHIELD, FUEL TANK FILLER PIPE
77296B
SUPPORT, FUEL TUBE PROTECTOR, NO.1
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77511A
BRACKET, FUEL TANK
7751235140
Крепеж
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77641A
PROTECTOR, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77754B
HOSE, CHARCOAL CANISTER OUTLET
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011910909
Крепеж
9030108020
Крепеж
9046022002
Крепеж
9046046005
Крепеж
9046712056
Крепеж
91673A1025
Крепеж
9613641501
Крепеж

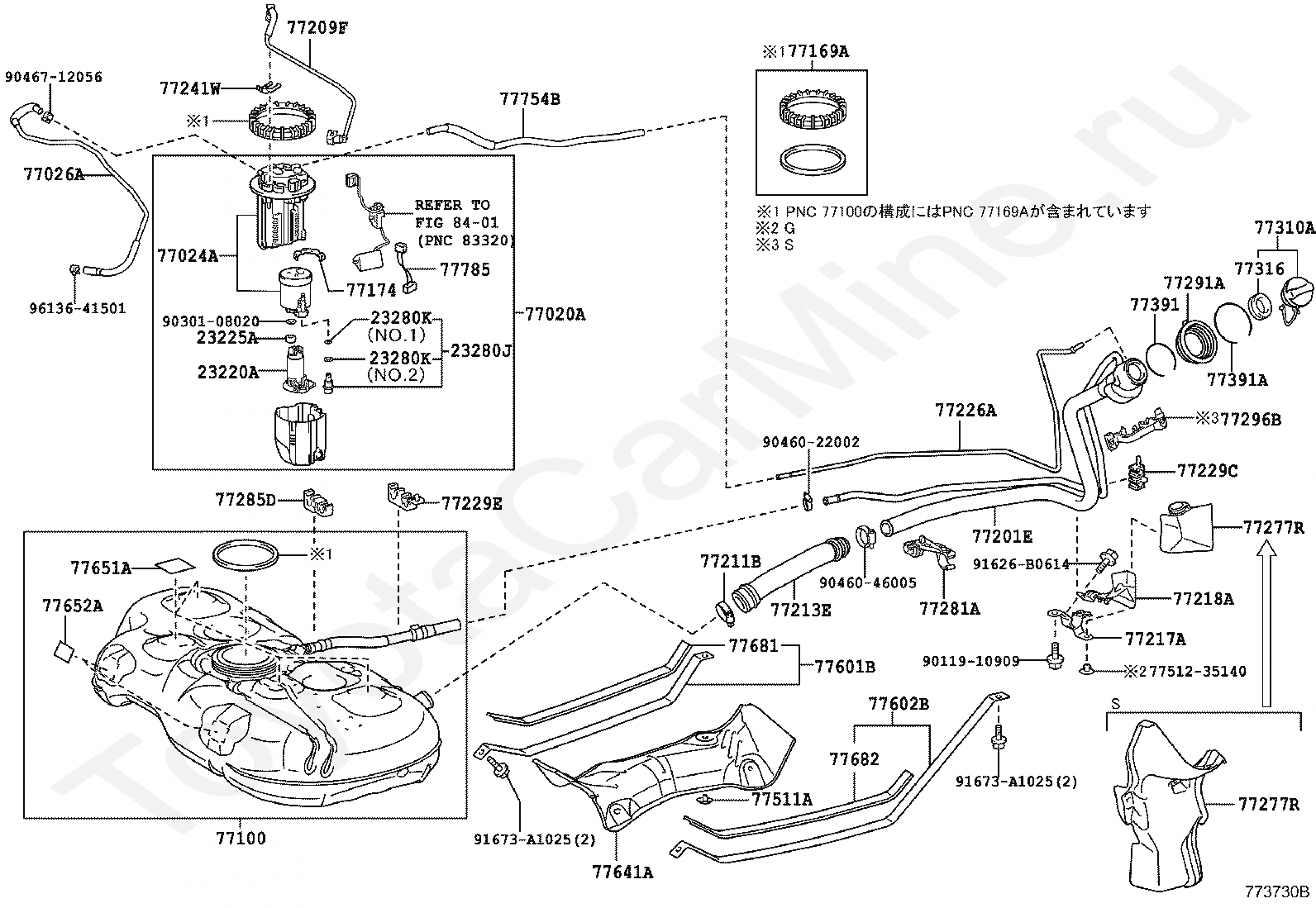

Код
Описание
23220A
PUMP ASSY, FUEL W/FILTER
23225A
SPACER, FUEL PUMP
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100
TANK ASSY, FUEL
77169A
GASKET, FUEL SUCTION TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77211B
CLAMP (FOR FUEL FILLER PIPE)
77213E
HOSE, FUEL TANK TO FILLER PIPE
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77226A
TUBE, FUEL TANK BREATHER, NO.6
77229C
CLAMP, BREATHER TUBE
77229E
CLAMP, BREATHER TUBE
77241W
CLIP, TUBE JOINT
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77281A
CLAMP, FUEL FILLER PIPE
77285D
CLAMP, FUEL TUBE, NO.1
77291A
SHIELD, FUEL TANK FILLER PIPE
77296B
SUPPORT, FUEL TUBE PROTECTOR, NO.1
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77511A
BRACKET, FUEL TANK
7751235140
Крепеж
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77641A
PROTECTOR, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77754B
HOSE, CHARCOAL CANISTER OUTLET
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011910909
Крепеж
9030108020
Крепеж
9046022002
Крепеж
9046046005
Крепеж
9046712056
Крепеж
91626B0614
Крепеж
91673A1025
Крепеж
9613641501
Крепеж

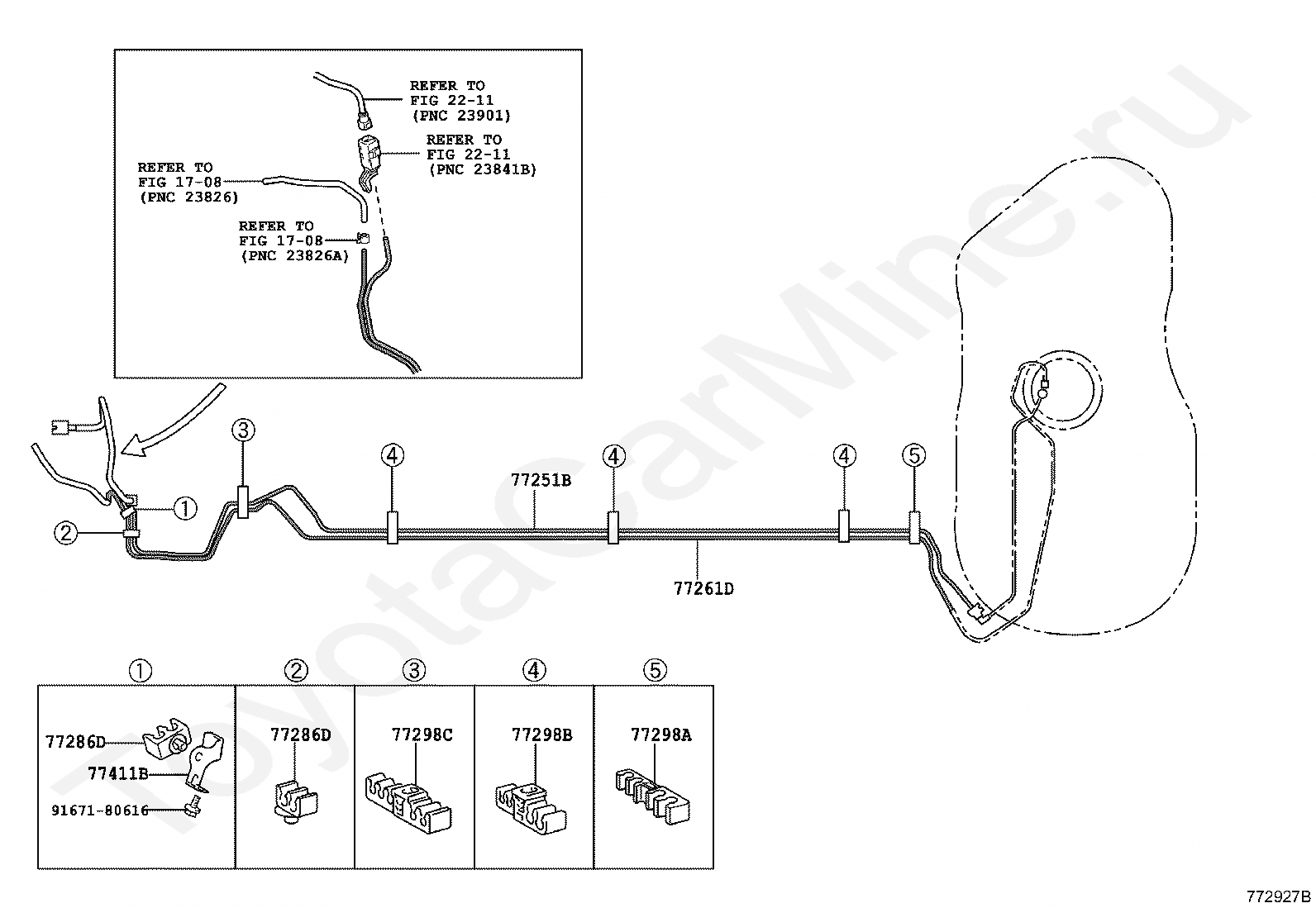

Код
Описание
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77286D
CLAMP, FUEL TUBE, NO.2
77298A
CLAMP, FUEL TUBE, NO.4
77298B
CLAMP, FUEL TUBE, NO.4
77298C
CLAMP, FUEL TUBE, NO.4
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
9167180616
Крепеж

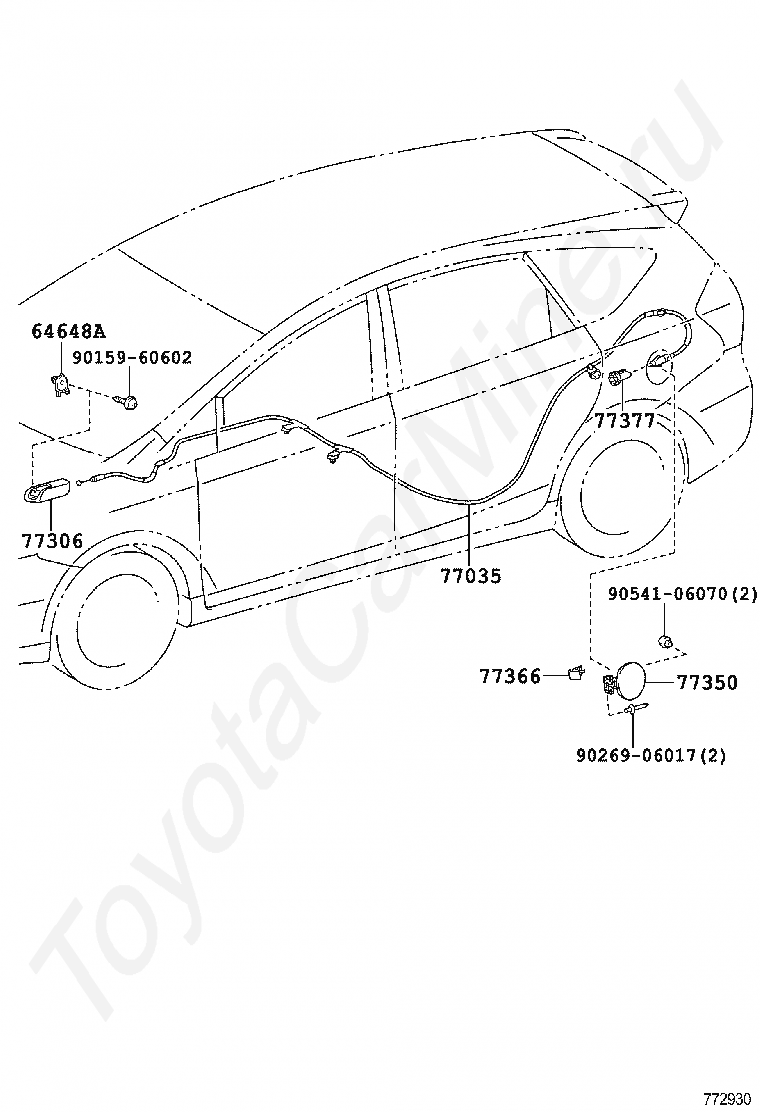

Код
Описание
64648A
GROMMET, LUGGAGE DOOR LOCK OPENER
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
9015960602
Крепеж
9026906017
Крепеж
9054106070
Крепеж
