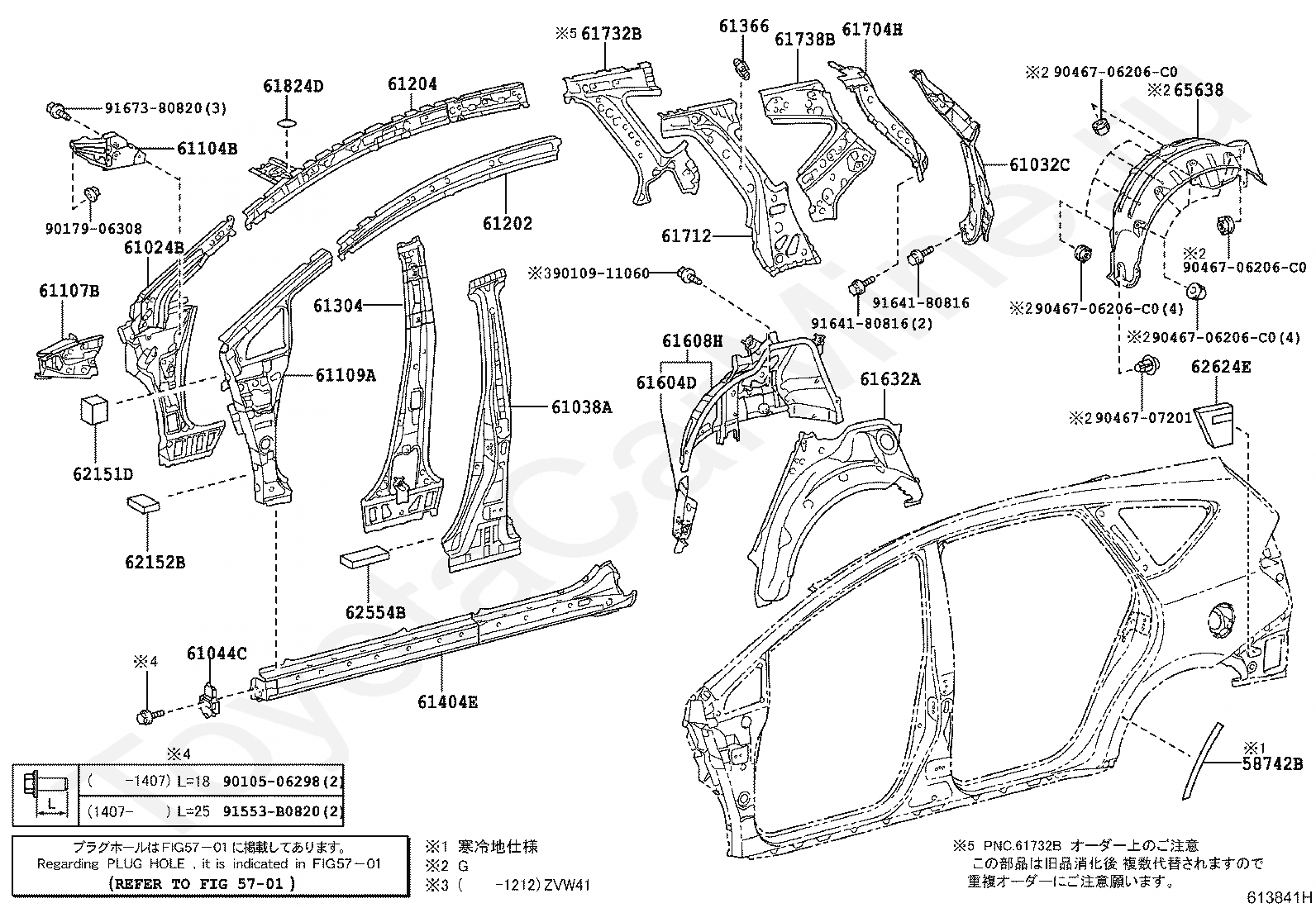

Боковая панель кузова TOYOTA PRIUS A(ALPHA), 2014/11 - 2021/03, 1,8 литра, 16 клапанов, DOHC, EFI, S TYPE, ZVW40, вариатор

Каталог

Япония

Модель

PRIUS A(ALPHA)

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

S TYPE

Фрейм

ZVW40

Трансмиссия

вариатор

Опции

7-местный COMPLETED VEHICLE 628W

Код

Описание

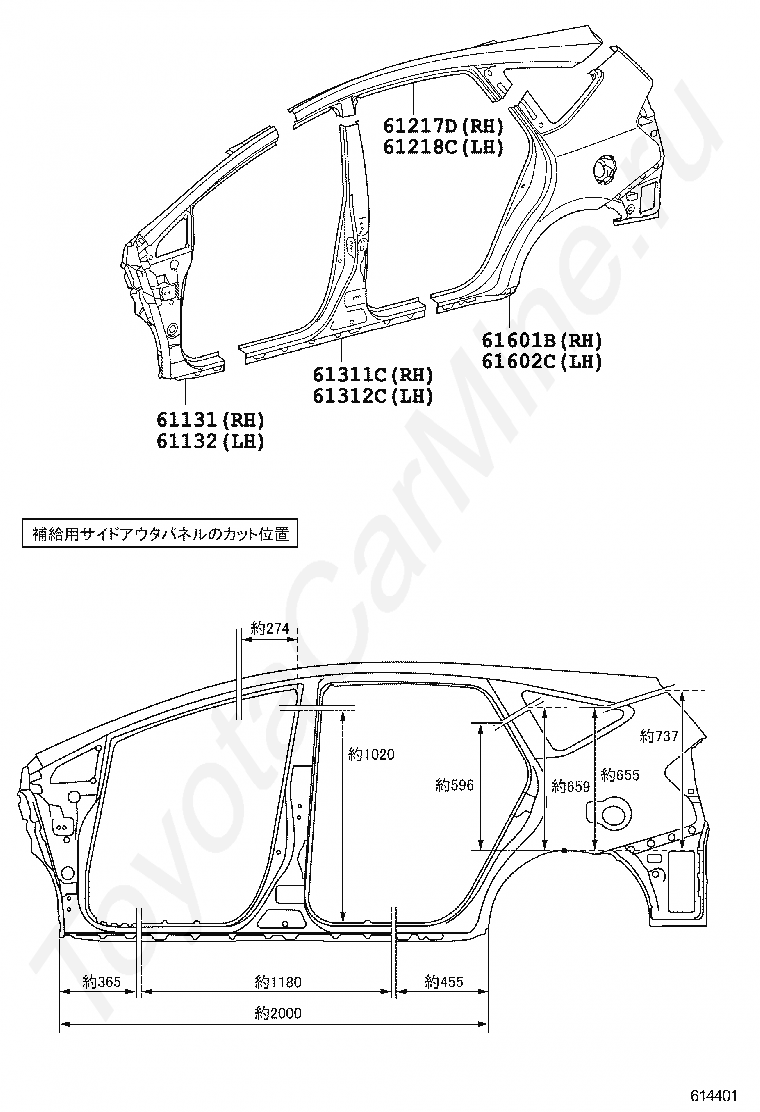

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61132

PILLAR, FRONT BODY, UPPER OUTER LH

61217D

RAIL, ROOF SIDE, OUTER NO.4 RH

61218C

RAIL, ROOF SIDE, OUTER NO.4 LH

61311C

PANEL, REAR BODY FRONT OUTSIDE, RH

61312C

PANEL, REAR BODY FRONT OUTSIDE, LH

61601B

PANEL SUB-ASSY, QUARTER, RH

61602C

PANEL SUB-ASSY, QUARTER, LH

Код

Описание

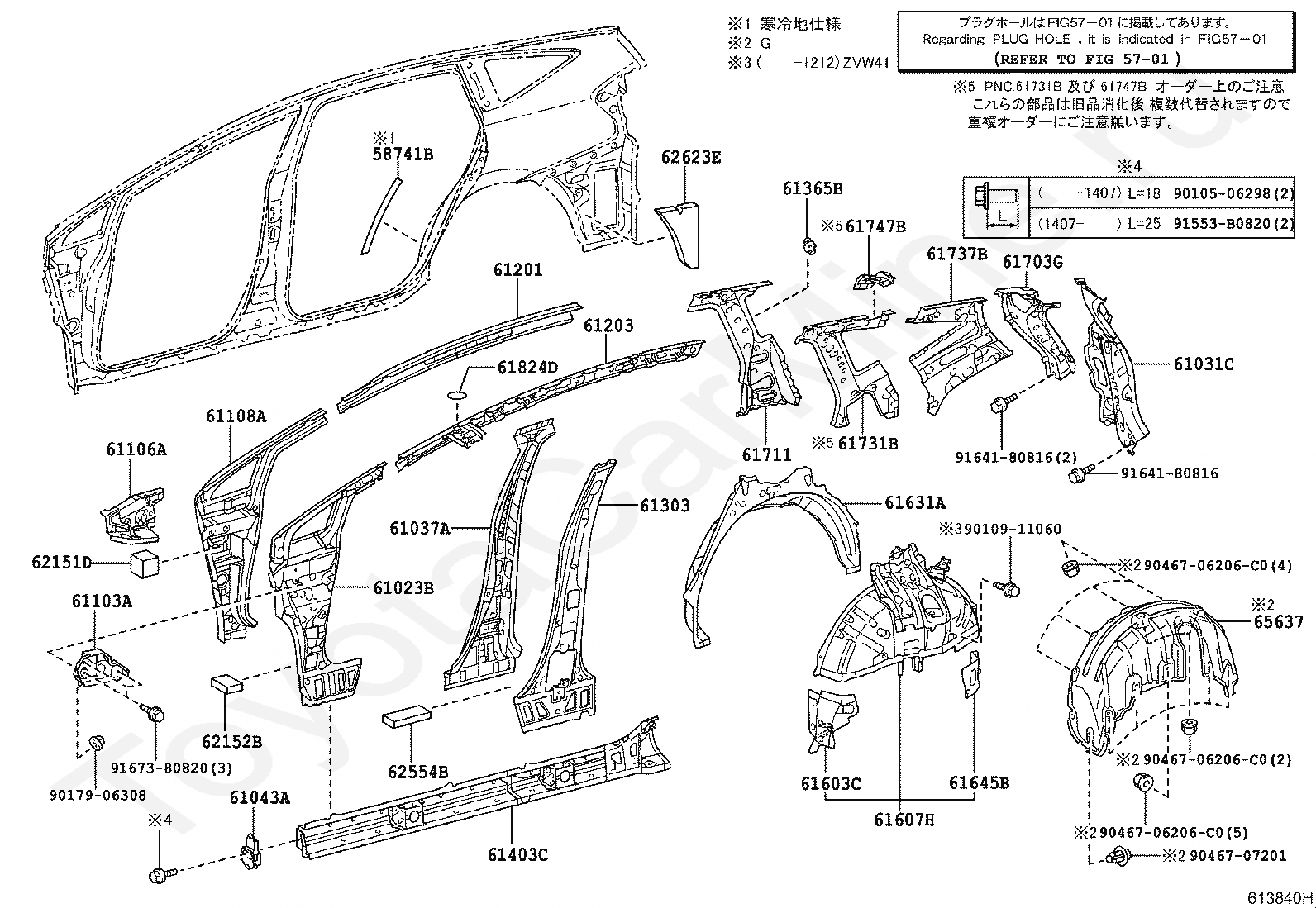

5701

переход к группе запчастей

58741B

PROTECTOR, QUARTER PANEL, RH

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61031C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61043A

EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

61103A

REINFORCEMENT SUB-ASSY, COWL SIDE, RH

61106A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61201

RAIL SUB-ASSY, ROOF SIDE, RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61303

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

61365B

REINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61603C

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

61607H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61703G

PANEL SUB-ASSY, QUARTER, INNER RH

61711

PANEL, ROOF SIDE, OUTER RH

61731B

PANEL, ROOF SIDE, INNER RH

61737B

PANEL, ROOF SIDE, INNER LOWER RH

61747B

REINFORCEMENT, ROOF SIDE, INNER REAR, RH

61824D

PLATE, NOISE CONTROL, NO.1

62151D

PAD, COWL SIDE SILENCER

62152B

PAD, COWL SIDE SILENCER, NO.2

62554B

PAD, PILLAR, NO.4

62623E

PAD, QUARTER WHEEL HOUSE, INNER REAR RH

65637

LINER, REAR WHEEL HOUSE, RH

9010506298

Крепеж

9010911060

Крепеж

9017906308

Крепеж

9046706206C0

Крепеж

9046707201

Крепеж

91553B0820

Крепеж

9164180816

Крепеж

9167380820

Крепеж

Код

Описание

5701

переход к группе запчастей

58742B

PROTECTOR, QUARTER PANEL, LH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61032C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61044C

EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

61104B

REINFORCEMENT SUB-ASSY, COWL SIDE, LH

61107B

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61202

RAIL SUB-ASSY, ROOF SIDE, LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61304

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

61366

REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61604D

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH

61608H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61704H

PANEL SUB-ASSY, QUARTER, INNER LH

61712

PANEL, ROOF SIDE, OUTER LH

61732B

PANEL, ROOF SIDE, INNER LH

61738B

PANEL, ROOF SIDE, INNER LOWER LH

61824D

PLATE, NOISE CONTROL, NO.1

62151D

PAD, COWL SIDE SILENCER

62152B

PAD, COWL SIDE SILENCER, NO.2

62554B

PAD, PILLAR, NO.4

62624E

PAD, QUARTER WHEEL HOUSE, INNER REAR LH

65638

LINER, REAR WHEEL HOUSE, LH

9010506298

Крепеж

9010911060

Крепеж

9017906308

Крепеж

9046706206C0

Крепеж

9046707201

Крепеж

91553B0820

Крепеж

9164180816

Крепеж

9167380820

Крепеж
