Каталог
ЕвропаМодель
PRIUS PHVДвигатель
1,8 литра, 16 клапанов, DOHC, EFIКласс
BASE TYPEФрейм
ZVW52Трансмиссия
вариаторОпции
правый руль Европа 667W

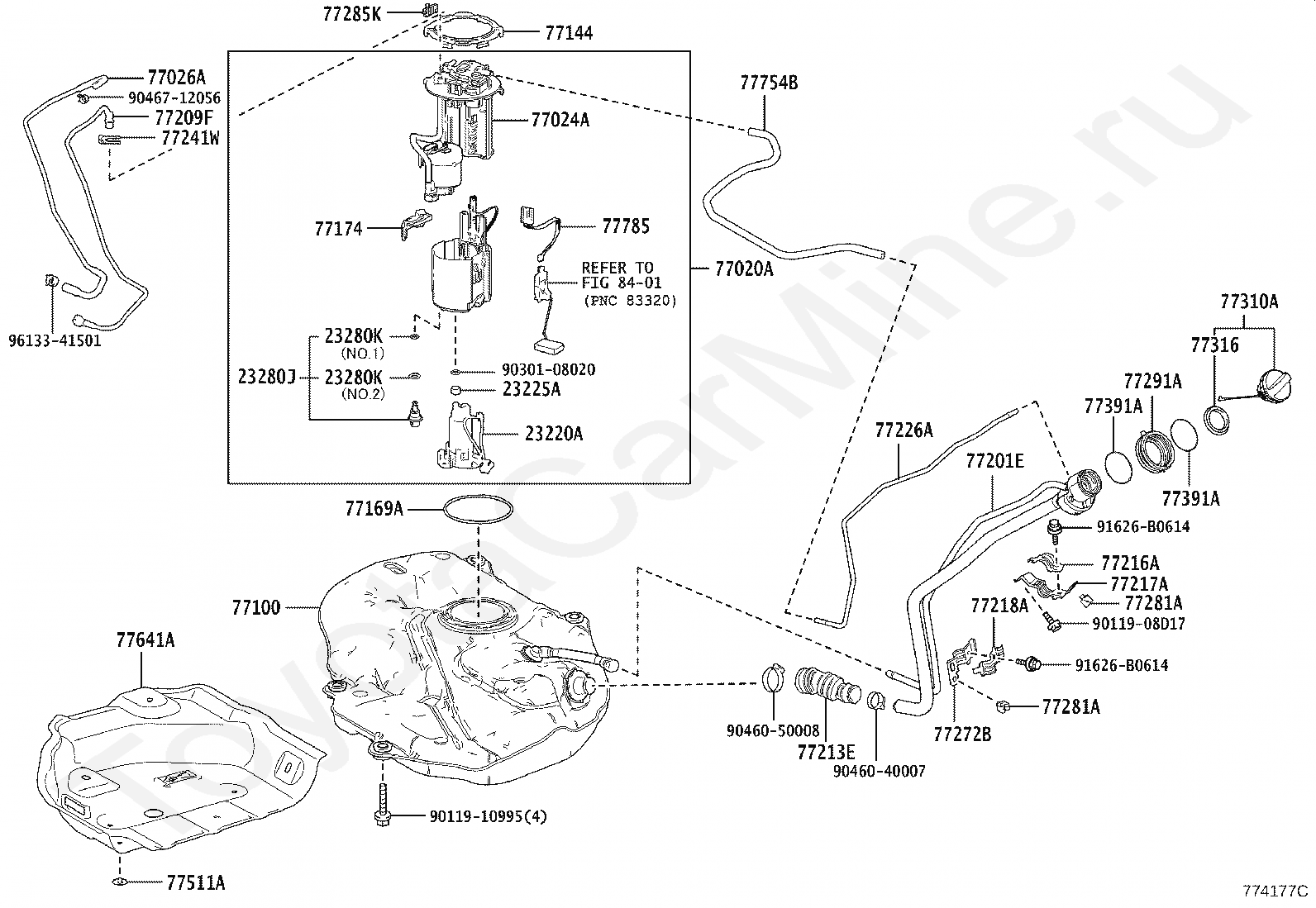

Код
Описание
23220A
PUMP ASSY, FUEL W/FILTER
23225A
SPACER, FUEL PUMP
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77213E
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77226A
TUBE, FUEL TANK BREATHER, NO.6
77241W
CLIP, TUBE JOINT
77272B
SUPPORT, BREATHER TUBE, NO.1
77281A
CLAMP, FUEL FILLER PIPE
77285K
CLAMP, FUEL TUBE, NO.1
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391A
RING, FUEL INLET BOX
77511A
BRACKET, FUEL TANK
77641A
PROTECTOR, FUEL TANK, NO.1
77754B
HOSE, CHARCOAL CANISTER OUTLET
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011908D17
Крепеж
9011910995
Крепеж
9030108020
Крепеж
9046040007
Крепеж
9046050008
Крепеж
9046712056
Крепеж
91626B0614
Крепеж
9613341501
Крепеж

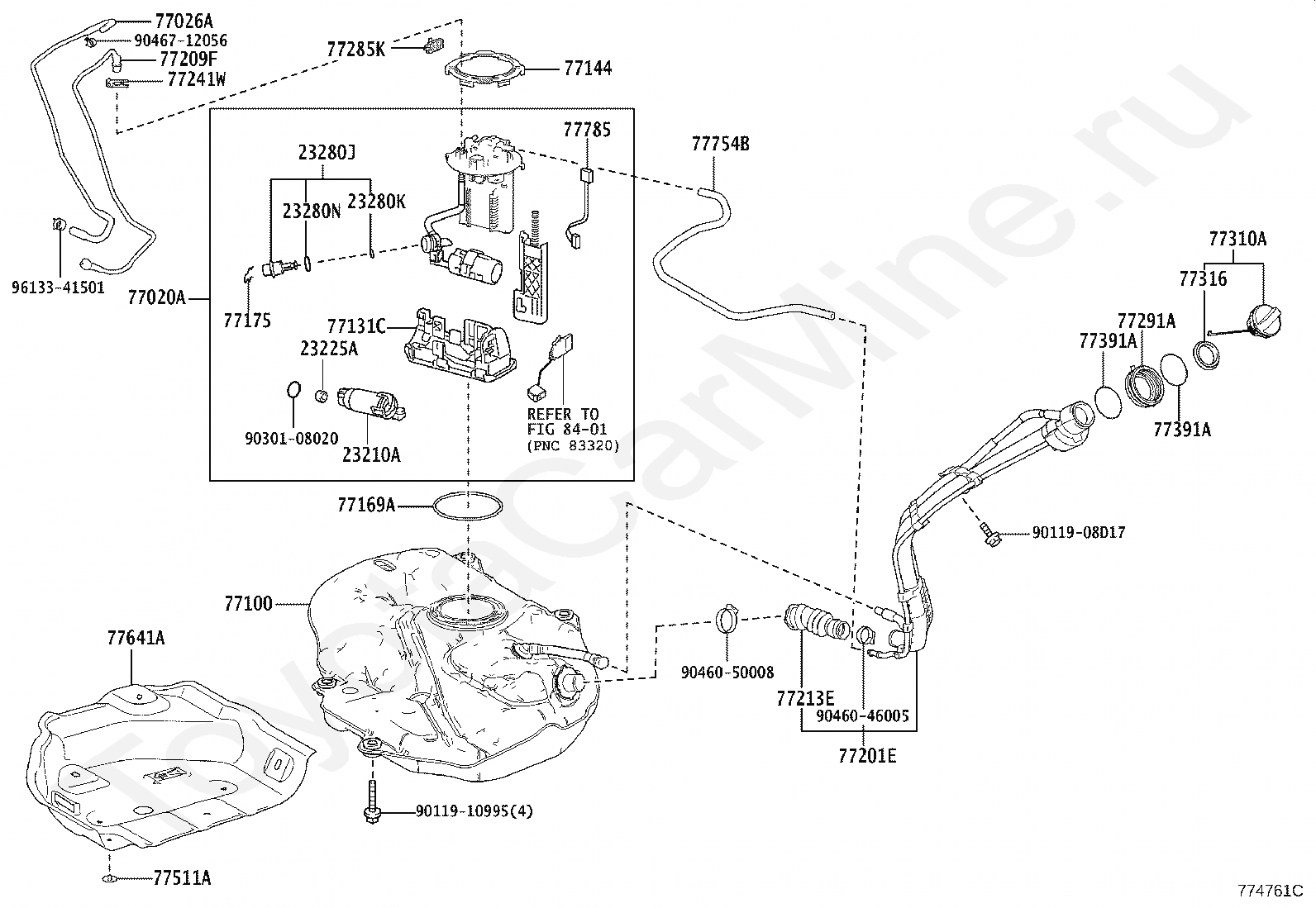

Код
Описание
23210A
PUMP ASSY, FUEL W/MOTOR & BRACKET
23225A
SPACER, FUEL PUMP
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
23280N
RING, O(FOR FUEL PRESSURE REGULATOR), NO.2
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100
TANK ASSY, FUEL
77131C
SUB-TANK, FUEL, NO.1
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77213E
HOSE, FUEL TANK TO FILLER PIPE
77241W
CLIP, TUBE JOINT
77285K
CLAMP, FUEL TUBE, NO.1
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391A
RING, FUEL INLET BOX
77511A
BRACKET, FUEL TANK
77641A
PROTECTOR, FUEL TANK, NO.1
77754B
HOSE, CHARCOAL CANISTER OUTLET
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011908D17
Крепеж
9011910995
Крепеж
9030108020
Крепеж
9046046005
Крепеж
9046050008
Крепеж
9046712056
Крепеж
9613341501
Крепеж

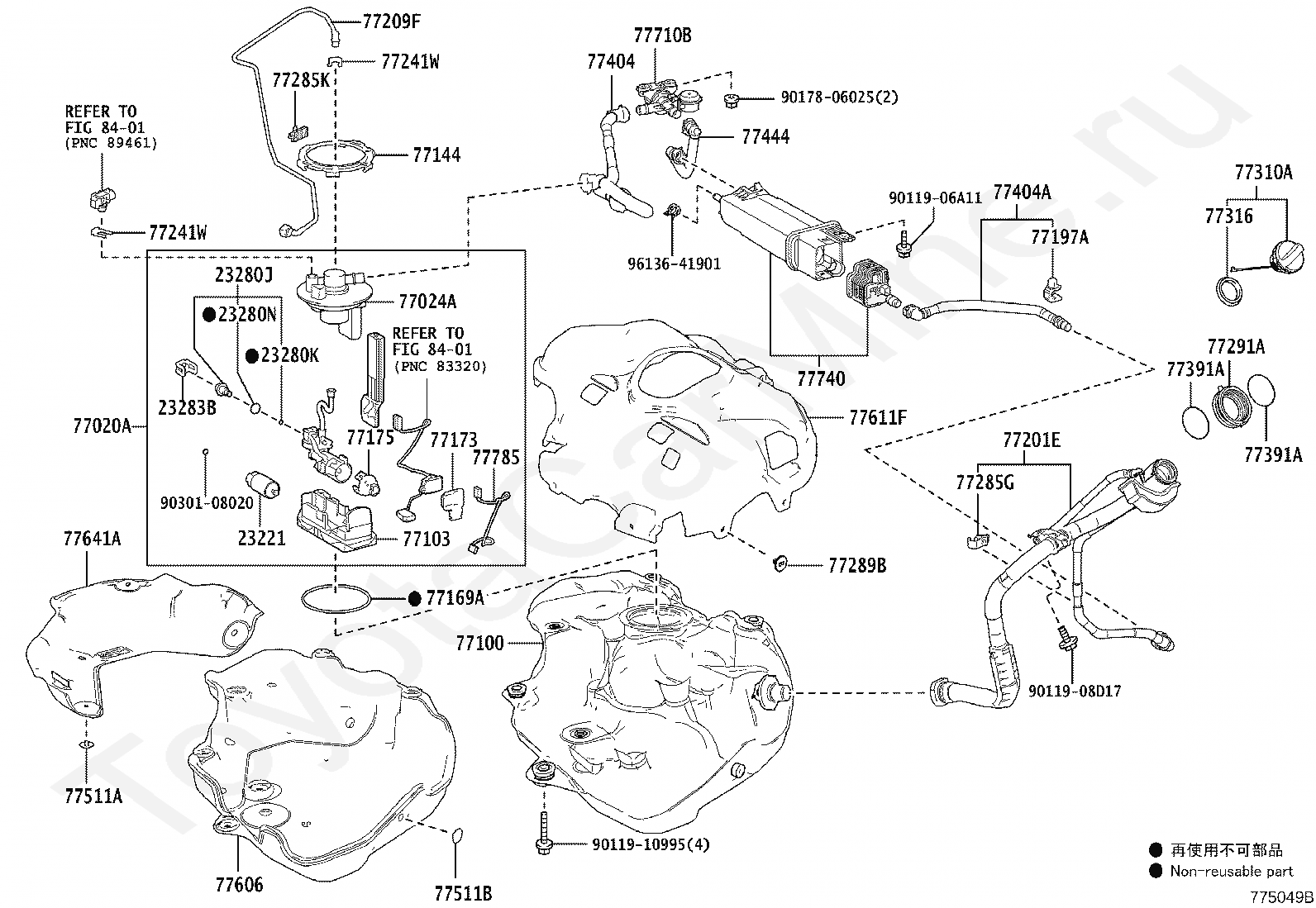

Код
Описание
23221
PUMP, FUEL
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
23280N
RING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283B
HOLDER, FUEL PRESSURE REGULATOR
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77103
SUB-TANK SUB-ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77173
BRACKET, FUEL GAGE
77175
SUPPORT, FUEL SUCTION, NO.2
77197A
CLAMP, EVAPORATION VENT TUBE, NO.2
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77241W
CLIP, TUBE JOINT
77285G
CLAMP, FUEL TUBE, NO.1
77285K
CLAMP, FUEL TUBE, NO.1
77289B
CLAMP, FUEL TUBE, NO.3
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391A
RING, FUEL INLET BOX
77404
HOSE SUB-ASSY, FUEL TANK VENT
77404A
HOSE SUB-ASSY, FUEL TANK VENT
77444
HOSE, FUEL TANK VENT
77511A
BRACKET, FUEL TANK
77511B
BRACKET, FUEL TANK
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611F
COVER, FUEL TANK, UPPER
77641A
PROTECTOR, FUEL TANK, NO.1
77710B
VALVE ASSY, FUEL TANK SOLENOID MAIN
77740
CANISTER ASSY, CHARCOAL
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011906A11
Крепеж
9011908D17
Крепеж
9011910995
Крепеж
9017806025
Крепеж
9030108020
Крепеж
9613641901
Крепеж

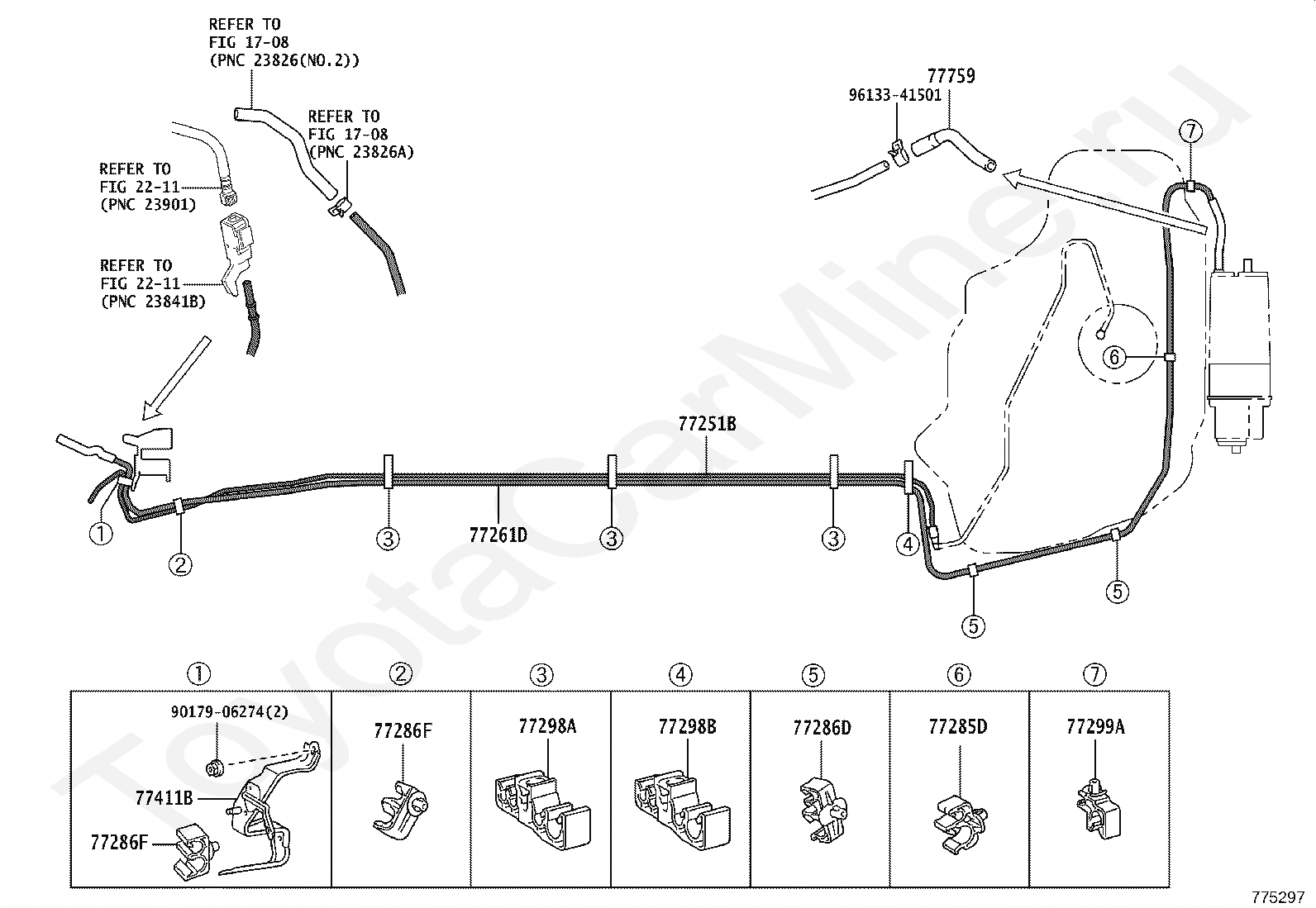

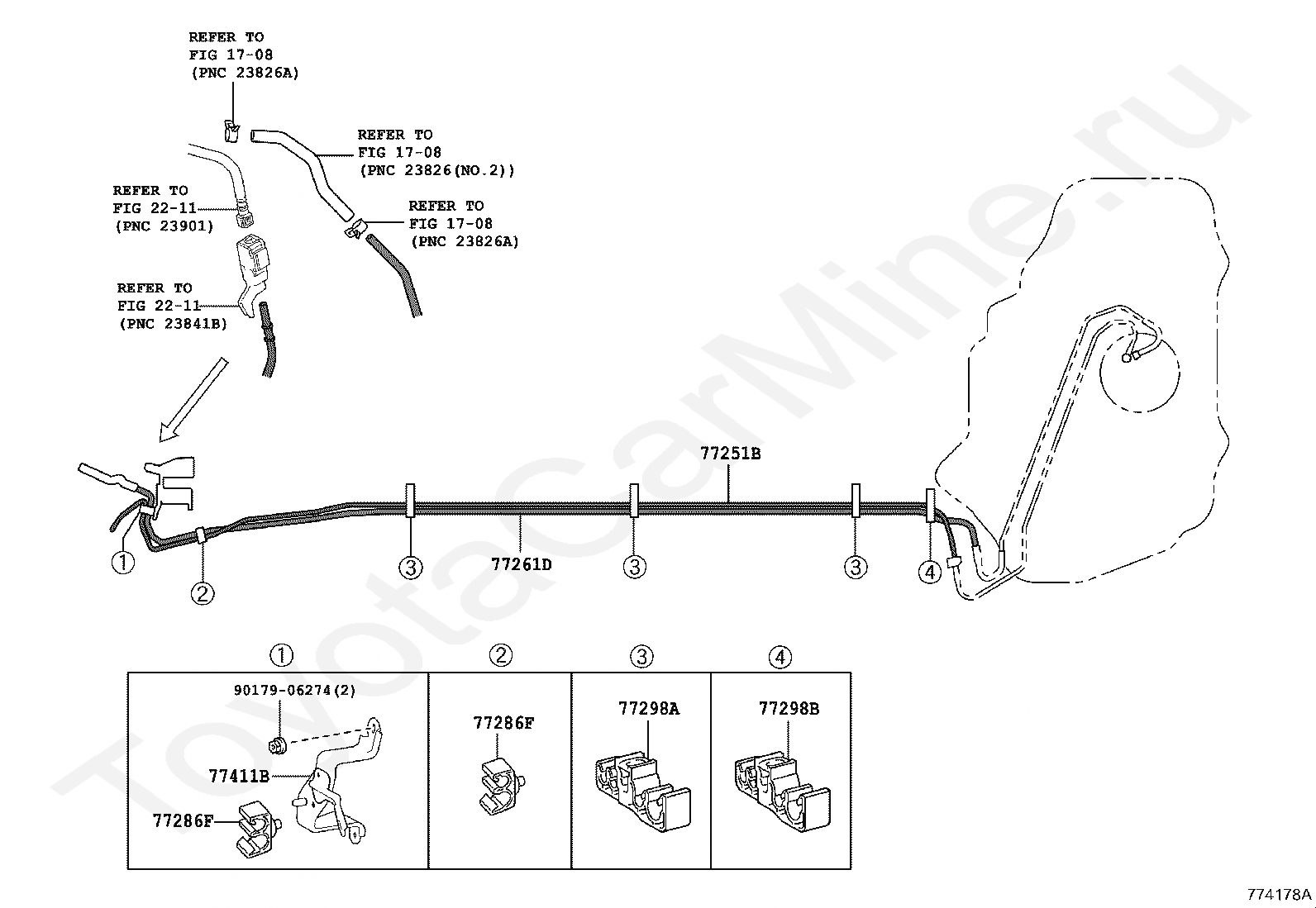

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77286F
CLAMP, FUEL TUBE, NO.2
77298A
CLAMP, FUEL TUBE, NO.4
77298B
CLAMP, FUEL TUBE, NO.4
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
9017906274
Крепеж
Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77285D
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77286F
CLAMP, FUEL TUBE, NO.2
77298A
CLAMP, FUEL TUBE, NO.4
77298B
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77759
HOSE, CHARCOAL CANISTER
9017906274
Крепеж
9613341501
Крепеж

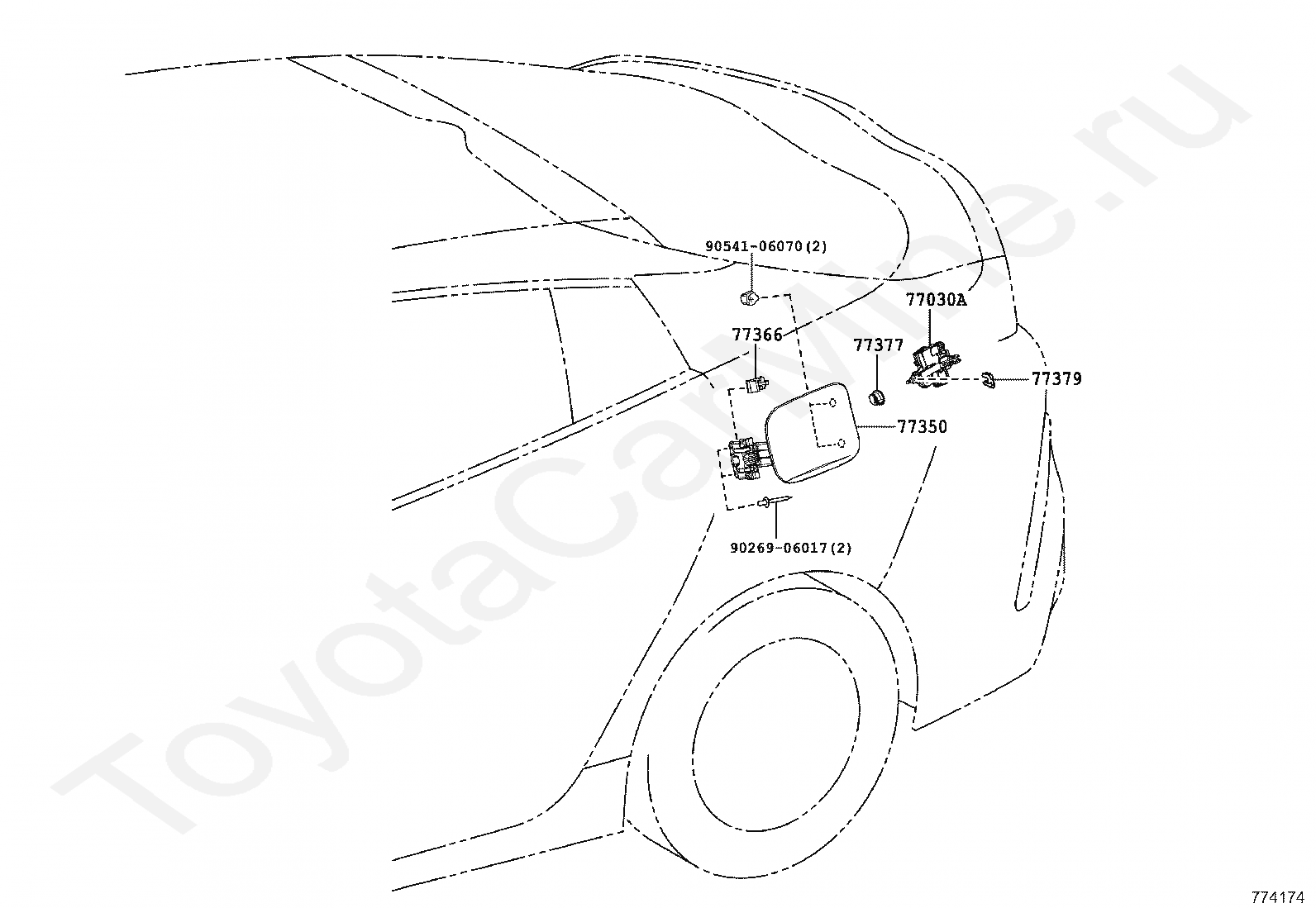

Код
Описание
77030A
LOCK ASSY, FUEL LID W/MOTOR
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77379
SPACER, FUEL INLET BOX COVER, NO.2
9026906017
Крепеж
9054106070
Крепеж
