Задние кресла TOYOTA PRIUS PHV, 2016/09 - 2019/04, 1,8 литра, 16 клапанов, DOHC, EFI, BASE TYPE, ZVW52, вариатор

Каталог

Европа

Модель

PRIUS PHV

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

BASE TYPE

Фрейм

ZVW52

Трансмиссия

вариатор

Опции

правый руль Европа 667W

Код

Описание

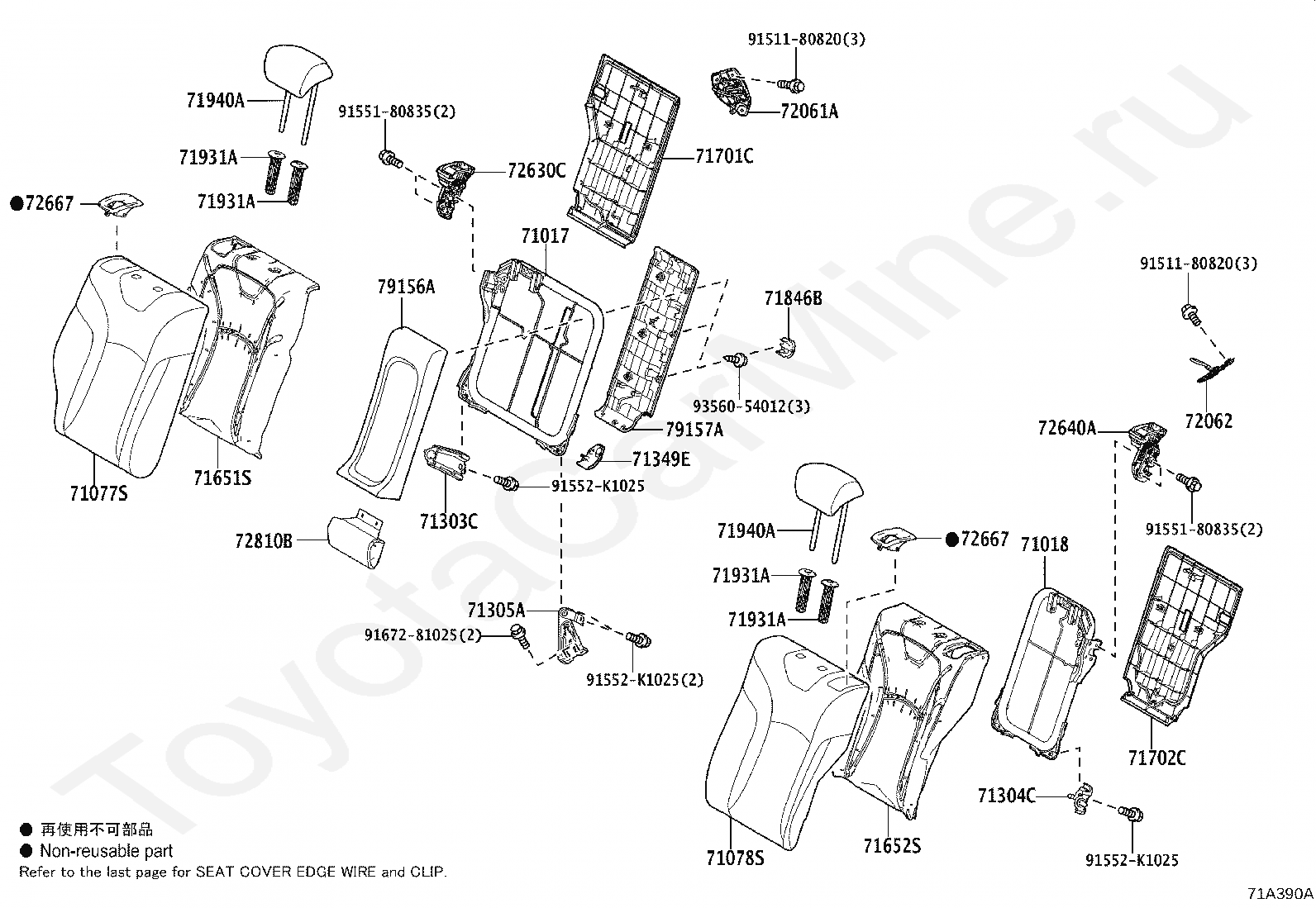

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71349E

COVER, REAR SEAT BACK HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702C

BOARD SUB-ASSY, REAR SEAT BACK, LH

71846B

CAP, REAR SEAT BACK BOARD, NO.1

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72061A

BASE SUB-ASSY, REAR SEAT BACK LOCK, RH

72062

BASE SUB-ASSY, REAR SEAT BACK LOCK, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72810B

ARMREST ASSY, NO.1 SEAT

79156A

PLATE, NO.1 SEAT SIDE, NO.1

79157A

PLATE, NO.1 SEAT SIDE, NO.2

9151180820

Крепеж

9155180835

Крепеж

91552K1025

Крепеж

9167281025

Крепеж

9356054012

Крепеж

Код

Описание

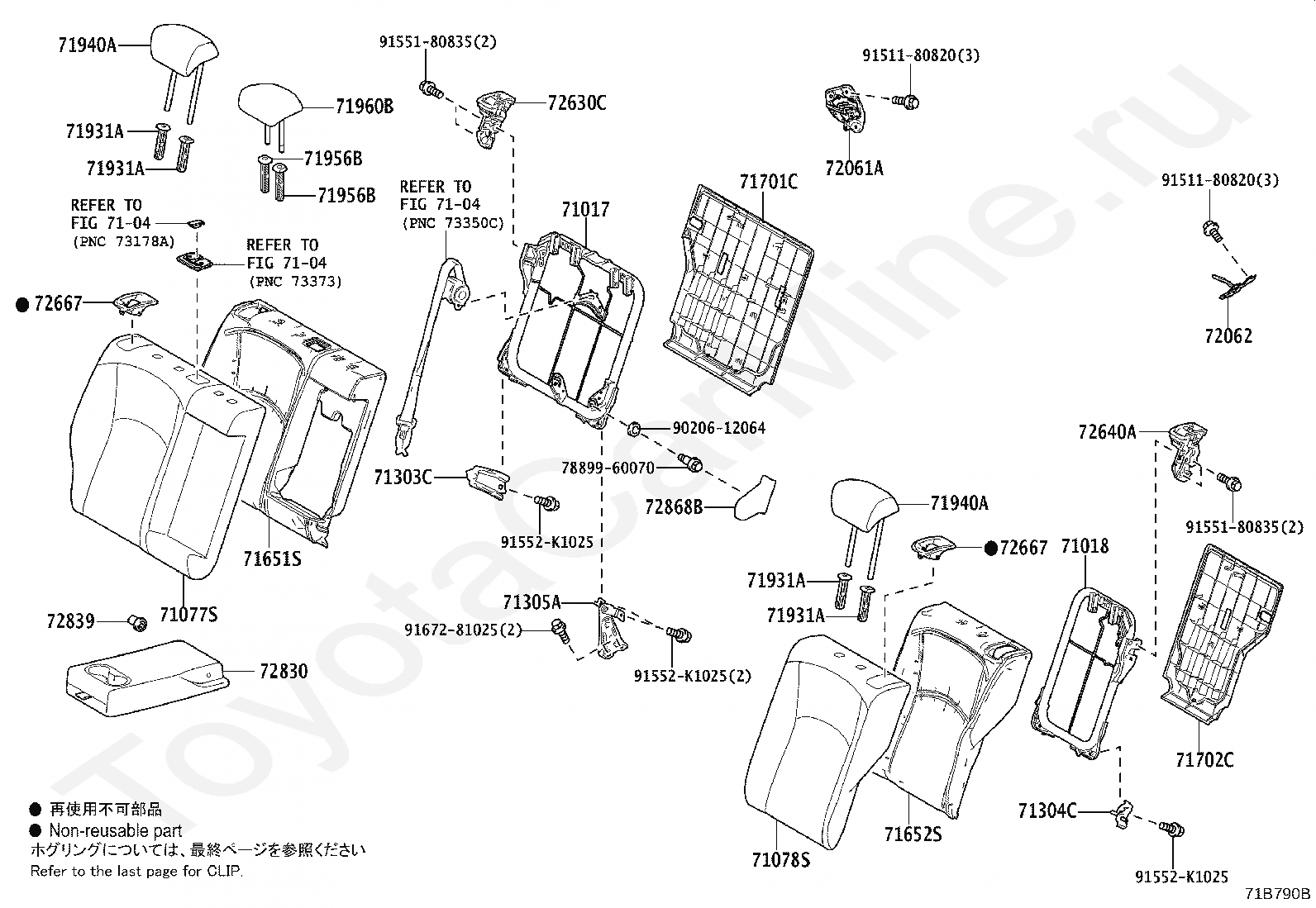

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702C

BOARD SUB-ASSY, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72061A

BASE SUB-ASSY, REAR SEAT BACK LOCK, RH

72062

BASE SUB-ASSY, REAR SEAT BACK LOCK, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72830

ARMREST ASSY, REAR SEAT, CENTER

72839

SHIM, REAR SEAT ARMREST HINGE

72868B

COVER, CENTER ARMREST HINGE

7889960070

Крепеж

9020612064

Крепеж

9151180820

Крепеж

9155180835

Крепеж

91552K1025

Крепеж

9167281025

Крепеж

Код

Описание

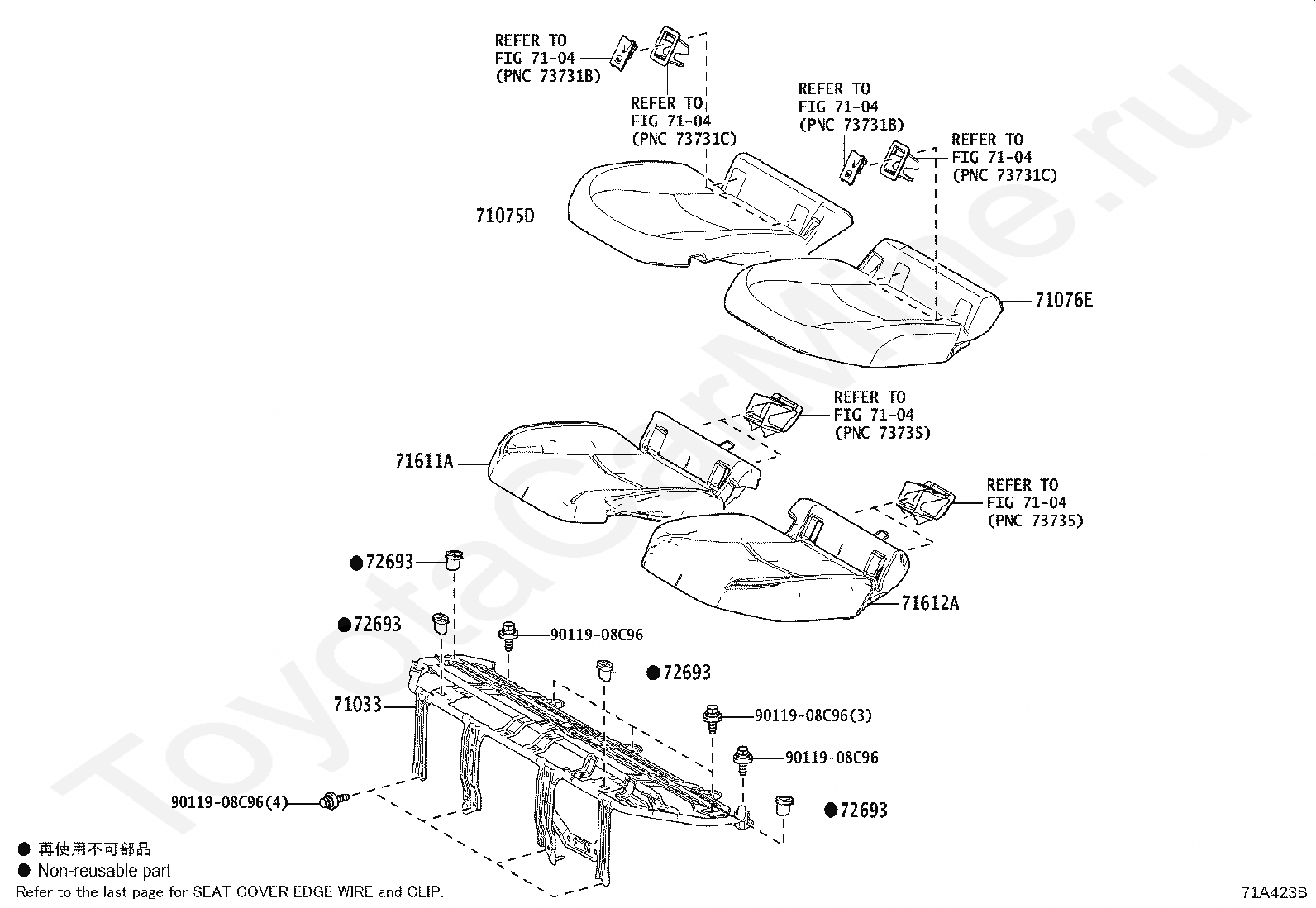

71033

LEG SUB-ASSY, REAR SEAT CUSHION

7104

переход к группе запчастей

71075D

COVER SUB-ASSY, REAR SEAT CUSHION, RH

71076E

COVER SUB-ASSY, REAR SEAT CUSHION, LH

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

72693

HOOK, REAR SEAT CUSHION LOCK

9011908C96

Крепеж

Код

Описание

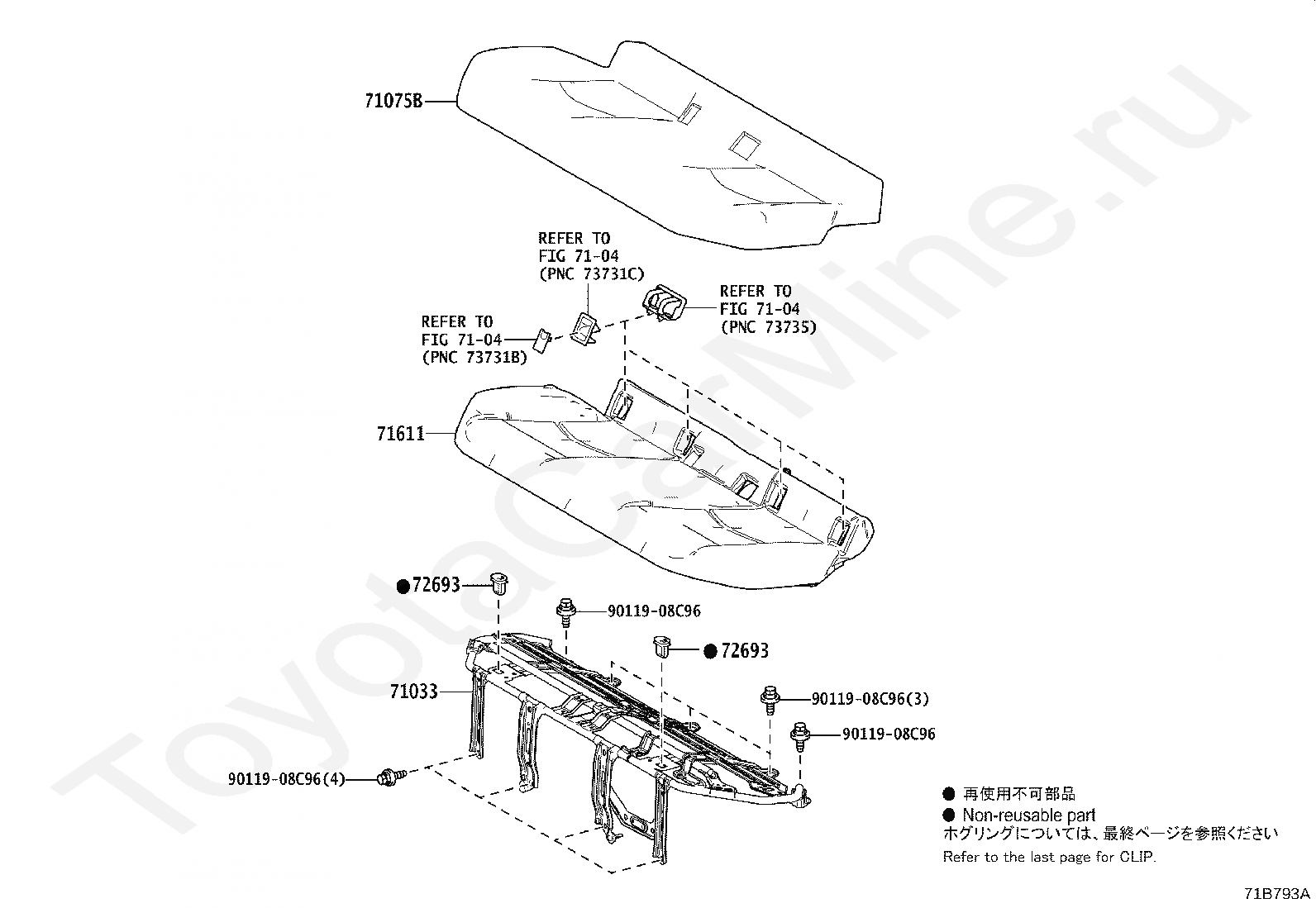

71033

LEG SUB-ASSY, REAR SEAT CUSHION

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71611

PAD, REAR SEAT CUSHION

72693

HOOK, REAR SEAT CUSHION LOCK

9011908C96

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA PRIUS PHV, 2016/09 - 2019/04, 1,8 литра, 16 клапанов, DOHC, EFI, BASE TYPE, ZVW52, вариатор
