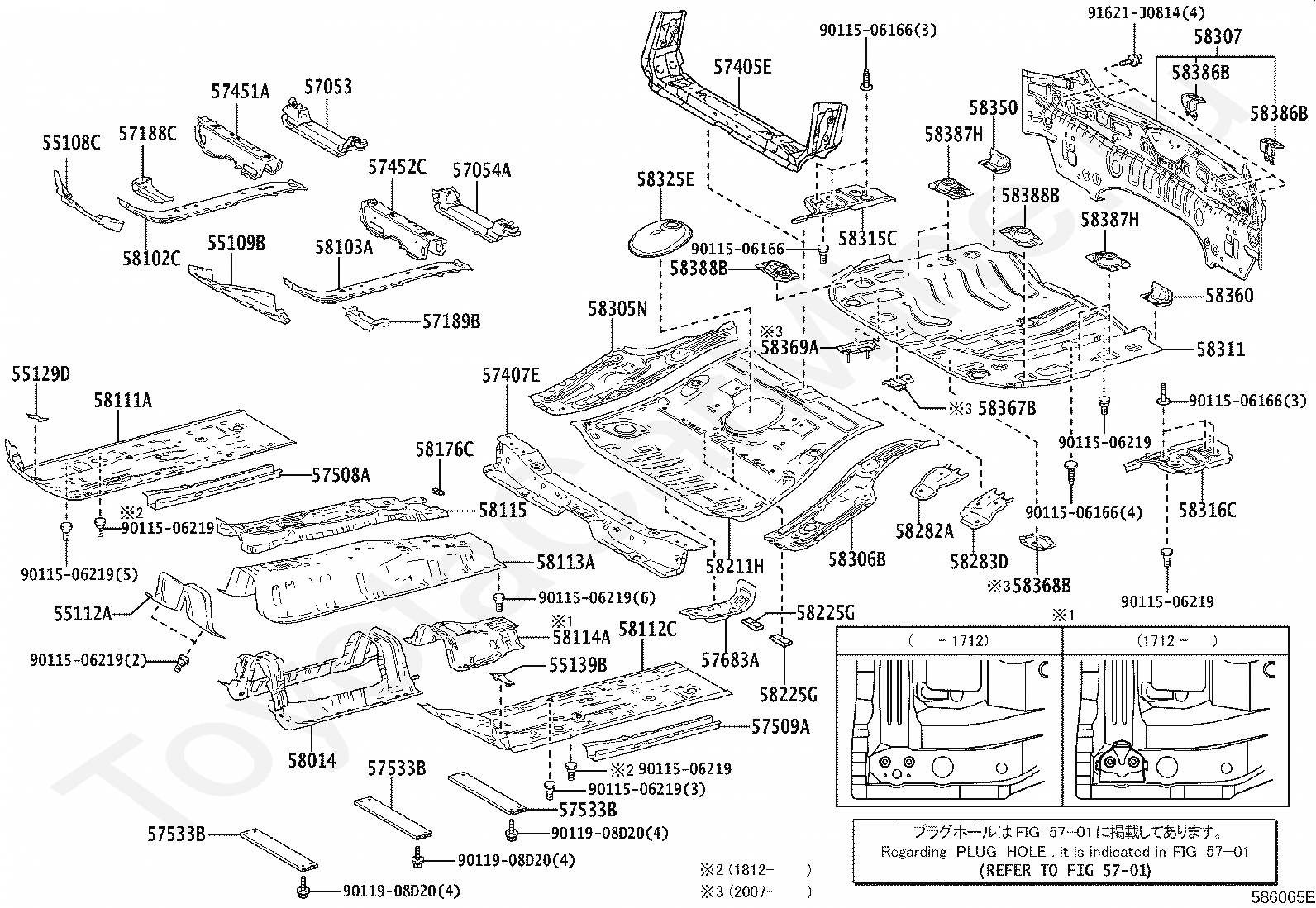

FLOOR PAN & LOWER BACK PANEL TOYOTA PRIUS PHV, 2016/09 - 2019/04, 1,8 литра, 16 клапанов, DOHC, EFI, BASE TYPE, ZVW52, вариатор

Каталог

Европа

Модель

PRIUS PHV

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

BASE TYPE

Фрейм

ZVW52

Трансмиссия

вариатор

Опции

правый руль Европа 667W

Код

Описание

55108C

BRACE SUB-ASSY, DASH TO FRAME, RH

55109B

BRACE SUB-ASSY, DASH TO FRAME, LH

55112A

PANEL, DASH, NO.2

55129D

COVER, DASH PANEL HOLE, RH

55139B

COVER, DASH PANEL HOLE, LH

5701

переход к группе запчастей

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57188C

REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

57189B

REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

57405E

MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

57407E

MEMBER SUB-ASSY, CENTER FLOOR CROSS

57451A

MEMBER, FRONT FLOOR CROSS, RH

57452C

MEMBER, FRONT FLOOR CROSS, LH

57508A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

57509A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

57533B

BRACE, FRONT FLOOR, CENTER

57683A

BRACKET, FUEL TANK MOUNTING, NO.1

58014

PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

58102C

REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH

58103A

REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58114A

REINFORCEMENT, FRONT FLOOR PANEL

58115

REINFORCEMENT, FRONT FLOOR PANEL, FRONT

58176C

REINFORCEMENT, PARKING BRAKE BASE, NO.2

58211H

PAN, CENTER FLOOR

58225G

PLATE, FLOOR PANEL FRONT END

58282A

BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

58283D

BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

58305N

EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

58306B

EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58315C

EXTENSION, REAR FLOOR SIDE PANEL, RH

58316C

EXTENSION, REAR FLOOR SIDE PANEL, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58350

REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

58360

REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

58367B

BRACKET, FUEL TUBE

58368B

BRACKET, FUEL TUBE, NO.2

58369A

BRACKET, FUEL TUBE, NO.3

58386B

BRACKET, REAR BUMPER COVER, NO.2

58387H

PLATE, REAR FLOOR

58388B

BRACKET, PLATE REAR FLOOR

9011506166

Крепеж

9011506219

Крепеж

9011908D20

Крепеж

91621J0814

Крепеж

Код

Описание

52161P

PIECE, REAR BUMPER

57627E

CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1

57627F

CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2

57628C

COVER, REAR FLOOR SIDE MEMBER, LH

57628H

CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1

57628J

CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2

58152B

INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

58165B

COVER, FRONT FLOOR, RH

58165H

CLIP, FRONT FLOOR COVER, NO.1

58165J

CLIP, FRONT FLOOR COVER, NO.2

58166

COVER, FRONT FLOOR, LH

58166E

CLIP, FRONT FLOOR COVER, NO.1

58166F

CLIP, FRONT FLOOR COVER, NO.2

58390

COVER ASSY, FLOOR UNDER, NO.1

58398A

CLIP, NO.3(FOR FLOOR UNDER COVER)

58398H

COVER, FLOOR UNDER, NO.1

58398L

CLIP, NO.4(FOR FLOOR UNDER COVER)

58399B

COVER, FLOOR UNDER, NO.2

58399E

CLIP, NO.1(FOR FLOOR UNDER COVER)

58399F

CLIP, NO.2(FOR FLOOR UNDER COVER)

66259C

COVER, REAR BODY FLOOR, REAR

66259D

CLIP, REAR BODY FLOOR COVER, NO.1

66259E

CLIP, REAR BODY FLOOR COVER, NO.2

9010906388

Крепеж

9046707220

Крепеж

Код

Описание

52161P

PIECE, REAR BUMPER

57627A

COVER, REAR FLOOR SIDE MEMBER, RH

57627E

CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1

57627F

CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2

57628C

COVER, REAR FLOOR SIDE MEMBER, LH

57628H

CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1

57628J

CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2

58165B

COVER, FRONT FLOOR, RH

58165H

CLIP, FRONT FLOOR COVER, NO.1

58165J

CLIP, FRONT FLOOR COVER, NO.2

58166

COVER, FRONT FLOOR, LH

58166E

CLIP, FRONT FLOOR COVER, NO.1

58166F

CLIP, FRONT FLOOR COVER, NO.2

58398A

CLIP, NO.3(FOR FLOOR UNDER COVER)

58398H

COVER, FLOOR UNDER, NO.1

58398L

CLIP, NO.4(FOR FLOOR UNDER COVER)

58399B

COVER, FLOOR UNDER, NO.2

58399E

CLIP, NO.1(FOR FLOOR UNDER COVER)

58399F

CLIP, NO.2(FOR FLOOR UNDER COVER)

66259C

COVER, REAR BODY FLOOR, REAR

66259D

CLIP, REAR BODY FLOOR COVER, NO.1

66259E

CLIP, REAR BODY FLOOR COVER, NO.2

9010906388

Крепеж

9046707220

Крепеж

FLOOR PAN & LOWER BACK PANEL TOYOTA PRIUS PHV, 2016/09 - 2019/04, 1,8 литра, 16 клапанов, DOHC, EFI, BASE TYPE, ZVW52, вариатор
