Аккумулятор и кабель TOYOTA PRIUS(PLUG-IN HBD), 2012/01 - 2015/06, 1,8 литра, 16 клапанов, DOHC, EFI, ZVW35, автомат, бесступенчатая АКПП

Каталог

Ближний Восток

Модель

PRIUS(PLUG-IN HBD)

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Фрейм

ZVW35

Трансмиссия

автомат бесступенчатая АКПП

Опции

543W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
+
+
+
+

Код

Описание

28800

BATTERY

28800D

COVER, CONNECTOR(FOR BATTERY TERMINAL)

28885B

HOSE, BATTERY

82675C

TERMINAL, JUNCTION

9415180801

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

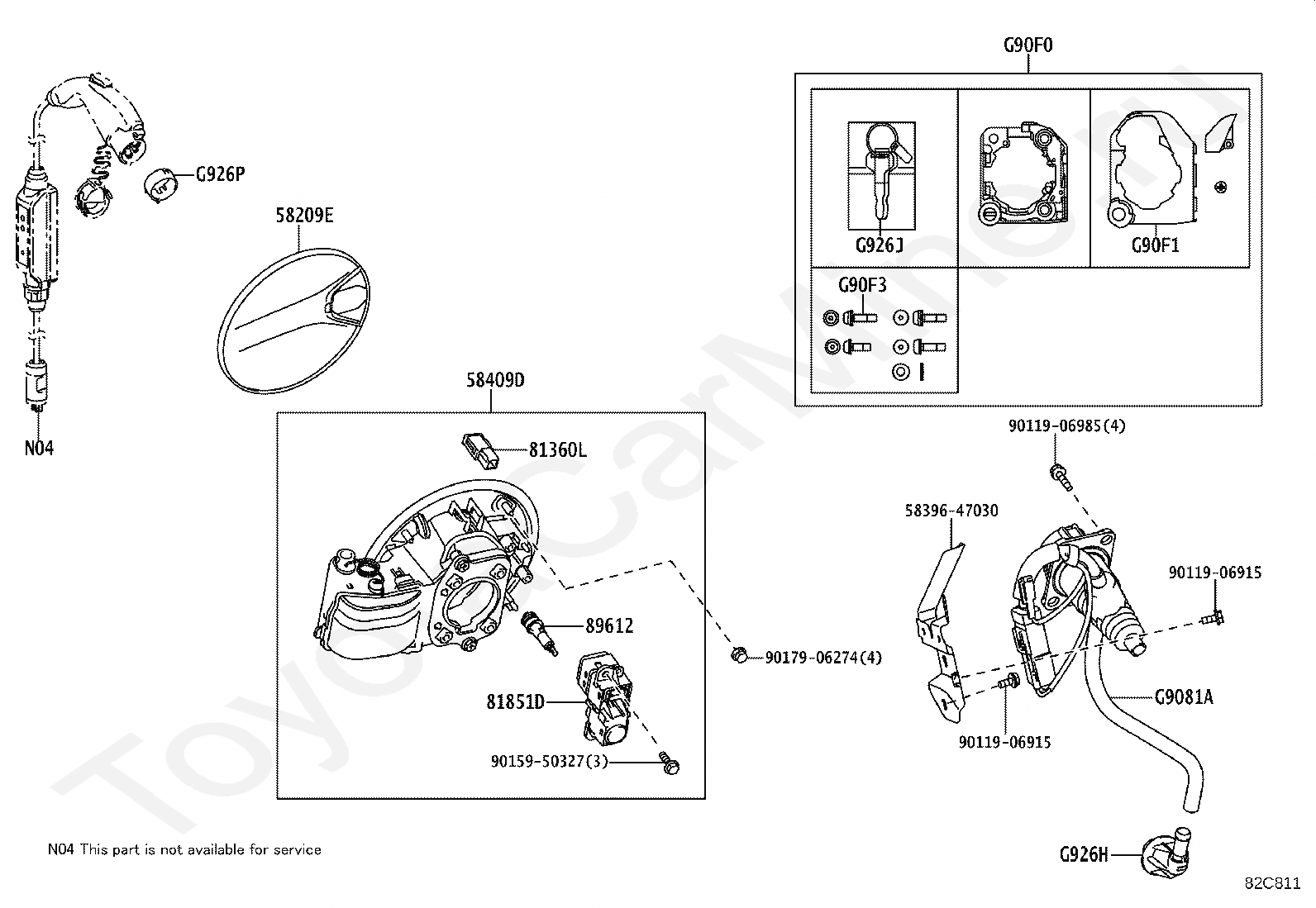

58209E

LID SUB-ASSY, BATTERY SERVICE OPENING

5839647030

Крепеж

58409D

LID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

81360L

LAMP ASSY, SPOT

81851D

LAMP ASSY, INDICATOR

89612

BRACKET, PUSH SWITCH

9011906915

Крепеж

9011906985

Крепеж

9015950327

Крепеж

9017906274

Крепеж

G9081A

CABLE, ELECTRIC VEHICLE CHARGER

G90F0

LOCK ASSY, CABLE ELECTRIC VEHICLE CHARGER

G90F1

COVER SET, CABLE ELECTRIC VEHICLE CHARGER LOCK

G90F3

FASTENER SET, CABLE ELECTRIC VEHICLE CHARGER LOCK

G926H

GROMMET, EV CHARGER

G926J

KEY, CABLE EV CHARGER LOCK

G926P

RETAINER, EV CHARGE CONNECTOR

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

8202

переход к группе запчастей

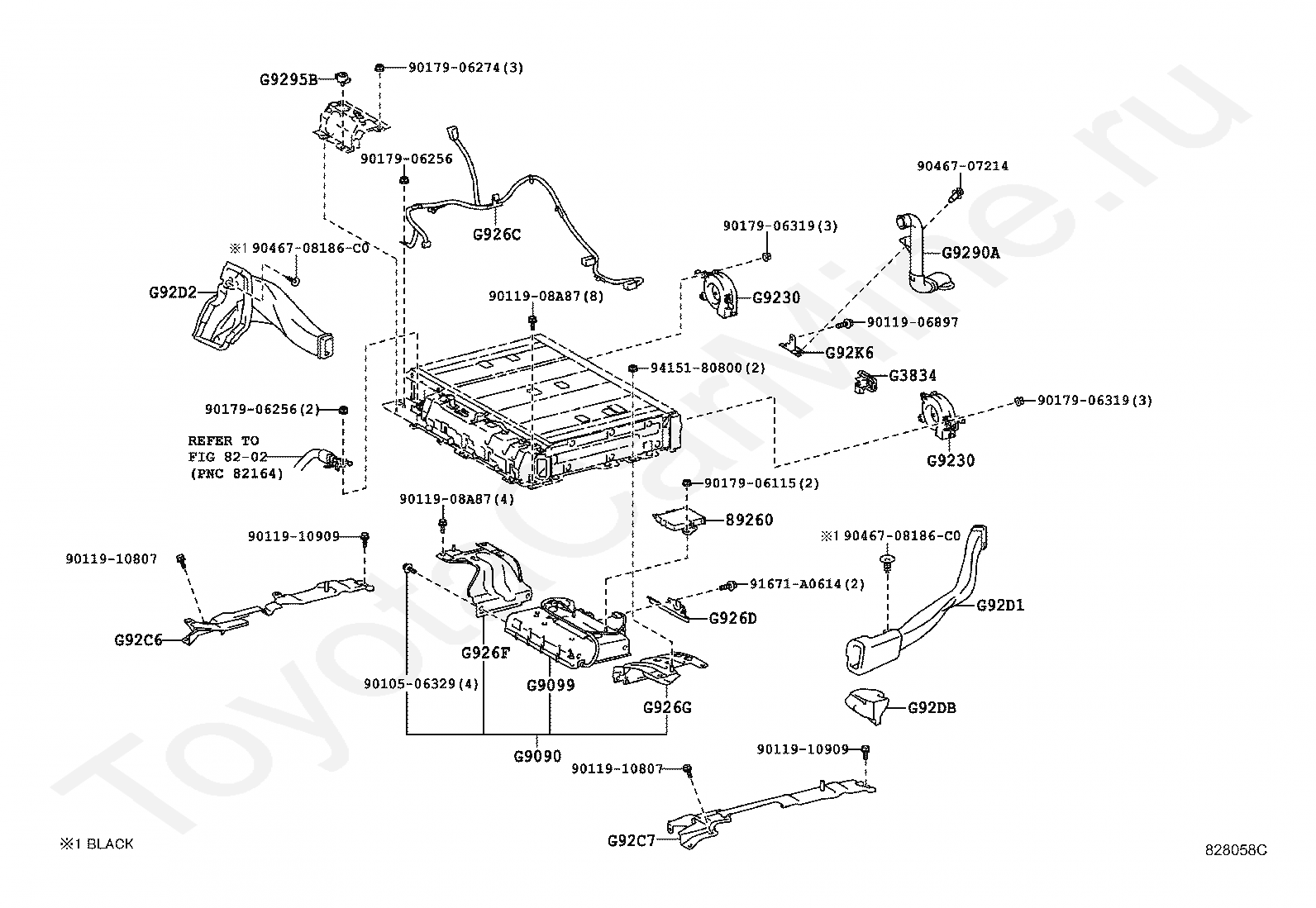

89260

COMPUTER ASSY, PLUGIN CHARGE CONTROL

9010506329

Крепеж

9011906897

Крепеж

9011908A87

Крепеж

9011910807

Крепеж

9011910909

Крепеж

9017906115

Крепеж

9017906256

Крепеж

9017906274

Крепеж

9017906319

Крепеж

9046707214

Крепеж

9046708186C0

Крепеж

91671A0614

Крепеж

9415180800

Крепеж

G3834

GRIP, SERVICE PLUG

G9090

CHARGER ASSY, ELECTRIC VEHICLE

G9099

CHARGER SUB-ASSY, ELECTRIC VEHICLE

G9230

BLOWER ASSY, BATTERY COOLING

G926C

WIRE, EV CHARGER

G926D

BRACKET, EV CHARGE CONNECTOR

G926F

BRACKET, EV CHARGER MOUNT, NO.1

G926G

BRACKET, EV CHARGER MOUNT, NO.2

G9290A

HOSE ASSY, HYBRID BATTERY

G9295B

STRIKER, BATTERY COVER LOCK

G92C6

BRACKET, HV BATTERY MOUNT, NO.1

G92C7

BRACKET, HV BATTERY MOUNT, NO.2

G92D1

DUCT, HYBRID BATTERY INTAKE, NO.1

G92D2

DUCT, HYBRID BATTERY INTAKE, NO.2

G92DB

SEAL, HYBRID BATTERY, NO.1

G92K6

BRACKET, HV BATTERY CARRIER, NO.4

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

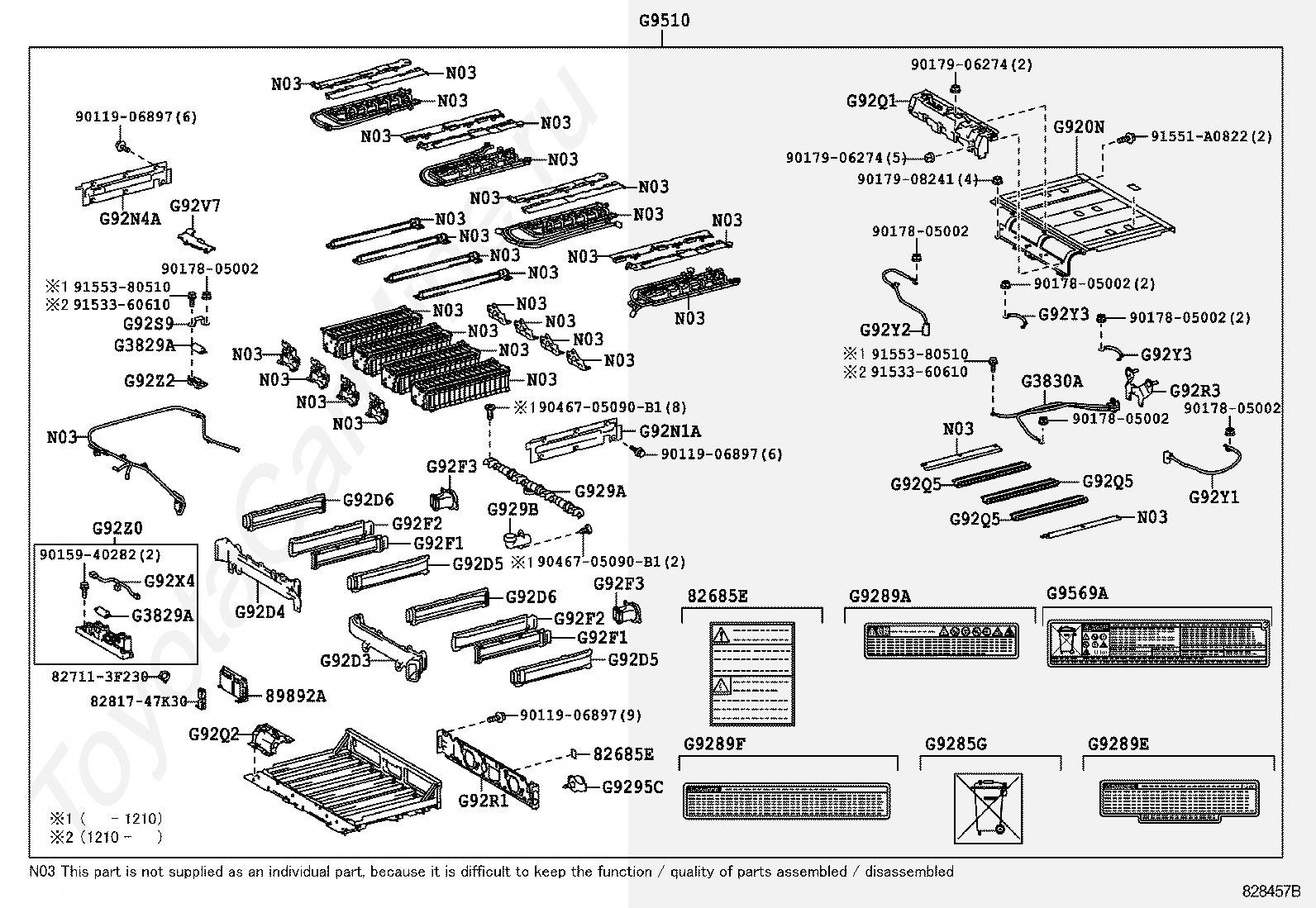

82685E

PLATE, SERVICE PLUG CAUTION

827113F230

Крепеж

8281747K30

Крепеж

89892A

SENSOR, BATTERY VOLTAGE

9011906897

Крепеж

9015940282

Крепеж

9017805002

Крепеж

9017906274

Крепеж

9017908241

Крепеж

9046705090B1

Крепеж

9153360610

Крепеж

91551A0822

Крепеж

9155380510

Крепеж

G3829A

FUSE, ELECTRIC VEHICLE

G3830A

PLUG ASSY, ELECTRIC VEHICLE BATTERY

G920N

COVER SUB-ASSY, HV BATTERY, UPPER NO.2

G9285G

LABEL, HV BATTERY INFORMATION, NO.1

G9289A

LABEL, BATTERY CAUTION

G9289E

LABEL, BATTERY CAUTION, NO.2

G9289F

LABEL, BATTERY CAUTION, NO.3

G9295C

STRIKER, BATTERY COVER LOCK, NO.2

G929A

HOSE, HV BATTERY, NO.1

G929B

HOSE, HV BATTERY, NO.2

G92D3

DUCT, HYBRID BATTERY INTAKE, NO.3

G92D4

DUCT, HYBRID BATTERY INTAKE, NO.4

G92D5

DUCT, HYBRID BATTERY INTAKE, NO.5

G92D6

DUCT, HYBRID BATTERY INTAKE, NO.6

G92F1

DUCT, HYBRID BATTERY EXHAUST, NO.1

G92F2

DUCT, HYBRID BATTERY EXHAUST, NO.2

G92F3

DUCT, HYBRID BATTERY EXHAUST, NO.3

G92N1A

PANEL, HV BATTERY LH COVER, NO.1

G92N4A

PANEL, HV BATTERY RH COVER, NO.1

G92Q1

PANEL, HV BATTERY SHIELD, NO.1

G92Q2

PANEL, HV BATTERY SHIELD, NO.2

G92Q5

REINFORCEMENT, HV BATTERY SHIELD, NO.2

G92R1

SHIELD, HYBRID BATTERY, REAR NO.1

G92R3

BRACKET, HV BATTERY REAR SHIELD, NO.1

G92S9

TERMINAL, HV BATTERY, NO.6

G92V7

COVER, HV BATTERY BUS-BAR BLOCK, NO.3 A

G92X4

WIRE, HV BATTERY PACK, NO.4

G92Y1

CABLE, HV BATTERY PACK, NO.1

G92Y2

CABLE, HV BATTERY PACK, NO.2

G92Y3

CABLE, HV BATTERY PACK, NO.3

G92Z0

BLOCK ASSY, HV BATTERY JUNCTION

G92Z2

BLOCK, HYBRID BATTERY TERMINAL

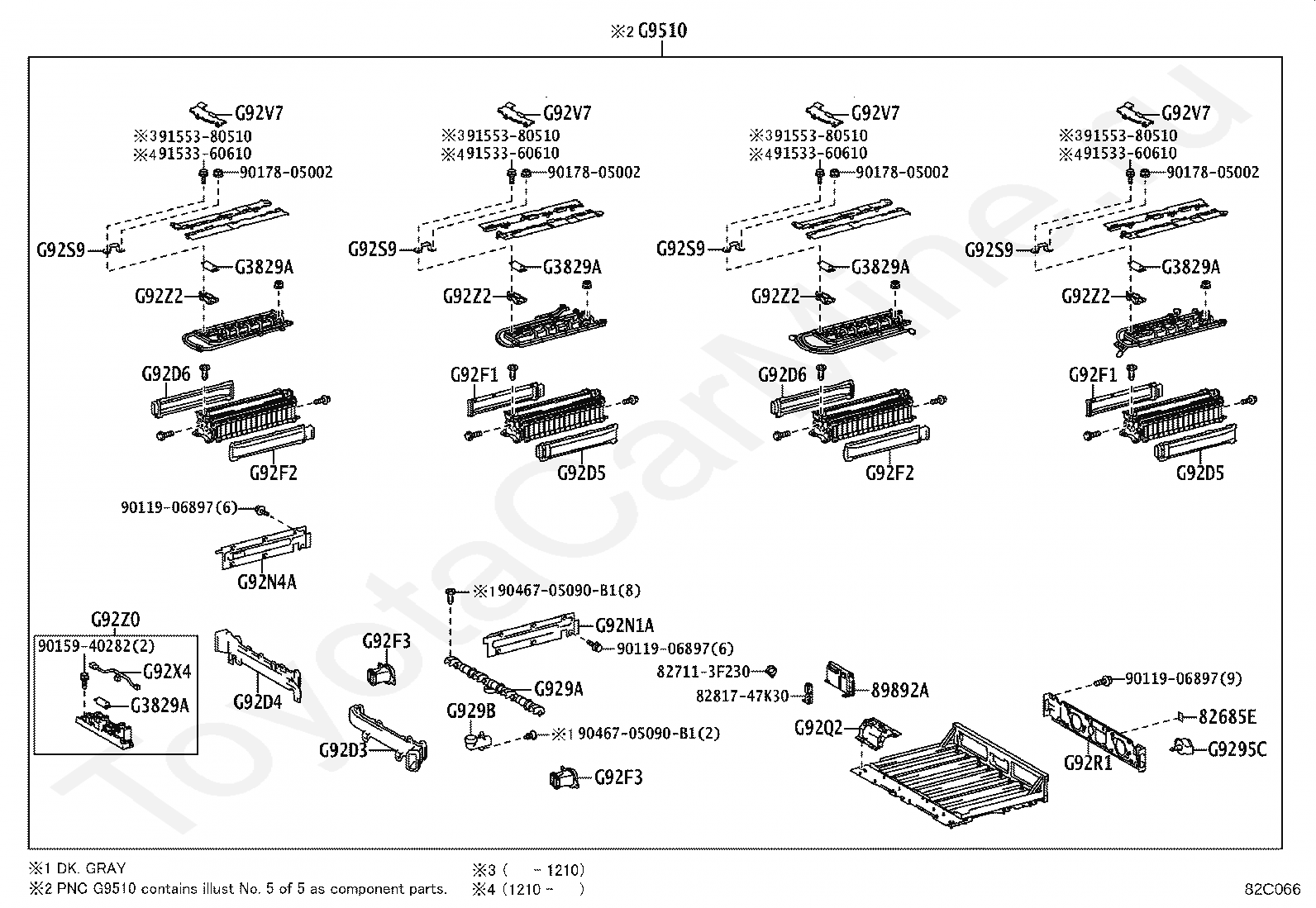

G9510

BATTERY ASSY, HV SUPPLY

G9569A

LABEL, LITHIUM ION BATTERY CAUTION

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

82685E

PLATE, SERVICE PLUG CAUTION

827113F230

Крепеж

8281747K30

Крепеж

89892A

SENSOR, BATTERY VOLTAGE

9011906897

Крепеж

9015940282

Крепеж

9017805002

Крепеж

9046705090B1

Крепеж

9153360610

Крепеж

9155380510

Крепеж

G3829A

FUSE, ELECTRIC VEHICLE

G9295C

STRIKER, BATTERY COVER LOCK, NO.2

G929A

HOSE, HV BATTERY, NO.1

G929B

HOSE, HV BATTERY, NO.2

G92D3

DUCT, HYBRID BATTERY INTAKE, NO.3

G92D4

DUCT, HYBRID BATTERY INTAKE, NO.4

G92D5

DUCT, HYBRID BATTERY INTAKE, NO.5

G92D6

DUCT, HYBRID BATTERY INTAKE, NO.6

G92F1

DUCT, HYBRID BATTERY EXHAUST, NO.1

G92F2

DUCT, HYBRID BATTERY EXHAUST, NO.2

G92F3

DUCT, HYBRID BATTERY EXHAUST, NO.3

G92N1A

PANEL, HV BATTERY LH COVER, NO.1

G92N4A

PANEL, HV BATTERY RH COVER, NO.1

G92Q2

PANEL, HV BATTERY SHIELD, NO.2

G92R1

SHIELD, HYBRID BATTERY, REAR NO.1

G92S9

TERMINAL, HV BATTERY, NO.6

G92V7

COVER, HV BATTERY BUS-BAR BLOCK, NO.3 A

G92X4

WIRE, HV BATTERY PACK, NO.4

G92Z0

BLOCK ASSY, HV BATTERY JUNCTION

G92Z2

BLOCK, HYBRID BATTERY TERMINAL

G9510

BATTERY ASSY, HV SUPPLY
