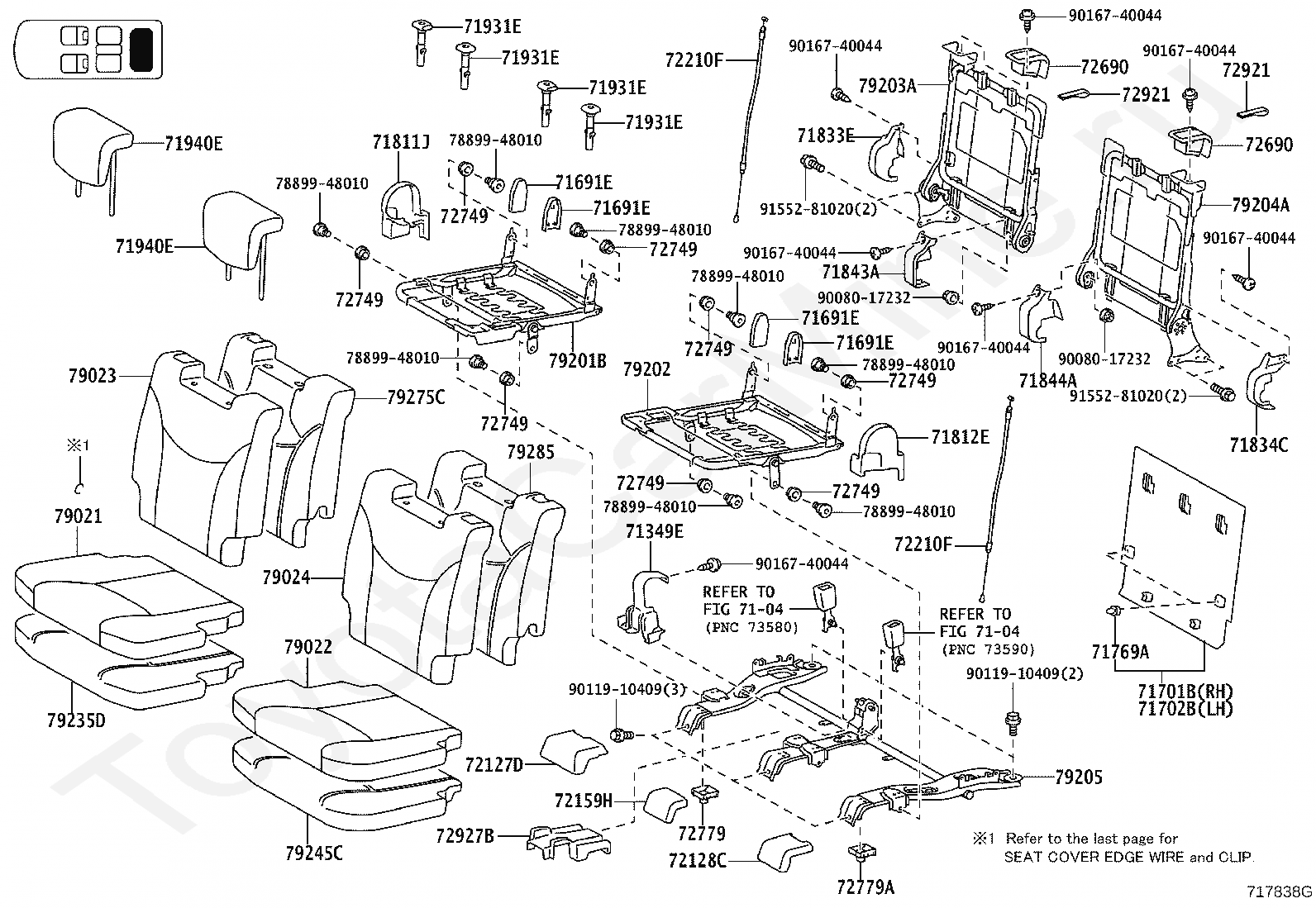

Задние кресла TOYOTA PRIUS +/V/A(ALPHA), 2014/11 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, фургон, ZVW40, вариатор

Каталог

Европа

Модель

PRIUS +/V/A(ALPHA)

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Фрейм

ZVW40

Трансмиссия

вариатор

Опции

левый руль 7-местный Европа 628W

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71812J

CLIP, REAR SEAT COVER

71825B

MOULDING, REAR SEAT CUSHION, RH

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71848C

CAP, SEAT ADJUSTER COVER, RH

71865

BEZEL, REAR SEAT COVER, NO.1

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71881

BOARD, REAR SEAT BACK, RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72173A

HANDLE, REAR SEAT TRACK ADJUSTING, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72551E

COVER, RECLINING HINGE, RH

72573B

LEVER, RECLINING CONTROL, RH

72590B

CABLE ASSY, RECLINING REMOTE CONTROL

72597B

BEZEL, RECLINING REMOTE CONTROL LEVER, NO.1

72619

COVER, REAR SEAT BACK LOCK STRIKER

72663

LEVER, REAR SEAT LOCK CONTROL, NO.1

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

8271112120

Крепеж

9010510448

Крепеж

9011910409

Крепеж

9016740044

Крепеж

Код

Описание

71031S

COVER SUB-ASSY, CENTER SEAT CUSHION

7104

переход к группе запчастей

71095S

COVER SUB-ASSY, CENTER SEAT BACK

71301S

FRAME SUB-ASSY, CENTER SEAT CUSHION

71395C

COVER, CENTER SEAT HINGE, RH

71396G

COVER, CENTER SEAT HINGE, LH

71667C

PAD, REAR NO.1 SEAT BACK, CENTER

71703B

BOARD, REAR SEAT BACK, CENTER

71811K

COVER, RECLINING ADJUSTER, RH (FOR CENTER SEAT)

71812J

CLIP, REAR SEAT COVER

71812L

COVER, RECLINING ADJUSTER, LH (FOR CENTER SEAT)

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71848B

CAP, SEAT ADJUSTER COVER, RH

71849D

CAP, SEAT ADJUSTER COVER, LH

71865

BEZEL, REAR SEAT COVER, NO.1

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128G

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72173

HANDLE, REAR SEAT TRACK ADJUSTING

72619

COVER, REAR SEAT BACK LOCK STRIKER

72663

LEVER, REAR SEAT LOCK CONTROL, NO.1

72704A

CABLE, REAR SEAT RECLINING CONTROL

79109D

FRAME SUB-ASSY, REAR NO.1 SEAT BACK, CENTER

79148

PAD, NO.1 SEAT CUSHION, CENTER

8271112120

Крепеж

9010510448

Крепеж

9011910409

Крепеж

9016740044

Крепеж

Код

Описание

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71812J

CLIP, REAR SEAT COVER

71826B

MOULDING, REAR SEAT CUSHION, LH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71849A

CAP, SEAT ADJUSTER COVER, LH

71865

BEZEL, REAR SEAT COVER, NO.1

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71882A

BOARD, REAR SEAT BACK, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72157D

COVER, SEAT TRACK BRACKER, INNER RH

72173B

HANDLE, REAR SEAT TRACK ADJUSTING, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72552E

COVER, RECLINING HINGE, LH

72574A

LEVER, RECLINING CONTROL, LH

72590C

CABLE ASSY, RECLINING REMOTE CONTROL

72598C

BEZEL, RECLINING REMOTE CONTROL, LH

72619

COVER, REAR SEAT BACK LOCK STRIKER

72663

LEVER, REAR SEAT LOCK CONTROL, NO.1

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79956C

COVER, REAR SEAT LEG SIDE, LH

8271112120

Крепеж

9010510448

Крепеж

9011910409

Крепеж

9016740044

Крепеж

Код

Описание

7104

переход к группе запчастей

71349E

COVER, REAR SEAT BACK HINGE

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71769A

CLIP, REAR SEAT BACK BOARD

71811J

COVER, RECLINING ADJUSTER, RH

71812E

COVER, RECLINING ADJUSTER, LH

71833E

COVER, REAR SEAT RECLINING, NO.3 RH

71834C

COVER, REAR SEAT RECLINING, NO.3 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71931E

SUPPORT ASSY, REAR NO.3 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72127D

COVER, SEAT TRACK BRACKET, FRONT, RH

72128C

COVER, SEAT TRACK BRACKET, FRONT, LH

72159H

COVER, REAR SEAT TRACK BRACKET

72210F

CABLE ASSY, SEAT TRACK CONTROL

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72749

SPACER, REAR SEAT RECLINING

72779

GUIDE, REAR SEAT HINGE PAWL

72779A

GUIDE, REAR SEAT HINGE PAWL

72921

STRAP, 3RD SEAT

72927B

COVER, REAR SEAT CUSHION UNDER

7889948010

Крепеж

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205

LEG SUB-ASSY, NO.2 SEAT

79235D

PAD, NO.2 SEAT CUSHION, RH

79245C

PAD, NO.2 SEAT CUSHION, LH

79275C

PAD, NO.2 SEAT BACK, RH

79285

PAD, NO.2 SEAT BACK, LH

9008017232

Крепеж

9011910409

Крепеж

9016740044

Крепеж

9155281020

Крепеж

Код

Описание

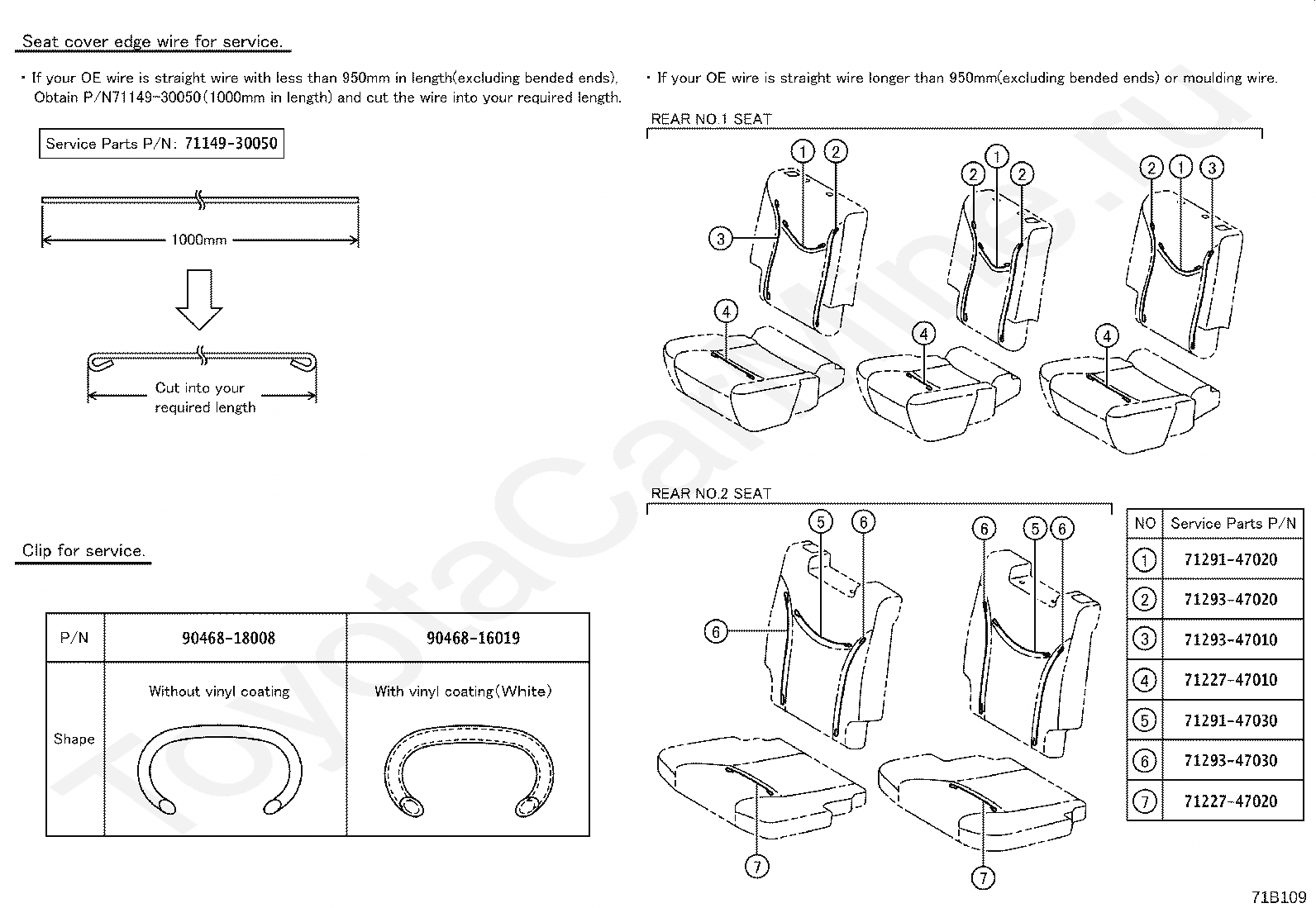

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Код

Описание

7114930050

Крепеж

7122747010

Крепеж

7122747020

Крепеж

7129147020

Крепеж

7129147030

Крепеж

7129347010

Крепеж

7129347020

Крепеж

7129347030

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA PRIUS +/V/A(ALPHA), 2014/11 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, фургон, ZVW40, вариатор
