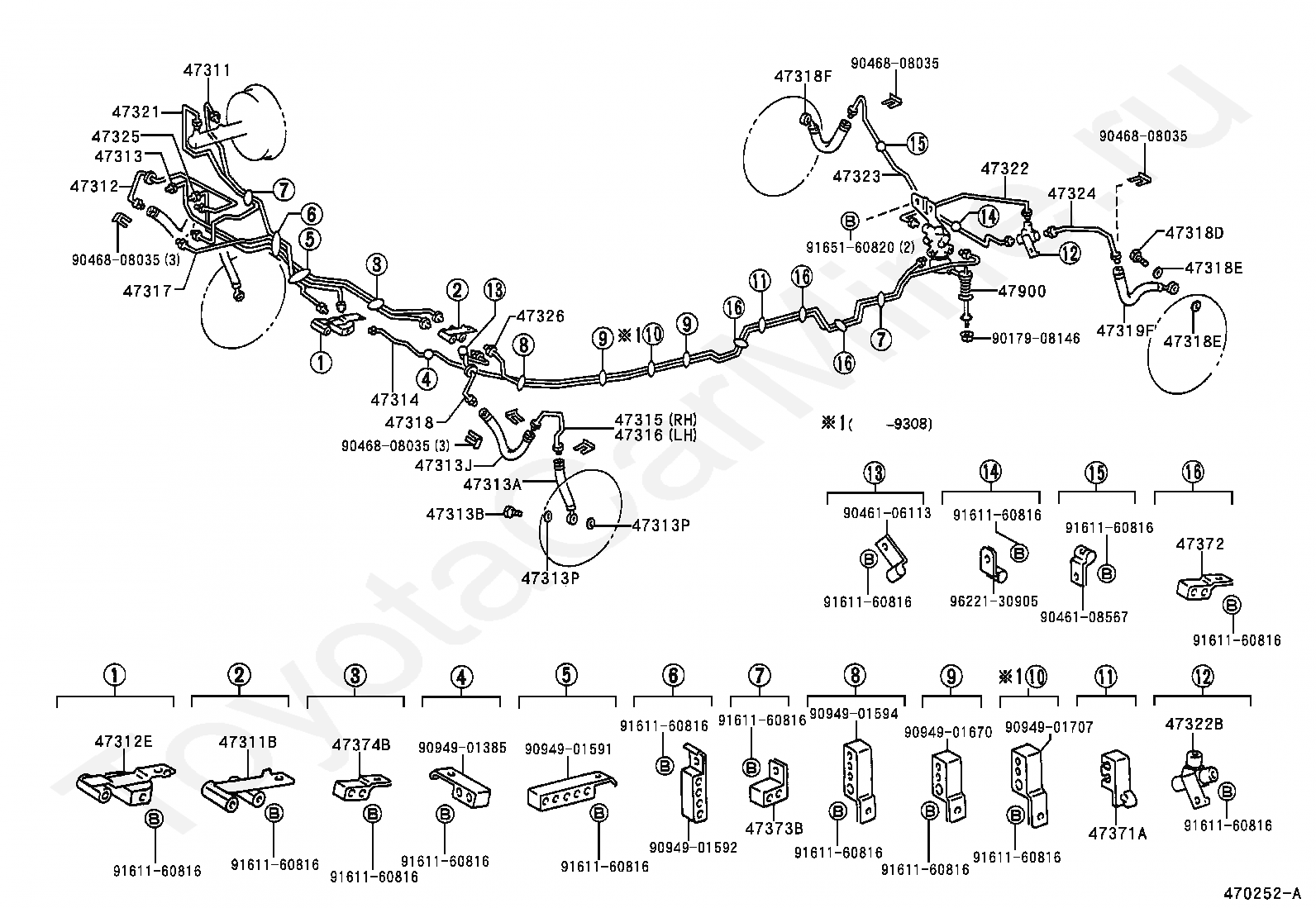

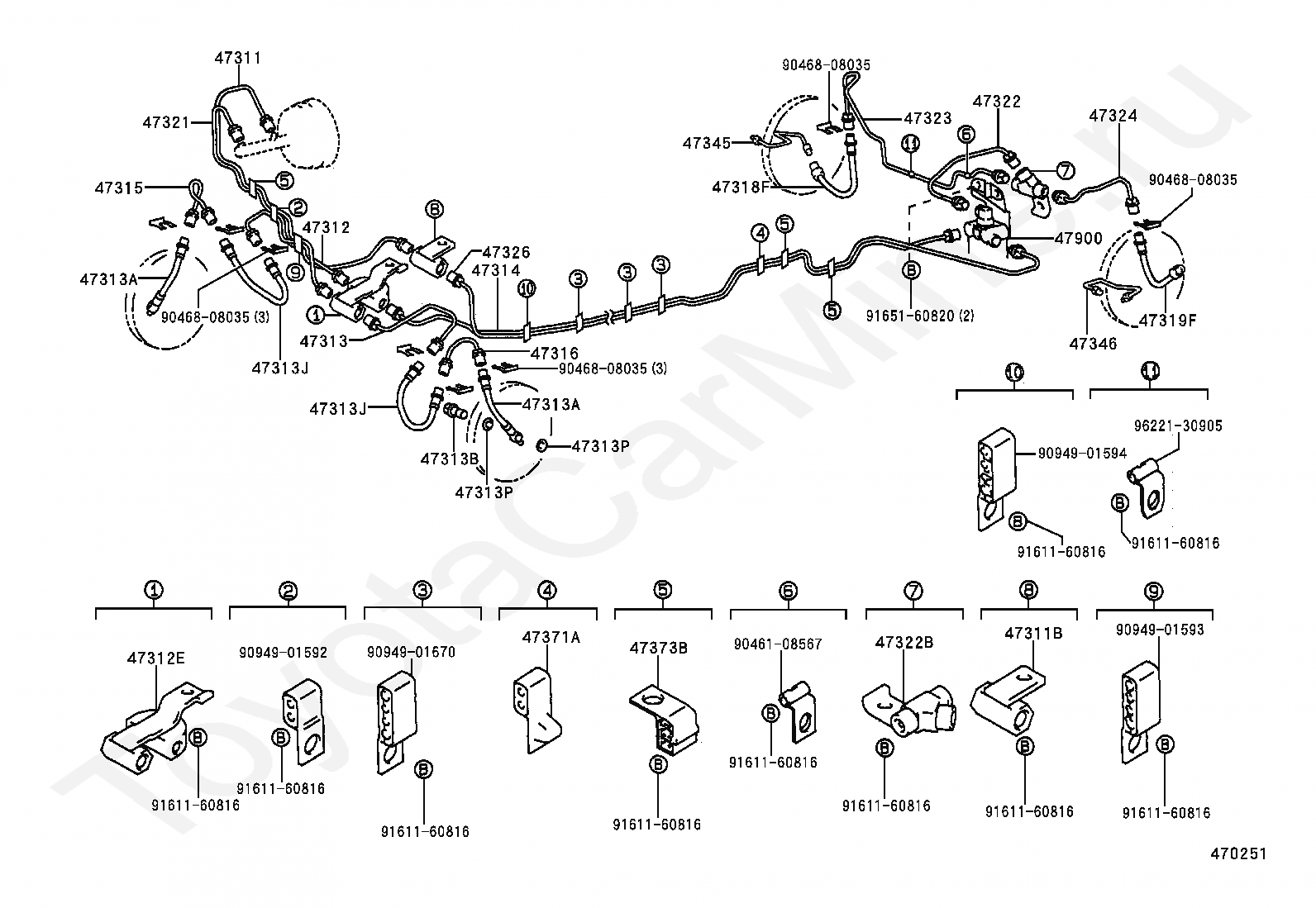

Тормозная магистраль TOYOTA PREVIA, 1990/05 - 1991/08, 2,4 литра, 16 клапанов, DOHC, EFI, GL SPECIFICATION, TCR21, механика

Каталог

Европа

Модель

PREVIA

Двигатель

2,4 литра, 16 клапанов, DOHC, EFI

Класс

GL SPECIFICATION

Фрейм

TCR21

Трансмиссия

механика

Опции

правый руль 7-местный Австралия

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47326

TUBE, REAR BRAKE, NO.6

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

47371A

CLAMP, BRAKE TUBE, NO.1

47373B

CLAMP, BRAKE TUBE, NO.3

47900

VALVE ASSY, LOAD SENSING W/SPRING

9046108567

Крепеж

9046808035

Крепеж

9094901592

Крепеж

9094901593

Крепеж

9094901594

Крепеж

9094901670

Крепеж

9161160816

Крепеж

9165160820

Крепеж

9622130905

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47900

VALVE ASSY, LOAD SENSING W/SPRING

9017908146

Крепеж

9046106113

Крепеж

9046108567

Крепеж

9046808035

Крепеж

9094901385

Крепеж

9094901591

Крепеж

9094901592

Крепеж

9094901594

Крепеж

9094901670

Крепеж

9094901707

Крепеж

9161160816

Крепеж

9165160820

Крепеж

9622130905

Крепеж

Код

Описание

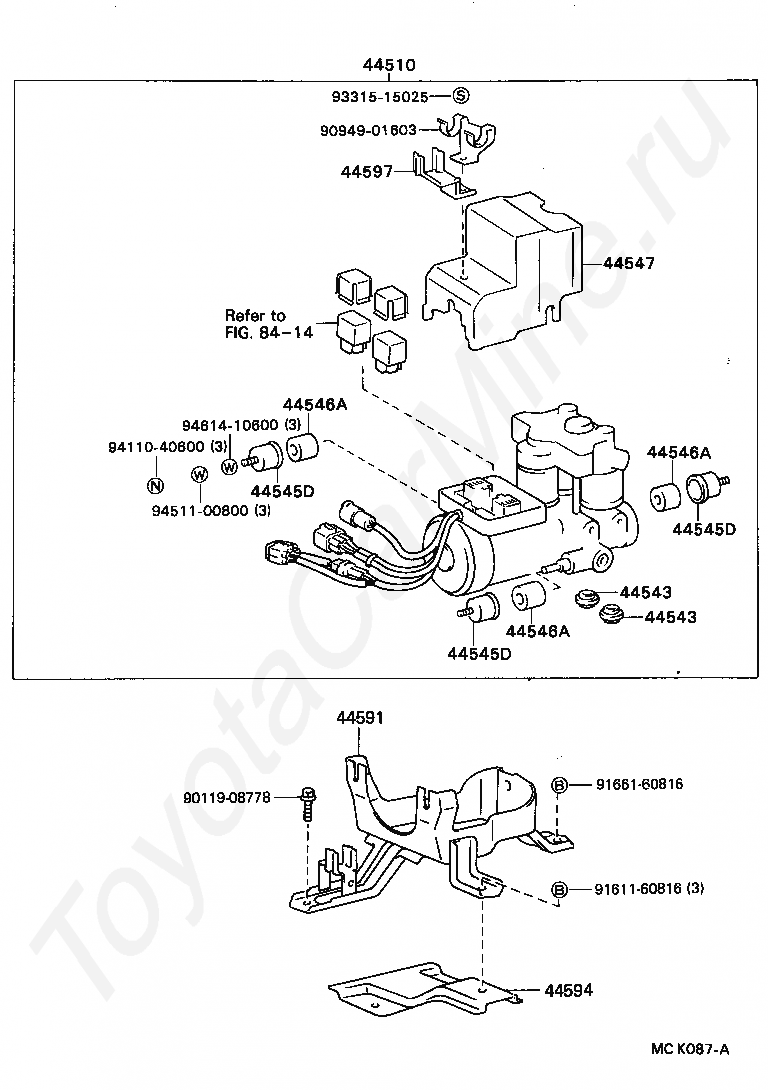

44510

ACTUATOR ASSY, BRAKE

44543

CAP, RUBBER

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44547

CASE, RELAY(FOR BRAKE ACTUATOR)

44591

BRACKET, BRAKE ACTUATOR, NO.1

44594

BRACKET, BRAKE ACTUATOR, NO.4

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

8414

переход к группе запчастей

9011908778

Крепеж

9094901603

Крепеж

9161160816

Крепеж

9166160816

Крепеж

9331515025

Крепеж

9411040600

Крепеж

9451100800

Крепеж

9461410600

Крепеж

Тормозная магистраль TOYOTA PREVIA, 1990/05 - 1991/08, 2,4 литра, 16 клапанов, DOHC, EFI, GL SPECIFICATION, TCR21, механика
