Каталог
ЕвропаМодель
PREVIAДвигатель
2,4 литра, 16 клапанов, DOHC, EFIКласс
GL SPECIFICATIONФрейм
TCR11Трансмиссия
автоматОпции
правый руль 8-местный Австралия
Код
Описание
1601
переход к группе запчастей

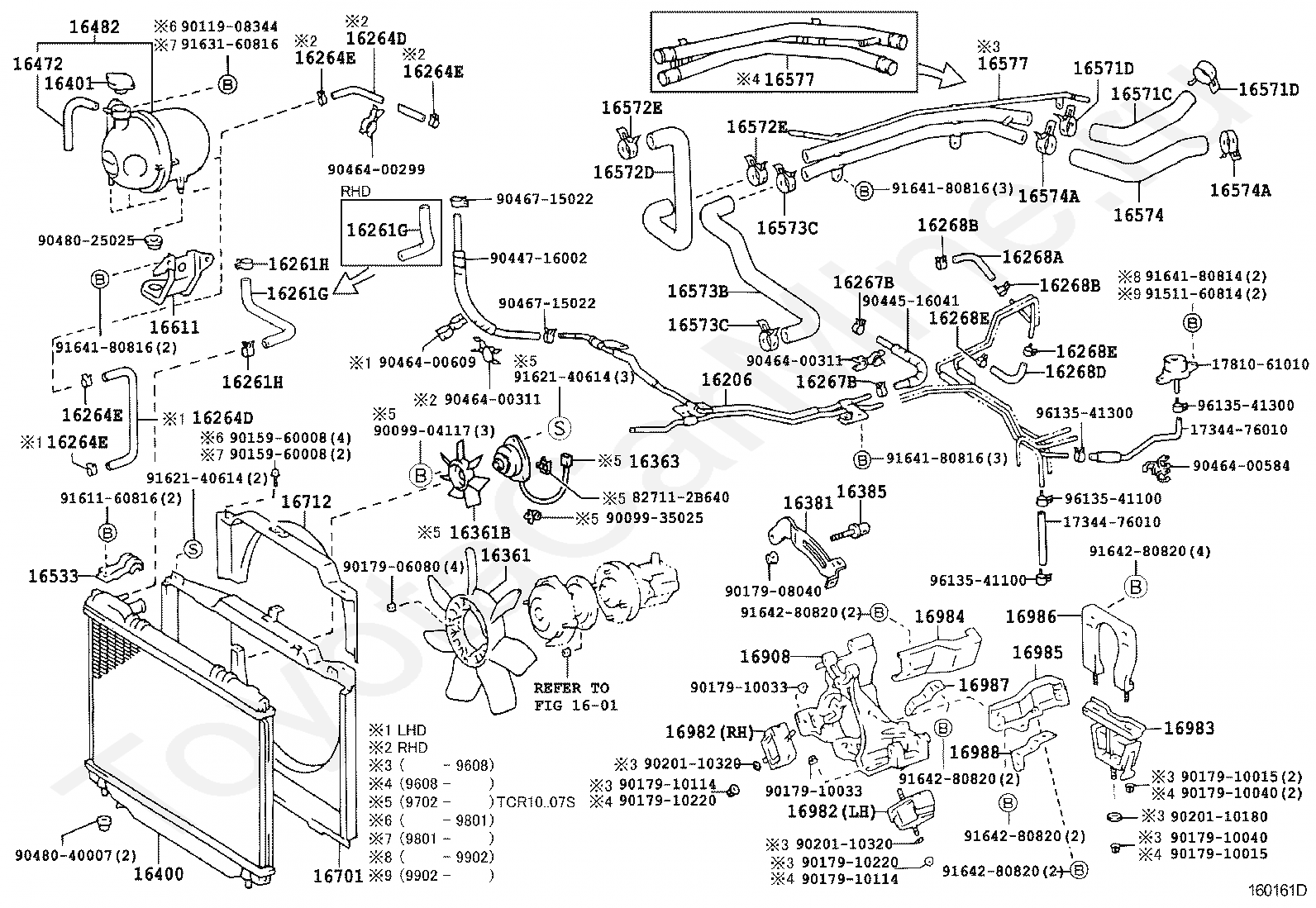

16206
PIPE SUB-ASSY, WATER BY-PASS
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16267B
CLIP(FOR WATER BY-PASS HOSE)
16268A
HOSE(FOR WATER BY-PASS PIPE)
16268B
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
16268D
HOSE(FOR WATER BY-PASS PIPE)
16268E
CLAMP, HOSE(FOR WATER BY-PASS PIPE)
16361
FAN
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16401
CAP SUB-ASSY, RADIATOR
16470
TANK ASSY, RADIATOR RESERVE
16472
HOSE, BREATHER
16482
TANK SUB-ASSY, RADIATOR RESERVE
16533
SUPPORT, RADIATOR, UPPER
16571C
HOSE, RADIATOR, NO.1
16571D
CLIP, RADIATOR HOSE, NO.1
16572D
HOSE, RADIATOR, NO.2
16572E
CLIP, RADIATOR HOSE, NO.2
16573B
HOSE, RADIATOR, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16574
HOSE, RADIATOR, NO.4
16574A
CLIP, RADIATOR HOSE, NO.4
16577
PIPE, RADIATOR, NO.7
16611
BRACKET, RADIATOR RESERVE TANK
16701
SHROUD SUB-ASSY, FAN
16712
SHROUD, FAN, NO.2
16908
HOUSING SUB-ASSY, EQUIPMENT DRIVE
16982
INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1
16983
INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2
16984
STAY, EQUIPMENT DRIVE HOUSING, NO.1
16985
STAY, EQUIPMENT DRIVE HOUSING, NO.2
16986
STAY, EQUIPMENT DRIVE HOUSING, NO.3
16987
STAY, EQUIPMENT DRIVE HOUSING, NO.4
16988
STAY, EQUIPMENT DRIVE HOUSING, NO.5
1734176010
Крепеж
1734476010
Крепеж
1781061010
Крепеж
9011908344
Крепеж
9015960008
Крепеж
9017906080
Крепеж
9017908040
Крепеж
9017910015
Крепеж
9017910033
Крепеж
9017910114
Крепеж
9020110180
Крепеж
9020110320
Крепеж
9044516041
Крепеж
9044516042
Крепеж
9044716002
Крепеж
9046400299
Крепеж
9046400311
Крепеж
9046400503
Крепеж
9046400584
Крепеж
9046400609
Крепеж
9046400613
Крепеж
9046715022
Крепеж
9048025025
Крепеж
9048040007
Крепеж
9161160816
Крепеж
9162140614
Крепеж
9164180814
Крепеж
9164180816
Крепеж
9164280820
Крепеж
9165140814
Крепеж
9165140816
Крепеж
9165140818
Крепеж
9165160820
Крепеж
9613541100
Крепеж
9613541300
Крепеж
Код
Описание

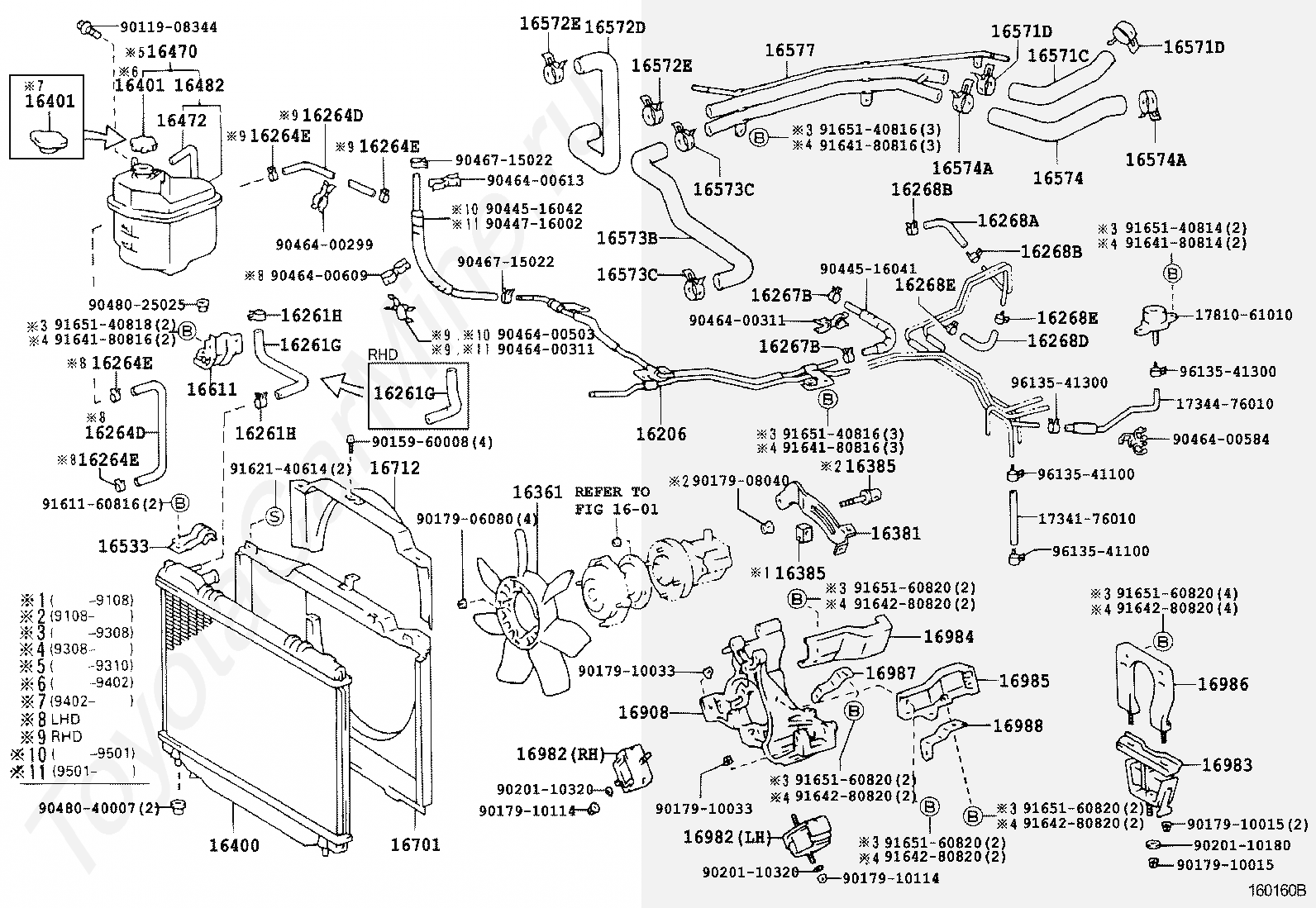

1601
переход к группе запчастей
16206
PIPE SUB-ASSY, WATER BY-PASS
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16267B
CLIP(FOR WATER BY-PASS HOSE)
16268A
HOSE(FOR WATER BY-PASS PIPE)
16268B
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
16268D
HOSE(FOR WATER BY-PASS PIPE)
16268E
CLAMP, HOSE(FOR WATER BY-PASS PIPE)
16361
FAN
16361B
FAN, NO.2
16363
MOTOR, COOLING FAN
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16401
CAP SUB-ASSY, RADIATOR
16472
HOSE, BREATHER
16482
TANK SUB-ASSY, RADIATOR RESERVE
16533
SUPPORT, RADIATOR, UPPER
16571C
HOSE, RADIATOR, NO.1
16571D
CLIP, RADIATOR HOSE, NO.1
16572D
HOSE, RADIATOR, NO.2
16572E
CLIP, RADIATOR HOSE, NO.2
16573B
HOSE, RADIATOR, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16574
HOSE, RADIATOR, NO.4
16574A
CLIP, RADIATOR HOSE, NO.4
16577
PIPE, RADIATOR, NO.7
16611
BRACKET, RADIATOR RESERVE TANK
16701
SHROUD SUB-ASSY, FAN
16712
SHROUD, FAN, NO.2
16908
HOUSING SUB-ASSY, EQUIPMENT DRIVE
16982
INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1
16983
INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2
16984
STAY, EQUIPMENT DRIVE HOUSING, NO.1
16985
STAY, EQUIPMENT DRIVE HOUSING, NO.2
16986
STAY, EQUIPMENT DRIVE HOUSING, NO.3
16987
STAY, EQUIPMENT DRIVE HOUSING, NO.4
16988
STAY, EQUIPMENT DRIVE HOUSING, NO.5
1734476010
Крепеж
1781061010
Крепеж
827112B640
Крепеж
9009904117
Крепеж
9009935025
Крепеж
9011908344
Крепеж
9015960008
Крепеж
9017906080
Крепеж
9017908040
Крепеж
9017910015
Крепеж
9017910033
Крепеж
9017910040
Крепеж
9017910114
Крепеж
9017910220
Крепеж
9020110180
Крепеж
9020110320
Крепеж
9044516041
Крепеж
9044716002
Крепеж
9046400299
Крепеж
9046400311
Крепеж
9046400584
Крепеж
9046400609
Крепеж
9046715022
Крепеж
9048025025
Крепеж
9048040007
Крепеж
9151160814
Крепеж
9161160816
Крепеж
9162140614
Крепеж
9163160816
Крепеж
9164180814
Крепеж
9164180816
Крепеж
9164280820
Крепеж
9613541100
Крепеж
9613541300
Крепеж
Код
Описание

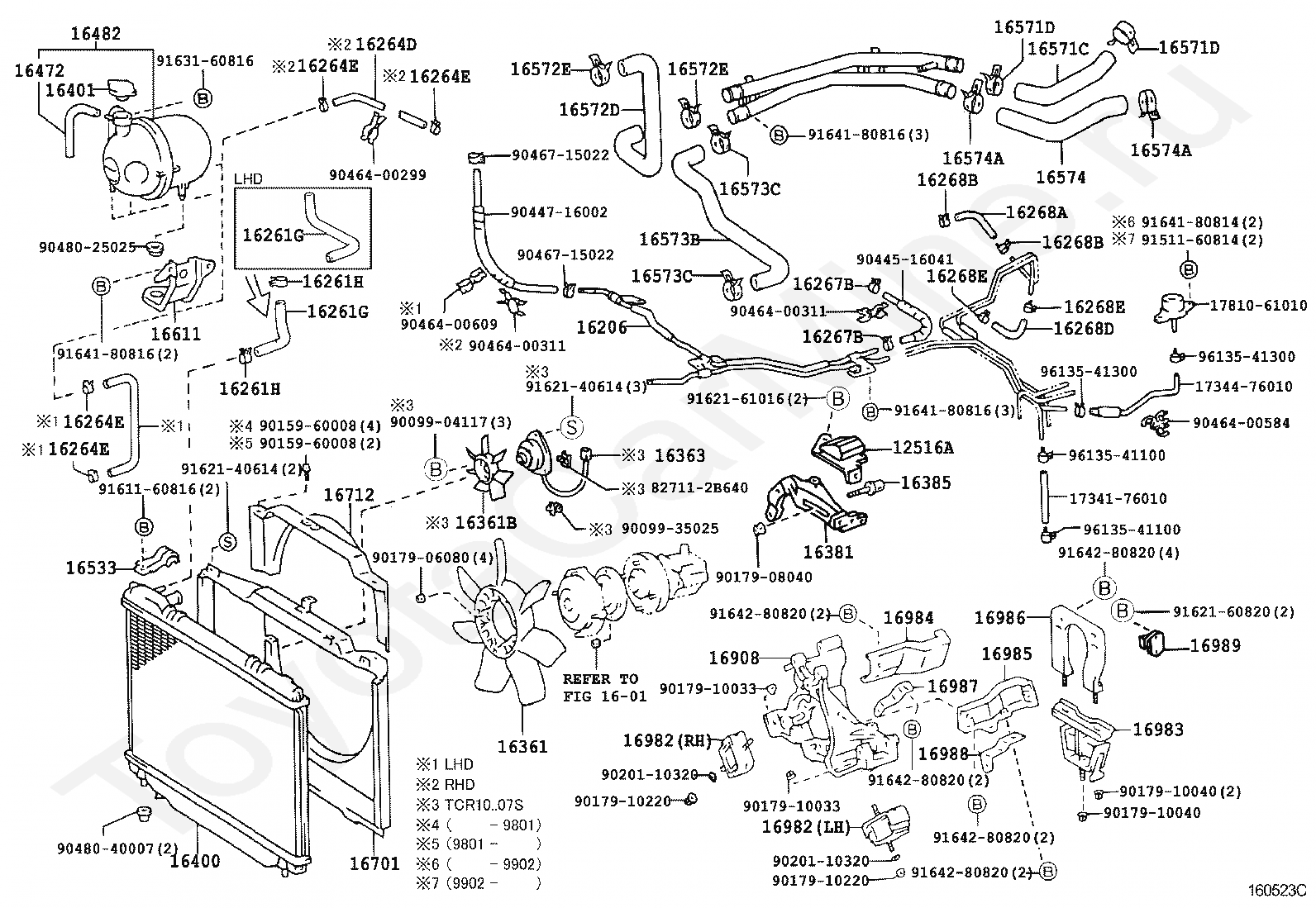

12516A
DAMPER, ALTERNATOR ADJUSTING BAR
1601
переход к группе запчастей
16206
PIPE SUB-ASSY, WATER BY-PASS
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16267B
CLIP(FOR WATER BY-PASS HOSE)
16268A
HOSE(FOR WATER BY-PASS PIPE)
16268B
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
16268D
HOSE(FOR WATER BY-PASS PIPE)
16268E
CLAMP, HOSE(FOR WATER BY-PASS PIPE)
16361
FAN
16361B
FAN, NO.2
16363
MOTOR, COOLING FAN
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16401
CAP SUB-ASSY, RADIATOR
16472
HOSE, BREATHER
16482
TANK SUB-ASSY, RADIATOR RESERVE
16533
SUPPORT, RADIATOR, UPPER
16571C
HOSE, RADIATOR, NO.1
16571D
CLIP, RADIATOR HOSE, NO.1
16572D
HOSE, RADIATOR, NO.2
16572E
CLIP, RADIATOR HOSE, NO.2
16573B
HOSE, RADIATOR, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16574
HOSE, RADIATOR, NO.4
16574A
CLIP, RADIATOR HOSE, NO.4
16611
BRACKET, RADIATOR RESERVE TANK
16701
SHROUD SUB-ASSY, FAN
16712
SHROUD, FAN, NO.2
16908
HOUSING SUB-ASSY, EQUIPMENT DRIVE
16982
INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1
16983
INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2
16984
STAY, EQUIPMENT DRIVE HOUSING, NO.1
16985
STAY, EQUIPMENT DRIVE HOUSING, NO.2
16986
STAY, EQUIPMENT DRIVE HOUSING, NO.3
16987
STAY, EQUIPMENT DRIVE HOUSING, NO.4
16988
STAY, EQUIPMENT DRIVE HOUSING, NO.5
16989
DAMPER, EQUIPMENT DRIVE HOUSING DYNAMIC
1734176010
Крепеж
1734476010
Крепеж
1781061010
Крепеж
827112B640
Крепеж
9009904117
Крепеж
9009935025
Крепеж
9015960008
Крепеж
9017906080
Крепеж
9017908040
Крепеж
9017910033
Крепеж
9017910040
Крепеж
9017910220
Крепеж
9020110320
Крепеж
9044516041
Крепеж
9044716002
Крепеж
9046400299
Крепеж
9046400311
Крепеж
9046400584
Крепеж
9046400609
Крепеж
9046715022
Крепеж
9048025025
Крепеж
9048040007
Крепеж
9151160814
Крепеж
9161160816
Крепеж
9162140614
Крепеж
9162160820
Крепеж
9162161016
Крепеж
9163160816
Крепеж
9164180814
Крепеж
9164180816
Крепеж
9164280820
Крепеж
9613541100
Крепеж
9613541300
Крепеж
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16278
PIPE, WATER BY-PASS, NO.2
16281
HOSE, WATER BY-PASS, NO.4
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16321
INLET, WATER
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16337A
STAY, WATER OUTLET
16341
GASKET, WATER OUTLET
16991
PULLEY, EQUIPMENT DRIVE
9011608368
Крепеж
9011608370
Крепеж
9011908735
Крепеж
9011908A72
Крепеж
9011908A73
Крепеж
9017908040
Крепеж
9040108005
Крепеж
9043008005
Крепеж
91641C0612
Крепеж
9676124010
Крепеж
Код
Описание

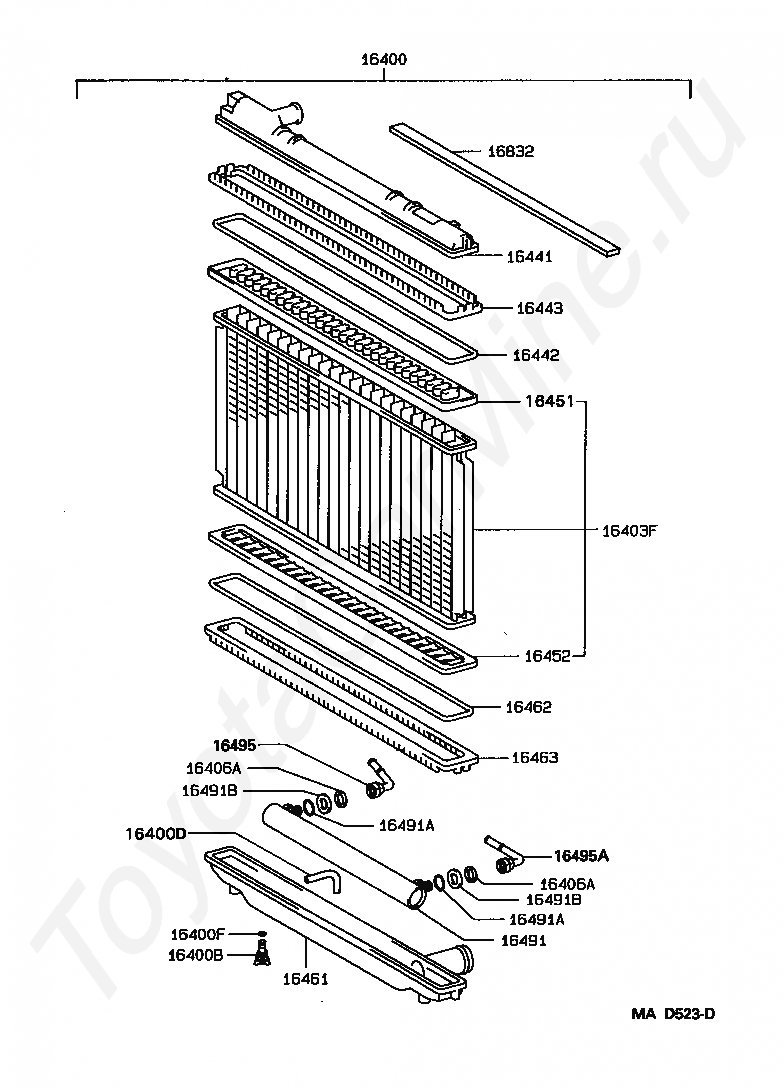

16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400D
HOSE(FOR RADIATOR DRAIN COCK)
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16403F
CORE SUB-ASSY, RADIATOR
16406A
SUPPORT(FOR OIL COOLER)
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16451
PLATE, RADIATOR CORE, UPPER
16452
PLATE, RADIATOR CORE, LOWER
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16495A
NUT, FLARE, NO.2(FOR ATM OIL COOLER)
16832
SEAL, FAN SHROUD
