Топливный бак и горловина TOYOTA LAND CRUISER PRADO, 2013/08 - 2015/06, 2,7 литра, 16 клапанов, DOHC, EFI, TRJ150, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

LAND CRUISER PRADO

Двигатель

2,7 литра, 16 клапанов, DOHC, EFI

Фрейм

TRJ150

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль 5 дверей GENERAL COUNTRIES 596W

Код

Описание

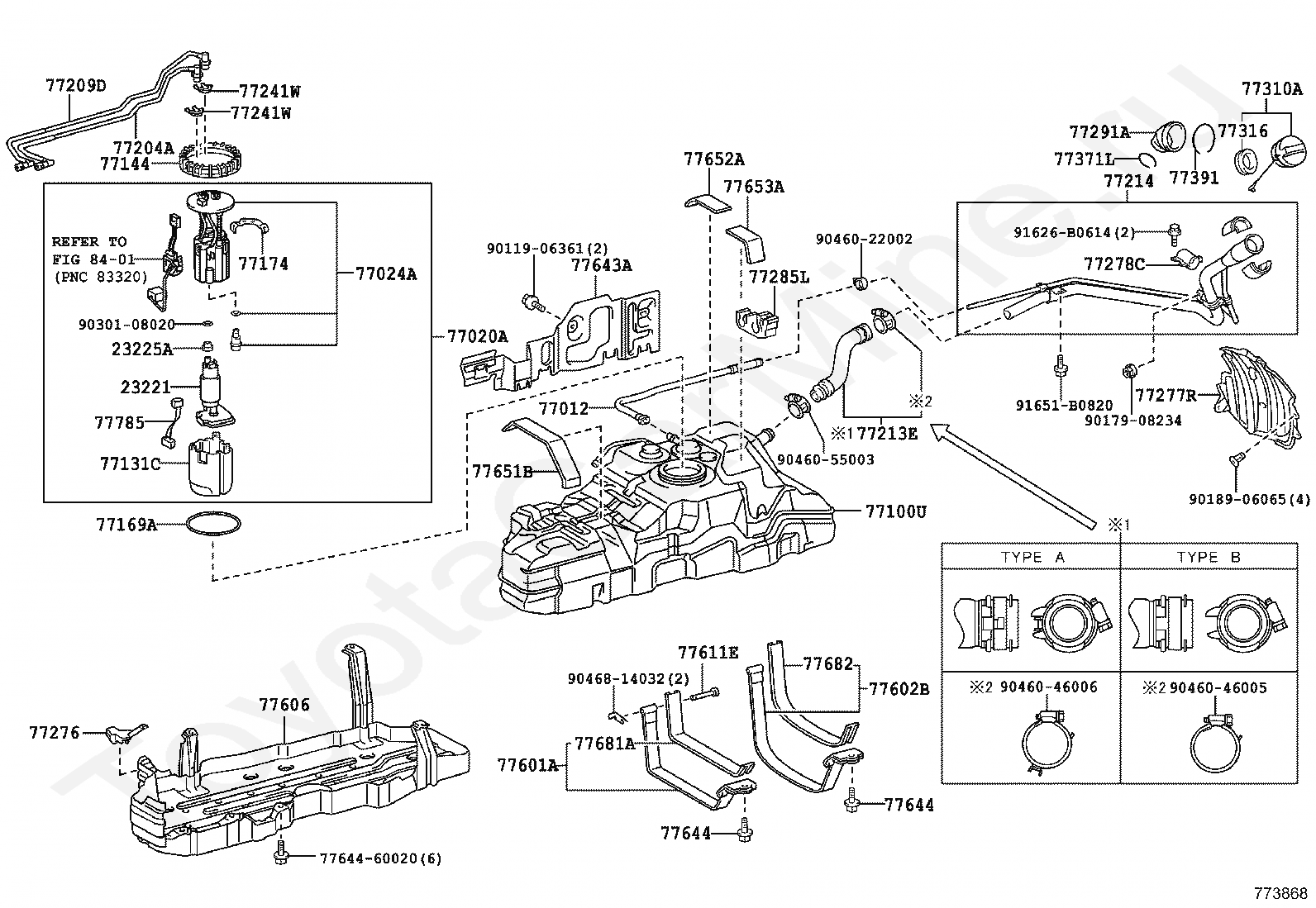

23221

PUMP, FUEL

23225A

SPACER, FUEL PUMP

77012

TUBE SUB-ASSY, FUEL TANK BREATHER

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77100U

TANK SUB-ASSY, FUEL

77131C

SUB-TANK, FUEL, NO.1

77144

RETAINER, FUEL PUMP GAUGE

77169A

GASKET, FUEL SUCTION TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77204A

TUBE, FUEL TANK RETURN

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213E

HOSE, FUEL TANK TO FILLER PIPE

77214

PIPE, FUEL TANK FILLER

77219

COVER, FUEL TANK FILLER PIPE

77241W

CLIP, TUBE JOINT

77245E

CAP, FUEL SUCTION

77276

PROTECTOR, FUEL HOSE

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278C

PROTECTOR, FUEL TANK FILLER PIPE, NO.2

77285L

CLAMP, FUEL TUBE, NO.1

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77371L

RING, FUEL TANK FILLER PIPE SHIELD

77391

RING, FUEL INLET BOX

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77611E

PIN, FUEL TANK BAND

77643A

PROTECTOR, FUEL TANK, NO.3

77644

BOLT, FUEL TANK

7764460020

Крепеж

77651B

CUSHION, FUEL TANK

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681A

SEAT, FUEL TANK BAND

77682

SEAT, FUEL TANK BAND, LH

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9011906361

Крепеж

9017908234

Крепеж

9018906065

Крепеж

9030108019

Крепеж

9030115024

Крепеж

9046022002

Крепеж

9046046005

Крепеж

9046046006

Крепеж

9046055003

Крепеж

9046814032

Крепеж

91626B0614

Крепеж

91651B0820

Крепеж

Код

Описание

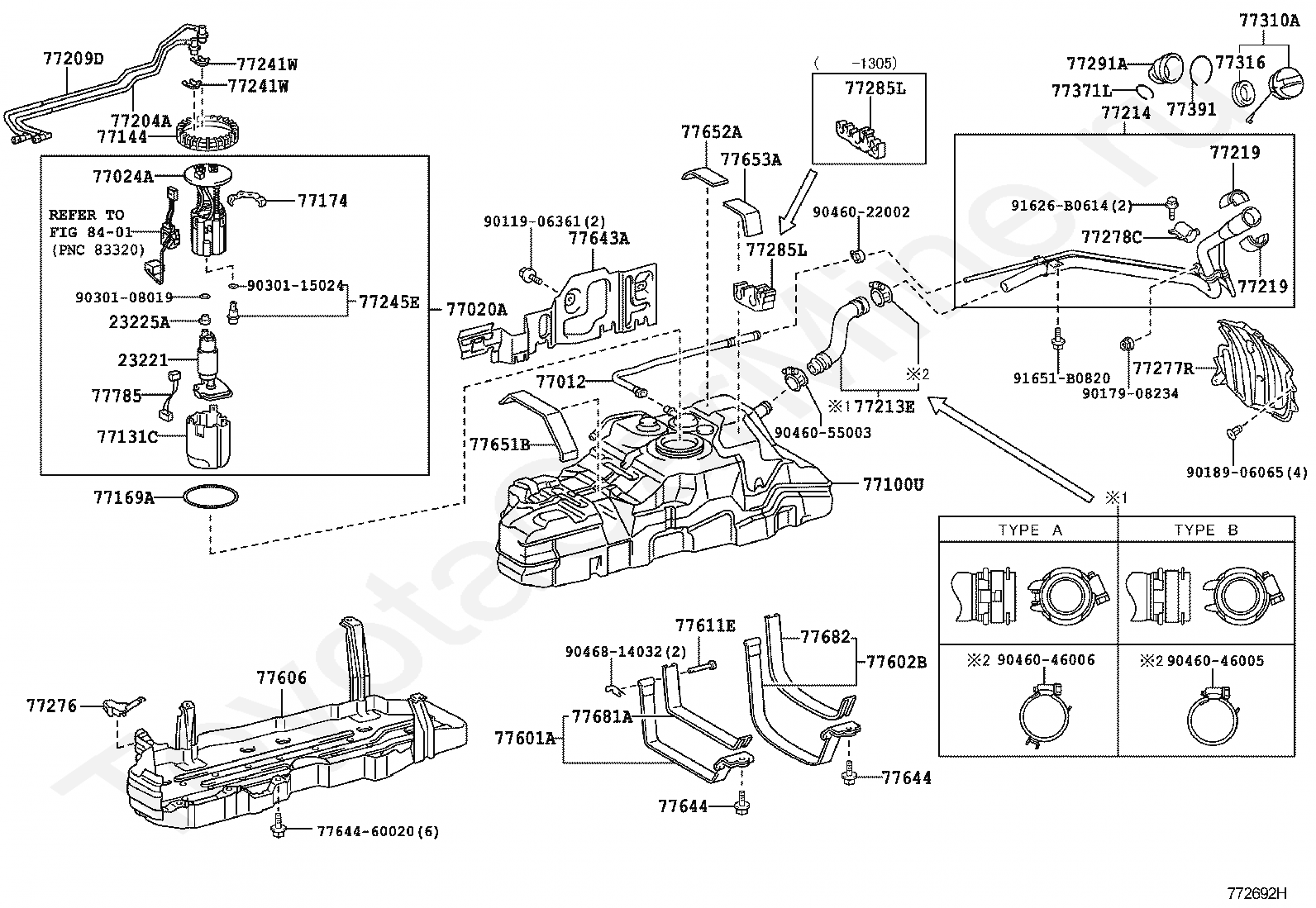

23221

PUMP, FUEL

23225A

SPACER, FUEL PUMP

77012

TUBE SUB-ASSY, FUEL TANK BREATHER

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77100U

TANK SUB-ASSY, FUEL

77131C

SUB-TANK, FUEL, NO.1

77144

RETAINER, FUEL PUMP GAUGE

77169A

GASKET, FUEL SUCTION TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77204A

TUBE, FUEL TANK RETURN

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213E

HOSE, FUEL TANK TO FILLER PIPE

77214

PIPE, FUEL TANK FILLER

77241W

CLIP, TUBE JOINT

77276

PROTECTOR, FUEL HOSE

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278C

PROTECTOR, FUEL TANK FILLER PIPE, NO.2

77285L

CLAMP, FUEL TUBE, NO.1

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77371L

RING, FUEL TANK FILLER PIPE SHIELD

77391

RING, FUEL INLET BOX

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77611E

PIN, FUEL TANK BAND

77643A

PROTECTOR, FUEL TANK, NO.3

77644

BOLT, FUEL TANK

7764460020

Крепеж

77651B

CUSHION, FUEL TANK

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681A

SEAT, FUEL TANK BAND

77682

SEAT, FUEL TANK BAND, LH

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9011906361

Крепеж

9017908234

Крепеж

9018906065

Крепеж

9030108020

Крепеж

9046022002

Крепеж

9046046005

Крепеж

9046046006

Крепеж

9046055003

Крепеж

9046814032

Крепеж

91626B0614

Крепеж

91651B0820

Крепеж

Код

Описание

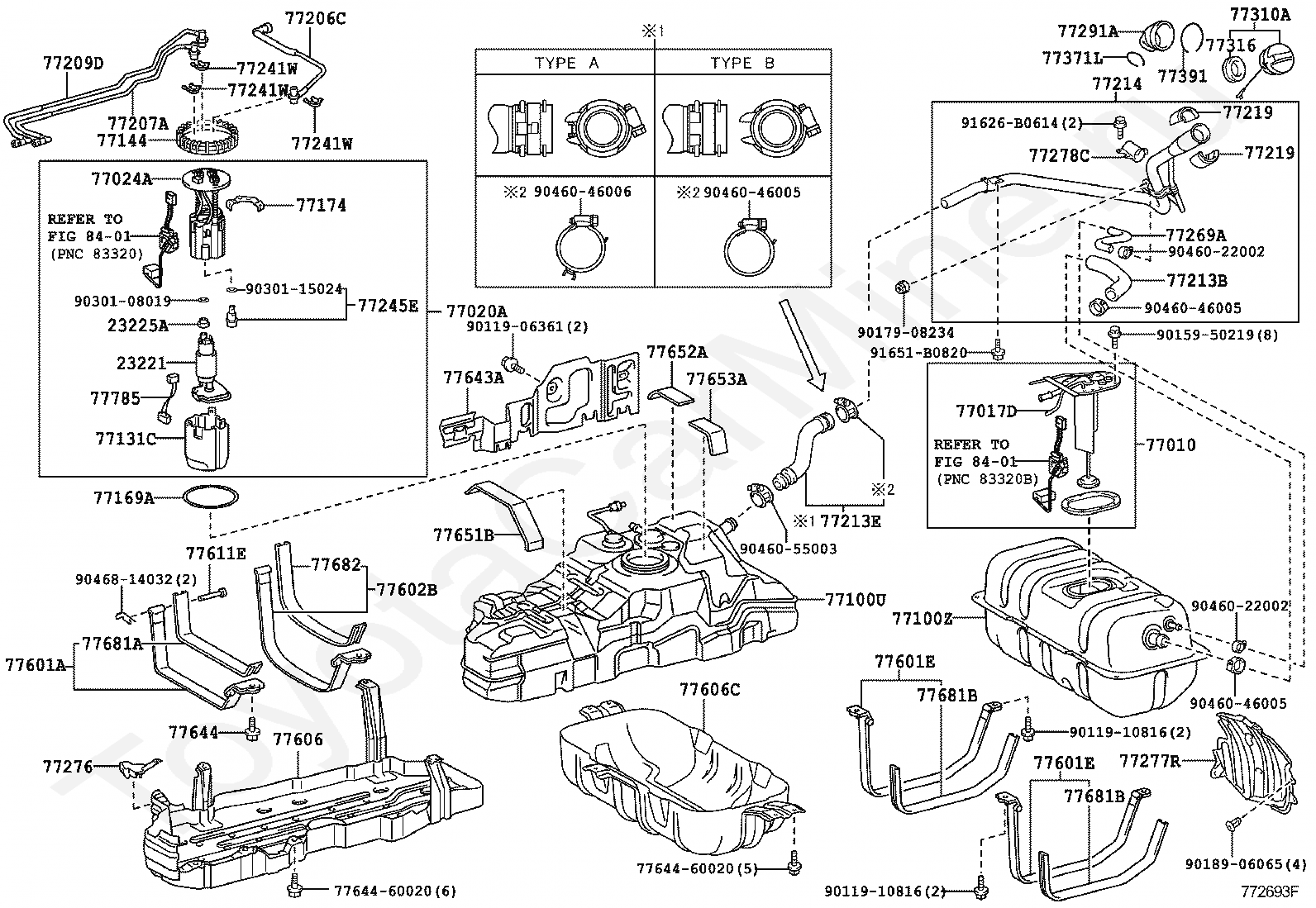

23221

PUMP, FUEL

23225A

SPACER, FUEL PUMP

77010

TUBE ASSY, FUEL TANK VENT

77017D

TUBE SUB-ASSY, FUEL TANK VENT

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77100U

TANK SUB-ASSY, FUEL

77100Z

TANK SUB-ASSY, FUEL SUB

77131C

SUB-TANK, FUEL, NO.1

77144

RETAINER, FUEL PUMP GAUGE

77169A

GASKET, FUEL SUCTION TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77206C

TUBE SUB-ASSY, FUEL MAIN, NO.2

77207A

TUBE SUB-ASSY, FUEL RETURN

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213B

HOSE, FUEL TANK TO FILLER PIPE

77213E

HOSE, FUEL TANK TO FILLER PIPE

77214

PIPE, FUEL TANK FILLER

77219

COVER, FUEL TANK FILLER PIPE

77241W

CLIP, TUBE JOINT

77245E

CAP, FUEL SUCTION

77269A

HOSE, FUEL TANK BREATHER

77276

PROTECTOR, FUEL HOSE

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278C

PROTECTOR, FUEL TANK FILLER PIPE, NO.2

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77371L

RING, FUEL TANK FILLER PIPE SHIELD

77391

RING, FUEL INLET BOX

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77601E

BAND SUB-ASSY, FUEL TANK

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77606C

PROTECTOR, FUEL TANK, NO.2

77611E

PIN, FUEL TANK BAND

77643A

PROTECTOR, FUEL TANK, NO.3

77644

BOLT, FUEL TANK

7764460020

Крепеж

77651B

CUSHION, FUEL TANK

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77681A

SEAT, FUEL TANK BAND

77681B

SEAT, FUEL TANK BAND

77682

SEAT, FUEL TANK BAND, LH

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9011906361

Крепеж

9011910816

Крепеж

9015950219

Крепеж

9017908234

Крепеж

9018906065

Крепеж

9030108019

Крепеж

9030115024

Крепеж

9046022002

Крепеж

9046046005

Крепеж

9046046006

Крепеж

9046055003

Крепеж

9046814032

Крепеж

91626B0614

Крепеж

91651B0820

Крепеж

Код

Описание

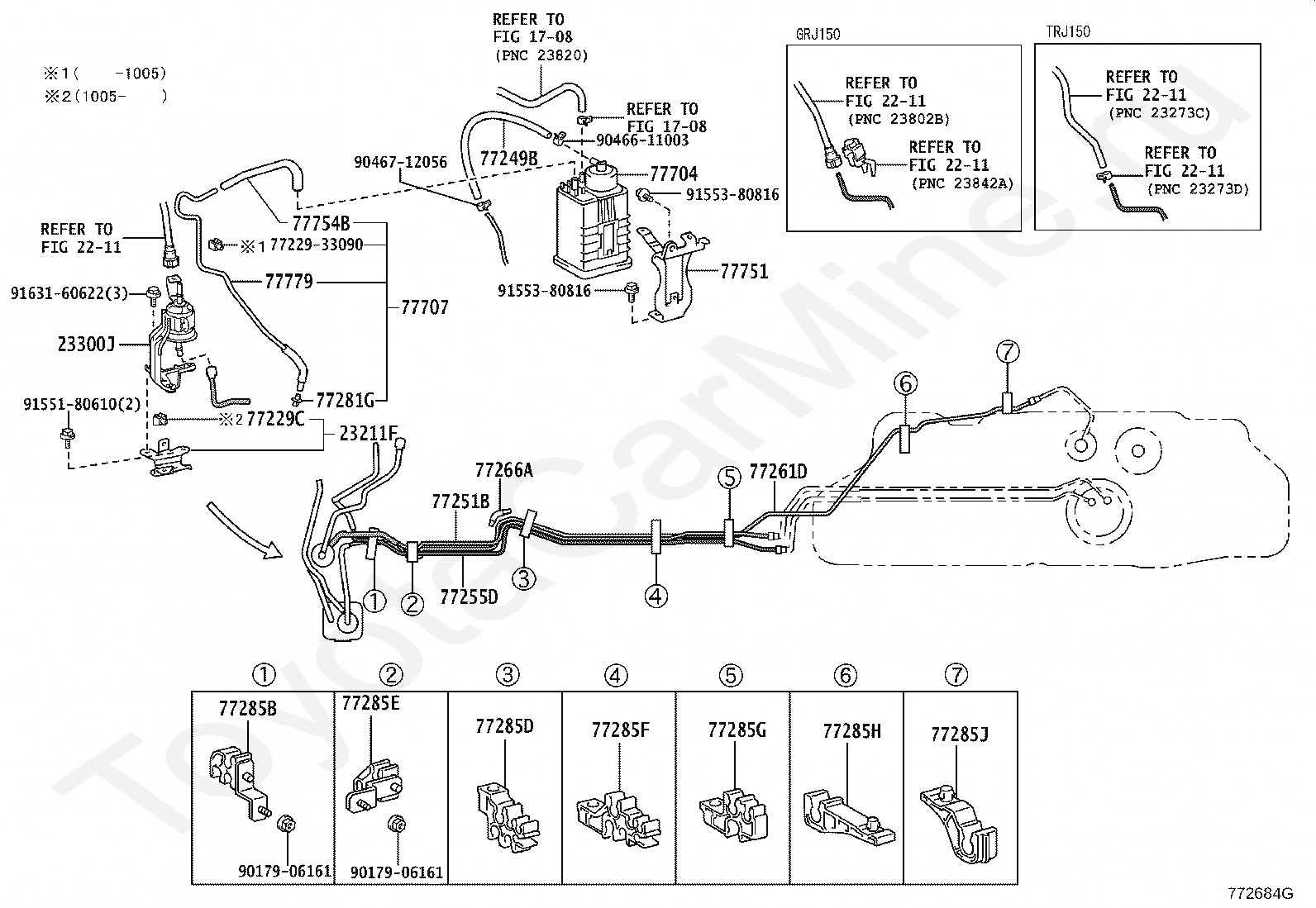

1708

переход к группе запчастей

2211

переход к группе запчастей

23211F

BRACKET

23300J

FILTER ASSY, FUEL

7722933090

Крепеж

77229C

CLAMP, BREATHER TUBE

77249B

HOSE, FUEL

77251B

TUBE, FUEL MAIN

77255D

TUBE, FUEL RETURN

77261D

TUBE, FUEL TANK TO CANISTER

77266A

PROTECTOR, FUEL TUBE, NO.1

77281G

CLAMP, FUEL HOSE

77285B

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285D

CLAMP, FUEL TUBE, NO.1

77285E

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285F

CLAMP, FUEL TUBE, NO.1

77285G

CLAMP, FUEL TUBE, NO.1

77285H

CLAMP, FUEL TUBE, NO.1

77285J

CLAMP, FUEL TUBE, NO.1

77704

CANISTER SUB-ASSY, CHARCOAL

77707

TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

77751

BRACKET, CHARCOAL CANISTER BASE

77754B

HOSE, CHARCOAL CANISTER OUTLET

77779

TUBE, CHARCOAL CANISTER OUTLET

9017906161

Крепеж

9046611003

Крепеж

9046712056

Крепеж

9155180610

Крепеж

9155380816

Крепеж

9163160622

Крепеж

Код

Описание

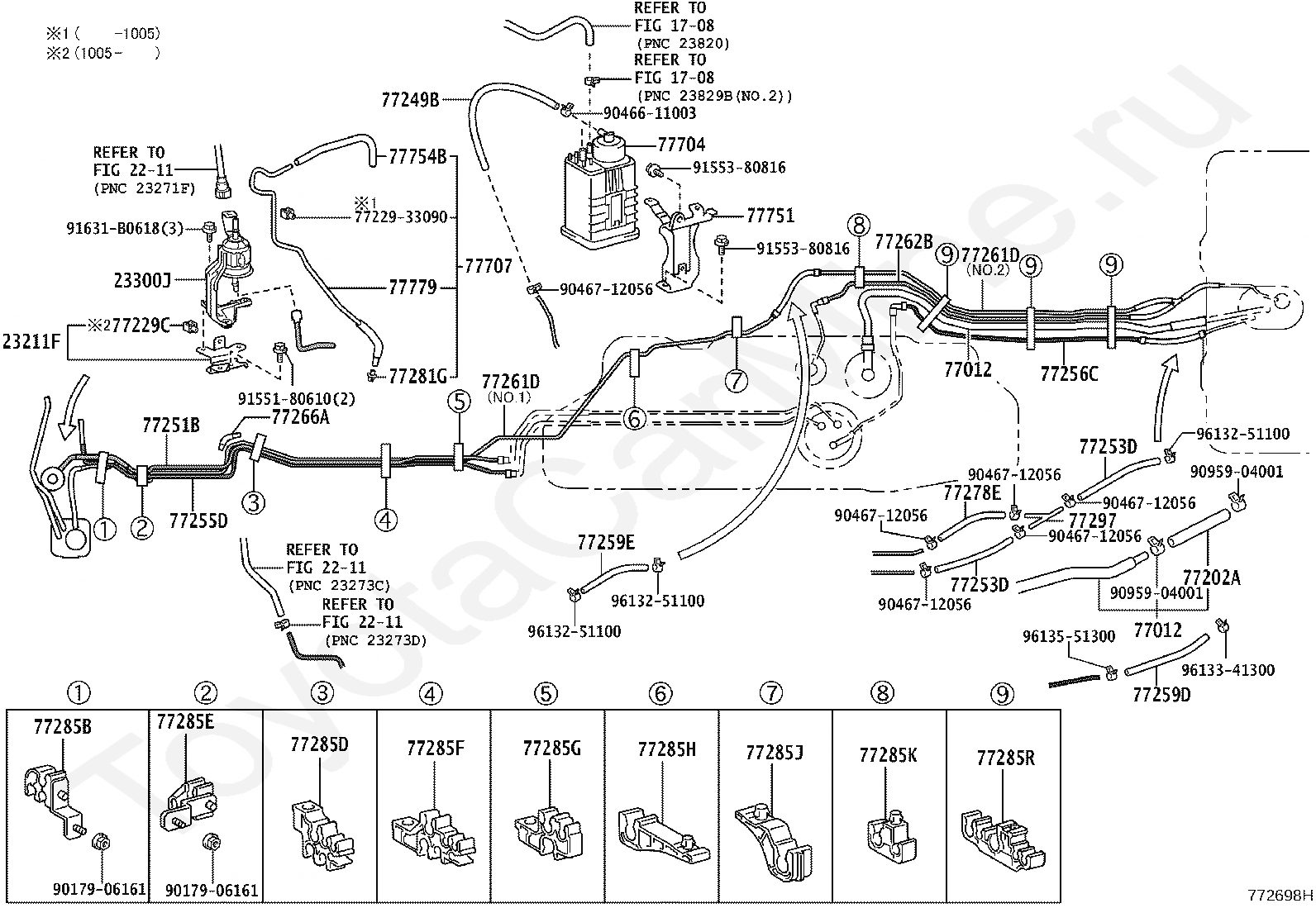

1708

переход к группе запчастей

2211

переход к группе запчастей

23211F

BRACKET

23300J

FILTER ASSY, FUEL

77012

TUBE SUB-ASSY, FUEL TANK BREATHER

77202A

HOSE, FUEL, NO.1 (FOR BREATHER TUBE)

7722933090

Крепеж

77229C

CLAMP, BREATHER TUBE

77249B

HOSE, FUEL

77251B

TUBE, FUEL MAIN

77253D

HOSE, FUEL

77255D

TUBE, FUEL RETURN

77256C

TUBE, FUEL RETURN, NO.2

77259D

HOSE, FUEL, NO.1

77259E

HOSE, FUEL

77261D

TUBE, FUEL TANK TO CANISTER

77262B

TUBE, FUEL TANK TO CANISTER, NO.2

77266A

PROTECTOR, FUEL TUBE, NO.1

77278E

HOSE, FUEL

77281G

CLAMP, FUEL HOSE

77285B

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285D

CLAMP, FUEL TUBE, NO.1

77285E

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285F

CLAMP, FUEL TUBE, NO.1

77285G

CLAMP, FUEL TUBE, NO.1

77285H

CLAMP, FUEL TUBE, NO.1

77285J

CLAMP, FUEL TUBE, NO.1

77285K

CLAMP, FUEL TUBE, NO.1

77285R

CLAMP, FUEL TUBE, NO.1

77297

CONNECTOR, FUEL TUBE

77704

CANISTER SUB-ASSY, CHARCOAL

77707

TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

77751

BRACKET, CHARCOAL CANISTER BASE

77754B

HOSE, CHARCOAL CANISTER OUTLET

77779

TUBE, CHARCOAL CANISTER OUTLET

9017906161

Крепеж

9046611003

Крепеж

9046712056

Крепеж

9095904001

Крепеж

9155180610

Крепеж

9155380816

Крепеж

91631B0618

Крепеж

9613251100

Крепеж

9613341300

Крепеж

9613551300

Крепеж

Код

Описание

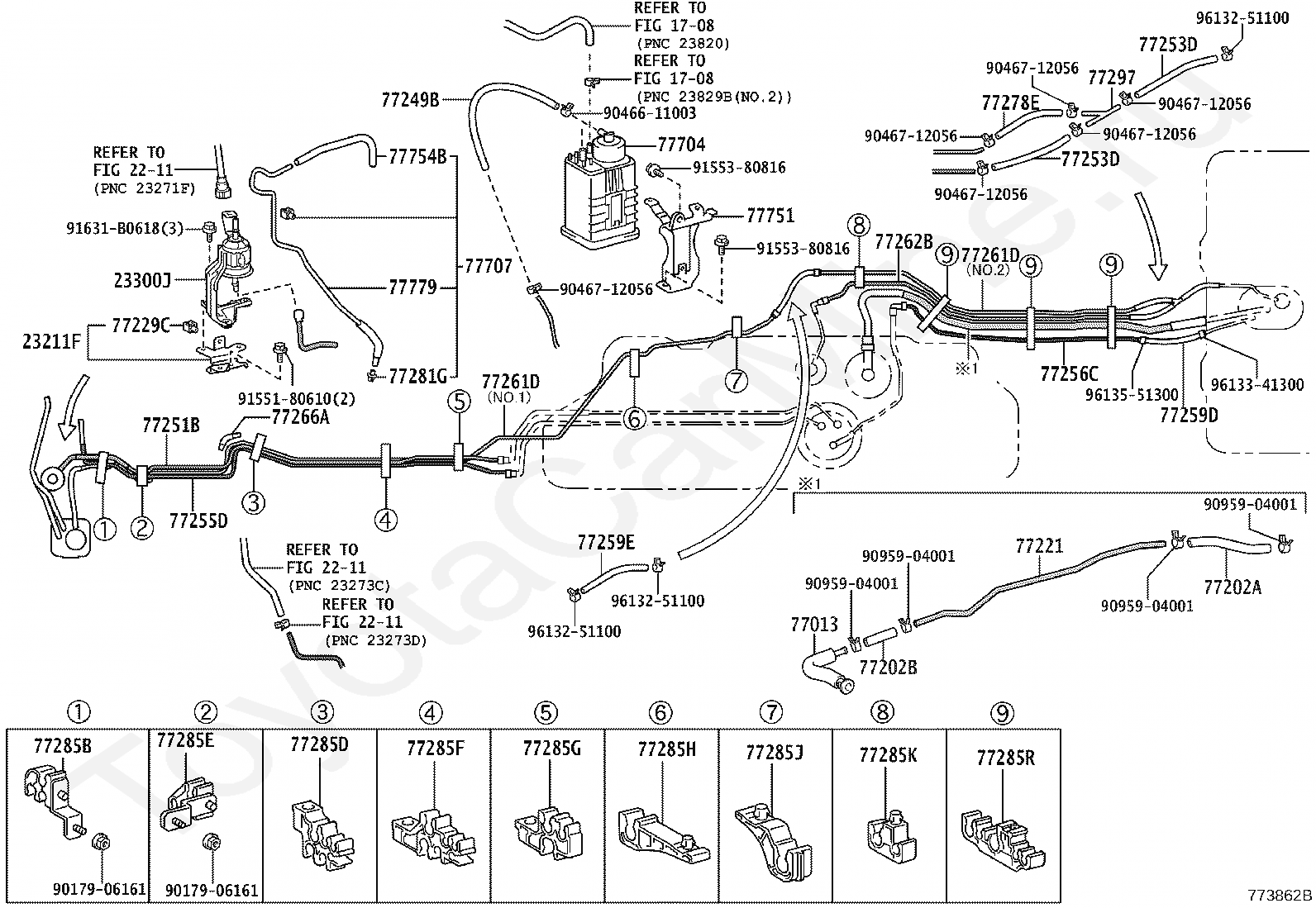

1708

переход к группе запчастей

2211

переход к группе запчастей

23211F

BRACKET

23300J

FILTER ASSY, FUEL

77013

TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

77202A

HOSE, FUEL, NO.1 (FOR BREATHER TUBE)

77202B

HOSE, FUEL, NO.2 (FOR BREATHER TUBE)

77221

TUBE, FUEL TANK BREATHER, NO.1

77229C

CLAMP, BREATHER TUBE

77249B

HOSE, FUEL

77251B

TUBE, FUEL MAIN

77253D

HOSE, FUEL

77255D

TUBE, FUEL RETURN

77256C

TUBE, FUEL RETURN, NO.2

77259D

HOSE, FUEL, NO.1

77259E

HOSE, FUEL

77261D

TUBE, FUEL TANK TO CANISTER

77262B

TUBE, FUEL TANK TO CANISTER, NO.2

77266A

PROTECTOR, FUEL TUBE, NO.1

77278E

HOSE, FUEL

77281G

CLAMP, FUEL HOSE

77285B

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285D

CLAMP, FUEL TUBE, NO.1

77285E

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285F

CLAMP, FUEL TUBE, NO.1

77285G

CLAMP, FUEL TUBE, NO.1

77285H

CLAMP, FUEL TUBE, NO.1

77285J

CLAMP, FUEL TUBE, NO.1

77285K

CLAMP, FUEL TUBE, NO.1

77285R

CLAMP, FUEL TUBE, NO.1

77297

CONNECTOR, FUEL TUBE

77704

CANISTER SUB-ASSY, CHARCOAL

77707

TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

77751

BRACKET, CHARCOAL CANISTER BASE

77754B

HOSE, CHARCOAL CANISTER OUTLET

77779

TUBE, CHARCOAL CANISTER OUTLET

9017906161

Крепеж

9046611003

Крепеж

9046712056

Крепеж

9095904001

Крепеж

9155180610

Крепеж

9155380816

Крепеж

91631B0618

Крепеж

9613251100

Крепеж

9613341300

Крепеж

9613551300

Крепеж

Код

Описание

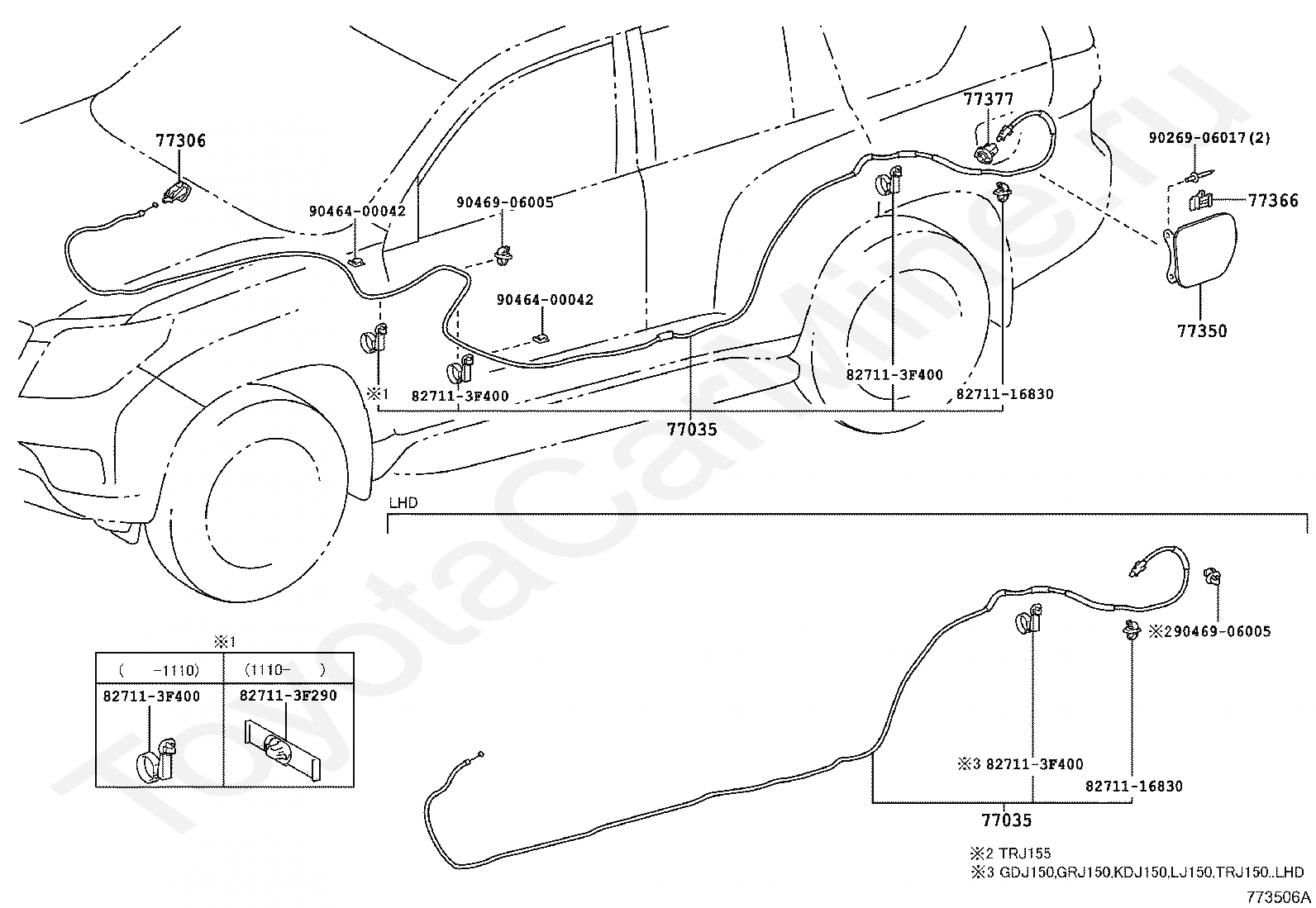

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

8271116830

Крепеж

827113F290

Крепеж

827113F400

Крепеж

9026906017

Крепеж

9046400042

Крепеж

9046906005

Крепеж

Топливный бак и горловина TOYOTA LAND CRUISER PRADO, 2013/08 - 2015/06, 2,7 литра, 16 клапанов, DOHC, EFI, TRJ150, механика, МКПП, 5 скоростей
