Кресла TOYOTA LAND CRUISER PRADO, 2000/08 - 2002/11, 3 литра, турбо-дизель, RX TYPE, KDJ90, автомат

Каталог

Япония

Модель

LAND CRUISER PRADO

Двигатель

3 литра, турбо-дизель

Класс

RX TYPE

Фрейм

KDJ90

Трансмиссия

автомат

Опции

3 двери 5-местный

Код

Описание

55560D

LOCK ASSY, SEAT UNDER TRAY

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71147

SILENCER, SEAT SPRING

71361

BRACKET, FRONT SEAT SET, NO.1

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71517

CLOTH, FRONT SEAT CUSHION UNDER

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7158760080

Крепеж

7158860030

Крепеж

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71750A

TRAY ASSY, FRONT SEAT UNDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125A

COVER, SEAT TRACK, UPPER REAR

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72263

REINFORCEMENT, INNER SEAT TRACK, RH

72264

REINFORCEMENT, INNER SEAT TRACK, LH

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72554C

COVER, RECLINING PEDAL, LH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

72797

SPACER, LUMBAR SUPPORT

9011910825

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9052001006

Крепеж

9151261018

Крепеж

9161160816

Крепеж

9161560825

Крепеж

9165160614

Крепеж

9354054012

Крепеж

9356855016

Крепеж

9616000600

Крепеж

9616000800

Крепеж

9616001200

Крепеж

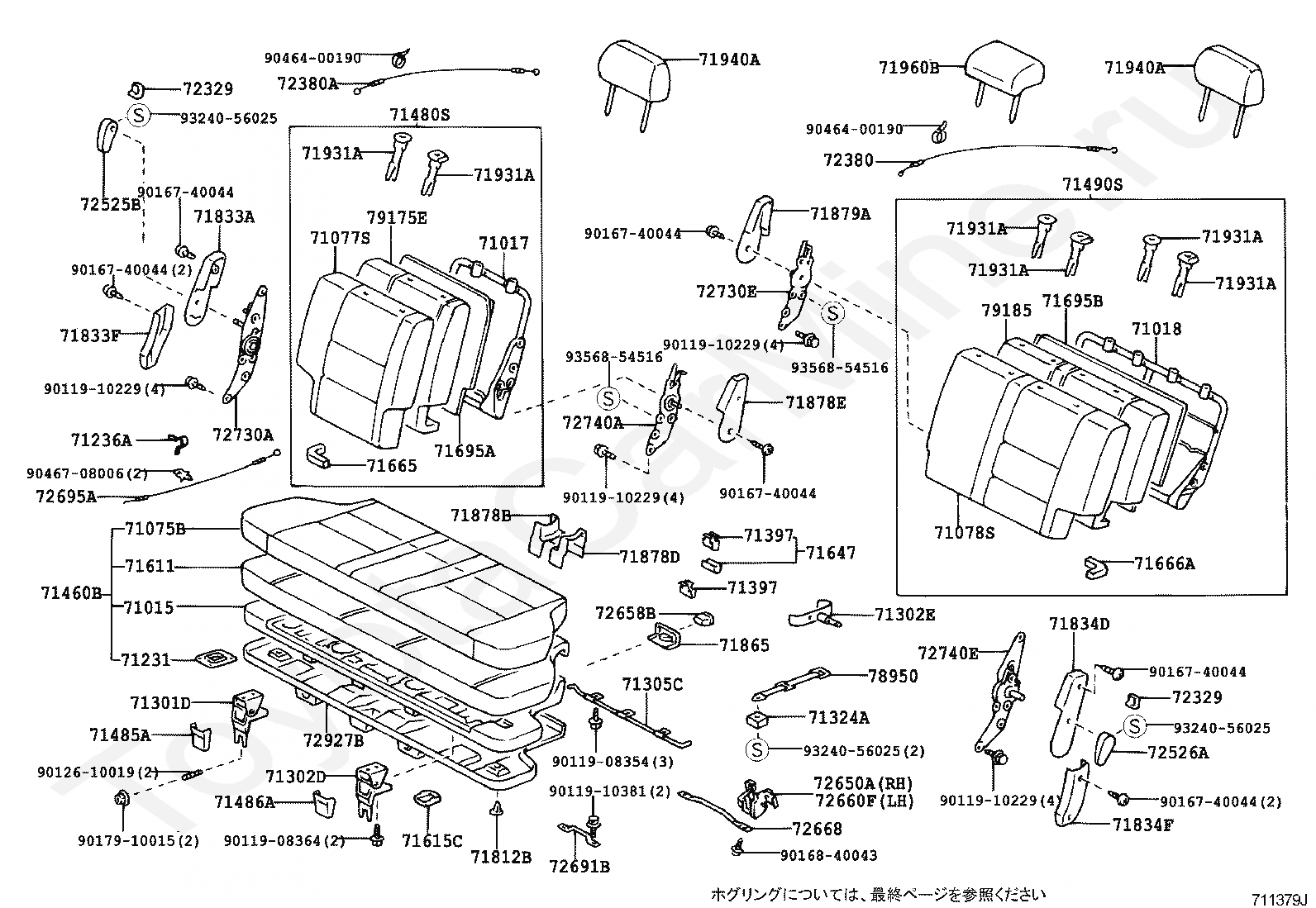

Код

Описание

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71231

PLATE, REAR SEAT SPRING SET, NO.1

71236A

CLAMP, REAR SEAT CUSHION SPRING

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71302E

STOPPER SUB-ASSY, REAR SEAT LEG

71305C

STAY SUB-ASSY, REAR SEAT

71324A

CUSHION, REAR SEAT

71397

STOPPER, REAR SEAT

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71485A

COVER, REAR SEAT HINGE, NO.2 RH

71486A

COVER, REAR SEAT HINGE, NO.2 LH

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71611

PAD, REAR SEAT CUSHION

71615C

COVER, REAR SEAT LOCK STRIKER

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71665

PAD, REAR SEAT BACK SIDE, RH

71666A

PAD, REAR SEAT BACK SIDE, LH

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833F

COVER, REAR NO.2 SEAT RECLINING, OUTER RH

71834D

COVER, REAR SEAT RECLINING, LH

71834F

COVER, REAR NO.2 SEAT RECLINING, OUTER LH

71865

BEZEL, REAR SEAT COVER, NO.1

71878B

COVER, REAR SEAT RECLINING, INNER RH

71878D

COVER, REAR SEAT RECLINING, INNER RH

71878E

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72329

COVER, SEAT ADJUSTER BOLT

72380

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72380A

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72650A

LOCK ASSY, REAR SEAT, RH

72658B

KNOB, REAR SEAT LOCK HANDLE

72660F

LOCK ASSY, REAR SEAT, LH

72668

BAR, REAR SEAT CUSHION LOCK STRIKER

72691B

STRIKER, REAR SEAT CUSHION LOCK

72695A

CABLE, REAR SEAT LOCK CONTROL

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72730E

ADJUSTER ASSY, REAR SEAT BACK, OUTER RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72740E

ADJUSTER ASSY, REAR SEAT BACK, OUTER LH

72927B

COVER, REAR SEAT CUSHION UNDER

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

79175E

PAD, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

9011908354

Крепеж

9011908364

Крепеж

9011910229

Крепеж

9011910381

Крепеж

9012610019

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9017910015

Крепеж

9046400190

Крепеж

9046708006

Крепеж

9324056025

Крепеж

9356854516

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71231

PLATE, REAR SEAT SPRING SET, NO.1

71324D

CUSHION, REAR SEAT, RH

71349B

COVER, REAR SEAT BACK STAY, RH

71397C

STOPPER, REAR SEAT

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71615D

COVER, REAR SEAT LOCK STRIKER

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71665

PAD, REAR SEAT BACK SIDE, RH

71691F

COVER, REAR NO.1 SEAT CUSHION HINGE, INNER RH

71691G

COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER RH

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71693B

CAP, REAR SEAT CUSHION HINGE

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71878C

COVER, REAR SEAT RECLINING, INNER RH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72329

COVER, SEAT ADJUSTER BOLT

72380

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72610

LOCK ASSY, REAR SEAT CUSHION

72658B

KNOB, REAR SEAT LOCK HANDLE

72710B

ADJUSTER ASSY, REAR SEAT BACK, INNER RH

72730H

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72808A

BRACKET SUB-ASSY, SEAT CENTER ARMREST

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72927C

COVER, REAR SEAT CUSHION UNDER RH

78950A

BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.1

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79030A

LEG ASSY, REAR NO.1 SEAT, INNER RH

79110A

LEG ASSY, NO.1 SEAT, RH

79134

LEG, NO.1 SEAT CONNECTOR, NO.1

79135A

PAD, NO.1 SEAT CUSHION, RH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79187

COVER, NO.1 SEAT INNER BRACKET

79956B

COVER, REAR SEAT LEG SIDE, RH

9010511049

Крепеж

9010906208

Крепеж

9011908364

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9012610019

Крепеж

9016740044

Крепеж

9017908249

Крепеж

9017910015

Крепеж

9046400190

Крепеж

9324056014

Крепеж

9324056025

Крепеж

9324056030

Крепеж

9356054016

Крепеж

9415080800

Крепеж

9417060800

Крепеж

Код

Описание

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71324E

CUSHION, REAR SEAT, LH

71397D

STOPPER, REAR SEAT

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71615E

COVER, REAR SEAT LOCK STRIKER

71639

COVER, REAR SEAT CUSHION HINGE, LH

71666A

PAD, REAR SEAT BACK SIDE, LH

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71692F

COVER, REAR NO.1 SEAT CUSHION HINGE, INNER LH

71692G

COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER LH

71693B

CAP, REAR SEAT CUSHION HINGE

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71879B

COVER, REAR SEAT RECLINING, INNER LH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72329

COVER, SEAT ADJUSTER BOLT

72380A

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72658B

KNOB, REAR SEAT LOCK HANDLE

72680C

LOCK ASSY, REAR SEAT CUSHION, NO.2 LH

72720B

ADJUSTER ASSY, REAR SEAT BACK, INNER LH

72740H

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72928

COVER, REAR SEAT CUSHION UNDER, LH

78950C

BAND ASSY, FOLD SEAT STOPPER

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79040A

LEG ASSY, REAR NO.1 SEAT, INNER LH

79120B

LEG ASSY, NO.1 SEAT, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79185

PAD, NO.1 SEAT BACK, LH

79187

COVER, NO.1 SEAT INNER BRACKET

9010511049

Крепеж

9011908364

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9012610019

Крепеж

9016740044

Крепеж

9017910015

Крепеж

9046400190

Крепеж

9324056014

Крепеж

9324056025

Крепеж

9324056030

Крепеж

9356054016

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Кресла TOYOTA LAND CRUISER PRADO, 2000/08 - 2002/11, 3 литра, турбо-дизель, RX TYPE, KDJ90, автомат

Товар добавлен в корзину!

Заполните форму
