Каталог
ЯпонияМодель
PORTE/SPADEДвигатель
1,5 литра, 16 клапанов, DOHC, EFIКласс
X TYPEФрейм
NSP141Трансмиссия
вариаторОпции
SPADE HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 654W
Код
Описание
58517K
MAT, GUARD
C6550D
BELT ASSY, WHEEL CHAIR SET, NO.1
Код
Описание

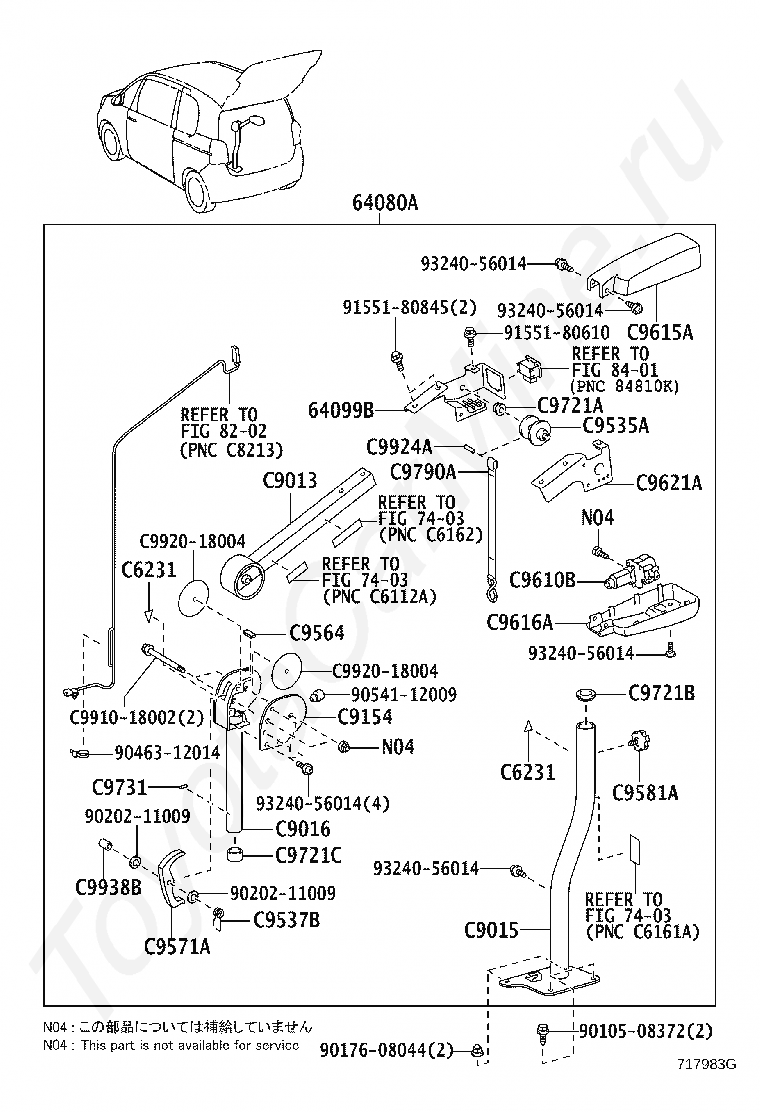

64080A
ARM ASSY, POWER LIFT
64099B
BASE SUB-ASSY, POWER LIFT ARM GUIDE
7403
переход к группе запчастей
8202
переход к группе запчастей
8401
переход к группе запчастей
9010508372
Крепеж
9017608044
Крепеж
9020211009
Крепеж
9046312014
Крепеж
9054112009
Крепеж
9155180610
Крепеж
9155180845
Крепеж
9324056014
Крепеж
C6231
MARK, SIDE
C9013
ARM SUB-ASSY, POWER LIFT, NO.1
C9015
POST SUB-ASSY, POWER LIFT
C9016
POST SUB-ASSY, POWER LIFT, INNER
C9154
SUPPORT, POWER LIFT ARM HINGE
C9535A
PULLEY, POWER LIFT
C9537B
SPRING, POWER LIFT RETURN
C9564
PROTECTOR, POWER LIFT CYLINDER COVER
C9571A
LEVER, POWER LIFT ARM LOCK
C9581A
HANDLE, POWER LIFT LOCK
C9610B
MOTOR ASSY, POWER LIFT
C9615A
COVER, POWER LIFT MOTOR, NO.1
C9616A
COVER, POWER LIFT MOTOR, NO.2
C9621A
BASE, POWER LIFT MOTOR
C9721A
BEARING, NO.2 WINCH, NO.1
C9721B
BEARING, NO.2 WINCH, NO.2
C9721C
BEARING, NO.2 WINCH, NO.3
C9731
PIN, WINCH ROLLER, NO.1
C9790A
BELT ASSY, WINCH
C991018002
Крепеж
C992018004
Крепеж
C9924A
PIN
C9938B
COLLAR
Код
Описание
C6500
WHEEL CHAIR ASSY
C6550E
BELT ASSY, WHEEL CHAIR SET, NO.2
Код
Описание

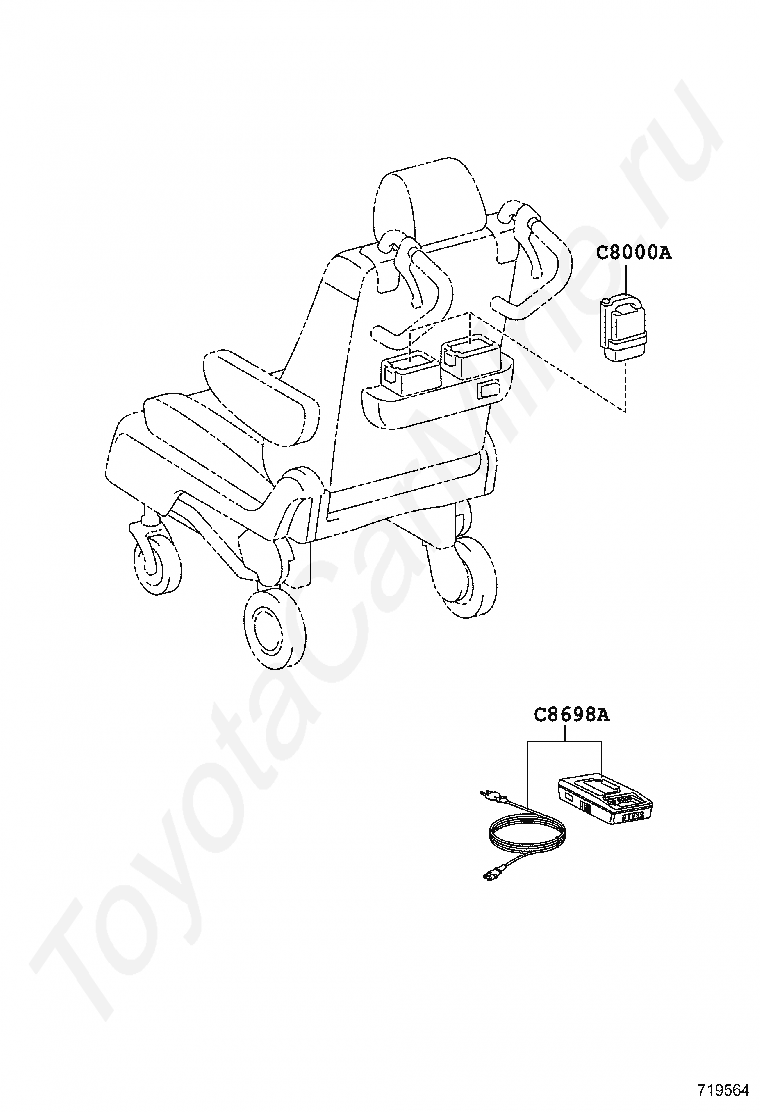

C8000A
BATTERY
C8698A
CHARGER, BATTERY
Код
Описание
64080A
ARM ASSY, POWER LIFT
7403
переход к группе запчастей
827111A770
Крепеж
8401
переход к группе запчастей
9017608044
Крепеж
9155380616
Крепеж
9415180600
Крепеж
9422380600
Крепеж

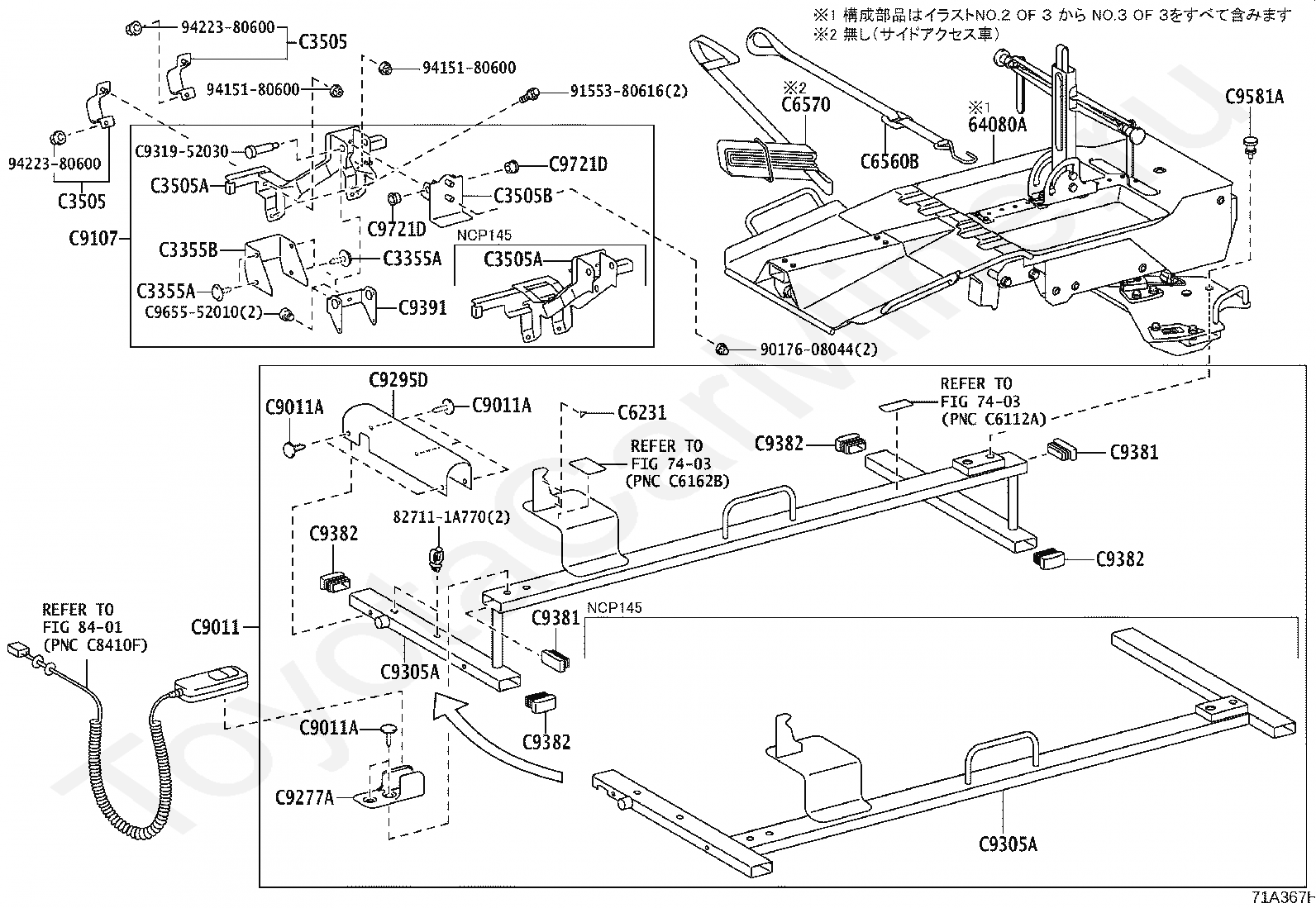

C3355A
CLIP, CHAIR GUIDE COVER
C3355B
COVER, CHAIR GUIDE, NO.2
C3505
BRACKET SUB-ASSY, TECS MOUNTING, NO.1
C3505A
BRACKET SUB-ASSY, TECS MOUNTING, NO.2
C3505B
BRACKET SUB-ASSY, TECS MOUNTING, NO.3
C6231
MARK, SIDE
C6560B
BELT ASSY, WHEEL CHAIR SET, NO.2
C6570
BELT ASSY, WHEEL CHAIR SET, NO.1
C9011
PLATE SUB-ASSY, POWER LIFT COLUMN
C9011A
CLIP, POWER LIFT COLUMN PLATE
C9107
BASE SUB-ASSY, POWER LIFT TO FLOOR
C9277A
BRACKET, LIFT CONTROL SWITCH
C9295D
COVER, POWER LIFT WIRE, NO.1
C9305A
FRAME SUB-ASSY, POWER LIFT PLATFORM
C931952030
Крепеж
C9381
PROTECTOR, PLATFORM, A
C9382
PROTECTOR, PLATFORM, B
C9391
PLATE, PLATFORM
C9581A
HANDLE, POWER LIFT LOCK
C965552010
Крепеж
C9721D
BEARING, NO.2 WINCH, NO.4
Код
Описание
7403
переход к группе запчастей
8202
переход к группе запчастей
9010506130
Крепеж
9011006018
Крепеж
9011906779
Крепеж
9017606045
Крепеж
9155180620
Крепеж
9155281025
Крепеж

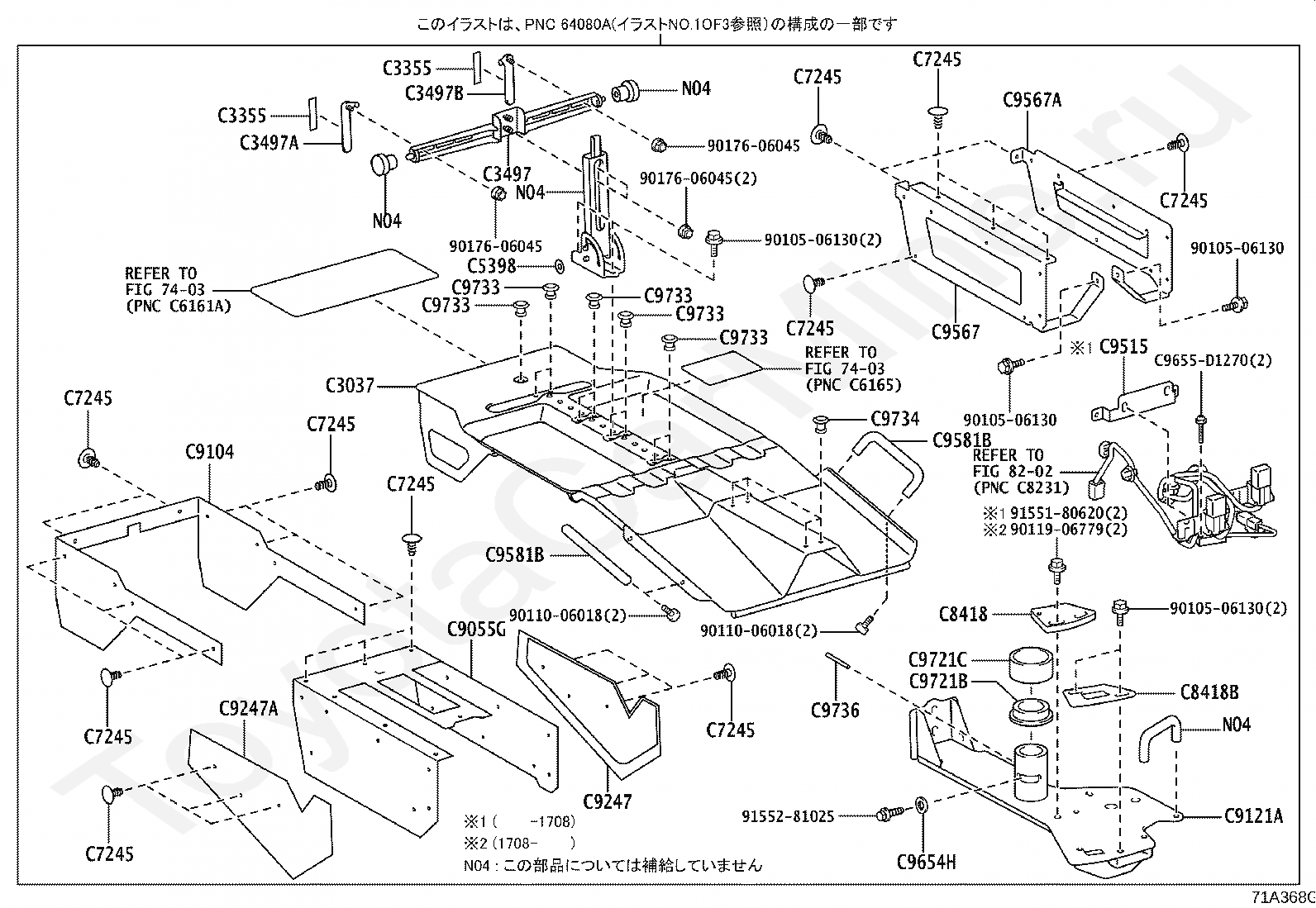

C3037
PLATE SUB-ASSY, CHAIR GUIDE
C3355
COVER, CHAIR GUIDE
C3497
PLATE, WHEEL CHAIR LOCK, NO.1
C3497A
PLATE, WHEEL CHAIR LOCK, NO.2
C3497B
PLATE, WHEEL CHAIR LOCK, NO.3
C5398
SPACER, FRAME TO SIDE
C7245
CLIP, WELCAB SEAT TRACK HANDLE
C8418
PLATE, LIMIT SWITCH
C8418B
PLATE, LIMIT SWITCH, NO.2
C9055G
COVER SUB-ASSY, POWER LIFT, NO.1
C9104
COVER SUB-ASSY, POWER LIFT BEAM
C9121A
BASE, POWER LIFT COLUMN
C9247
PROTECTOR, POWER LIFT LINK, NO.1
C9247A
PROTECTOR, POWER LIFT LINK, NO.2
C9515
BRACKET, POWER LIFT CABLE, NO.1
C9567
BRACKET, POWER LIFT COVER, NO.1
C9567A
BRACKET, POWER LIFT COVER, NO.2
C9581B
HANDLE, POWER LIFT
C9654H
COLLAR, POWER LIFT CYLINDER
C9655D1270
Крепеж
C9721B
BEARING, NO.2 WINCH, NO.2
C9721C
BEARING, NO.2 WINCH, NO.3
C9733
PIN, WINCH ROLLER, NO.3
C9734
PIN, WINCH ROLLER, NO.4
C9736
PIN, WINCH ROLLER, NO.5
Код
Описание

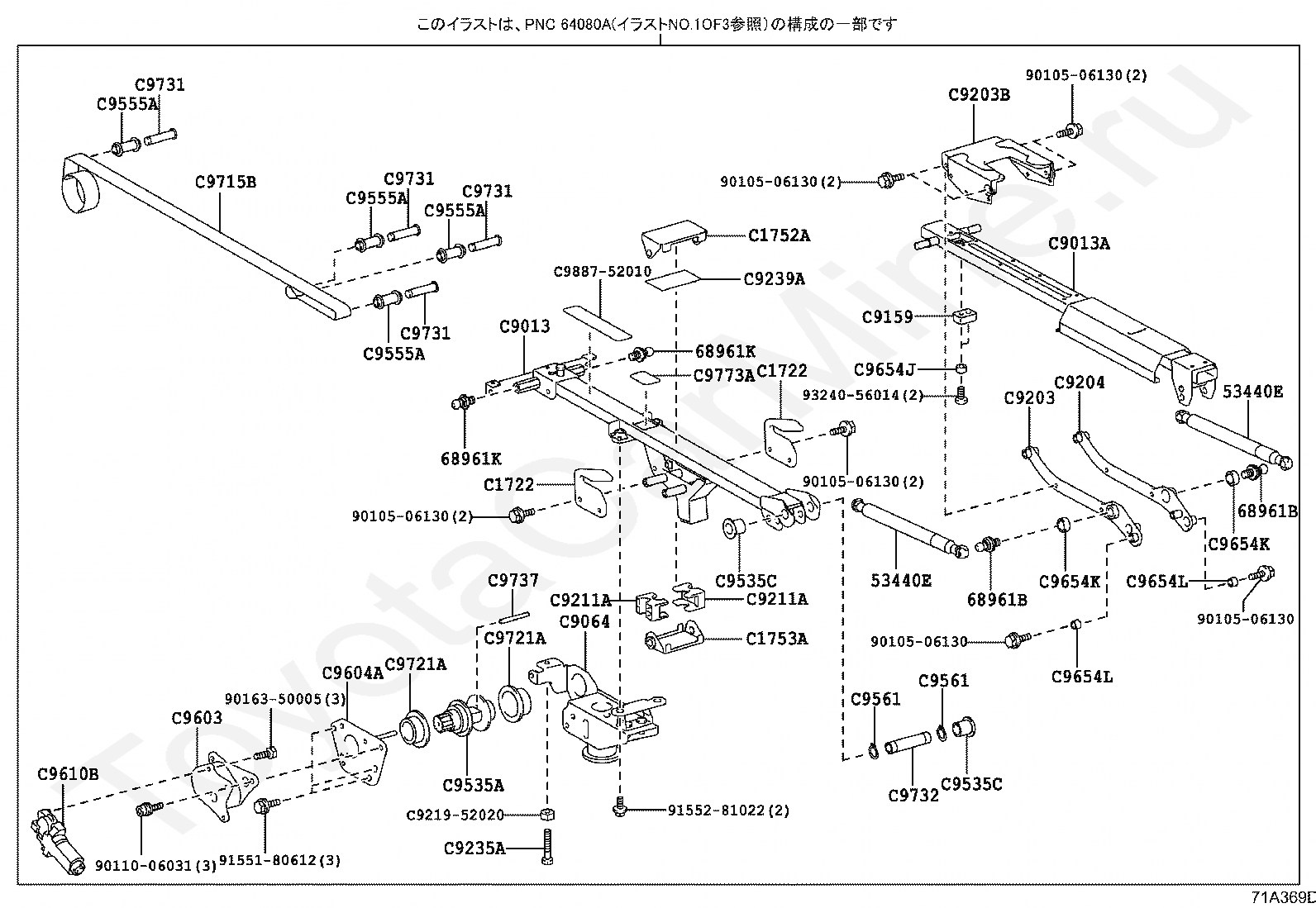

53440E
SUPPORT ASSY, POWER LIFT ARM
68961B
BOLT, POWER LIFT ARM, NO.1
68961K
BOLT, POWER LIFT ARM, NO.2
9010506130
Крепеж
9011006031
Крепеж
9016350005
Крепеж
9155180612
Крепеж
9155281022
Крепеж
9324056014
Крепеж
C1722
PLATE, CONTROL, LOWER
C1752A
PLATE, CONTROL ARM, UPPER
C1753A
PLATE, CONTROL ARM, LOWER
C9013
ARM SUB-ASSY, POWER LIFT, NO.1
C9013A
ARM SUB-ASSY, POWER LIFT, NO.2
C9064
BASE SUB-ASSY, POWER LIFT MOTOR
C9159
SPACER, LIFT ARM GUIDE STOPPER
C9203
LINK SUB-ASSY, POWER LIFT ARM, NO.1 RH
C9203B
LINK SUB-ASSY, POWER LIFT ARM, NO.2
C9204
LINK SUB-ASSY, POWER LIFT ARM, NO.1 LH
C9211A
GUIDE, POWER LIFT
C921952020
Крепеж
C9235A
STOP, POWER LIFT ARM
C9239A
SPACER, LIFT ARM LINK
C9535A
PULLEY, POWER LIFT
C9535C
ROLLER, LIFT ARM GUIDE
C9555A
ROLLER, POWER LIFT
C9561
STOP, CYLINDER
C9603
GEAR SUB-ASSY, POWER LIFT
C9604A
BRACKET SUB-ASSY, POWER LIFT MOTOR
C9610B
MOTOR ASSY, POWER LIFT
C9654J
COLLAR, POWER LIFT CYLINDER, NO.2
C9654K
COLLAR, POWER LIFT CYLINDER, NO.3
C9654L
COLLAR, POWER LIFT CYLINDER, NO.4
C9715B
BELT, WINCH
C9721A
BEARING, NO.2 WINCH, NO.1
C9731
PIN, WINCH ROLLER, NO.1
C9732
PIN, WINCH ROLLER, NO.2
C9737
PIN, WINCH ROLLER, NO.6
C9773A
COVER, WINCH WIRE
C988752010
Крепеж
